1x2 HDMI 1.4 CAT Extender/Splitter – 70m (HD14Ext-2P v2.0)
gofanco 1x2 HDMI Extender Splitter over CAT6/7 – Up to 4K/30Hz @ 131ft (40m), 1080p @ 230ft (70m), HDCP 1.4, Dual IR, HDMI Loopout, PoC, RS232 Control, Surge/Lightning/ESD Protection (HD14Ext-2P v2.0)
In stock
Only 83 left
SKU
HD14Ext-2P
Now Only $118.88 Regular Price $149.99
Features

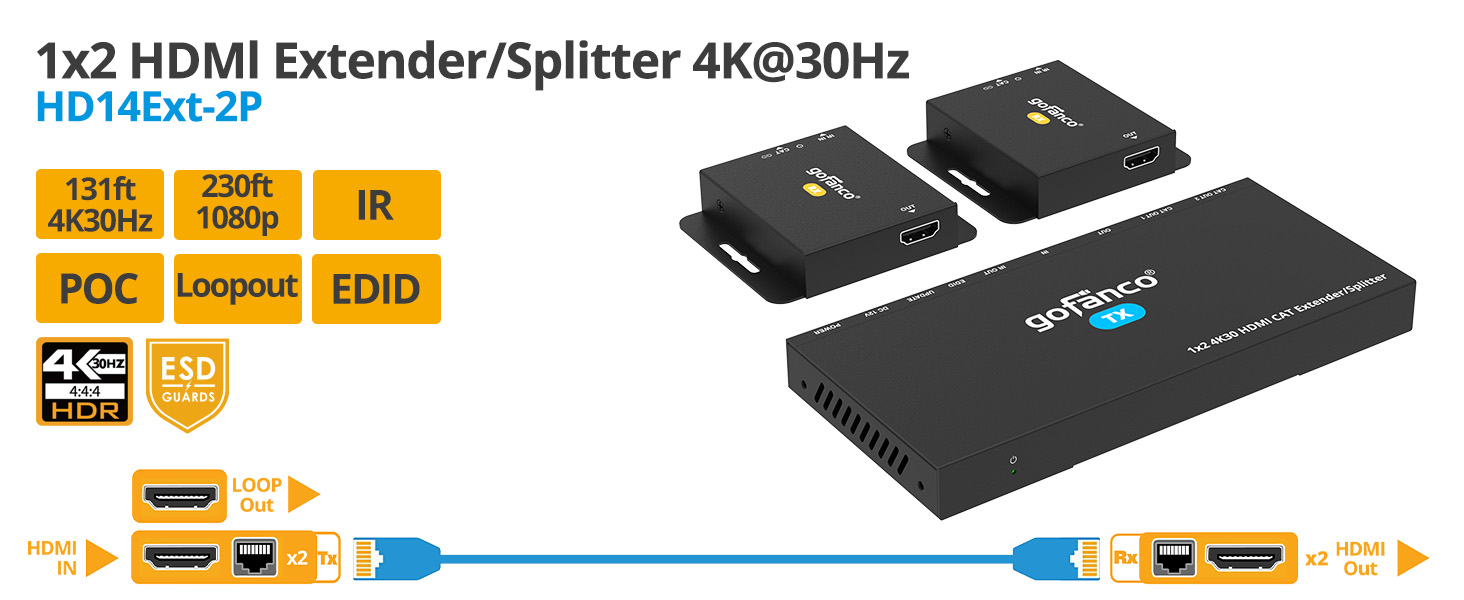

1x2 HDMI EXTENDER/ SPLITTER
Extend and split one HDMI source to two remote displays via CAT6/7 cables and one local HDMI monitor simultaneously with near zero latency. Ideal for home theaters, conference rooms, or digital signage setups
VIDEO RESOLUTION AND RANGE
Supports up to 4K @30Hz, HDCP 1.4. Extends up to 131ft (40m) at 4K/30Hz, and 1080p at 230ft (70m) over CAT6/7
Fully compliant with HDMI 1.4 and HDCP 1.4 standards, supporting a 10.2Gbps video bandwidth for high-quality, reliable video streaming
AUDIO COMPATIBILITY
Supports premium audio formats including LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio, delivering a rich, theater-like audio experience across your setup

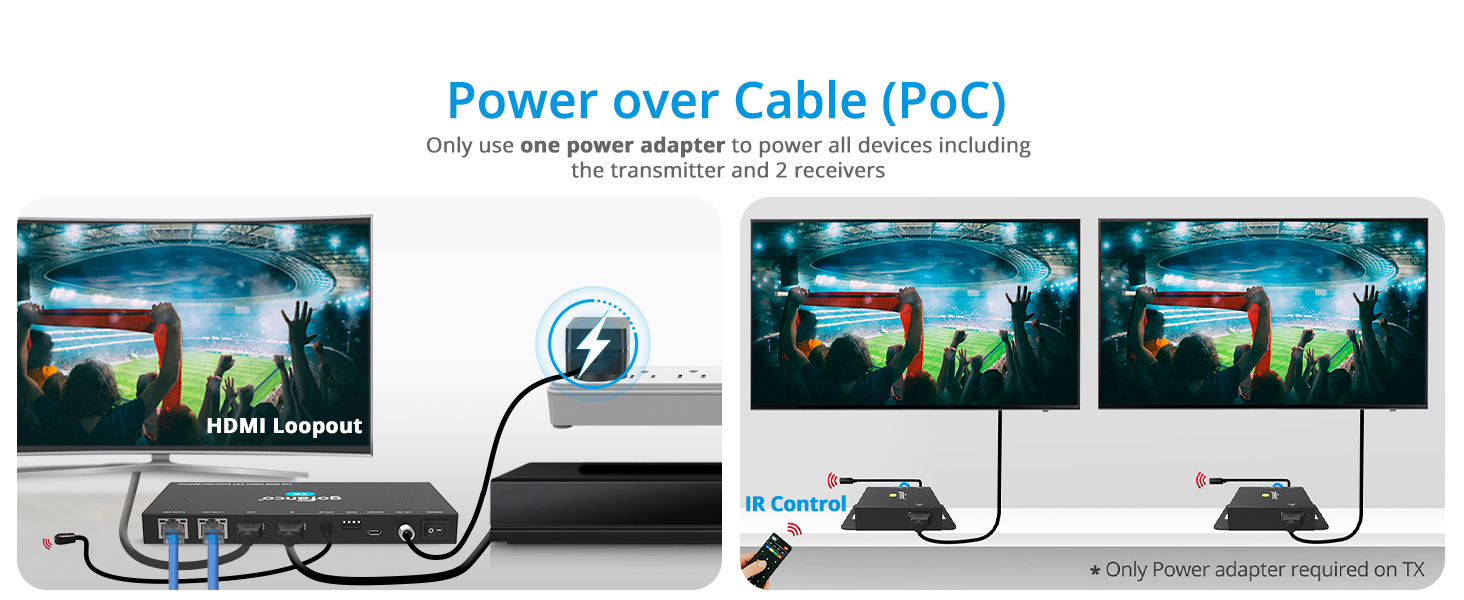

POC (Power over Cable) SUPPORT
Simplify installation with one-way PoC—only one power adapter is needed at the transmitter side, reducing cable clutter and improving flexibility in tight spaces
One-Way IR Control
Includes one-way IR pass-through for remote source control

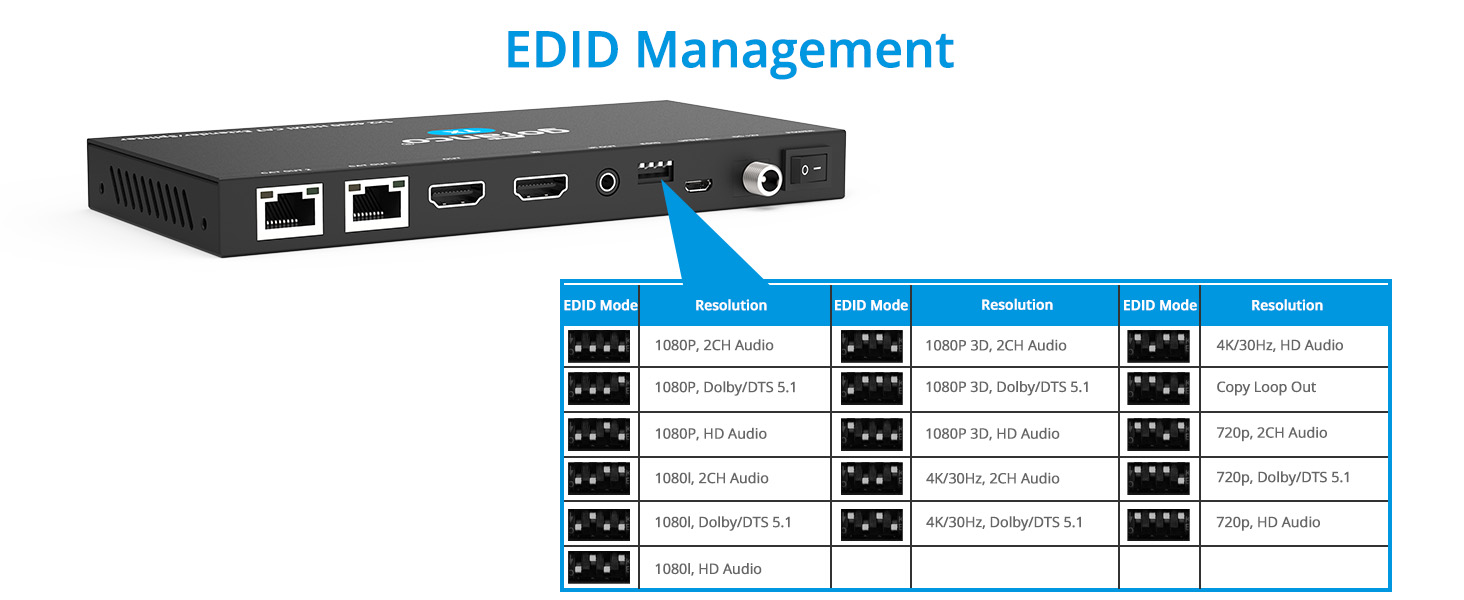

EDID MANAGEMENT
Advanced EDID management for reliable signal negotiation and display
SIMPLE INSTALLATION
Built with a robust metal housing and surface-mountable design. No software or drivers required. Ideal for both residential and commercial AV environments. FCC, CE, and RoHS compliant for safety and performance. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley
| SKU | HD14Ext-2P |
|---|---|
| Max Resolution/Refresh Rate | 1080p@60Hz, 4K@30Hz |
| Max Distance | 130 ft / 40 m, 230 ft / 70 m |
| Transmission Method | Ethernet/CATx |
| Input x Output | 1x2 |
| Features | PoC, Bi-directional IR, Loop Out, EDID |
| Input Type | HDMI |
| output type | HDMI |
| Compliance | HDMI 1.4, HDCP 1.4 |
Write Your Own Review
Customer Questions
No Questions
Specifications
- Video resolutions: Up to 4K @30Hz
- HDCP 1.4 compliant
- Extends up to 131ft (40m) at 4K/30Hz, and 1080p at 230ft (70m) over CAT6/7
- HDMI Audio: PCM/LPCM/DTS-HD/DTS/Dolby Digital
- One-way IR
- HDMI loopout for a local display

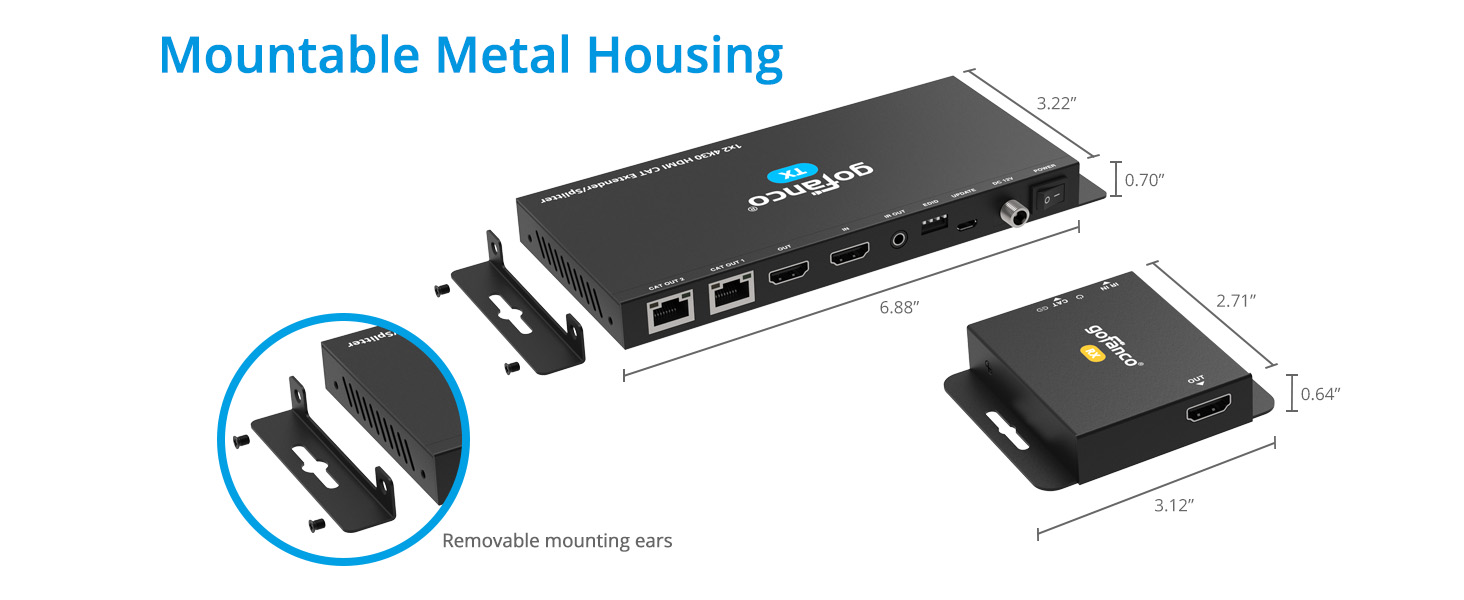

- Housing: Surface mountable metal enclosure
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS
What's in the Package
- 1x2 HDMI CAT Splitter/Extender 4K – 70m (1 TX & 2 RX’s)
- IR Blaster cable (1)
- IR RX cables (2)
- Power adapters (1)
- Surface mount accessories
- User’s guide
Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support
