MST Multi-Monitor Adapter Table

View Downloadable MST Pre-requisite PDF

Model USBCMST2HDMI USBCMST2DP PRO-MSTmDP2HD PRO-MSTmDP2DP PRO-MSTDP2HD PRO-MSTDP2DP PRO-MSTDP3HD PRO-MSTDP3DP PRO-MSTDP4DP
gofanco logo USB-C to 2 x HDMI MST Adapter Splitter USB-C to 2 x DisplayPort MST Adapter Splitter Mini DisplayPort to 2 x HDMI MST Adapter Splitter Mini DisplayPort to 2 x DisplayPort Adapter Splitter DisplayPort to 2 x HDMI Adapter Splitter DisplayPort to 2 x DisplayPort Adapter Splitter DisplayPort to 3 x HDMI Adapter Splitter DisplayPort to 3 x DisplayPort Adapter Splitter DisplayPort to 4 x DisplayPort Adapter Splitter
Host Connection Input Type USB-C (DP-Alt Mode) USB-C (DP-Alt Mode) Mini DisplayPort 1.2 Mini DisplayPort 1.2 DisplayPort 1.2 DisplayPort 1.2 DisplayPort 1.2 DisplayPort 1.2 DisplayPort 1.2
Video Output 2 x HDMI 2 x DisplayPort 2 x HDMI 2 x DisplayPort 2 x HDMI 2 x DisplayPort 3 x HDMI 3 x DisplayPort 4 x DisplayPort
Supported External Displays Dual Dual Dual Dual Dual Dual Triple Triple Quadruple

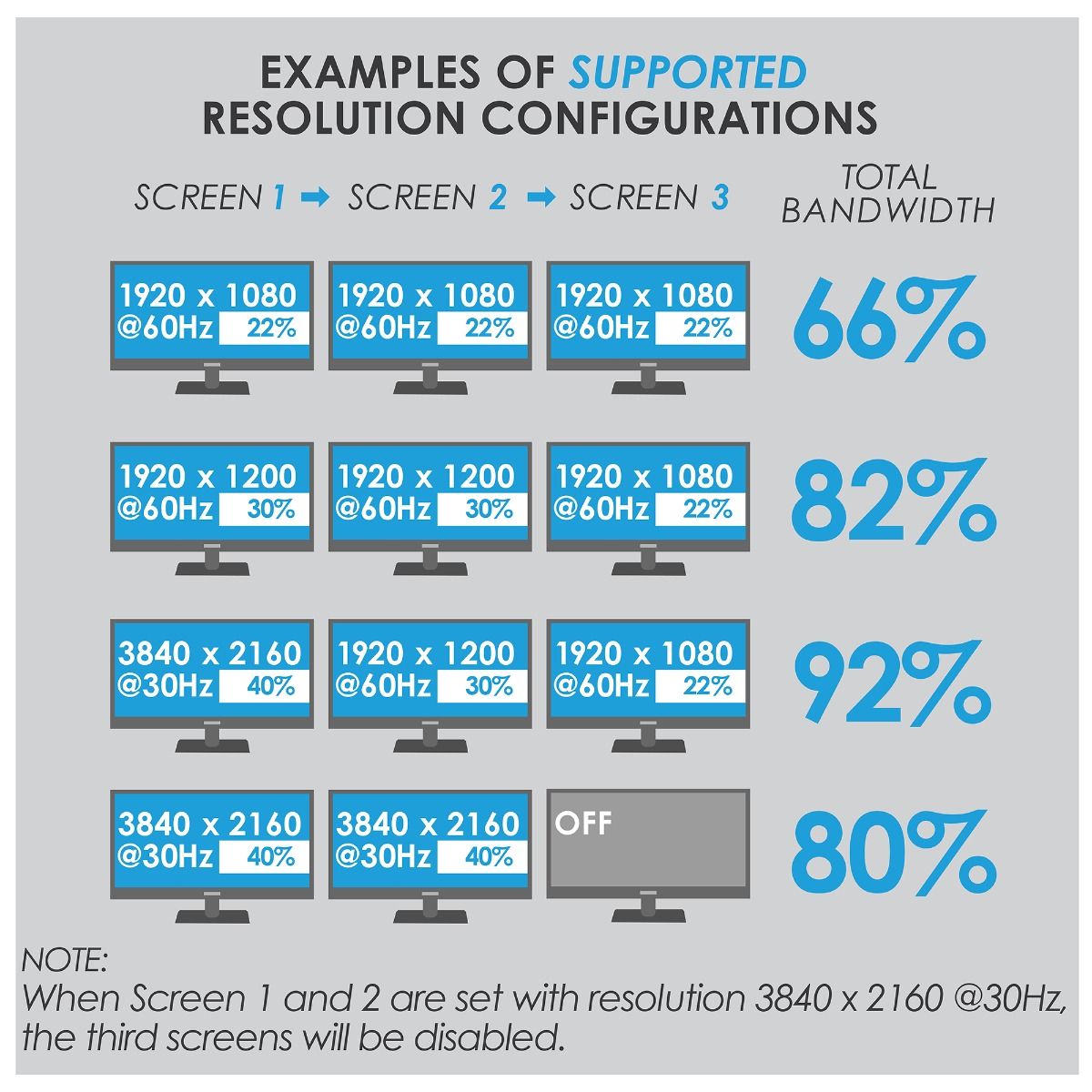

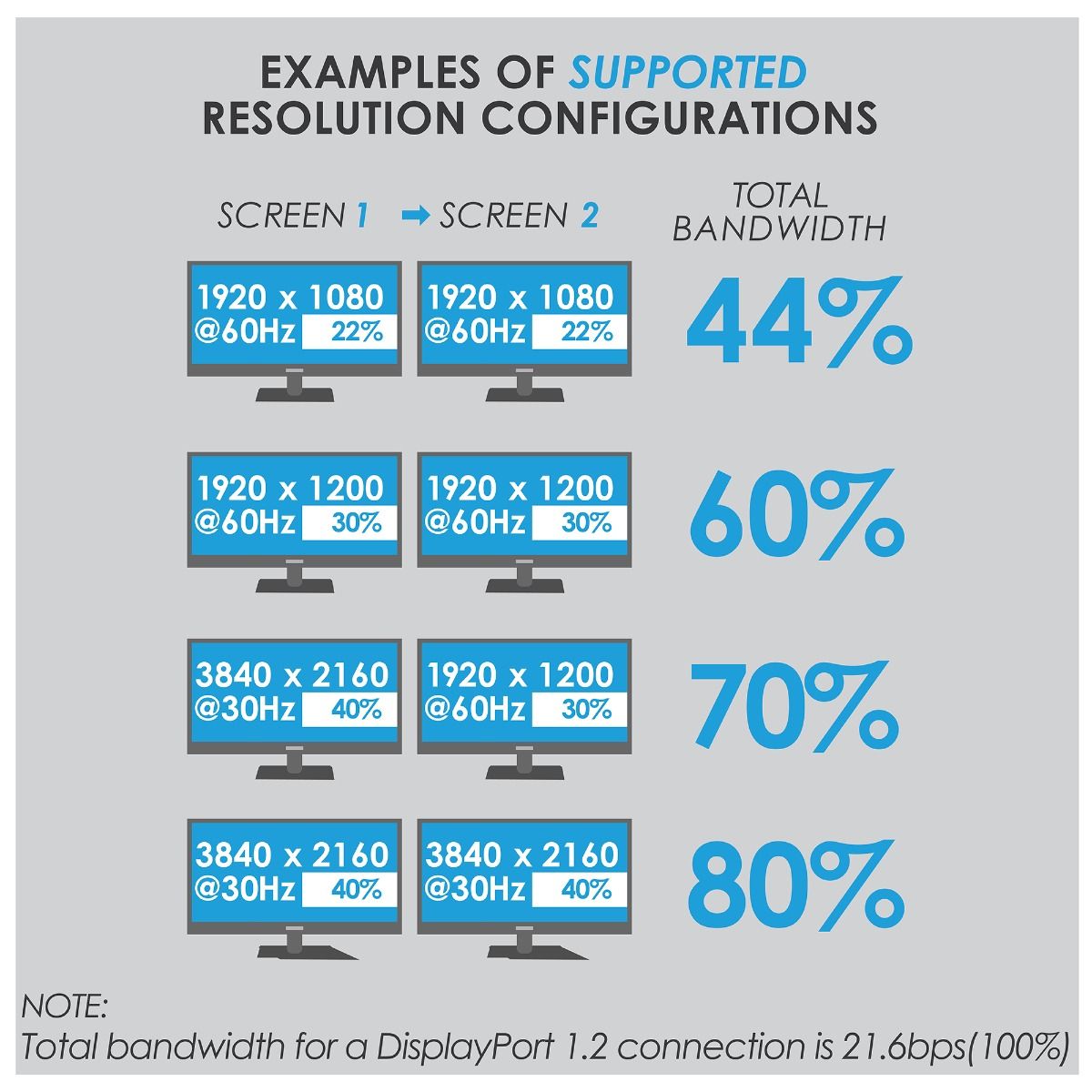

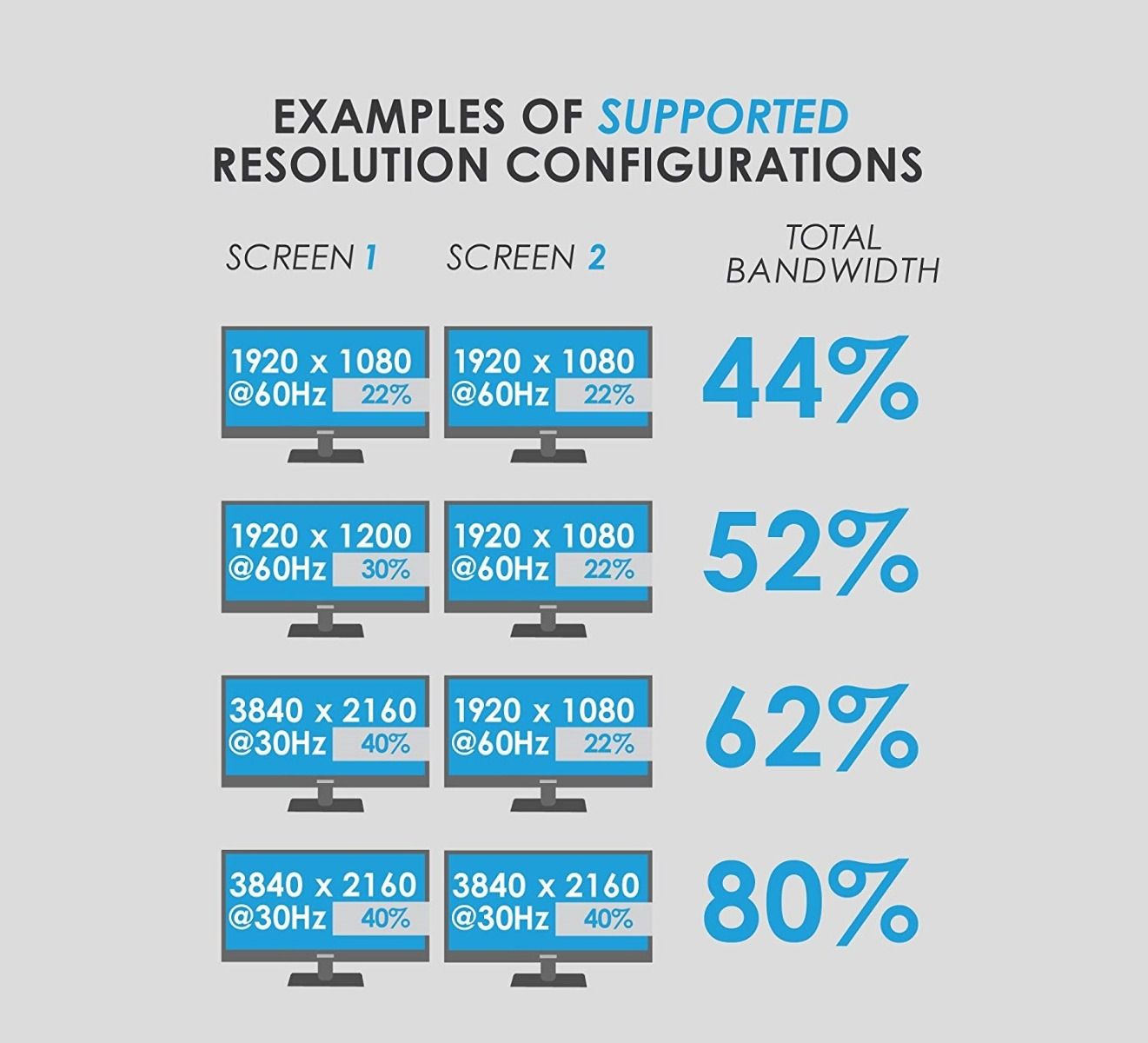

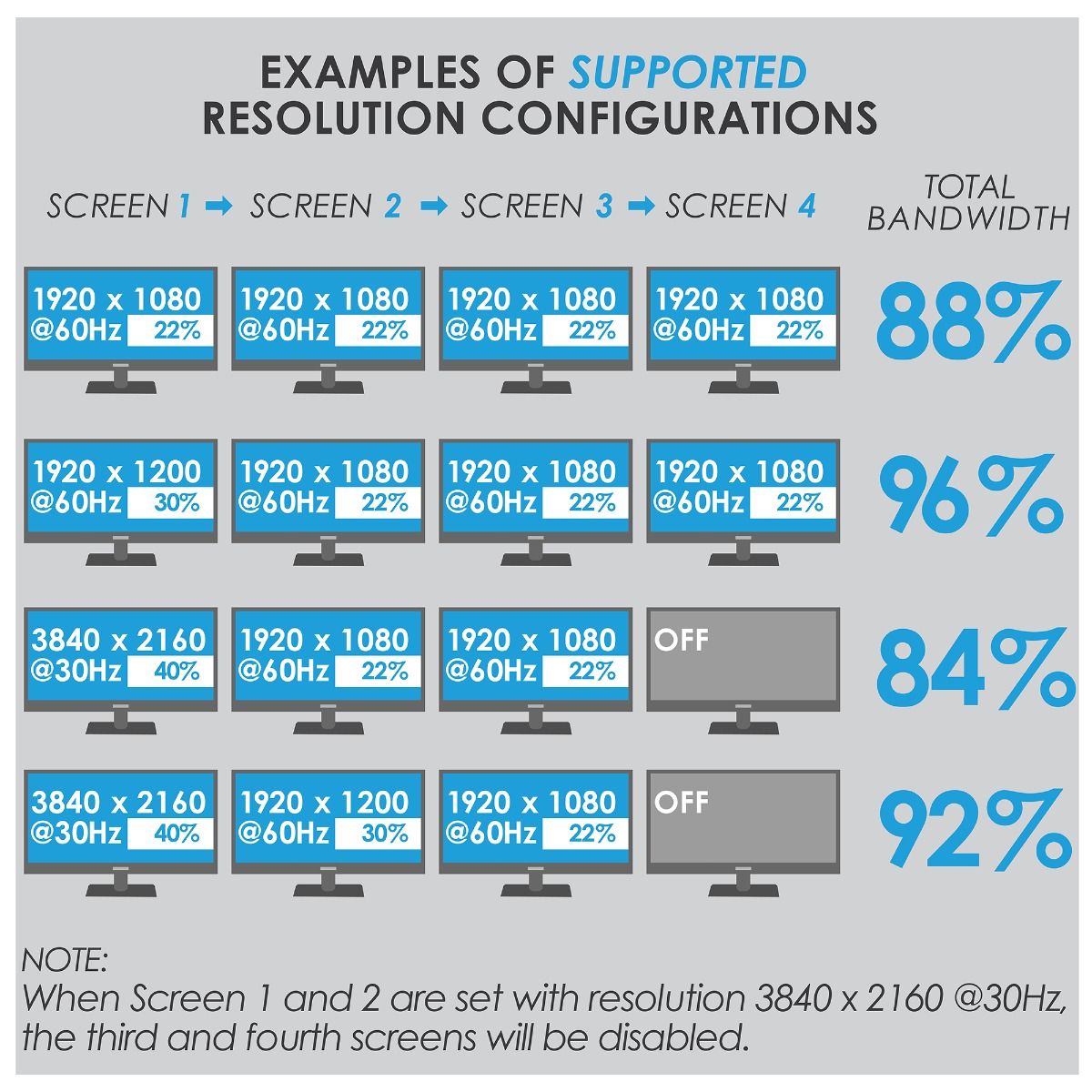

Supported Resolution Configurations See Chart See Chart See Chart See Chart See Chart See Chart See Chart See Chart See Chart
