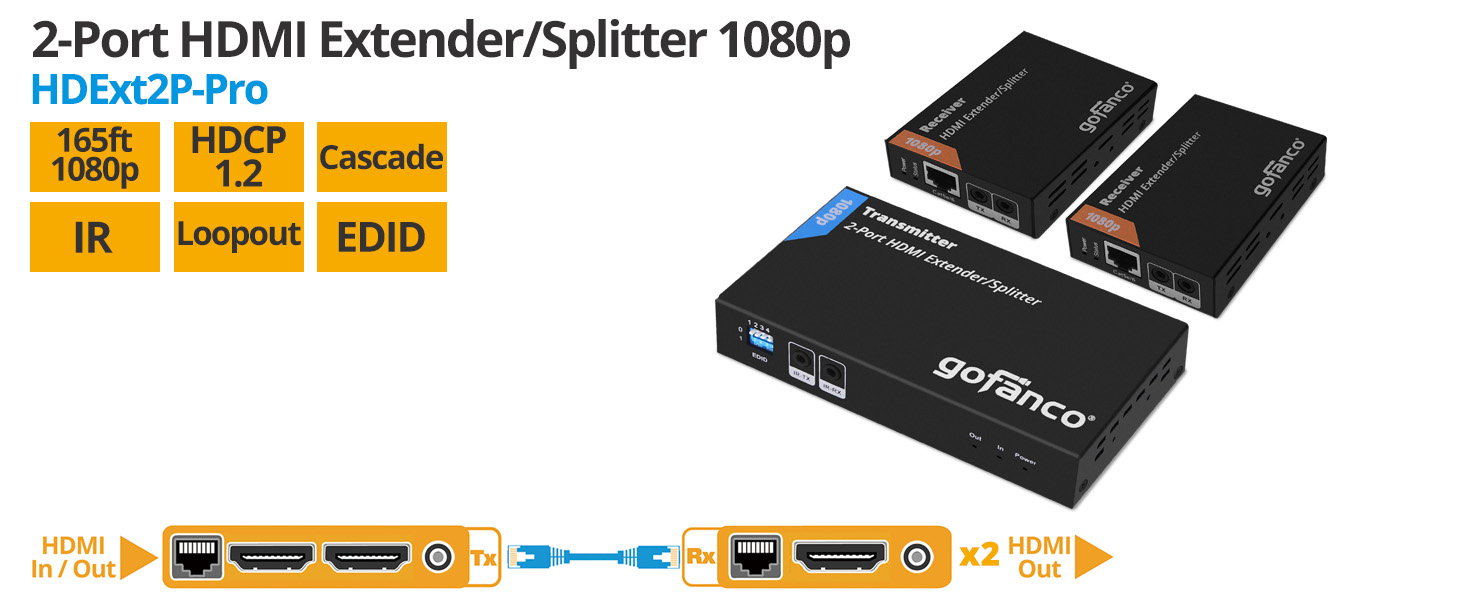

Prophecy 2-Port HDMI Extender over CAT5e/6 w/ Loopout – 165ft (50m) (HDExt2P-Pro)

gofanco® Prophecy 2-Port HDMI Extender/Splitter 1080p 165ft (50m) - Extend and distribute 1 HDMI source to 2 HDMI displays over CAT5e/6/7 simultaneously. Supports up to 50m (165ft) at 1080p@60Hz and includes local HDMI output.

In stock
Only 196 left
SKU
HDExt2P-Pro
Now Only $71.89 Regular Price $119.99
  • Buy 10 for $66.86 each and save 7%
  • Buy 25 for $65.42 each and save 9%
  • Buy 50 for $63.26 each and save 12%

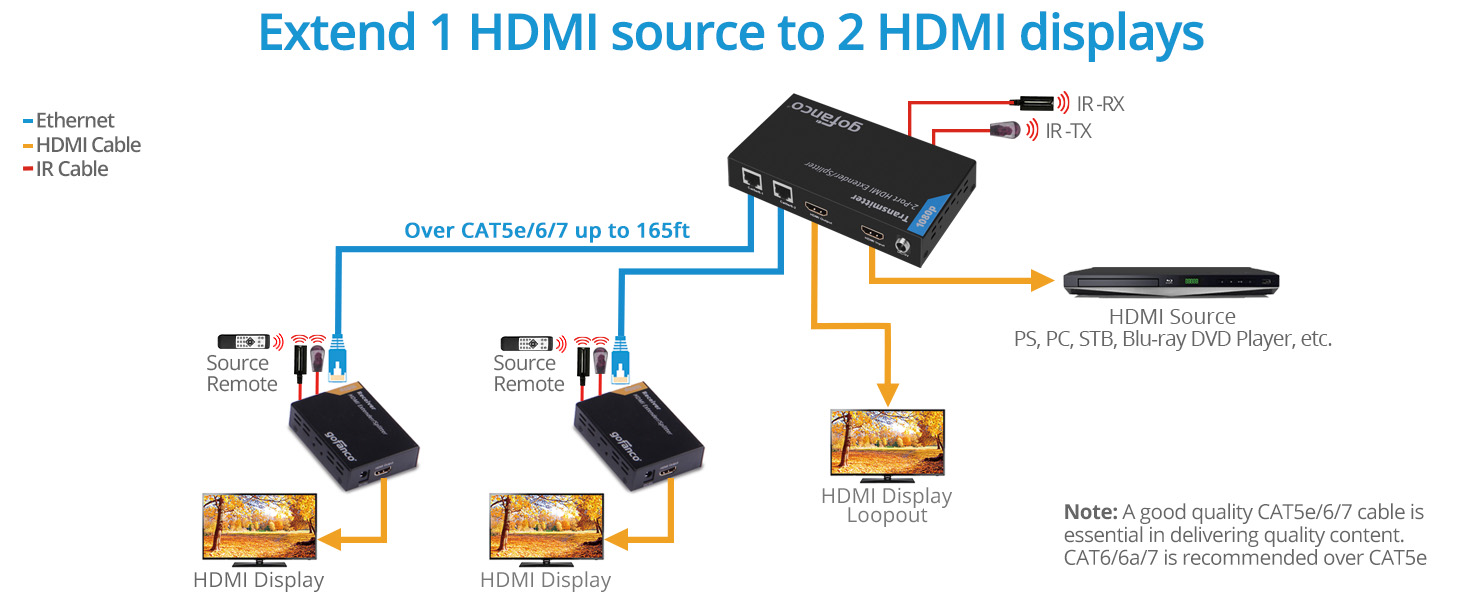

  • COMPLETE KIT - Includes 1 Transmitter & 2 Receivers. Extend and distribute 1 HDMI source to 2 HDMI displays over CAT5e/6/7 simultaneously.  Embedded Silicon Image chipset for best quality, compatibility and reliability
  • HDMI LOSSLESS TRANSMISSION - Extends HDMI audio/video signals to synchronous output video display(s), is as fluent as direct connection; Supports up to 50m (165ft) at 1080p@60Hz with CAT5e/6/7 and surround sound up to 7.1-channel or stereo digital audio; Compatible with HDCP compliant devices & content. * Good quality CATx cables are essential in delivering quality content

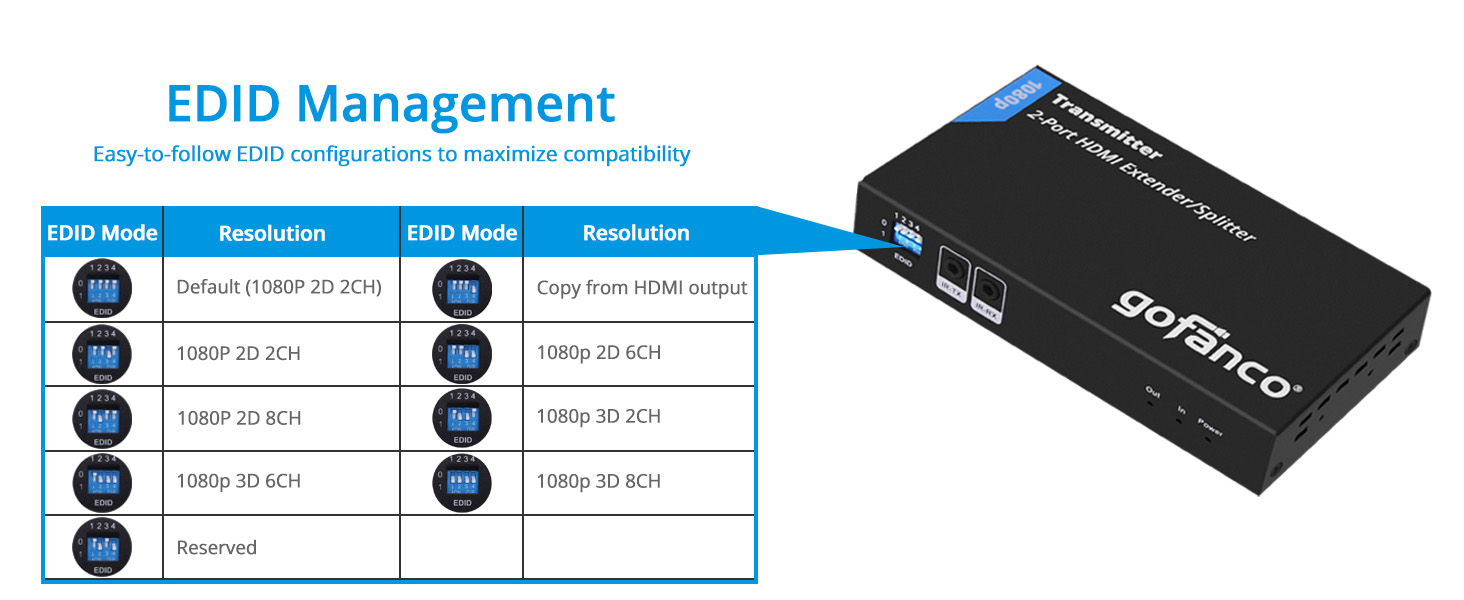

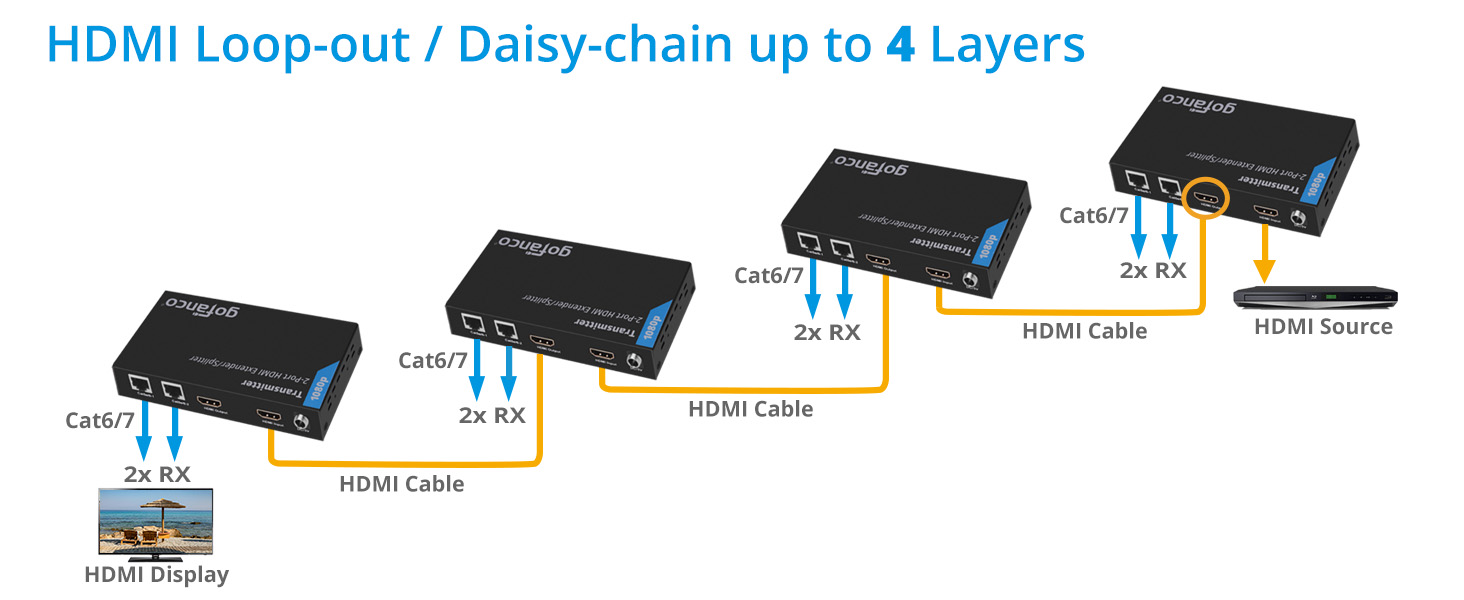

  • HDMI LOOP-OUT - HDMI Transmitter is equipped with 2 port HDMI splitter; Additional HDMI output on the Transmitter to connect to a local display for monitoring or cascade HDMI signals to 4 layers; Easy-to-follow EDID configurations via DIP switches
  • BI-DIRECTIONAL IR REMOTE CONTROL - Control a media player/device from the TV side or TV from device side
  • EASY INSTALLATION - No driver required; Surface mountable metal housing allows easy placement; Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference. FCC, CE & RoHS compliant.  Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, please do not hesitate to contact us directly by clicking "gofanco" after "Sold by" then clicking "Ask a question"

gofanco Prophecy 2-Port HDMI Extender/Splitter over CAT5e/6/7 with Loopout – 50m extends uncompressed HDMI audio/video signals over cost effective CAT5e/6/7 cabling, while maintaining signal strength and lossless video. An HDMI loopout on the Transmitter and Bi-directional IR provide convenience and flexibility to your installation.

Notes:
- Good quality CAT5e/6/7 cables are essential in delivering quality content
- This kit is point to point and comes with 1 Transmitter and 2 Receivers. It’s not meant to work through routers or network switches

Specifications
- Video transmission:
> Up to 50m (165ft) at 1080p@60Hz
> Up to 40m (130ft) at 1920x1200
> Up to 40m (130ft) for 5.1-channel & 7.1-channel audio
- Audio format: Dolby True-HD, DTS-HD Master Audio
- Network cable: UTP/STP CAT5e/6/6a/7
- Housing: Metal
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS

Compatible Devices
- HDMI source device, such as computer PCs, game consoles, Blu-ray players, and media players
- HDMI displays, monitors, and HDTVs

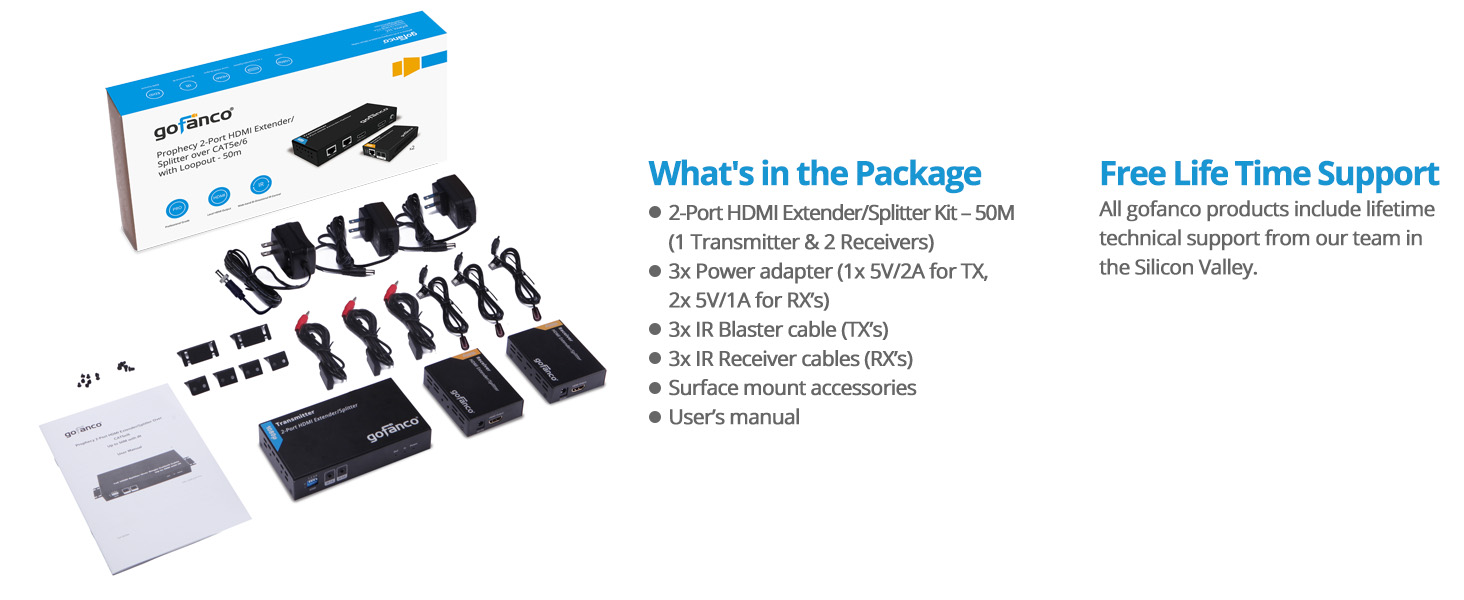

What's in the Package
- Prophecy 2-Port HDMI Extender/Splitter Kit – 50M (1 Transmitter & 2 Receivers)
- 3x Power adapters (1x 5V/2A for TX, 2x 5V/1A for RX’s)
- 3x IR Blaster cables (for TX’s)
- 3x IR Receiver cables (for RX’s)
- Surface mount accessories
- User’s guide

Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support

More Information
SKUHDExt2P-Pro
Max Resolution/Refresh Rate1080p@60Hz
Max Distance165 ft / 50 m
Transmission MethodEthernet/CATx
Input x Output1x2
FeaturesLoop Out, EDID, 3D
ComplianceHDMI 1.3, HDCP 1.2
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Please note that you must be logged in to submit questions

General & Standards

Specification

- Video transmission:
> Up to 50m (165ft) at 1080p@60Hz
> Up to 40m (130ft) at 1920x1200
> Up to 40m (130ft) for 5.1-channel & 7.1-channel audio
- Audio format: Dolby True-HD, DTS-HD Master Audio
- Network cable: UTP/STP CAT5e/6/6a/7
- Housing: Metal
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS

Warranty Information

Warranty

Limited One-Year Warranty and Lifetime Product Support

Product Measurements

Dimensions (W x H x D)

15.35″(W) x 2.17″(H) x 7.17″(D)

Weight

2.69 lbs

Housing Material

 Metal

Environmental Conditions

Operating Temperature

32° to 104° F (10° to 40° C)

Storage Temperature

-4° to 158° F (-10° to 60° C)

Relative Humidity

20% ~ 90% (operating)

Certifications

FCC, CE, RoHS

Country of origin

China


Manuals

hdext2p-pro.pdf Manual for HDExt2P-Pro
Manual for HDExt2P-Pro
