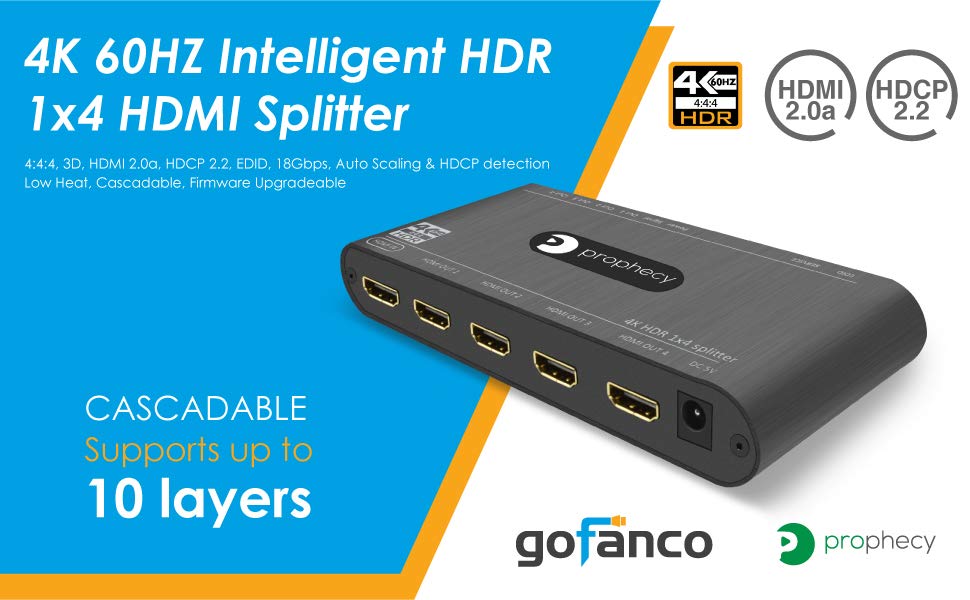

Prophecy 4K-HDR 1x4 Splitter (PRO-HDRsplit4P)
Prophecy 4K-HDR 1x4 Splitter (PRO-HDRsplit4P)

Part Number: PRO-HDRsplit4P

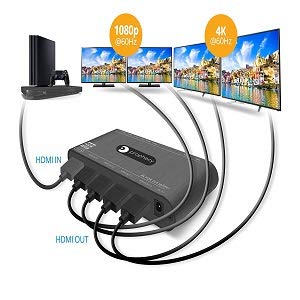

gofanco® Prophecy 4K-HDR 1x4 HDMI 2.0a Splitter - Split one source device to four displays up to 4K @60Hz (4:4:4 8-bit), HDR 4K @60Hz (4:2:0 10-bit). Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth. Intelligent downscaling detects and configures the video resolution automatically according to the capabilities of each connected monitor.
View all features
$69.99

Quantity in stock: 560

  • Buy 10 for $64.39 each and save 9%
  • Buy 20 for $62.99 each and save 11%
  • Buy 50 for $61.59 each and save 13%
Available at amazon

  • 4-PORT HDMI 2.0 SPLITTER: Distributes HDMI video & audio from a single source to 2 HDMI displays simultaneously without signal degradation. Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth.Easy and stable to CASCADE multiple splitters for more outputs. Supports up to 10 layers.
  • 4K 60HZ HDR ULTRA HD VIDEO & AUDIO: Supports up to 4K @60Hz (4:4:4 8-bit), HDR 4K @60Hz (4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color. Supports Dolby Digital, DTS-HD and Dolby TrueHD audio. Comprehensive EDID options and Firmware upgradeable
  • AUTO VIDEO SCALING/DOWNSCALING: to Support Simultaneous 4K and 1080P output – Detects and configures the video resolution automatically according to the capabilities of each connected monitor. Supports simultaneous mixed 4K & 1080p display outputs, downscaling. **NOTE: Does NOT support resolution downscaling from 4K2K @60Hz 4:2:2 to 1080P.  See important notes in the description.
  • GAME CAPTURE IN 1080P/PLAY IN 4K: Use Elgato or other game capture device to record game play footage in 1080p, while acually playing in 4K! Save money,
  • MADE IN TAIWAN AND HIGH QUALITY COMPONENTS & LOW HEAT GENERATION: Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee the highest stability. FCC, CE & RoHS compliant. Made in Taiwan. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Contact us at "www.gofanco.com/contacts" if you have any questions or concerns.

gofanco Prophecy 4K-HDR 1x4 HDMI 2.0a Splitter with adjustable EDID management and auto video scaling provides a cost effective and an advanced HDMI splitter solution. It allows high quality HDMI video/audio to be transmitted to 4 displays wiDoes NOT support resolution downscaling from 4K2K @60Hz 4:2:2 to 1080P.
- YCbCr 4:2:2 downscaling is not supported.
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported.
- Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally.

Features
- HDMI 2.0a compliant
- HDCP 2.2 and 1.4 compliant
- Supports 4K @60Hz (4:4:4 8-bit)
- Supports HDR 4K @60Hz (4:2:0 10-bit)
- Wide frequency range: 25MHz - 600MHz
- Video bandwidth: 18Gbps (Single-link 600MHz)
- Supports resolution downscaling from 4K to 1080p

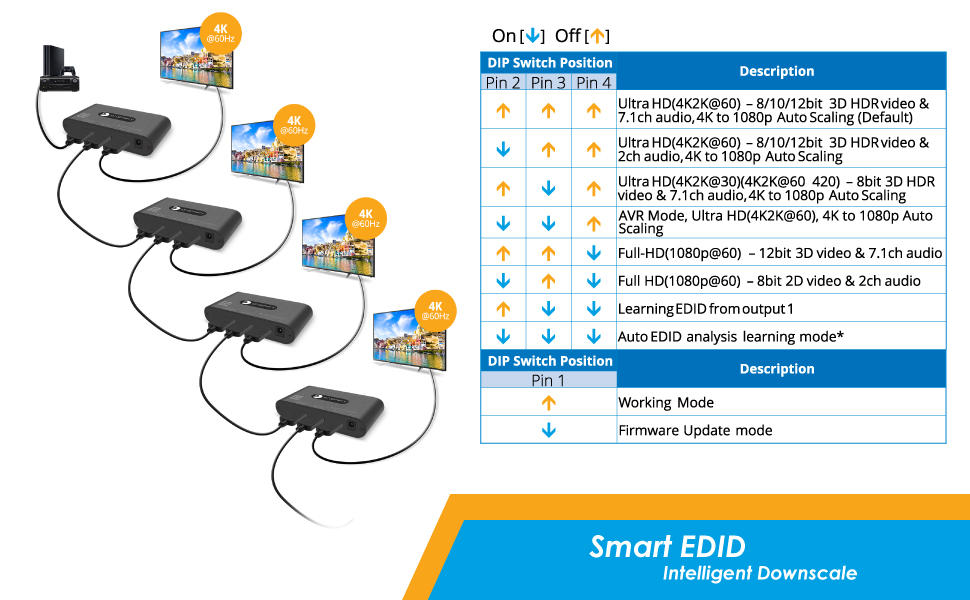

- EDID management: Preprogrammed settings or EDID learning
- Supports xvYCC, x.v.Color & Deep Color
- Built-in firmware update mechanism (via Mini-USB) for expanded compatibility
- Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
- Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference
- Low heat generation
- ESD protection
- Country of origin: Taiwan
- Regulatory approvals: FCC, CE, RoHS

Compatible Devices
- HDMI source device, such as computer PCs, Blu-ray players, and media players
- HDMI displays, monitors, and HDTVs

What's in the Package
- 4K-HDR 1x4 Splitter
- Power adapter
- User’s manual

Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support

Product Demonstration:

General & Standards

Specification

- HDMI 2.0a compliant

- HDCP 2.2 and 1.4 compliant

- Supports 4K @60Hz (4:4:4 8-bit)

- Supports HDR 4K @60Hz (4:2:0 10-bit)

- Wide frequency range: 25MHz - 600MHz

- Video bandwidth: 18Gbps (Single-link 600MHz)

- Supports resolution downscaling from 4K to 1080p

- EDID management: Preprogrammed settings or EDID learning

- Supports xvYCC, x.v.Color & Deep Color

- Built-in firmware update mechanism (via Mini-USB) for expanded compatibility

- Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM

- Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference

- Low heat generation

- ESD protection

- Country of origin: Taiwan

- Regulatory approvals:  FCC, CE, RoHS

Warranty Information

Warranty

Limited One-Year Warranty and Lifetime Product Support

Product Measurements

Dimensions (W x H x D)

5.9 ″(W)x 0.9 ″(H)x 2.7 ″(D)

Weight

0.475 lbs

Housing Material

 Metal

Environmental Conditions

Operating Temperature

32° to 104° F (10° to 40° C)

Storage Temperature

-4° to 158° F (-10° to 60° C)

Relative Humidity

20% ~ 90% (operating)

Certifications

FCC, CE, RoHS

Country of origin

China

Compatible Devices

-  HDMI source device, such as computer PCs, game consoles, Blu-ray players, and media players

-  HDMI displays, monitors, and HDTVs

Package Contents

-  4K-HDR 1x4 Splitter

-  Power adapter

-  User’s manual

  • 4-PORT HDMI 2.0 SPLITTER: Distributes HDMI video & audio from a single source to 2 HDMI displays simultaneously without signal degradation. Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth.Easy and stable to CASCADE multiple splitters for more outputs. Supports up to 10 layers.
  • 4K 60HZ HDR ULTRA HD VIDEO & AUDIO: Supports up to 4K @60Hz (4:4:4 8-bit), HDR 4K @60Hz (4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color. Supports Dolby Digital, DTS-HD and Dolby TrueHD audio. Comprehensive EDID options and Firmware upgradeable
  • AUTO VIDEO SCALING/DOWNSCALING: to Support Simultaneous 4K and 1080P output – Detects and configures the video resolution automatically according to the capabilities of each connected monitor. Supports simultaneous mixed 4K & 1080p display outputs, downscaling. **NOTE: Does NOT support resolution downscaling from 4K2K @60Hz 4:2:2 to 1080P.  See important notes in the description.
  • GAME CAPTURE IN 1080P/PLAY IN 4K: Use Elgato or other game capture device to record game play footage in 1080p, while acually playing in 4K! Save money,
  • MADE IN TAIWAN AND HIGH QUALITY COMPONENTS & LOW HEAT GENERATION: Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee the highest stability. FCC, CE & RoHS compliant. Made in Taiwan. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Contact us at "www.gofanco.com/contacts" if you have any questions or concerns.
