1x4 1080p HDMI Wireless Extender (HDwireless1x4)

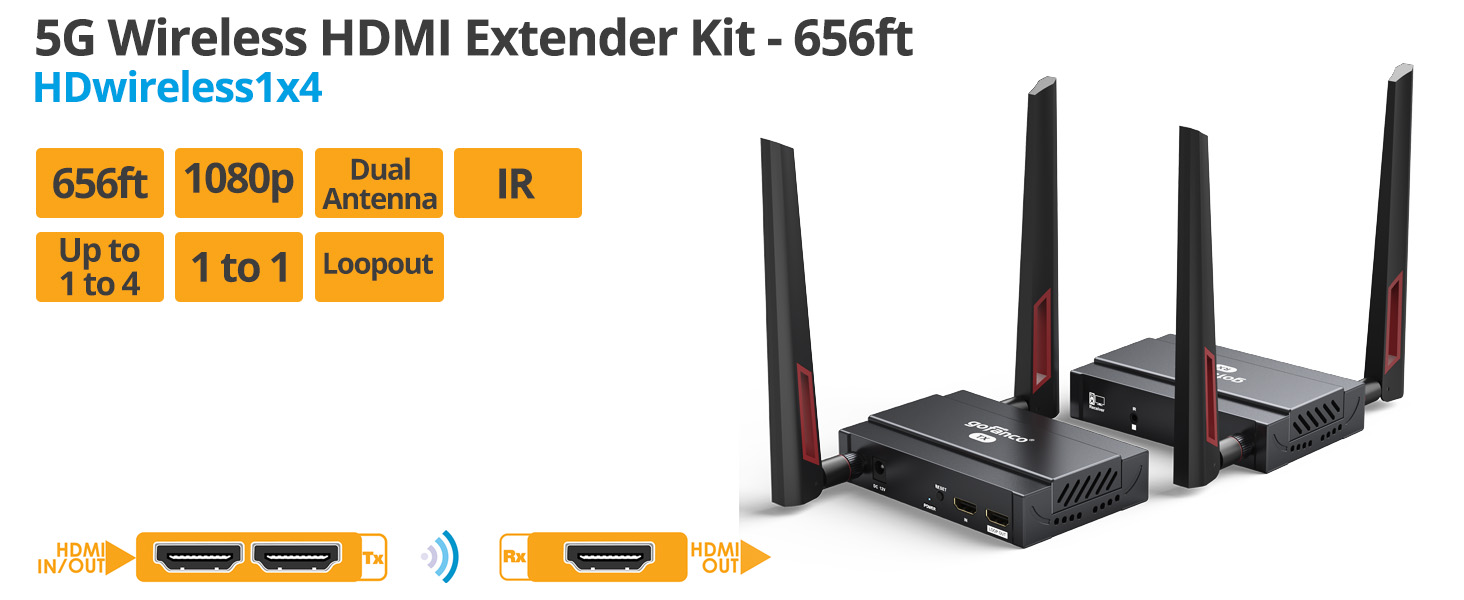

gofanco 5G Wireless HDMI Extender Kit – Up to 656ft (200m) at 1080p, Supports Up to 4 Receivers, Dual Antenna, Long Range, 5GHz Frequency, Loopout, IR Extension, 2ch PCM audio (HDwireless1x4)

In stock
Only 8 left
SKU
HDwireless1x4
Now Only $148.88 Regular Price $159.99

Features


WIRELESS HDMI EXTENSION

Our 1080p HDMI wireless extender kit transmits HDMI audio/video signal from your HDMI source to a display up to 656 feet (200 meters) away wirelessly. *Note: When there are objects/walls blocking the line of sight between Transmitter and Receiver, effective transmission will be significantly reduced

Description

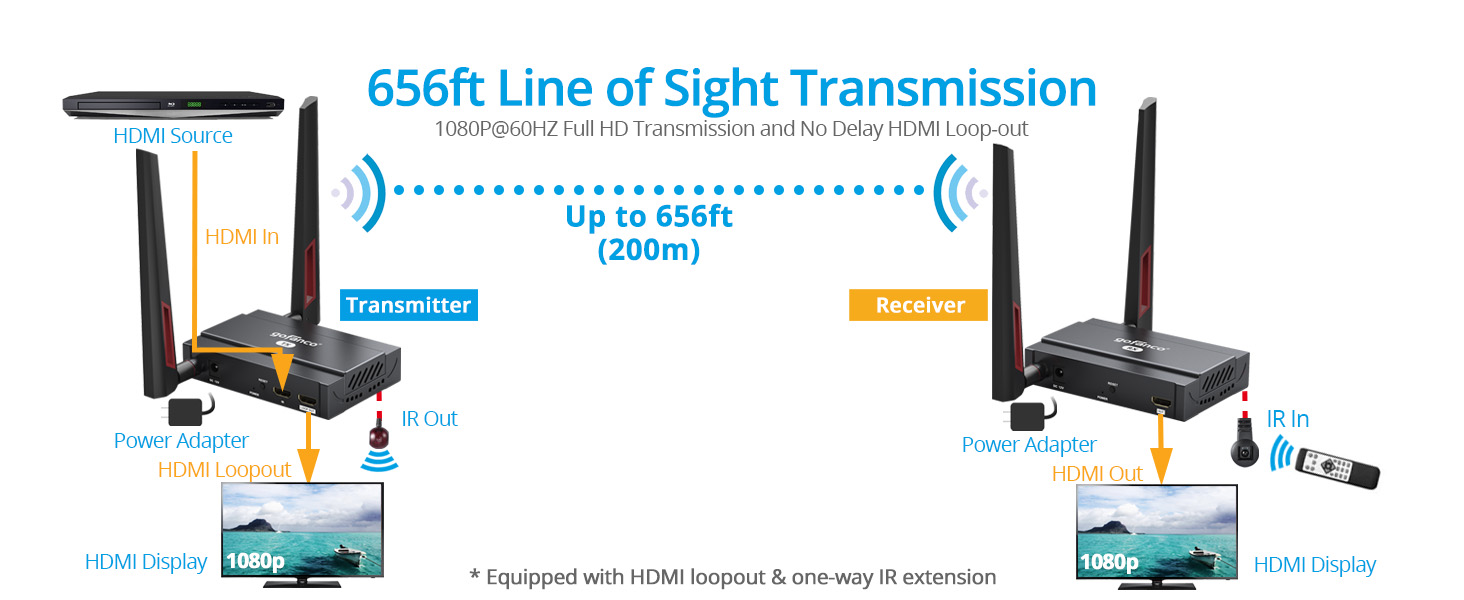

LONG TRANSMISSION DISTANCE

Wirelessly transmit 1080p signals up to 656ft away and simultaneously transmit to HDMI Loop OUT without delay

Description

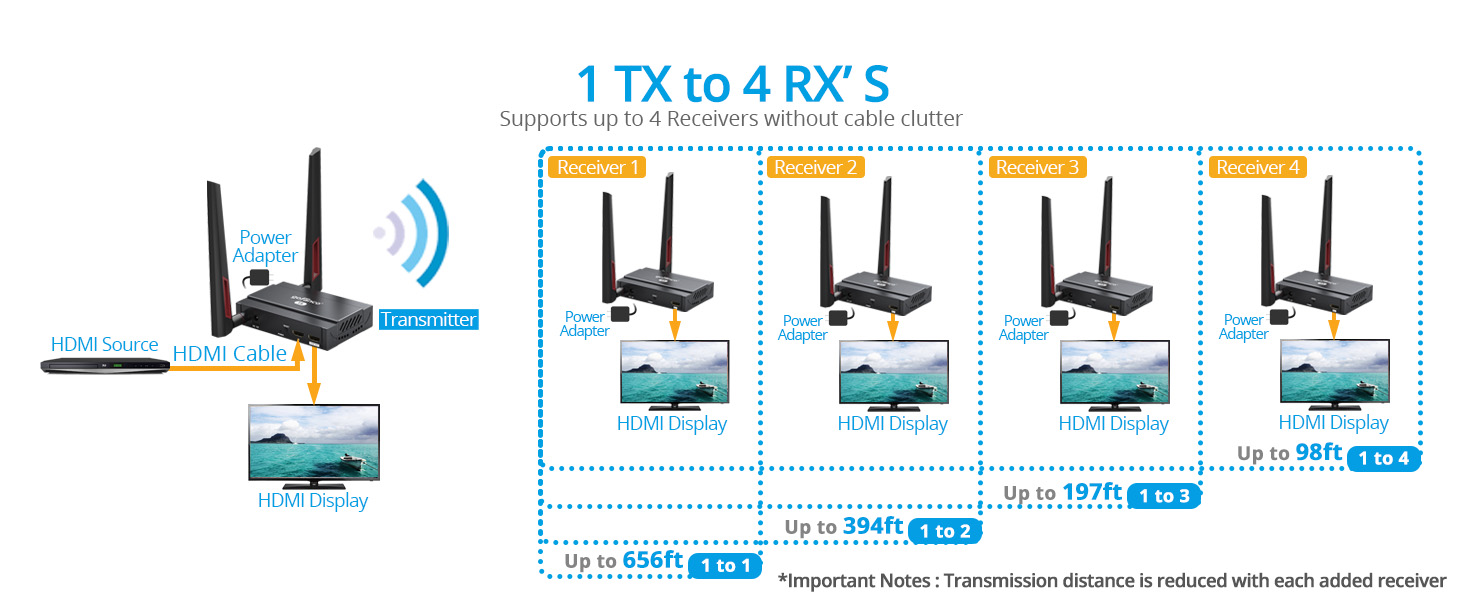

4-RECEIVER SUPPORT

This kit comes with 1 Transmitter and 1 Receiver, but can support up to 4 Receivers, displaying the same content across all displays simultaneously. Additional Receivers (HDwireless1x4-RX) are sold separately. *Note: The wireless transmission range is reduced with each added Receiver

Description

Description


SUPERIOR VIDEO QUALITY

Vivid, high-definition videos up to 1080p with auto-adjustment to produce the best video/audio experience. Supports LPCM 2-channel audio. Does NOT support Dolby Digital. * Note: There’s a 200ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming

ADVANCED FEATURES

HDMI output (loopout) on the Transmitter for a local display, dual antenna, auto 5GHz detection, IR extension

ULTRA-LOW LATENCY

Experience seamless video and audio transmission with the gofanco 1x4 1080p HDMI Wireless Extender, offering an ultra-low latency of just 0.12 seconds from TX to RX

Description


HOW TO PAIR THE TX AND RX?

pair pair pair pair

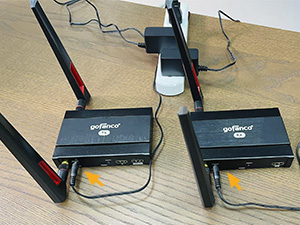

Step 1

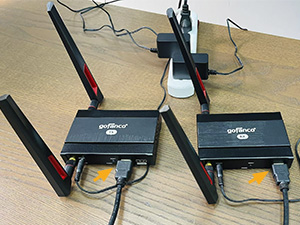

Step 2

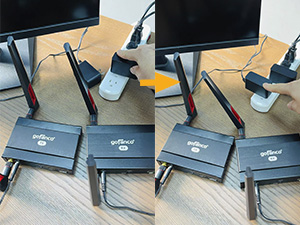

Step 3

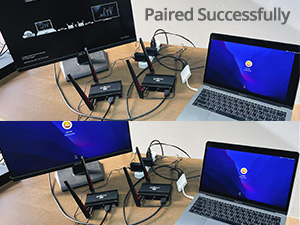

Step 4

Power on the TX and RX and wait 30 seconds Connect an HDMI cable between the TX's HDMI Input and RX's HDMI Output and wait 10 seconds 1. Disconnect the HDMI cable from TX and RX; 2. Power cycle the TX and RX to complete the pairing See the IP address and Wi-Fi signal, device are pairing succeeded. Noted: Repeat the Step1~3 to pairing the RX2~4. (RX1~4 should show same IP address)

SIMPLE INSTALLATION

No driver required; Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley

Description

More Information
SKUHDwireless1x4
Max Resolution/Refresh Rate1080p@60Hz
Max Distance660 ft / 200 m
Transmission MethodWireless
Input x Output1x4
FeaturesLoop Out
Input TypeHDMI
output typeHDMI
ComplianceHDMI 1.3
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Please note that you must be logged in to submit questions

Notes:
- When there are objects/walls blocking the line of sight between Transmitter and Receiver, effective transmission will be significantly reduced
- Supports up to 4 receivers; however, the wireless transmission range is reduced with each added receiver
- There’s a 200ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming

Features & Specifications
- HDMI & HDCP 1.3 compliant
- Video resolutions: Up to 1080p @60Hz
- Transmission range: Up to 656ft (200m) at 1080p
- Audio support: PCM 2-channel audio
- Supports up to 4 receivers. Additional receivers (HDwireless1x4-RX) are sold separately
- Audio support: PCM 2-channel audio
- Operates in the 5GHz wireless spectrum
- Dual antenna maximizes wireless reception with stable data transmission
- Equipped with an HDMI loopout on the TX for a local display
- Supports one-way IR extension
- Housing: Metal
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS

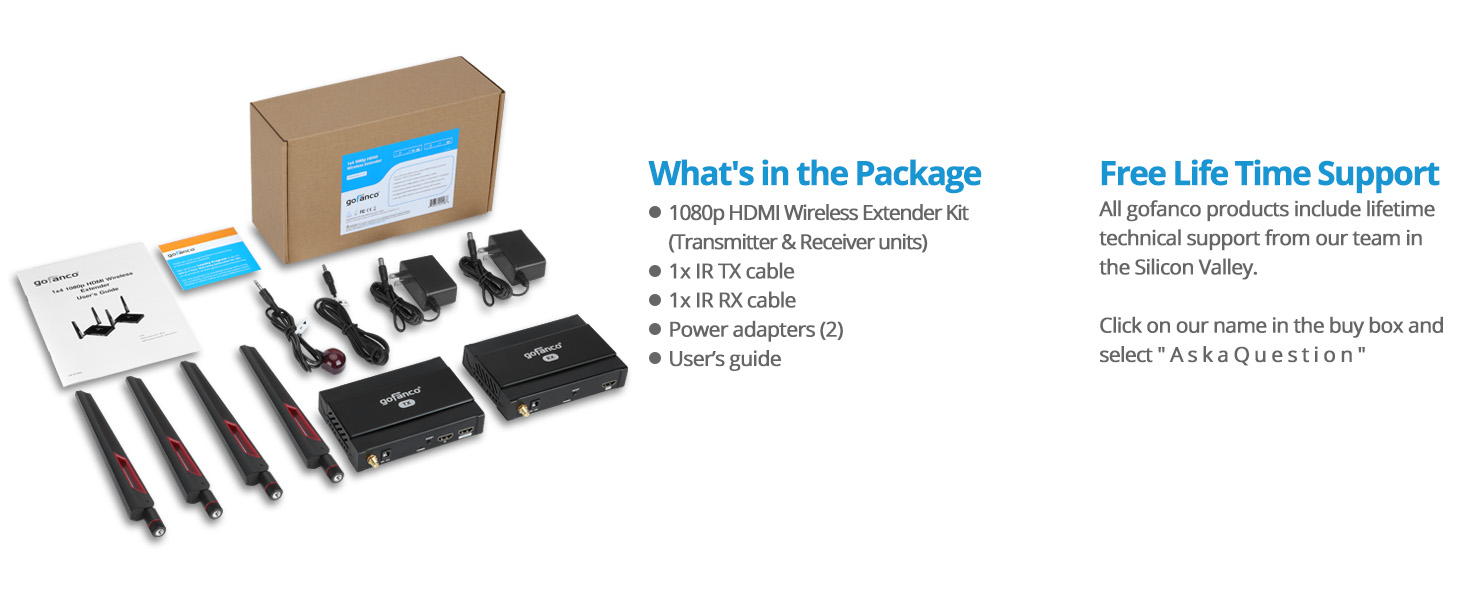

What's in the Package
- 1080p HDMI Wireless Extender Kit (Transmitter & Receiver units)
- IR TX cable
- IR RX cable
- Power adapters (2)
- User’s guide

Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support


Manuals

hdwireless1x4manual.pdf User's Guide for 1x4 1080p HDMI Wireless Extender (HDwireless1x4)
User's Guide for 1x4 1080p HDMI Wireless Extender (HDwireless1x4)
