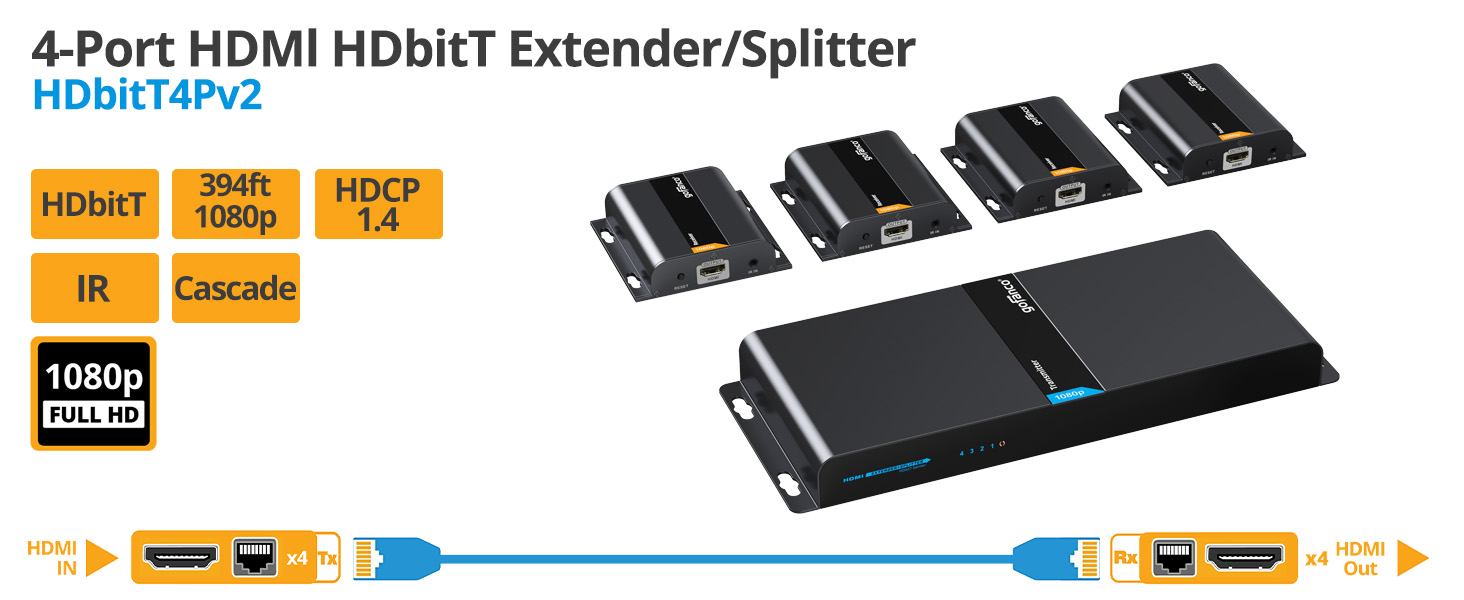

4-Port HDMI HDbitT Extender 1080p – 394ft(120m) (HDbitT4Pv2)

Features

Long Distance HDMI Transmission

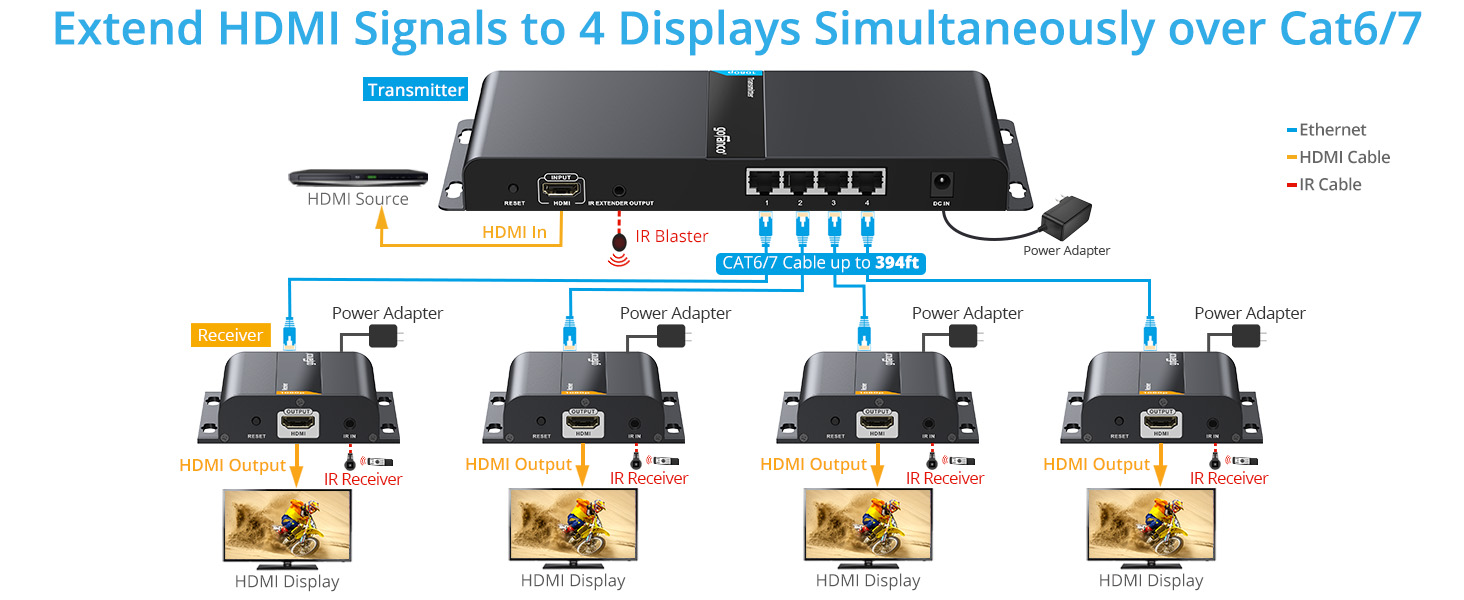

Extend and distribute 1 HDMI source to 4 HDMI displays over CAT6/7 up to 394ft simultaneously. Direct TX-RX Connection or Over IP with Gigabit Network Switches. Long distance HDMI transmission using HDbitT compression technology. Extend content from an HDMI source to 4 or more different areas

Resolution & Transmission

Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio

* Note: 1) We recommend using high performance pure COPPER CAT6 cables to ensure reliable performance; 2) There’s a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming

IR Remote Control

Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a CAT5e/6 cable for convenience

* Note: One directional IR control from RX side to TX

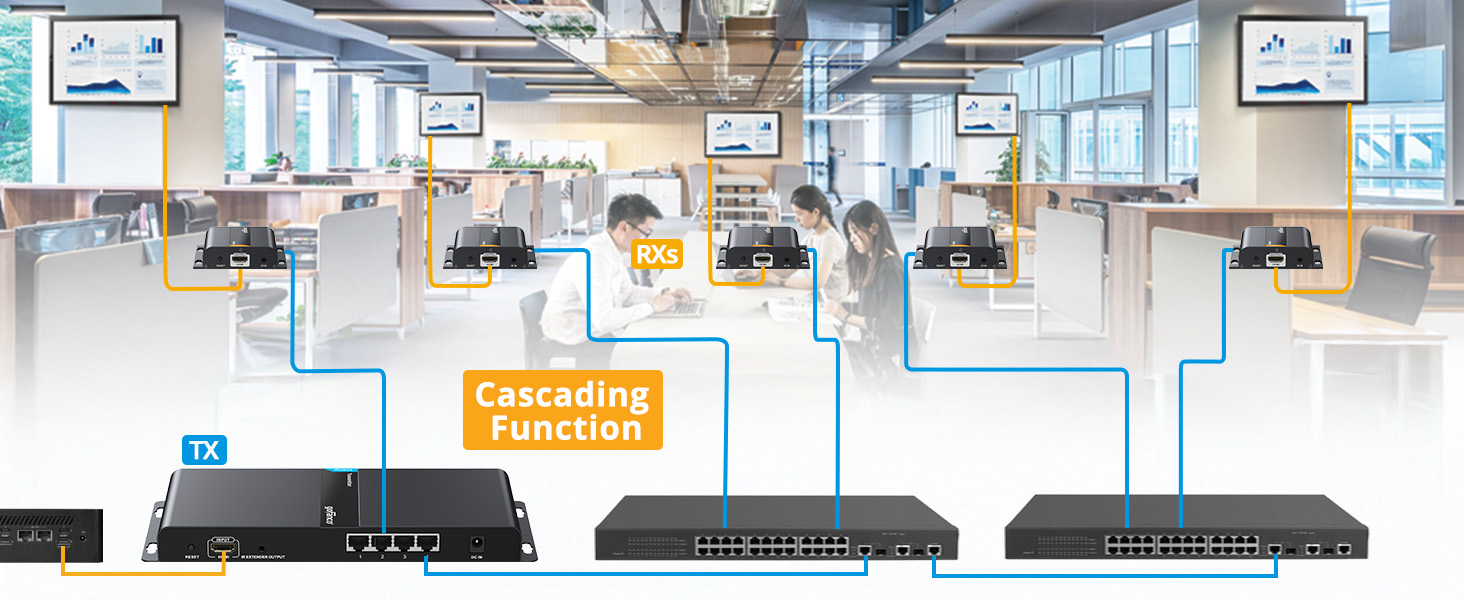

Network Distribution

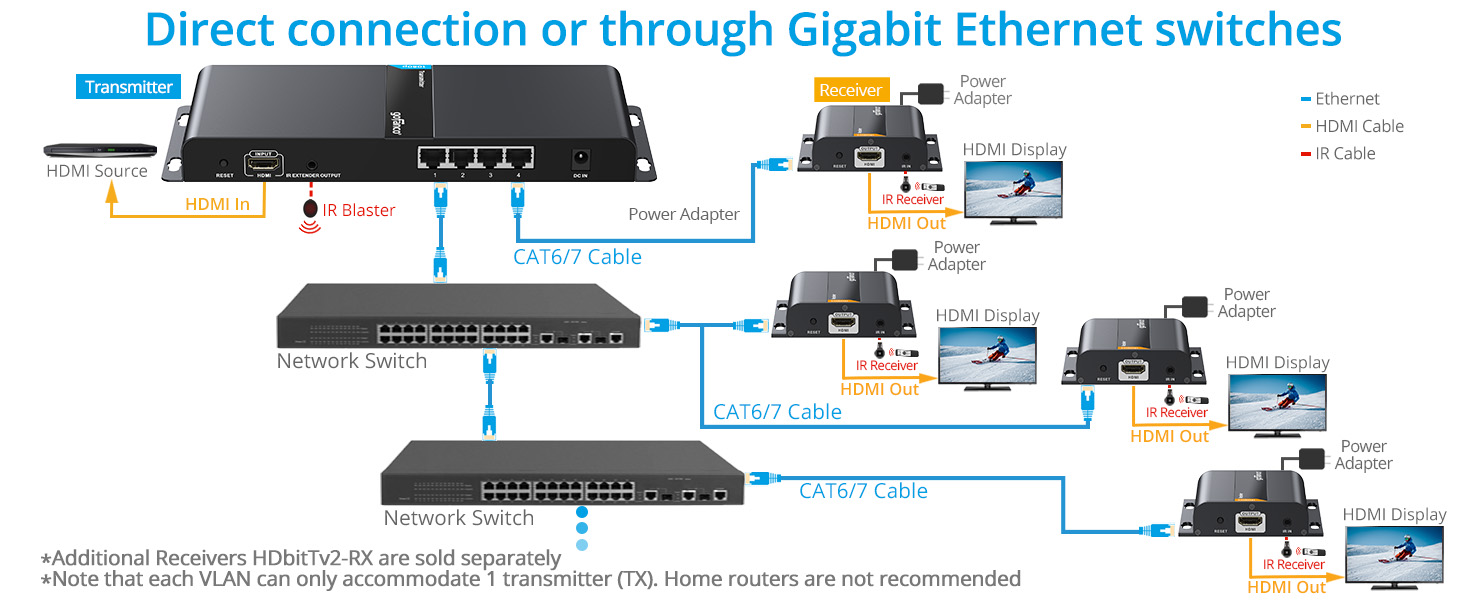

Direct connection from Transmitter to Receivers or through IP network via:

• 1) Unmanaged/Dedicated Gigabit switches
• 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN

Connect up to 30 Receivers per Transmitter. Additional Receivers (HDbitTv2-RX) are sold separately

* Note: 1) Each VLAN can only accommodate 1 transmitter (TX); 2) Home routers are not recommended





---

Simple Installation

No driver required; Surface mountable metal housing provides durability and higher level of RF/EMI shielding. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley

Important Notes:
- A good quality CAT cable is essential in delivering quality content. CAT6/7 is recommended over CAT5e
- Use a straight-through (patch) Ethernet cable and NOT crossover
- This kit comes with 1 Transmitter and 4 Receivers.

Specifications
- Video transmission: Up to 394ft (120m) at 1080p
- Supported resolutions: 480i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz
- HDMI 1.3, HDCP 1.4
- Audio format: 2-channel Stereo audio
- Transport protocol: HDbitT
- Housing: Metal, surface mountable
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS

What's in the Package
- 4-Port HDMI HDbitT Extender 1080p – 120m Kit (1 Transmitter & 4 Receivers)
- Power adapters (5)
- IR Blaster cable
- IR Receiver cables (4)
- User’s guide

Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support
