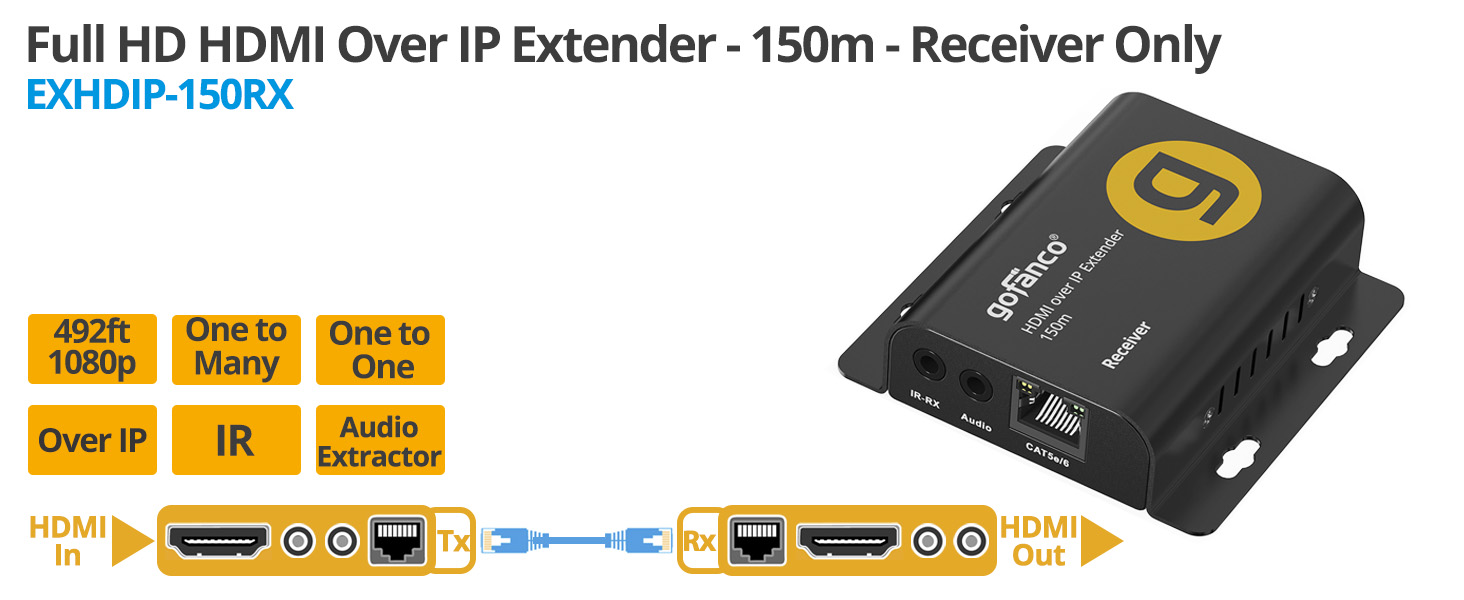

Full HD HDMI Over IP Extender - 150m - Receiver
Coming Soon
SKU
EXHDIP-150RX
$89.99
Features
*Note: This item is ONLY the Receiver unit (RX) for gofanco Full HD HDMI Over IP Extender - 150m(EXHDIP-150)
Seamless Long-Distance HDMI Streaming Over IP – Up to 492ft (150m)
Experience unprecedented ultra-reliable HDMI transmission with our HDMI Over IP Extender – extending Full HD 1080p signals up to 492 feet (150 meters) over standard RJ45 network cables. Perfect for digital signage, remote workstations, or multi-screen setups
Full HD Video Quality
Delivers crystal-clear video up to 1080p 60Hz, ensuring smooth and vivid visuals every time
One-to-One or One-to-Many Flexibility
Easily scale from a single display to multiple screens via unmanaged Gigabit network switches. Add extra receivers anytime (Part# EXHDIP-150RX sold separately)
Scalable Network Protocol
TCP/IP compliant — one transmitter can connect to up to 253 receivers for large display networks
One-to-One Connection
One-to-Many Connection
Many-to-Many Connection via VLAN
Audio Extraction
Transmits HDMI stereo audio and provides PCM 2CH audio extraction via 3.5mm jack on TX & RX units
IR Remote Control (20–60KHz)
Easily control your source device remotely with built-in IR pass-through support
Quick Reset Function
Reset transmitter or receiver instantly without unplugging power
Simple Installation
No drivers required. Mountable rugged metal housing with ESD protection ensures durability and minimizes interference. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley
| SKU | EXHDIP-150RX |
|---|---|
| Max Resolution/Refresh Rate | 1080p@60Hz |
| Max Distance | 500 ft / 150 m |
| Transmission Method | Ethernet/CATx |
| Input x Output | One-to-One, One-to-Many, Many-to-Many |
| Input Type | HDMI |
| output type | HDMI |
| Compliance | HDMI 1.3 |
Write Your Own Review
Customer Questions
No Questions
Specifications
- Compliant with HDMI 1.3 HDCP 1.2 specification- Video resolution: 480p,576p,720p,1080i, 1080p 24/50/60Hz
- Bandwidth: 4.95Gbps / 165MHz (4.95Gbps all channels)
- Transmission distance: Up to 150m for 1080p 60Hz
- Audio Format: PCM 2ch
- Protocol: TCP/IP network standard
- Product:
- Color: Black
- Housing: Metal
- Receiving unit (RX):

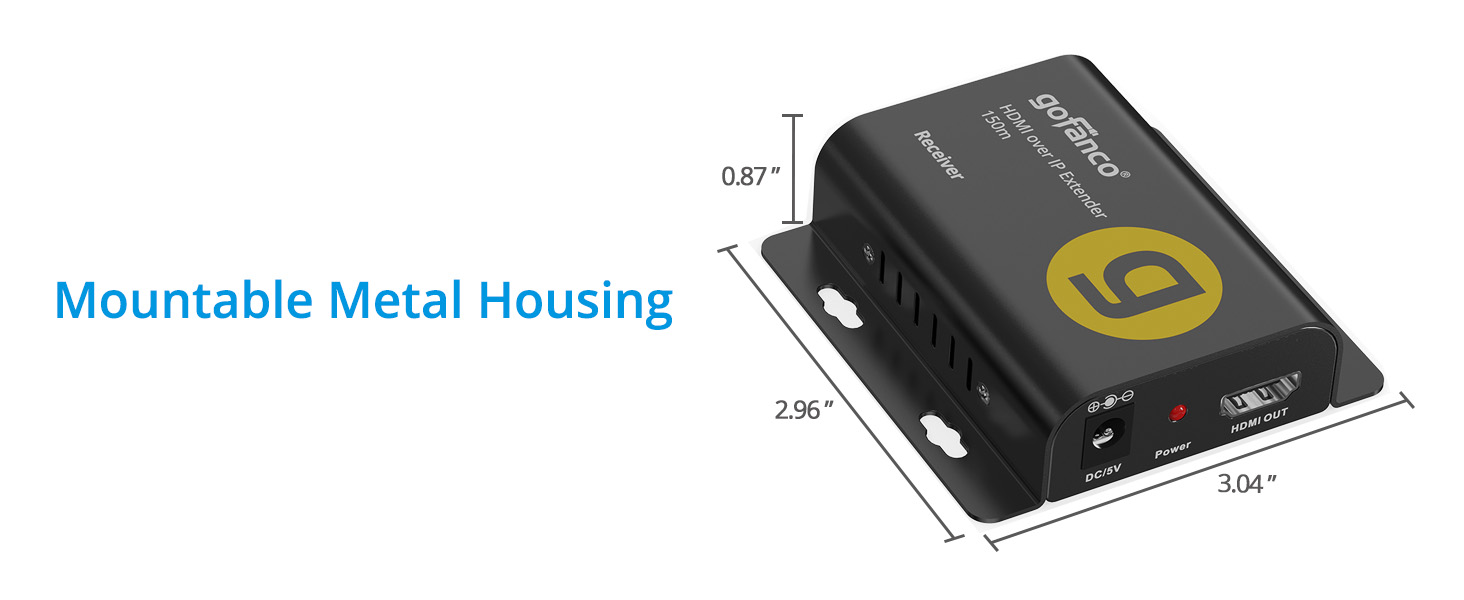

- Dimensions: 3.04" (W) x 0.87" (H) x 2.96" (D)
- Weight: 0.26 lbs
- Connectors:
- 1x 19-pin HDMI, Type A, Female, Output
- 1x 8-pin RJ45, Input
- 1x 3.5mm audio Output
- 1x 3.5mm IR-RX Input
- 1x Power Jack
- Unit package:
- Dimensions: 4.53" (W) x 2.17" (H) x 6.69" (D)
- Weight: 0.65 lbs
- Power adapter:
- Input: 100-240V AC, 50/60 Hz
- Output: DC 5V/1A
- UL listed: E336751 / Level: VI
- Environmental conditions:
- Operation Temperature: 32 to 122 degrees F
- Storage Temperature: 14 to 158 degrees F
- Relative humidity: 10 to 80% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- UPC Code: 818354-023466
- Country of origin: China
What's in the Package
- Full HD HDMI Over IP Extender - 150m- Receiver- Power adapter 5V/1A
- IR receiver cable
- User manual
Warranty & Support
- Limited One-Year Warranty and Lifetime Product SupportRelated Products
