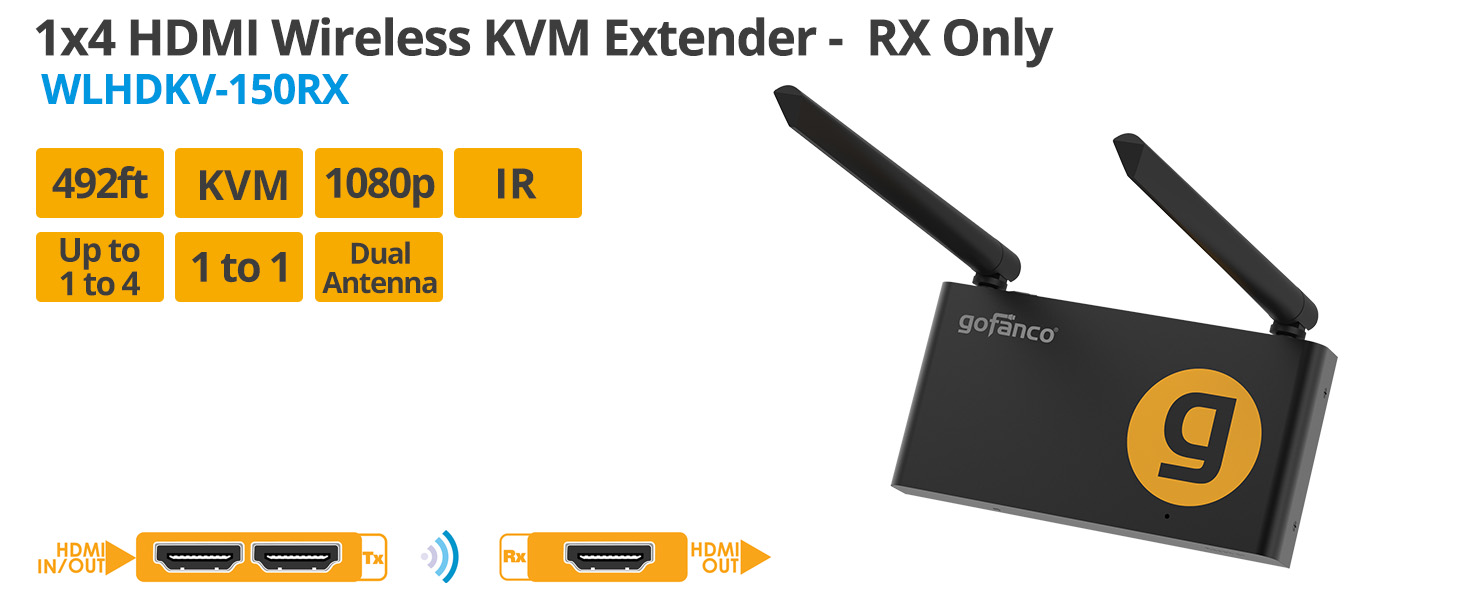

1080p HDMI Wireless KVM Extender - Receiver (WLHDKV-150RX)

Features

*Note: This item is ONLY the Receiver unit (RX) for gofanco 1x4 1080p HDMI Wireless KVM Extender(WLHDKV-150)

1080p HDMI Wireless Extension - Receiver Only

Transmits 1080p HDMI audio/video signal from your HDMI source to a display or multiple displays wirelessly, experience wireless freedom without compromising performance

Long-Range Wireless HDMI Transmission

Stream 1080p video and audio wirelessly up to 492ft (150m) in a clear line-of-sight environment—perfect for meeting, home entertainment, digital signage, classrooms, and more

*Note: Actual transmission distance may vary depending on your environment, including walls, interference, and layout

One to one connection:

One to Many Connection:

Supports up to 4 receivers, Additional Receivers(Part# EXHDIP-150RX) are sold separately

Wireless KVM Functionality

Take full control of your PC from the remote display location. Connect a keyboard and mouse to operate your system wirelessly and efficiently

IR remote control

Control your source device remotely using compatible 38kHz IR remotes—no need to walk back to the source

Advanced Dual Antenna Design

Dual 5dBi antennas with MIMO (2T2R) technology ensure strong, stable connections, reduced interference, and faster data transmission

Cut the Cable, Keep the Quality

Say goodbye to costly and complex wiring. Enjoy high-performance wireless AV transmission with easy setup and maximum convenience

Plug and Play

Setup is quick and easy, no software to install, eliminate cable clutter, get up and running in minutes with a true plug-and-play experience. Connect the transmitter to the HDMI source, then connect the receiver to the secondary HDTV, and you’re ready to go

Notes:
- When there are objects/walls blocking the line of sight between Transmitter and Receiver, effective transmission will be significantly reduced
- Supports up to 4 receivers; however, the wireless transmission range is reduced with each added receiver

Specifications
- HDMI 1.4 & HDCP 1.3 compliant
- Video resolutions: Up to 1080p @60Hz
- Transmission range: Up to 150m (492 ft) line-of-sight
- Supports up to 4 receivers. Work with 1x4 1080p HDMI Wireless KVM Extender (Part# WLHDKV-150) is sold separately
- Audio support: Stereo audio PCM 2-channel, 44.1KHz
- Wireless: IEEE 802.11b/g/n/ac, 5GHz, 2T2R
- WIFI Bandwidth: 866 Mbps (5GHz)
- WIFI Frequency: 5.150GHz ~ 5.825GHz
- Frequency Bands: 5150-5350MHz; 5470-5725MHz; 5725-5850MHz; 5850-5925MHz *Note:The specific frequency bands utilized are upon the legal regulations by each country
- Bitrate: Maximum 50 Mbps (actual rate may vary depending on environmental factors)
- Channel Width: Supports 20 MHz, 40 MHz, and 80 MHz
- Dual Antenna: 2x 5dBi High-sensitive antenna maximizes wireless reception with stable data transmission
- Latency: About 100ms
- IR Remote Control - One-way IR extension, Support 38KHz to 56KHz wide frequency
- HDMI Cable Distance : Up to 2m (Input & Output)
- Power Adapter: AC 100-240V, 50/60Hz, DC 5V/2A
- Housing Material / Color: Metal / Black color
- Operating Temperature: 32 to 104 degrees F
- Storage Temperature: 14 to 140 degrees F
- Humidity: 5% ~ 90% RH (non-condensing)
- Country of origin: China
- Regulatory approvals: FCC / CE / RoHS / FCC ID

What's in the Package
- 1080p HDMI Wireless KVM Extender - Receiver
- Power adapters 5V/2A
- USB A to C power cable
- HDMI cable
- User’s guide

Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support
