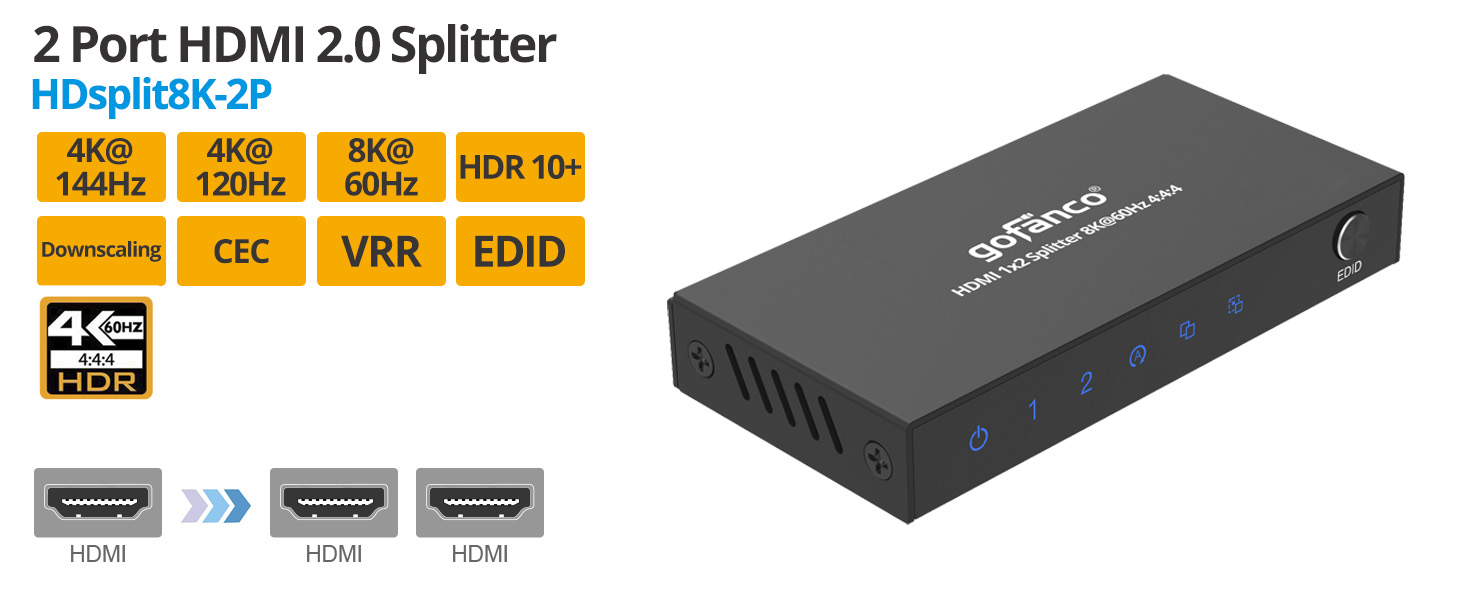

2-Port 8K60Hz HDMI Splitter (HDsplit8K-2P)
gofanco 8K 60Hz 1x2 HDMI Splitter – 8K @60Hz 444, 4K @144Hz/120Hz, 2K @240Hz, 1080p @240Hz, VRR, ALLM, CEC, Auto Downscale, HDCP 2.3/2.2/1.4, EDID, HDR10/HDR10+, LPCM/DTS/DD/Atmos (HDsplit8K-2P)
(HDsplit8K-2P)
In stock
Only 7 left
SKU
HDsplit8K-2P
Now Only $59.88 Regular Price $79.99
Features

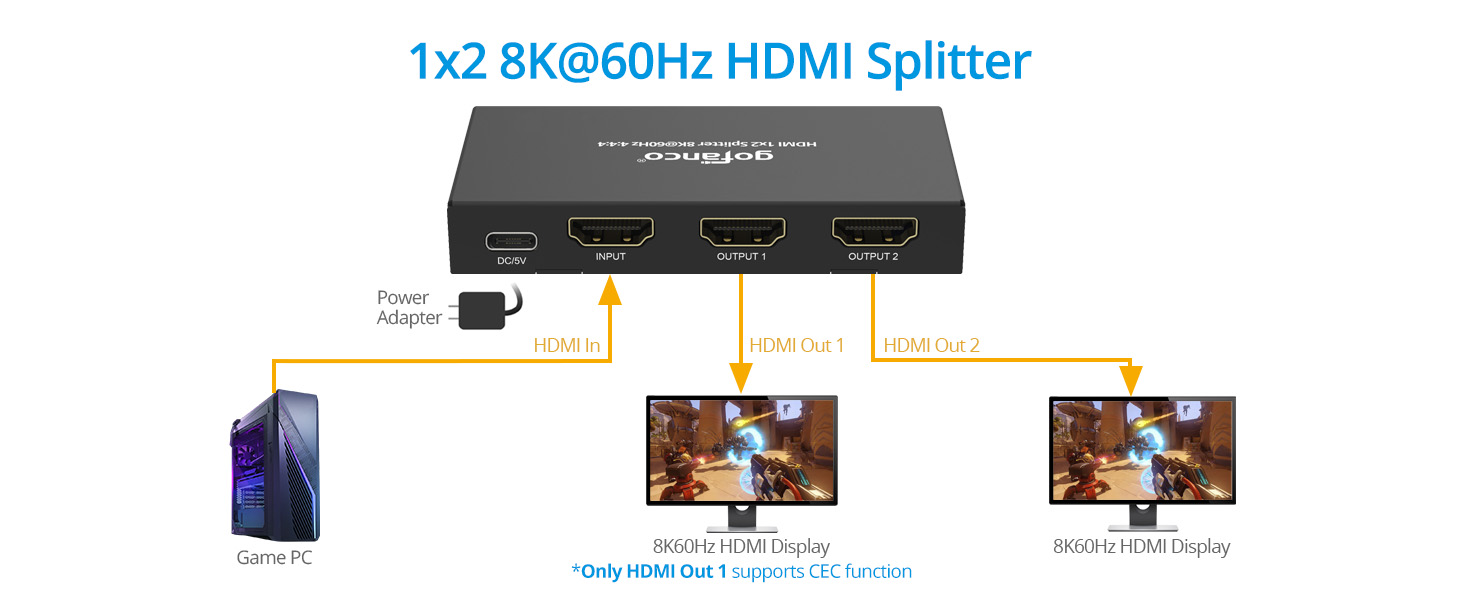

8K 60Hz 1x2 HDMI Splitter
Distributes HDMI video & audio from a single source to 2 HDMI displays simultaneously without signal degradation. HDCP 2.3/2.2/1.4 with 40Gbps bandwidth. *Note: Both displays will show the same mirrored content, extended displays are not supported
4K@144Hz /120Hz & 8K@60Hz VIDEO
Supports up to 8K @60Hz 4:4:4, 4K @144Hz/120Hz, 1080p @240Hz, and 2K (2560x1440 & 3440x1440) @240Hz via EDID copy. Supports HDR10, HDR10+. Supports video downscaling from 8K to 4K or 1080p. *Note: Be sure to use the latest HDMI 2.1 cables: < 3m for 4K 120Hz & 8K, < 5m for 4K 60Hz
IMMERSIVE AUDIO
Supports uncompressed LPCM and compressed DTS & Dolby Digital audio (including DTS-HD Master and Dolby TrueHD), ATMOS via EDID copy
ADVANCED VRR / ALLM TECH
Supports VRR (Variable Refresh Rate) and ALLM (Auto Low Latency Mode) technology to optimize the gaming experience without stuttering or tearing
*Note: For VRR/ALLM support, we recommend that both displays are of the same make/model and support VRR/ALLM
3 EDID MANAGEMENT MODES

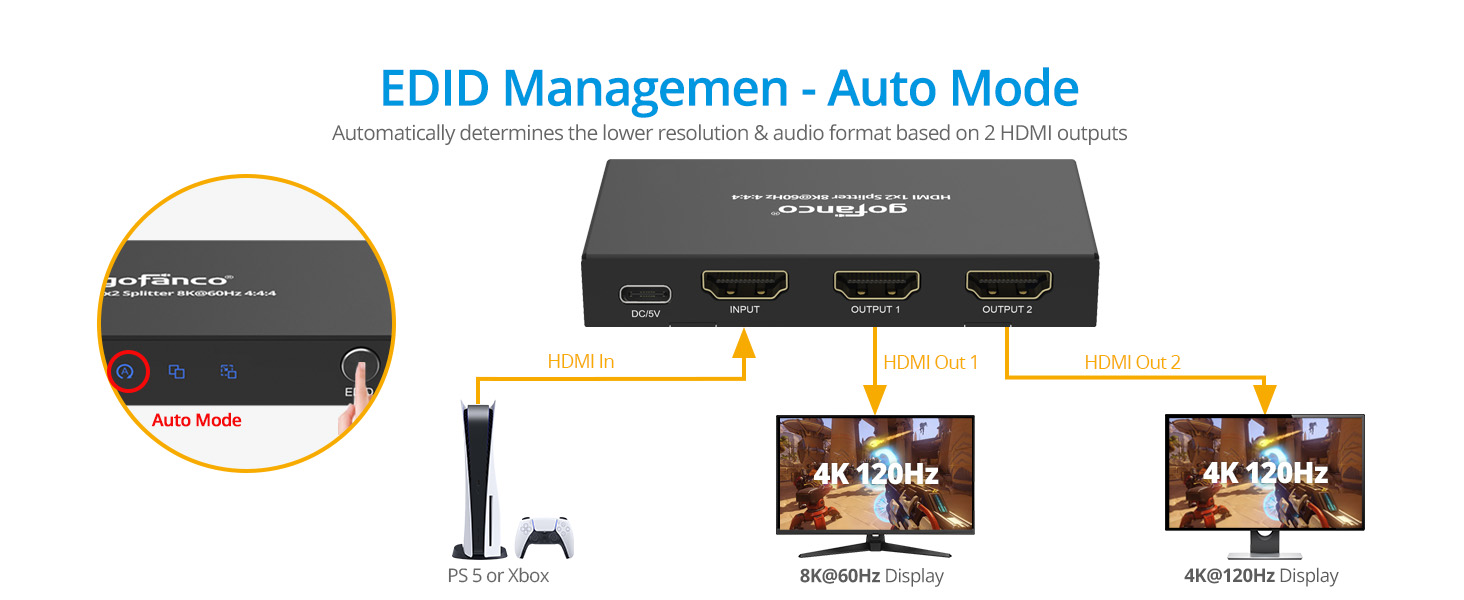

Auto EDID Mode - Automatically determines the lower resolution & audio format based on 2 HDMI outputs

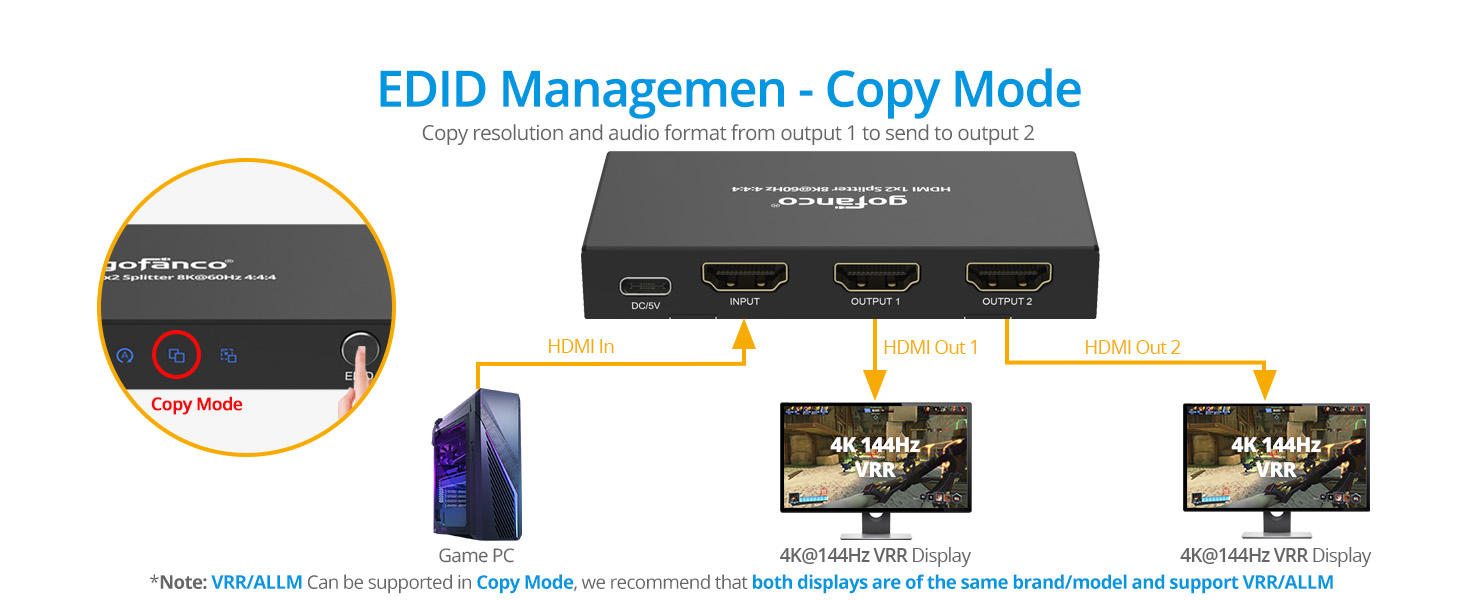

Copy EDID Mode - Copy resolution and audio format from output 1 to send to output 2

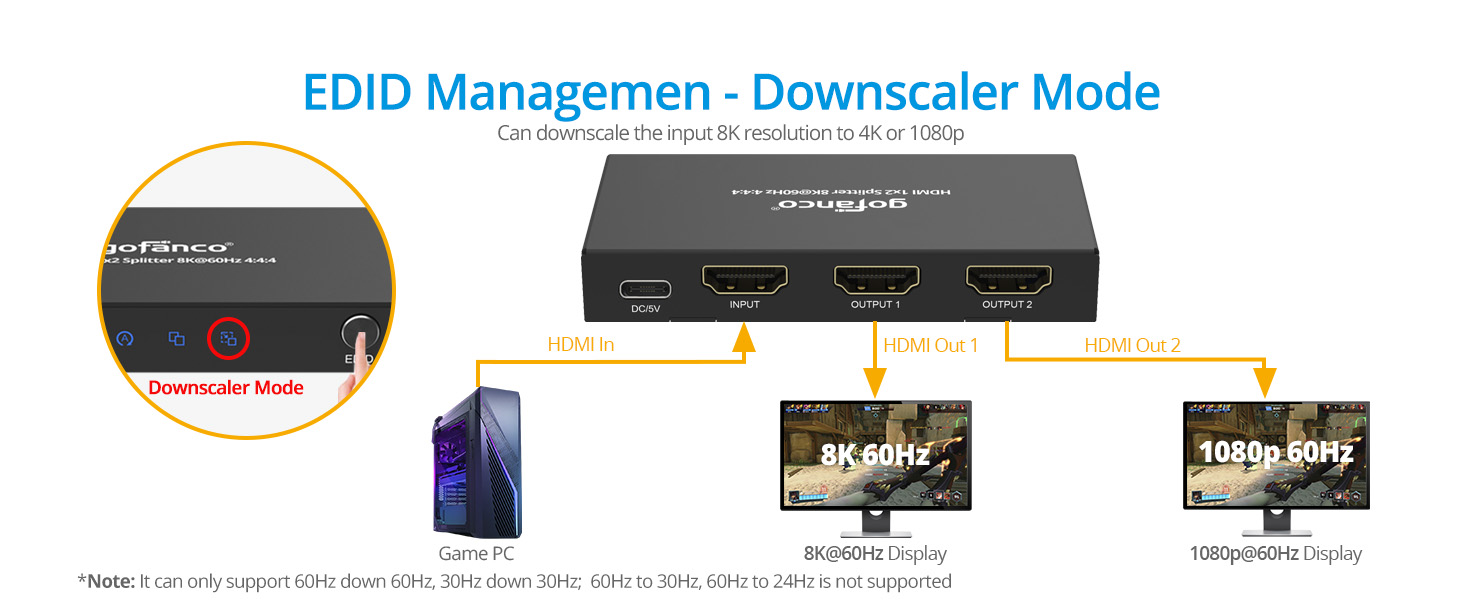

Downscale EDID Mode - Can downscale the input 8K resolution to 4K or 1080p
SIMPLE INSTALLATION
No software is required. Sturdy metal housing provides durability and higher level of RF/EMI shielding; FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley
| SKU | HDsplit8K-2P |
|---|---|
| Max Resolution/Refresh Rate | 4K@120Hz, 8K@60Hz |
| Input x Output | 1x2 |
| Features | HDR, CEC, EDID |
| Input Type | HDMI |
| output type | HDMI |
| Compliance | HDCP 2.3, HDCP 2.2, HDCP 1.4 |
Write Your Own Review
Customer Questions
No Questions
Important Notes
- Only HDMI output #1 supports CEC pass-through
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
Specifications
- HDCP 2.3/2.2/1.4 compliant
- Resolutions: Up to 8K @60Hz 4:4:4, 4K @144Hz/120Hz, 1080p @240Hz. Supports HDR10, HDR10+
- Audio: Supports uncompressed LPCM and compressed DTS & Dolby Digital audio (including DTS-HD Master and Dolby TrueHD), ATMOS via EDID copy
- Video bandwidth: 40Gbps
- VRR (Variable Refresh Rate)
- ALLM (Auto Low Latency Mode)
- CEC pass-through (output 1 only)
- EDID management: 1) Auto EDID, 2) Copy EDID, 3) Downscale EDID
- Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS

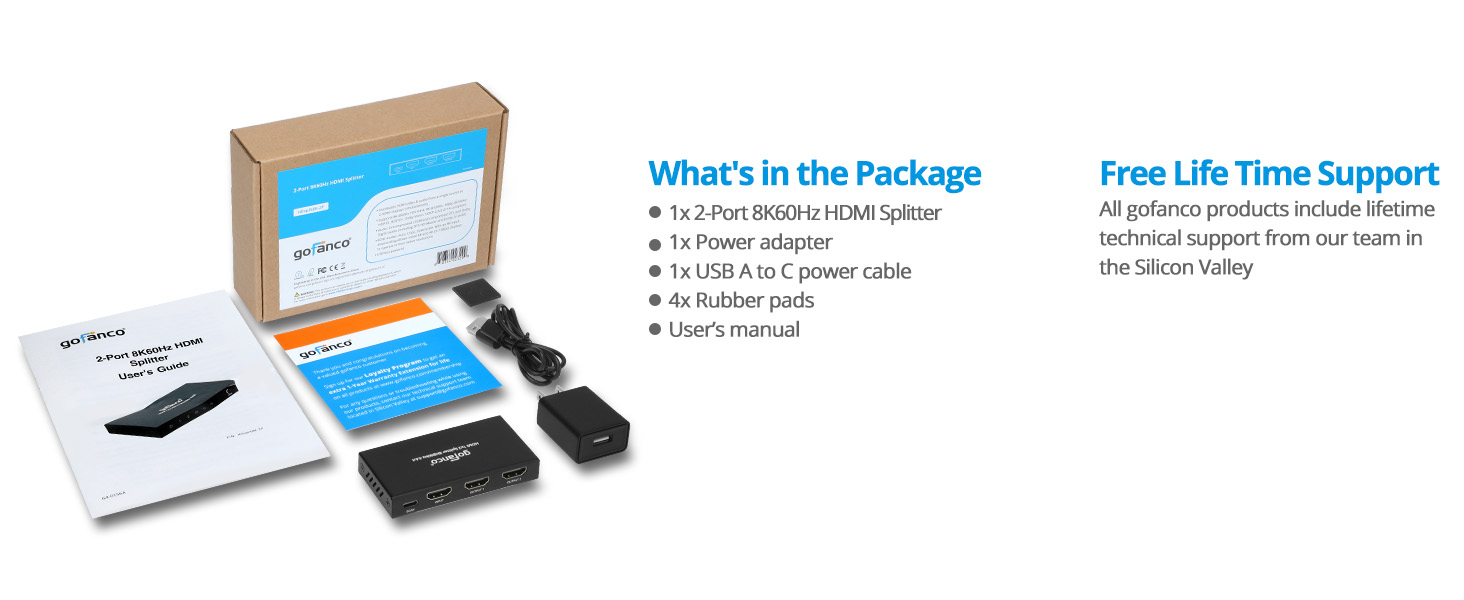

What's in the Package
- 2-Port 8K60Hz HDMI Splitter
- Power adapter
- USB A to C power cable
- Rubber pads (4)
- User’s manual
Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support
