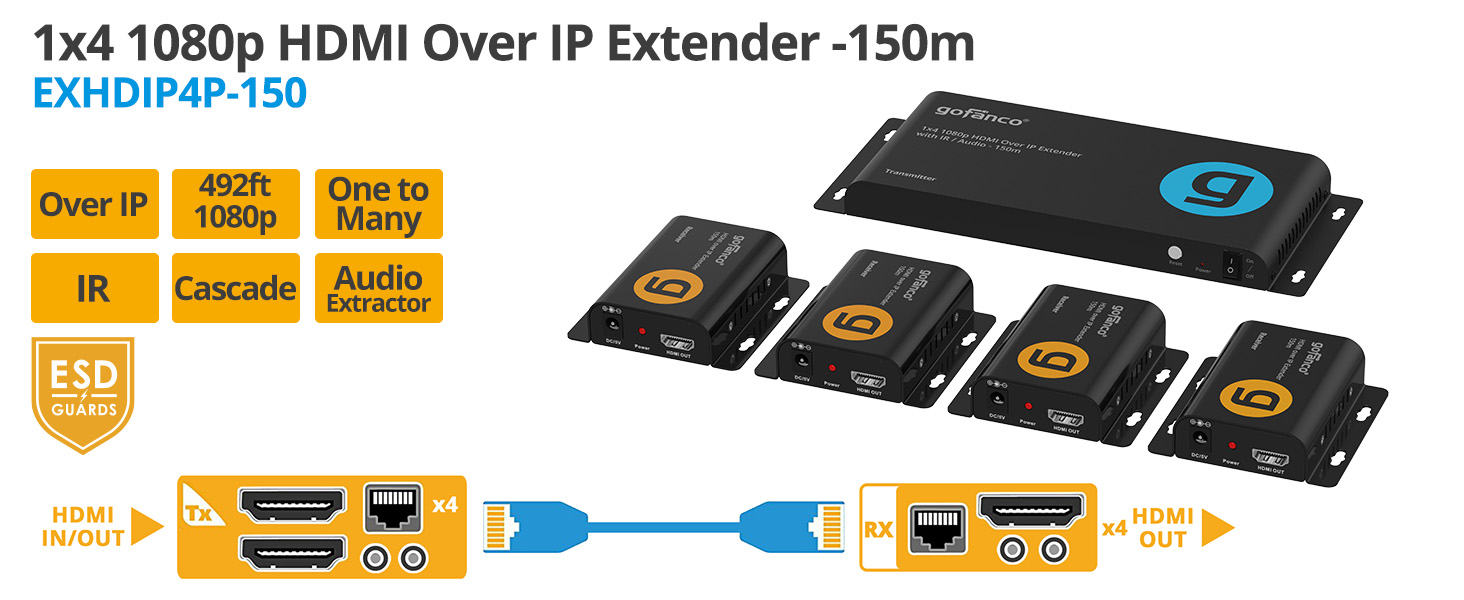

1x4 1080p HDMI Over IP Extender with IR / Audio - 150m (EXHDIP4P-150)

Features

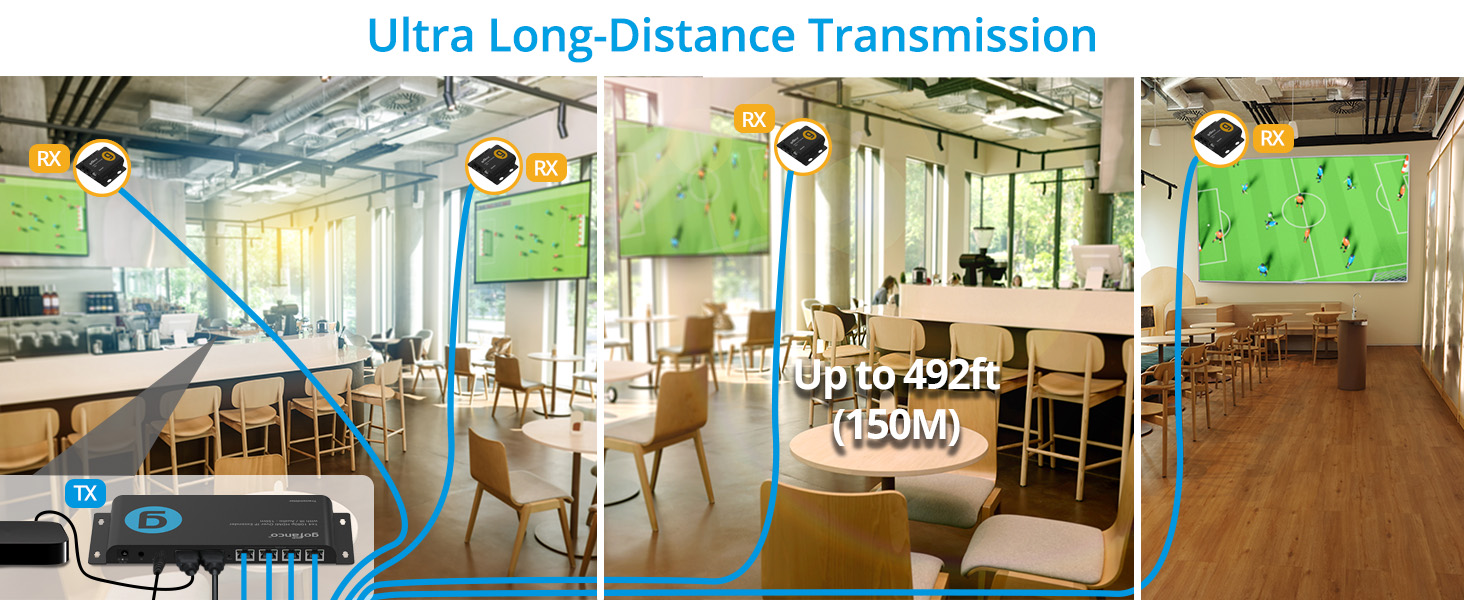

Extend HDMI Over IP up to 492Ft (150M)

Transmit Full HD 1080p@60Hz HDMI video, audio, and IR control over standard Cat5e/Cat6 network cables up to 492 ft (150 m). Features 4 RJ45 outputs and 1 HDMI loop-out on the transmitter, making it ideal for digital signage, surveillance systems, conference rooms, and multi-display installations.

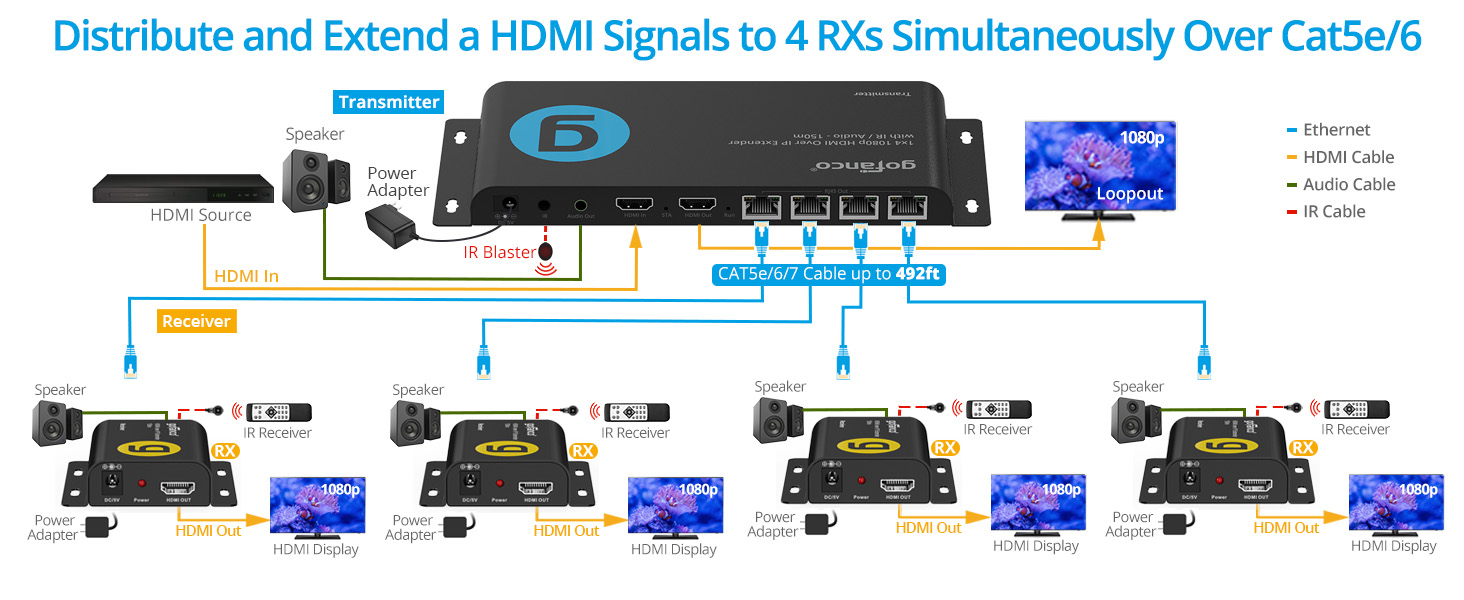

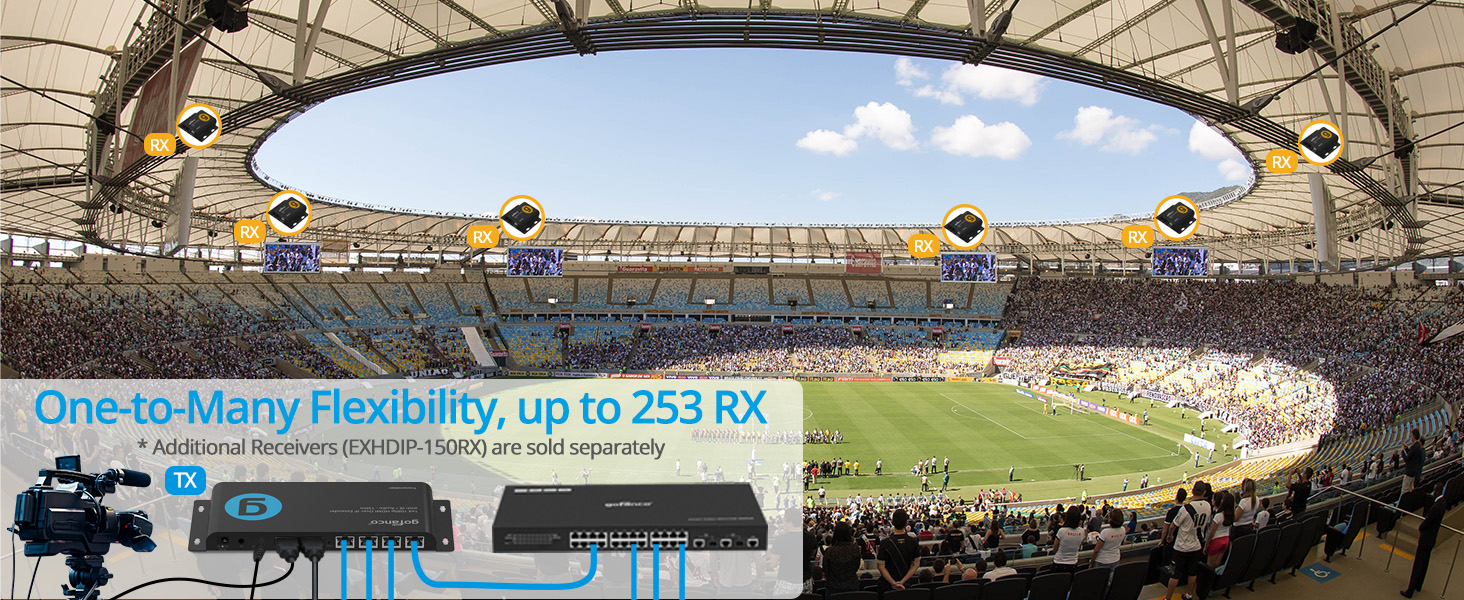

One-to-Many Distribution & Easy Expansion

Connect a single HDMI source to multiple displays through standard unmanaged Gigabit network switches. TCP/IP-based architecture supports scalable installations with up to 253 receivers connected to a single transmitter. Expand your system anytime by adding additional receivers (EXHDIP-150RX sold separately), supporting large-scale display deployments.

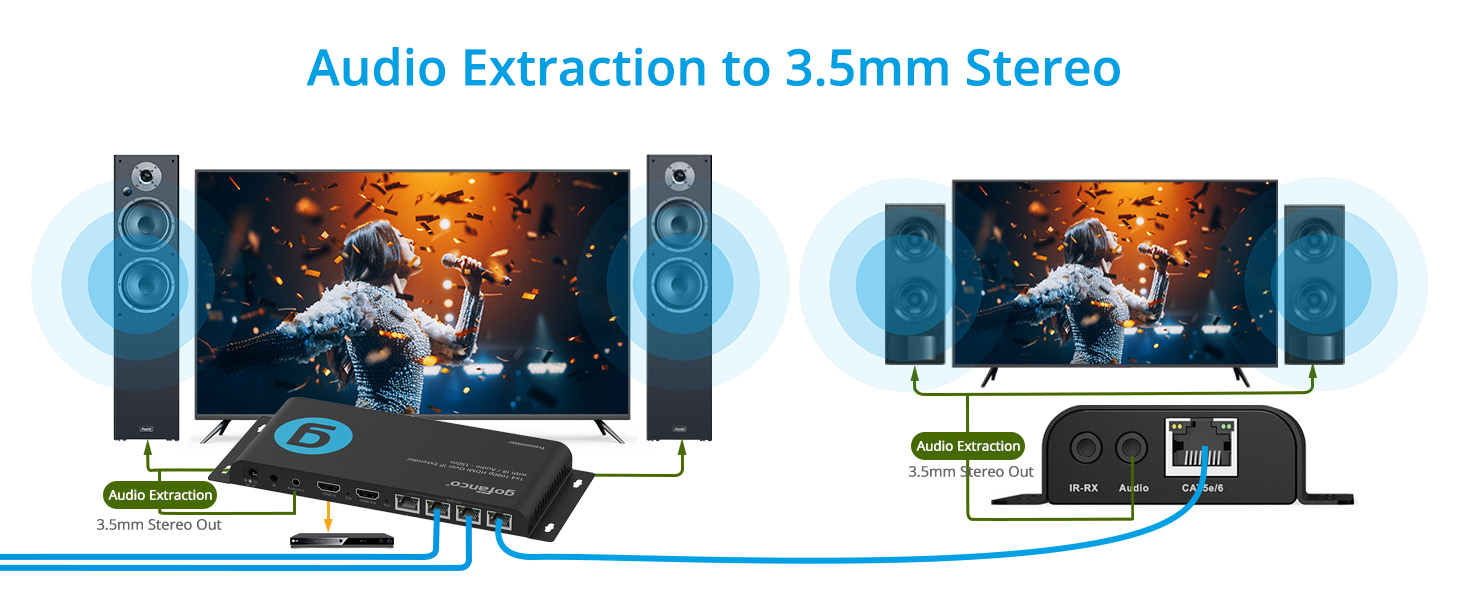

Crystal-Clear 1080P Video & Audio Extraction

Delivers smooth and vivid Full HD 1080p@60Hz video with stereo audio support. Includes 3.5mm audio extraction ports on both transmitter and receiver for PCM 2-channel audio output to external speakers or sound systems.

IR Remote Control

Built-in IR pass-through (20–60KHz) allows remote control of your source device from the display location.

Plug & Play With Reliable Metal Housing

No drivers or software required for setup. Convenient reset button on transmitter enable quick system restarts. Durable metal Housing with ESD protection helps reduce interference and ensures stable, long-lasting performance.

Specifications

- Standard: HDMI 1.3, HDCP 1.2
- Bandwidth: 4.95Gbps / 165MHz (4.95Gbps all channels)
- Input resolutions: 480p,576p,720p,1080i, 1080p 24/50/60Hz
- Output Resolution: 480p,576p,720p,1080i, 1080p, 24/50/60Hz
- Extensions Distance: Up to 150m for 1080p 60Hz
- Vertical Frequency Range: 50/60Hz
- Protocol: TCP/IP network standard
- RJ45 cable: Cat5e/6 cable follows the standard of IEEE-T568B
- Audio Extraction: SPDIF Coaxial and analog audio. Supports 2.0-ch and 5.1-ch (HDMI only)
- Controlled: 1) Panel buttons, 2) IR remote
- Power Supply: DC 5V/2A x 1 & 5V/1A x 4pcs
- Power consumption (Max): 800mA (4W)
- Housing: Metal

- Environmental Conditions
- Operation Temperature: -15℃ to 55℃
- Storage Temperature: ??
- Relative Humidity: 10% to 80% RH non-condensation

- Regulatory Approvals: FCC, CE, RoHS
- UPC Code: 818354-023503
- Country of Origin: China

What's in the Package

- 1x4 1080p HDMI Over IP Extender with IR / Audio - 150m
- Power adapter(5V/2A x1, 5V/1A x 4)
- IR emitter cable x 1
- IR receiver cable x 4
- User manual

Warranty & Support

- Limited One-Year Warranty and Lifetime Product Support
