Extenders: KVMHD20Ext-LT

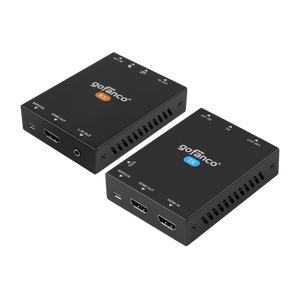

HDMI 2.0 USB CAT Extender with KVM - 70m
Up to 230ft (70m), 4K60Hz, HDCP 2.2, PoC, EDID, USB Keyboard/Mouse, Near Zero Latency, HDMI Loopout, HDR, 7.1-ch Audio
KVM Extender
4K60Hz Resolution
Distance up to 70m
Bi-directional PoC
Audio Extraction
4K60Hz HDMI USB KVM Extender over Cat6/7 Cable
4K60Hz HDMI KVM Extender Over CAT Cable 230ft
Comparison Table
HDMI 2.0 USB CAT Extender with KVM - 70m
Sale price$109.99
HDMI USB KVM CAT Extender - 70m
Sale price$98.88
Specification
- Compliance: HDMI 2.0b / HDCP 2.2/1.4
- Bandwidth: 18Gbps
- Resolution:Up to 4K60Hz
- Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
- Extends up to 230ft (70m) over Cat6/7
- Supports HDR/HDR10/HDR10+, Dolby Vision, HLG
- HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-HD, DTS Audio

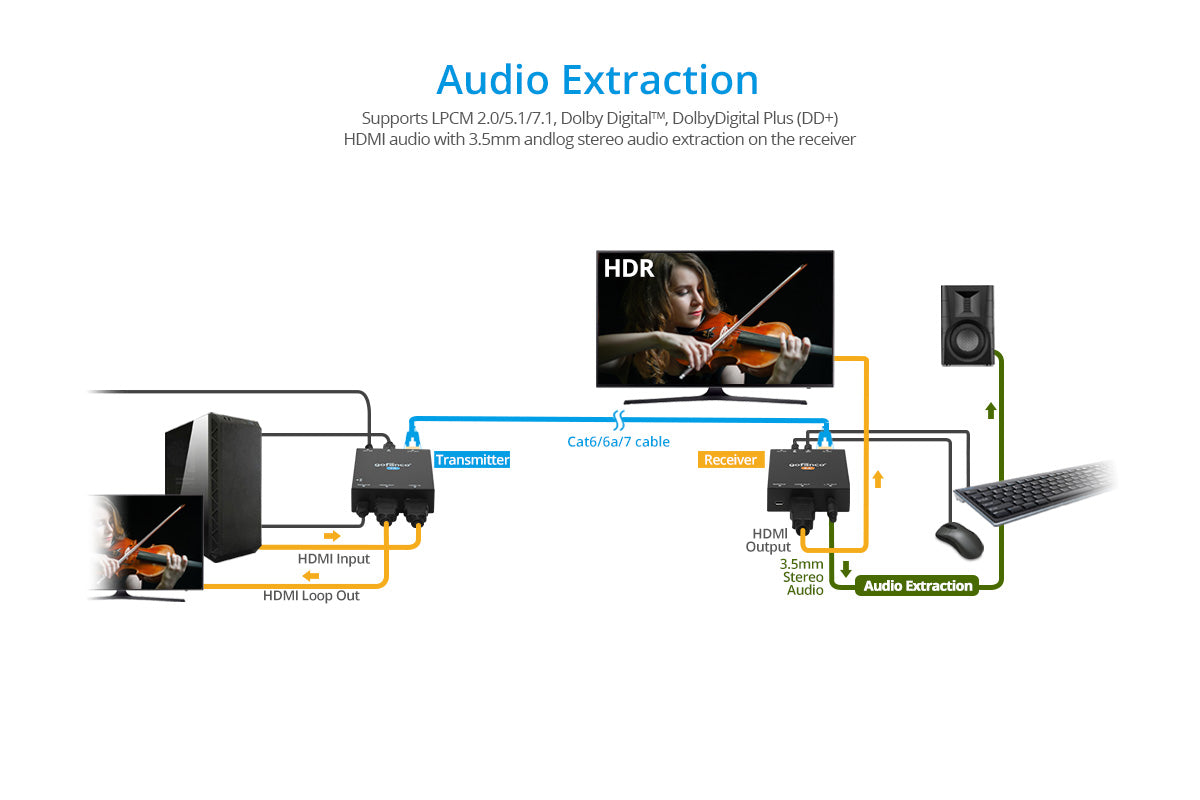

- Supports analog (PCM 2.0) audio extraction on the receiver (RX)
- USB port: USB 1.1 for keyboard/mouse

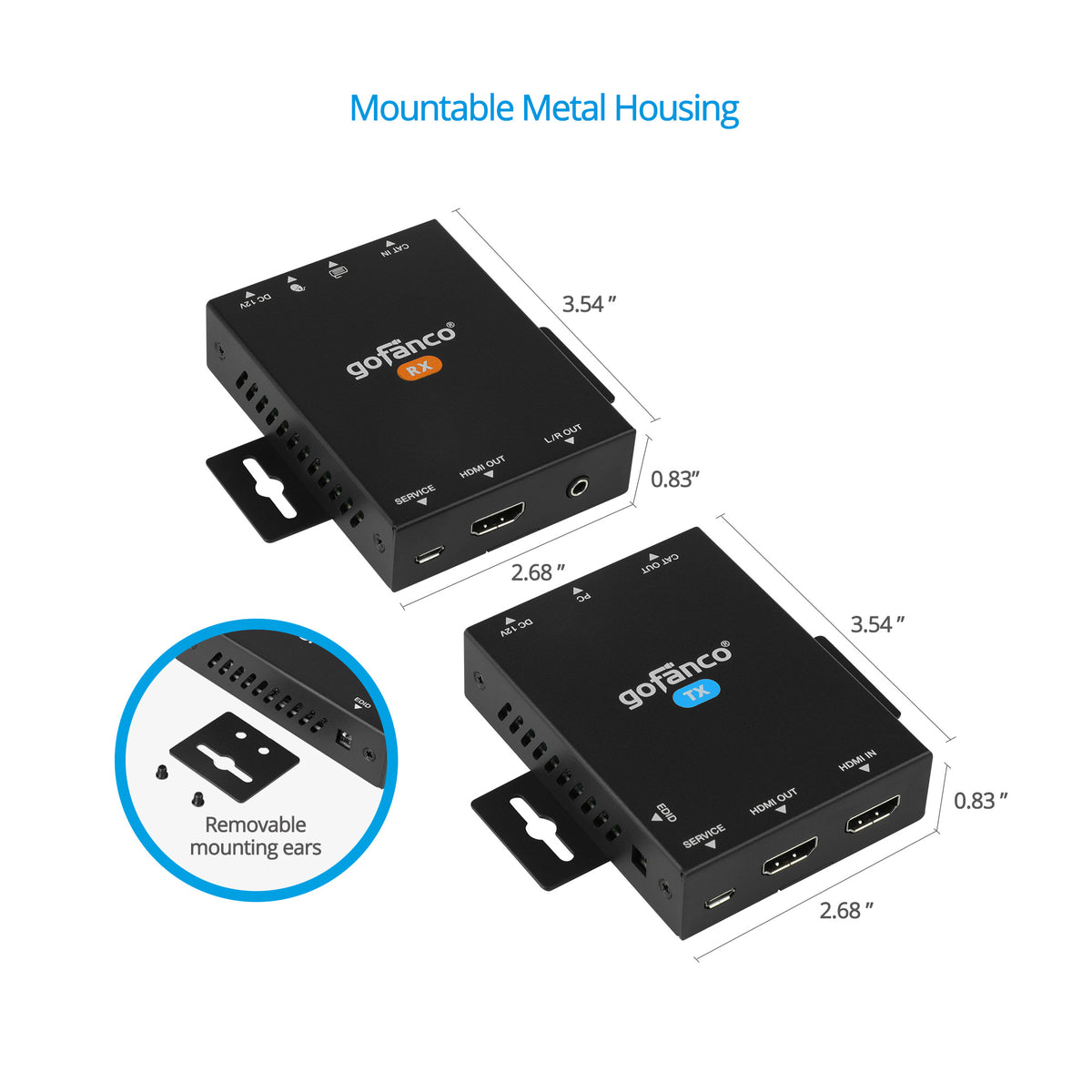

- Dimension: TX/RX: 2.68″(W) x 0.83″(H) x 3.54″(D)
- Weight: TX/RX: 0.38 lbs
- Power Adapter: AC100 - 240V 50/60Hz, Output: TX: 12V/1A
- Housing Material / Color: Metal / Black color

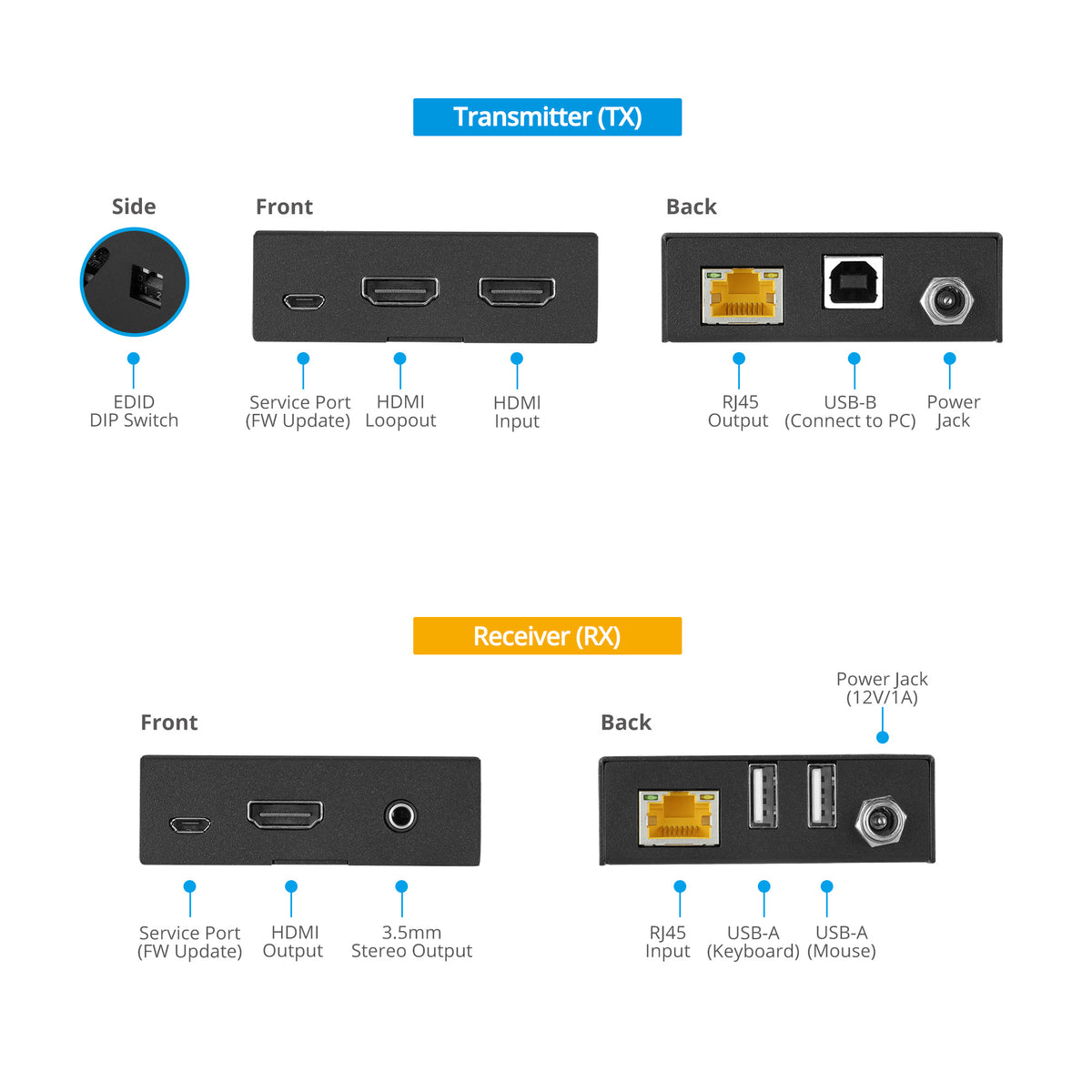

Connection
TX
- 1x 5-pin Micro USB, FW update
- 2x 19-pin, HDMI Input/Output
- 1x 8-pin RJ45, Output
- 1x 4-pin USB-B, Input
- 1x Power jack

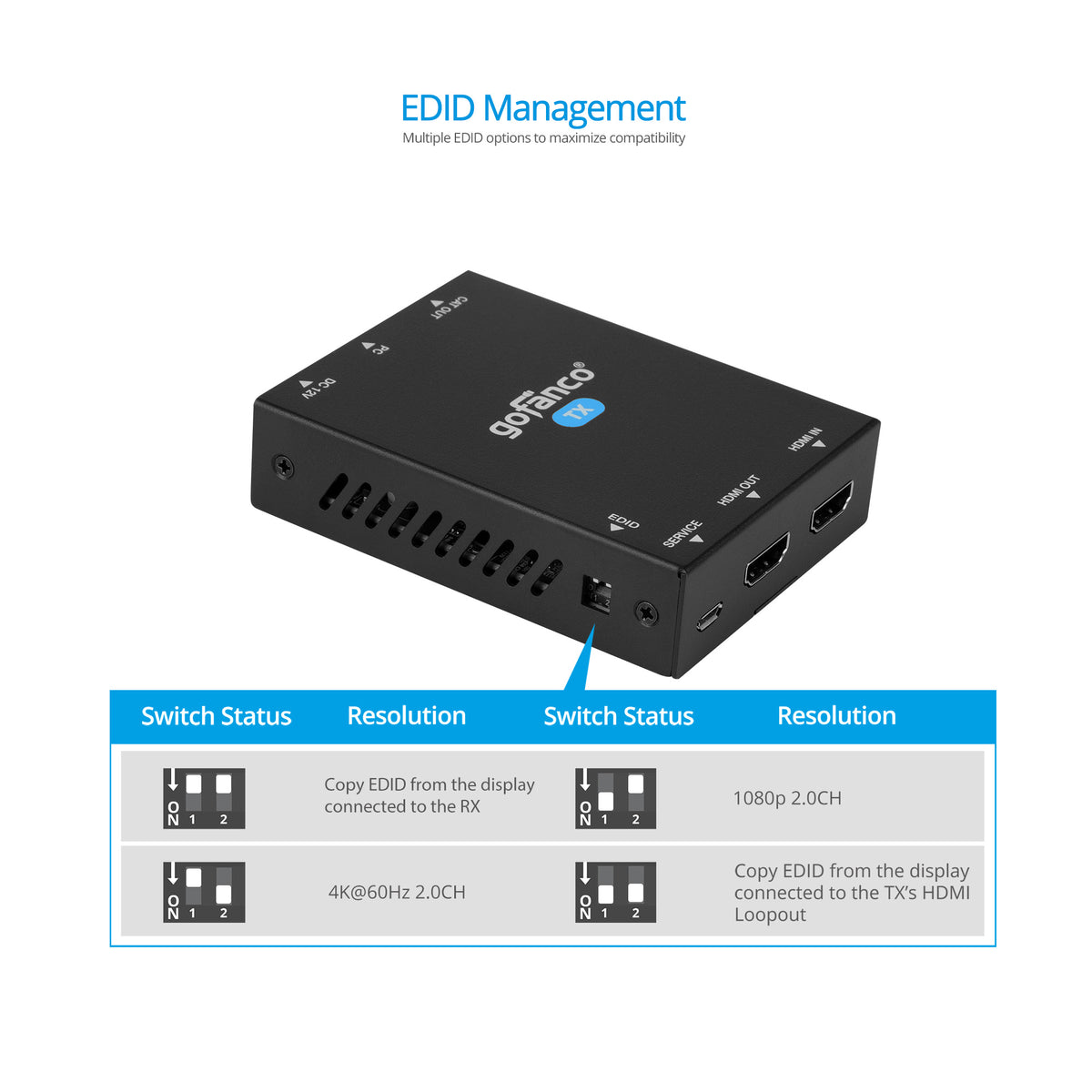

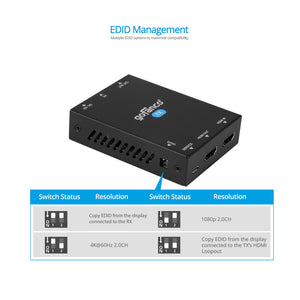

- 1x 2-pin DIP Switch, EDID
RX
- 1x 5-pin Micro USB, FW update
- 1x 19-pin, HDMI Output
- 1x 3.5mm jack, Audio output
- 1x 8-pin RJ45, Input
- 2x 4-pin USB-A, Keyboard/Mouse
- 1x Power jack
Features

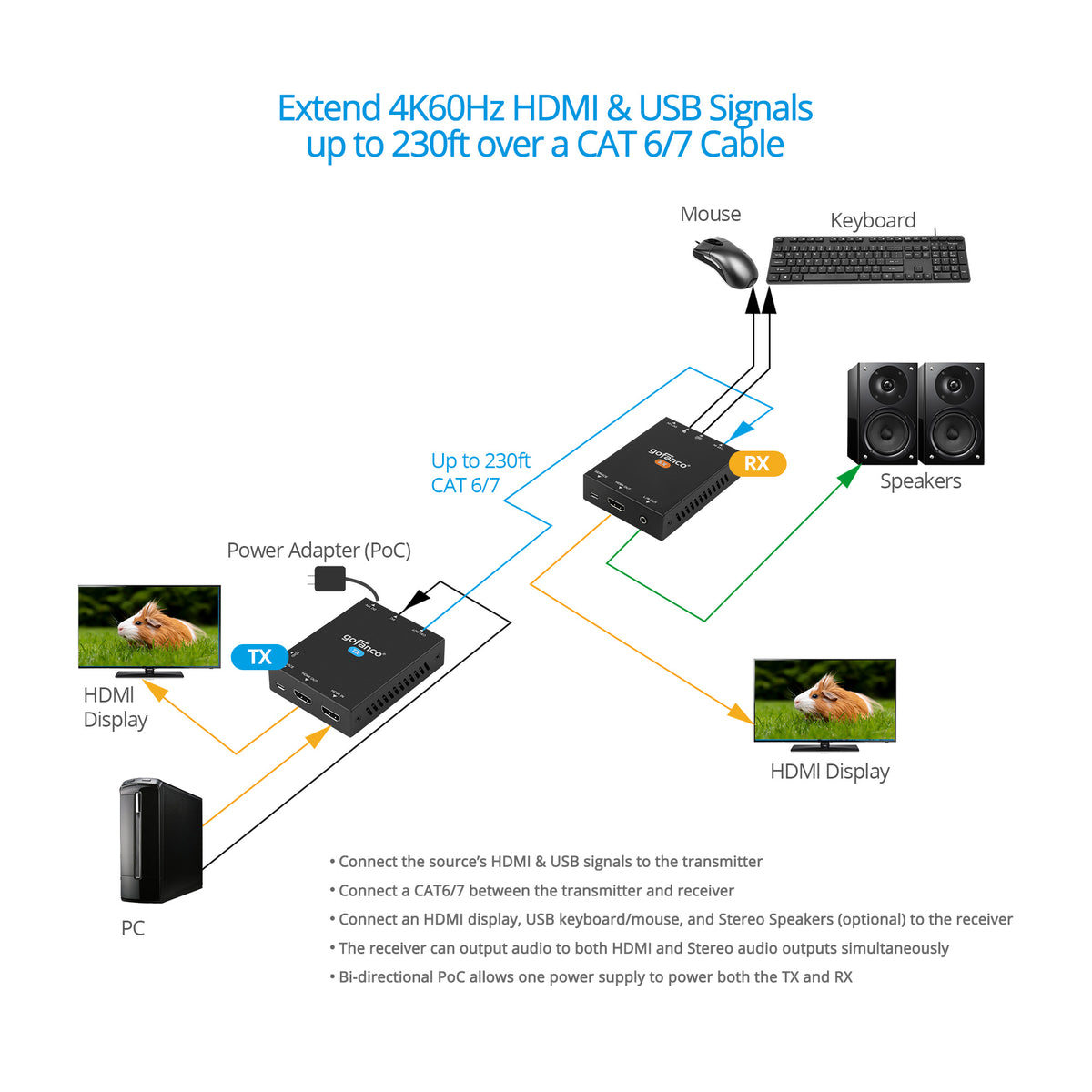

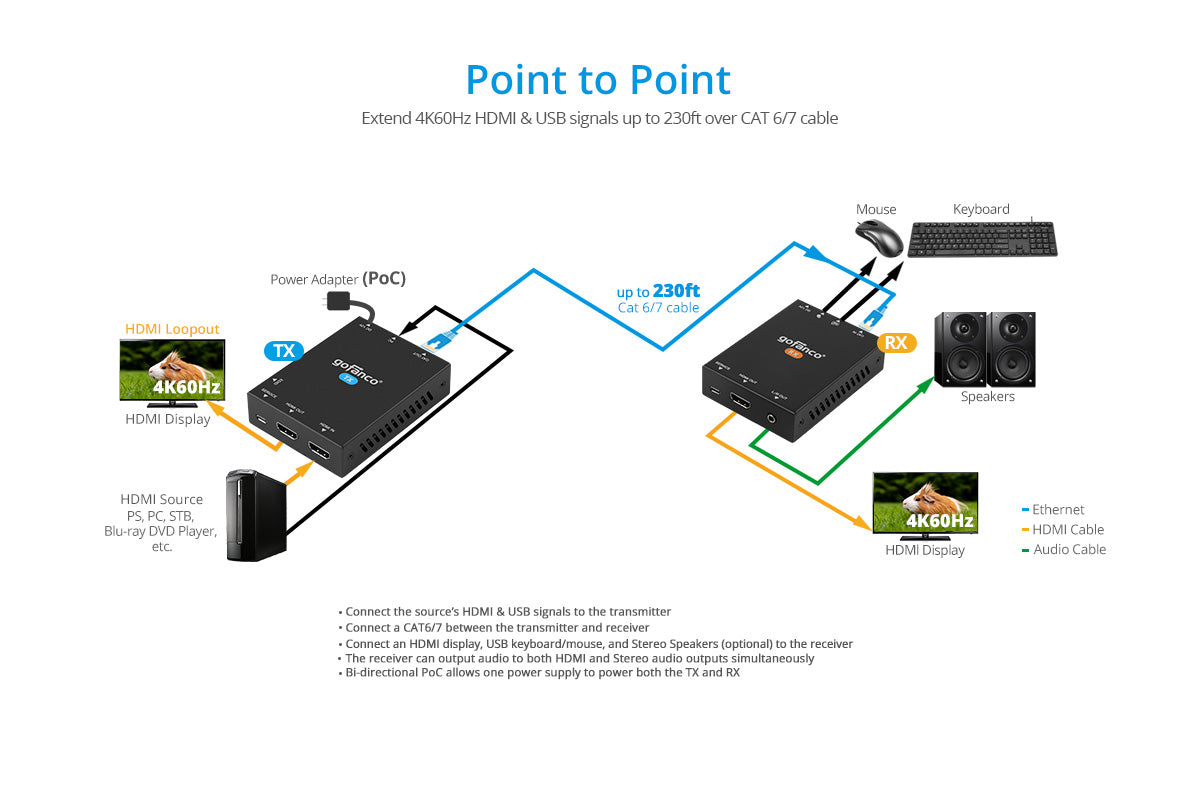

- Extends HDMI and USB signals up to 70m (230ft) over a single Cat6/7 cable
- Supports video resolution up to 4K60Hz YUV 4:4:4 with 18Gbps video bandwidth
- KVM Extension with 2 USB 1.1 keyboard/mouse

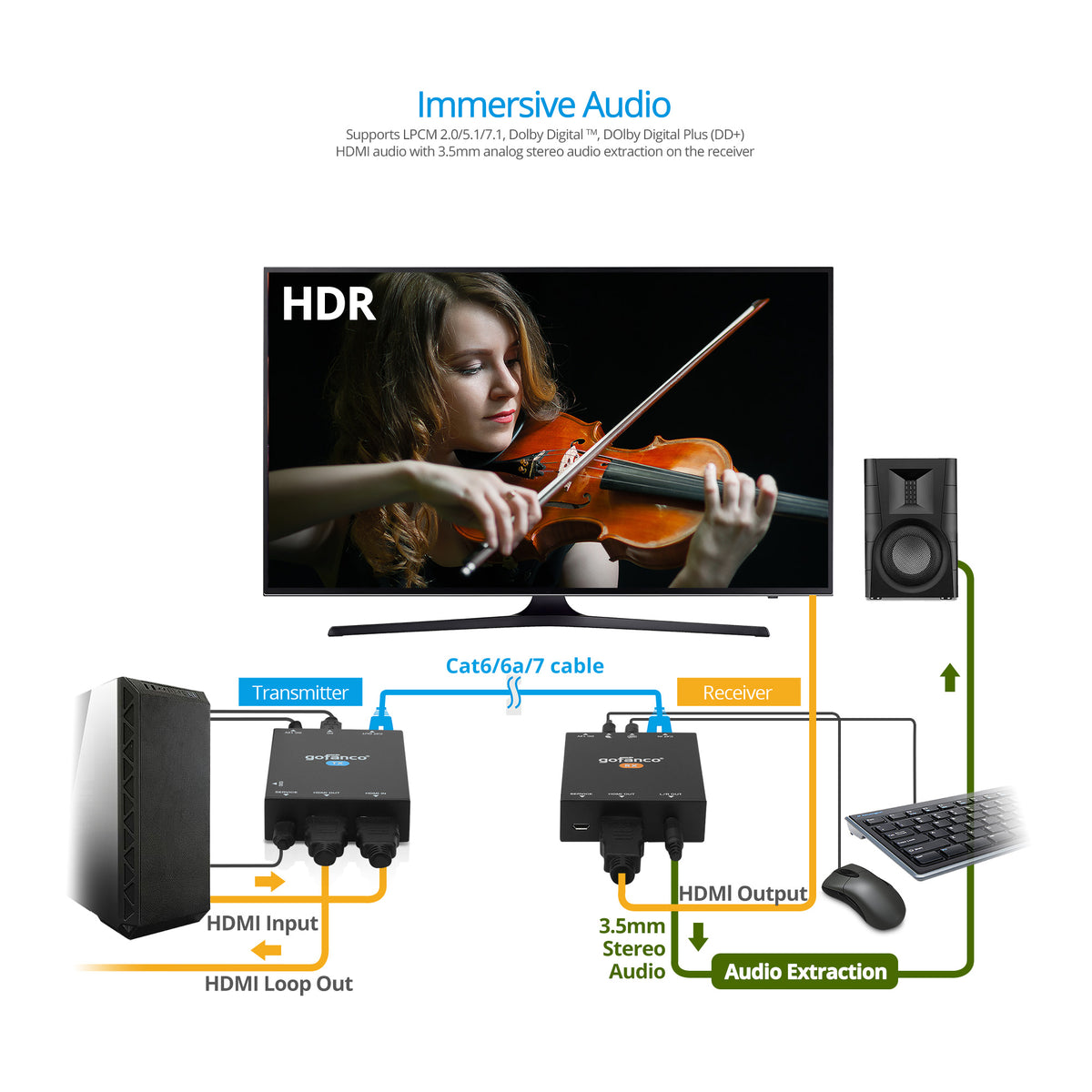

- Supports 3.5mm analog audio extraction on the receiver’s Stereo output
- Supports 4K to 1080p downscaling on each output port

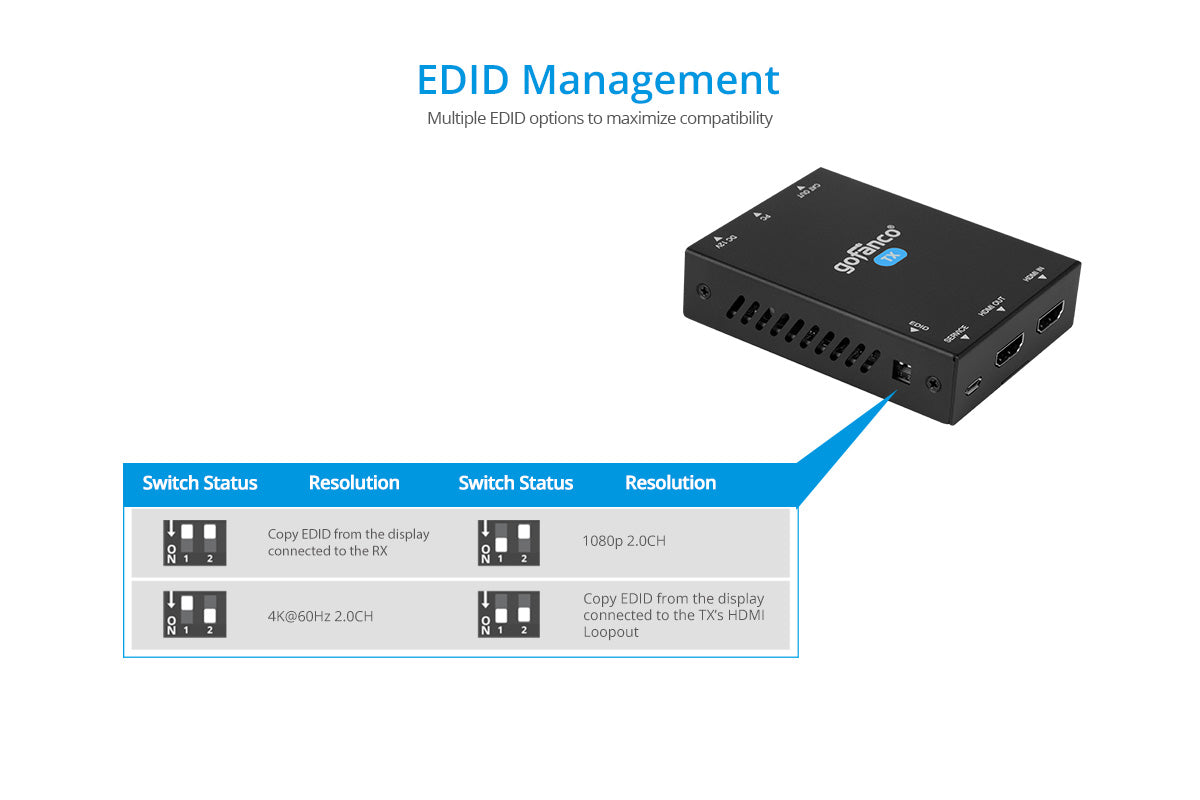

- EDID copy pass-through function between the source device and display
- Supports bi-directional POC (Power over Cable) function
- HDMI loopout on Transmitter (TX) for a local display
Standard
- UPC:818354-023312
- Operation Temperature: 32 to 104 degrees F
- Storage Temperature: -4 to 140 degrees F
- Relative humidity: 20 to 90% RH (non-condensing)
- Regulatory approvals: FCC / CE / RoHS
- Limited One-Year Warranty and Lifetime Product Support
- Country of origin: China

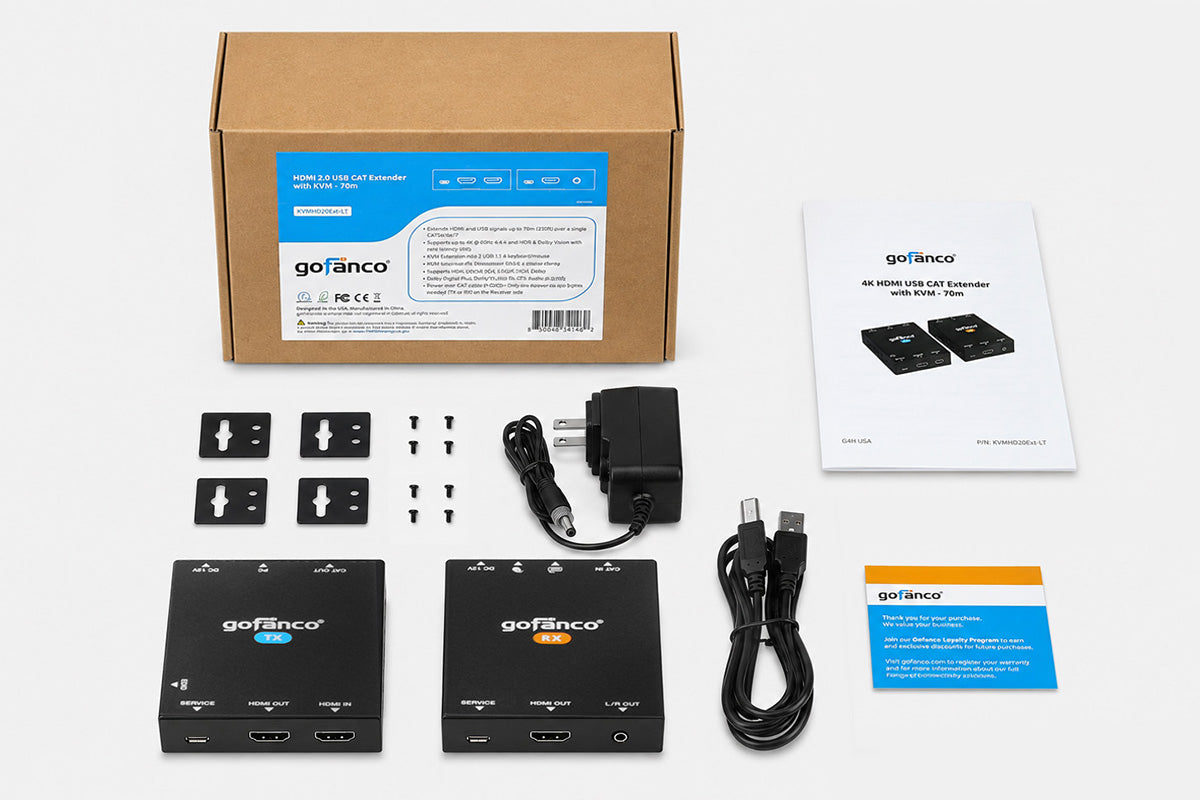

- HDMI 2.0 USB CAT Extender with KVM – 70m Kit
- Power adapter 12V/1A
- USB cable (Type-A to Type-B)
- Surface mount accessories
- User’s Guide
Manual
Poor video quality or no video signal on display?
- Check whether the HDMI cables are connected properly and are in good working condition.
- Make sure the display’s resolution is compatible with the HDMI KVM Extender’s supported resolutions.
Snowy or fuzzy screen on the displays?
- Cause by damaged or low quality HDMI cables. Change to a higher quality HDMI cable. Make sure the cable length is less than or equal to 5 meters.
- Try another CAT cable and make sure the cable length is within the specified range.
