Splitters: HDExt4P-Pro

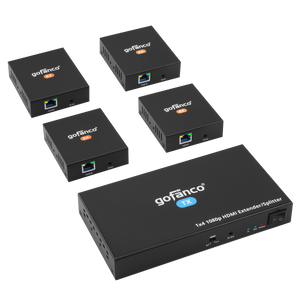

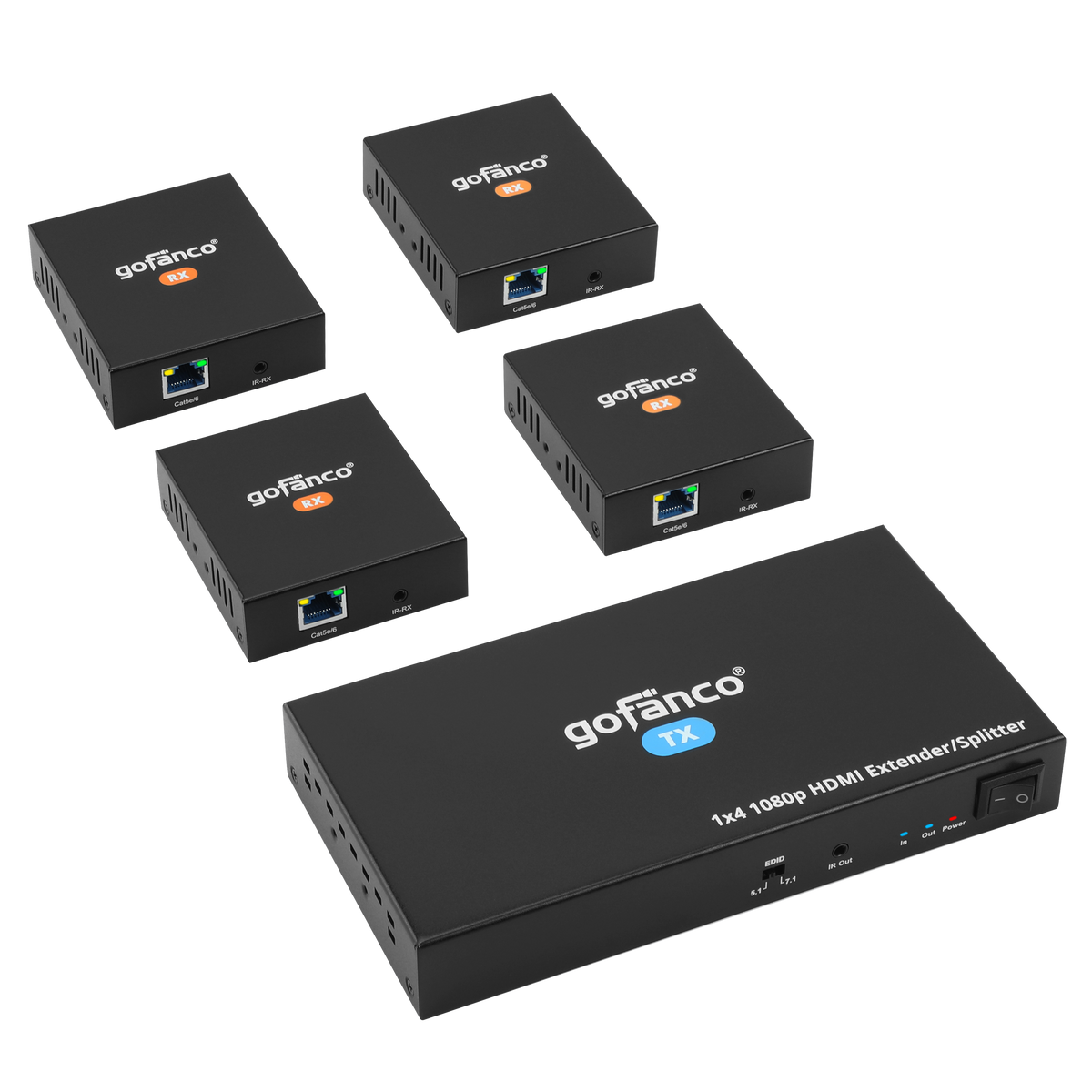

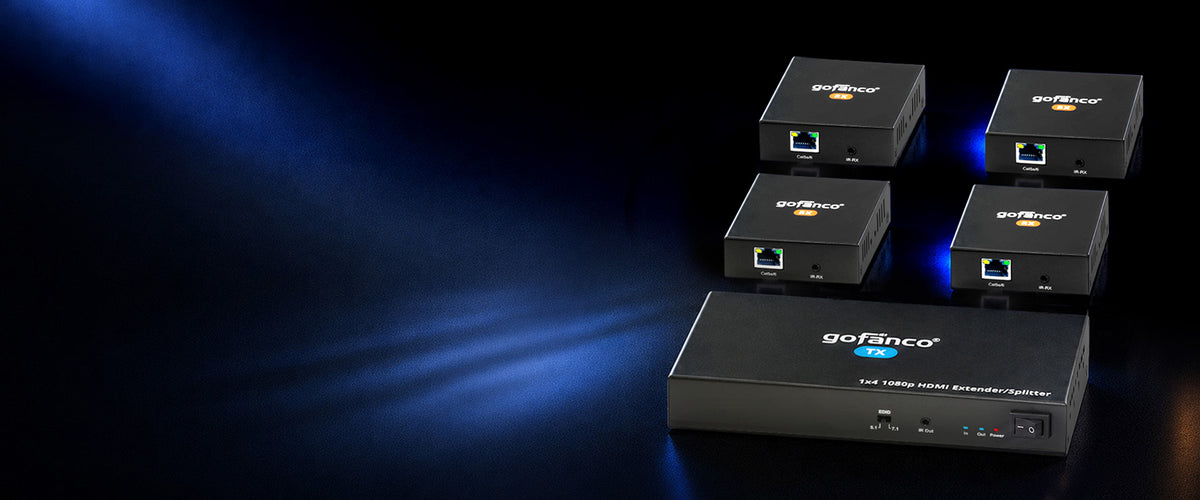

1080p 1x4 HDMI Extender/Splitter over CAT5e/6 with Loopout – 50M (v2.0)

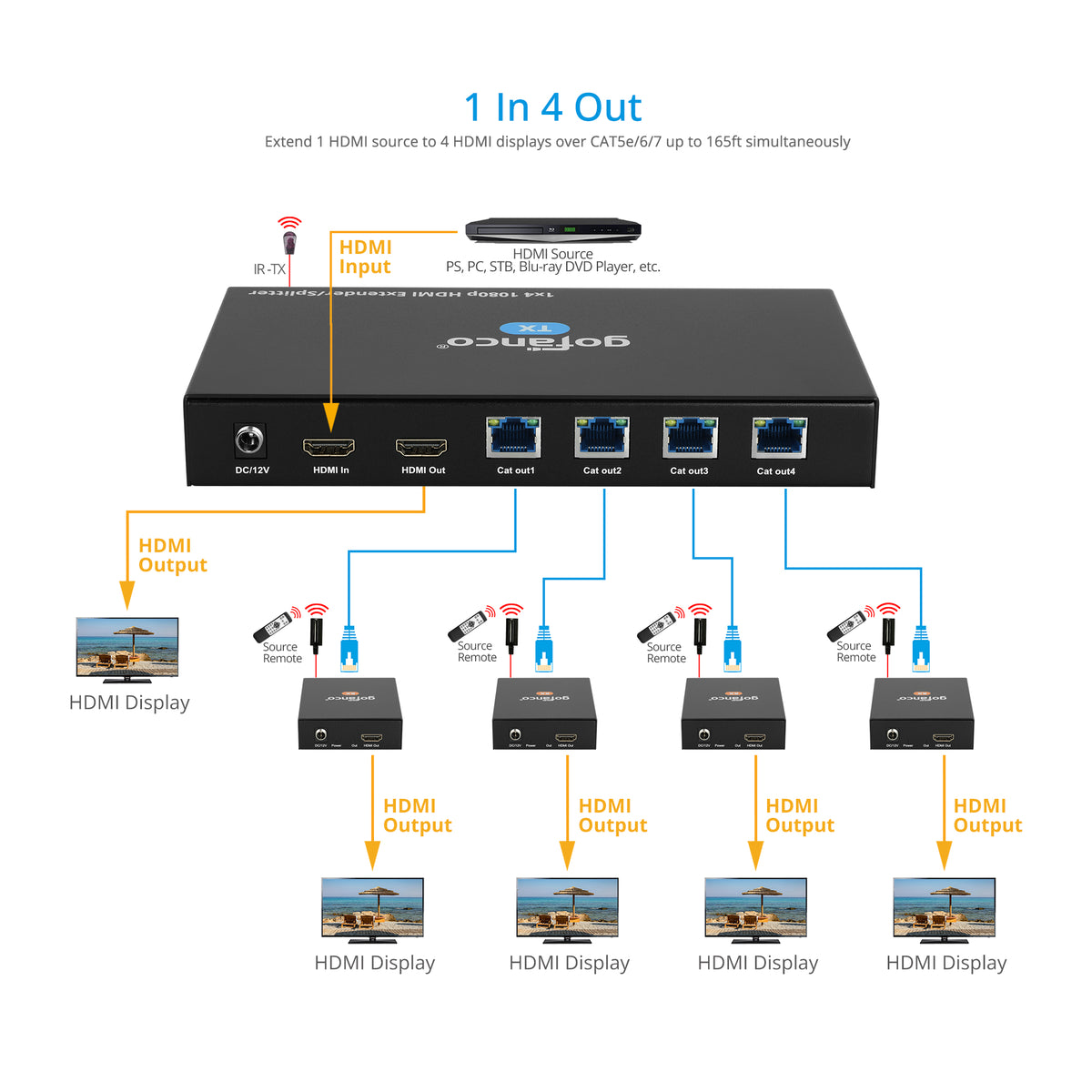

Up to 165ft (50m), HDMI Local Loopout, PoC, EDID, IR Extension, 5.1/7.1ch Audio, Mountable, 1 In 4 Out
Full HD 1x4 Extender
Distance up to 50m
Daisy-chain up to 4 layers
Power over Cable
IR Remote Control
4-Port HDMI Extender/Splitter over CAT5e/6 with Loopout - 50M
4-Port 1080p HDMI Extender Splitter with Cascading
Specification
- Video resolutions: 720p / 1080i / 1080p
- Video Bandwidth: up to 140MHz
- HDMI Audio: 2.0 / 5.1-ch / 7.1-ch

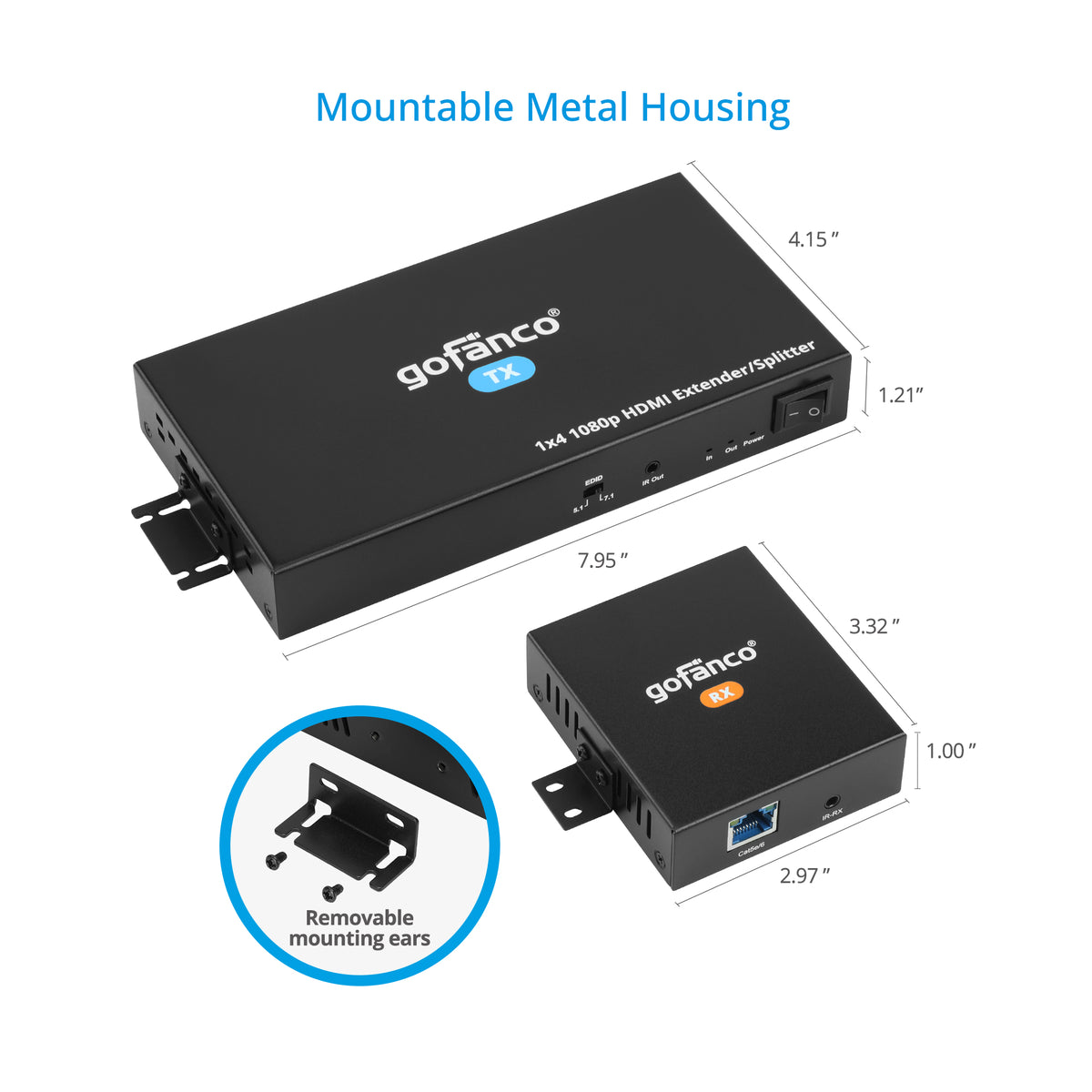

- Product Dimensions: TX: 7.96″(W) x 1.15″(H) x 4.15″(D) / RX: 2.96″(W) x 0.99″(H) x 3.32″(D)
- Weight: TX: 1.52 lbs ; RX: 1.71 lbs
- Power Adapter: AC100 - 240V 50/60Hz, Output: 12V/1A
- Housing Material / Color: Metal / Black color
Connection

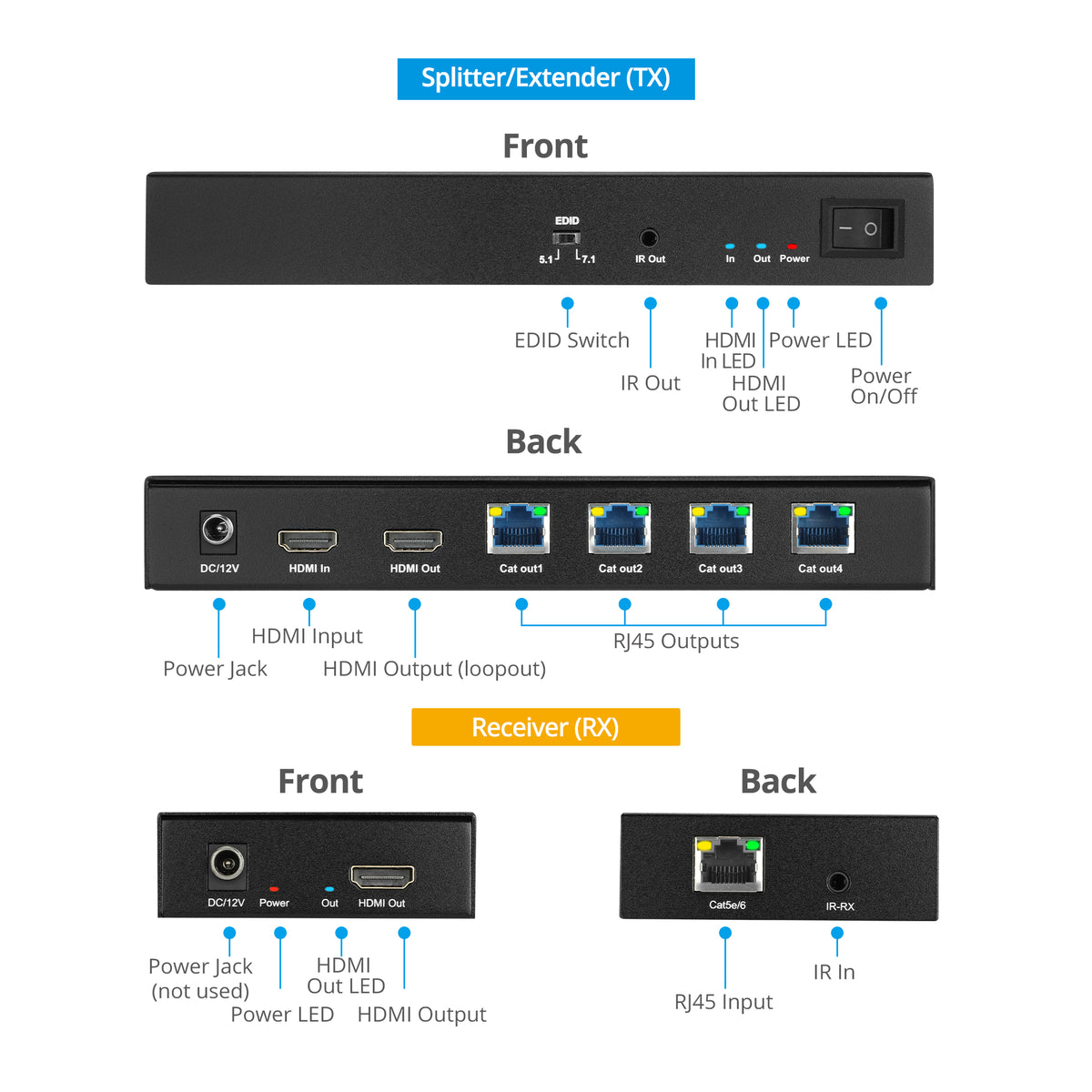

TX

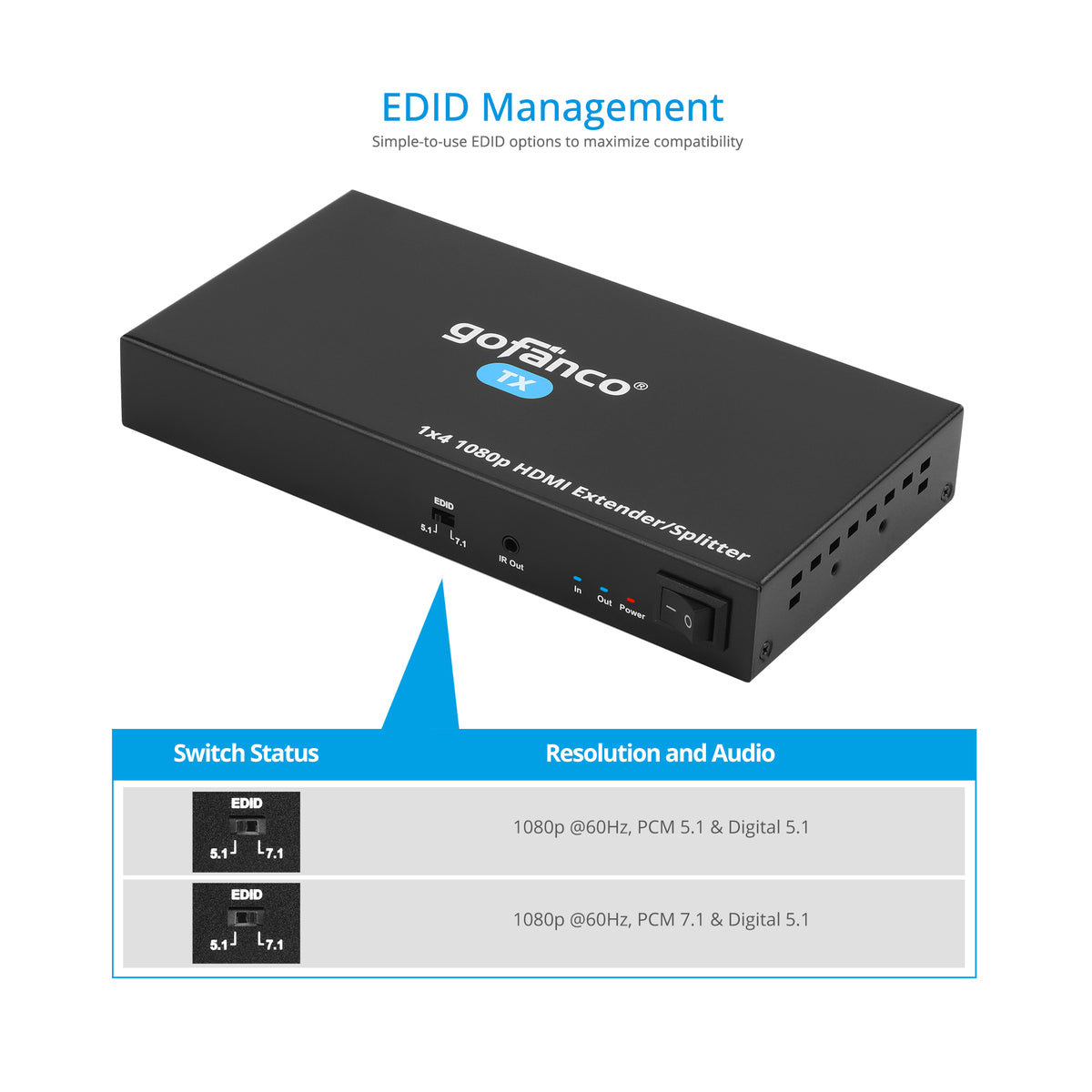

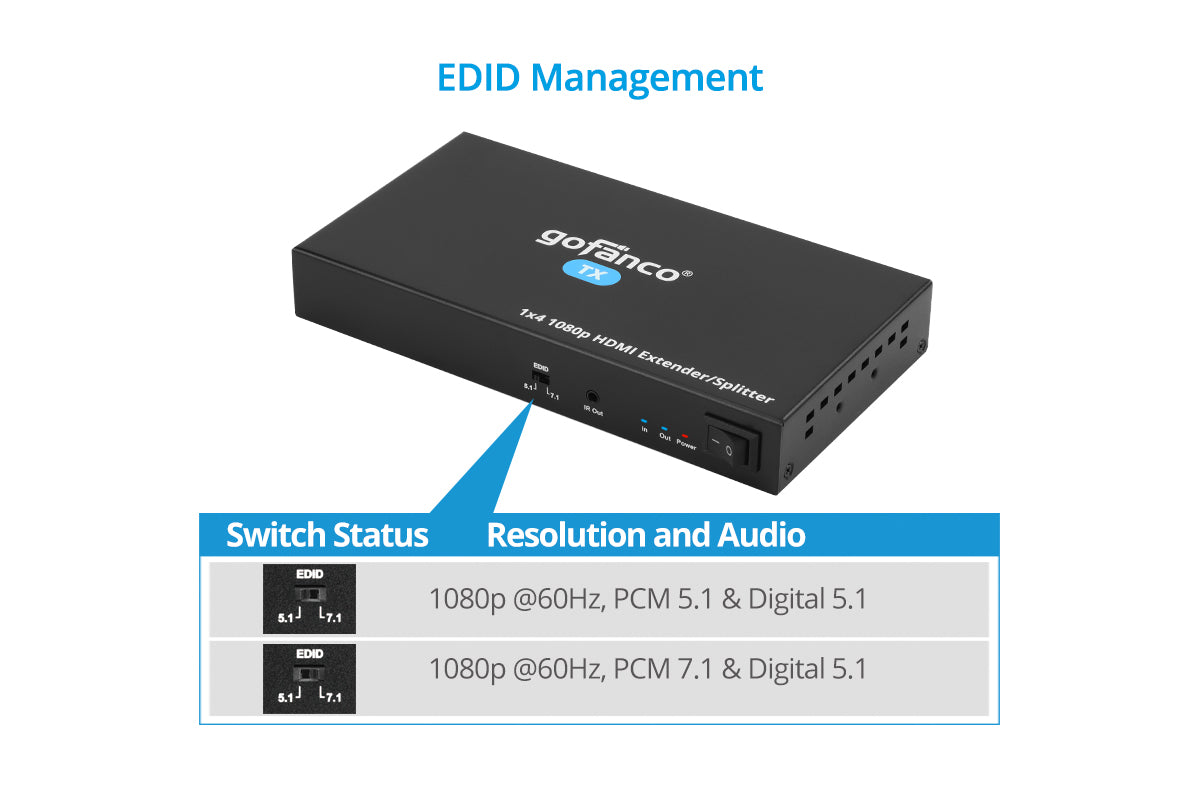

- 1x Slide Switch, EDID
- 1x 3.5mm jack, IR Out
- 4x 8-pin RJ45, Output
- 2x 19-pin HDMI, Input/Output
- 1x Power jack
- 1x Power Switch
RX
- 1x 19-pin HDMI, Output
- 1x 3.5mm jack, IR In
- 1x 8-pin RJ45, Input
- 1x Power jack
Features

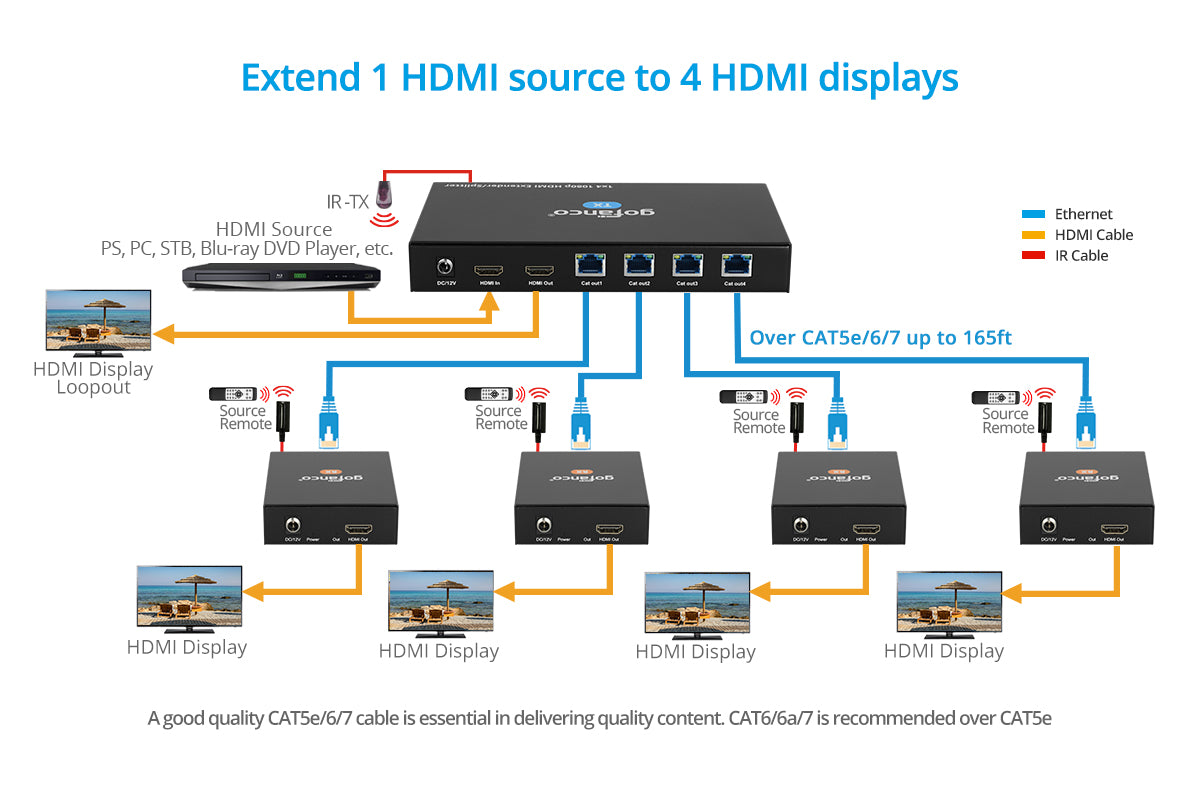

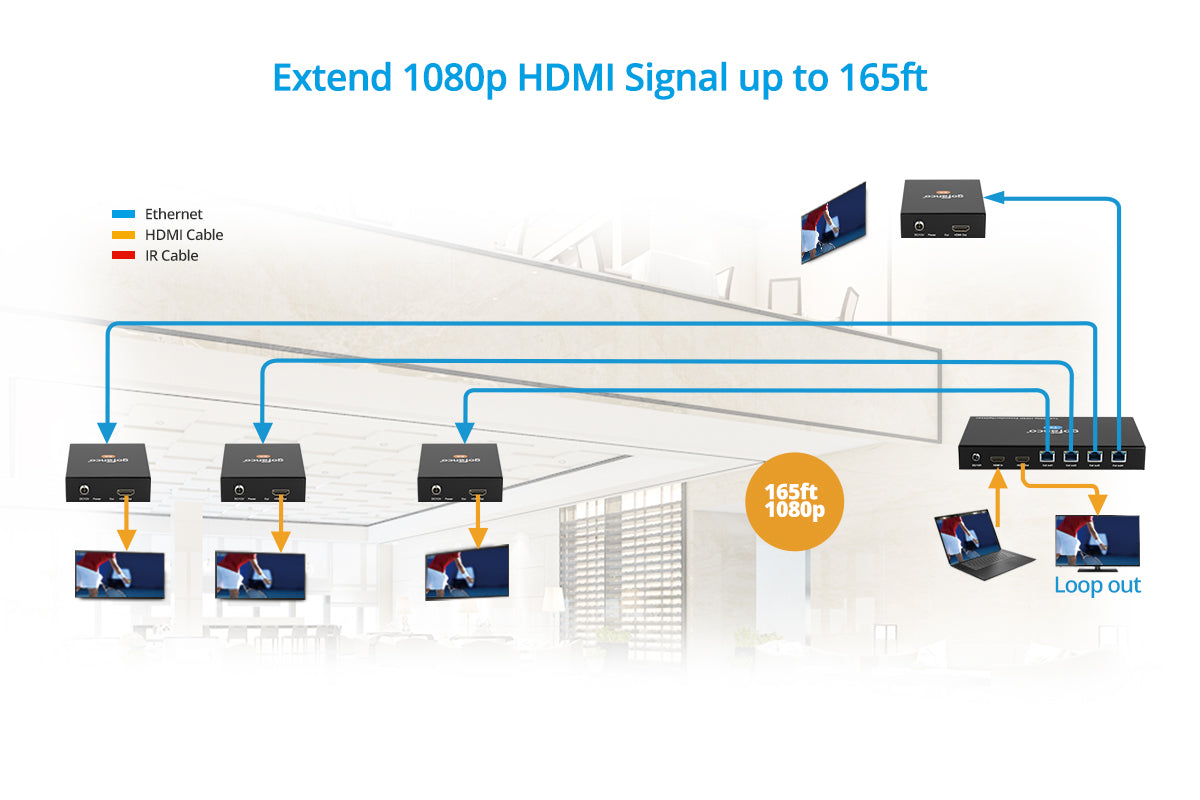

- Extends HDMI transmission up to 50m (165ft) over Cat5e/6/7
- Supports up to 1080p 60Hz, HDCP 1.4 compliant
- Supports up to PCM 5.1ch/7.1ch & Digital 5.1ch audio

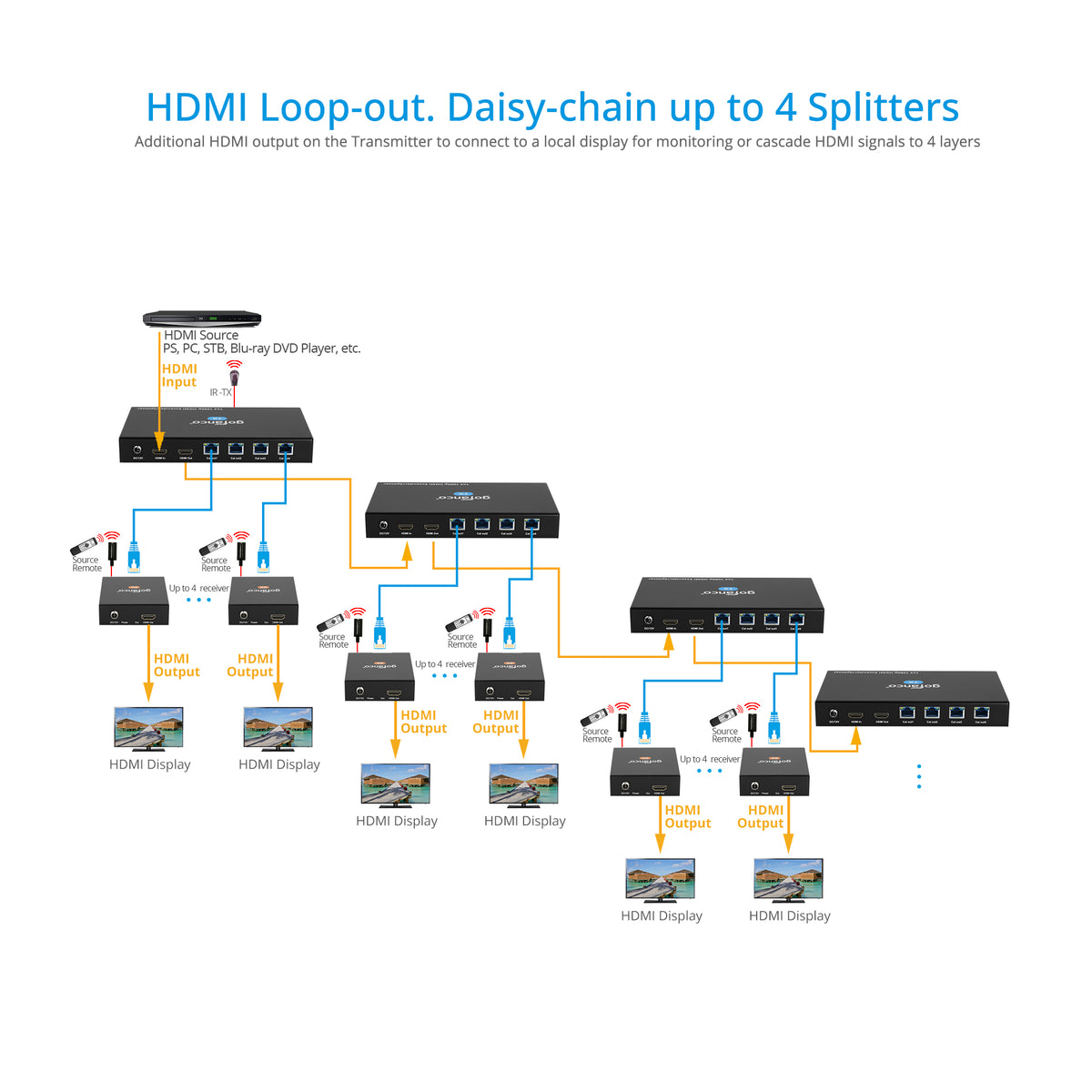

- Up to 4 splitters can be daisy-chained, driving a total of 9 displays

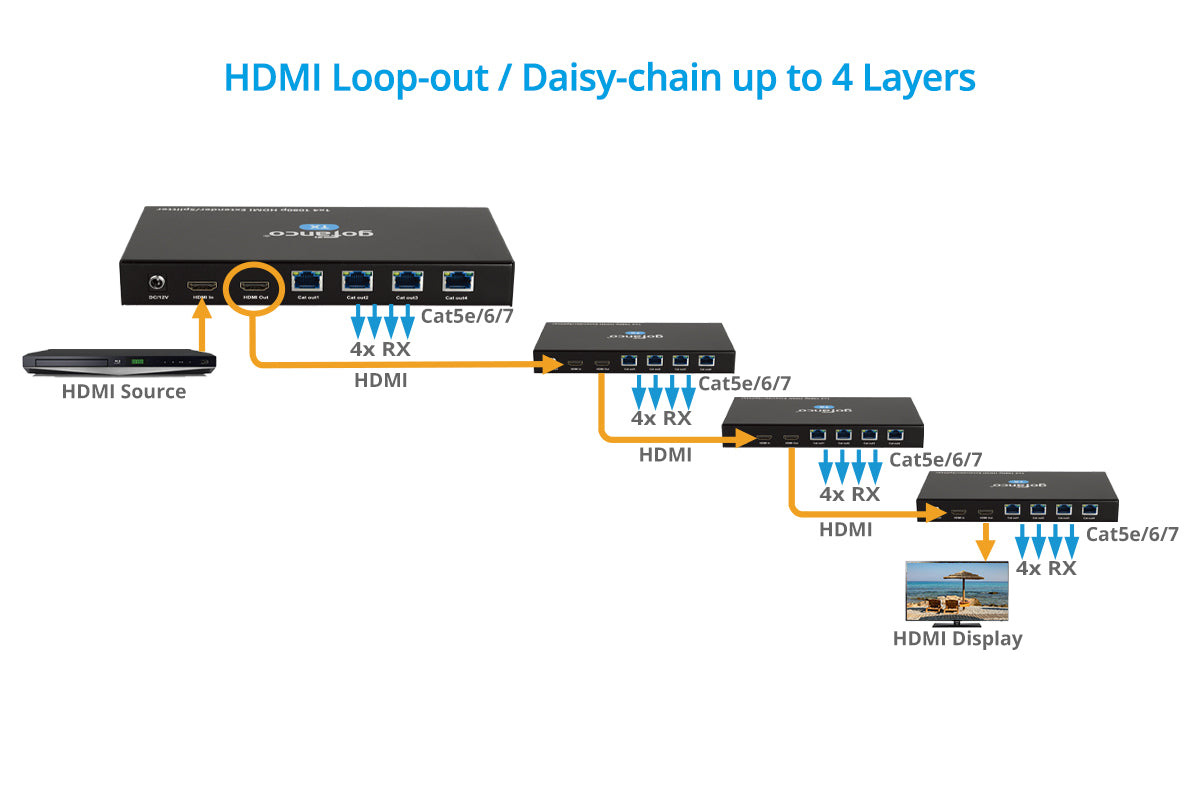

- HDMI output (loopout) on the transmitter to connect to a local display or cascade HDMI signals (up to 4 layers)
- One-way IR extension
- PoC (Power over Cable) allows the receivers (RX’s) to be powered by the transmitter (TX) over Cat cables
- Sturdy metal housing with surface mounting accessories
Standard
- UPC: 818354-020397
- Operation Temperature: 14 to 144 degrees F
- Storage Temperature: -4 to 158 degrees F
- Relative humidity: 5 to 90% RH (non-condensing)
- Regulatory approvals: FCC / CE / RoHS
- Limited One-Year Warranty and Lifetime Product Support
- Country of origin: China

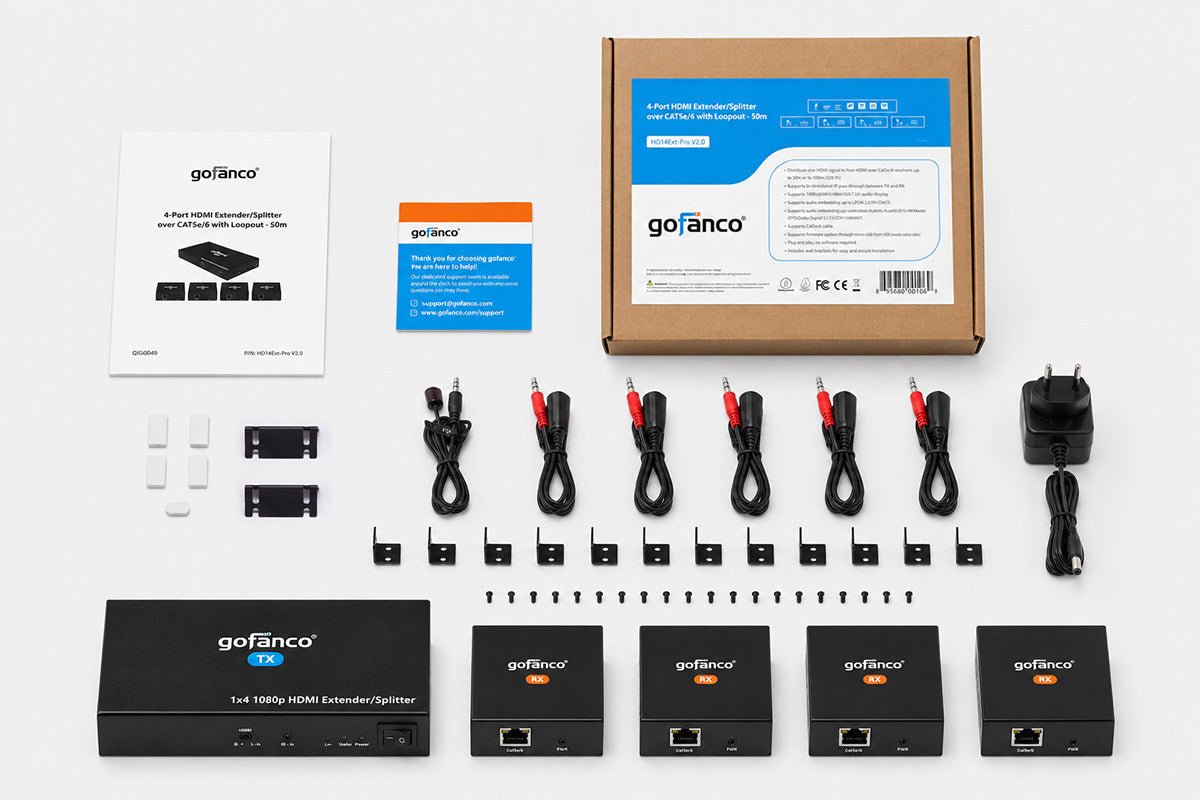

- 1080p 1x4 HDMI Extender/Splitter Kit – 50M
- Power adapter 12V/1A
- IR Blaster cable (TX)
- IR Receiver cables (RX’s) (5)
- Surface mount accessories
- User’s Manual
Manual
Poor video quality or no video signal on display
- Check whether the HDMI cables are connected properly and are in good working condition
- Make sure the resolution of the display is compatible with the splitter’s resolution
Snowy or fuzzy screen on the displays
Cause by damaged or low quality HDMI cables. Change to a higher quality HDMI cable. Make sure the cable length is less than or equal to 5 meters.
Splash screen on the displays:
Try another CAT cable and make sure the cable length is within the specified range.
