Other: PRO-HDMI2Gen

Prophecy HDMI 2.0 Pattern Generator/Analyzer

Sale price $1,688.95

4K60Hz 4:4:4 HDMI 2.0, 4.3” Touch Panel, Battery Powered, HDR, HDMI 2.0a, HDCP 2.2, EDID Testing, 18Gbps, TAA Compliant

Hurry, only 5 items left in stock!
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
5 Major Functions
4K60Hz Resolution
HDMI Signal Generator
Portable Battery Powered
Warranty And Lifetime Support

HDMI 2.0 Pattern Generator/Analyzer

4K 60HZ 4:4:4 HDMI 2.0, 4.3” Touch Panel, Battery Powered, HDR, HDMI 2.0a, HDCP 2.2, EDID Testing, 18Gbps, TAA Compliant

Portable 4K60Hz HDMI Pattern Generator for Installers

Resolution

Tests Ultra HD 4K60Hz Video Outputs

Functions

5 Essential Testing & Cable Diagnosis Tools

LCD screen

Real-Time Signal Information on LCD Screen

Powered

Rechargeable Battery Provides 4 Hours Operation

Professional AV and Computer Repair Center

Ideal for professional AV and computer repair centers, the Generator/Analyzer supports efficient video diagnostics, signal testing, system troubleshooting, and post-repair performance verification

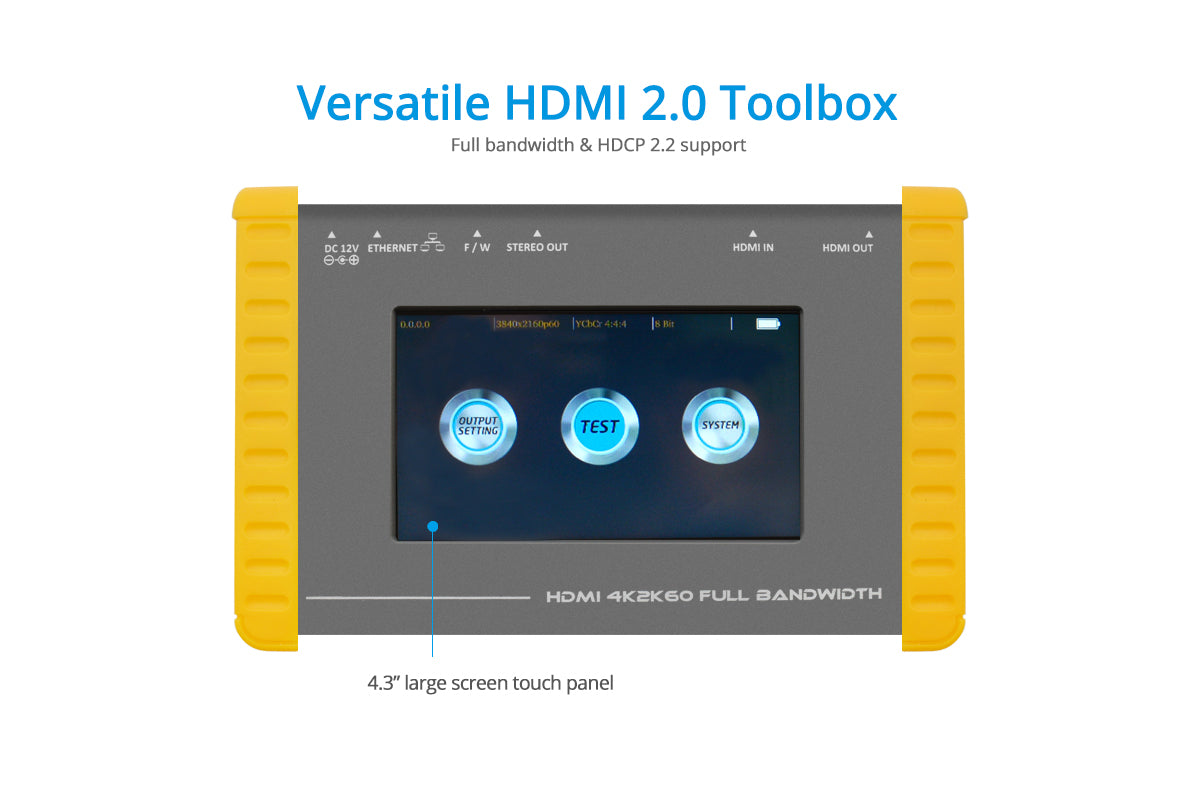

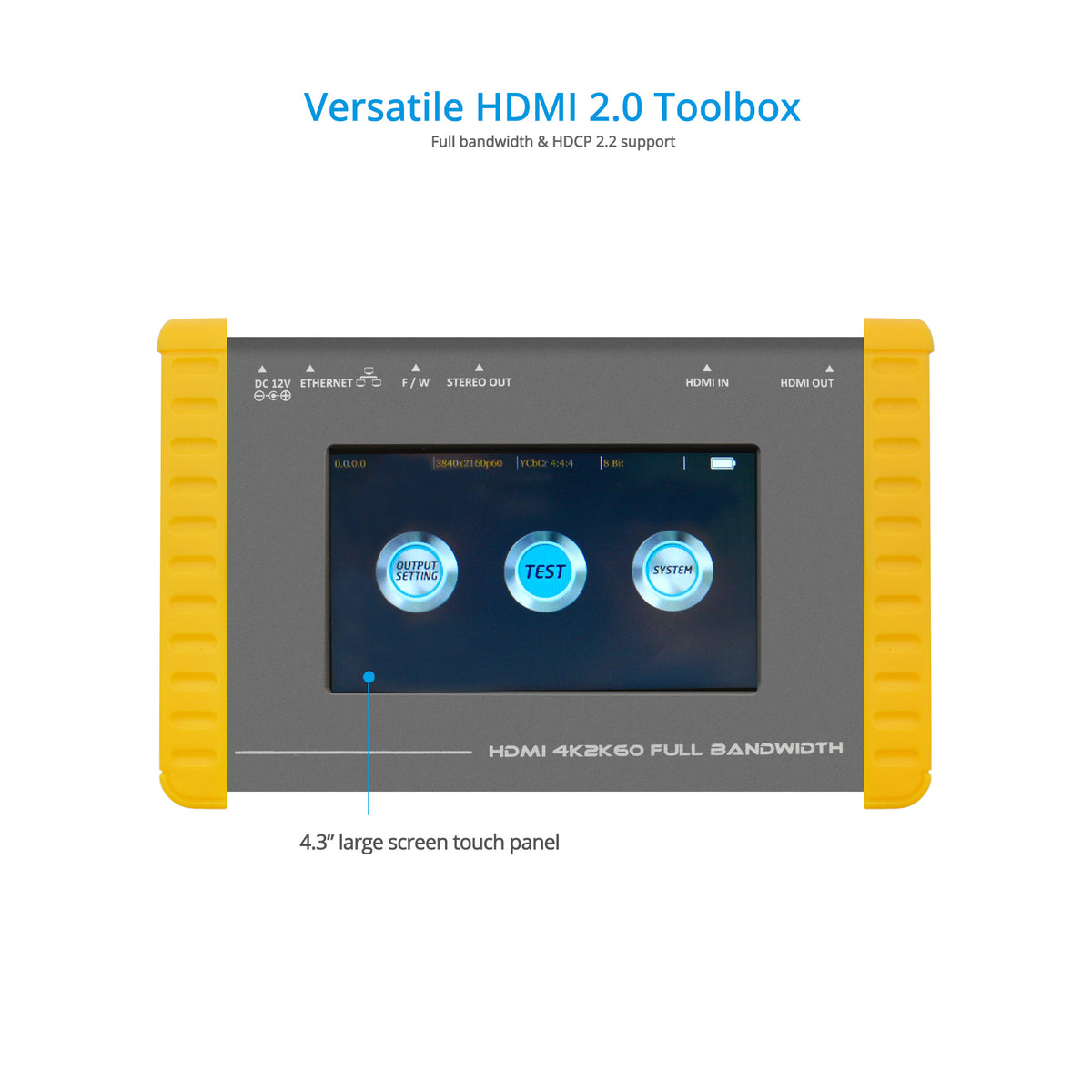

Versatile toolbox

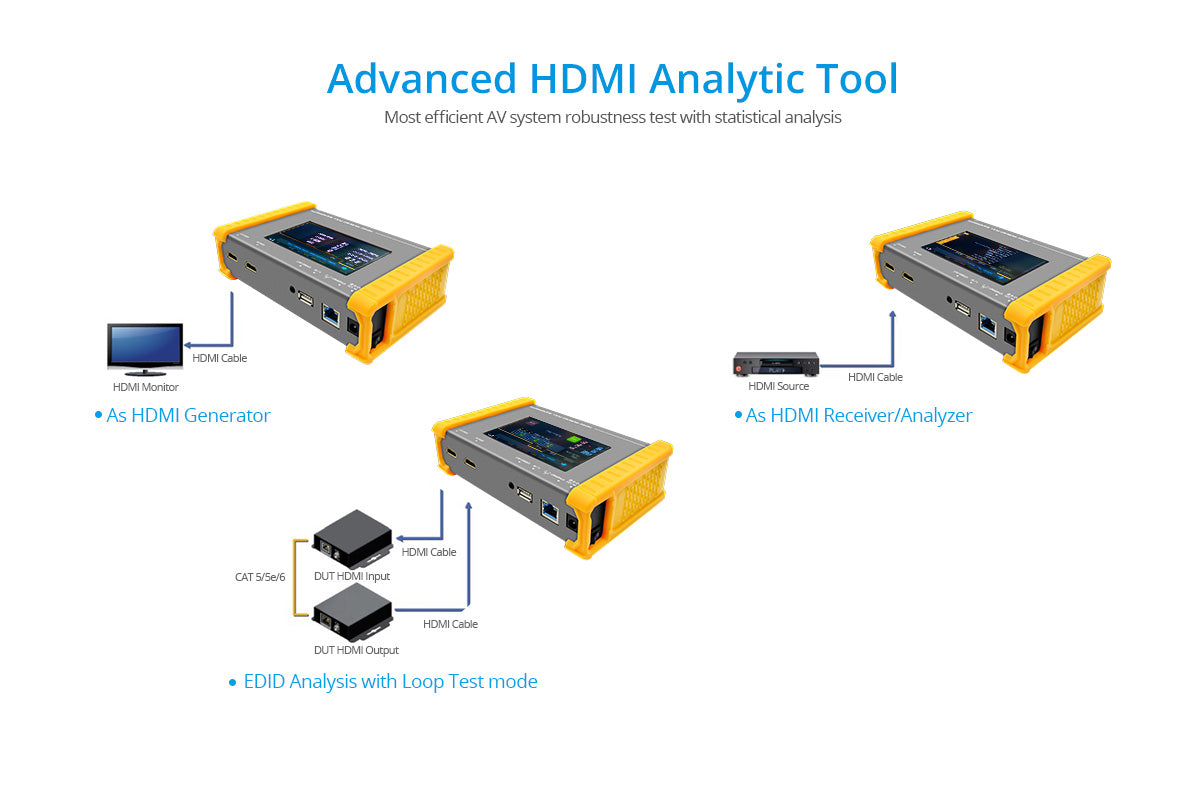

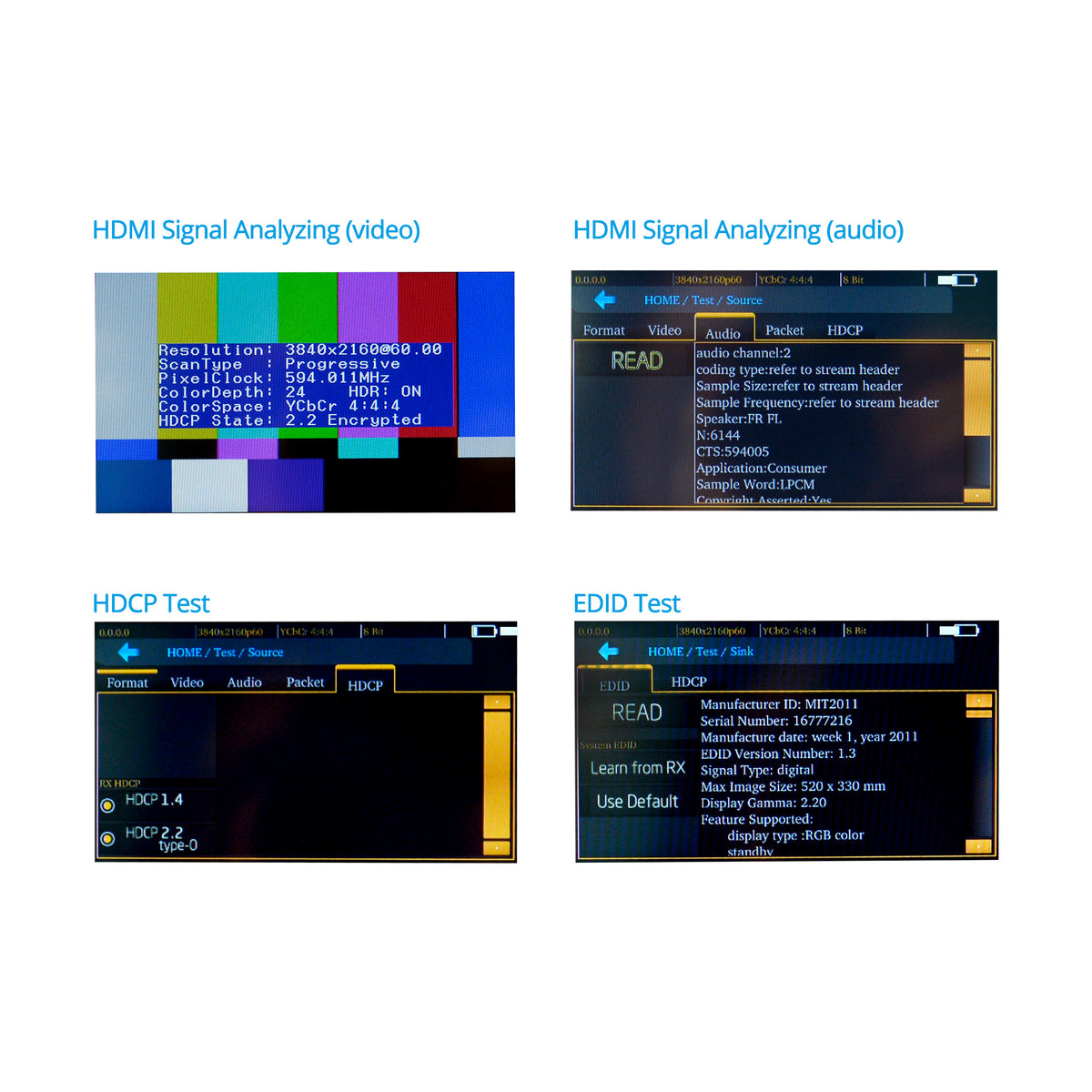

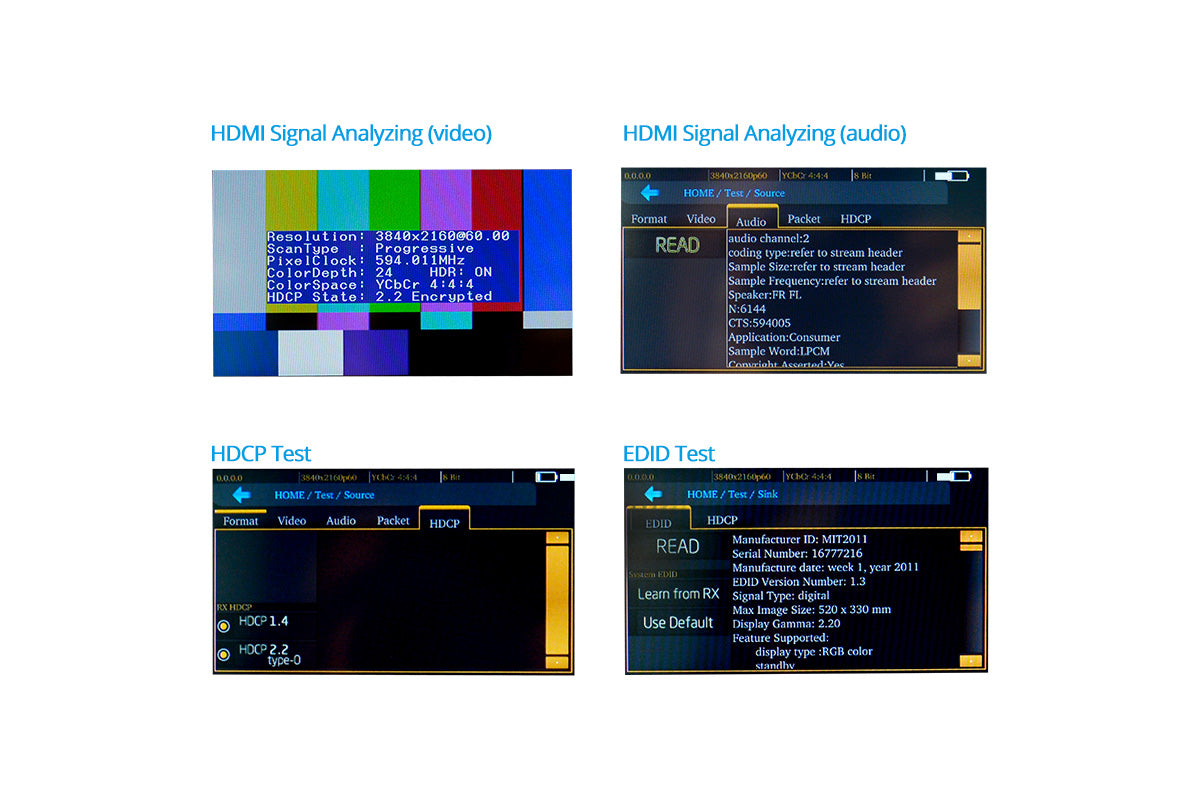

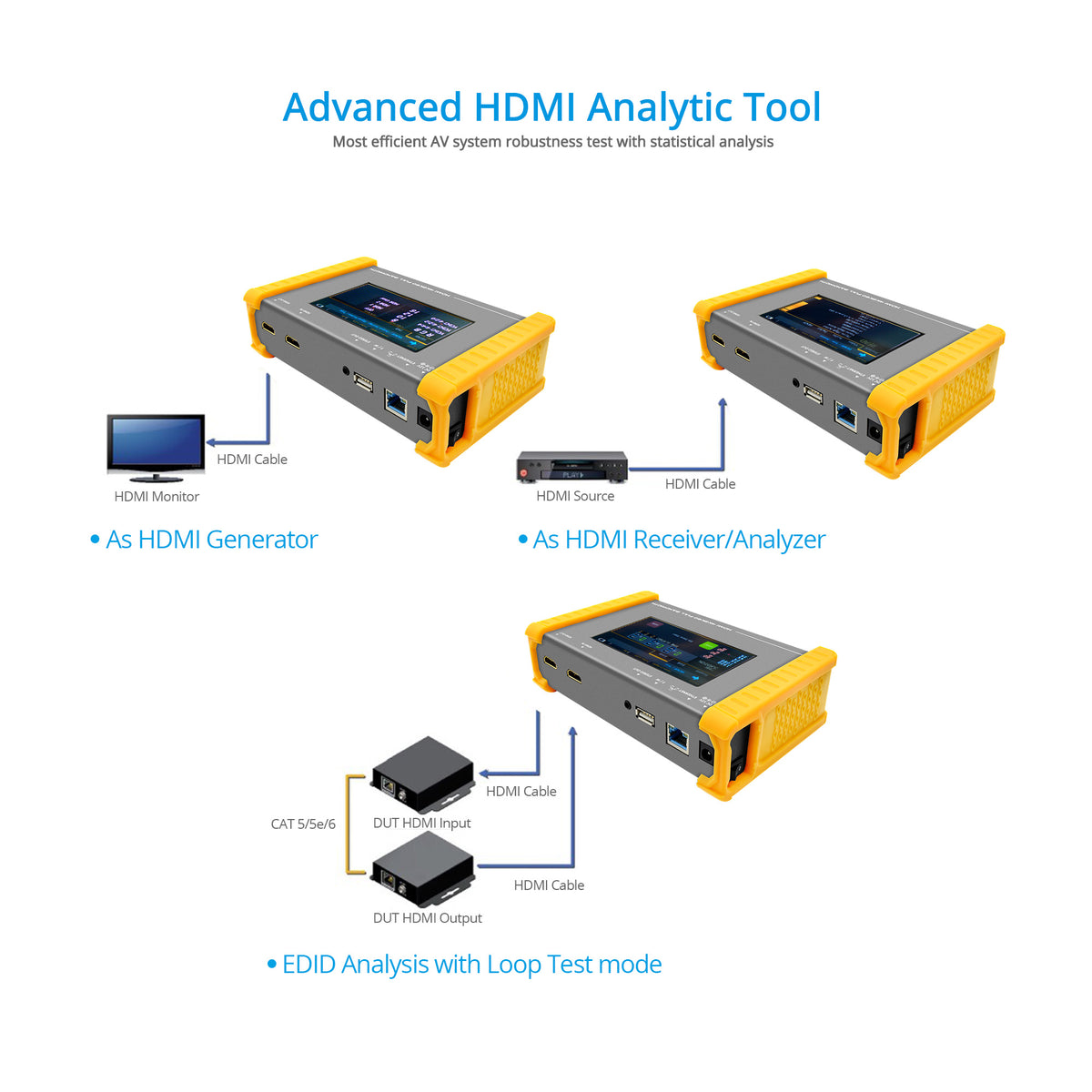

HDMI Video Signal Analyzing / HDMI Audio Signal Analyzing / HDCP Test / EDID Analysis with loop Test mode

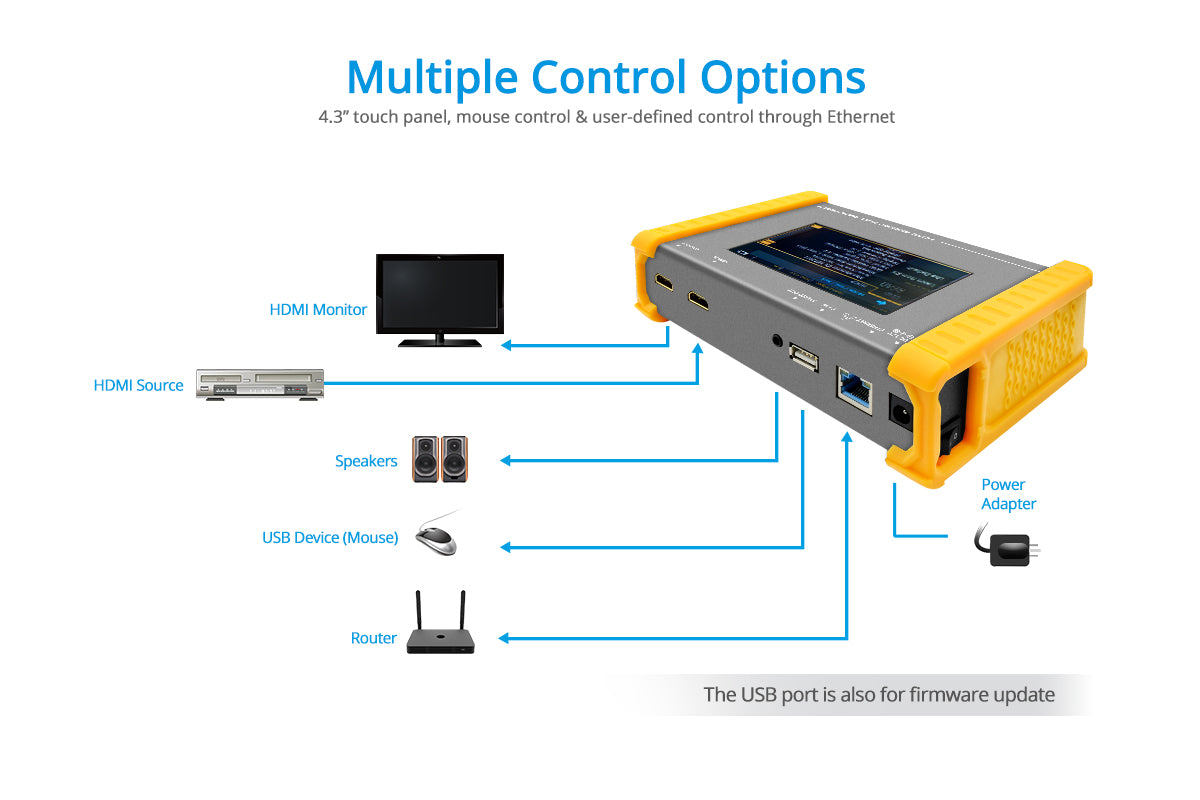

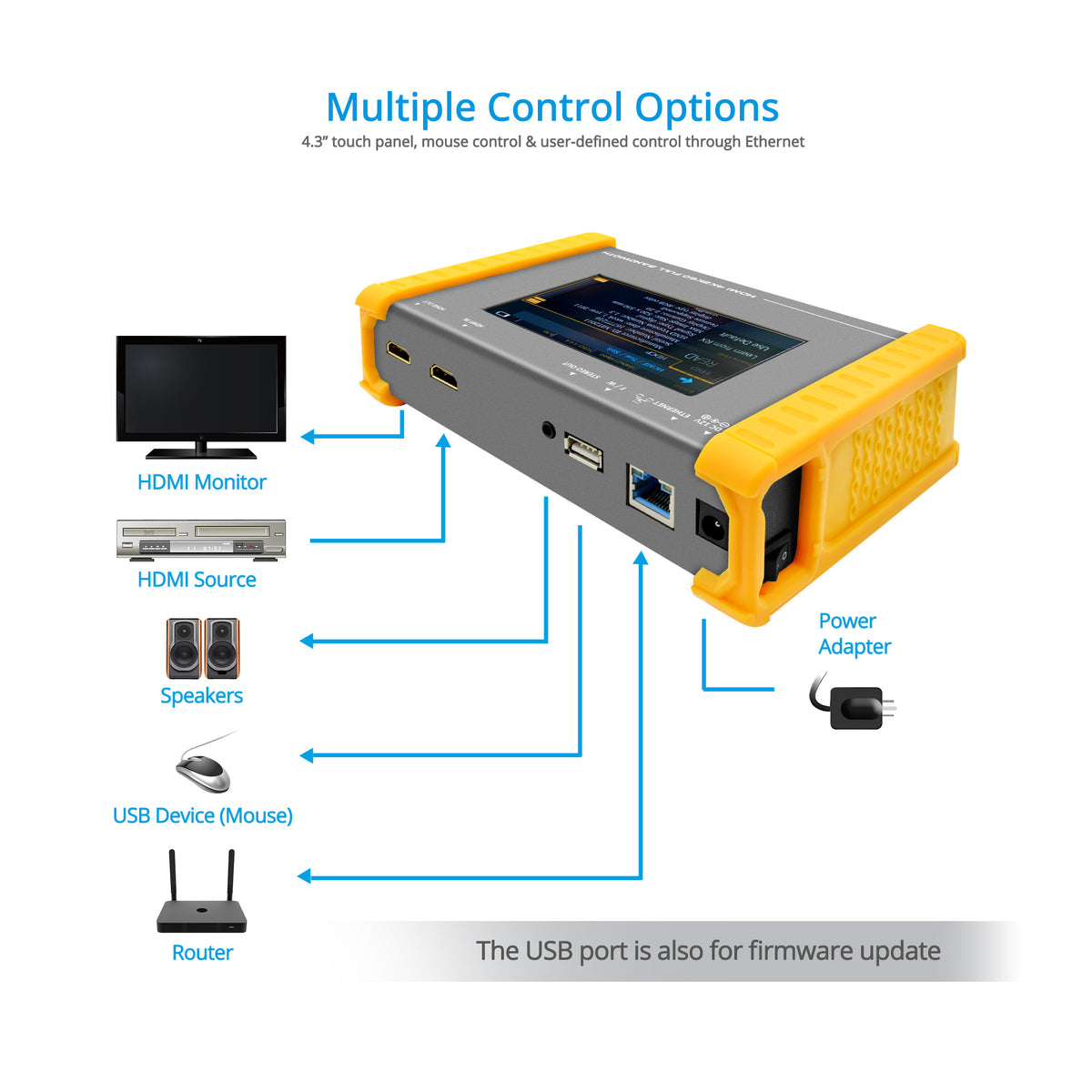

Multiple Control Options

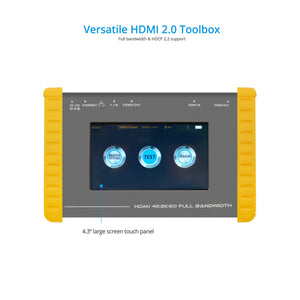

4.3" touch panel, mouse control & user-defined control through Ethernet
Specification
  • Compliance: HDMI 2.0 / HDCP 2.2
  • Bandwidth: 18Gbps
  • Resolution:Up to 4K60Hz
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:0
  • Control:Touch panel, Mouse, Ethernet
  • USB support: USB 2.0 or Firmware update
  • Dimension: 6.6″(W) x 1.7″(H) x 4.1″(D)
  • Weight: 1.69 lbs
  • Power Adapter: AC100 - 240V 50/60Hz, Output: 12V/5A
  • Housing Material / Color: Metal / Iron Gray & Yellow silicom

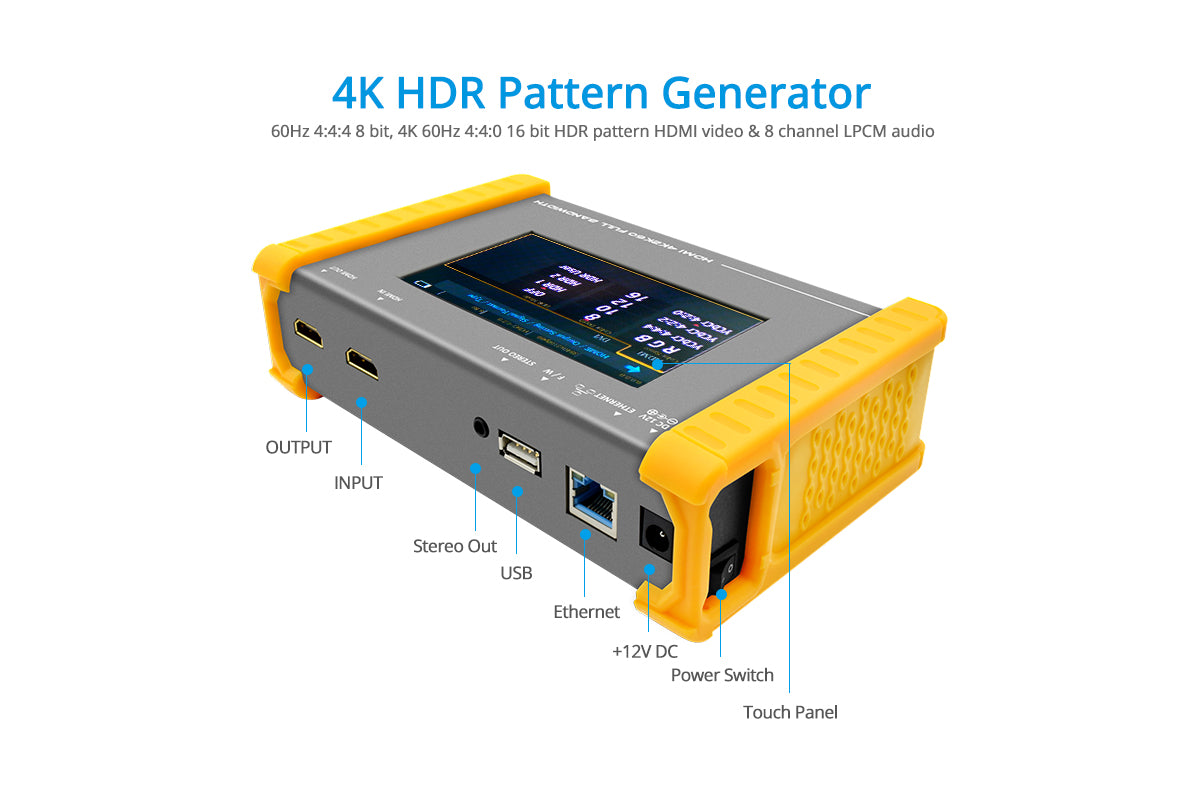

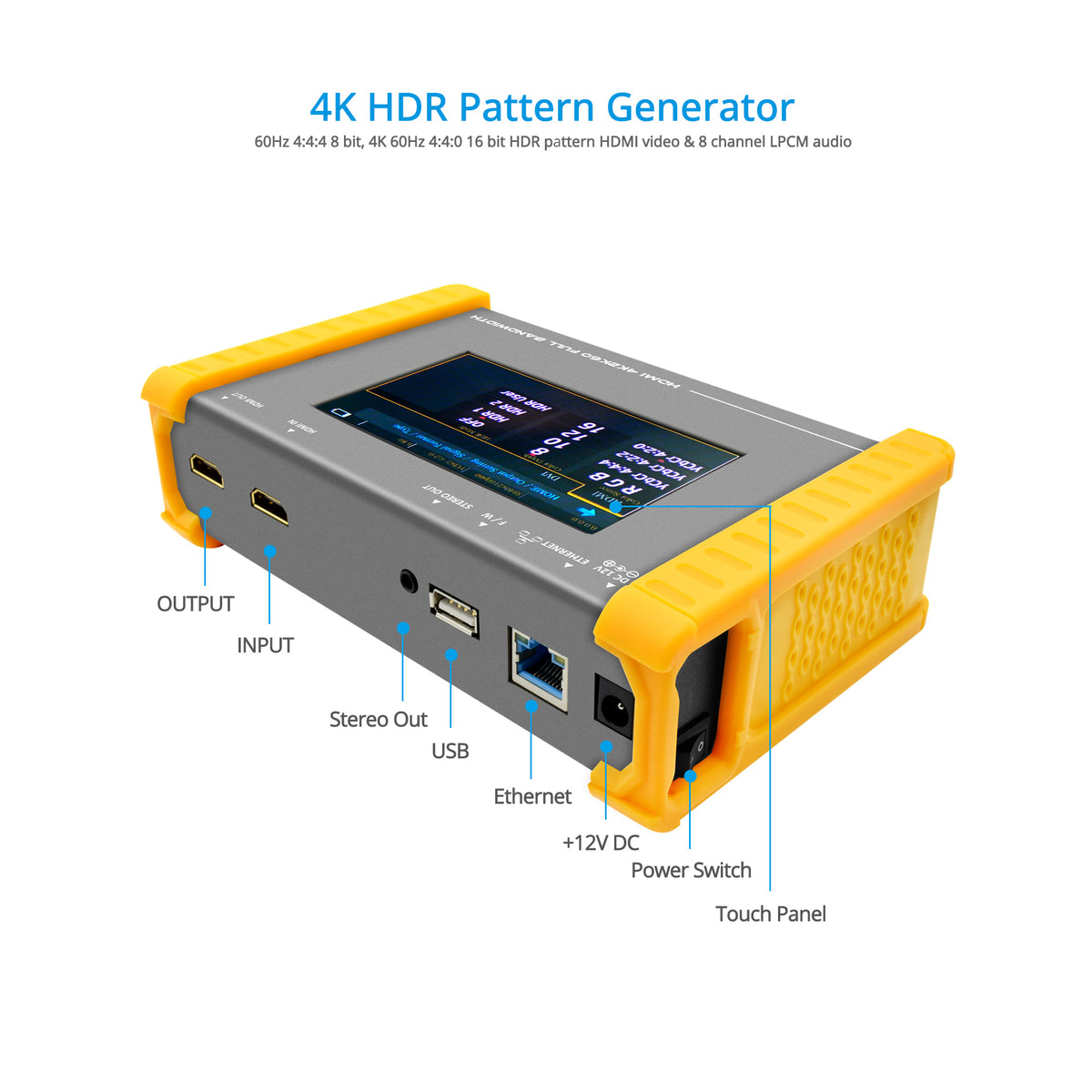

  • 2x 19-pin HDMI, Input/Output
  • 1x 4-pin USB-A, USB device or FW update
  • 1x 3.5mm jack, Audio output
  • 1x 8-pin Ethernet, Control
  • 1x 4.3" LCD Display, Touch screen for control
  • 1x Power ON/OFF Switch
  • 1x Power Jack
  • 4K60Hz 4:4:4 8-bit, 4K60Hz 4:2:0 16-bit HDR pattern generator
  • 4.3” touch panel
  • Supports mouse control
  • Supports user device control through Ethernet
  • Firmware update via USB Flash Drive
  • Supports user defined pattern up to 2GB
  • Embedded LINUX KERNAL system with limitless extension
  • Loop test capability to provide statistical analysis for connection stability
  • Supports HDMI loop through function
  • HDCP test to verify HDCP of HDMI source and transmit HDCP encrypted video
  • Qualified physical layer performance to ensure the best compatibility
  • Battery powered for portability with 4 hours operation time on a full charge
  • Supports 8-channel LPCM audio with selectable sample rates
  • UPC:818354-020281
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: Taiwan
