Prophecy HDMI 2.0 Installation Gear - Analyzer and Signal Generator

Sale price $299.88

Up to HDMI 2.0a 4K60Hz 4:4:4 HDR 18Gbps, Battery Powered, HDCP 2.2, Firmware Upgradeable, TAA Compliant

Pre-order
Out of stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K30Hz Resolution
3 Major Functions
In Cable Mode
USB Powered
Emulating Sink Device

HDMI 2.0 Installation Gear - Analyzer and Signal Generator

Provides video patterns up to HDMI 2.0a 4K 60Hz 4:4:4 or 4K HDR, and also HDMI 1.4 resolutions, such as 1080p and 720p.

Handheld 4K60Hz HDMI Signal Generator & Analyzer

Resolution

4K60Hz Professional Signal Testing Unit

Functions

Generates Signals & Diagnostics Cable Quality

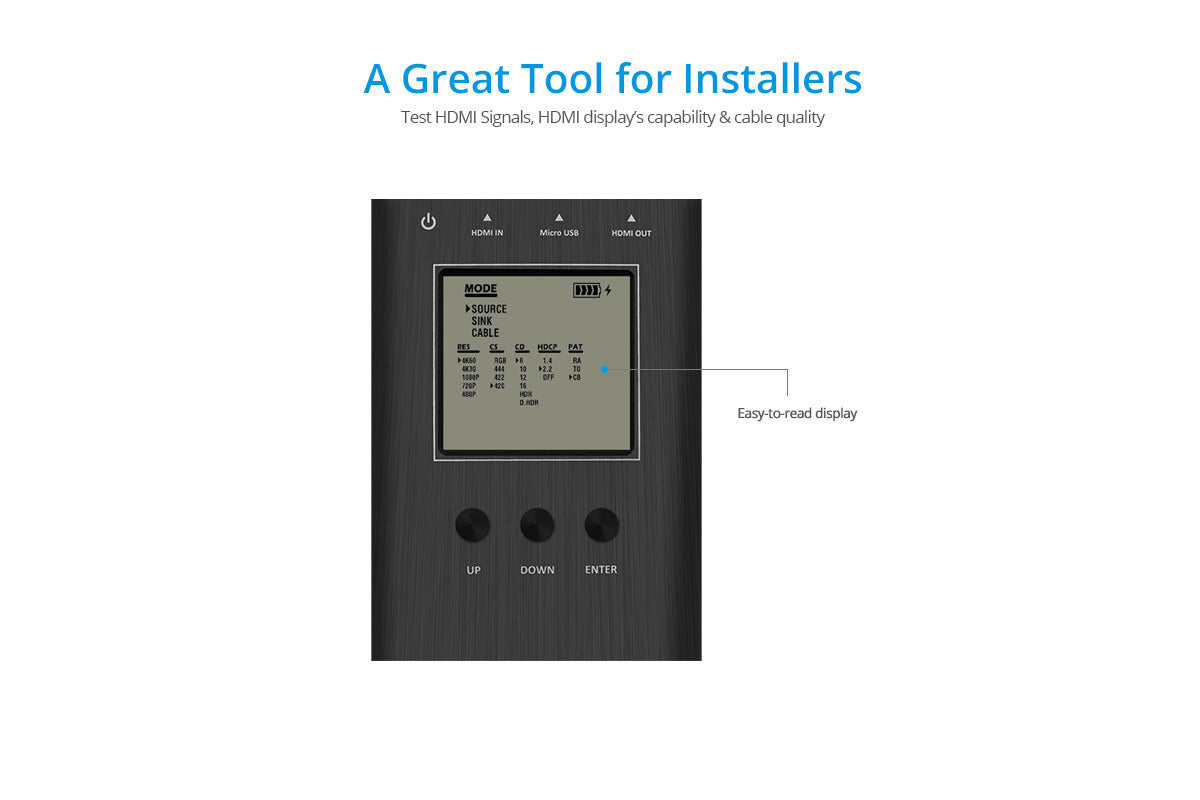

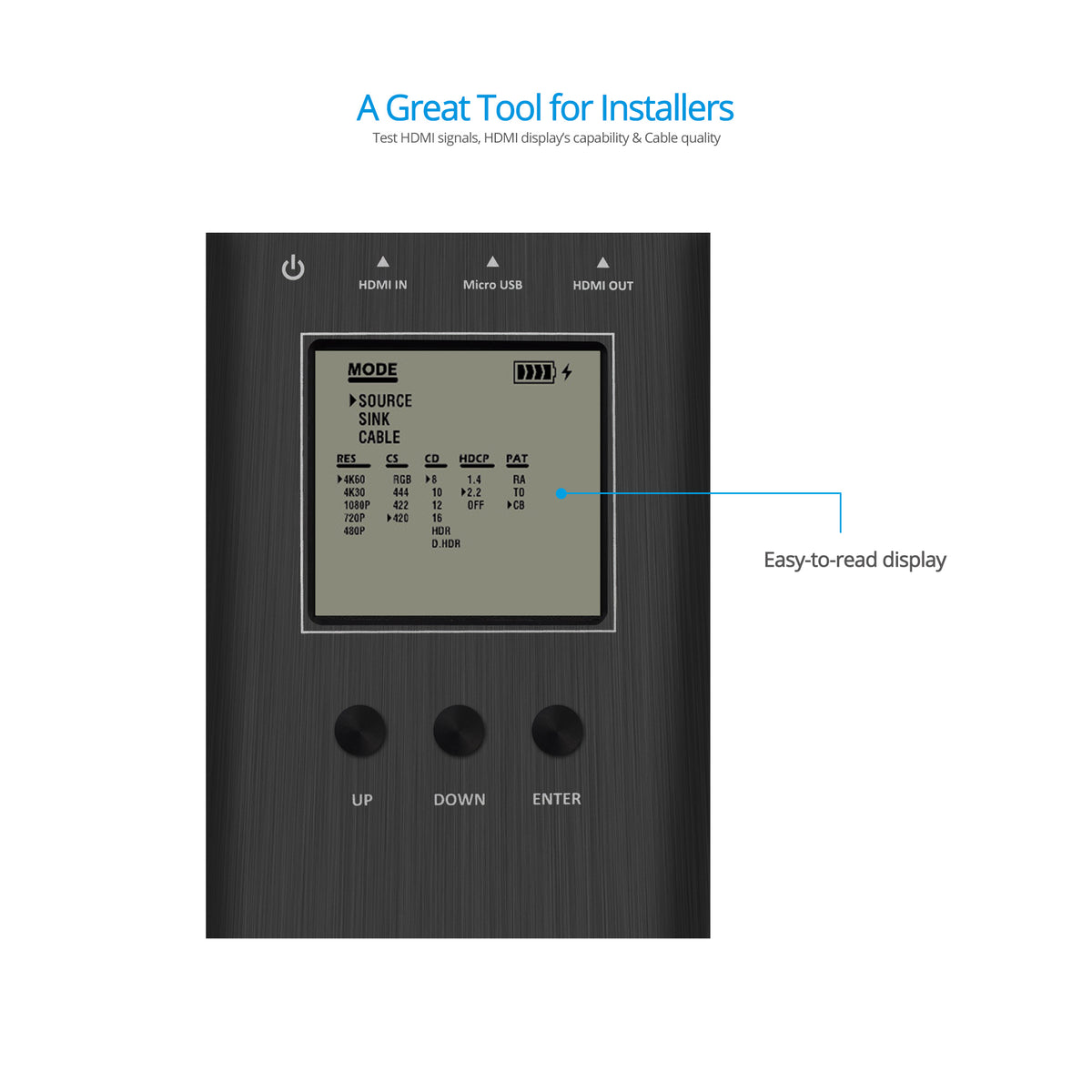

LCD screen

Clear LCD Screen Displays Timing & EDID Info

Powered

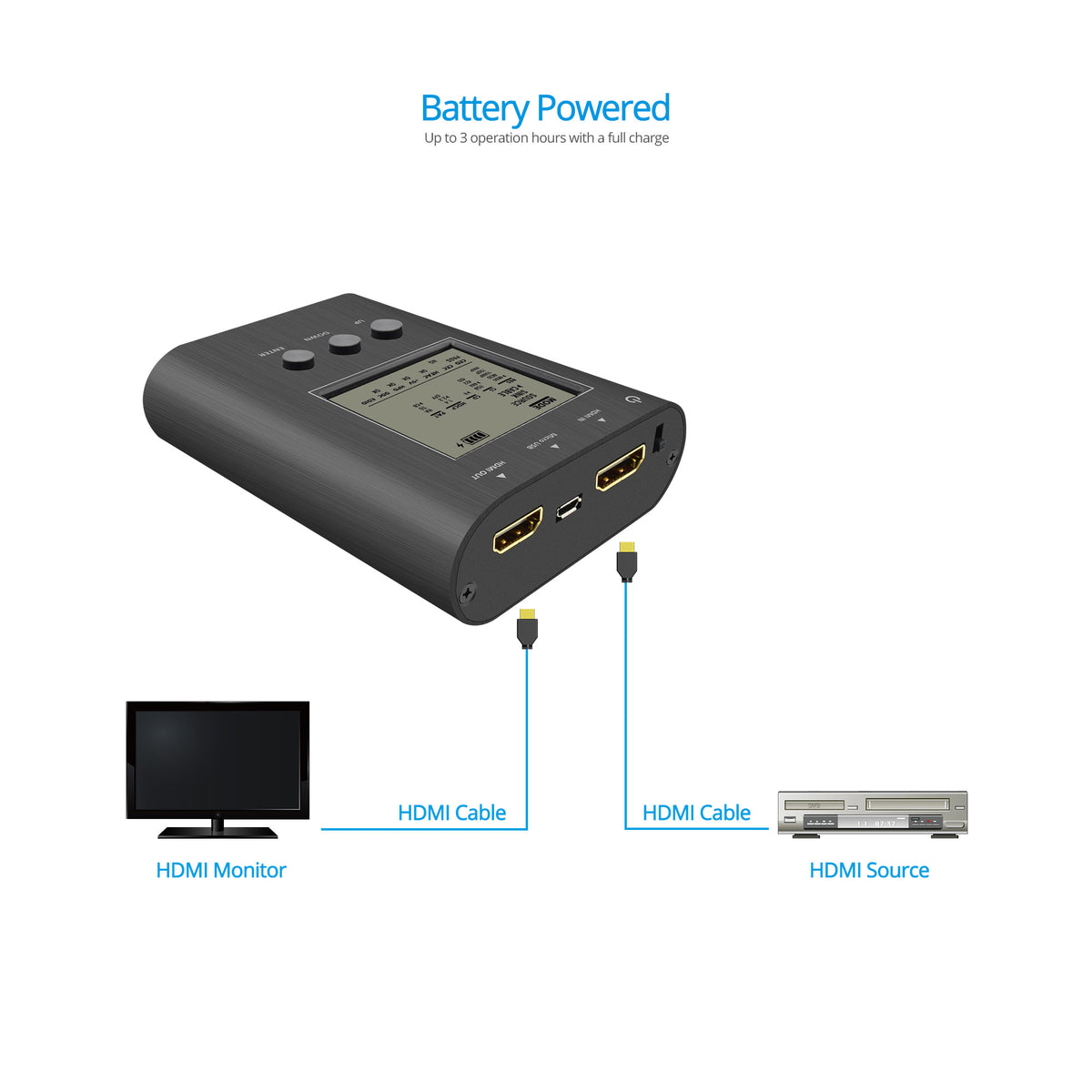

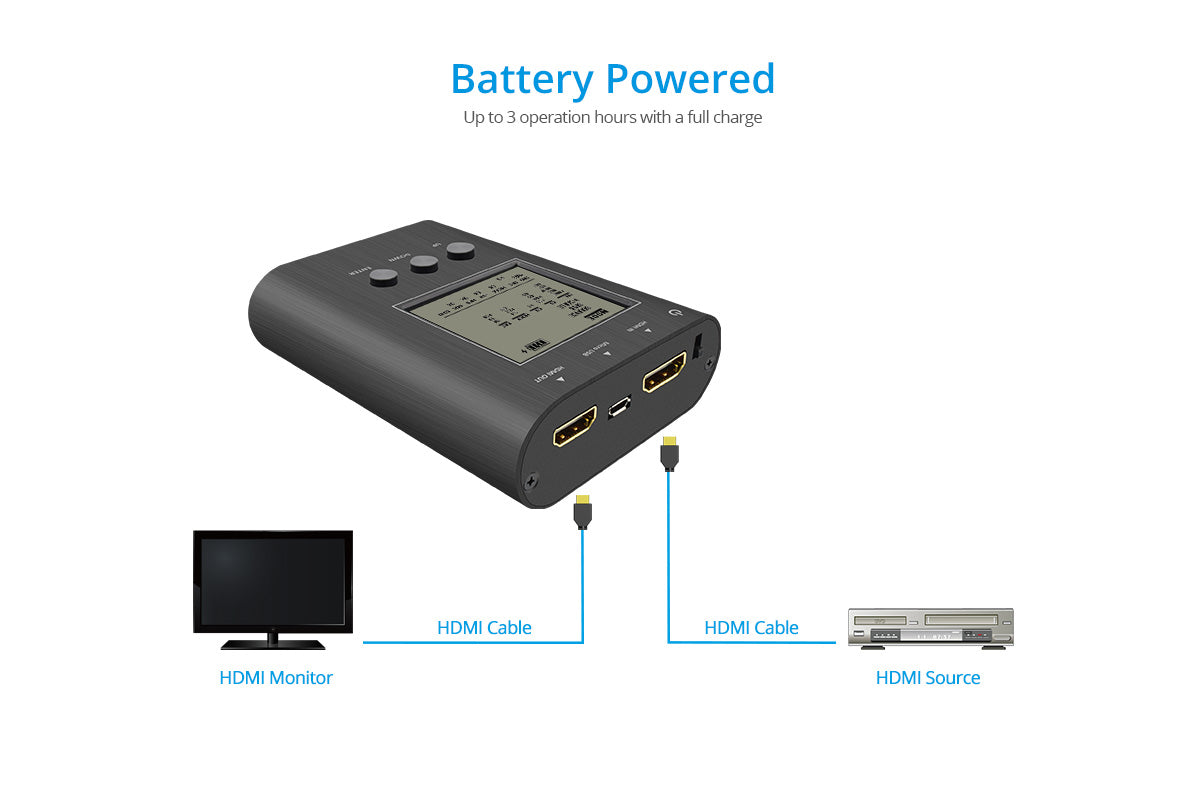

Built-In Battery Supports 3 Hours Continuous Use

Professional Video Maintenance and Testing

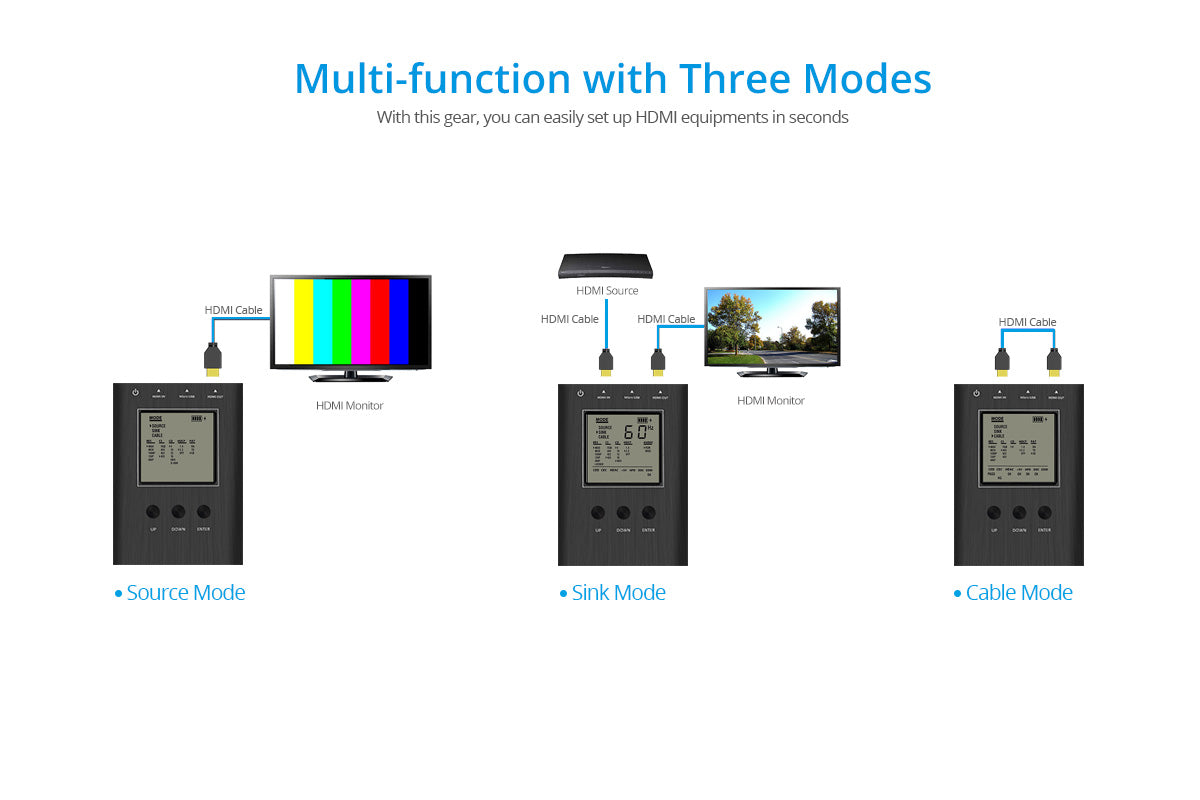

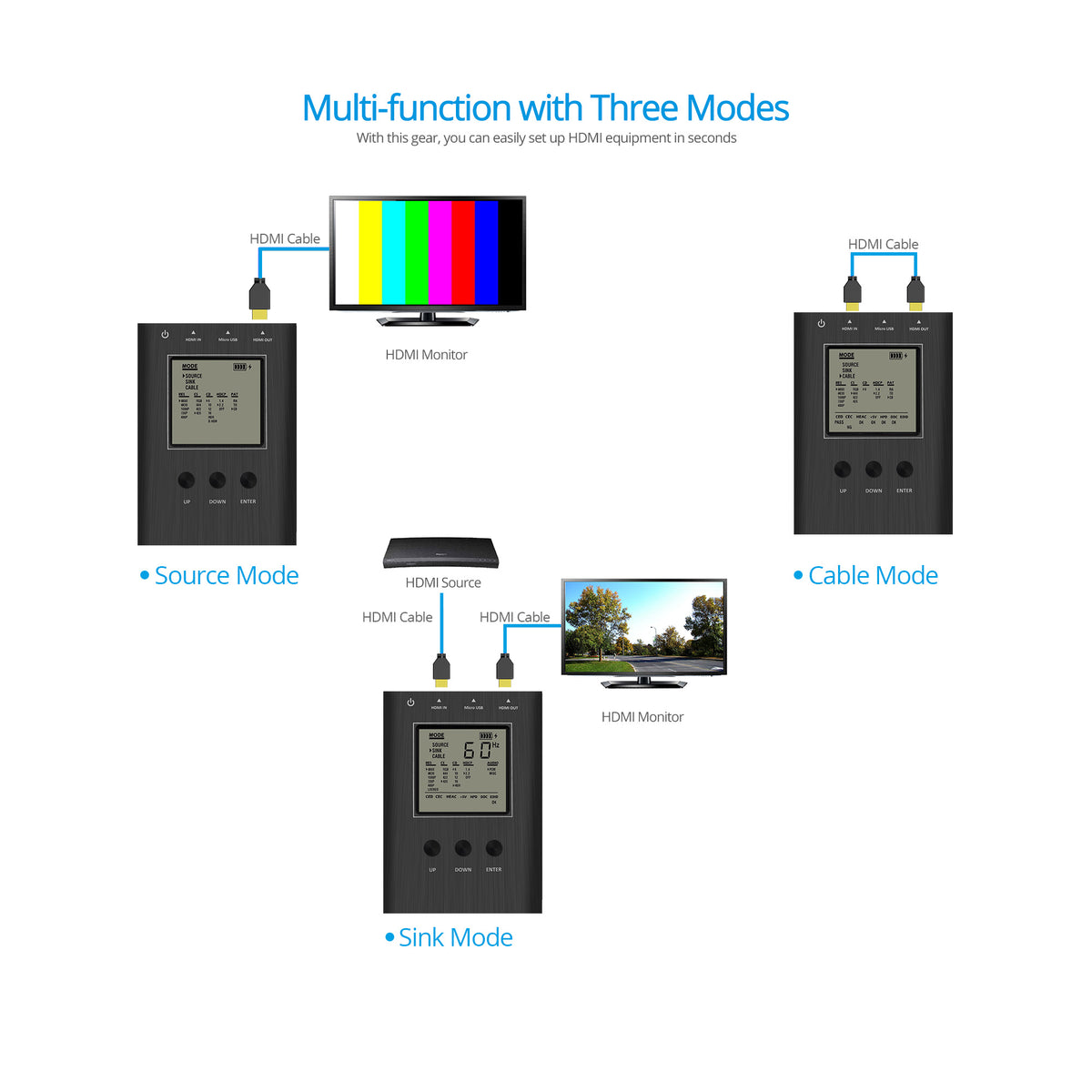

Designed for professional AV service environments, supports video signal testing, system troubleshooting, equipment maintenance, and performance verification for source mode, sink mode and cable mode

Emulating Sink Device

Detects HDMI fundamental information from the source device, such as resolution, frame rate, and HDCP version. Take the guess work out of tedious HDMI compatibility issues

Advanced Features

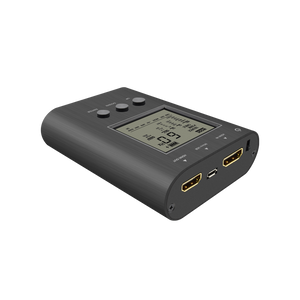

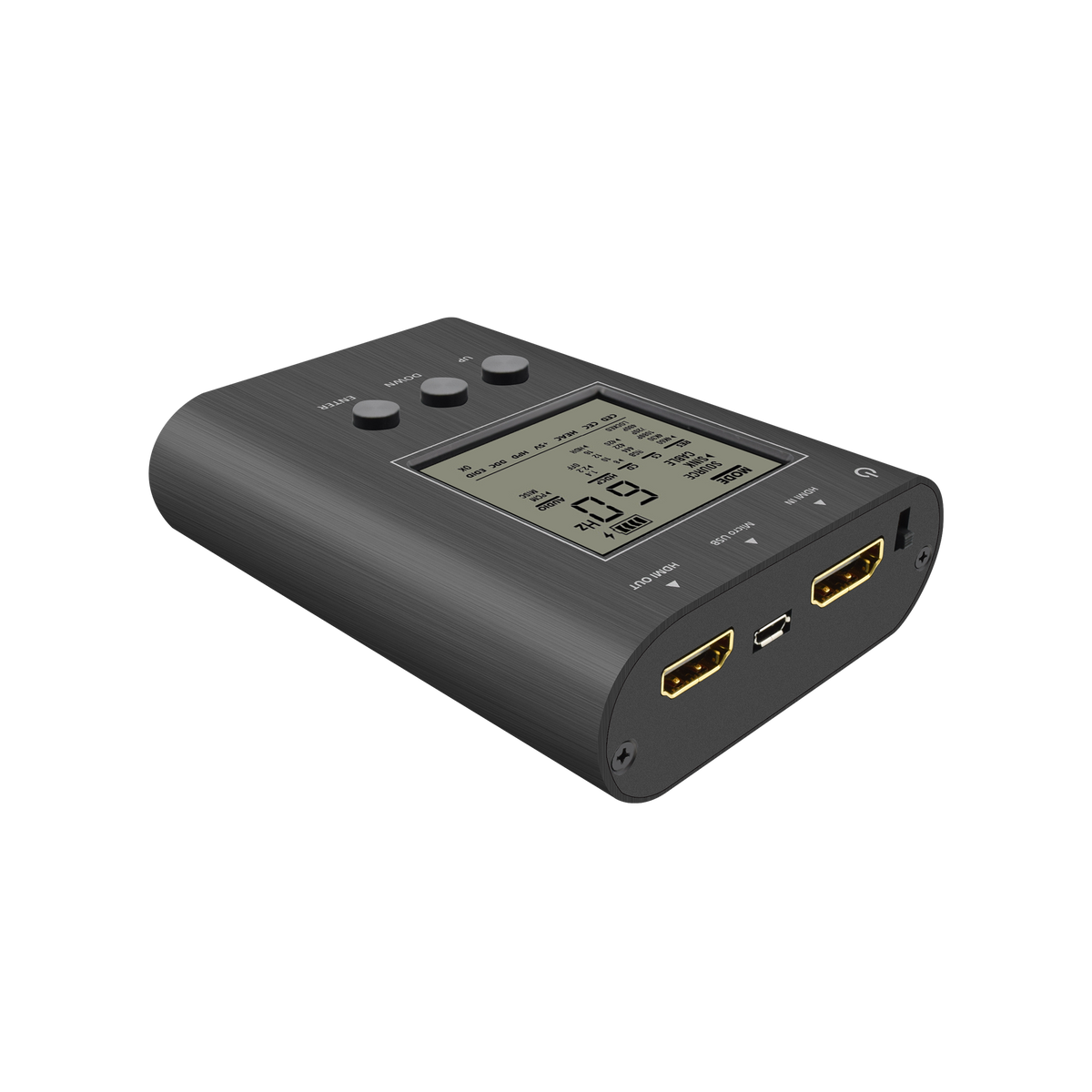

A hand-held, pocket size, and battery powered device that can generate popular HDMI signals, detect important HDMI features, and examine cable quality.
Specification
  • Compliance: HDMI 2.0 / HDCP 2.2
  • Bandwidth: 18Gbps
  • Resolution:Up to 4K60Hz
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:0
  • Control: Push Button
  • USB support: Firmware update / Recharge

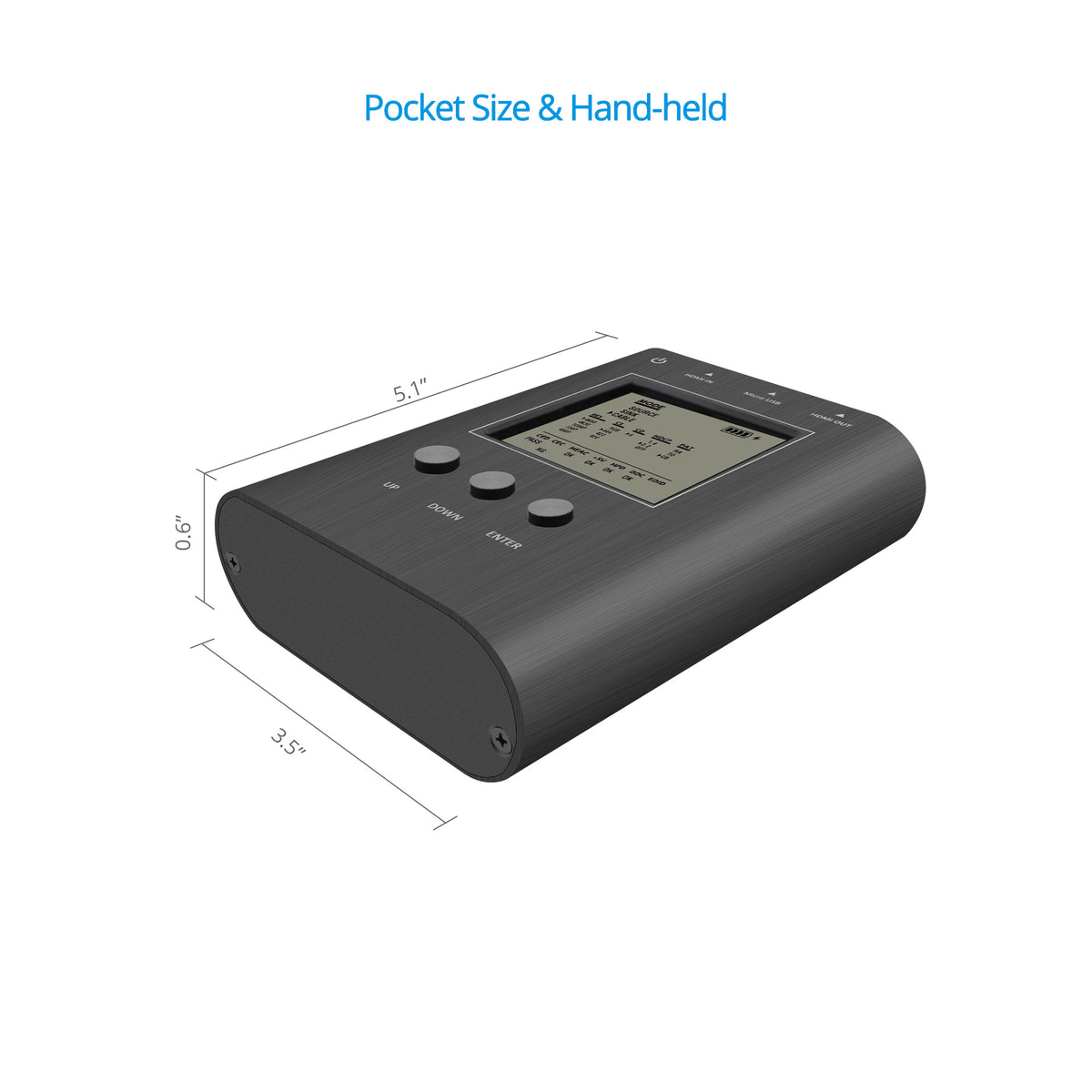

  • Dimension: 5.10″(W) x 0.60″(H) x 3.50″(D)
  • Weight: 0.484 lbs
  • Power Adapter: AC100 - 240V 50/60Hz, Output: 5V/2A
  • Housing Material / Color: Metal / Black color

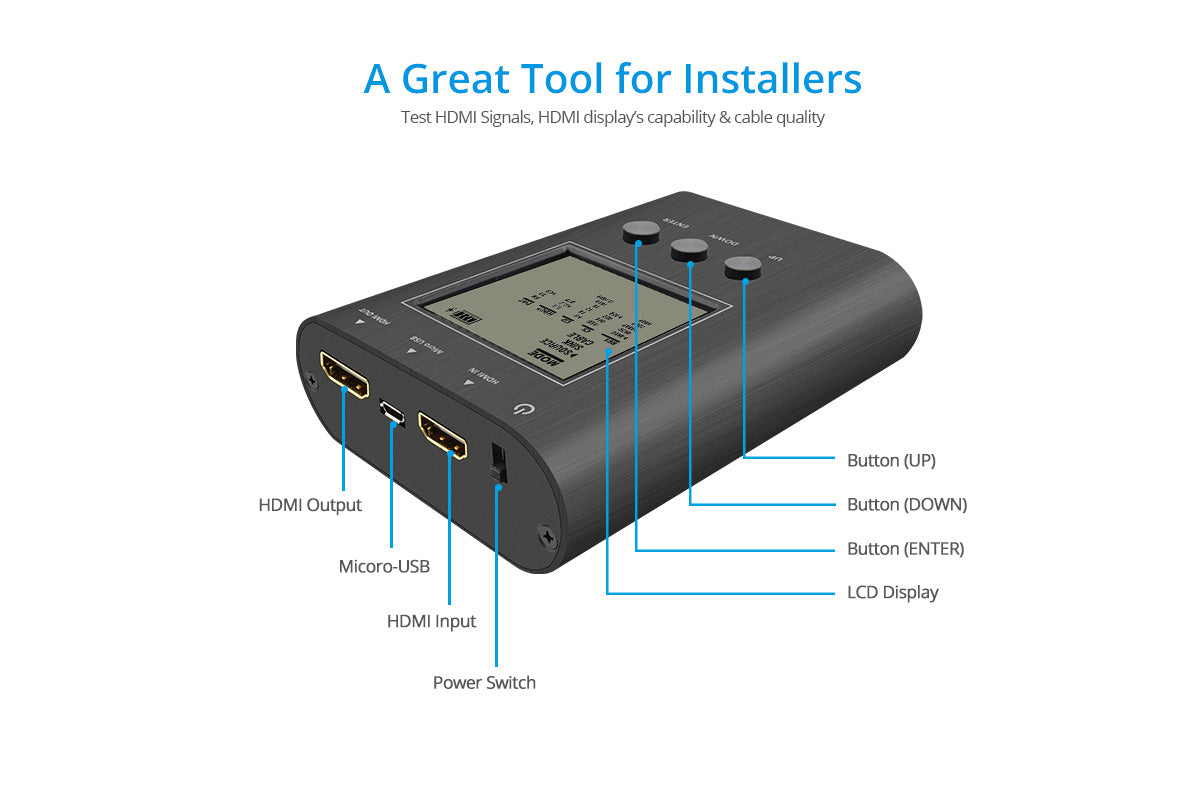

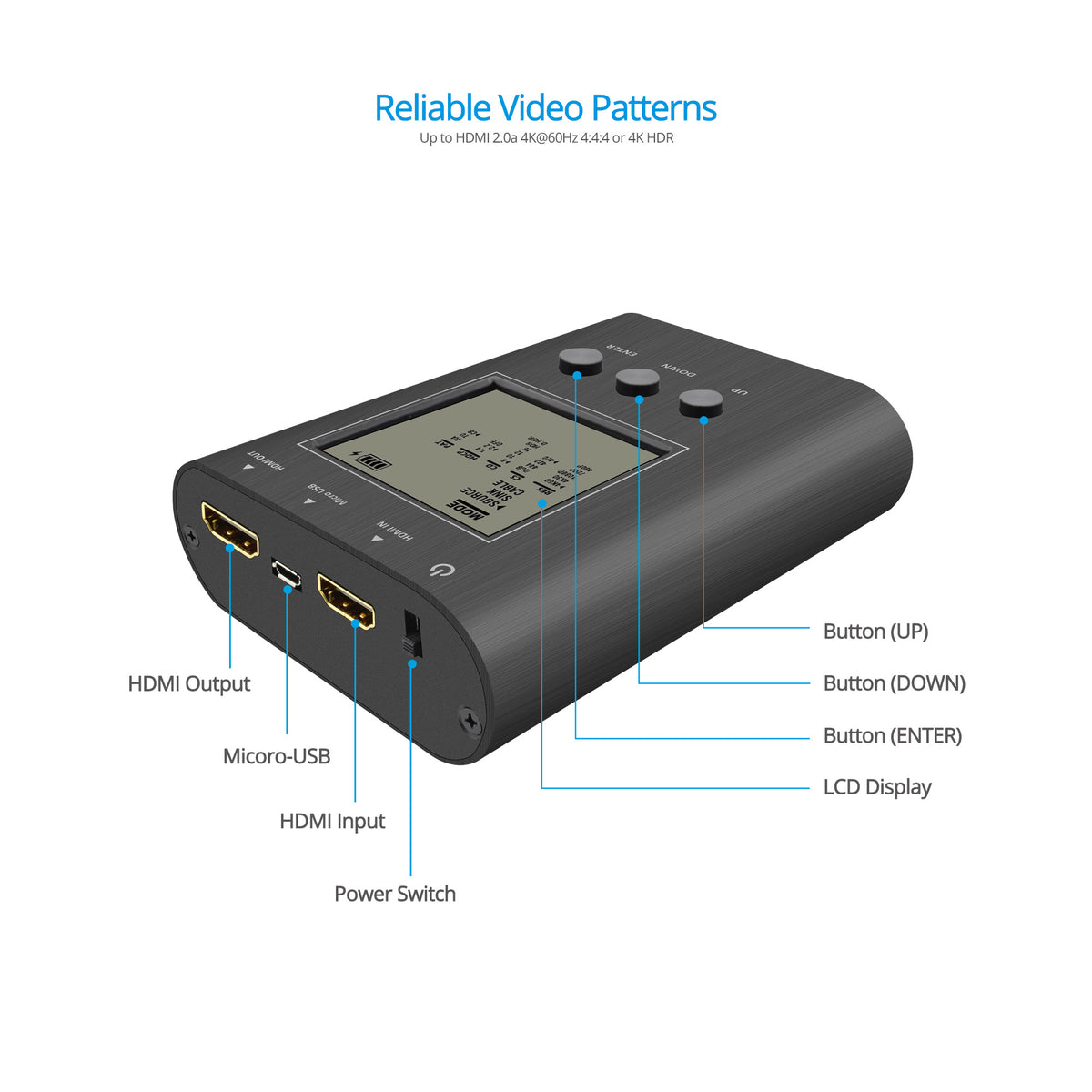

  • 2x 19-pin HDMI, Input/Output
  • 1x 5-pin Micro USB, FW update/Recharge
  • 1x Slide Switch, Power switch
  • 3x Function button
  • 1x LCD display
  • Supports video resolution outputs up to 4K60Hz 4:4:4 8bit, HDR 10bits, 12bits, 16bits
  • Built-in 3 video patterns
  • Both HDMI input and output support up to HDMI 2.0
  • Tests cable quality
  • Provides statistics analysis for cable quality or connection stability
  • Supports audio embedded and extraction
  • Hand-held pocket size
  • Battery powered for portability, it can extend operation time with full load up to 3 hours
  • Rechargeable battery design with short charging time about 3 hours
  • UPC:818354-020298
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support

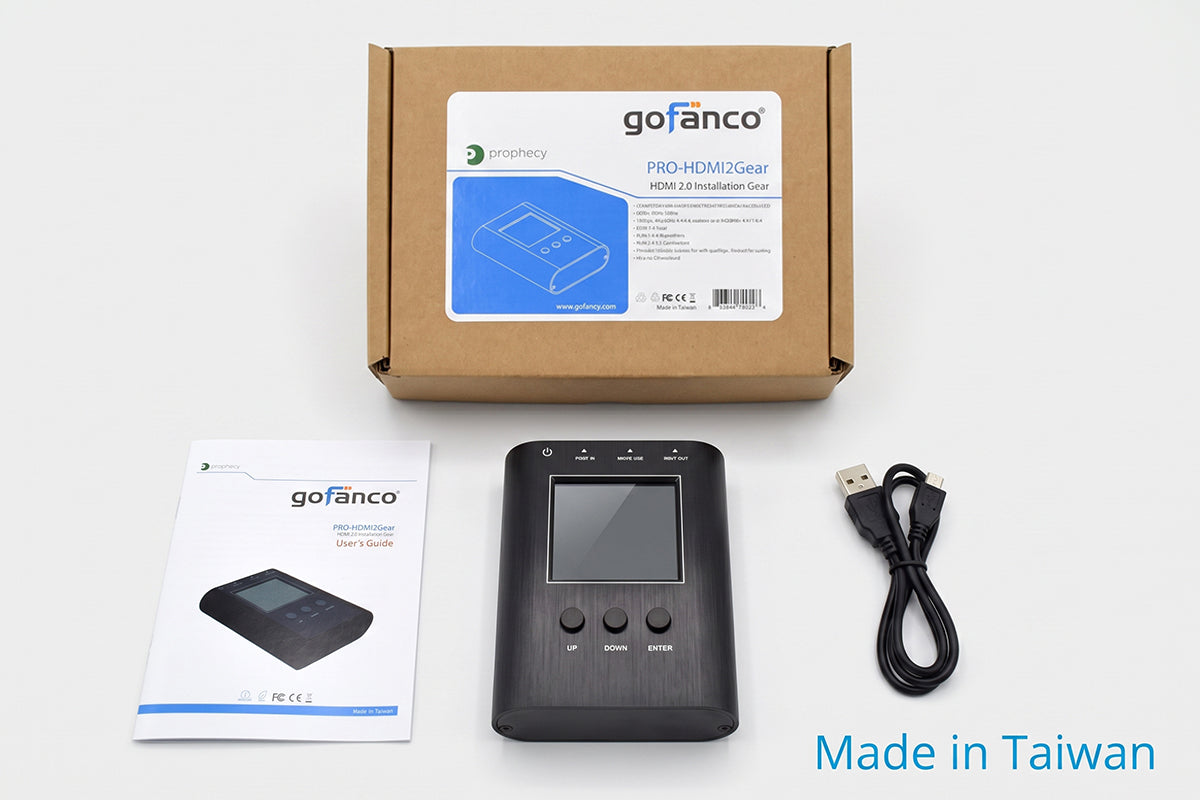

  • Country of origin: Taiwan
