Extenders: AudioCATExt

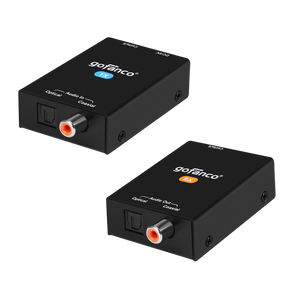

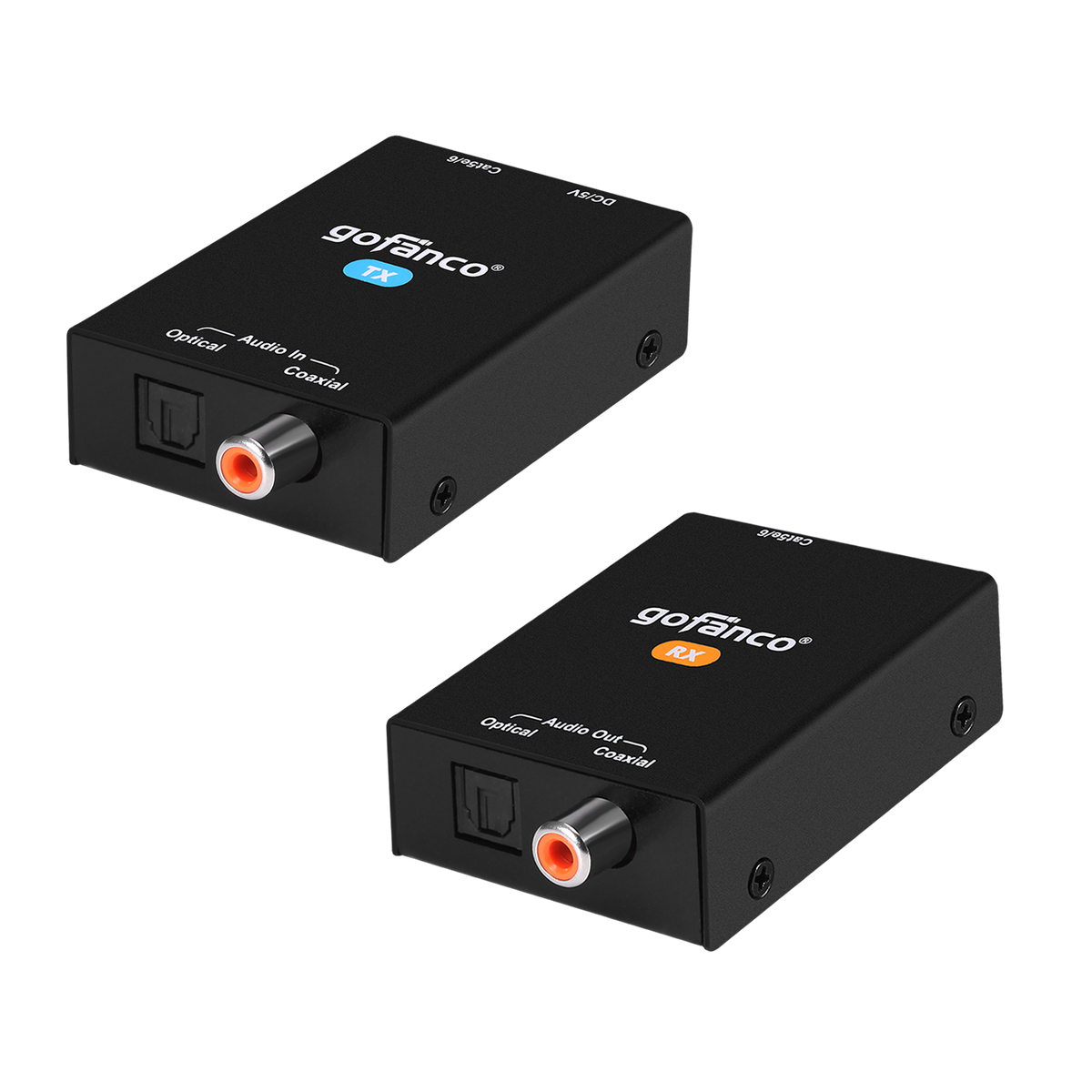

Coaxial/Toslink CAT5e/6 Extender – 300m
Extension, PoC, 5.1-channel, Dolby Digital 5.1, DTS 5.1, DTS-HD, PCM, Compact
Coasial/Optical Extender
Distance up to 300m
Up to 5.1 Channel Audio
Power over Cable
Audio Splitter
Audio Extender Over Cat5e/6
Long-Distance Digital Audio Over CAT Extender
Specification
- Audio connections: Coaxial and Optical Toslink
- HD audio: Digital Audio 5.1-channel, Dolby Digital 5.1, DTS 5.1, DTS-HD, PCM
- Transmission range: 984ft (300m) over CAT5e/6
- Power supply: 5V/1A
- Power consumption: 1 Watt (max)

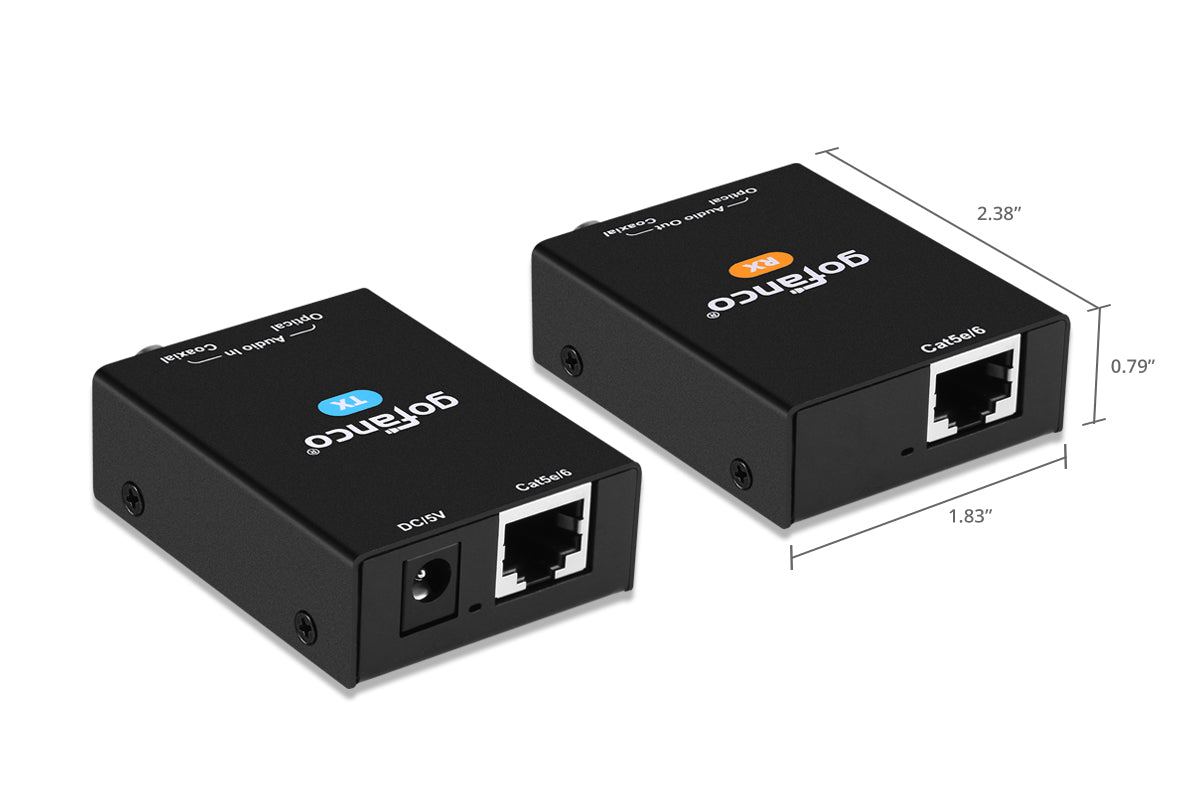

- Product dimensions: 2.38" x 1.83" x 0.79"
- Product weight: 0.33lbs
- Housing Material / Color: Metal / Black color

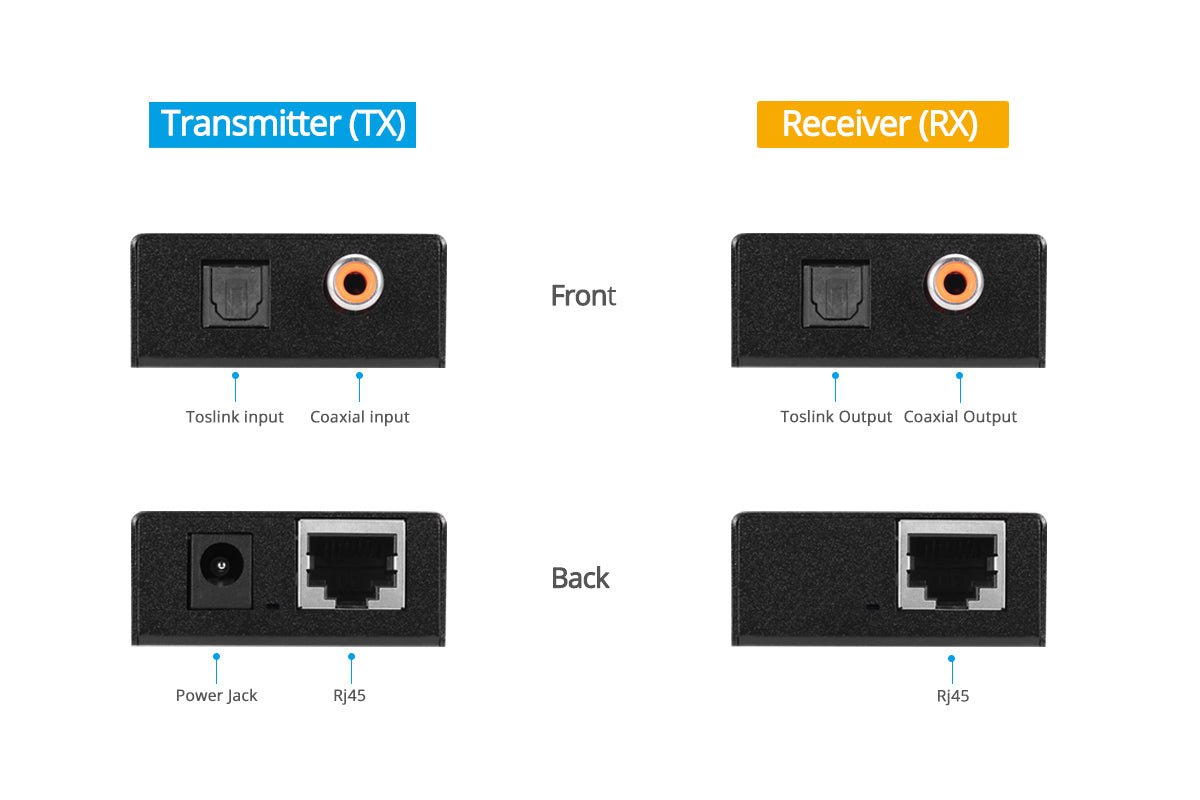

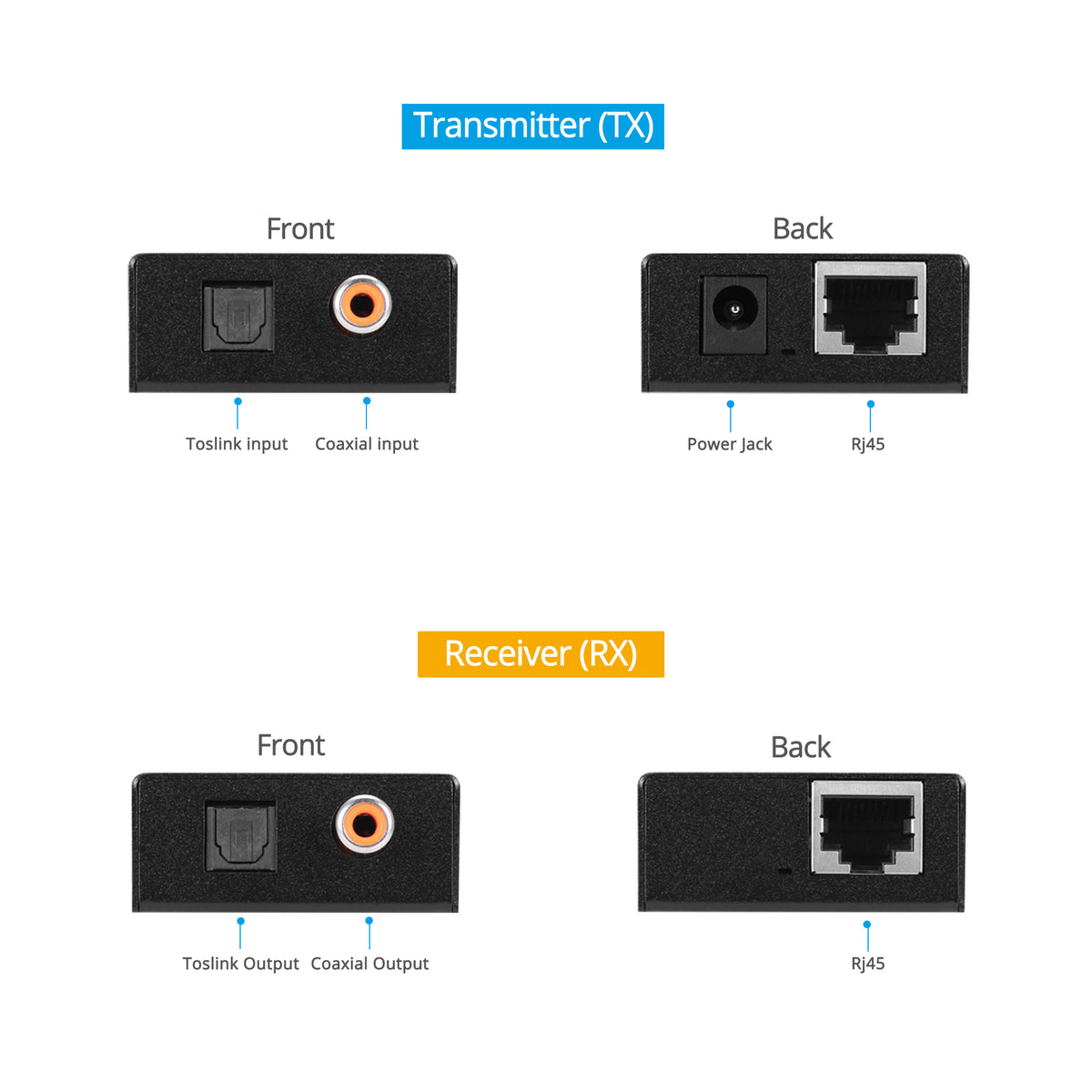

Connection
TX
- 1x Toslink, input
- 1x 8-pin, RJ45 Output
- 1x Coaxial, Input
- 1x Power Jack
RX
- 1x Toslink, Output
- 1x 8-pin, RJ45 Input
- 1x Coaxial, Output
Features

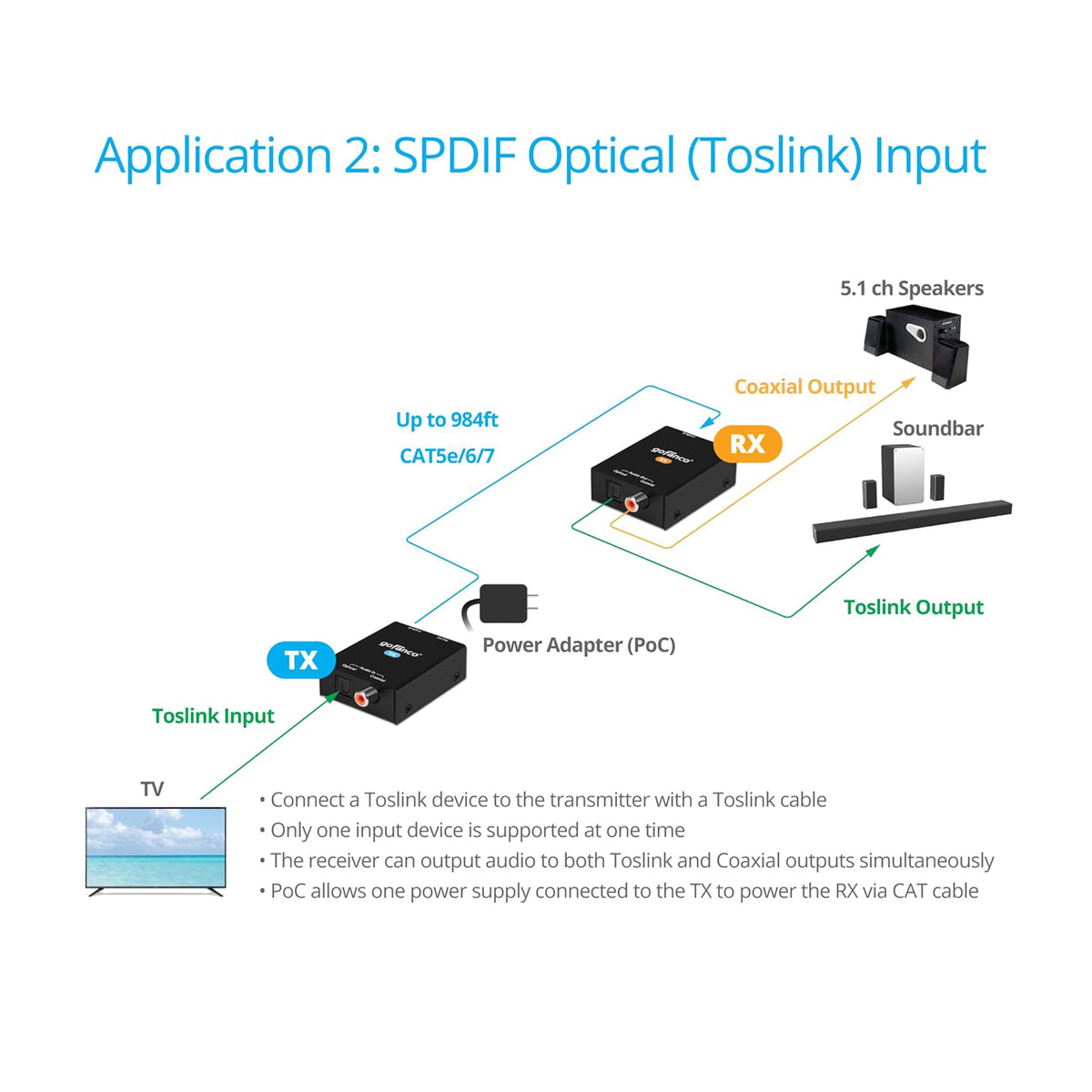

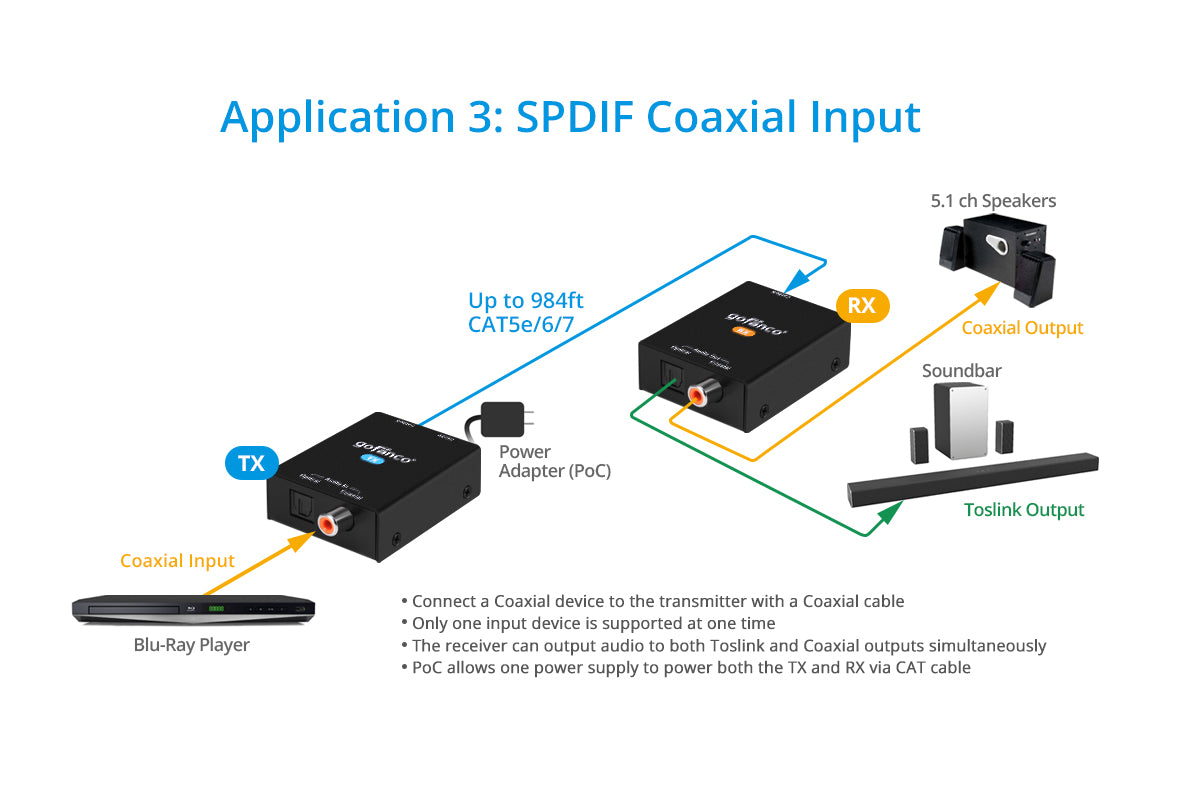

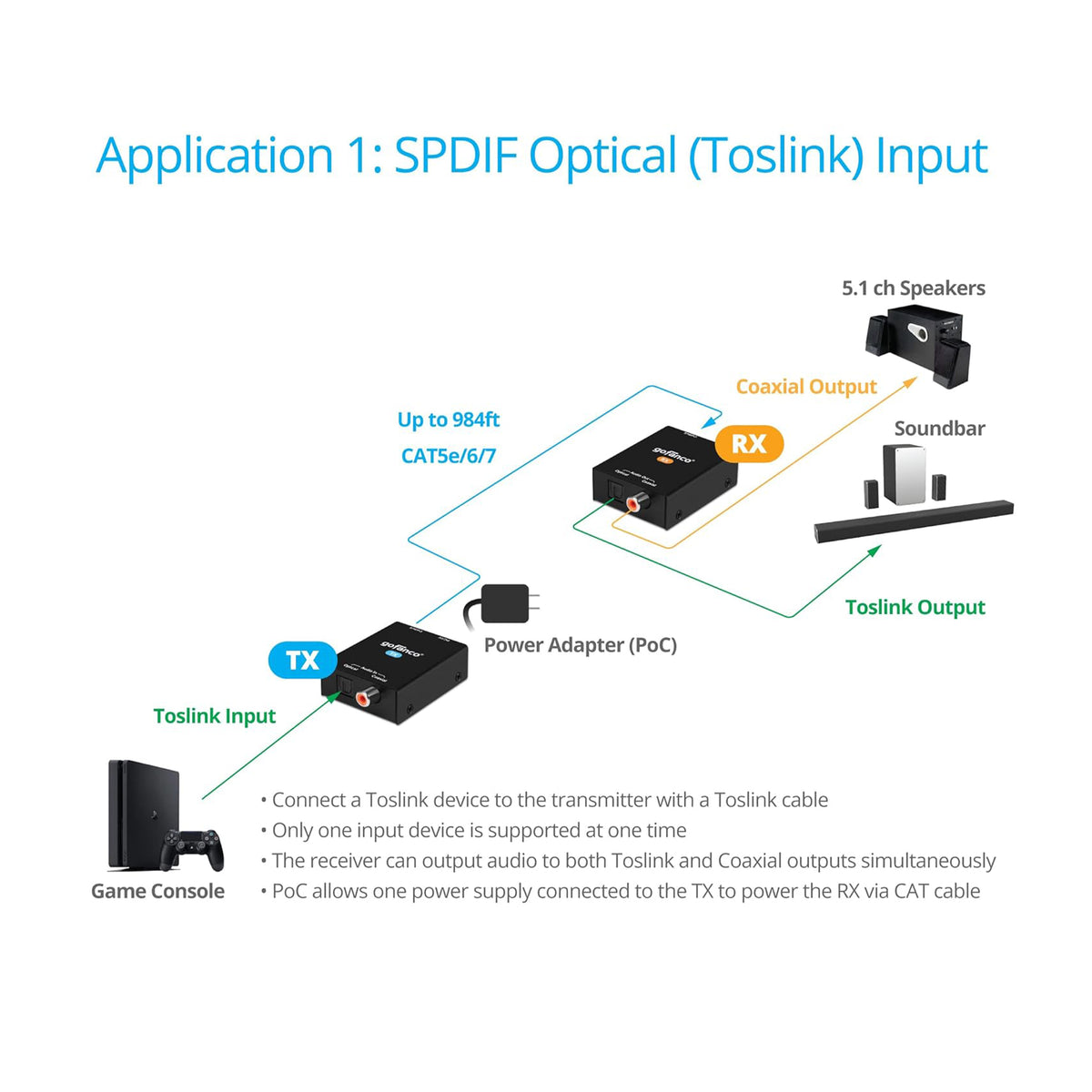

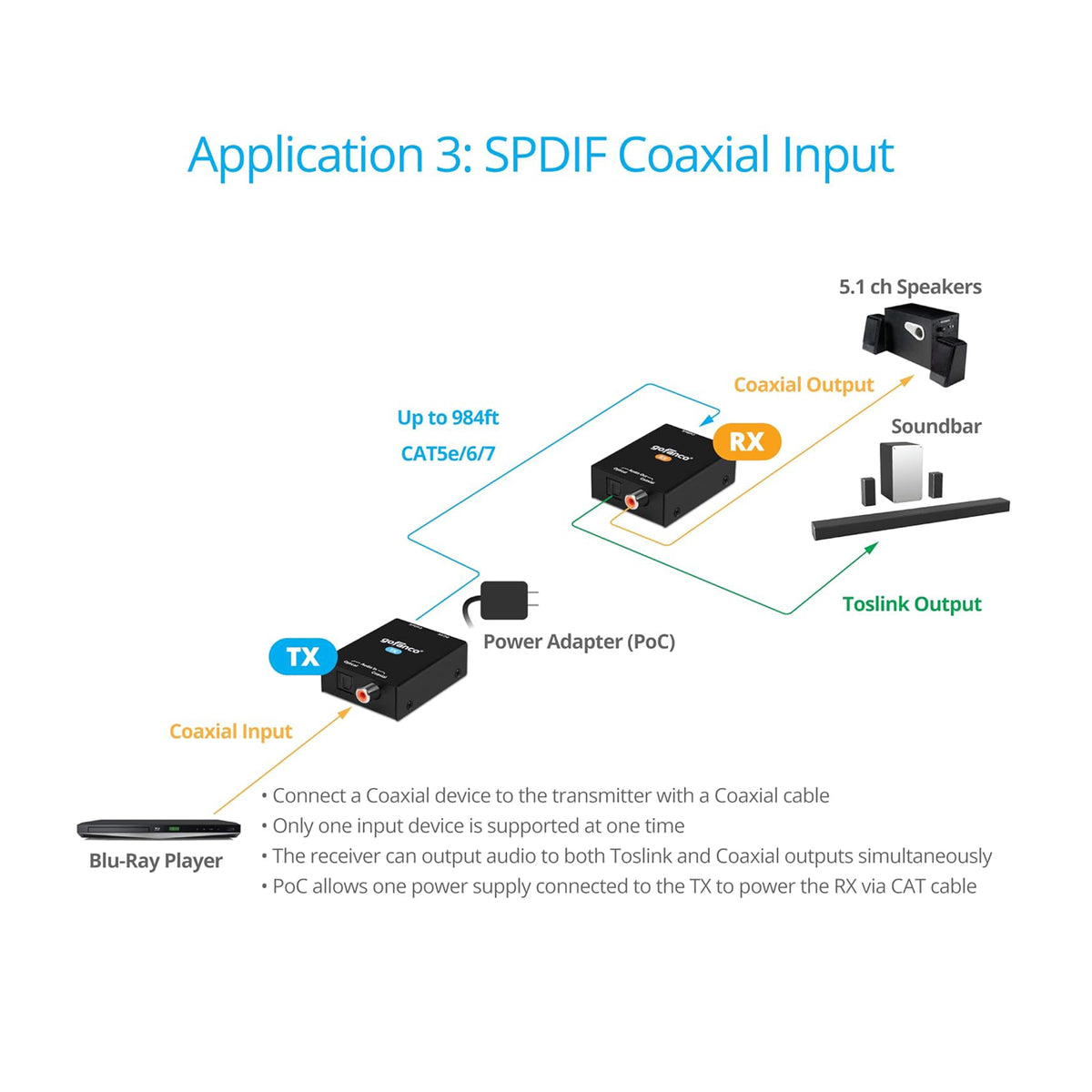

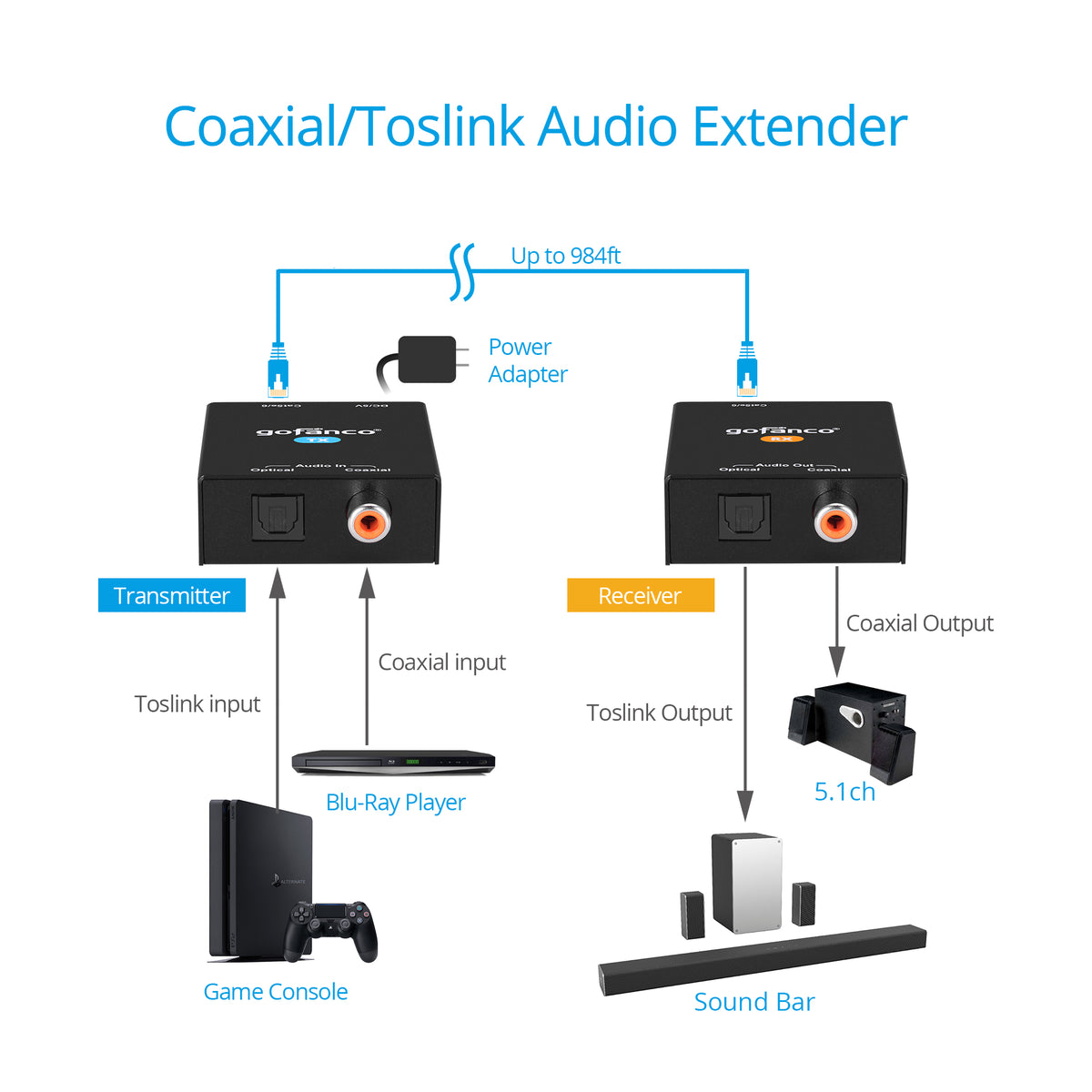

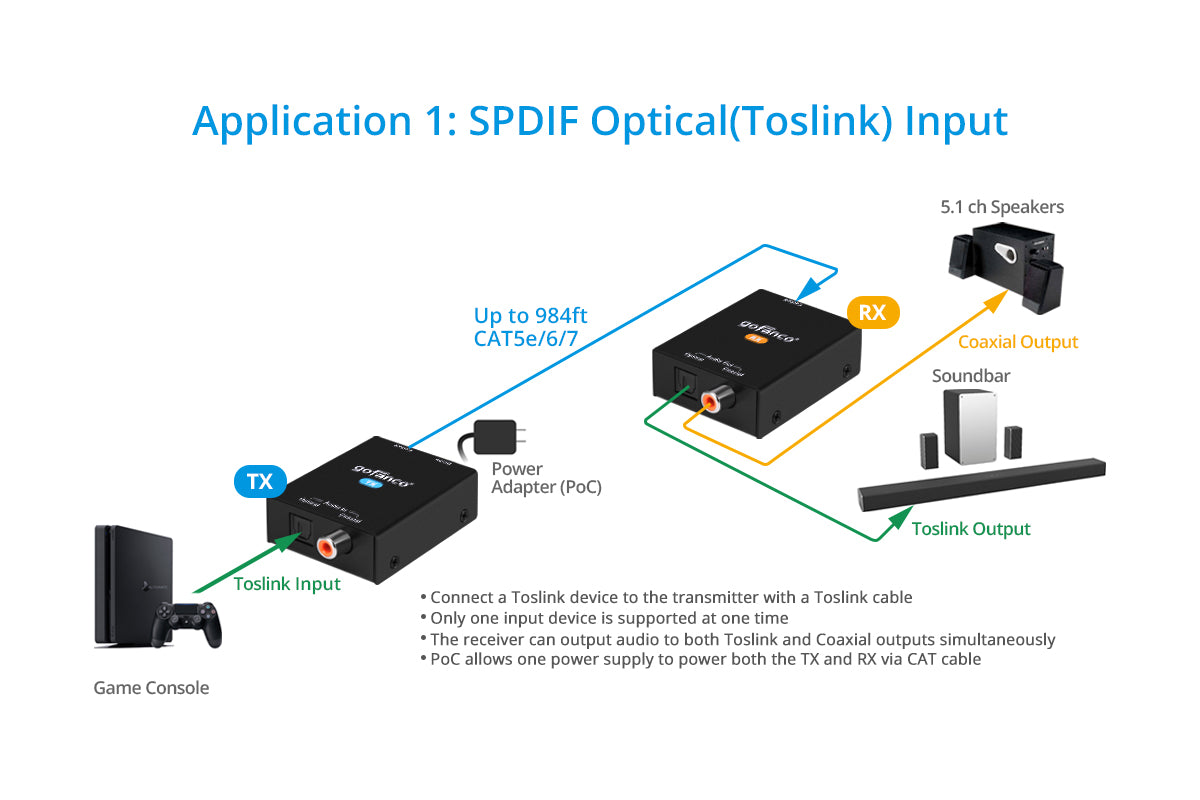

- Extend Coaxial or Optical Toslink Audio signals up to 984ft
- Supports Coaxial and Optical Toslink Digital Audio 5.1-channel, Dolby Digital 5.1, DTS 5.1, DTS-HD, PCM
- Simultaneously produce audio to both Coaxial and Optical Toslink outputs
- Allows 1 power adapter connected to the TX to power the RX through CAT cable
- No driver required
Standard
- UPC: 818354-022070
- Operation Temperature: 23 to 95 degrees F
- Storage Temperature: 14 to 140 degrees F
- Relative humidity: 10 to 80% RH (non-condensing)
- Regulatory approvals: FCC / CE / RoHS
- Limited One-Year Warranty and Lifetime Product Support
- Country of origin: China

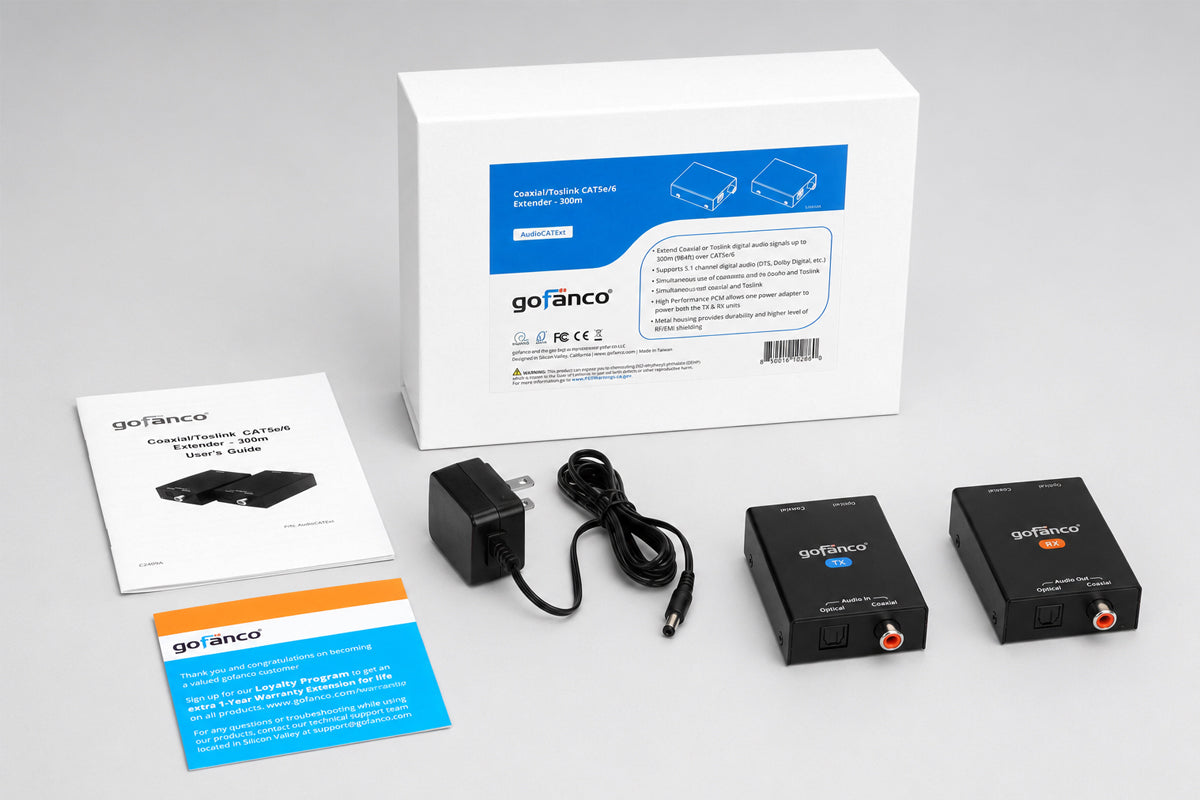

- Coaxial/Toslink CAT5e/6 Extender – 300m
- Power adapter (5V/1A)
- User’s Guide
