Extenders: AudioCATExt22

Audio Extender over CAT with DAC - 300m

Sale price $52.88

Zero Latency, Embedded DAC, Ultra-Low Jittery, High-fidelity, Toslink & L/R Analog, 984ft, Dual PoC, LPCM, Dolby Digital 5.1, PCM 2.0, 192KHz

Out of stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
S/PDIF & RCA Extender
Distance up to 300m
Up to 5.1 Channel Audio
Power over Cable
Embedded DAC

Audio Extender Over Cat5e/6

Conveniently extend coaxial or optical Toslink
audio signals up to 300m

Long-Distance Digital Audio to Analog Audio Extender

Audio

Supports 5.1ch Toslink Optical Audio

PoC

Single USB Powered for Both TX & RX Units

Formats

Digital audio up to 192KHz 24-bit

Extender

Crystal-Clear Digital Audio Over Long Distances

Park-Wide Audio Distribution

Extend background music, event audio, and guest announcements from a central control booth to remote audio zones over structured CAT cabling, delivering clear and consistent sound across walkways, ride queues, and attractions

School Auditorium Audio Distribution

Extend audio from the control room to stage and audience-area sound systems over structured CAT cabling, delivering clear, reliable sound for school performances, assemblies, and live events

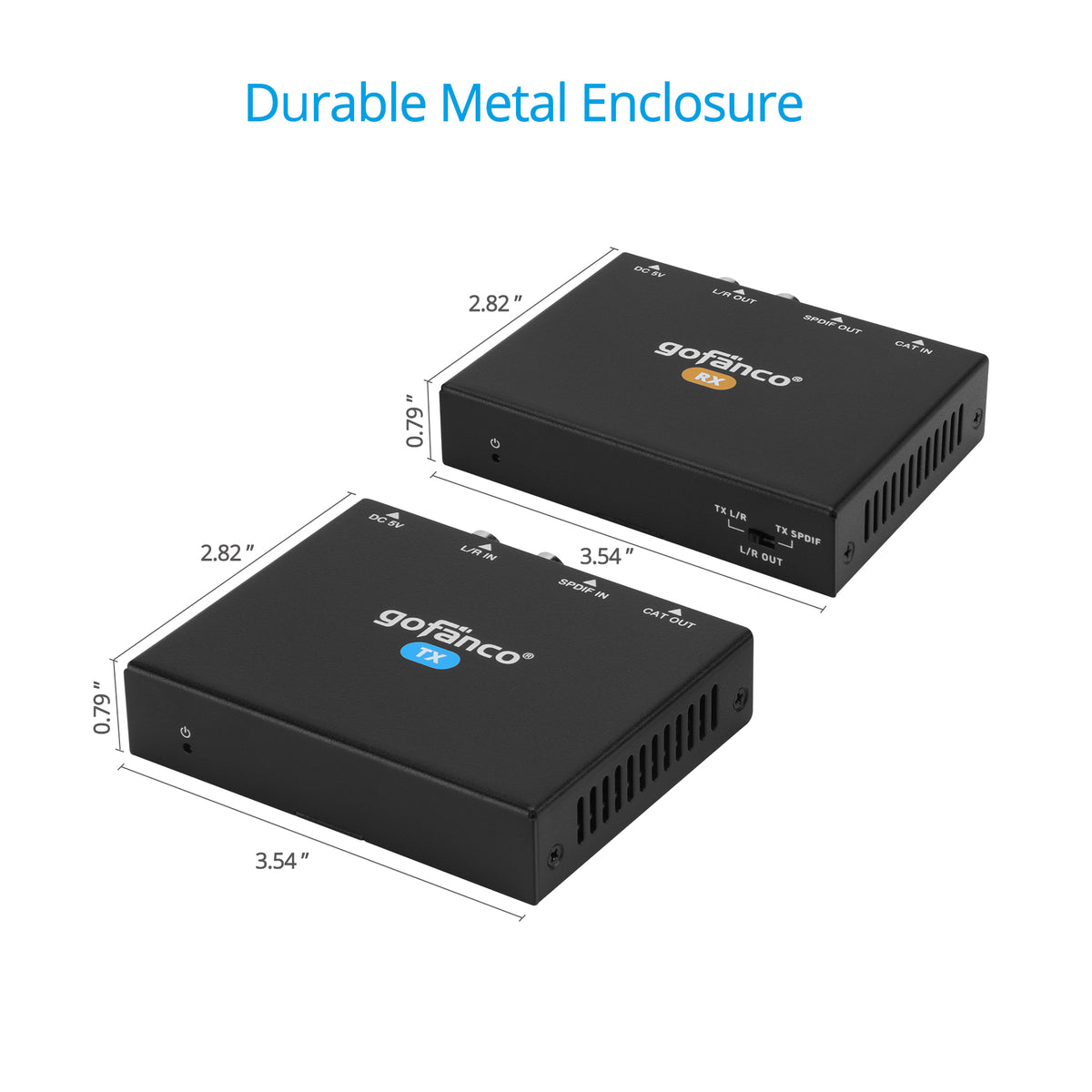

Durable Metal Enclosure

No driver required; Surface mountable metal housing provides durability and minimizes EMI noise interference.

Comparison Table

AudioCATExt22
Audio Extender over CAT with DAC - 300m
Sale price$52.88
View details
-
Toslink, RCA, RJ45
Toslink, RCA, RJ45
Up to 984ft
Metal
PoC, Audio Switch, 5.1ch
AudioCATExt
Coaxial/Toslink CAT5e/6 Extender – 300m
Sale price$39.98
View details
-
Toslink, Coaxial, RJ45
Toslink, Coasial, RJ45
Up to 984ft
Metal
PoC, 5.1ch
Specification
  • Audio connections: Coaxial and Optical Toslink
  • HD audio: Digital Audio 5.1-channel, Dolby Digital 5.1, DTS 5.1, DTS-HD, PCM
  • Transmission range: 984ft (300m) over Cat5e/6
  • Power supply: 5V/1A (USB Powered)
  • Power consumption: 1 Watt (max)
  • Product dimensions: TX/RX: 3.54″(W) x 0.79″(H) x 2.83″(D)
  • Product weight: TX: 0.40 lbs / RX: 0.39 lbs
  • Housing Material / Color: Metal / Black color

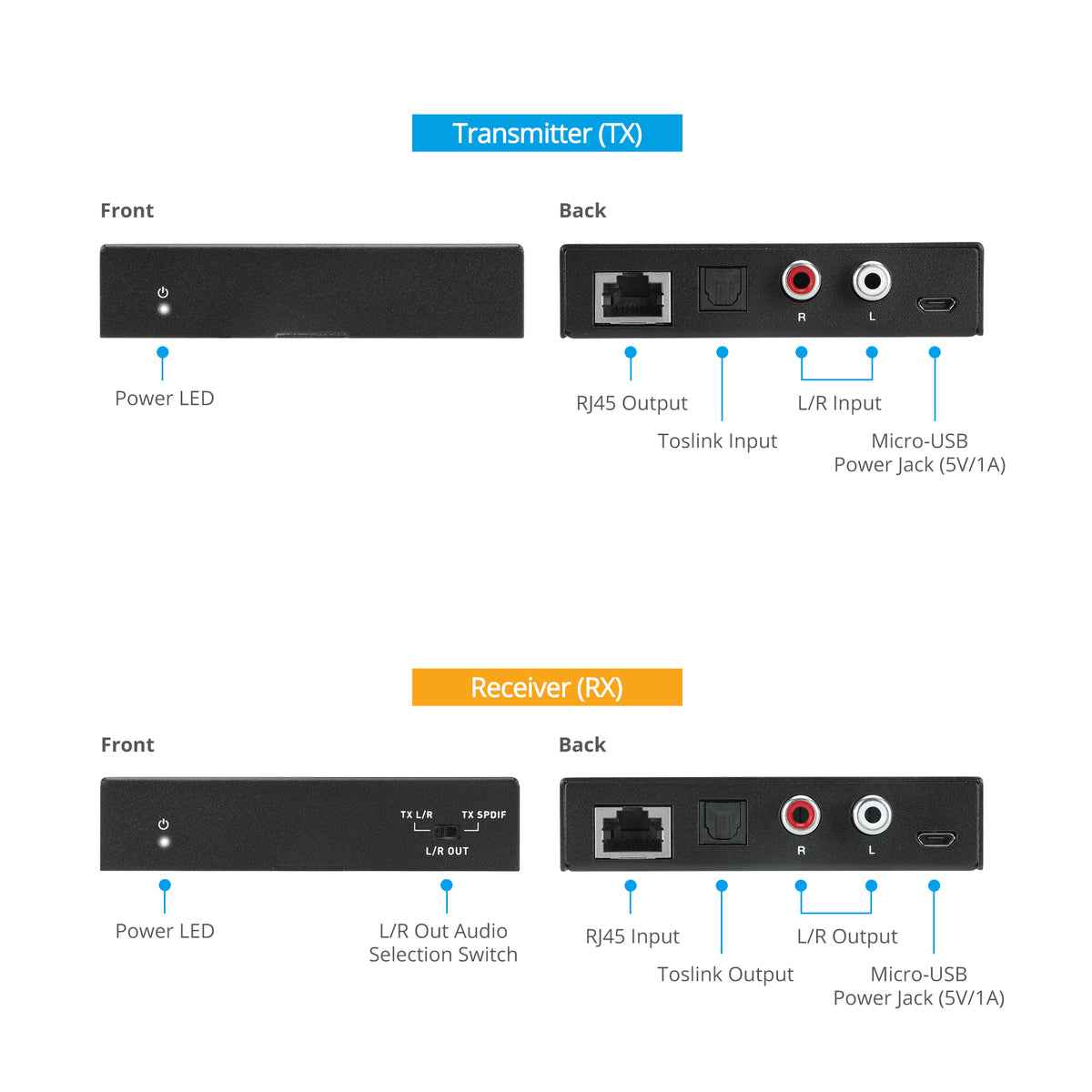

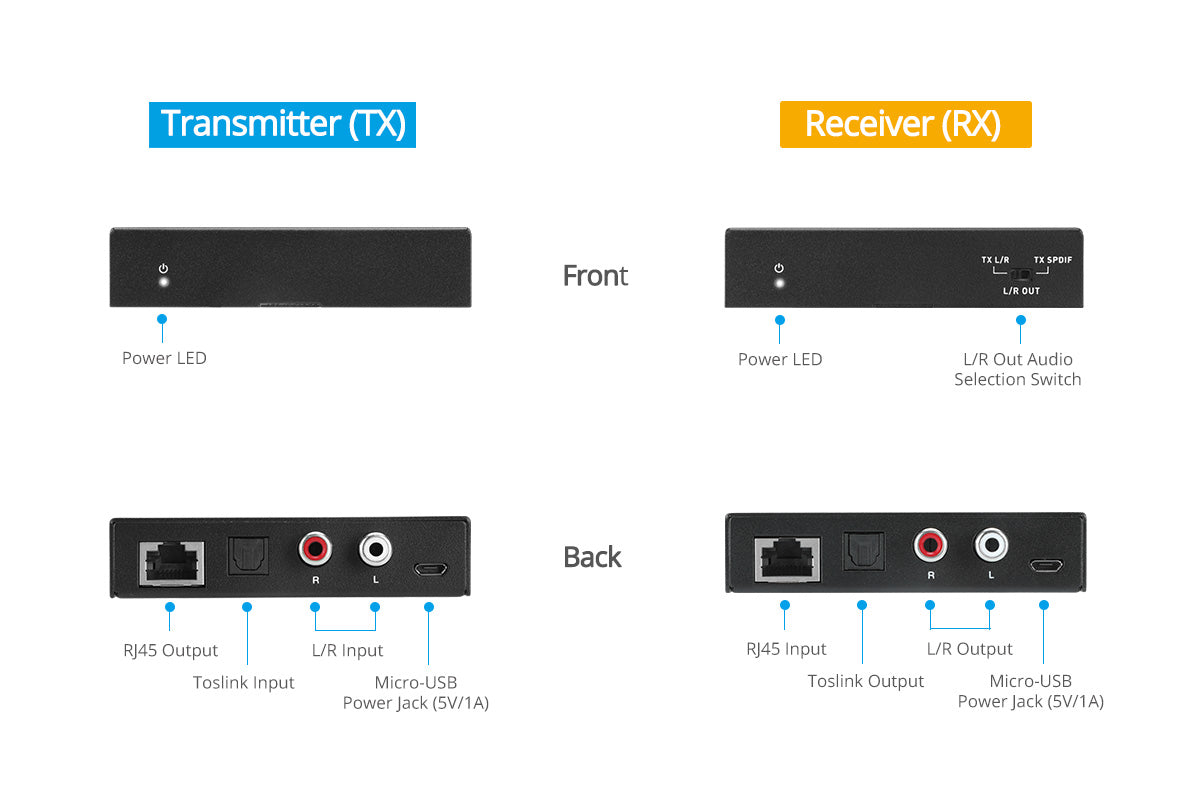

TX

  • 1x S/PDIF(Toslink), Input
  • 1x 8-pin, RJ45 Output
  • 1x RCA(L/R), Input
  • 1x Micro USB, Power

RX

  • 1x S/PDIF(Toslink), Output
  • 1x 8-pin, RJ45 Input
  • 1x RCA(L/R), Output
  • 1x Micro USB, Power

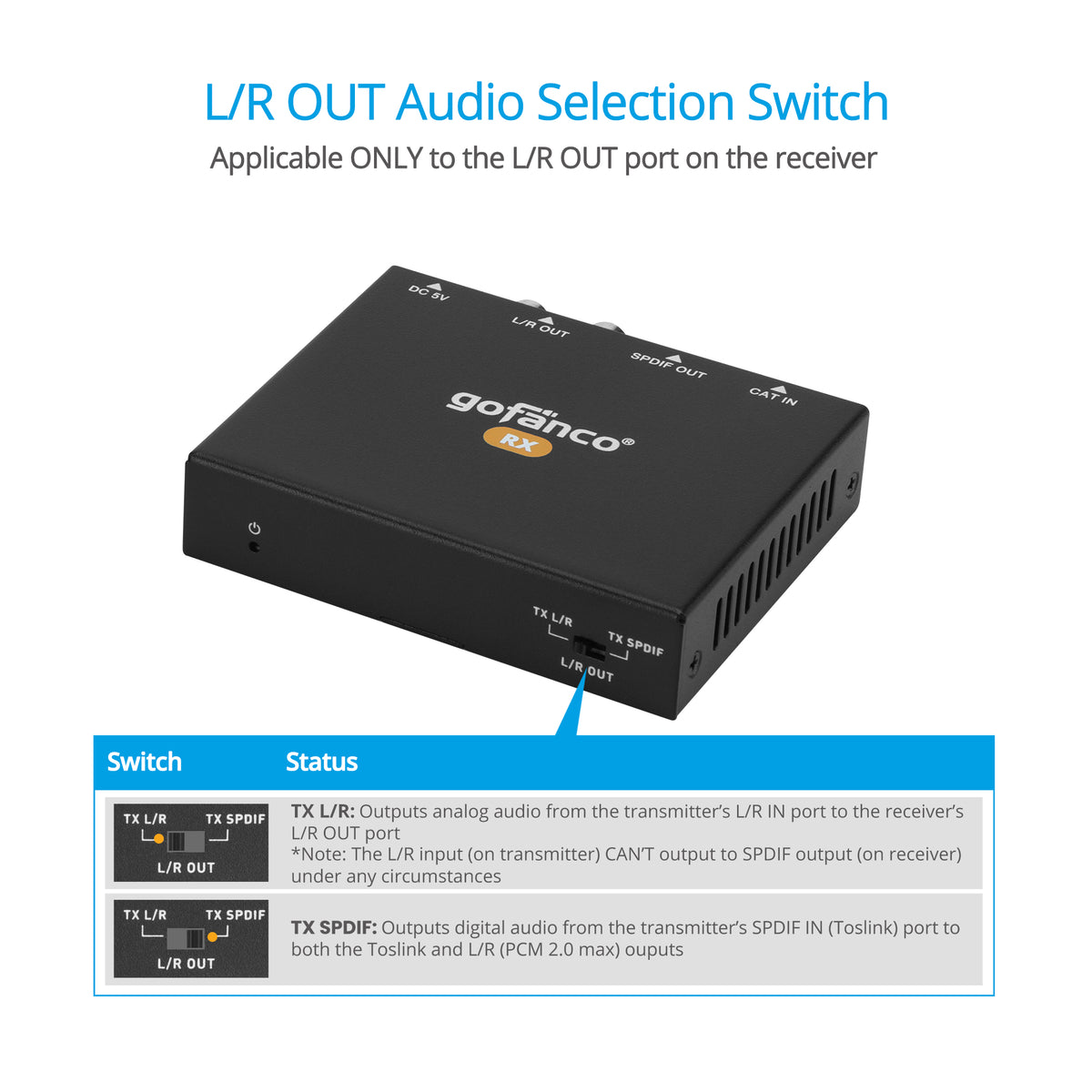

  • 1x Slide switch

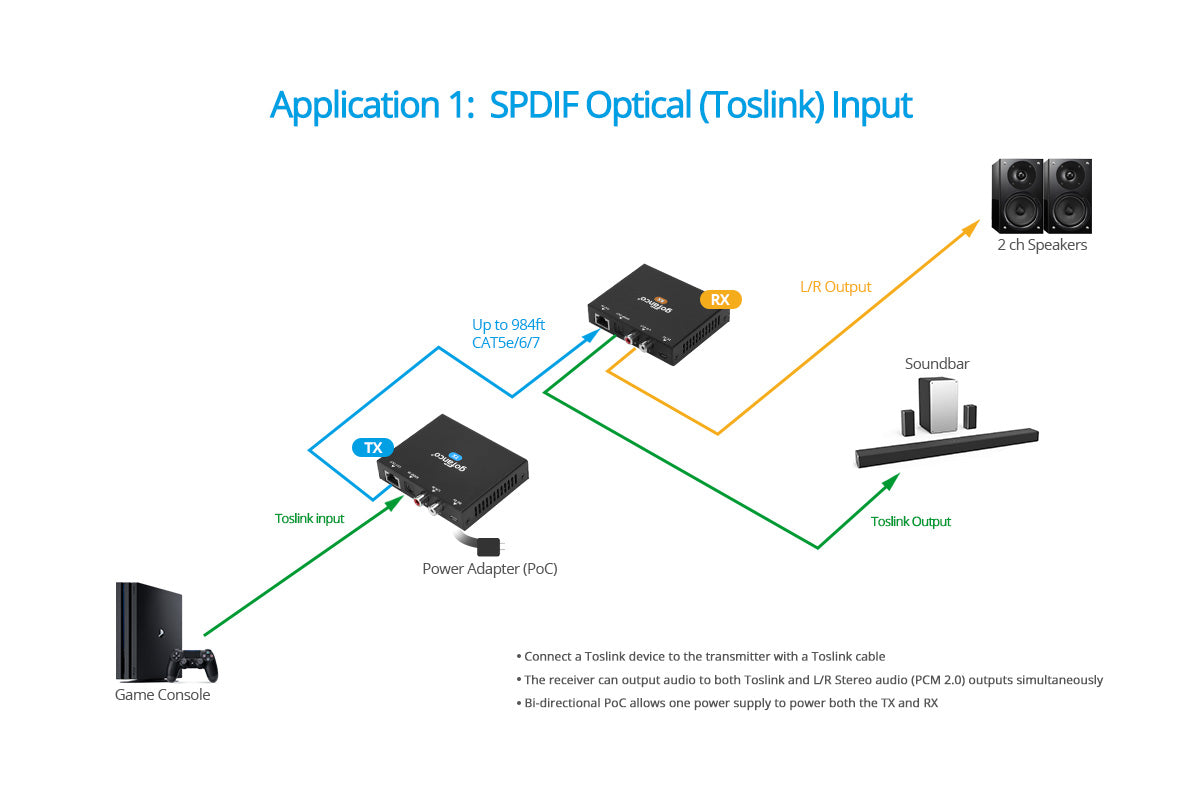

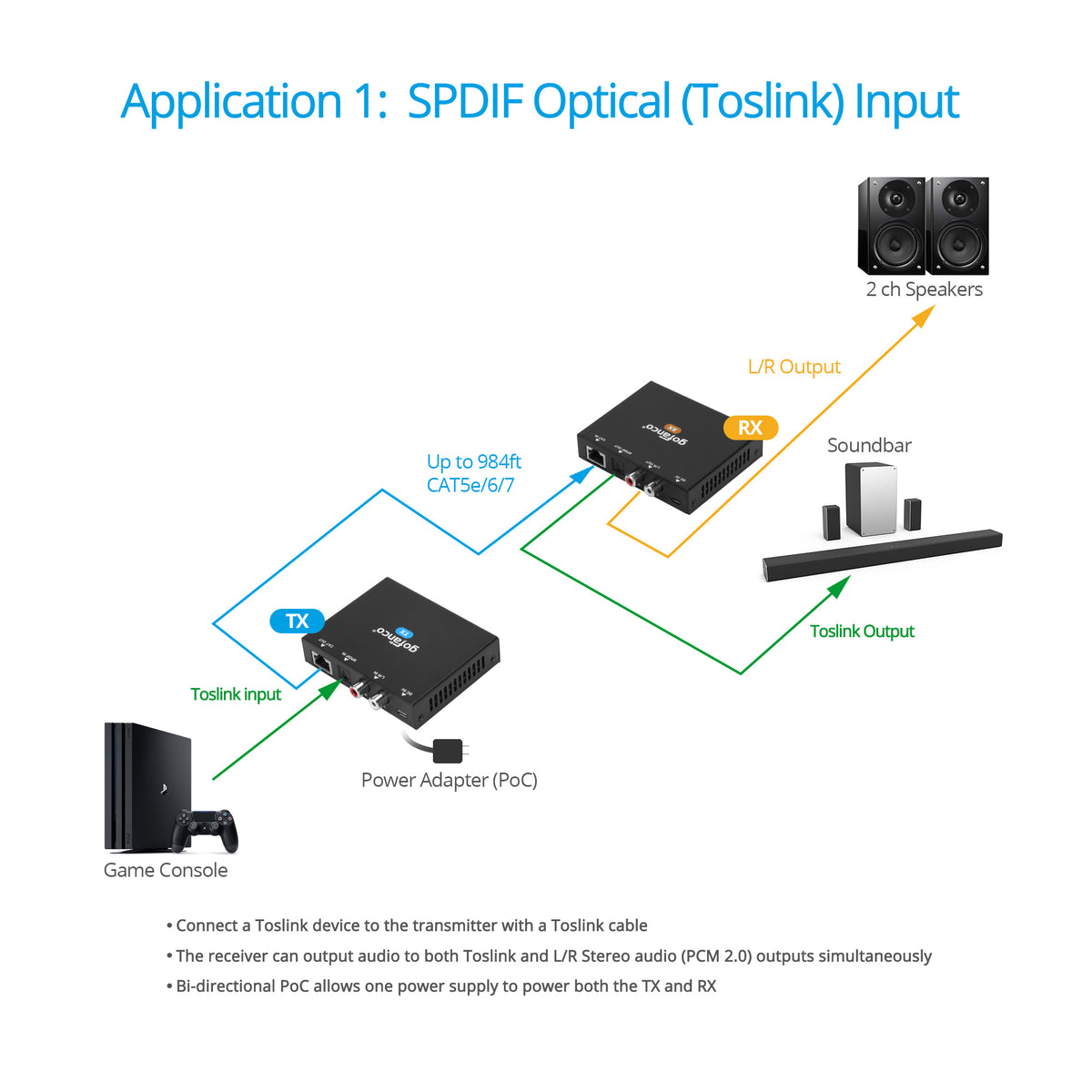

  • Extends Toslink (Optical) and analog (L/R) audio signals up to 984ft/300m (48kHz), 492ft/150m (96kHz), 328ft/100m (192kHz) over a CAT5e/6/7 cable
  • Audio formats: LPCM, DTS, Dolby Digital, Dolby Digital Plus
  • Audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz, and 192kHz up to 24-bit
  • Built-in DAC (Digital to Analog Converter)
  • Analog audio output can output PCM 2.0 digital audio or analog audio

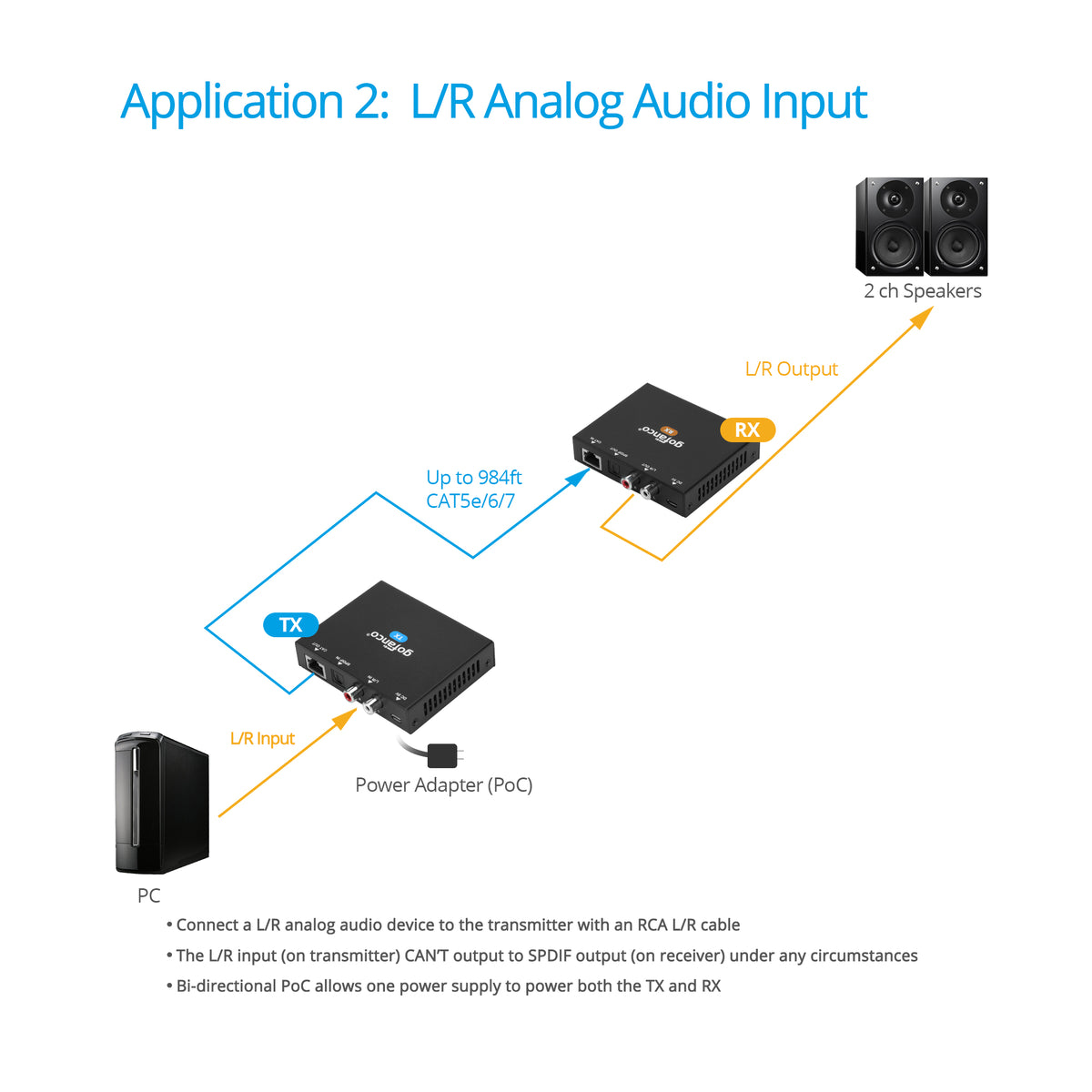

* NOTE: The L/R input (on transmitter) Can’t output to S/PDIF output (on receiver) under any circumstances

  • Supports bi-directional PoC (Power over Cable) function
  • Ultra-low jitter and high-fidelity design
  • UPC: 818354-023367
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
