Switches: Matrix88HD2

8x8 HDMI 2.0 Matrix with LCD

Sale price $520.88

1U, 4K 60Hz 4:4:4, HDCP 2.2/1.4, Auto Downscaling, Supports Dolby Vision, HDR, HDR10, HLG, Atmos, Audio Embed/Extract, EDID, Web GUI

Hurry, only 2 items left in stock!
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K60Hz Resolution
Advanced Audio
Various Control
Video Scaling
8x8 Matrix

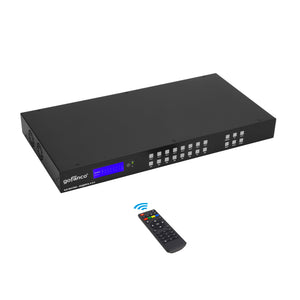

8x8 HDMI 2.0 Matrix with LCD

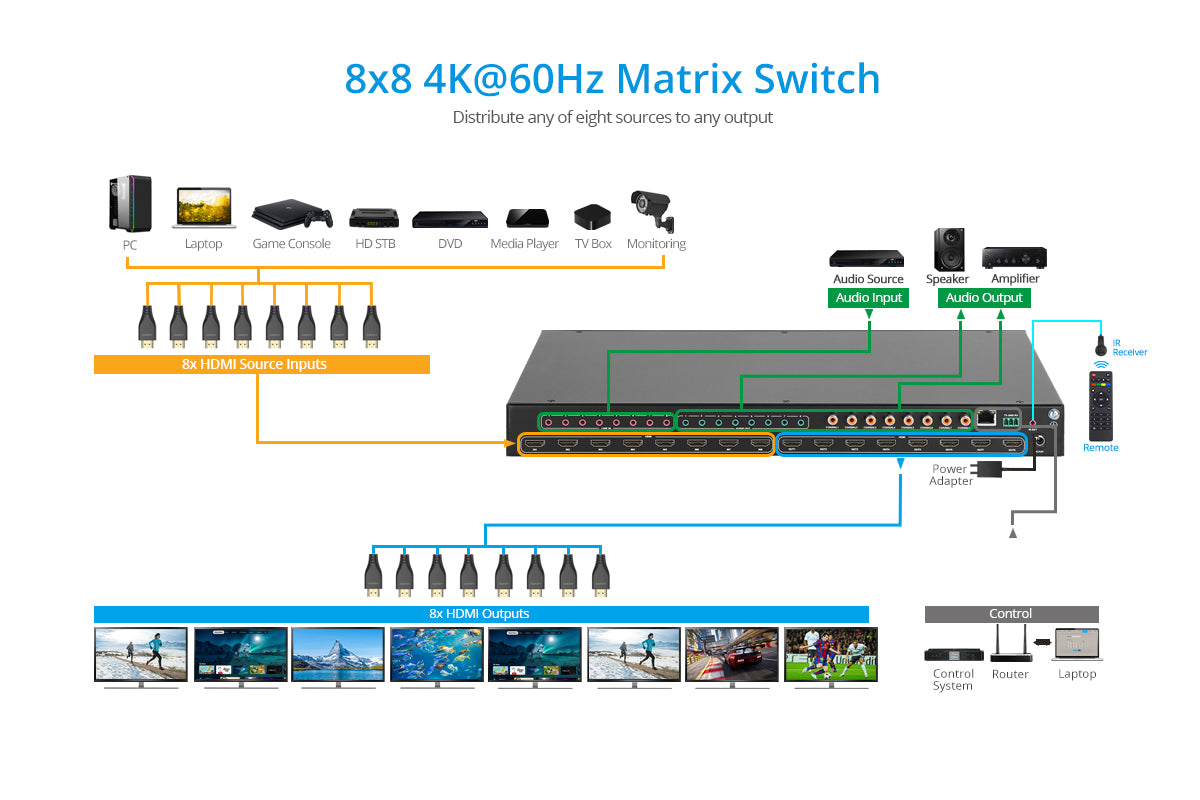

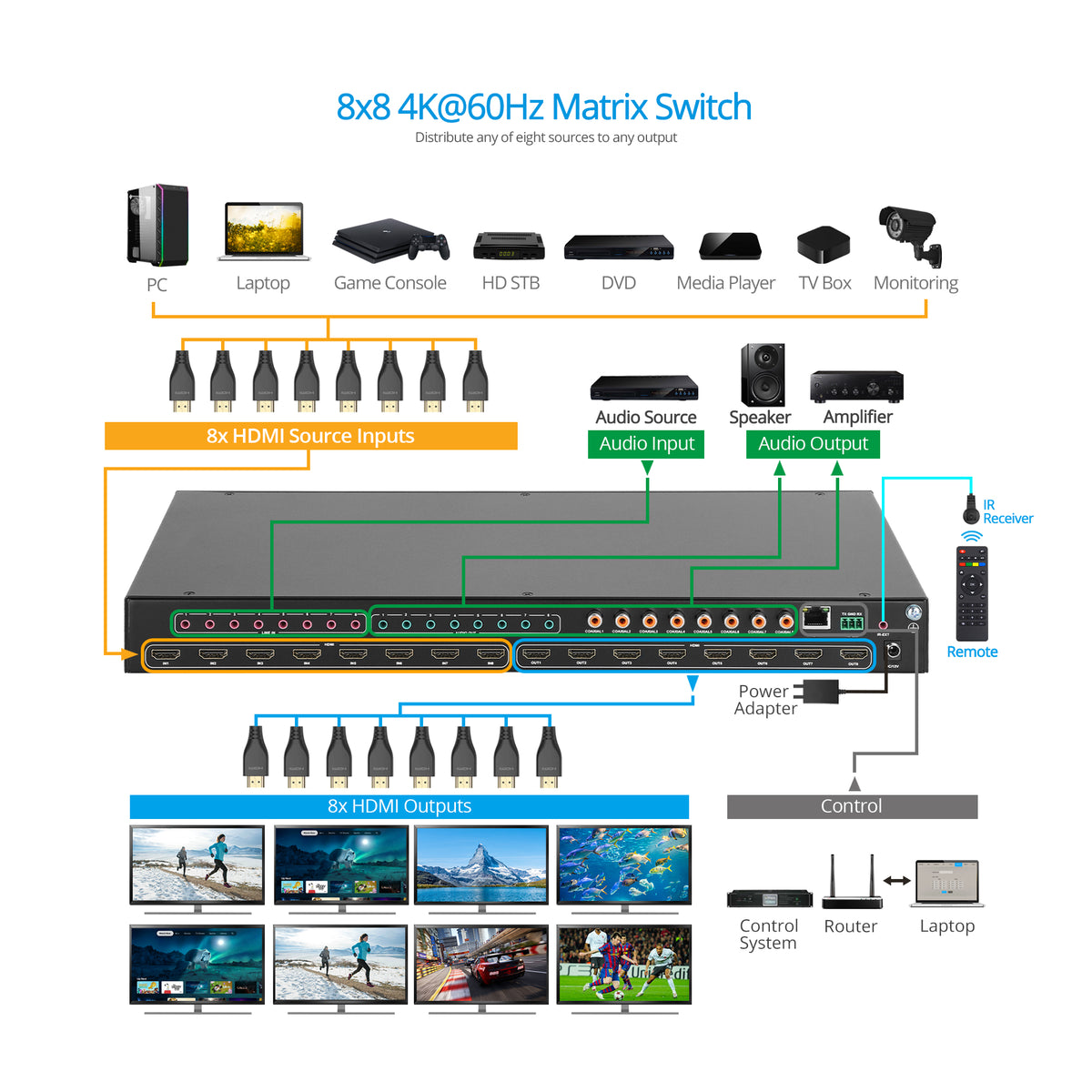

Connect up to 8 HDMI sources and independently distribute any source to any of 8 displays

Professional 8x8 4K60Hz HDMI Matrix with LCD Display

Resolution

Supports Ultra HD 4K60Hz 4:4:4 Resolution

Matrix

8-In 8-Out Independent Routing Architecture

LCD screen

Front Panel LCD Screen for Easy Status Check

Audio

Passes Dolby Atmos, DTS-X & Hi-Res LPCM Audio

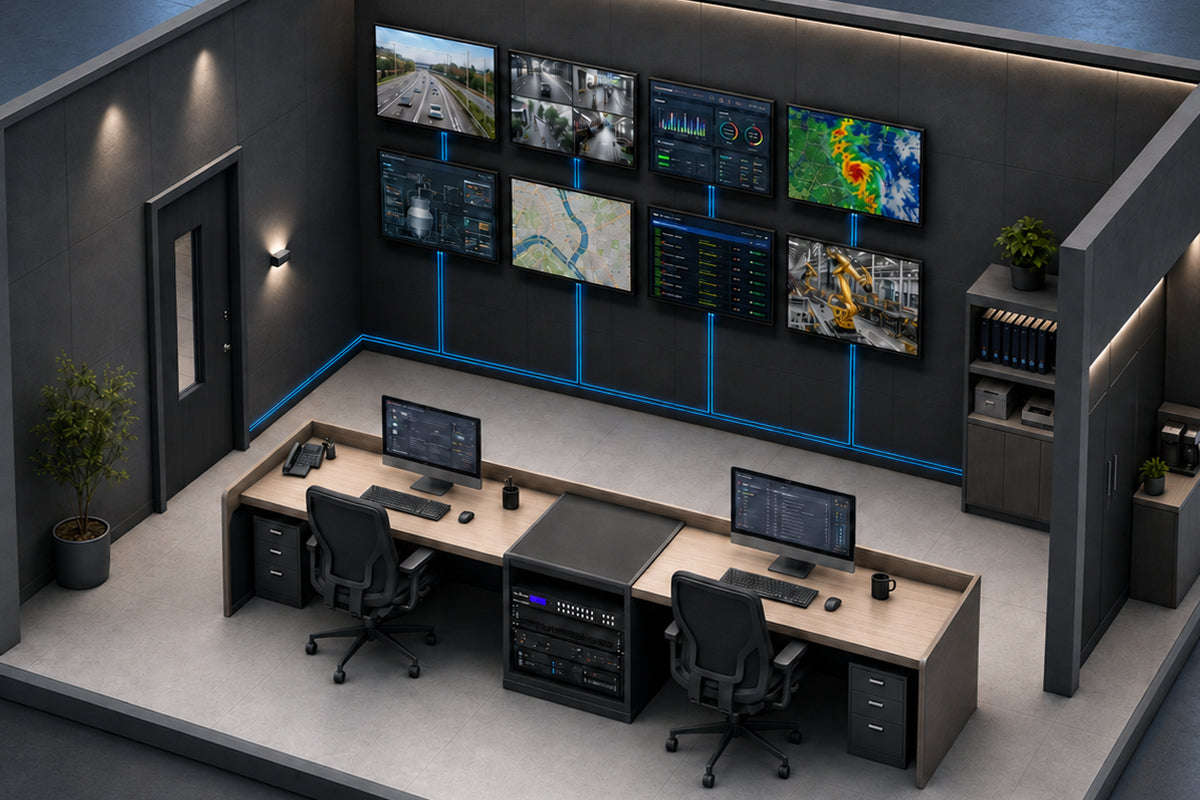

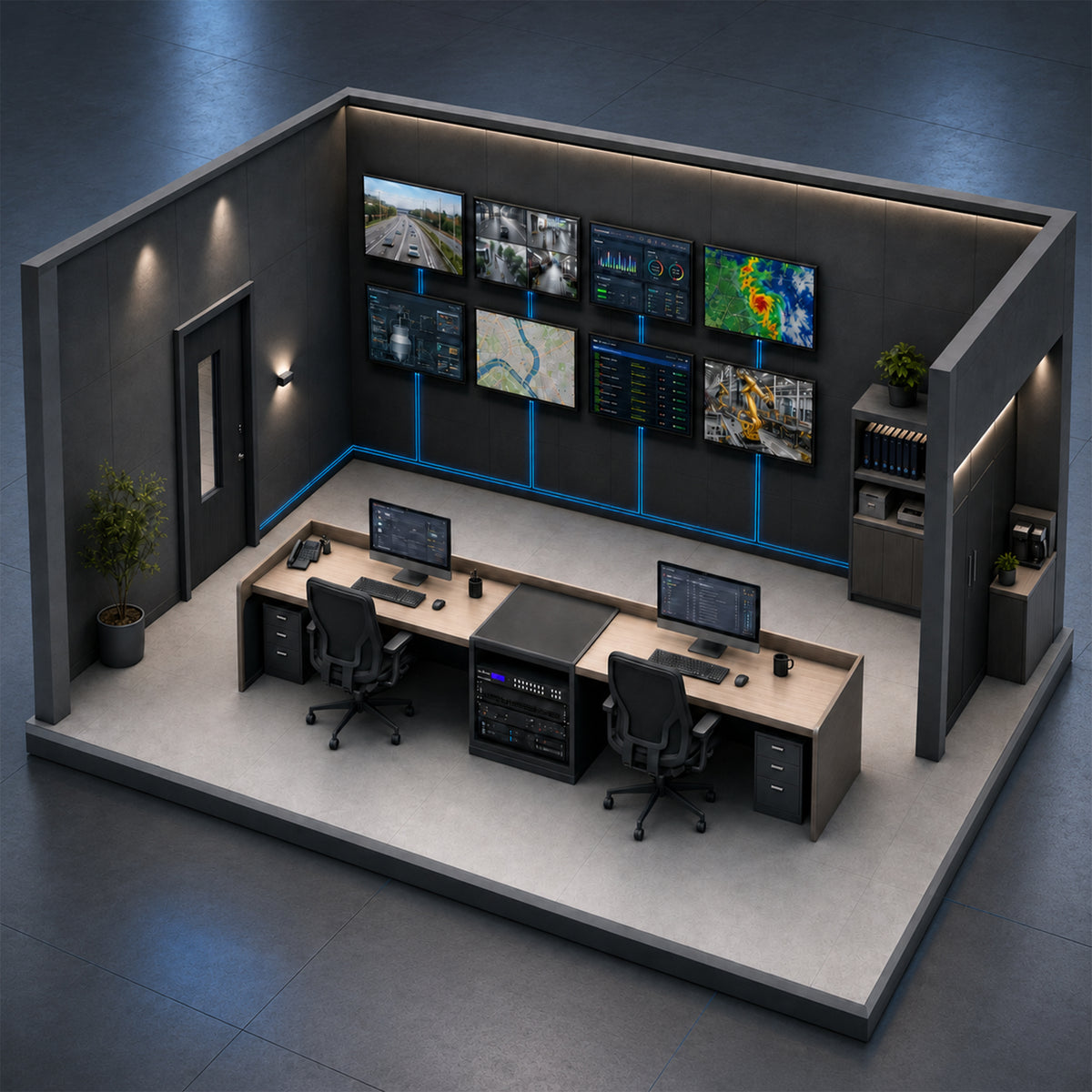

Centralized Command Center Display Layout

An 8×8 HDMI matrix is centrally installed between operator workstations and a wall-mounted display array, creating an organized control-room layout for flexible video routing and real-time monitoring, supports mixed 4K & 1080p display outputs

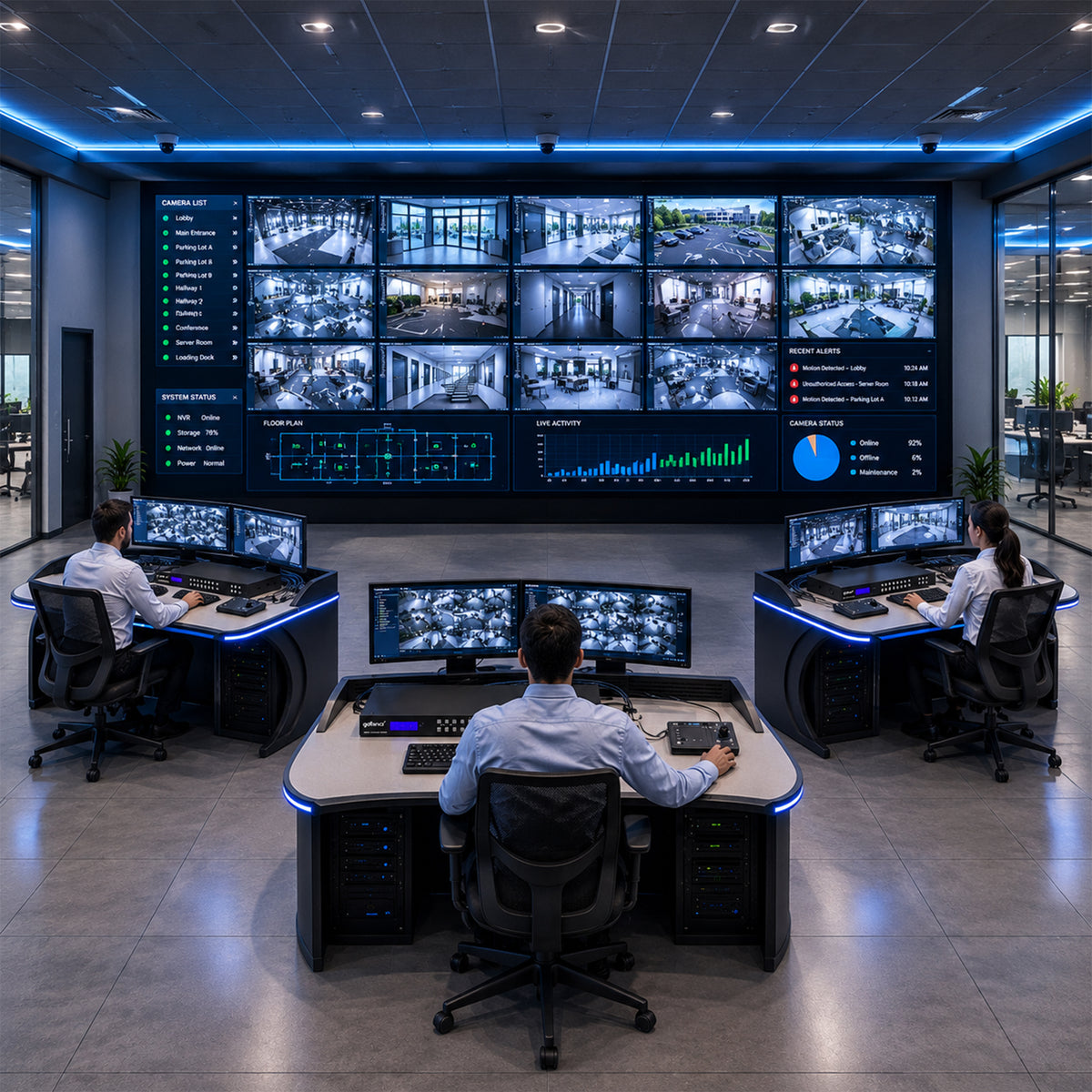

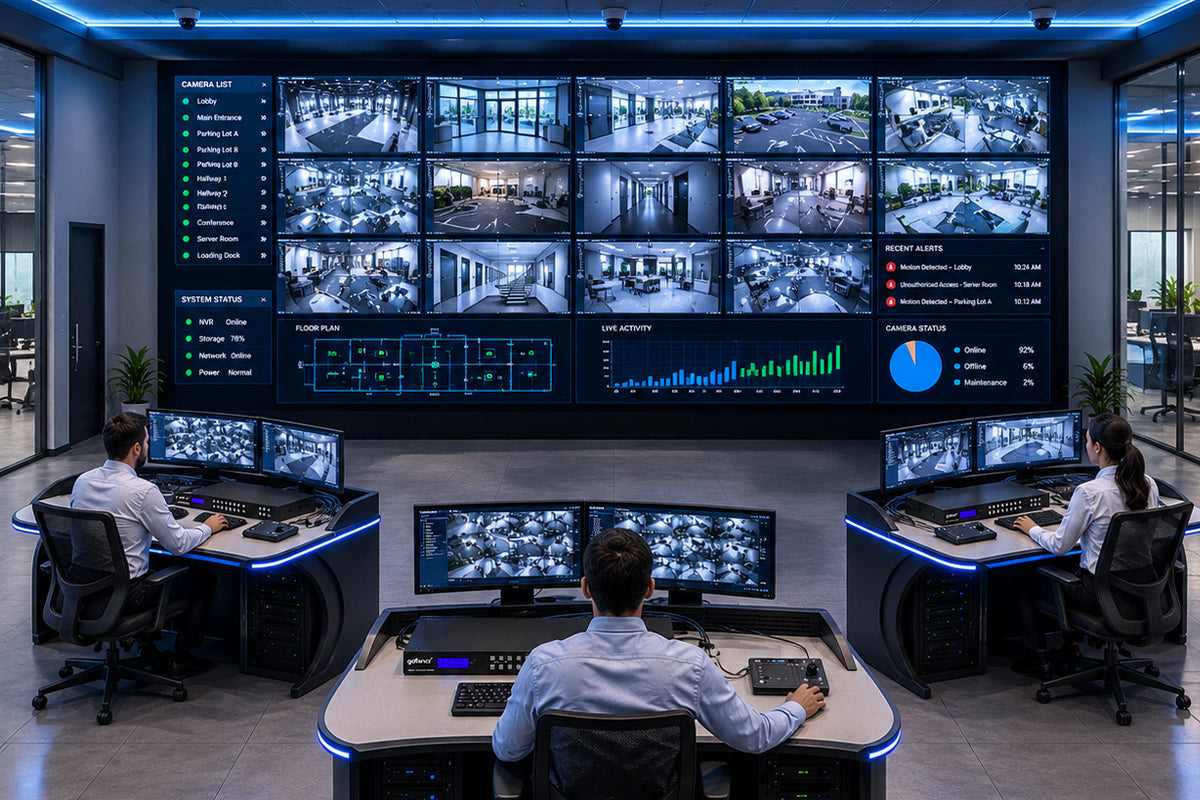

8×8 Security Operations Video Routing

Route up to eight HDMI surveillance sources independently to eight displays, giving control-room operators flexible, real-time visibility of critical areas

Advanced Features

EDID Management / Downscaling / Push buttons / IR Remote Control/ RS232 / TCP/IP / Web GUI

Comparison Table

8x8 HDMI 2.0 Matrix with LCD
Sale price$520.88
View details
Matrix88HD2
4K60Hz
8x HDMI, 8x 3.5mm, 3-pin Terminal Block, Network
8xHDMI, 9x 3.5mm, 8x Coaxial
-
Metal
IR, Remote Control, RS232, Web GUI, LCD, Audio Extractor
4x4 HDMI 2.0 Matrix BSC
Sale price$129.99
View details
Matrix44HD2-BSC
4K60Hz
HDMI, RS-232
HDMI
-
Metal
EDID, Auto Downscaling, Remote Control
4K60 4x4 HDMI Matrix over CAT - 70m (TX & 4 RXs, Up to 8 Displays)
Sale price$399.99
View details
Matrix44HD2CAT
4K60Hz
HDMI, 4x RJ45, 4x 3.5mm, RS232, Ethernet, 3-pin Terminal Block, 4x Micro USB
8x HDMI, 4x RJ45, 4x 3.5mm
Up to 230ft
Metal
IR, PoC, Remote Control, RS232, Web GUI
Specification
  • Compliance: HDMI 2.0 / HDCP 2.2/1.4
  • Bandwidth: 18Gbps
  • Resolution:Up to 4K60Hz
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • Audio Formats: Up to 5.1ch HD audio (LPCM, Dolby TrueHD, DTS-HD Master Audio, Atmos)

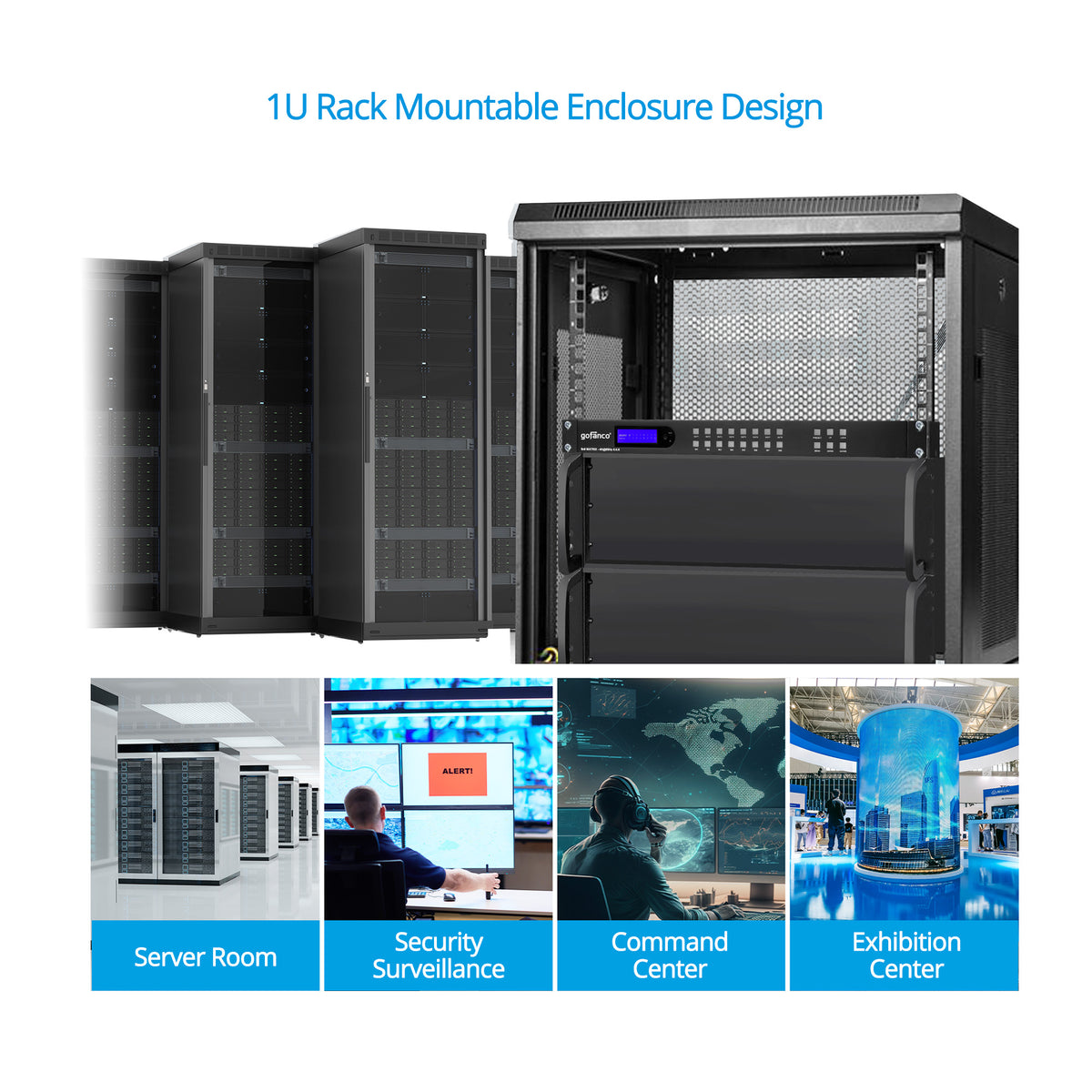

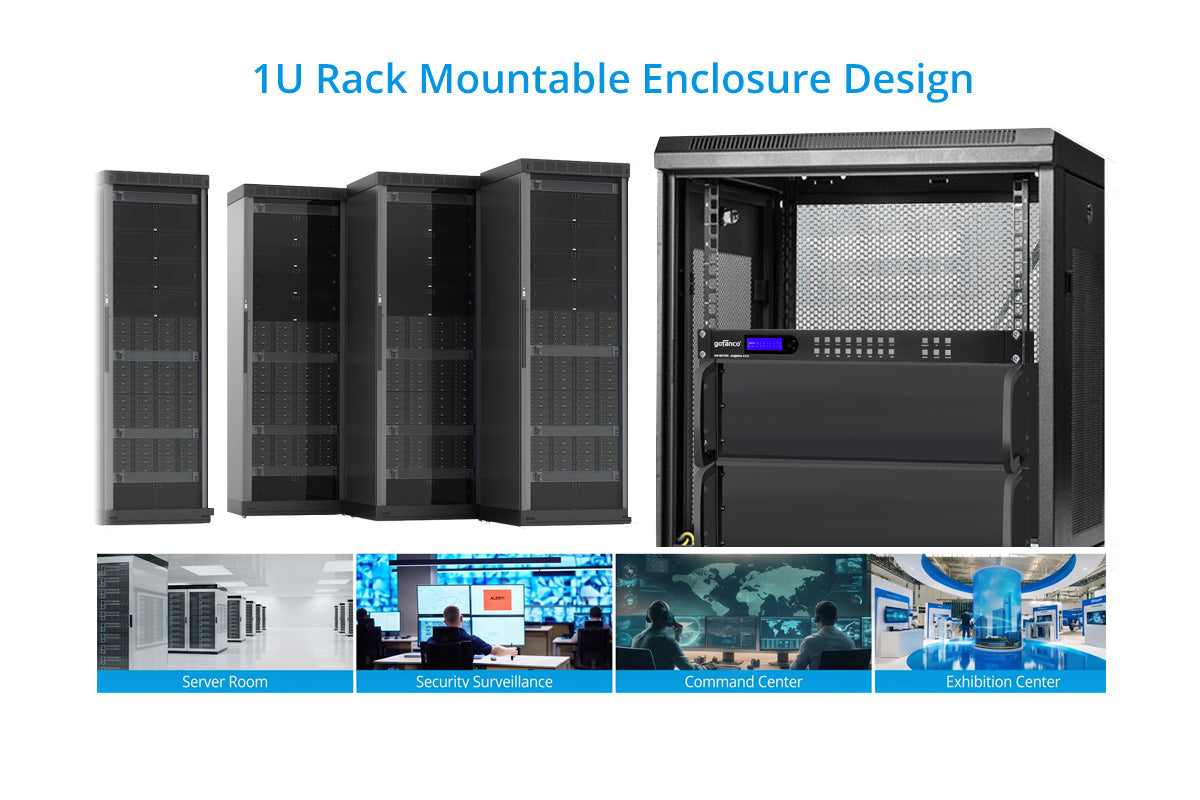

  • Mount: 19" 1U Rack Mountable
  • Firmware upgradable via RS232

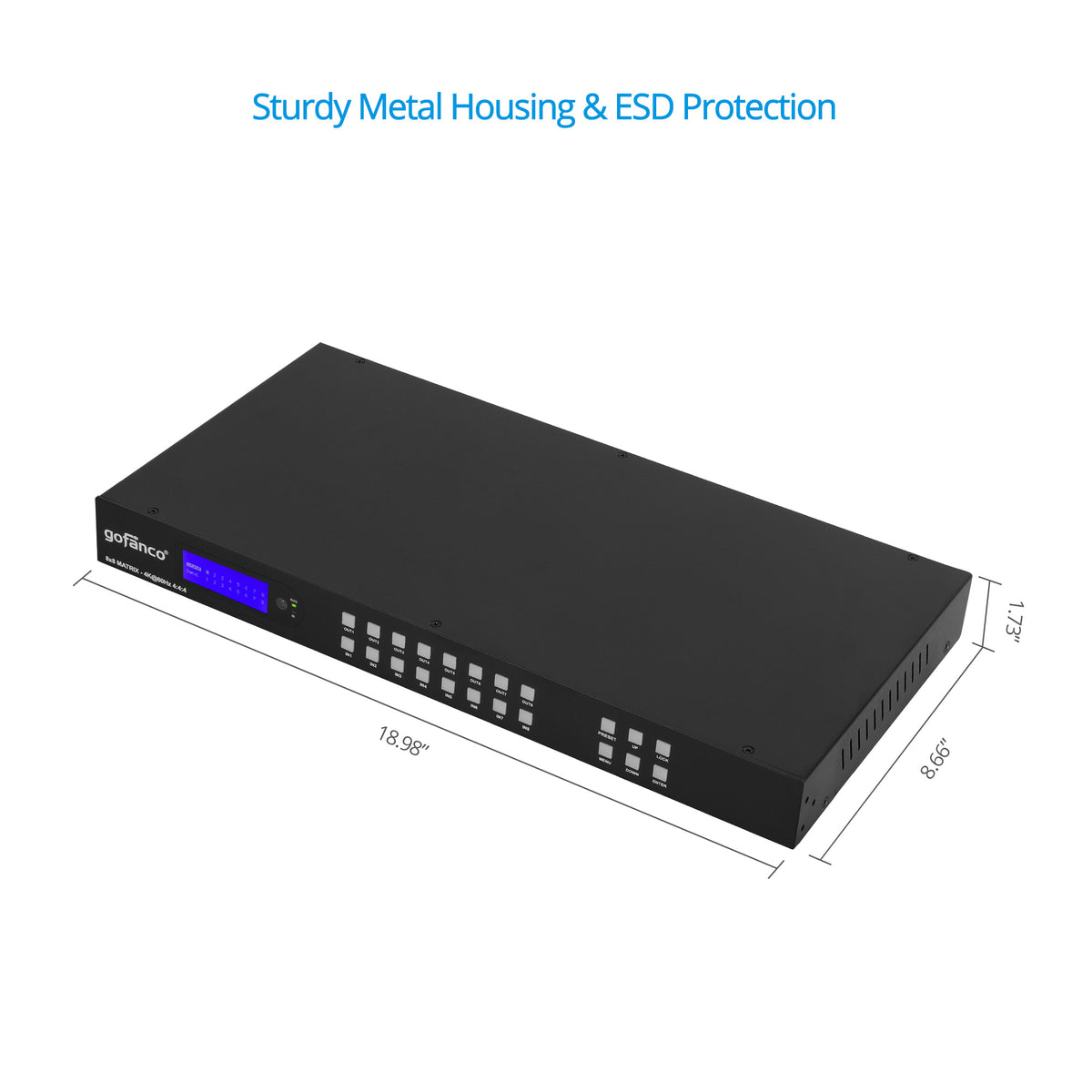

  • Dimension: 18.99″(W) x 1.73″(H) x 8.66″(D)
  • Weight: 6.16 lbs
  • Power Adapter: AC100 - 240V 50/60Hz, Output: 12V/3A
  • Housing Material / Color: Metal / Black color

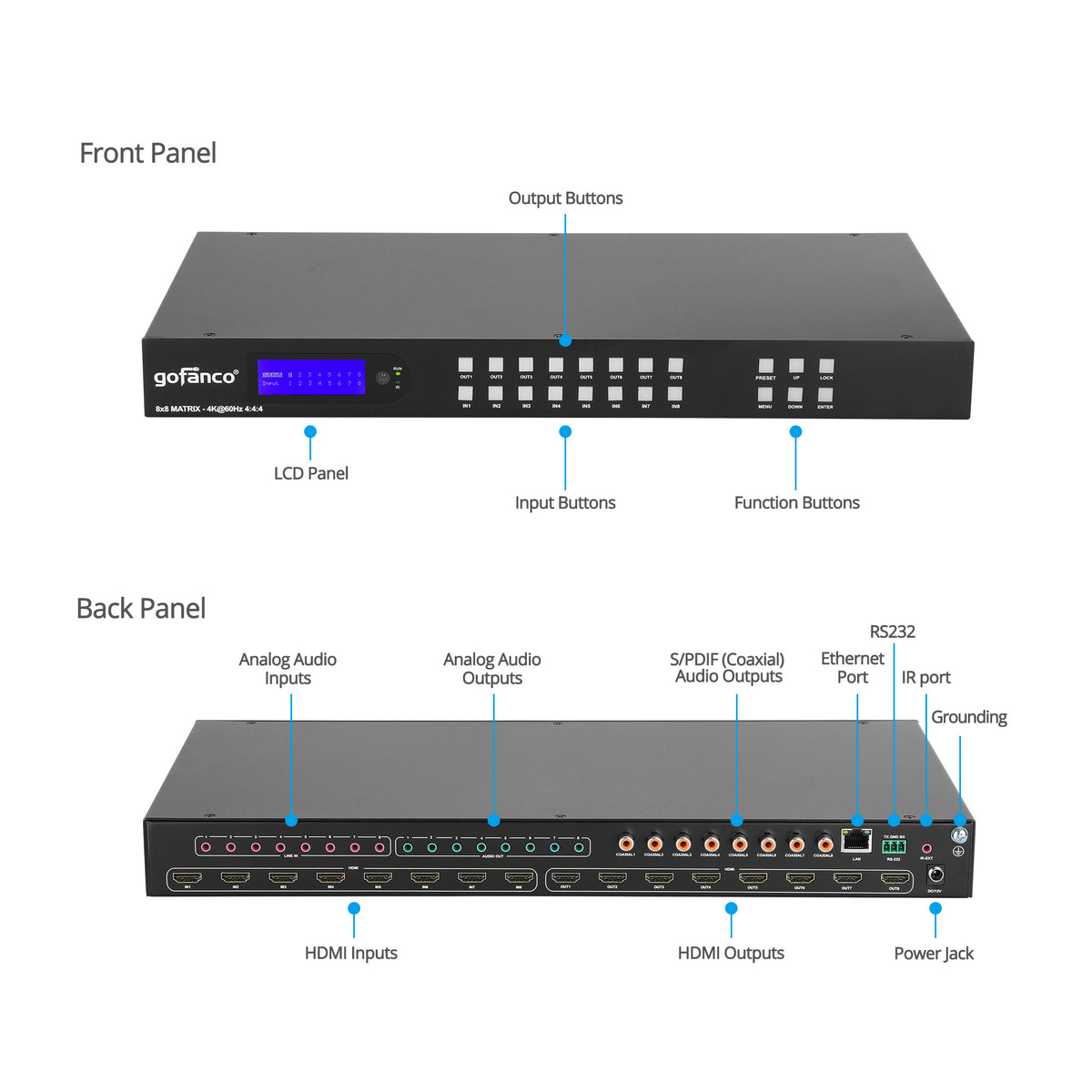

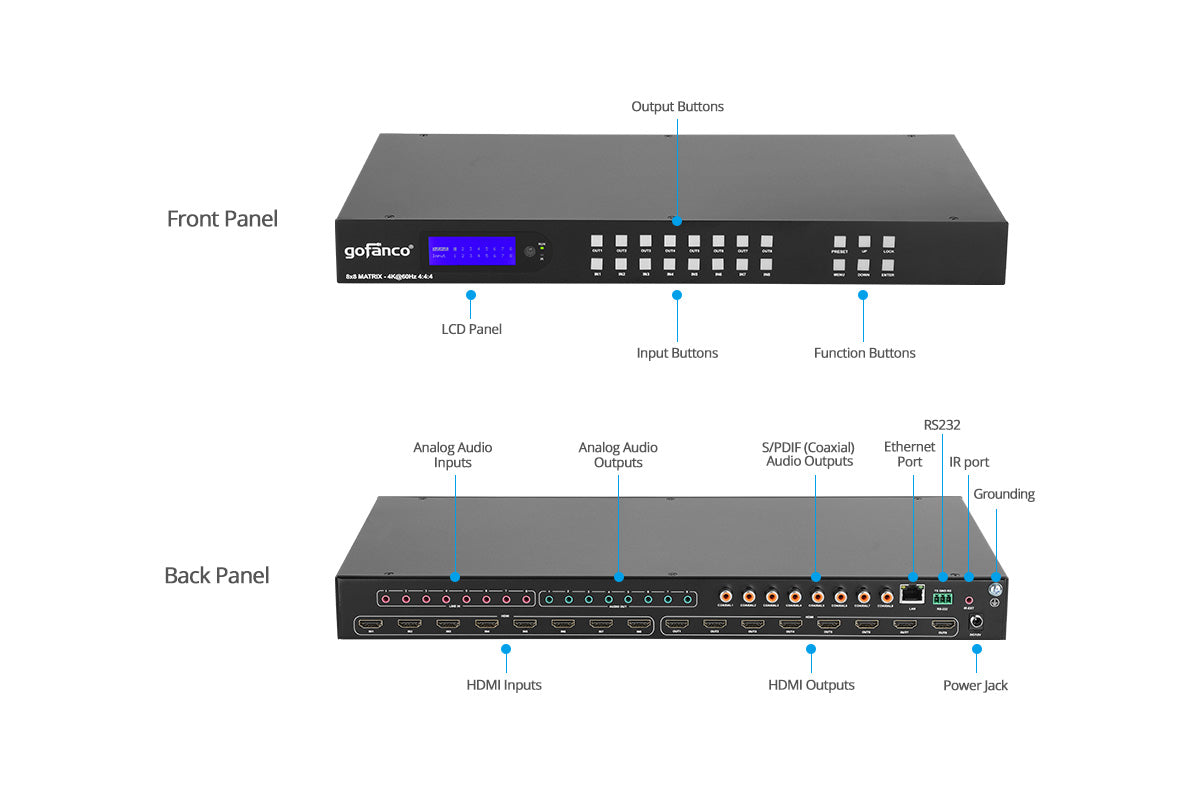

  • 8x 3.5mm jack, Audio Input
  • 8x 3.5mm jack, Audio, Output
  • 8x Coaxial, Audio, Output
  • 8x 19-pin HDMI, Input
  • 8x 19-pin HDMI, Output
  • 1x 3.5mm jack, IR Input
  • 1x 8-pin RJ45, TCP/IP
  • 1x 3-pin Terminal Block, RS232
  • 1x Power jack
  • Connect up to 8 HDMI source devices and independently distribute any source to any of the 8 HDMI displays
  • Supports up to 4K60Hz YUV 4:4:4 8-bit
  • Supports up to 8 HDMI inputs and 8 HDMI outputs
  • Supports 8 Analog audio inputs, 8 Analog audio outputs, 8 Coaxial audio outputs
  • Supports 4K to 1080p downscaling on each output port
  • Supports audio embedded and extraction
  • Control methods: Panel buttons, IR remote, RS232, IP, and Web GUI
  • EDID management: Presets and EDID learning
  • Firmware upgradable via RS232 for expanded capability and compatibility
  • Supports Telnet, UDP, HTTP, and TCP/IP via Ethernet
  • UPC: 818354-023190
  • Operation Temperature: 32 to 100 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
