Switches: Matrix44HD2CAT

4K60 4x4 HDMI Matrix over CAT - 70m

Sale price $399.99

230ft CAT6/7 Extension, 4K60Hz 4:4:4, HDR, HDCP 2.2/1.4, IR, PoC, EDID, Auto Downscale, 4 CAT & 4 Mirrored HDMI Outputs, Web GUI

24 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4x4 Extender
4K60Hz Resolution
Distance up to 70m
Power over Cable
Various Control

4K60 4x4 HDMI Matrix over Cat - 230ft

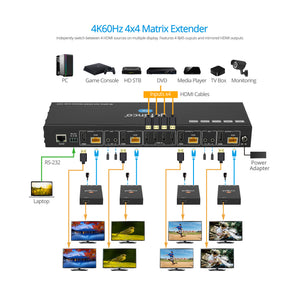

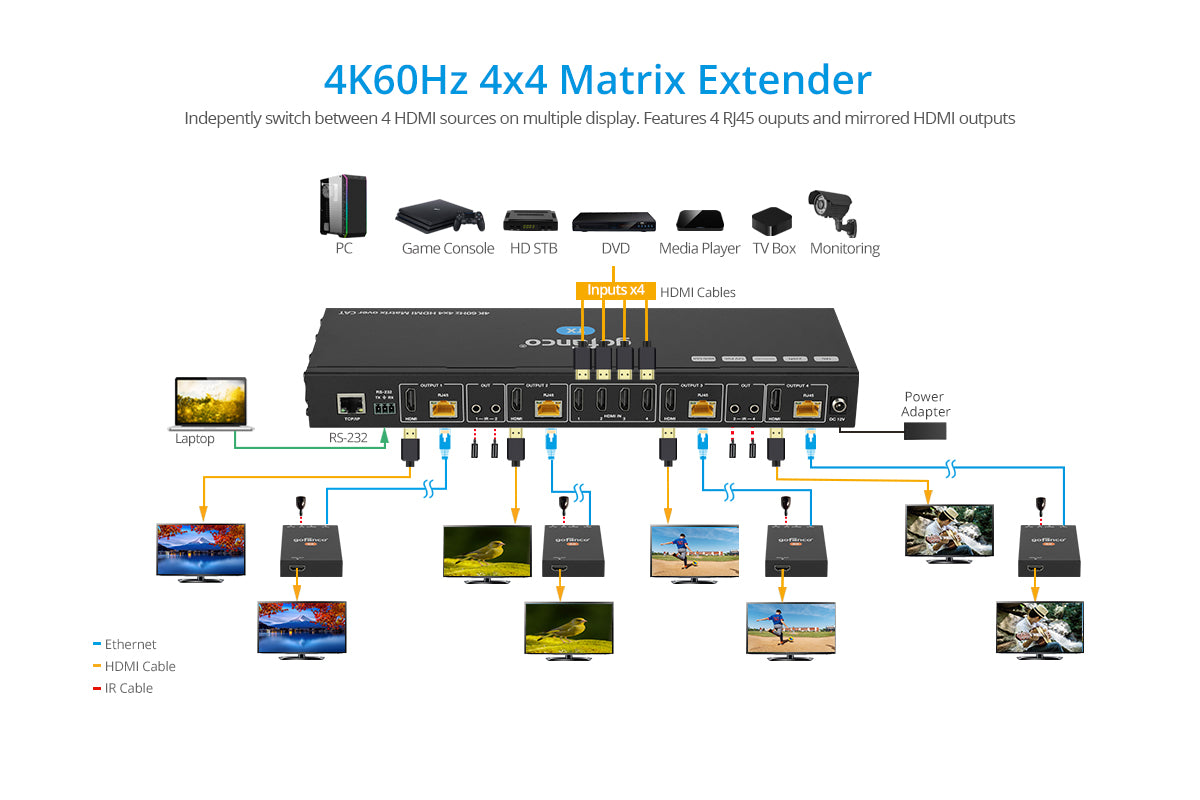

Distribute any connected HDMI source device to any display over Cat6/7 cables

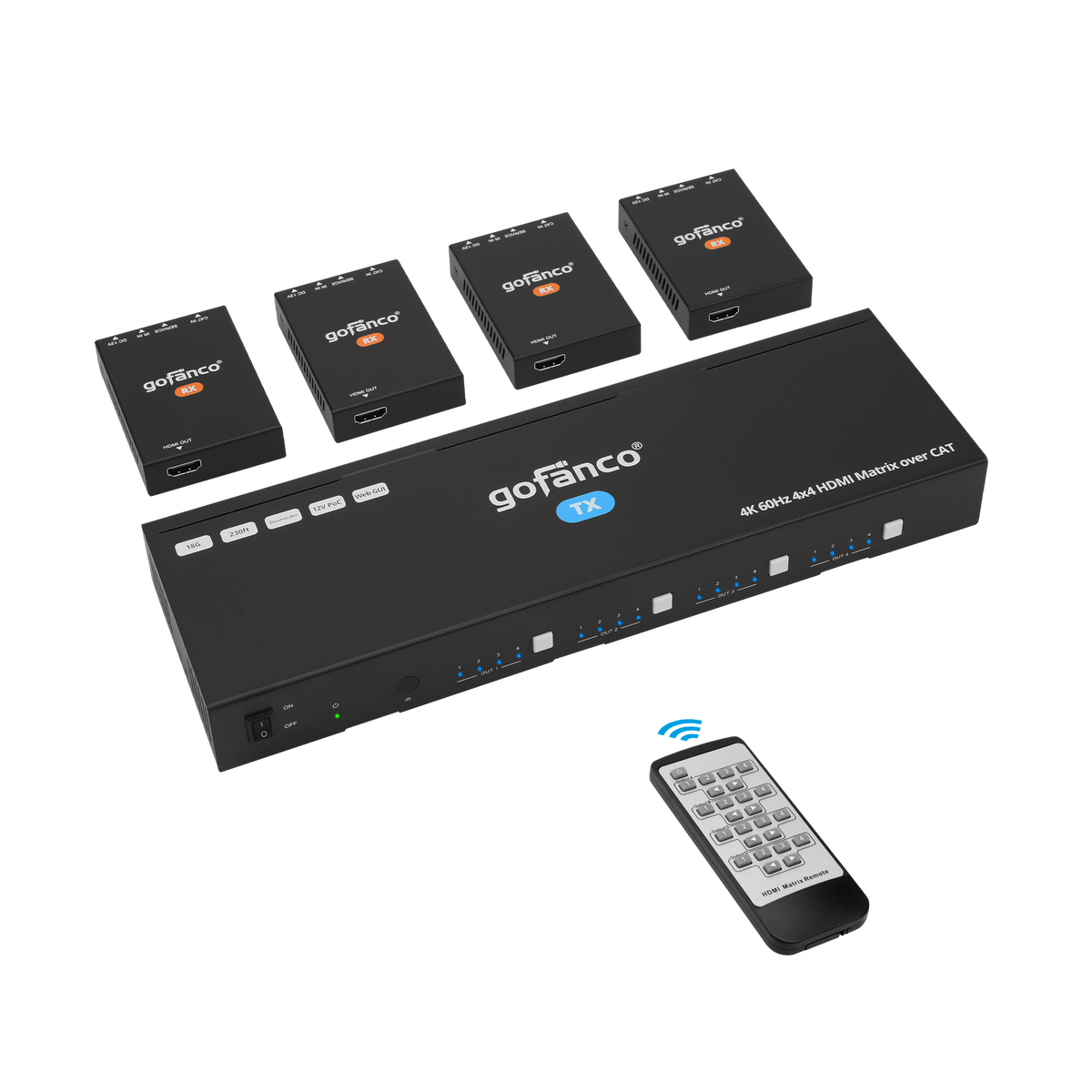

4x4 4K60Hz HDMI Matrix Switcher Over CAT with PoC

Resolution

Supports High-Performance 4K60Hz Resolution

Extended

Extends 4K Video Over CAT Cable Up to 230ft

Matrix

4-In 4-Out Independent HDMI Signal Routing

PoC

Power-over-Cable Feeds Power to All RX Units

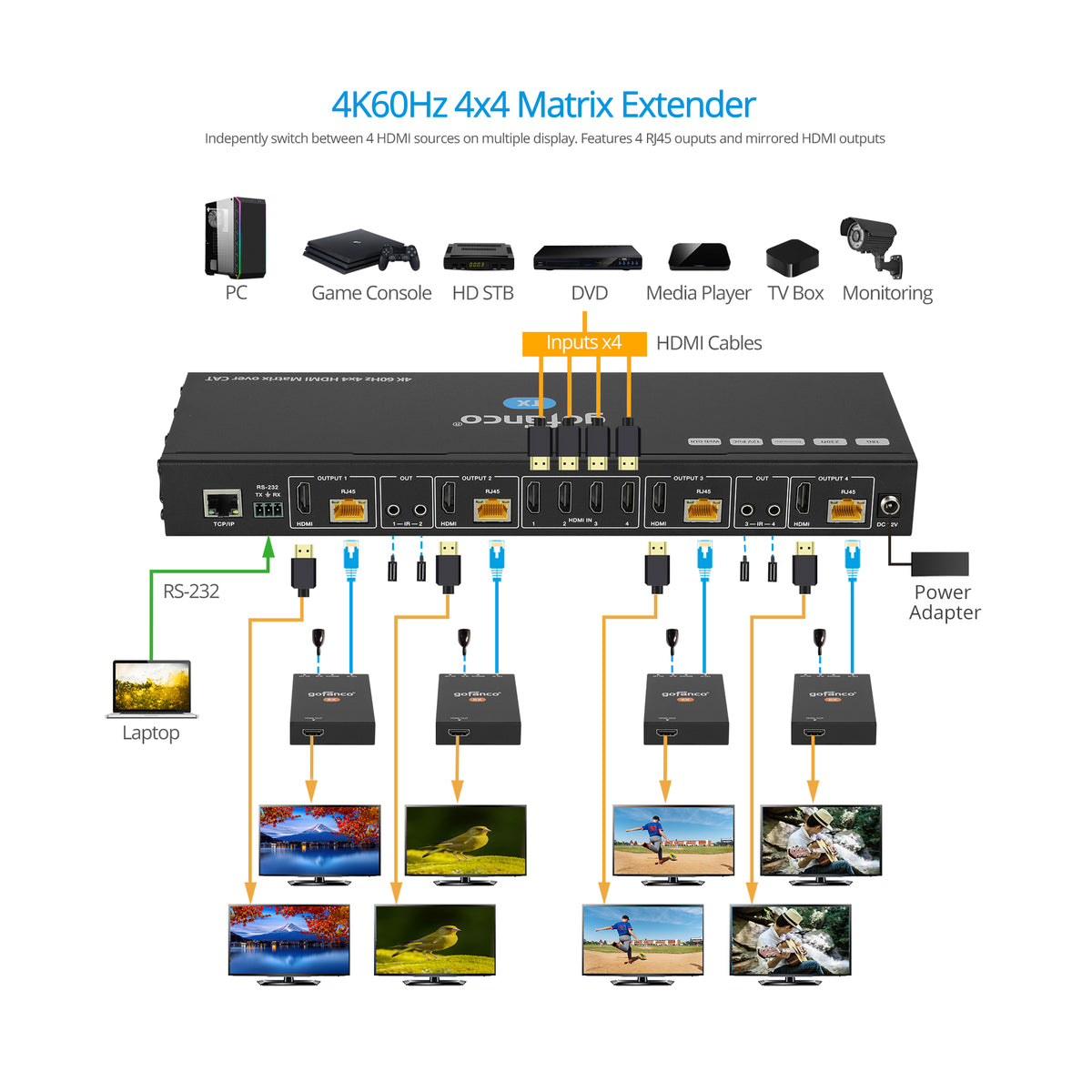

Extender/ Splitter

Extend and split four HDMI sources to four HDMI displays & 4 output receivers by cat6/7 up to 230ft simultaneously

Flexible Multi-Screen Sports Bar Viewing

Route up to four HDMI sources independently to four and eight displays, allowing sports bars to show multiple live games across the venue at the same time

Advanced Features

Downscaling / Up to 8 Displays / PoC / Web GUI / RS-232 / Buttons / IR Remote Control / EDID Management
Specification
  • Compliance: HDMI 2.0b / HDCP 2.2/1.4
  • Bandwidth: 18Gbps
  • Resolution:Up to 4K60Hz
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • Extends up to 230ft (70m) over Cat6/7
  • Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG
  • HDMI Audio Formats: up to 7.1ch HD audio (LPCM, Dolby TrueHD, DTS-HD Master Audio)

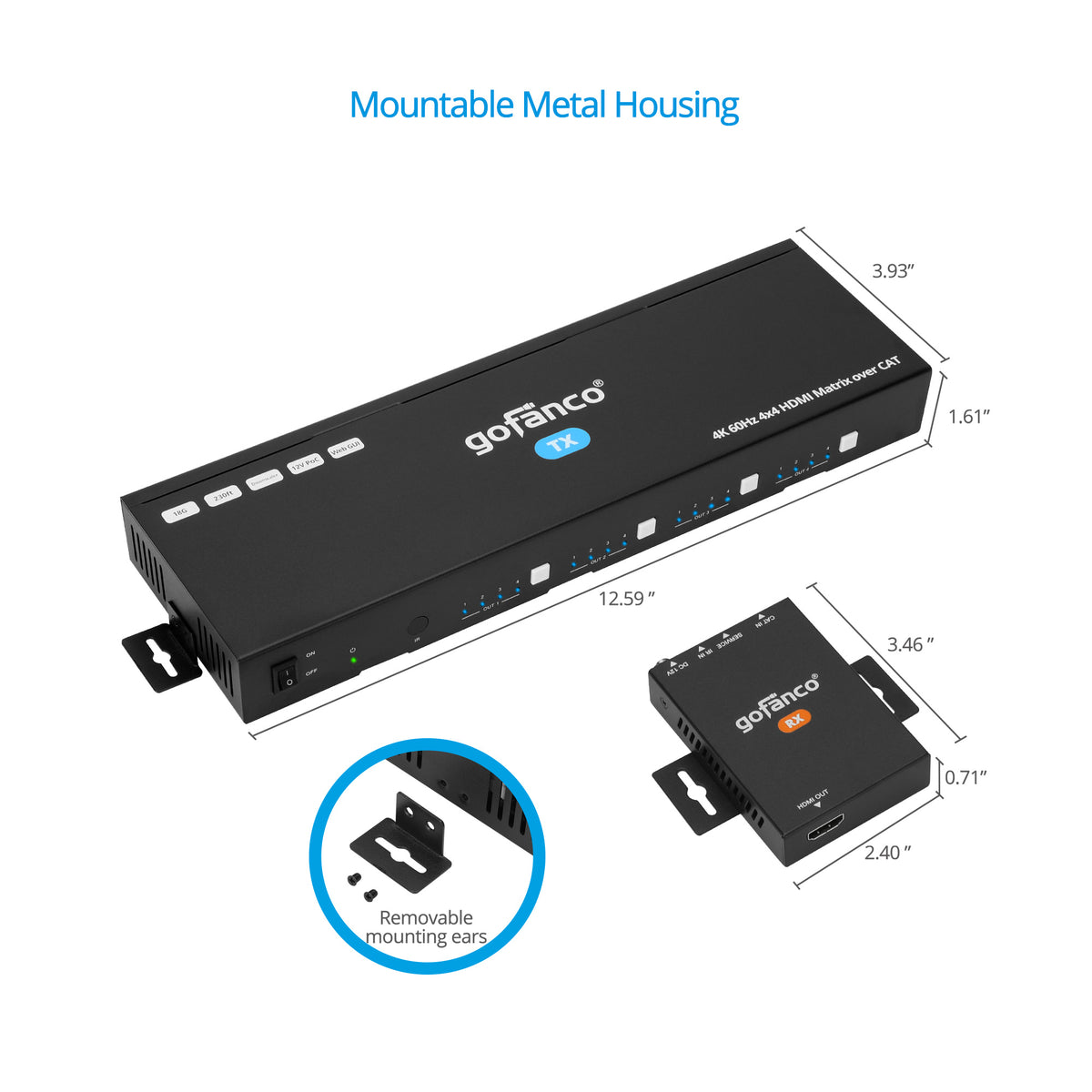

  • Dimension: TX: 12.60″(W) x 1.38″(H) x 3.90″(D) / RX: 3.46″(W) x 0.71″(H) x 2.40″(D)
  • Weight: TX: 2.12 lbs / RX: 1.27 lbs
  • Power Adapter: AC100 - 240V 50/60Hz, Output: TX: 12V/2.5A
  • Housing Material / Color: Metal / Black color

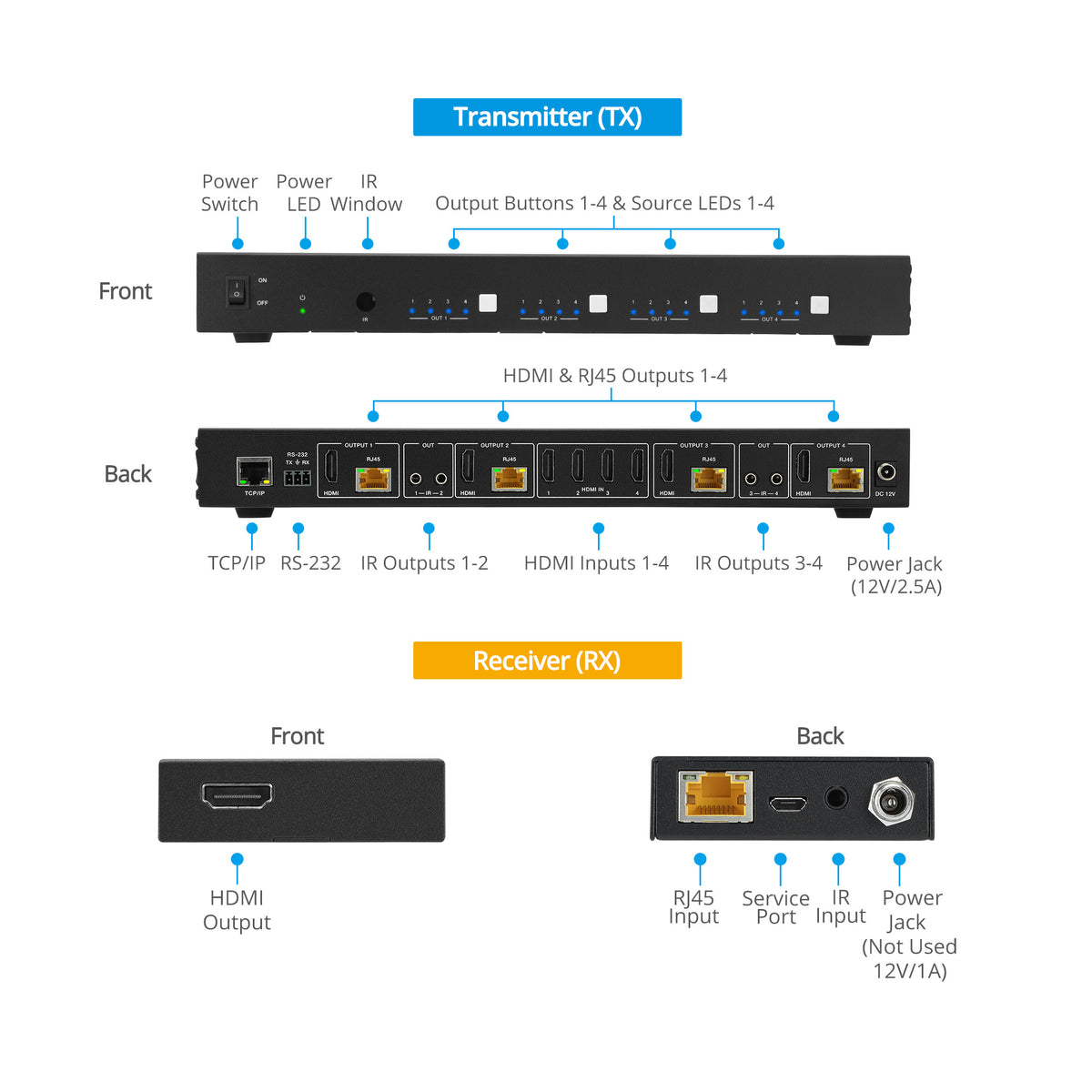

TX

  • 4x Output button
  • 1x 3.5mm jack, IR Out
  • 4x 8-pin RJ45, Output
  • 4x 19-pin HDMI, Input
  • 4x 19-pin HDMI, Output
  • 4x 3.5mm jack, IR Out
  • 1x 8-pin RJ45, TCP/IP
  • 1x 3-pin Terminal Block, RS-232
  • 1x Power jack
  • 1x Power switch

RX

  • 1x 19-pin HDMI, Output
  • 1x 3.5mm jack, IR In
  • 1x 8-pin RJ45, Input
  • 1x Power jack
  • 1x Micro USB, Service
  • Select and switch between any of 4 HDMI sources to any of the 4 HDMI displays simultaneously
  • 4 HDMI inputs, 4 CAT6/7 & 4 HDMI mirrored outputs
  • Supports up to 4K60Hz (YUV 4:4:4) on all HDMI & Cat6/7 outputs
  • Supports up to 7.1-channel or stereo digital audio

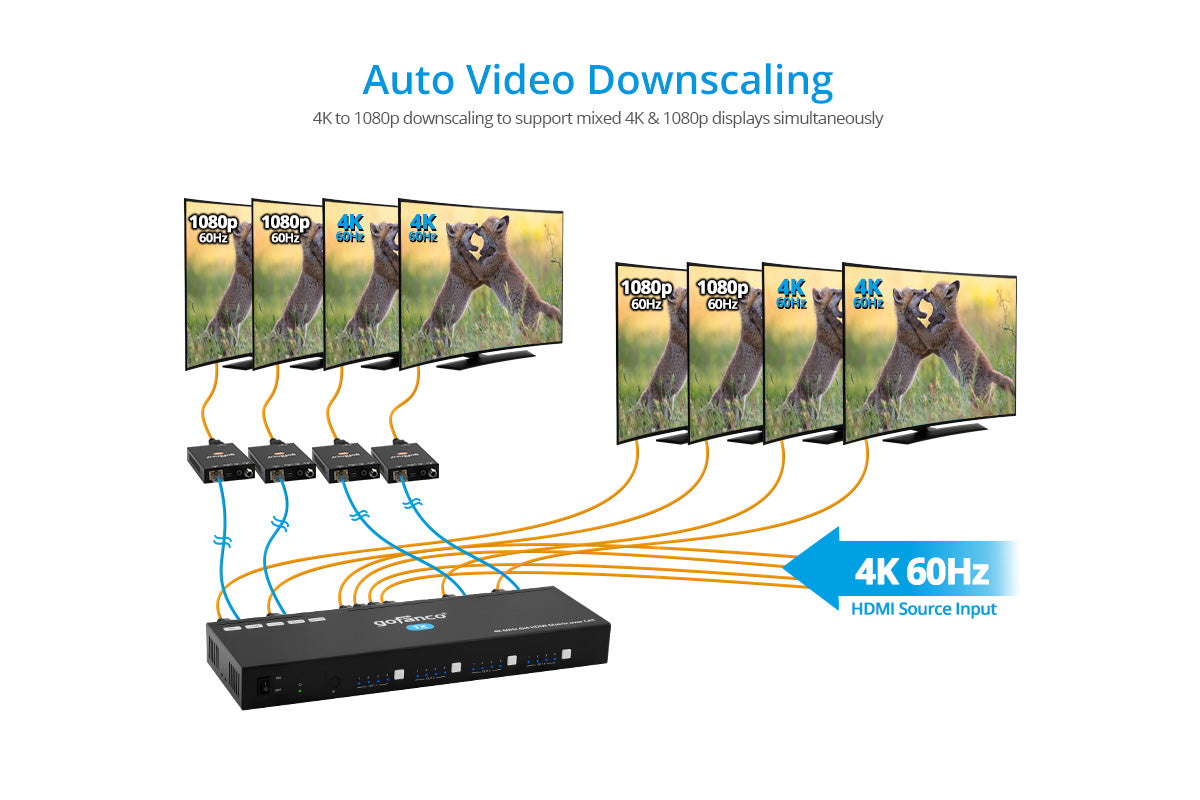

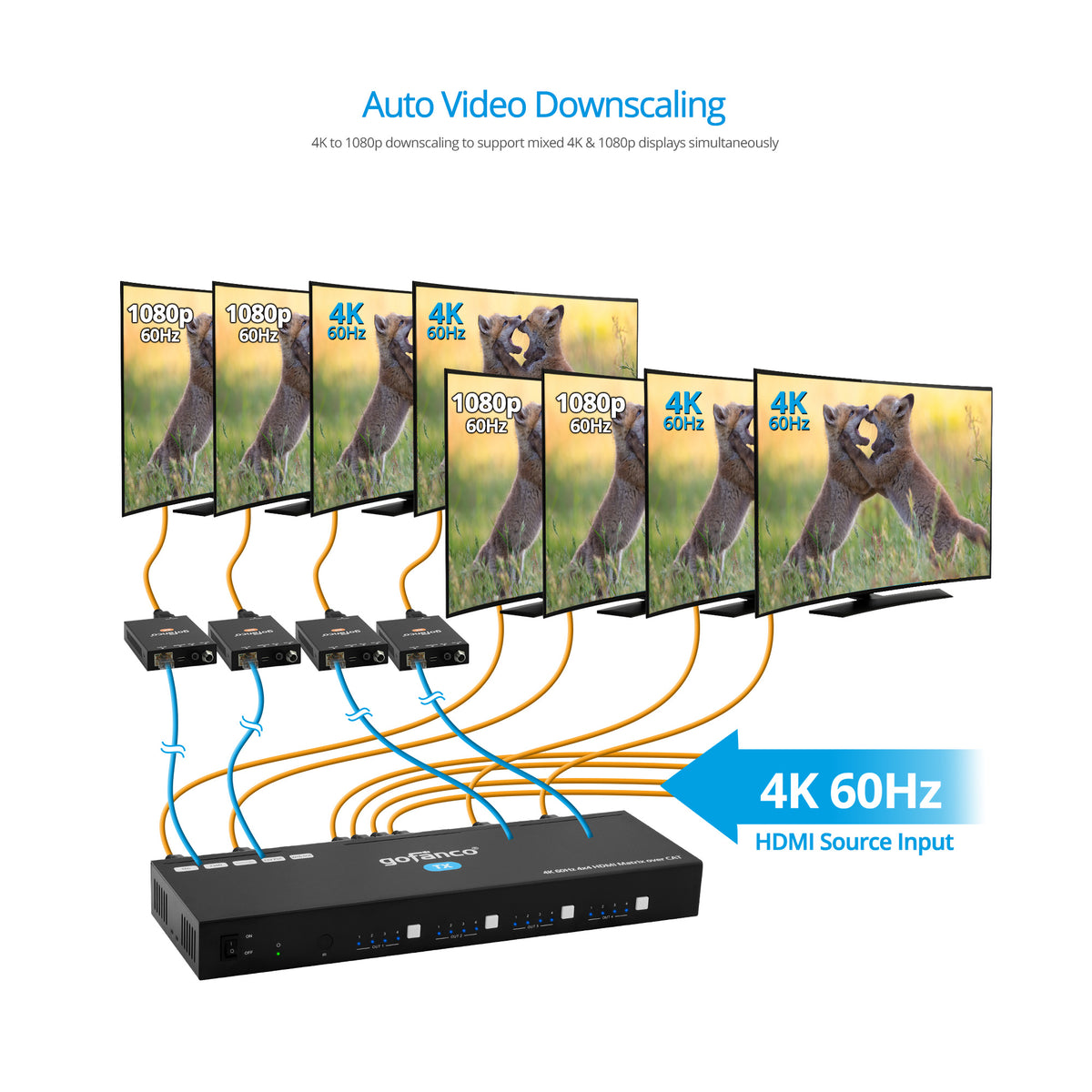

  • Supports 4K to 1080p downscaling on each output port

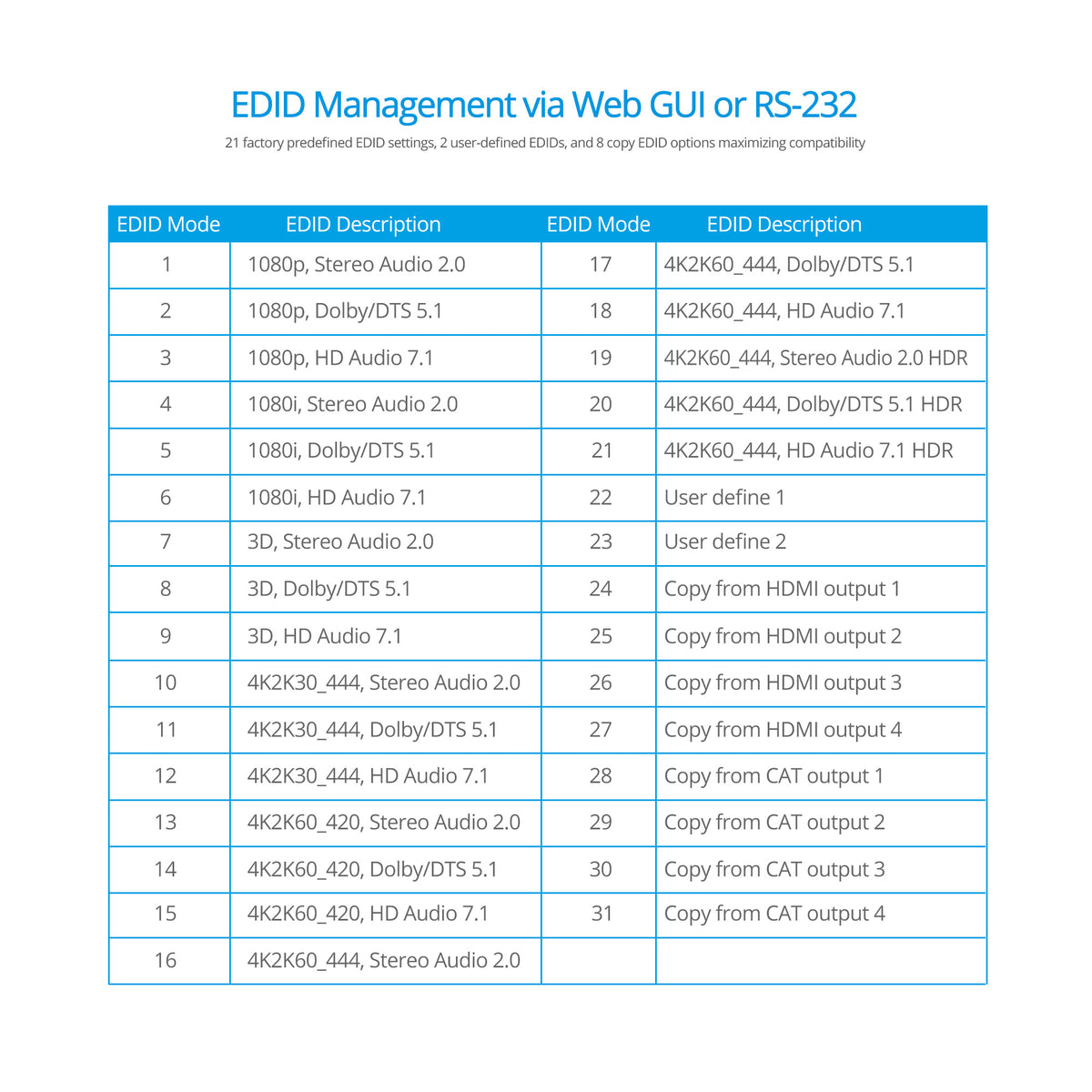

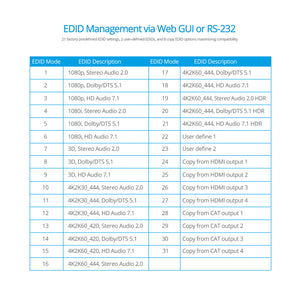

  • Advanced features: 12V PoC, EDID management, one-way IR passthrough, CEC (HDMI outputs only)

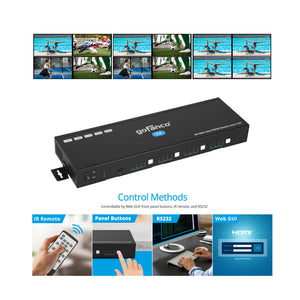

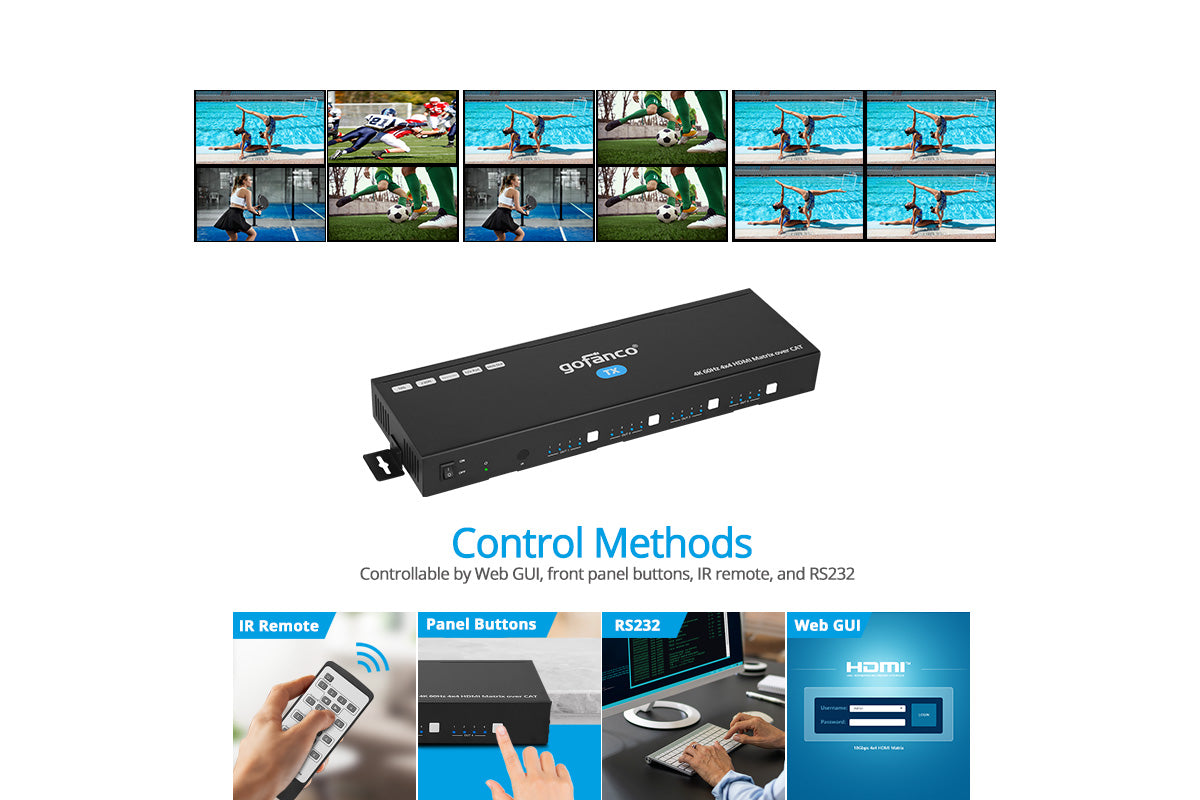

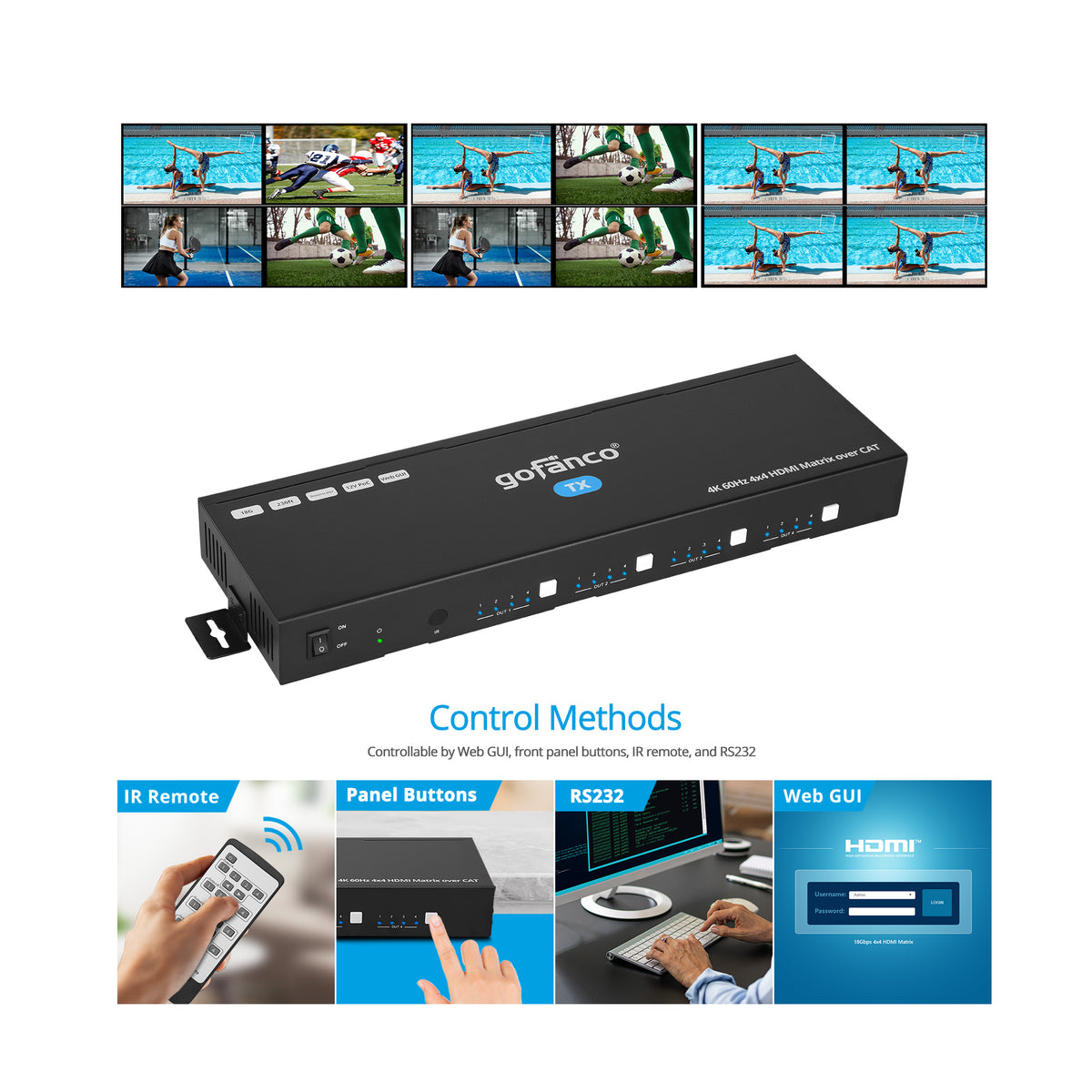

  • Control methods: Web GUI (TCP/IP), push buttons, IR remote, RS-232 commands
  • UPC:818354-023350
  • Operation Temperature: 32 to 100 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
