Extenders: HD14EX-100

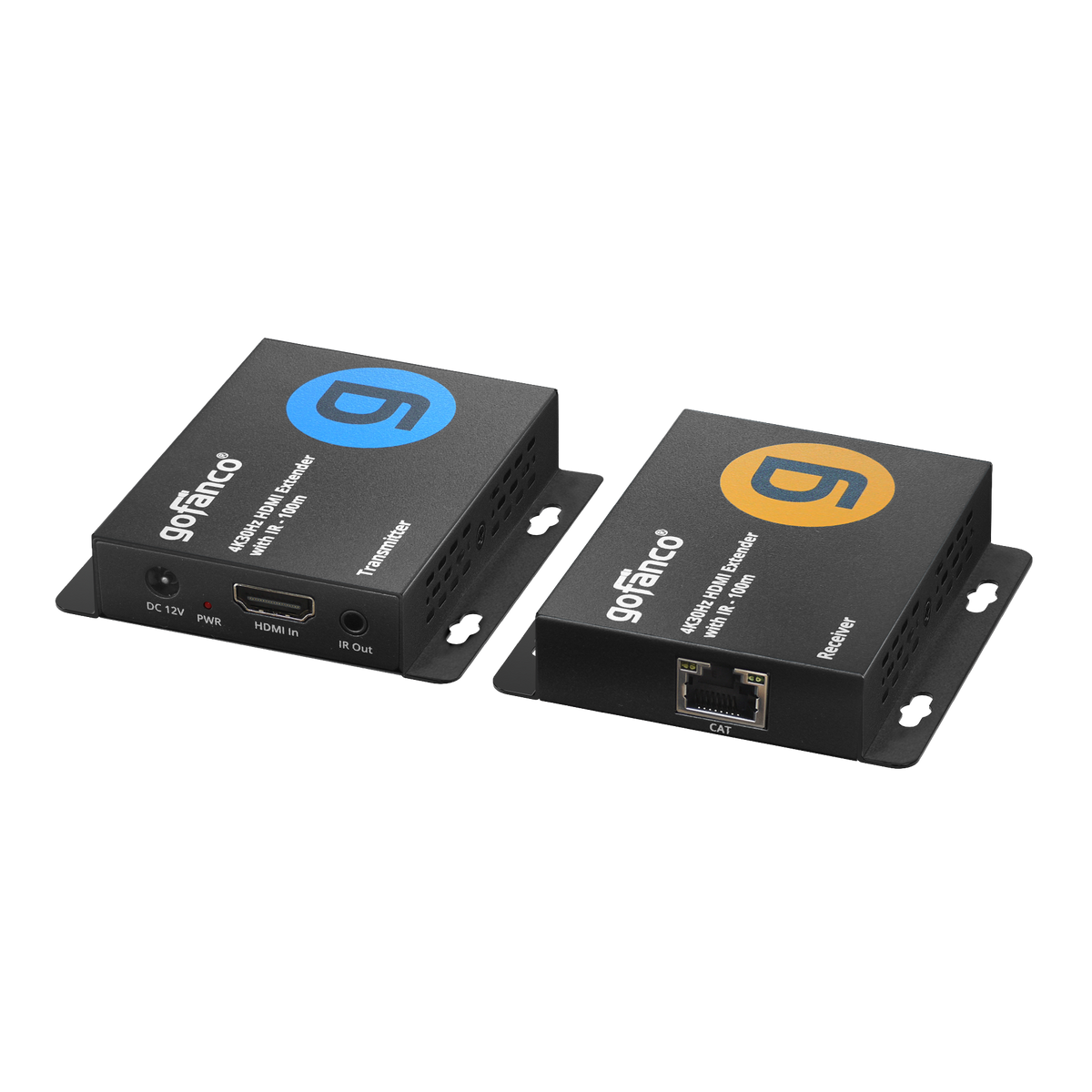

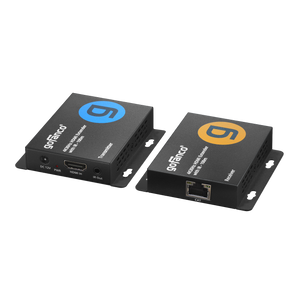

4K30Hz HDMI Extender with IR - 100M

Name: 4K30Hz HDMI Extender with IR - 100M
Brand: Gofanco
SKU: HD14EX-100
Price: 59.95 USD
Availability: InStock

$59.95

Transmit high-quality HDMI audio and video signals up to 4K30Hz over a single cost-effective CAT5e/6 cable

In stock

1 Year Warranty

30 Days Return

Fast delivery in 48 Hours

4K30 Extender

Distance up to 100m

HDMI Loopout

Power over Cable

IR Remote Control

4K30Hz HDMI Extender with IR

Allows extending your HDMI signal over long distances
to a compatible display

4K30Hz HDMI Extender with PoC & EDID

Resolution

Ultra HD Resolution Support Up to 4K30Hz

Distance

Long-Range Signal Transmission Up to 328 Feet

EDID

Supports 720p, 1080p and 4K30Hz selection

IR

Transmits IR Signals Back to Media Sources

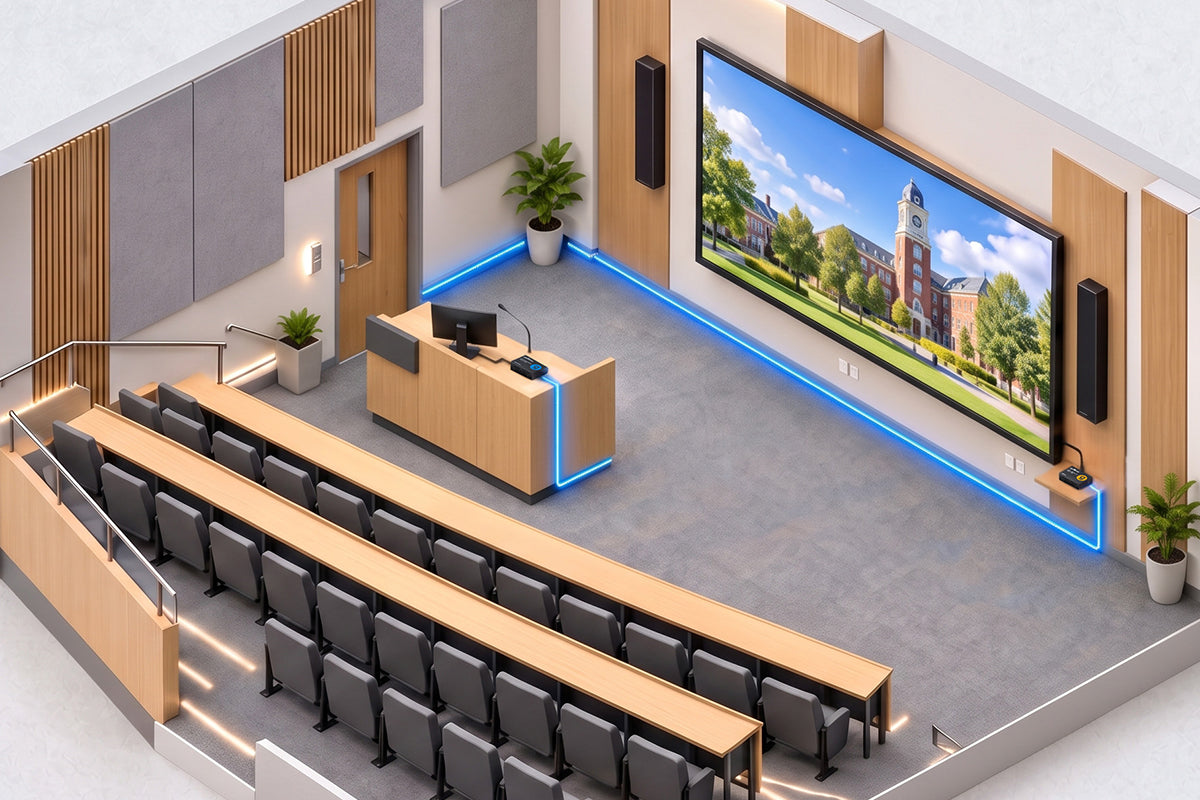

Streamlined Classroom AV Installation

Install the transmitter at the instructor’s podium and the receiver behind the front display, extending HDMI over a single structured cable for a clean, organized classroom AV layout

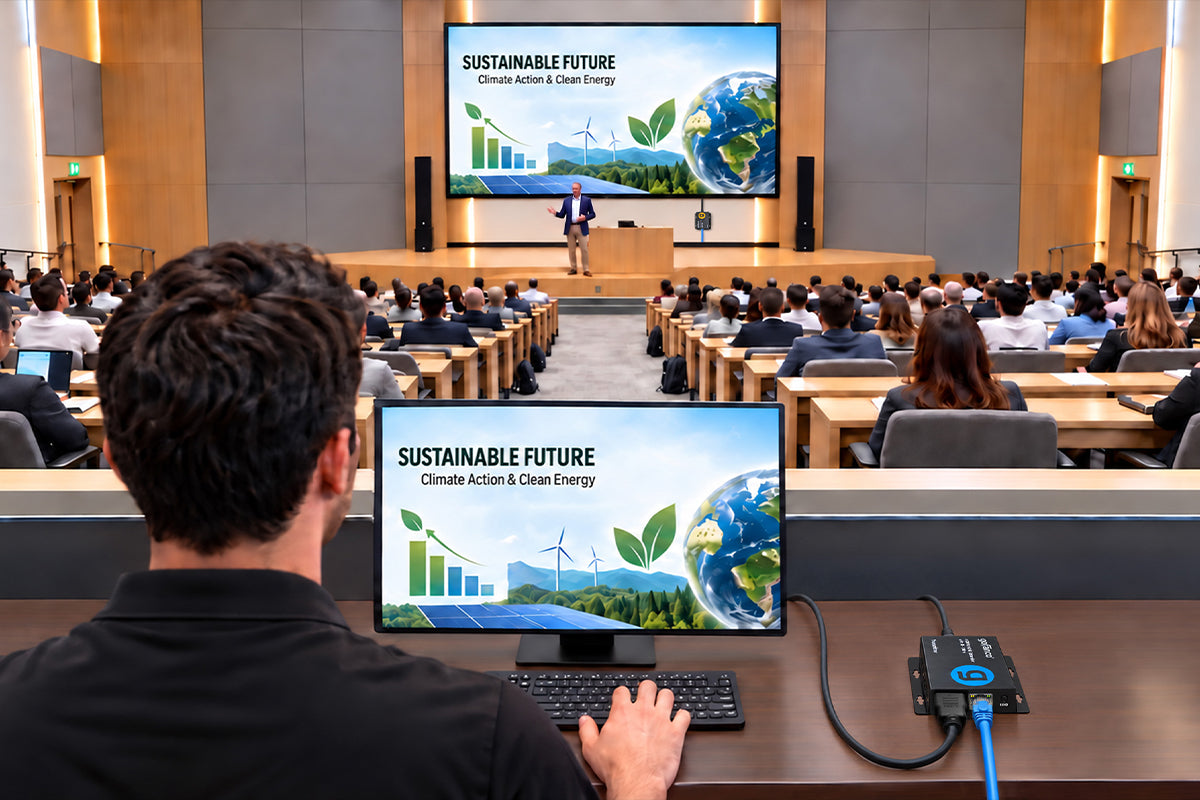

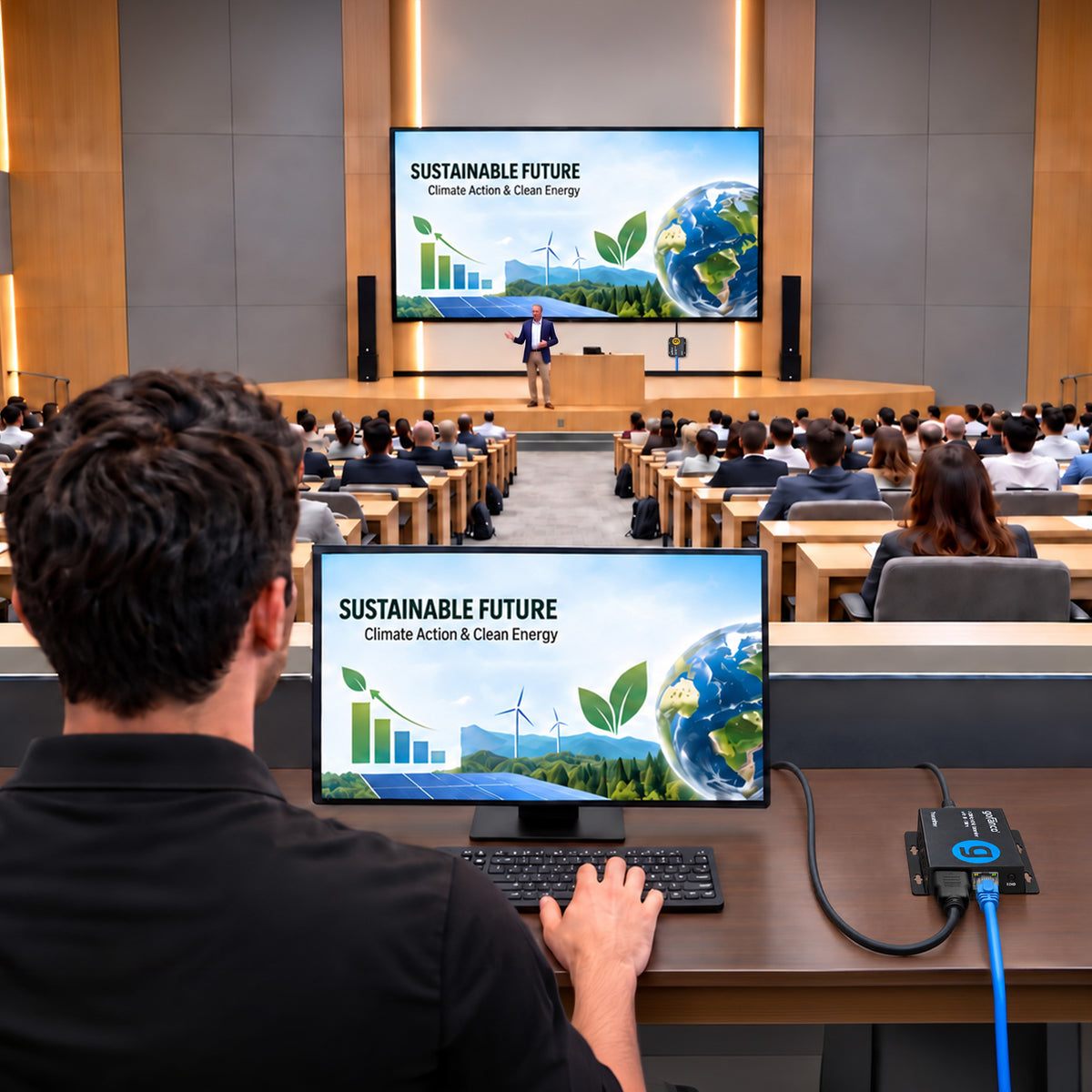

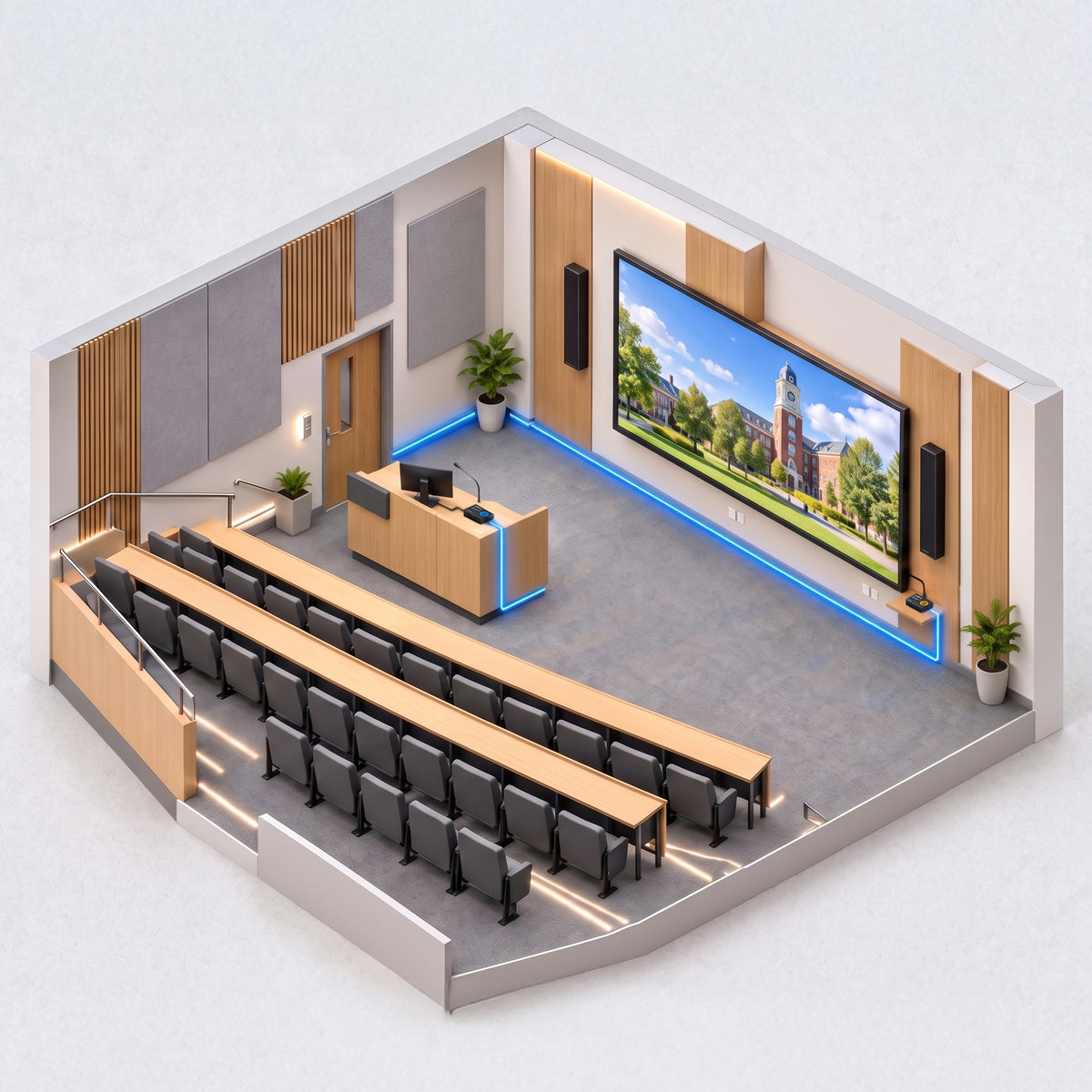

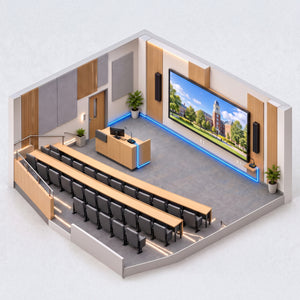

Lecture Hall Video Extension

Extend HDMI content from the instructor’s podium to a front-of-room display, delivering clear lessons and presentations throughout classrooms and lecture halls

Advanced Features

Extend one display and local display / Reset Button / HDMI loopout / EDID selection / IR control / Mountable

Specification

Compliant: HDMI 1.4 / HDCP 1.4
Bandwidth: 10.2Gbps
Resolution: 480p, 576p, 720p, 1080p, 4K30Hz
IR Remote control: Supports 20-60KHz wide frequency remote control
Audio spec: 2-ch stereo audio
Power adapter: 12V/1A

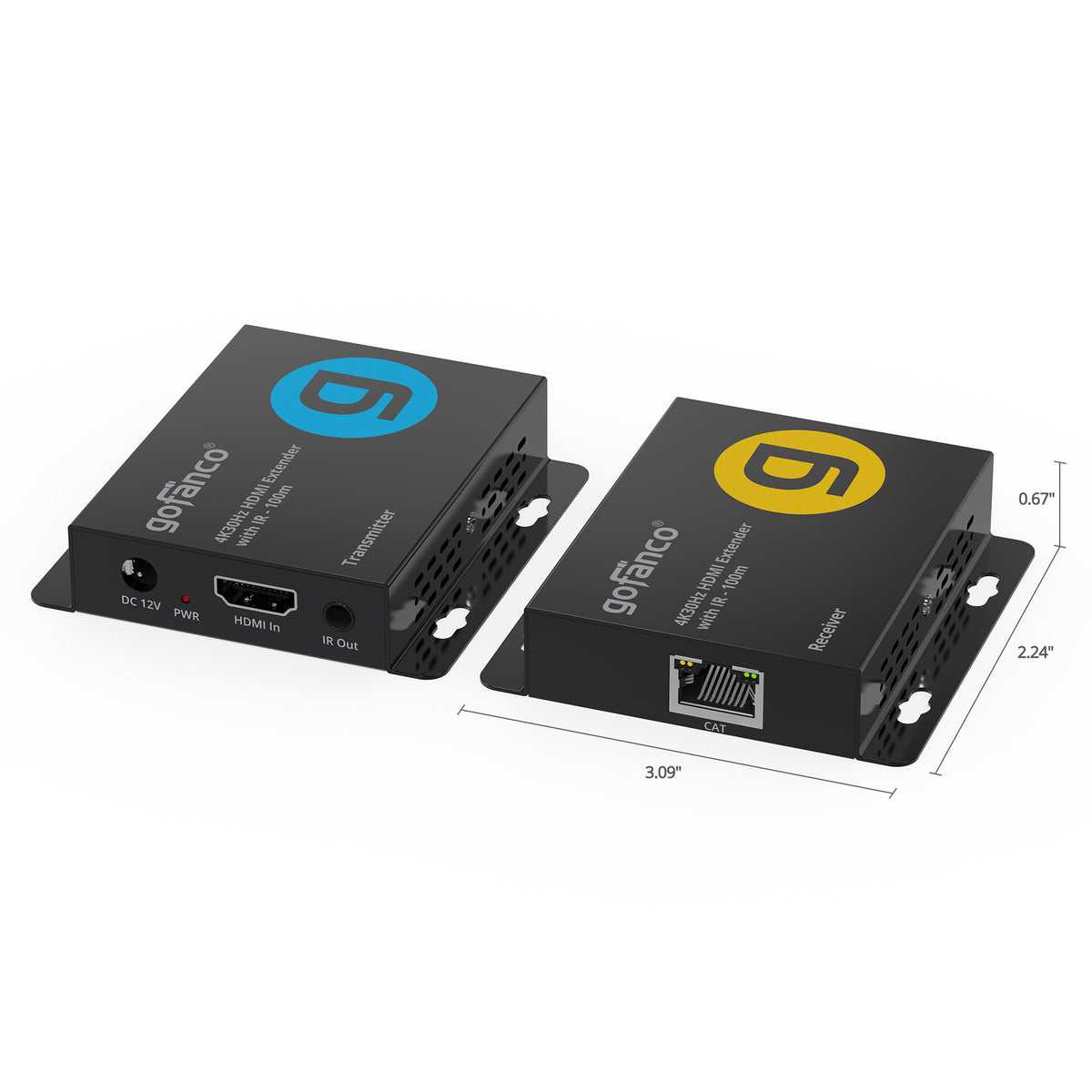

Product dimensions: TX/RX: 3.09” (L) x 0.67” (H) x 2.24” (W)
Product weight: TX/RX: 0.23 lbs
Housing Material / Color: Metal / Black color

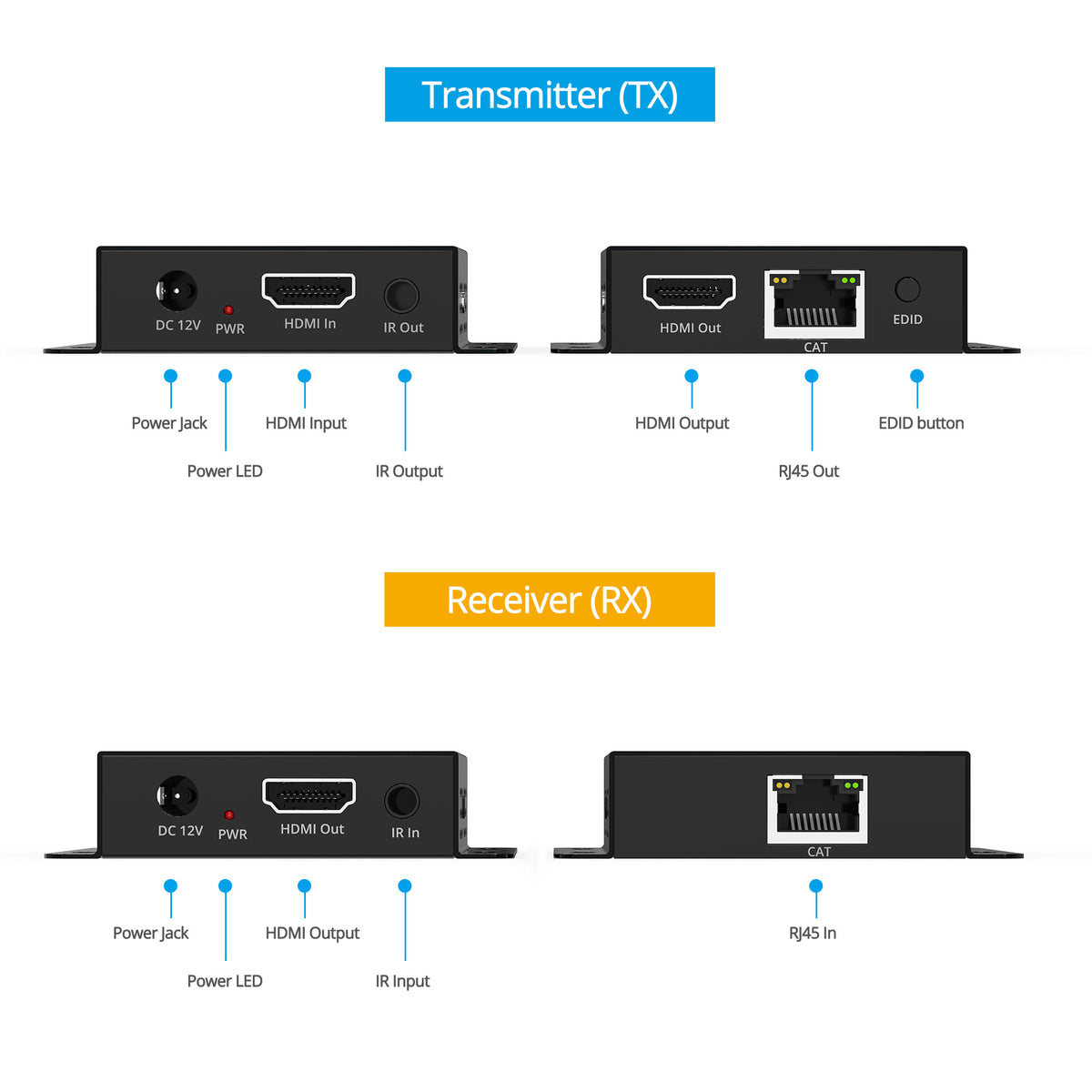

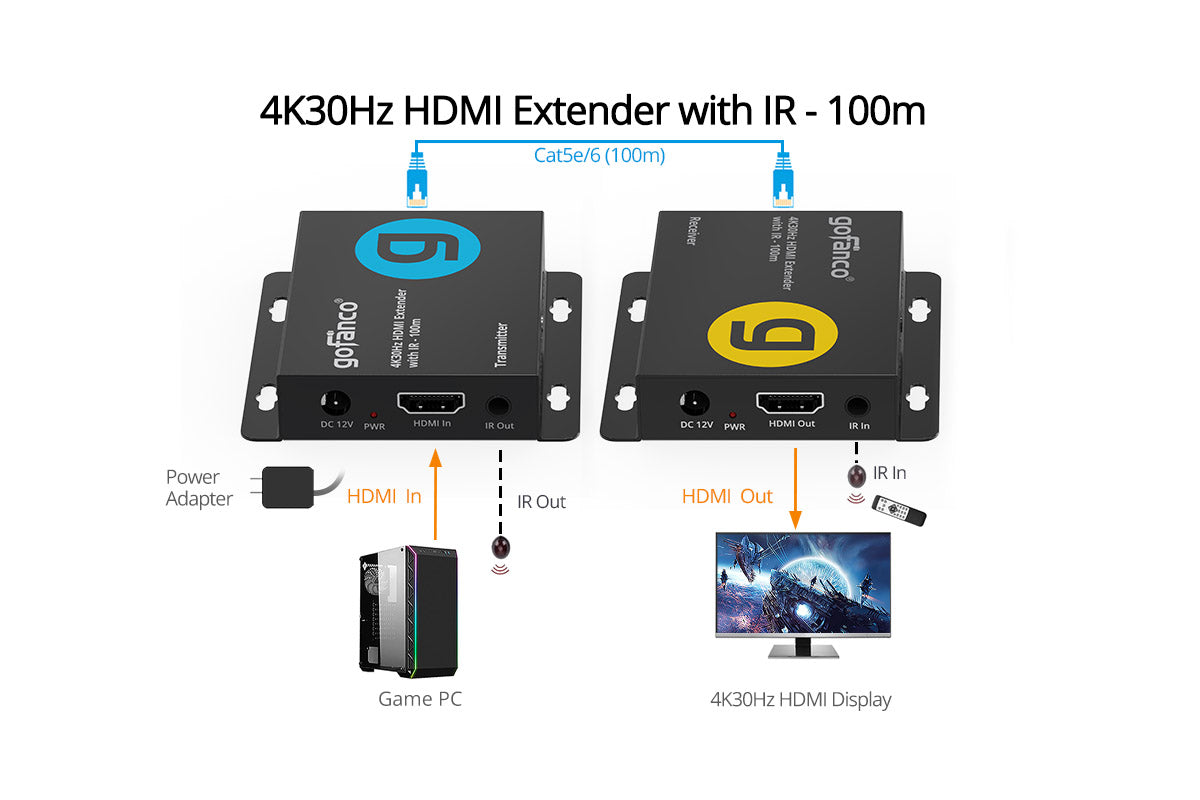

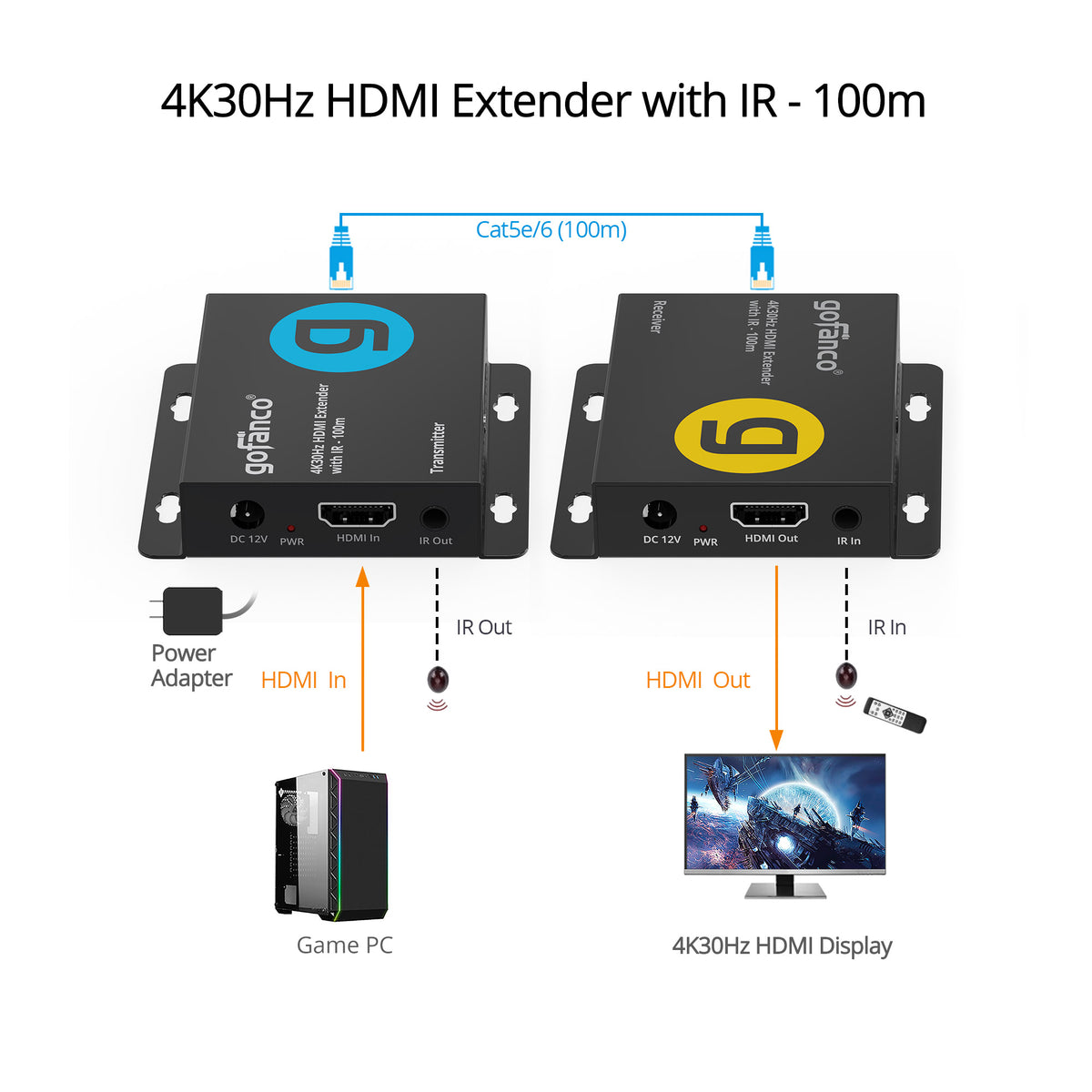

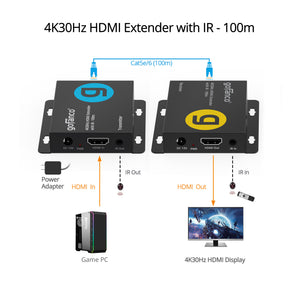

Connection

TX

1x 19-pin HDMI, Input
1x 8-pin, RJ45 Output
1x19-pin HDMI, Output
1x Button, EDID switch
1x 3.5mm jack, IR Out
1x Power jack

RX

1x 8-pin, RJ45 Input
1x19-pin HDMI, Output
1x 3.5mm jack, IR In
1x Power jack

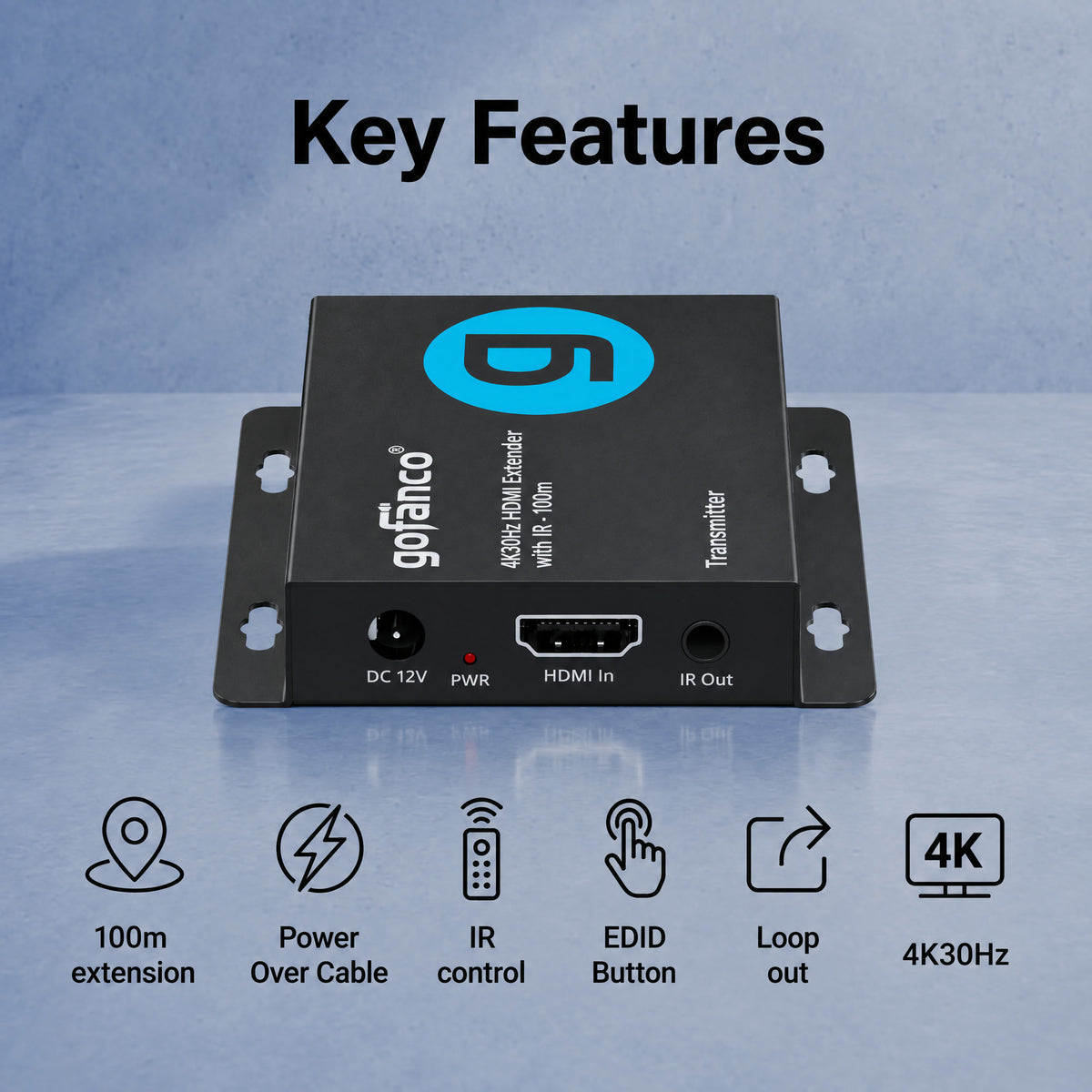

Features

Extends HDMI signals up to 100m (330ft) over Cat5e/6 cable
Supports up to 4K30Hz YUV 4:4:4 and 1080p 60Hz YUV 4:4:4
Transmitter supports HDMI loopout
Supports IR signal extension - control a media player from a remote location with the included IR-TX and IR-RX cables
Supports Power over cable (PoC) and 20-60KHz IR Passthrough
Supports EDID select
Easy to install, plug and play, no drivers needed
Surface mountable metal housing

Standard

UPC:818354-023527
Operation Temperature: 5 to 131 degrees F
Storage Temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
Regulatory approvals: FCC / CE / RoHS
Limited One-Year Warranty and Lifetime Product Support
Country of origin: China
