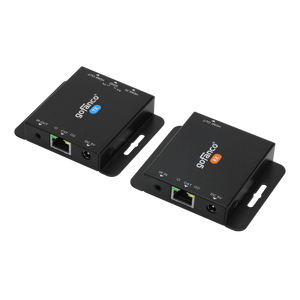

HDMI 1.4 CAT Extender with EDID Switch - 230ft
Up to 130ft (4K30Hz), 230ft (1080p), Loopout, IR Extension, EDID Copy, HDCP 1.4, 7.1ch HD Audio, Near Zero Latency, Surface Mountable

HDMI Extender over Cat6/7 at 4K30Hz
4K30Hz HDMI Extender with EDID
Specification
- Compliant: HDMI 1.4 / HDCP 1.4
- Bandwidth: 10.2Gbps
- Resolution: 480p, 576p, 720p, 1080p, 4K30Hz
- IR Remote control: Supports 20-60KHz wide frequency remote control
- Audio spec: Up to 7.1 ch HD audio
- Power adapter: 5V/1A

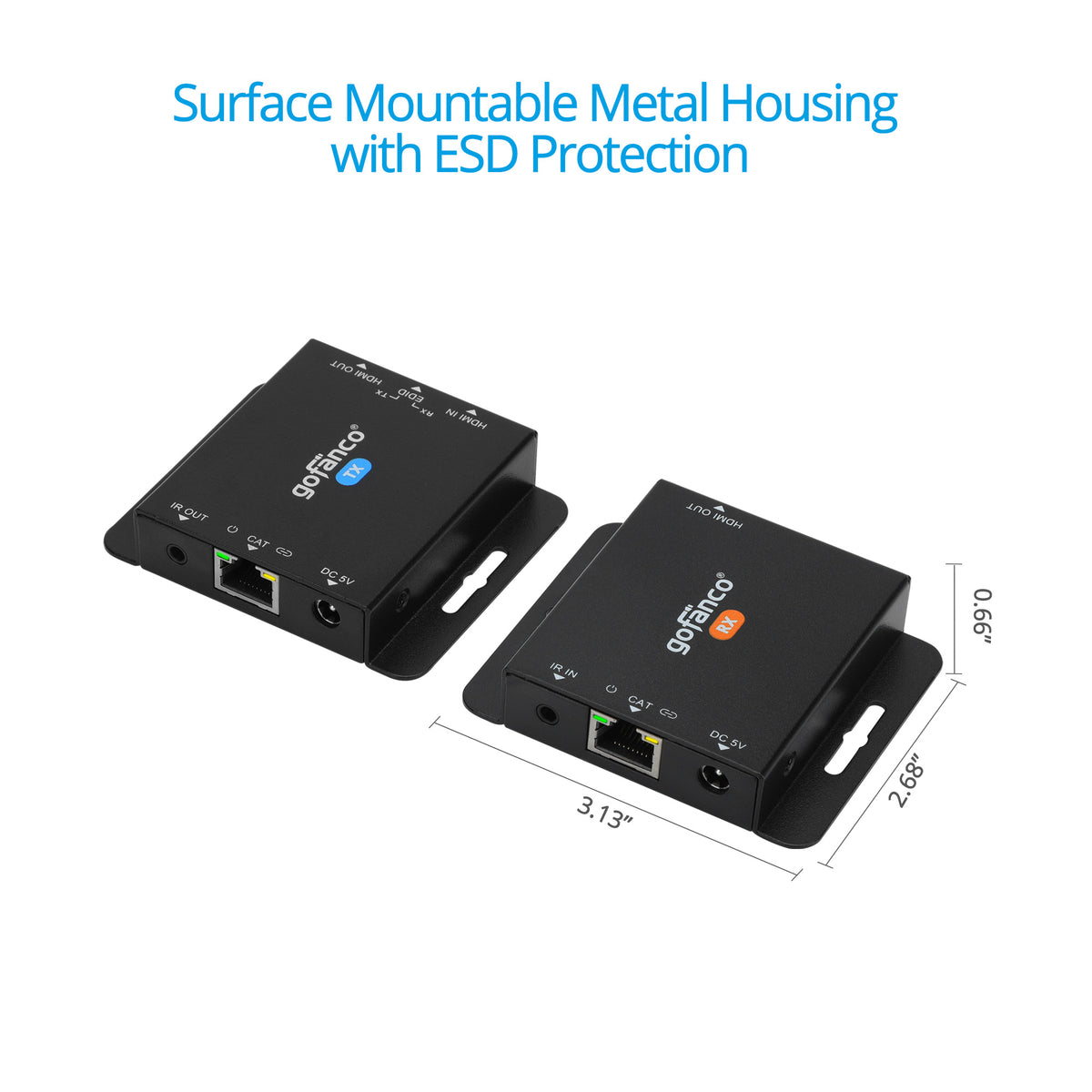

- Product dimensions: TX/RX: 3.15″(W) x 0.71″(H) x 2.68″(D)
- Product weight: TX/RX: 0.28 lbs
- Housing Material / Color: Metal / Black color

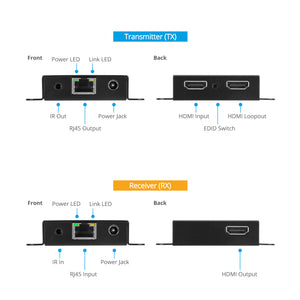

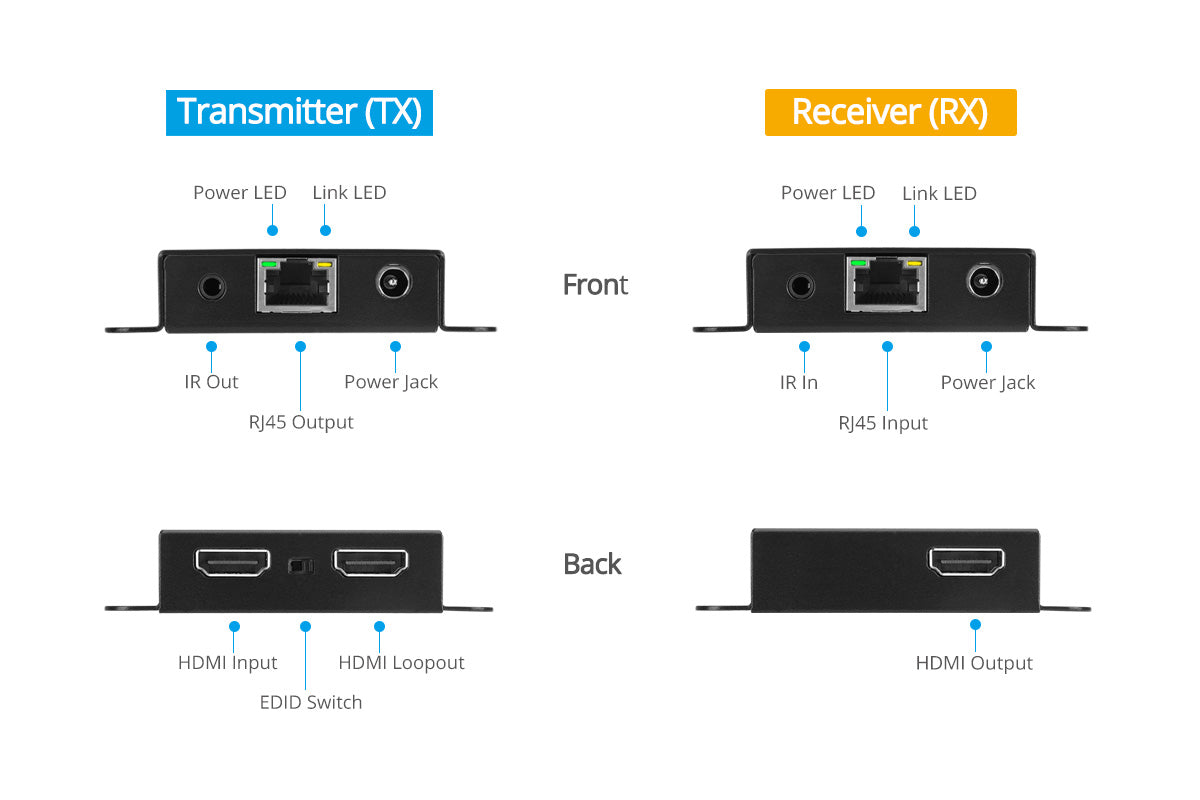

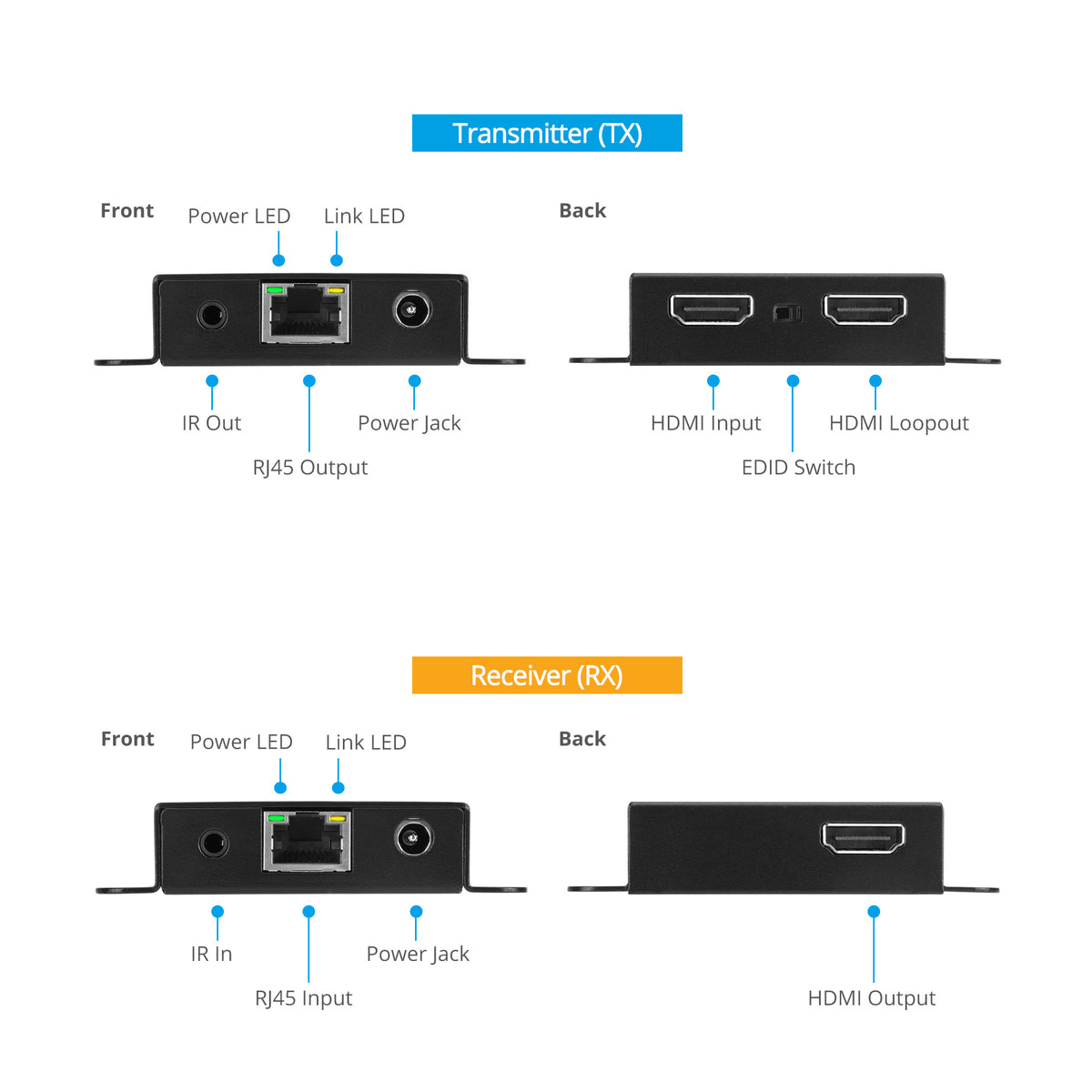

Connection
TX
- 1x 19-pin HDMI, Input
- 1x 8-pin, RJ45 Output
- 1x 19-pin HDMI, Output
- 1x Slide switch, EDID selection
- 1x 3.5mm jack, IR Out
- 1x Power jack
RX
- 1x 8-pin, RJ45 Input
- 1x19-pin HDMI, Output
- 1x 3.5mm jack, IR In
- 1x Power jack
Features

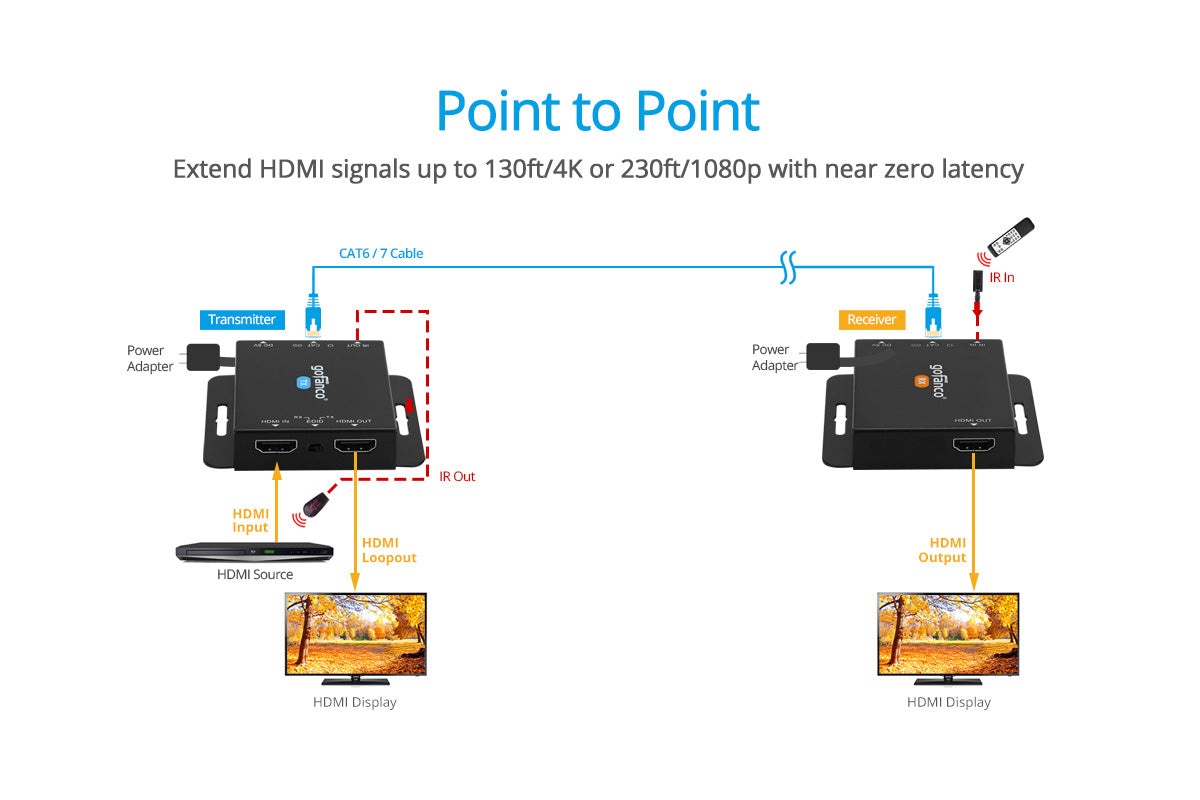

- Transmission distance:Cat6: 230ft/70m 1080p, 130ft/40m 4K30Hz

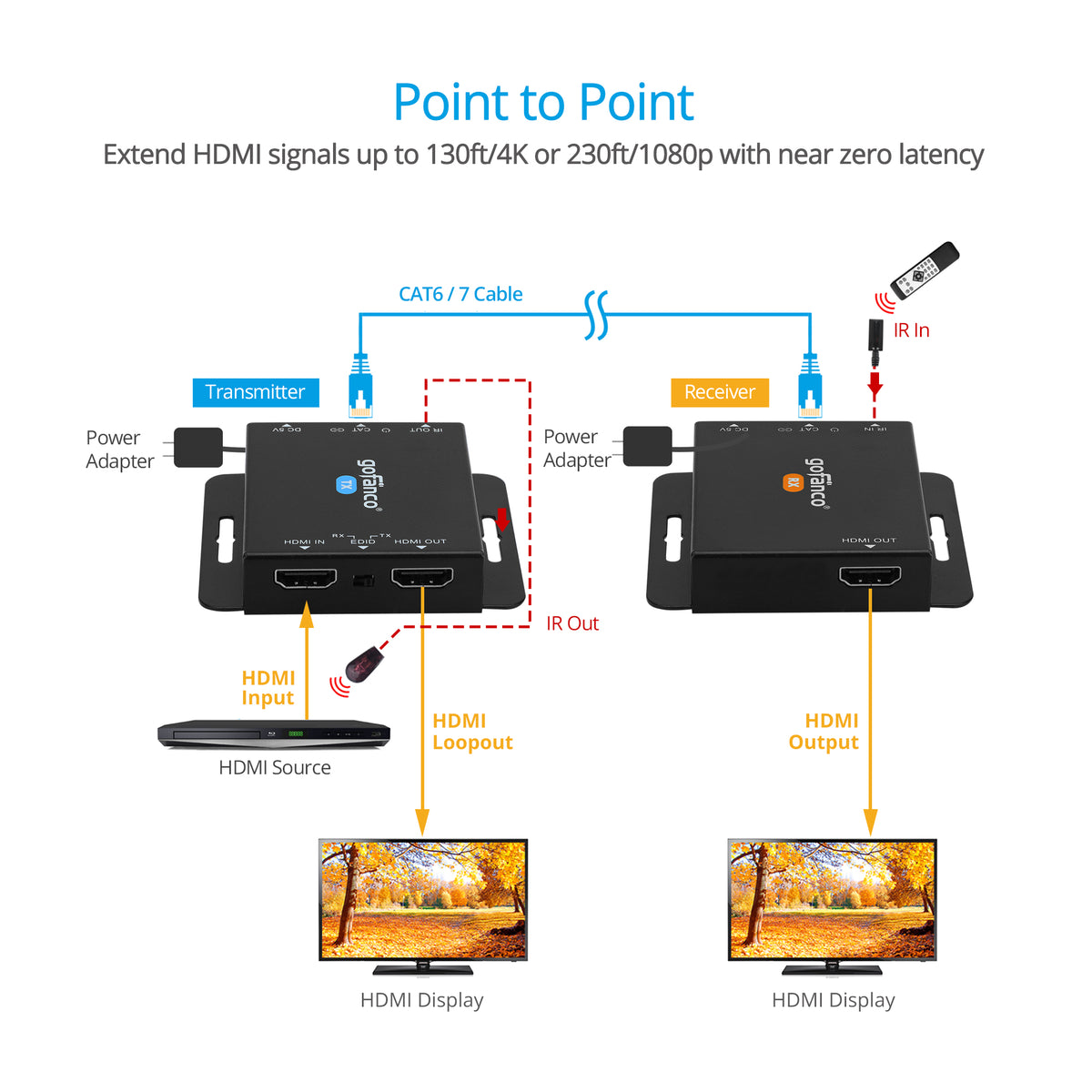

- HDMI loopout equipped on the TX, allows cascading

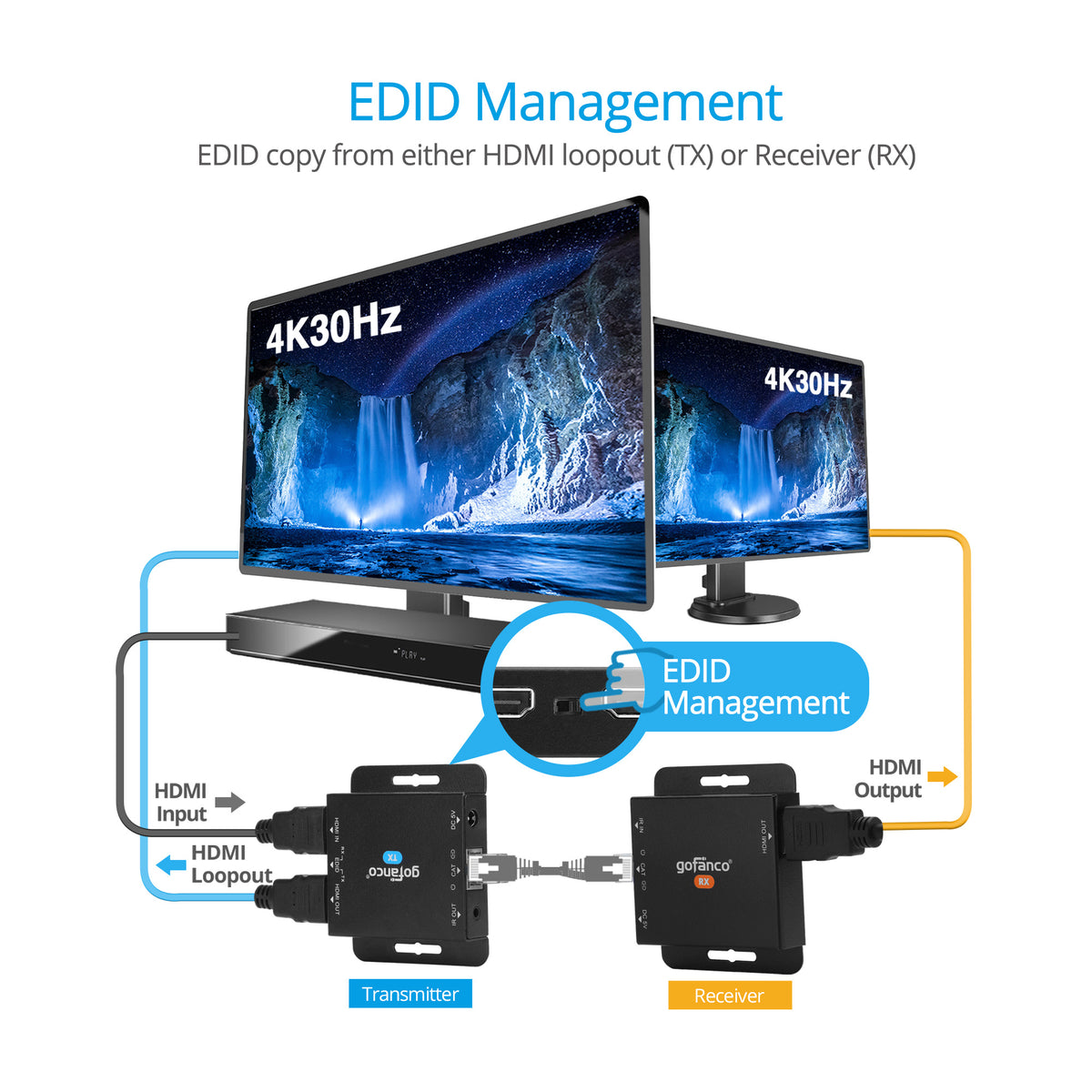

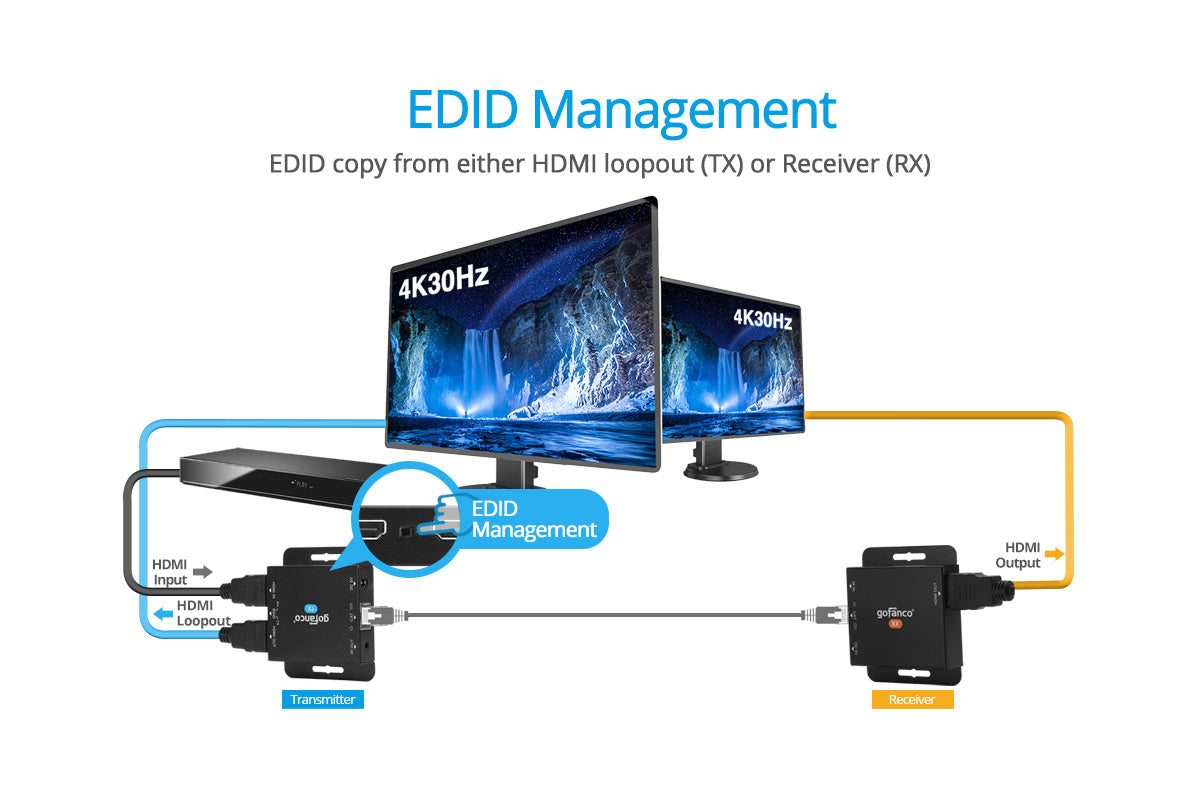

- Supports EDID copy from either the HDMI loopout or Receiver (RX)
- Compact metal enclosure, surface mountable, with IR extension
- Supports up to 7.1ch HD audio
- Low latency
Standard
- UPC: 818354-023039
- Operation Temperature: 32 to 104 degrees F
- Storage Temperature: -4 to 140 degrees F
- Relative humidity: 20 to 90% RH (non-condensing)
- Regulatory approvals: FCC / CE / RoHS
- Limited One-Year Warranty and Lifetime Product Support
- Country of origin: China

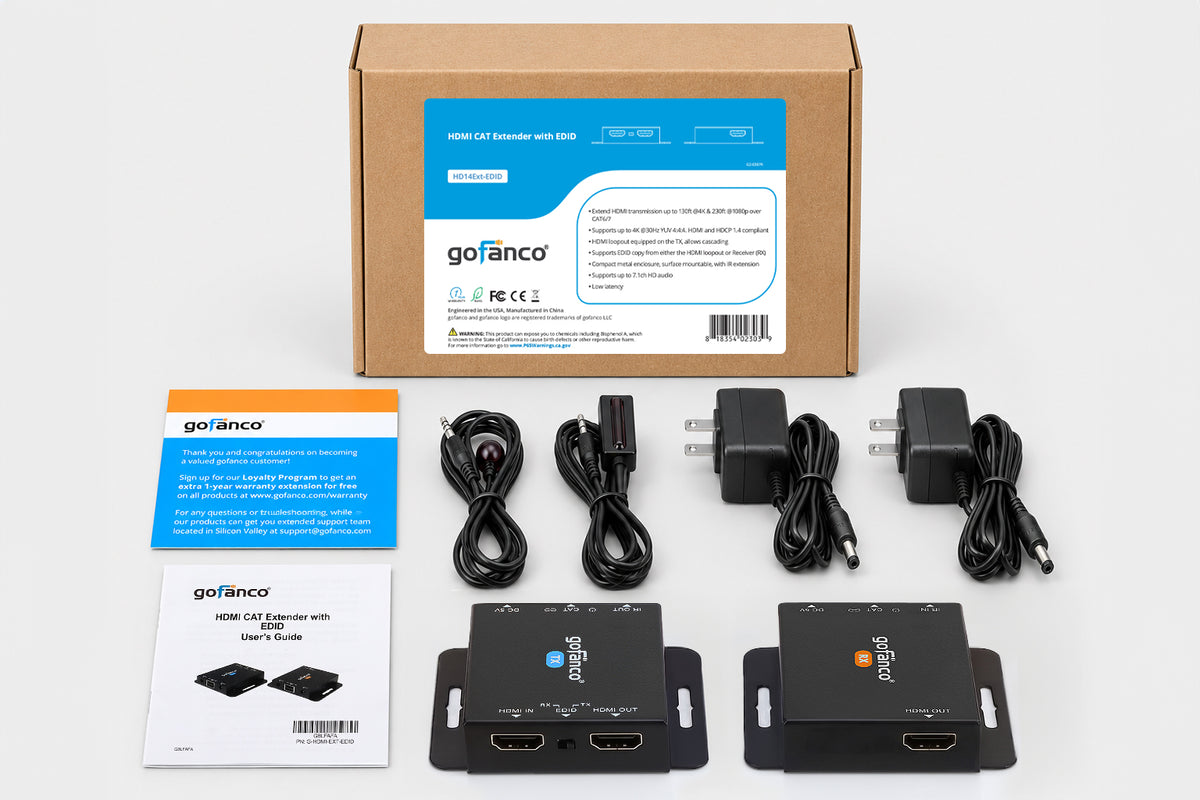

- 4K HDMI CAT Extender with EDID Kit

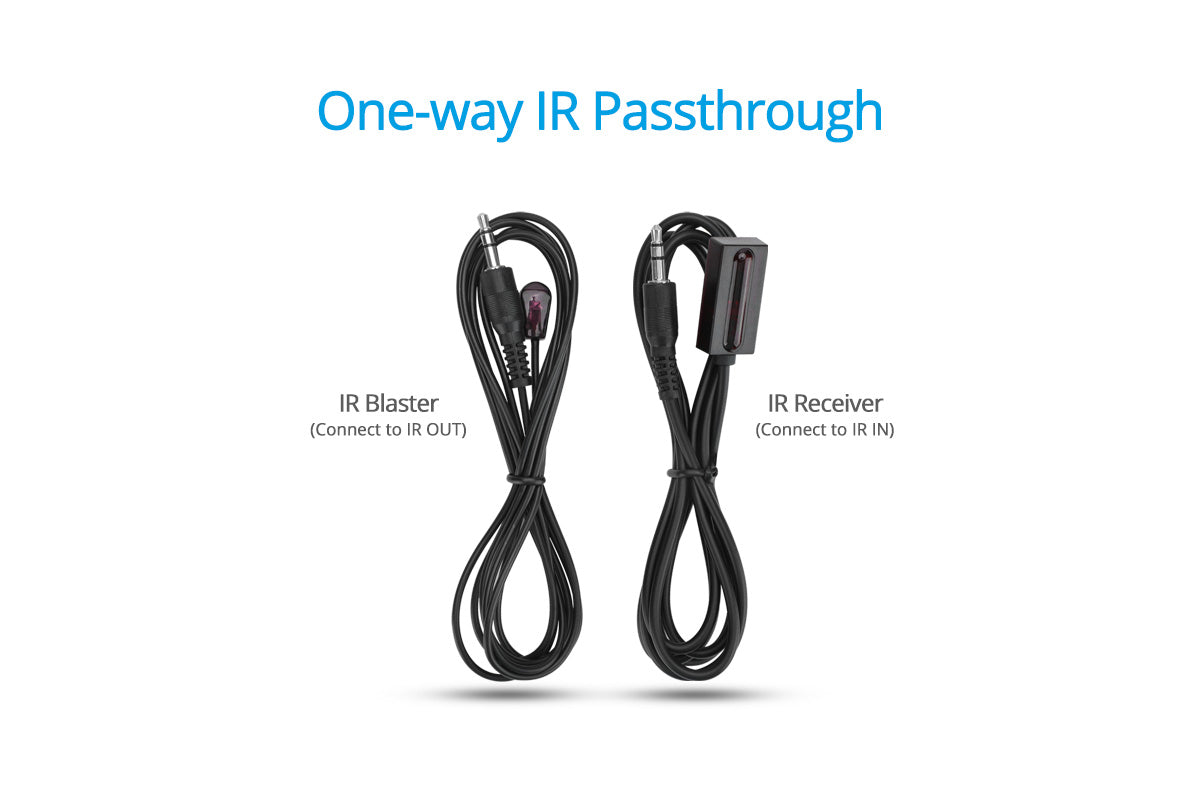

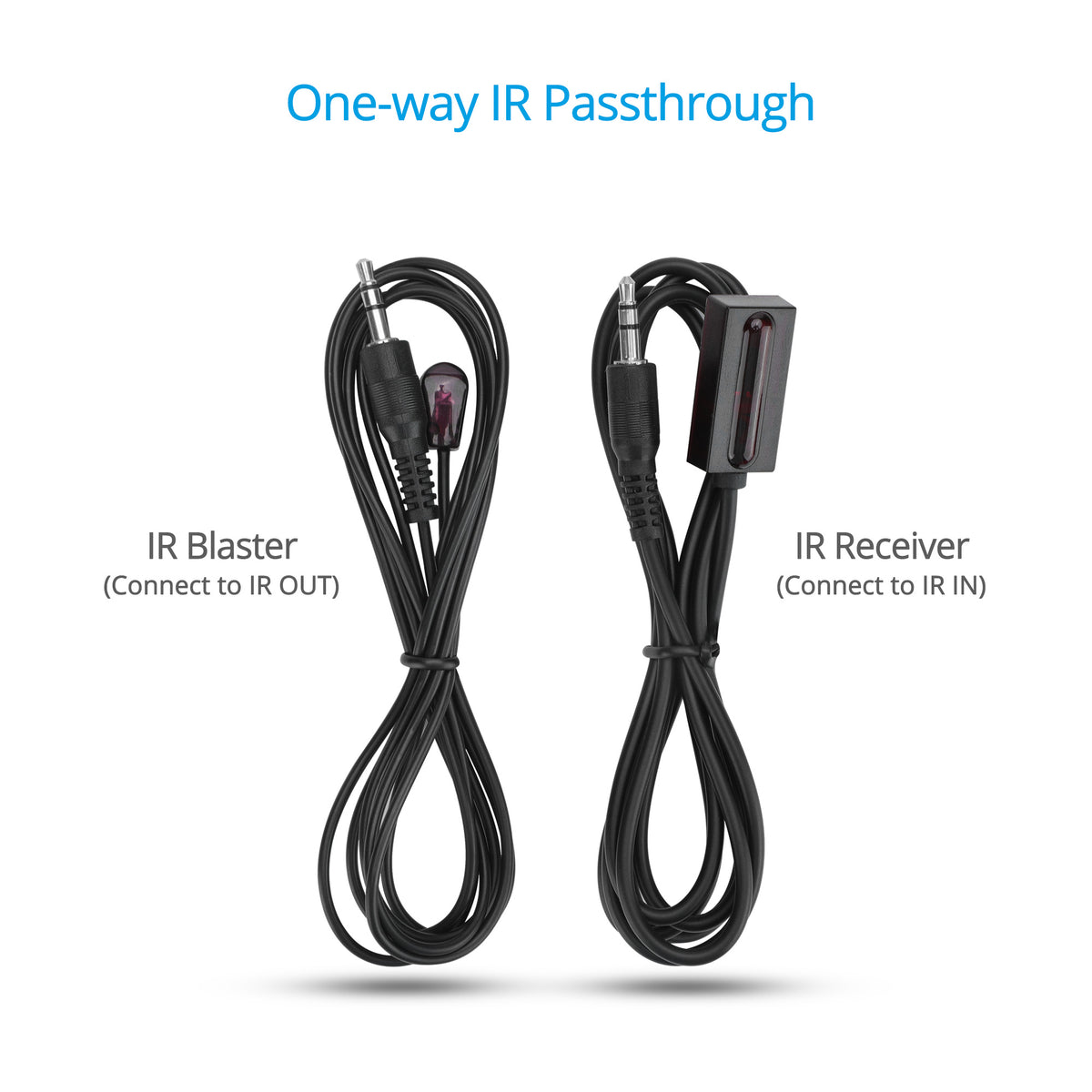

- IR Blaster cable
- IR Receiver cable
- Power adapter 5V/1A (2)
- User’s Guide
