Splitters: HD14EX-4P-100

1x4 4K30Hz HDMI Extender with IR - 100M

Sale price $199.95

Extend four HDMI audio and video signals simultaneously up to 4K30Hz over a single cost-effective CAT5e/6 cable

In stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K30Hz 1x4 Extender
Distance up to 100m
HDMI Loopout
Power over Cable
IR Remote Control

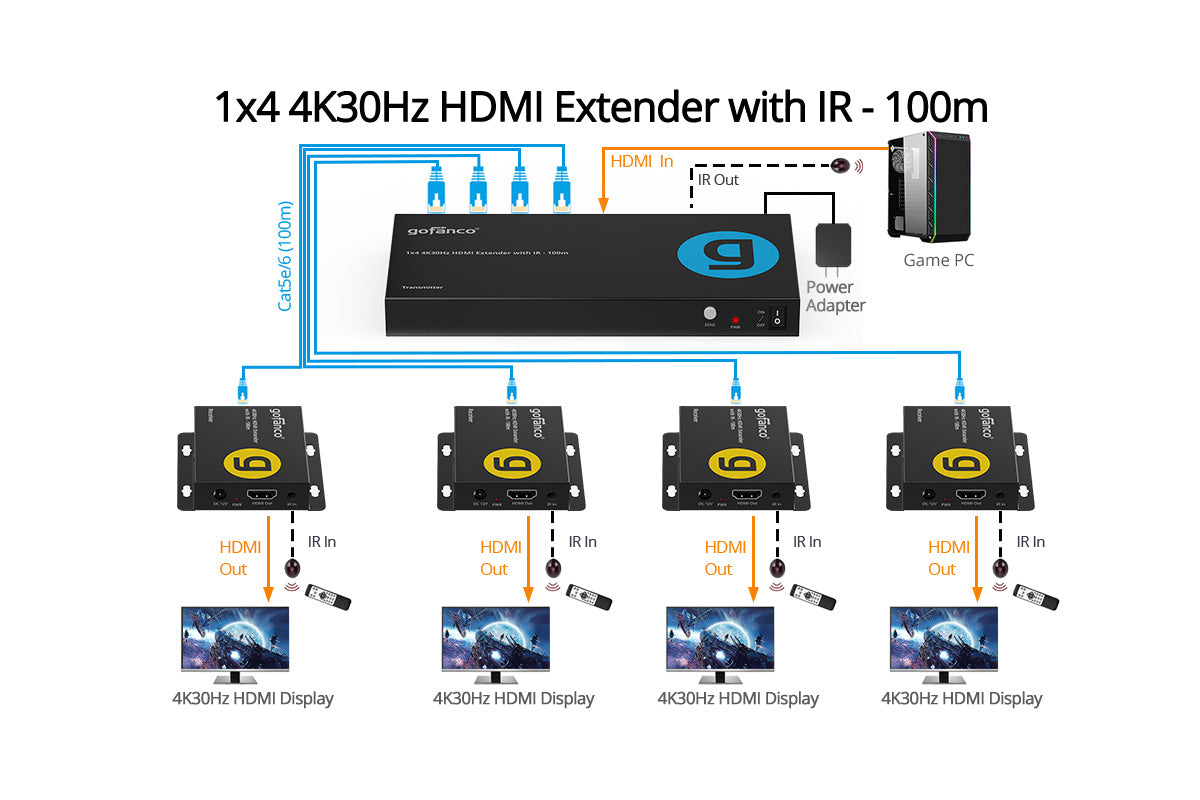

1x4 4K30Hz HDMI Splitter/Extender with IR

Allows splitting and extending your one HDMI signal over long distances
to a compatible four displays

4-Port 4K30Hz HDMI Extender/Splitter with PoC & EDID

Resolution

Ultra HD Resolution Support Up to 4K30Hz

Distance

Long-Range Signal Transmission Up to 328 Feet

EDID

Supports 720p, 1080p and 4K30Hz selection

IR

Transmits IR Signals Back to Media Sources

Four-Display Stadium Video Distribution

Install the transmitter in the stadium control room and receivers behind four strategically positioned displays, using structured cabling to deliver synchronized live video, scores, and event content throughout the venue

Synchronized Stadium Content Control

From the stadium control station, operators can distribute live feeds, scores, replay content, and event messaging to four displays simultaneously, keeping spectators informed and engaged throughout the game

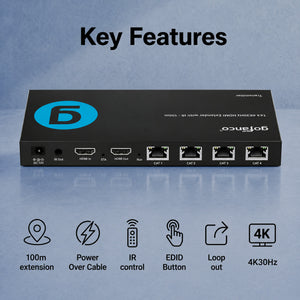

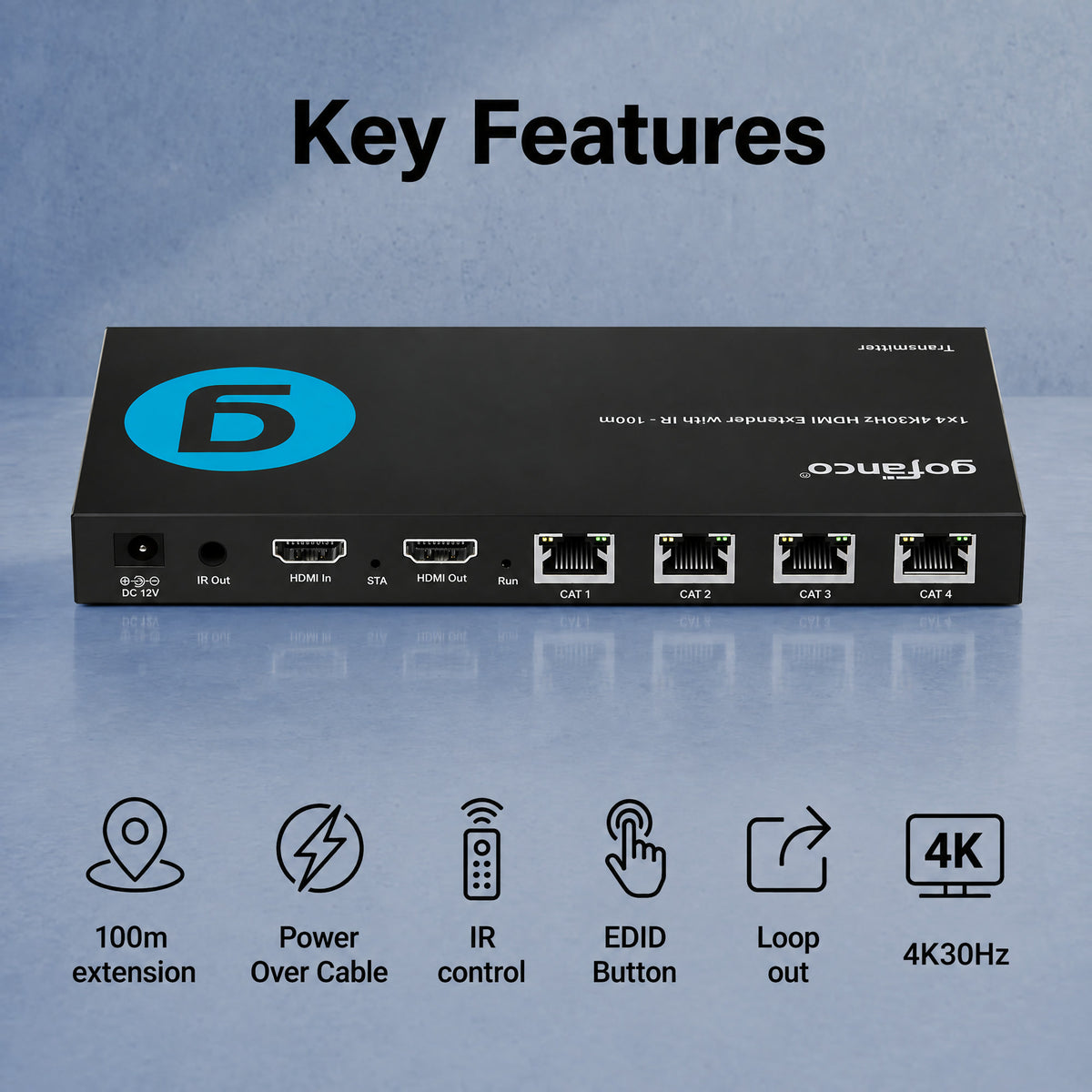

Advanced Features

Extend four displays and local display
Reset Button / HDMI loopout / EDID selection / IR control / Power Switch / Mountable
Specification
  • Compliant: HDMI 1.4 / HDCP 1.4
  • Bandwidth: 10.2Gbps
  • Resolution: 480p, 576p, 720p, 1080p, 4K30Hz
  • IR Remote control: Supports 20-60KHz wide frequency remote control
  • Audio spec: 2-ch stereo audio
  • Power adapter: 12V/1A

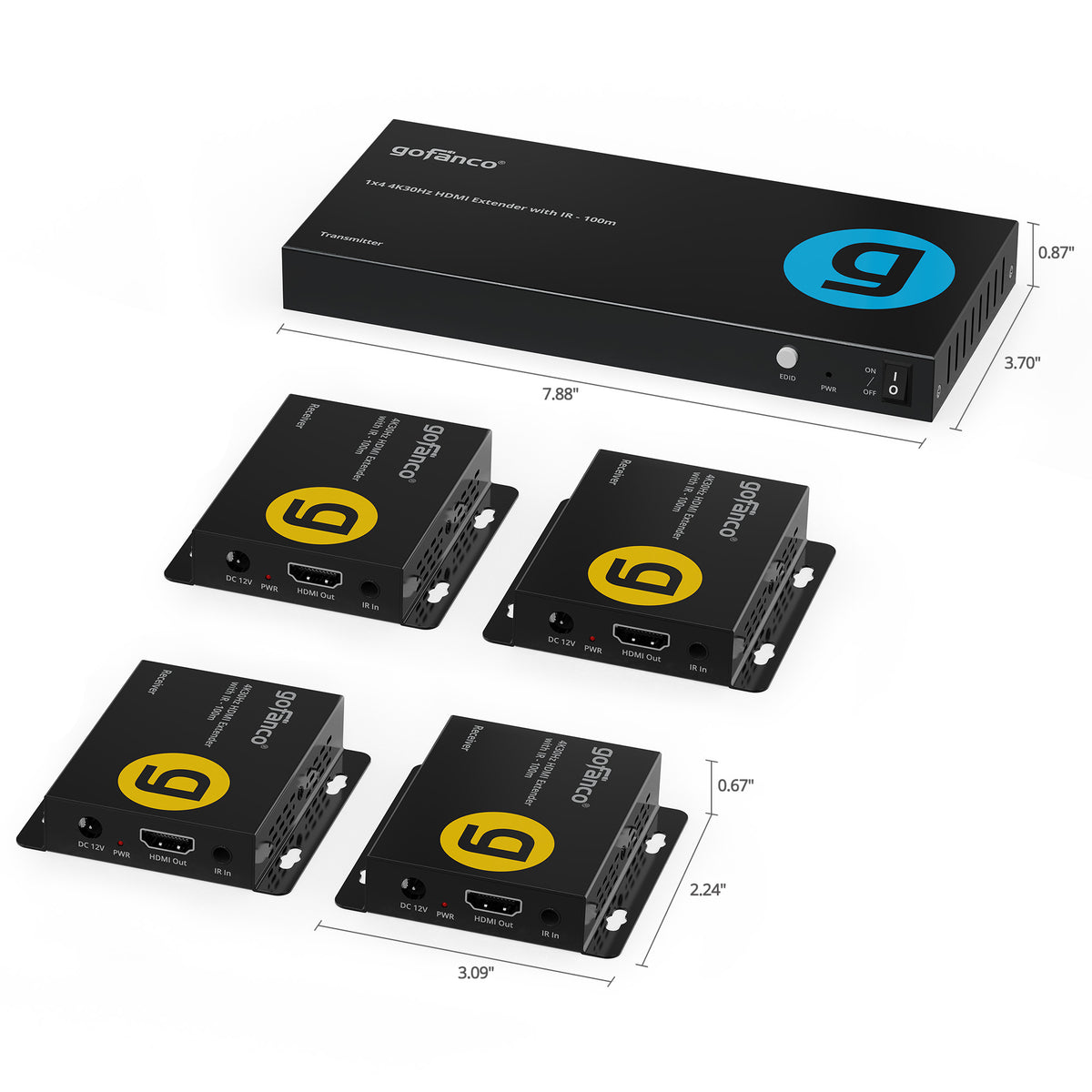

  • Product dimensions: TX: 7.88” (W) x 0.87” (H) x 3.70” (D) / RX: 3.09” (W) x 0.67” (H) x 2.24” (D)
  • Product weight: TX: 0.84 lbs / RX: 0.23 lbs
  • Housing Material / Color: Metal / Black color

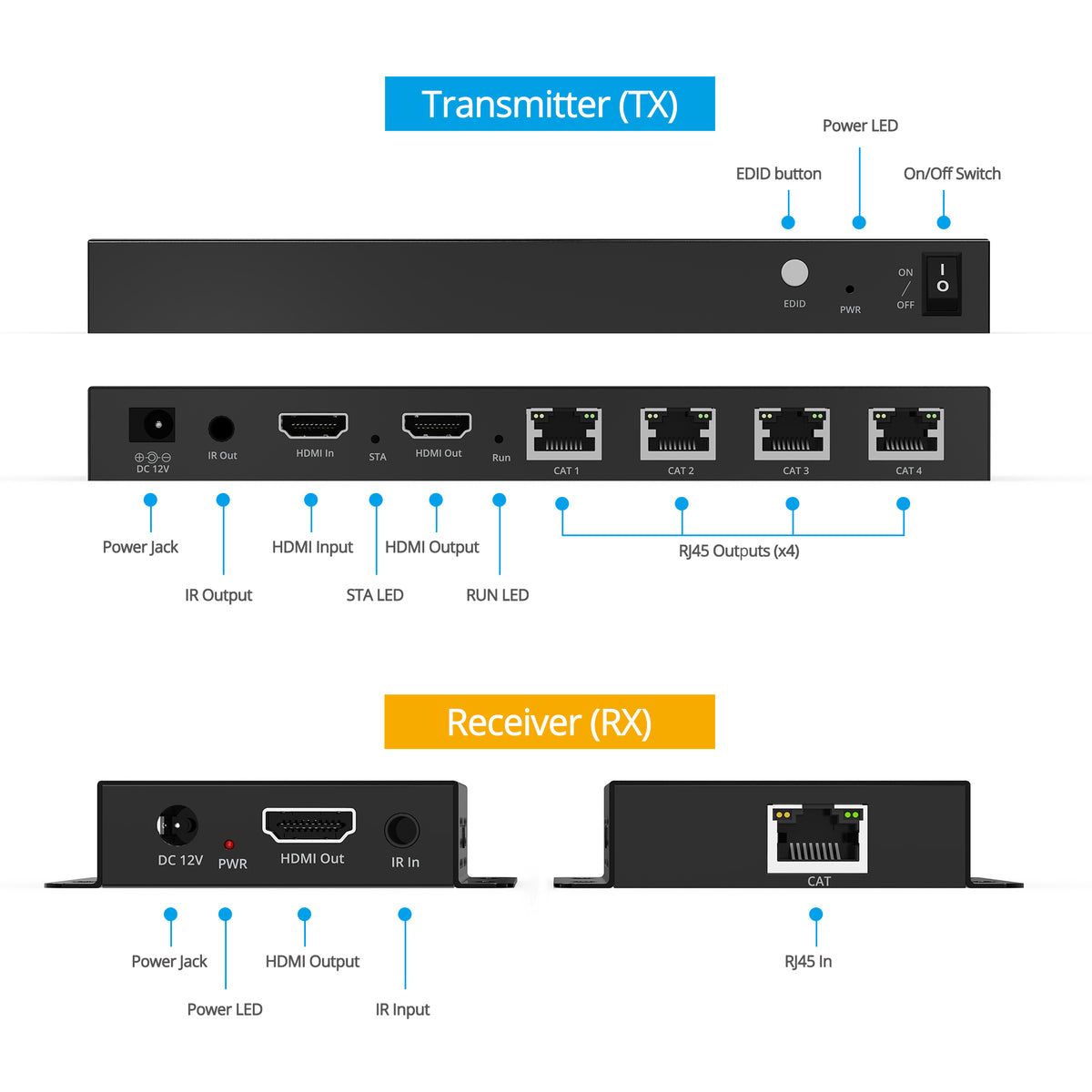

TX

  • 1x 19-pin HDMI, Input
  • 4x 8-pin, RJ45 Output
  • 1x 19-pin HDMI, Output
  • 1x Button, EDID switch
  • 1x 3.5mm jack, IR Out
  • 1x Power jack
  • 1x Power switch

RX

  • 1x 8-pin, RJ45 Input
  • 1x19-pin HDMI, Output
  • 1x 3.5mm jack, IR In
  • 1x Power jack

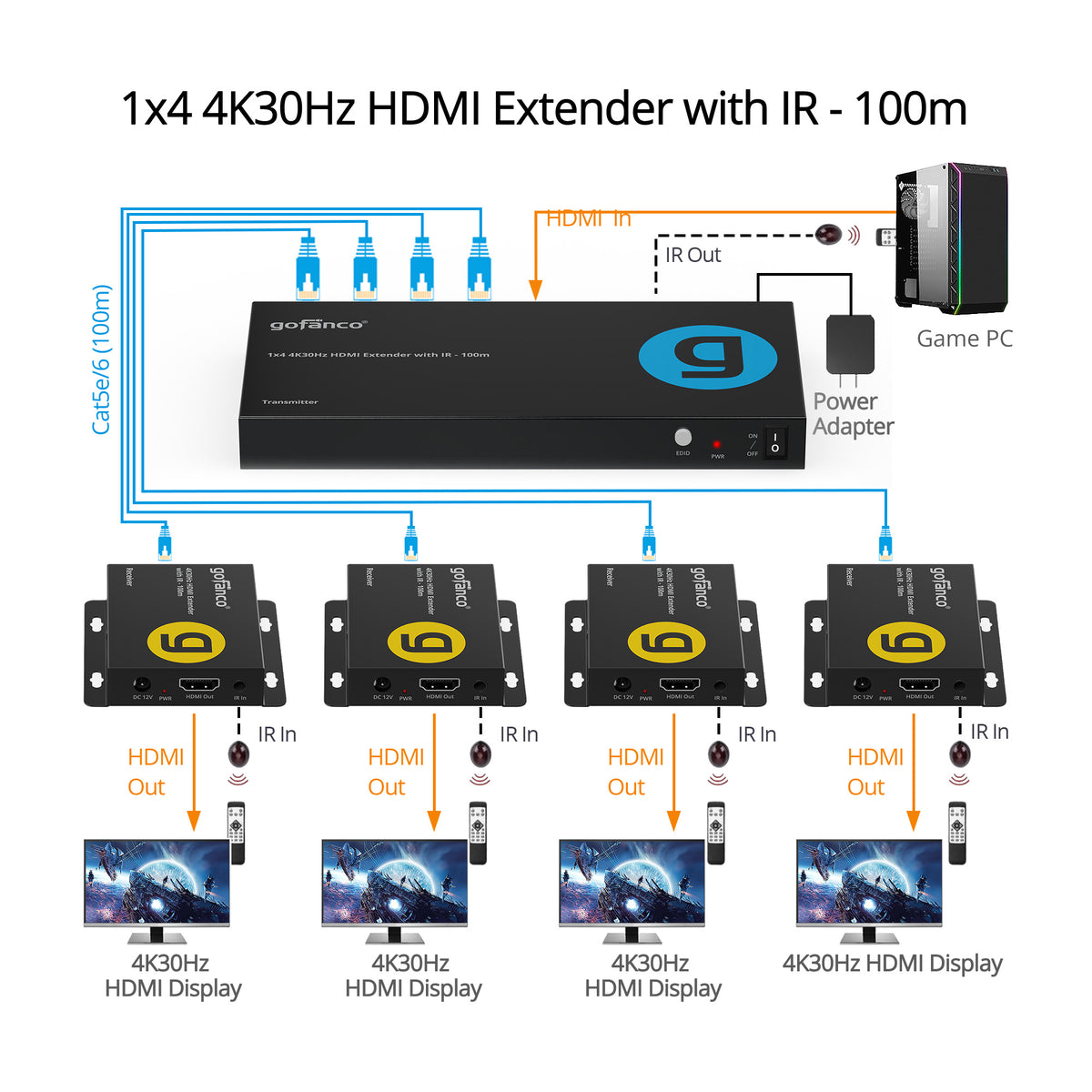

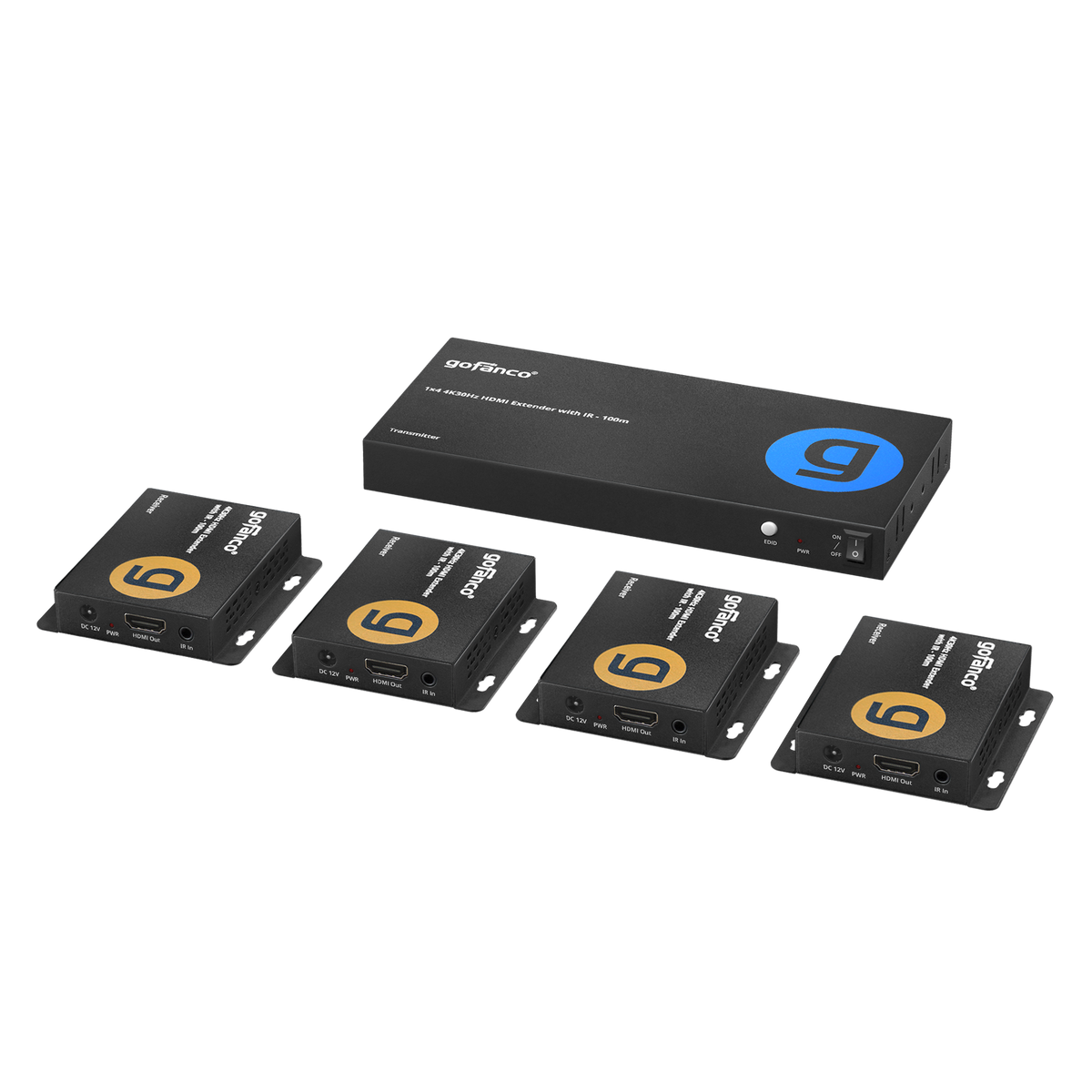

  • HDMI Extender/Splitter with 1 Transmitter (TX) and 4 Receivers (RXs)
  • Extends HDMI signals up to 100m (330ft) over Cat5e/6 to 4 HDMI monitors simultaneously
  • Supports up to 4K30Hz YUV 4:4:4 and 1080p 60Hz YUV 4:4:4
  • Transmitter supports HDMI loopout
  • Supports IR signal extension - control a media player from a remote location with the included IR-TX and IR-RX cables
  • Supports Power over cable (PoC) and 20-60KHz IR Passthrough
  • Supports EDID select
  • Easy to install, plug and play, no drivers needed
  • Surface mountable metal housing
  • UPC:818354-023541
  • Operation Temperature: 5 to 131 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
