1x2 HDMI 2.0 CAT Extender/Splitter – 35m

Sale price $224.99

1080p up to 197ft (60m), 4K60Hz 4:4:4 up to 115ft (35m), 4K 60Hz 4:4:4, HDR, HDCP 2.2, IR, EDID, PoC,Loopout, 5.1-ch Digital Audio, Coaxial/Analog Audio Extraction (v2.0)

74 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K30Hz Resolution
EDID Management
Distance up to 70m
Power over Cable
Audio Compatibility

1x2 HDMI 2.0 Extender/ Splitter

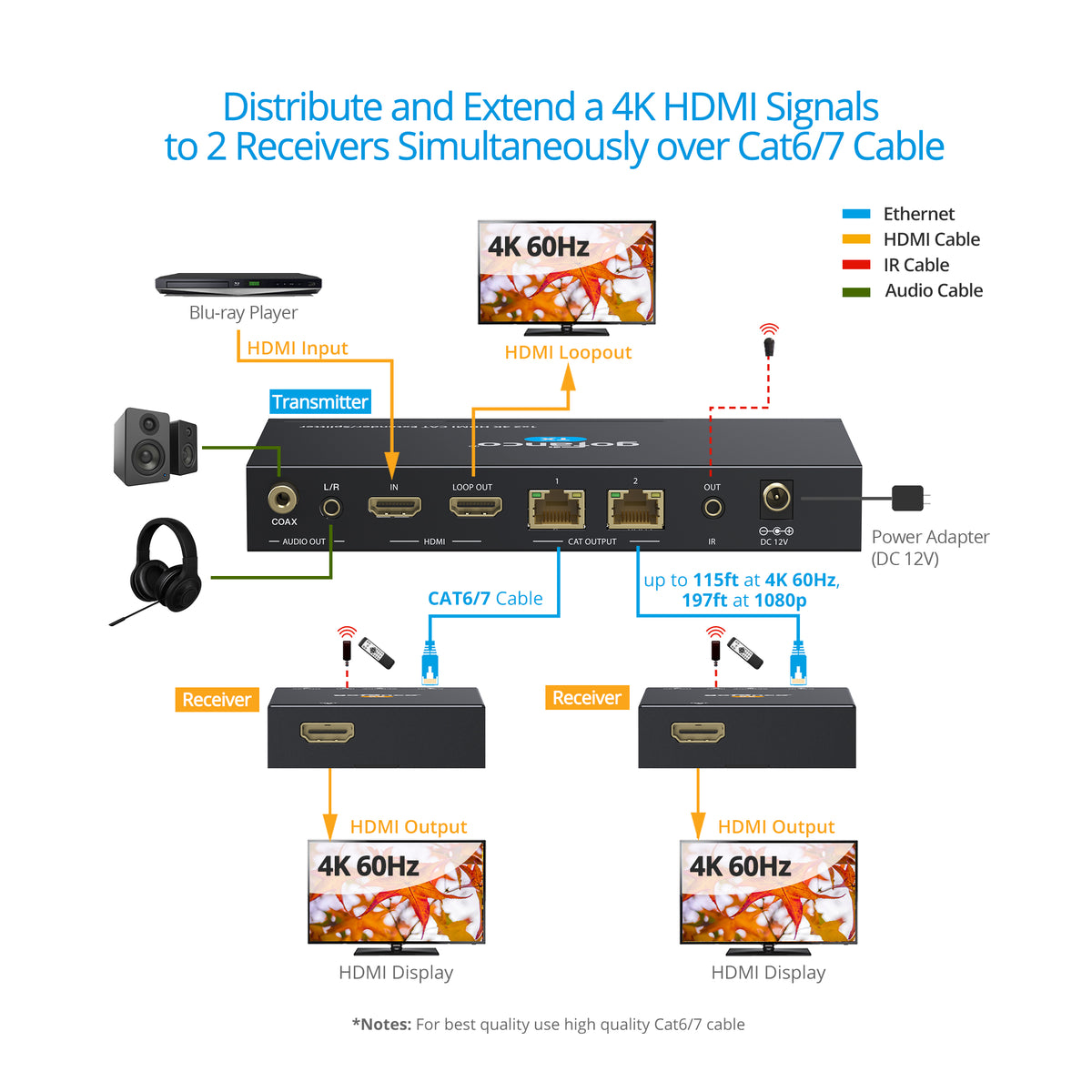

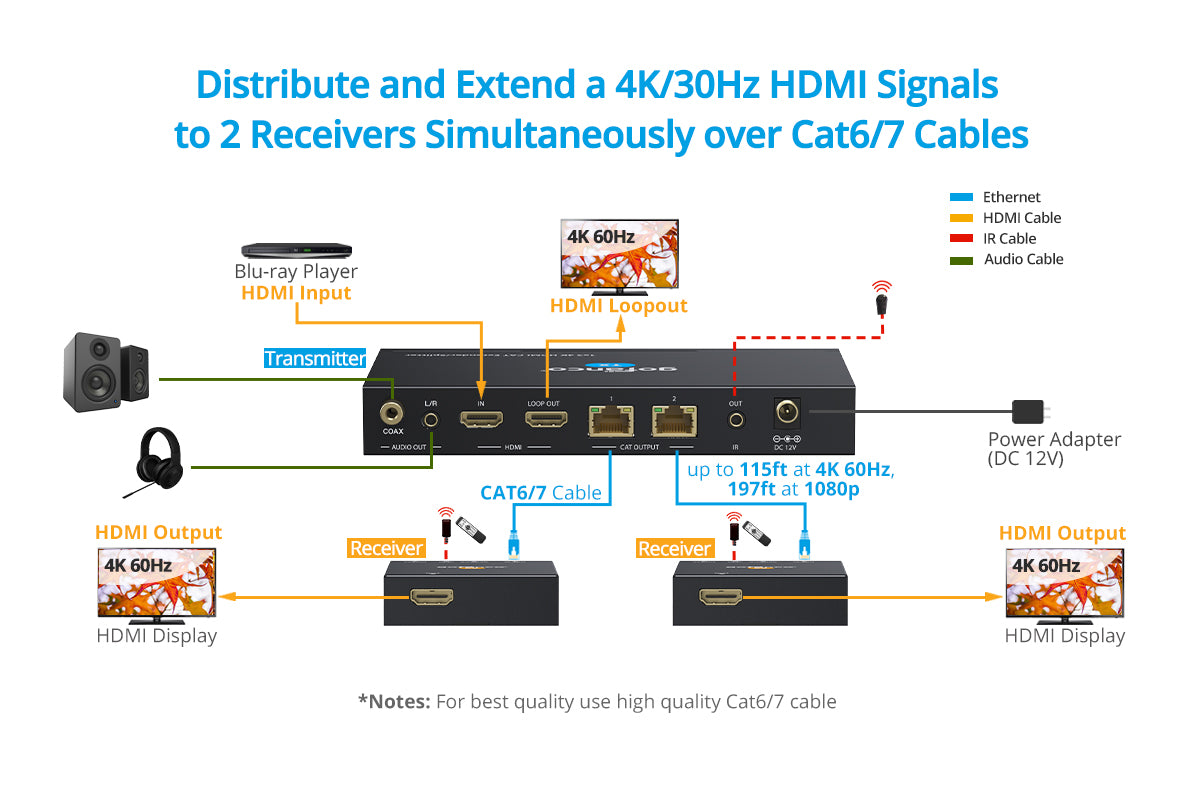

Extend and split one HDMI source to two Cat6/7 & one HDMI outputs simultaneously at near zero latency

2-Port 4K60Hz HDMI Extender Splitter Over CAT

Resolution

Stunning Ultra HD Resolution Up to 4K60Hz

Extended

Extends 4K60 to 115ft & 1080p Up to 197ft

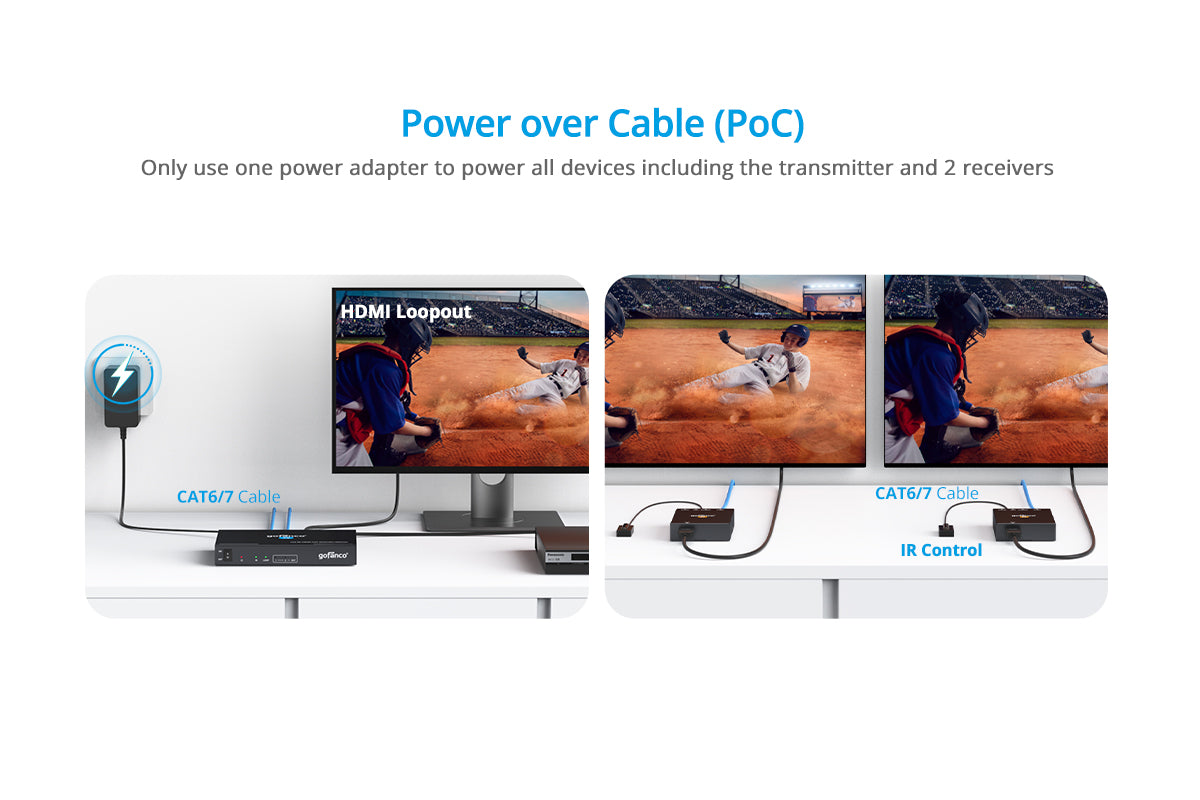

PoC

Power-Over-Cable Supply Powers Receiver Units

EDID

Advanced EDID Management Ensures Compatibility

Extender/ Splitter

Engineered for seamless integration with audio-visual ecosystems.

Dual-Display Fitness Entertainment

Extend one HDMI source to two displays to deliver synchronized workout content throughout home gyms and fitness studios

Advanced Features

Extend 2 displays and local display, PoC, Audio Extraction,
HDMI loopout, EDID Management, IR control
Specification
  • Video bandwidth 18Gbps
  • HDMI 2.0b, HDCP 2.2 compliant
  • Video resolutions: Up to 4K60Hz
  • Loopout: Up to 4K60Hz
  • Color space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
  • Distance: 115ft/35m at 4K60Hz; 164ft/50m at 4K30Hz; 197ft/60m at 1080p 60Hz
  • Audio

HDMI: 7.1 HD Audio/LPCM/DTS-HD/DTS/Dolby Digital

Coaxial: LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1ch

3.5mm: Analog audio for PCM 2.0 ch"

  • ESD Protection: 8KV (Air-gap discharge) / 4KV (Contact discharge)

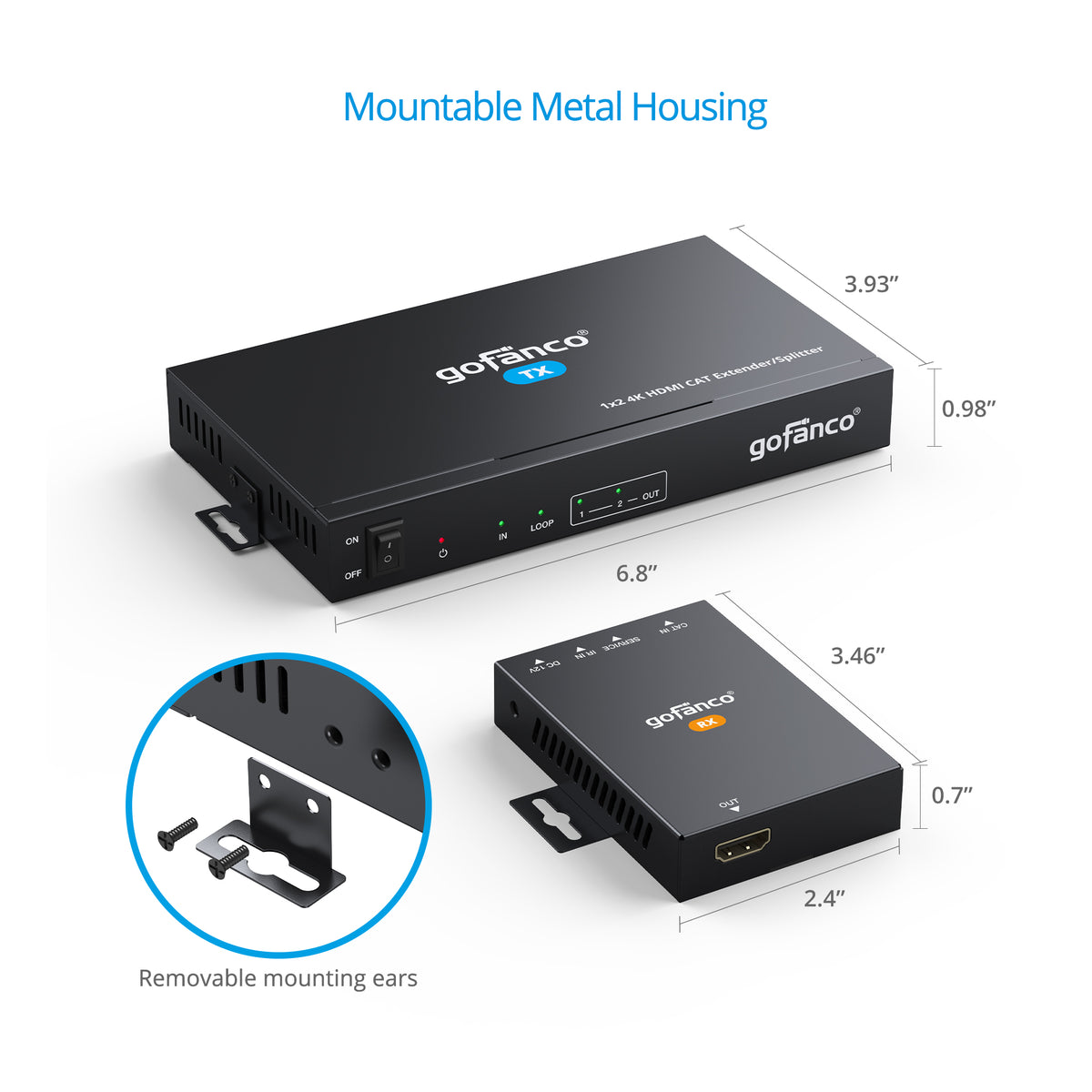

  • Product Dimensions: (TX): 6.8” (W) x 0.98 “(H) x 3.93” (D) / (RX): 3.46” (W) x 0.70” (H) x 2.40” (D)
  • Weight: TX: 1.06 lbs / RX: 0.34 lbs
  • Power Adapter: AC100 - 240V 50/60Hz, Output: 12V/1A
  • Housing Material / Color: Metal / Black color

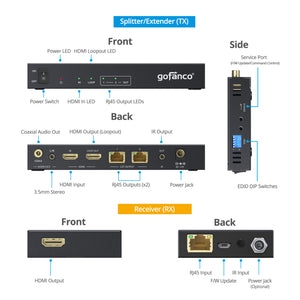

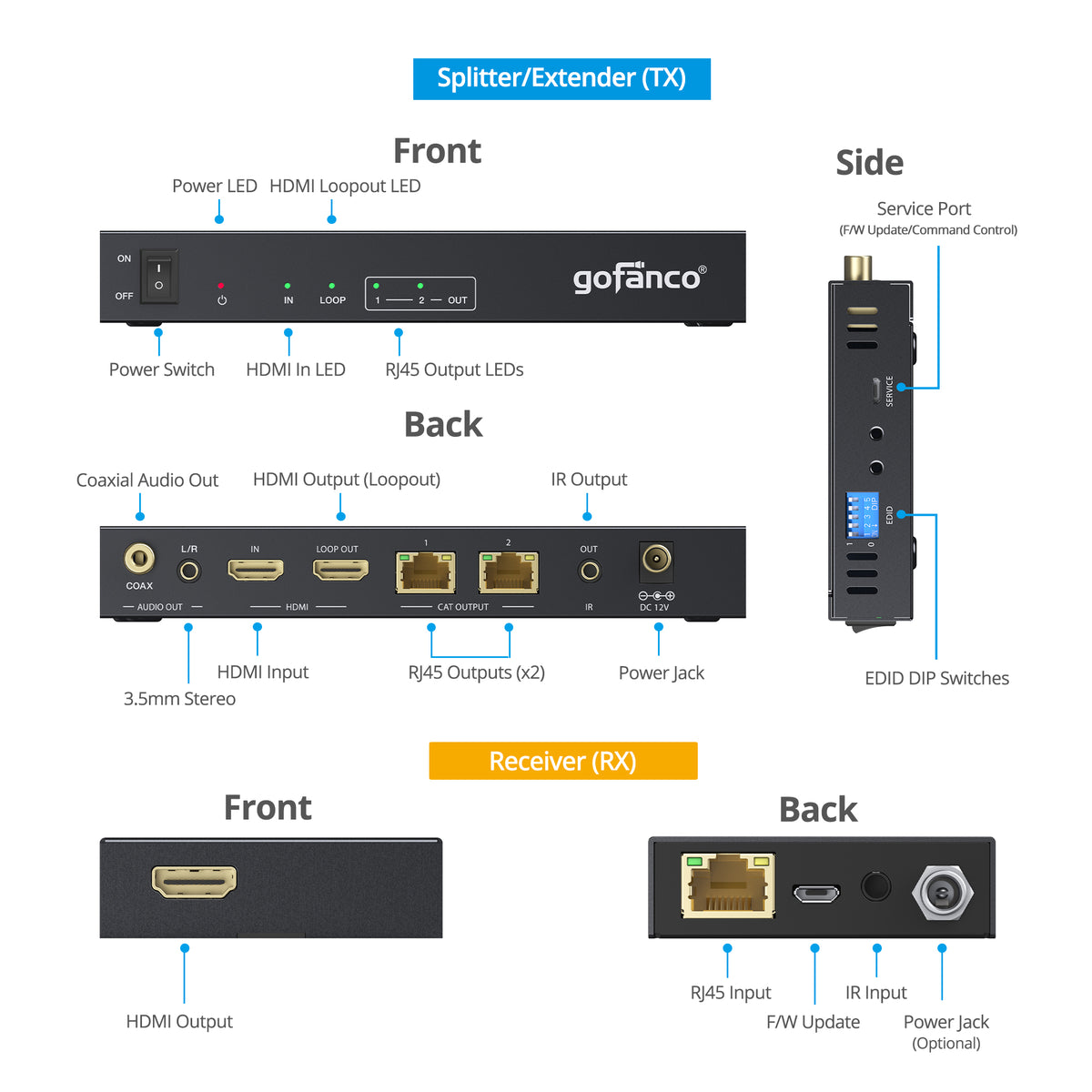

TX

  • 1x Power On/Off Switch
  • 2x 19-pin HDMI, Input/Output
  • 2x 8-pin RJ45, Output
  • 1x 4-pin DIP Switch, EDID
  • 1x 3.5mm jack, IR Output
  • 1x 3.5mm jack, Audio Out
  • 1x Coaxial jack, Audio Out
  • 1x Micro USB, FW update
  • 1x Power Jack

RX

  • 1x 19-pin HDMI, Output
  • 1x 8-pin, RJ45 Input.
  • 1x Micro USB, FW update
  • 1x 3.5mm IR Input
  • 1x Power Jack
  • Video resolution up to 4Kx2K 50/60Hz 4:4:4
  • Supports HDR, HDR10+, HLG, Dolby Vision
  • Up to 7.1 CH HD audio pass-through

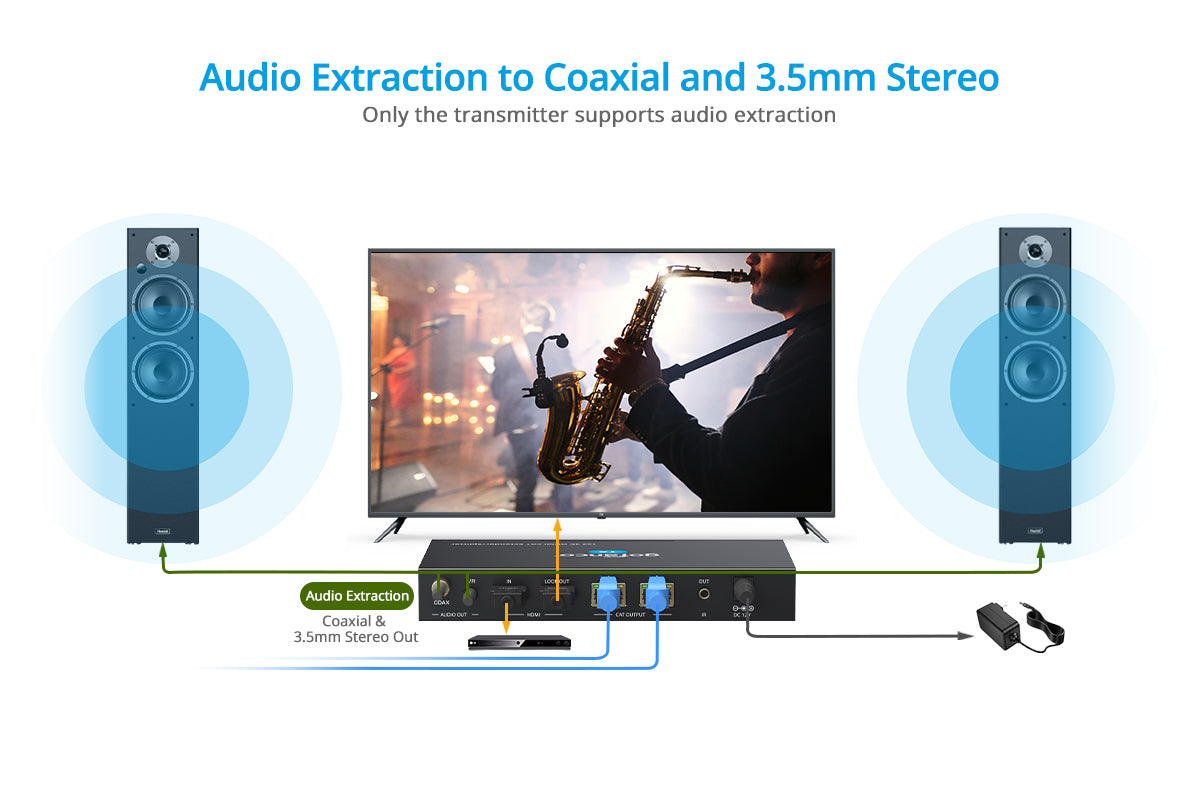

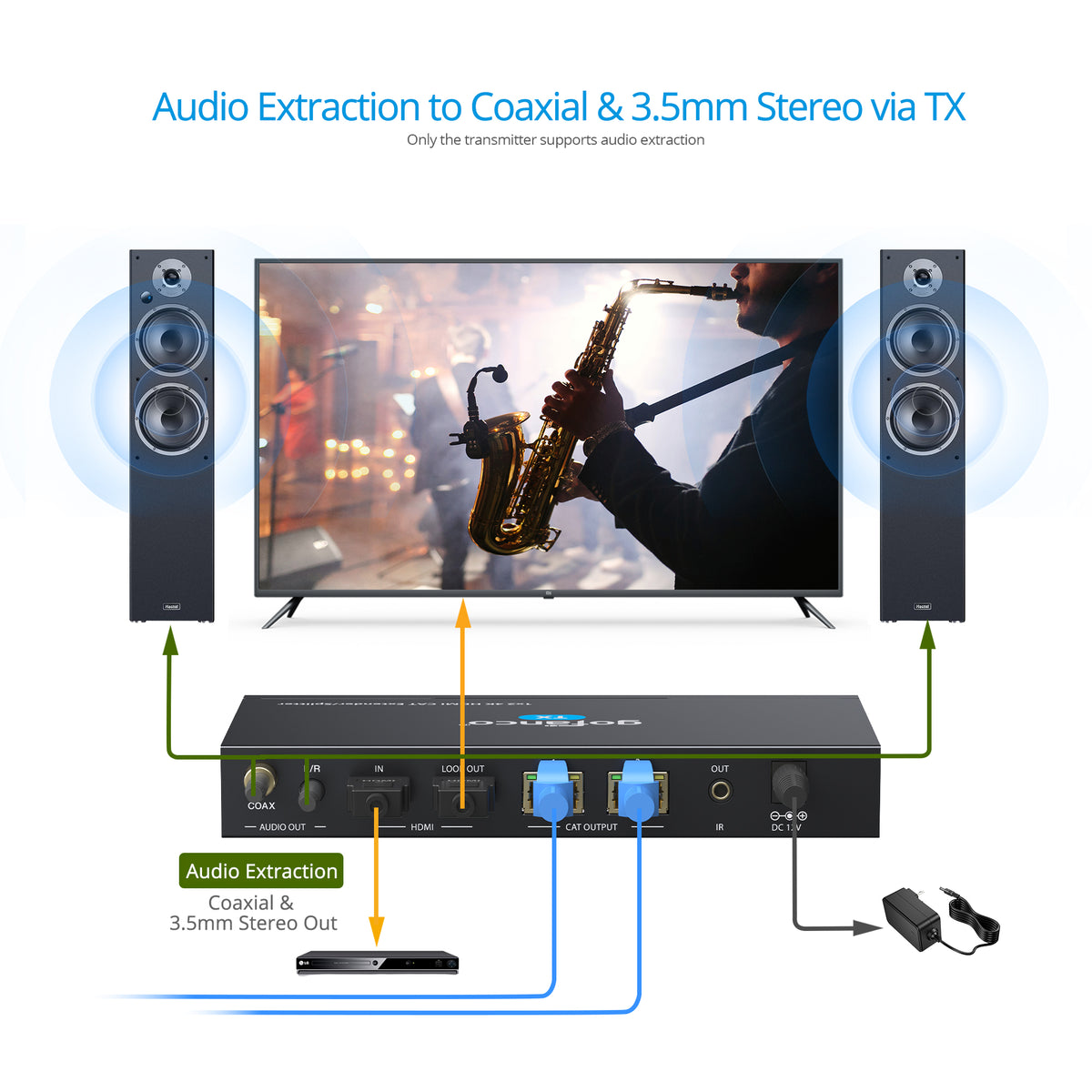

  • Supports digital and analog audio extraction
  • Supports 20-60Hz one-way IR source device control from the receiver side

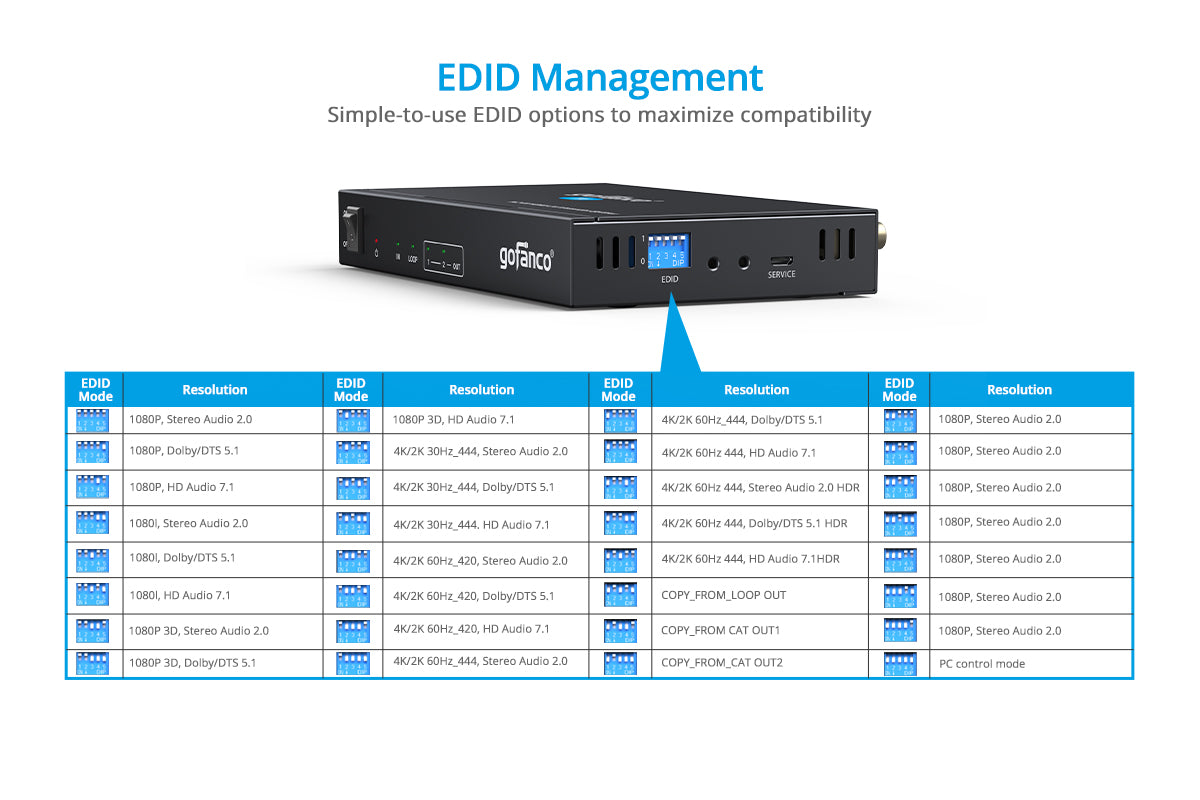

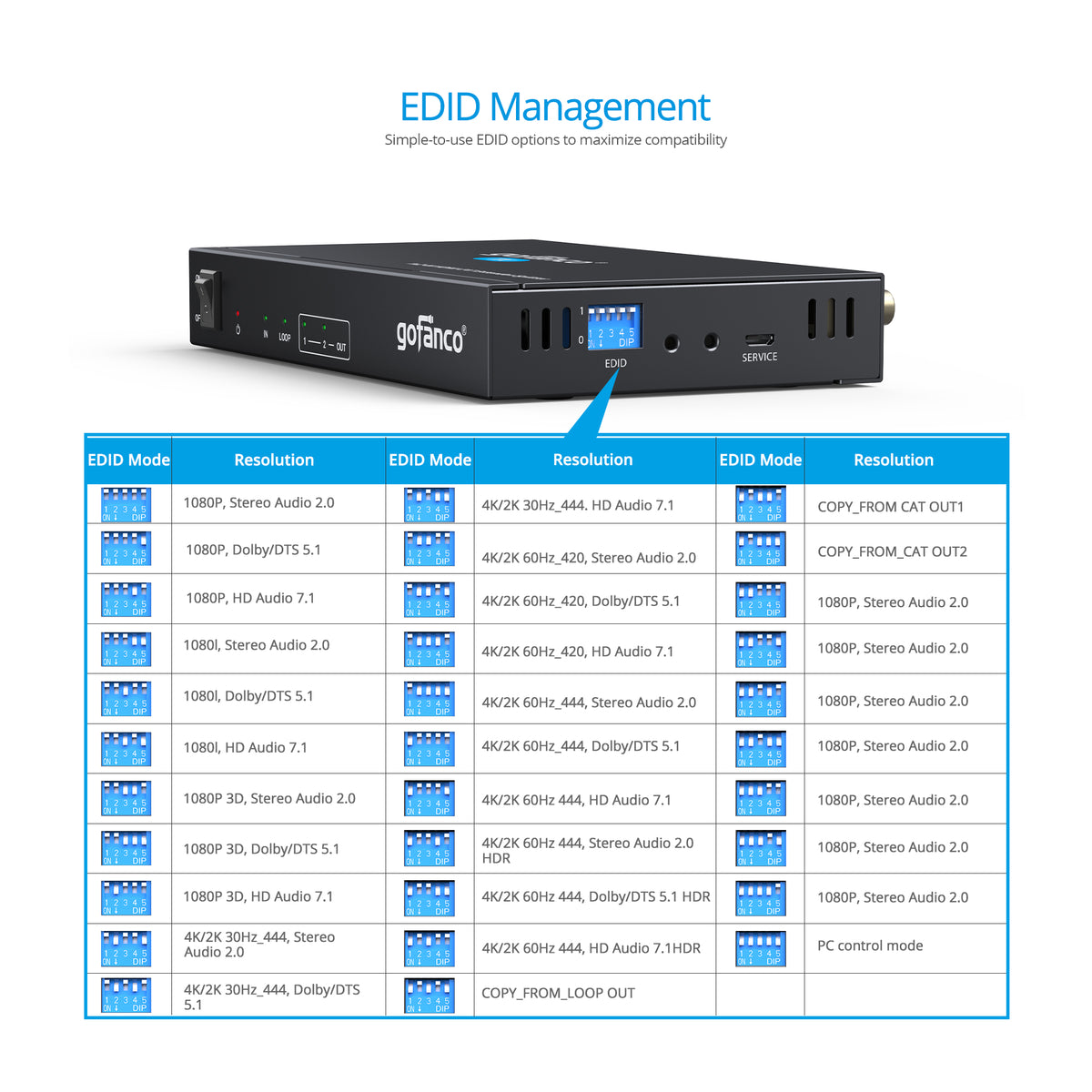

  • Advanced EDID management
  • Supports one-way PoC (Power-over-Cable)
  • HDMI loopout for a local display
  • Micro USB Service update port
  • UPC: 818354-022957
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
