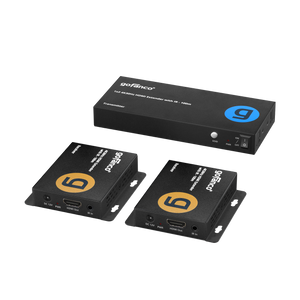

1x2 4K30Hz HDMI Extender with IR - 100M

Sale price $119.95

Extend two HDMI audio and video signals simultaneously up to 4K30Hz over a single cost-effective CAT5e/6 cable

In stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K30Hz 1x2 Extender
Distance up to 100m
HDMI Loopout
Power over Cable
IR Remote Control

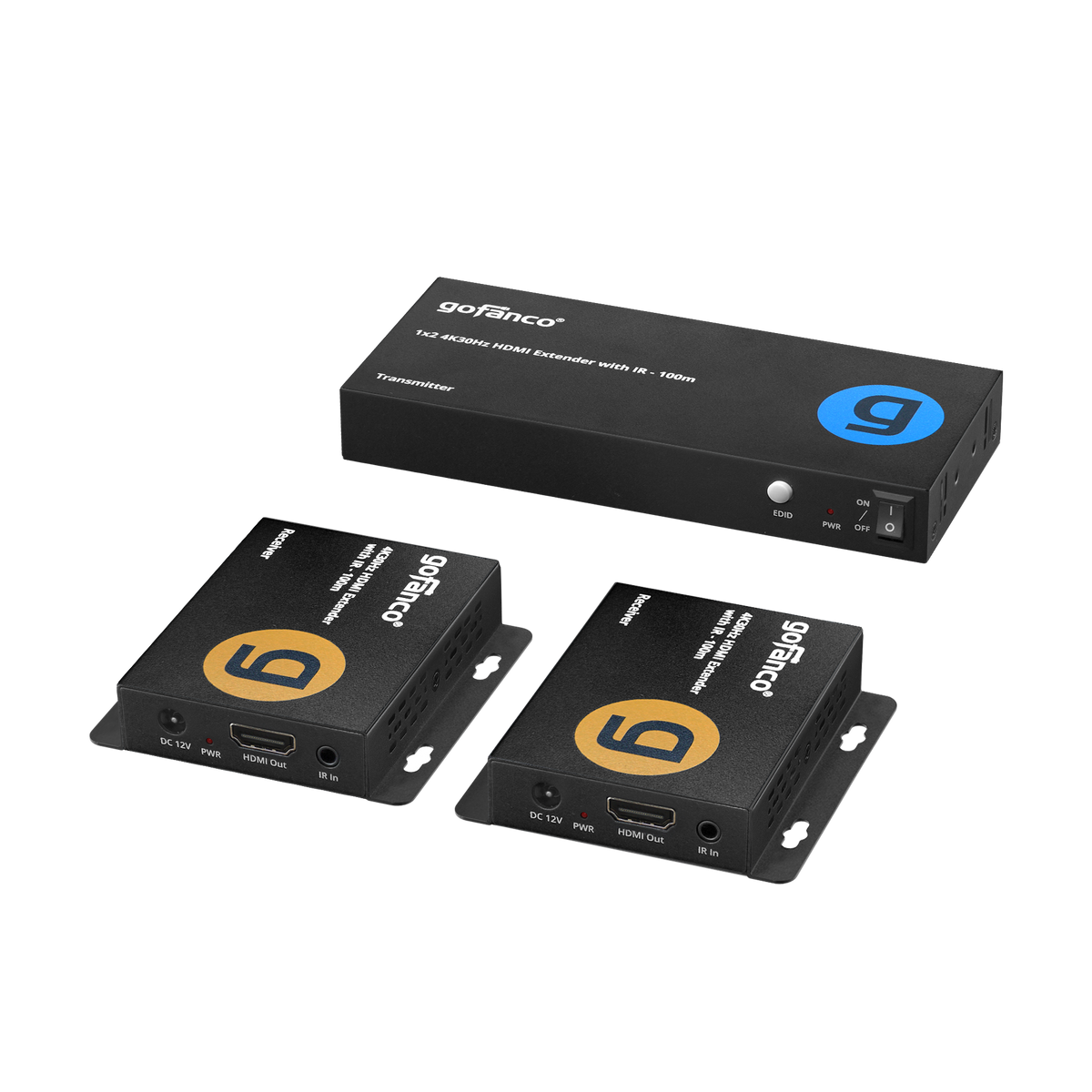

1x2 4K30Hz HDMI Splitter/Extender with IR

Allows splitting and extending your one HDMI signal over long distances
to two compatible displays.

2-Port 4K30Hz HDMI Extender/Splitter with PoC & EDID

Resolution

Ultra HD Resolution Support Up to 4K30Hz

Distance

Long-Range Signal Transmission Up to 328 Feet

EDID

Supports 720p, 1080p and 4K30Hz selection

IR

Transmits IR Signals Back to Media Sources

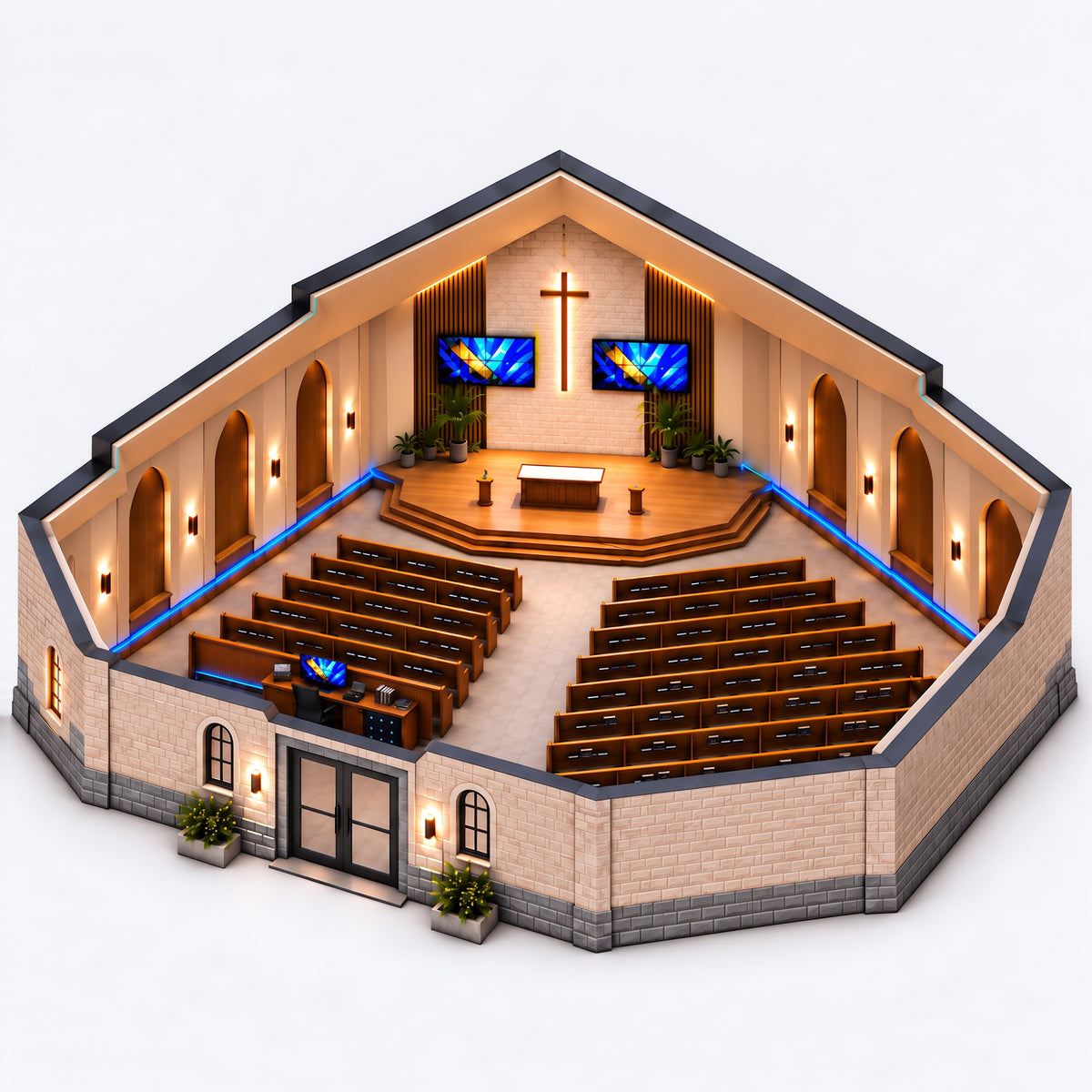

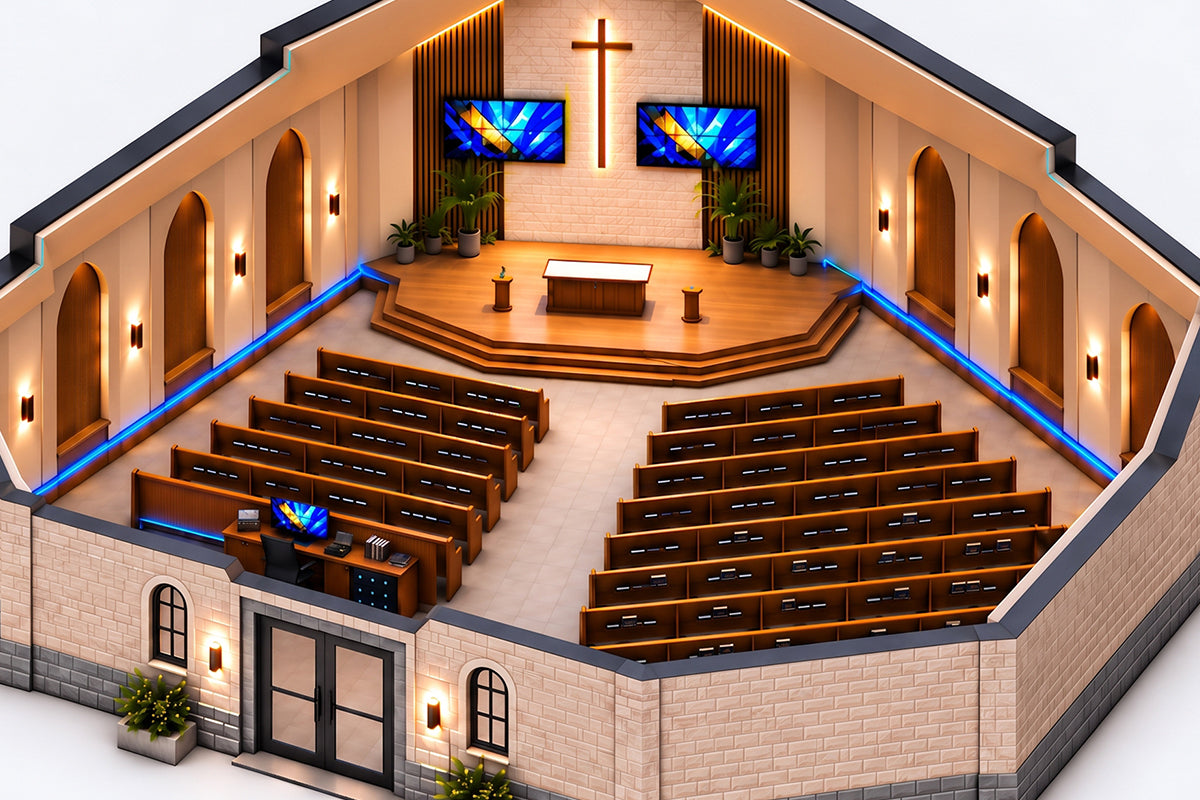

Dual-Display Worship Space layout

Install the transmitter at the rear control station and receivers behind the two front displays, extending one HDMI source over structured cabling for a clean, synchronized worship presentation layout

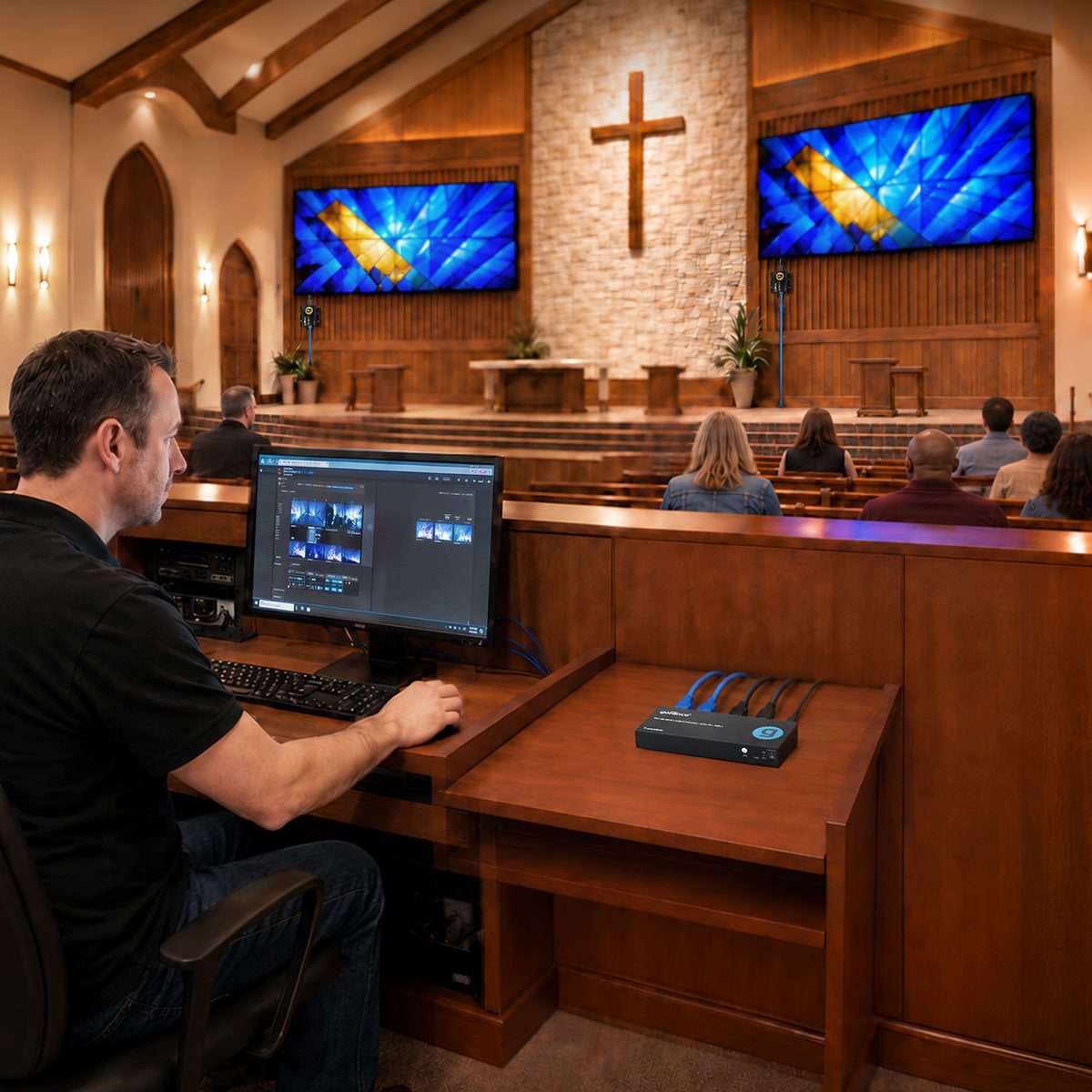

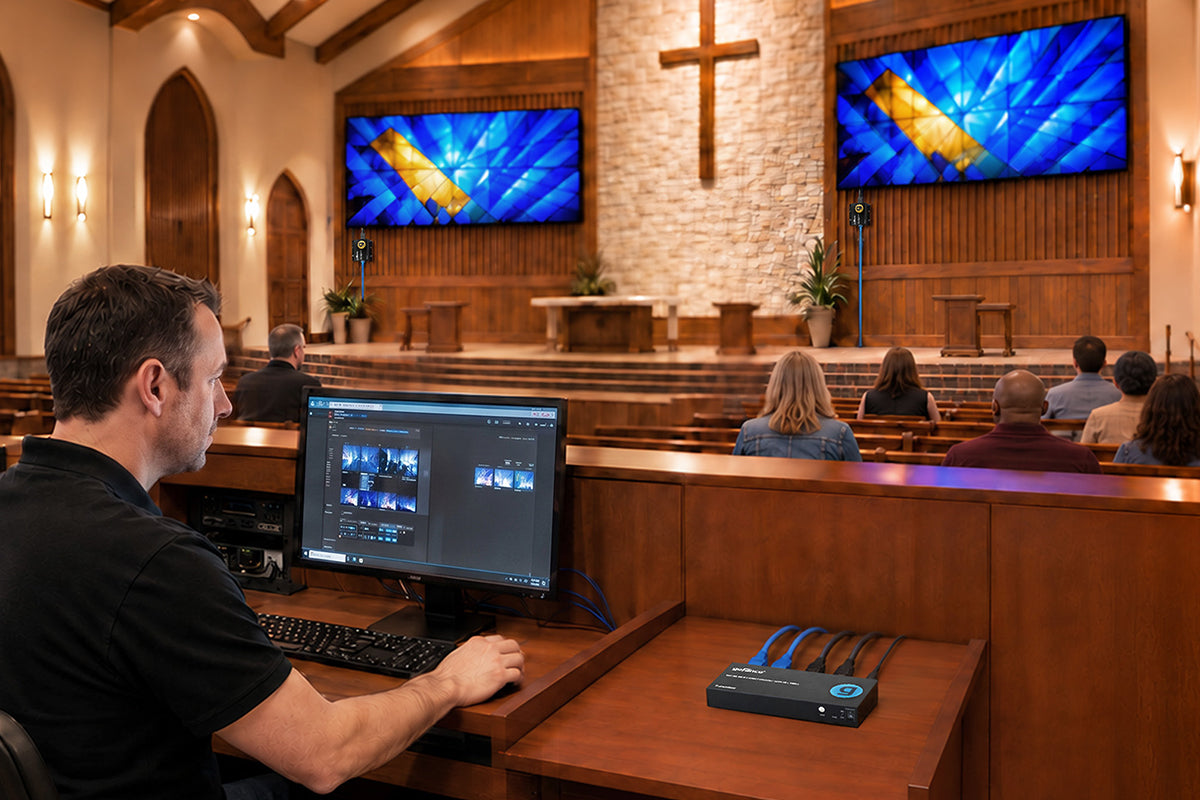

Synchronized Worship Content Control

From the rear control station, operators can present worship slides, lyrics, videos, and live media on two front displays simultaneously, ensuring the congregation receives clear and consistent visual content

Advanced Features

Extend two displays and local display / Reset Button / HDMI loopout / EDID selection / IR control / Power Switch / Mountable
Specification
  • Compliant: HDMI 1.4 / HDCP 1.4
  • Bandwidth: 10.2Gbps
  • Resolution: 480p, 576p, 720p, 1080p, 4K30Hz
  • IR Remote control: Supports 20-60KHz wide frequency remote control
  • Audio spec: 2-ch stereo audio
  • Power adapter: 12V/1A

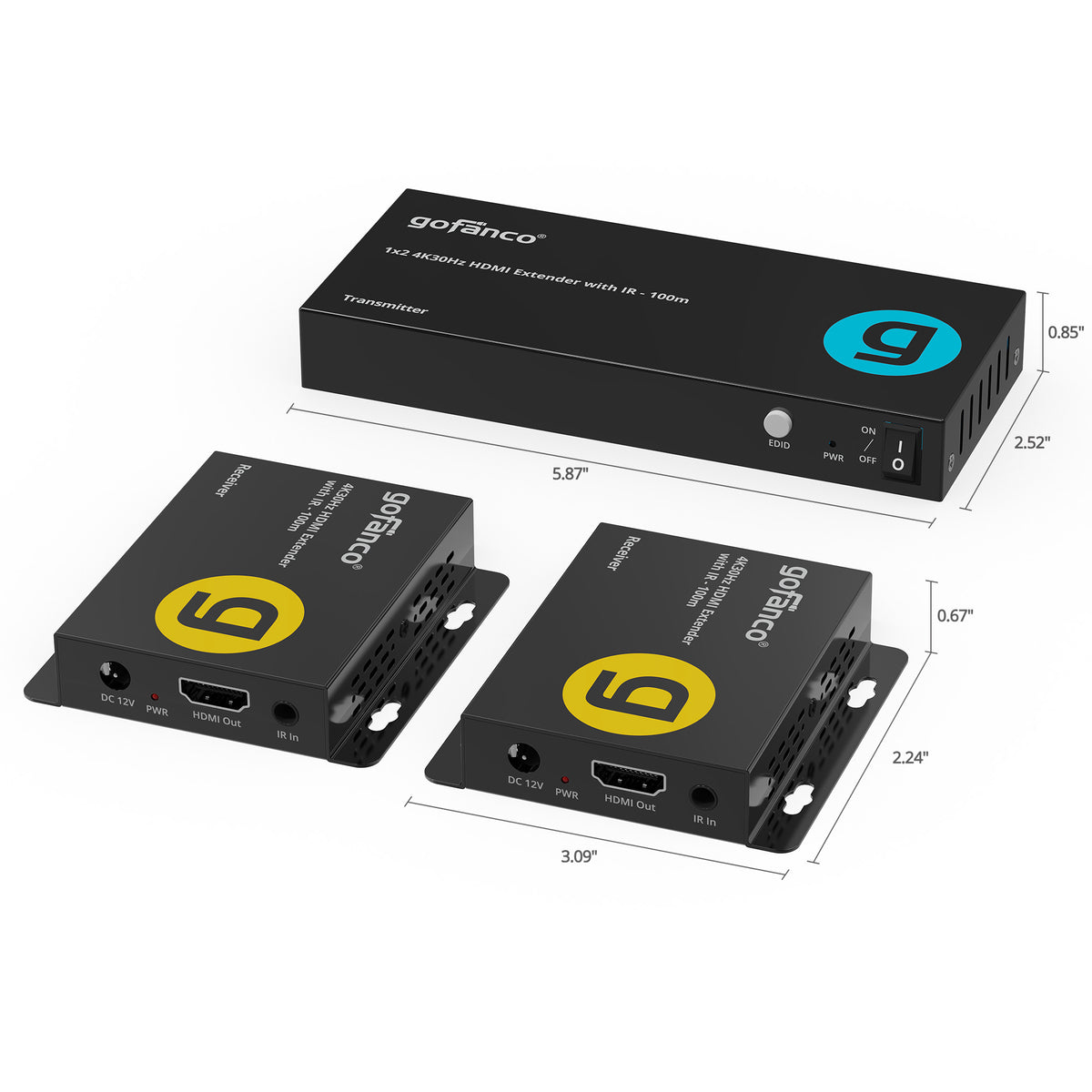

  • Product dimensions: TX 5.87” (L) x 0.85” (H) x 2.52” (W) / RX 3.09” (L) x 0.67” (H) x 2.24” (W)
  • Product weight: TX 0.48 lbs / RX 0.23 lbs
  • Housing Material / Color: Metal / Black color

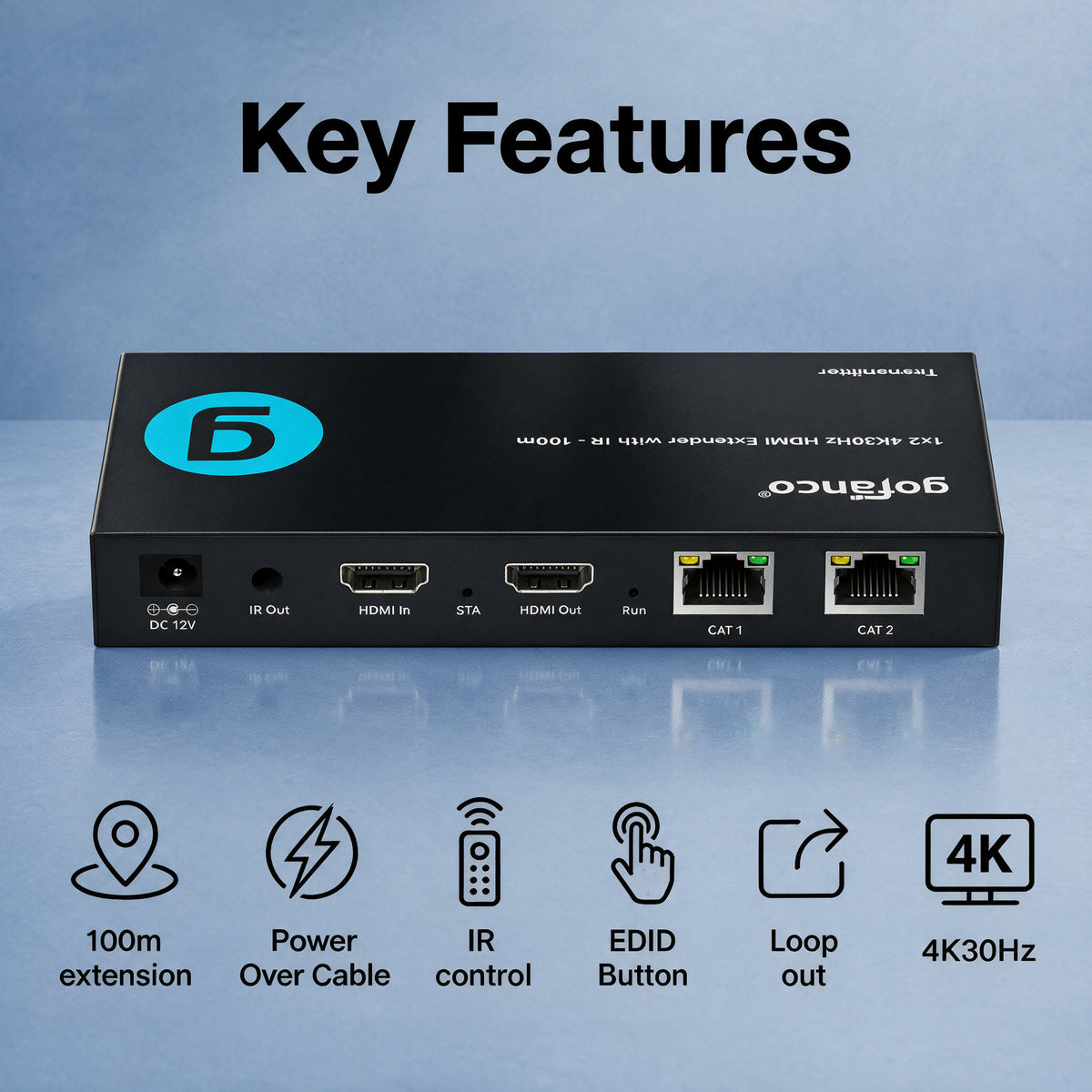

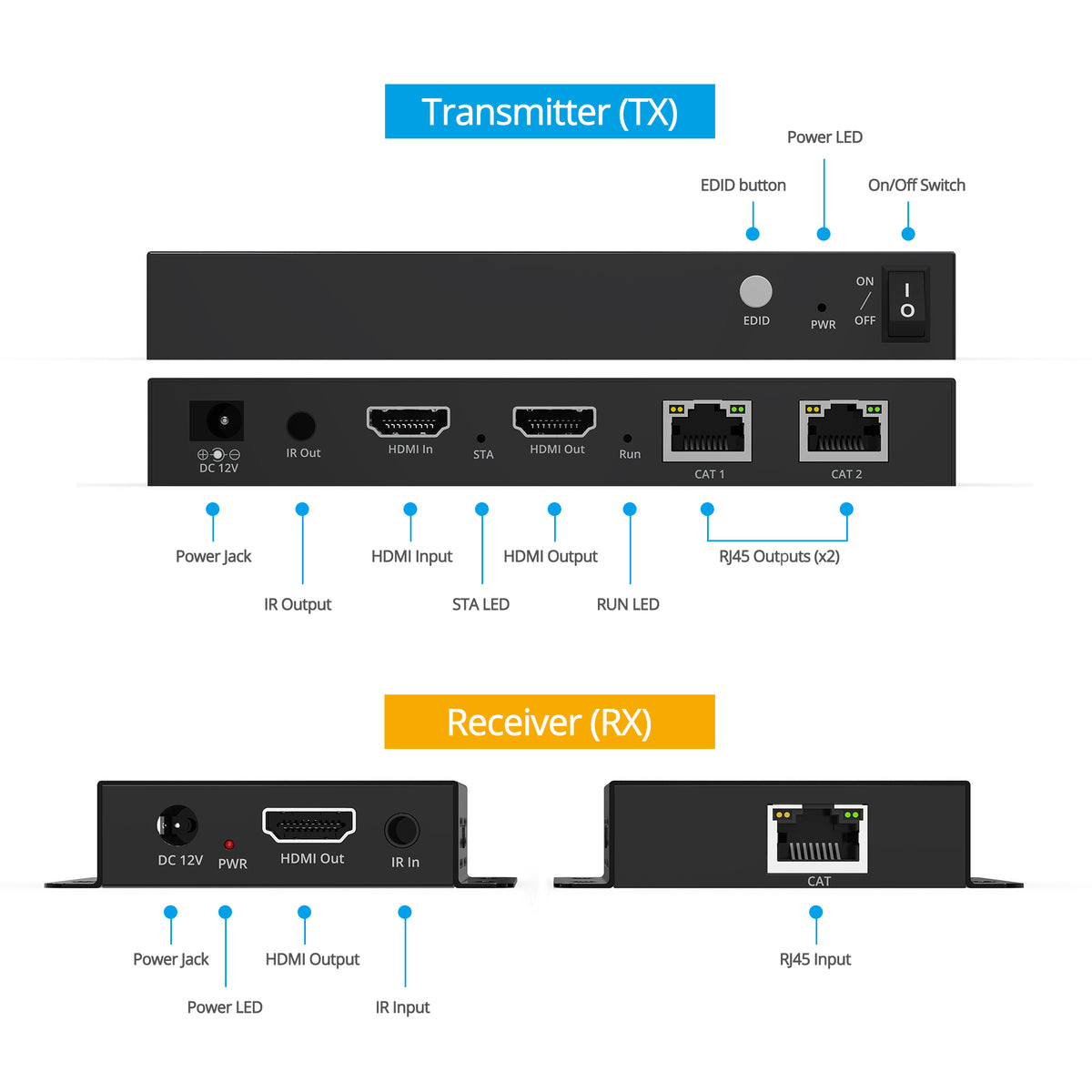

TX

  • 1x 19-pin HDMI, Input
  • 2x 8-pin, RJ45 Output
  • 1x 19-pin HDMI, Output
  • 1x Button, EDID Switch
  • 1x 3.5mm jack, IR Out
  • 1x Power jack
  • 1x Power Switch

RX

  • 1x 8-pin, RJ45 Input
  • 1x19-pin HDMI, Output
  • 1x 3.5mm jack, IR In
  • 1x Power jack

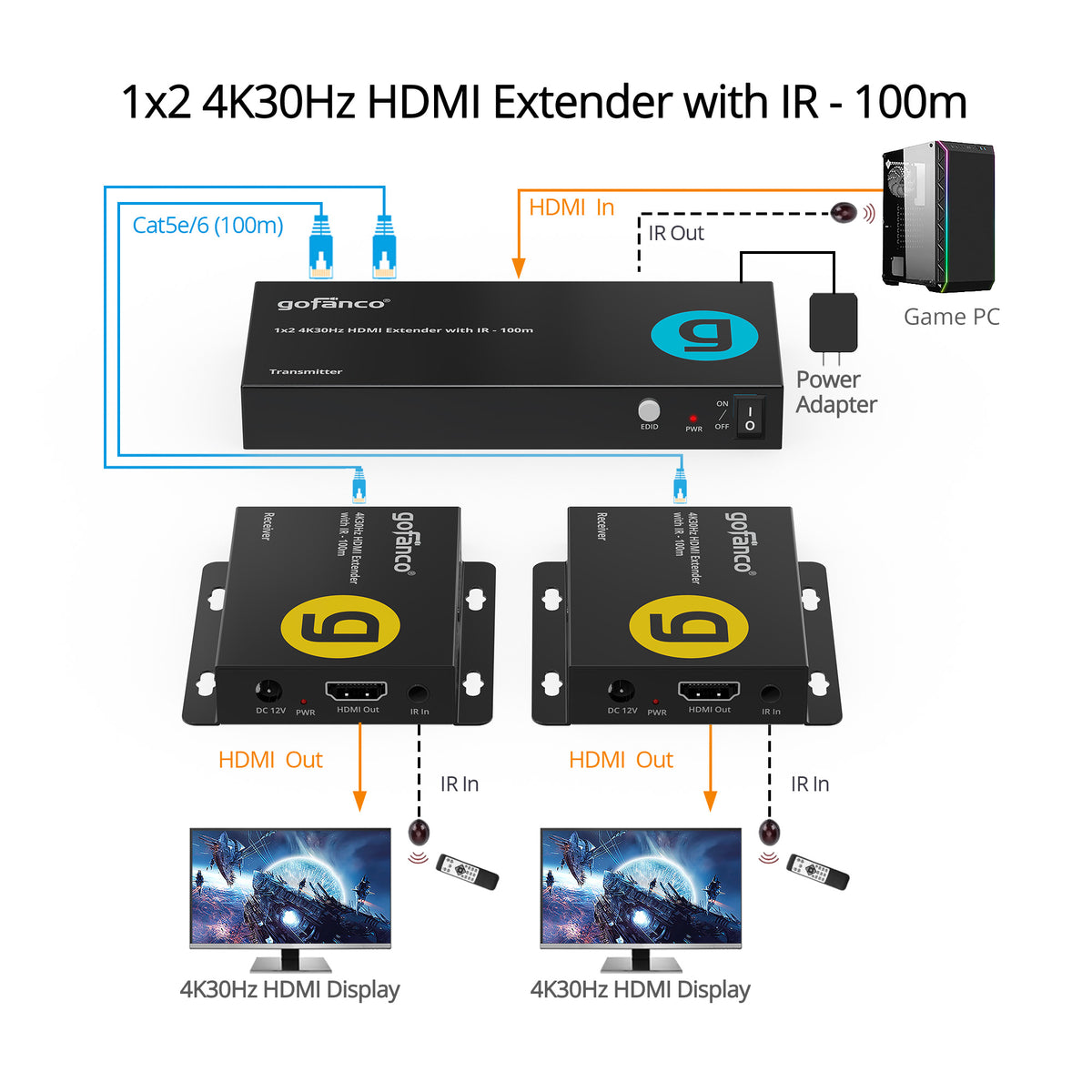

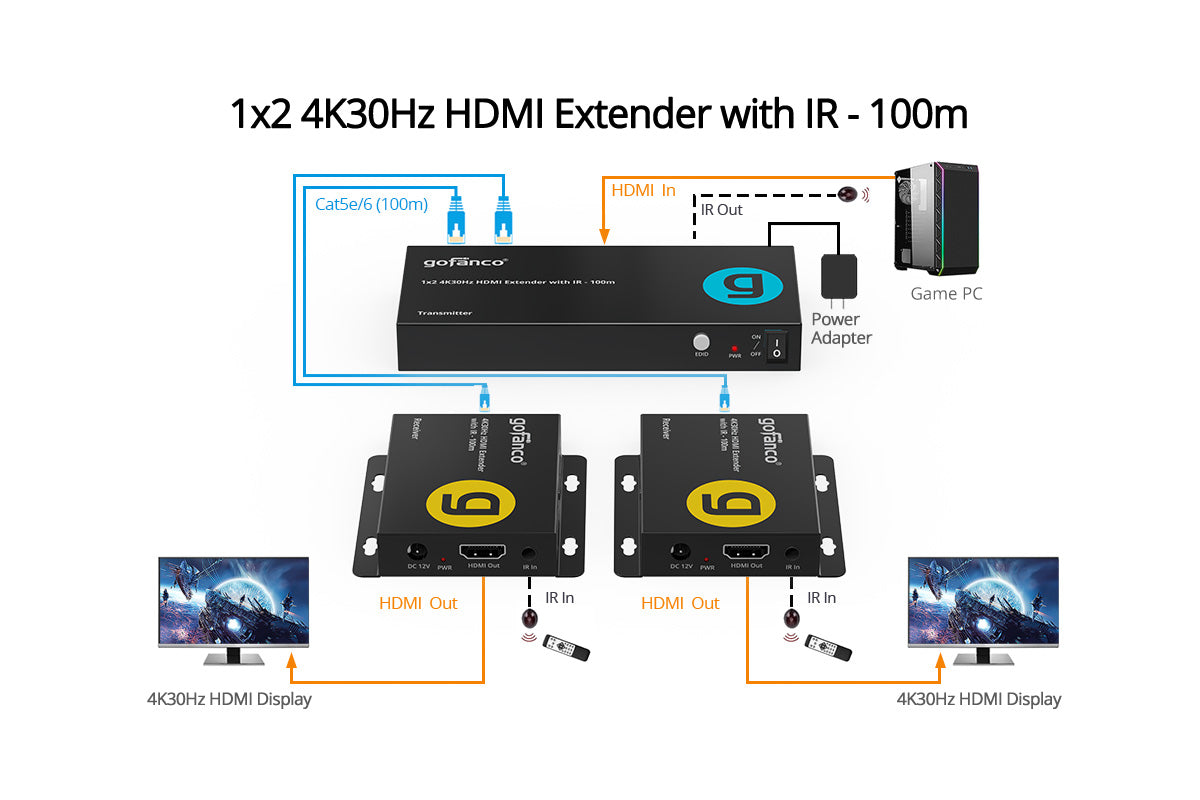

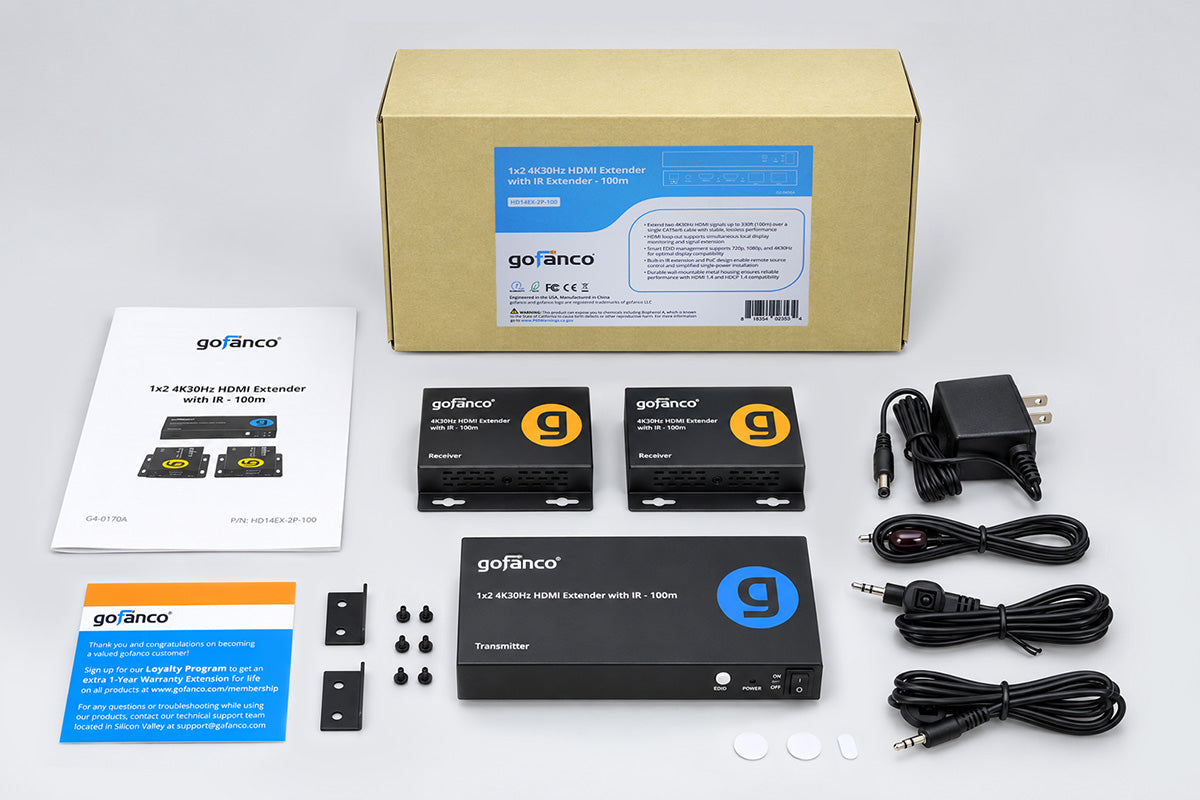

  • HDMI Extender/Splitter with 1 Transmitter (TX) and 2 Receivers (RXs)
  • Extends HDMI signals up to 100m (330ft) over CAT5e/6 to 2 HDMI monitors simultaneously
  • Supports up to 4K30Hz YUV 4:4:4 and 1080p 60Hz YUV 4:4:4
  • Transmitter supports HDMI loopout
  • Supports IR signal extension - control a media player from a remote location with the included IR-TX and IR-RX cables
  • Supports Power over cable (PoC) and 20-60KHz IR Passthrough
  • Supports EDID select
  • Easy to install, plug and play, no drivers needed
  • Surface mountable metal housing
  • UPC:818354-023534
  • Operation Temperature: 5 to 131 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
