Extenders: WLHD14-DG

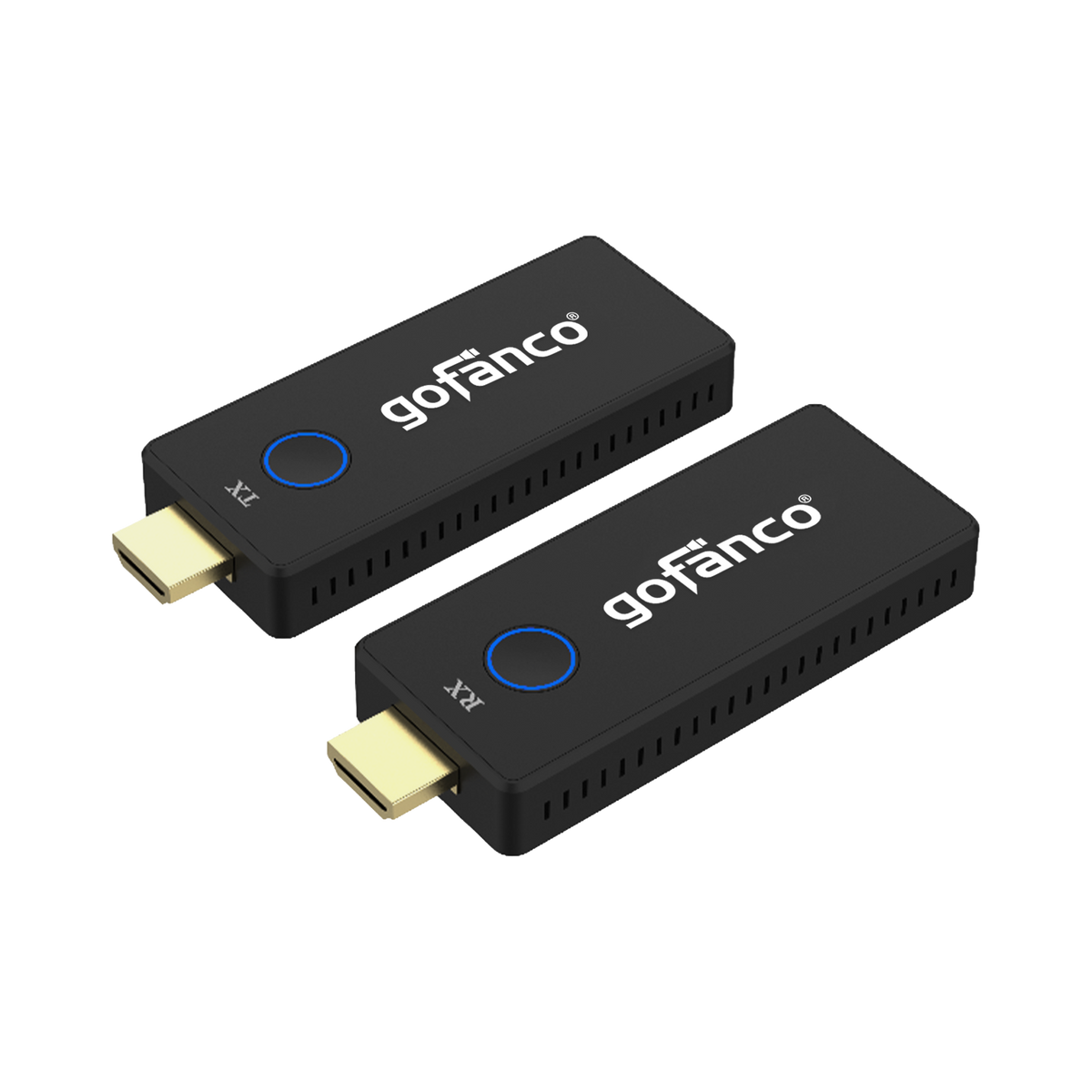

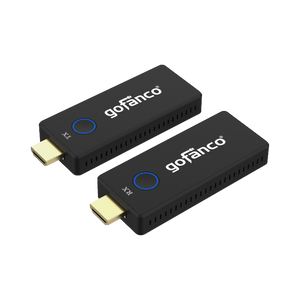

Wireless 4K HDMI Dongle Extender Kit - 98ft (30m)
HDMI Wireless Extender Dongle Adapter Kit - 4K30Hz - Up to 30M - 5.8G Wi-Fi channel - Plug & Play
Wireless Extender
4K30Hz Resolution
Distance up to 30m
5.8GHz WiFi Channel
Plug & Play

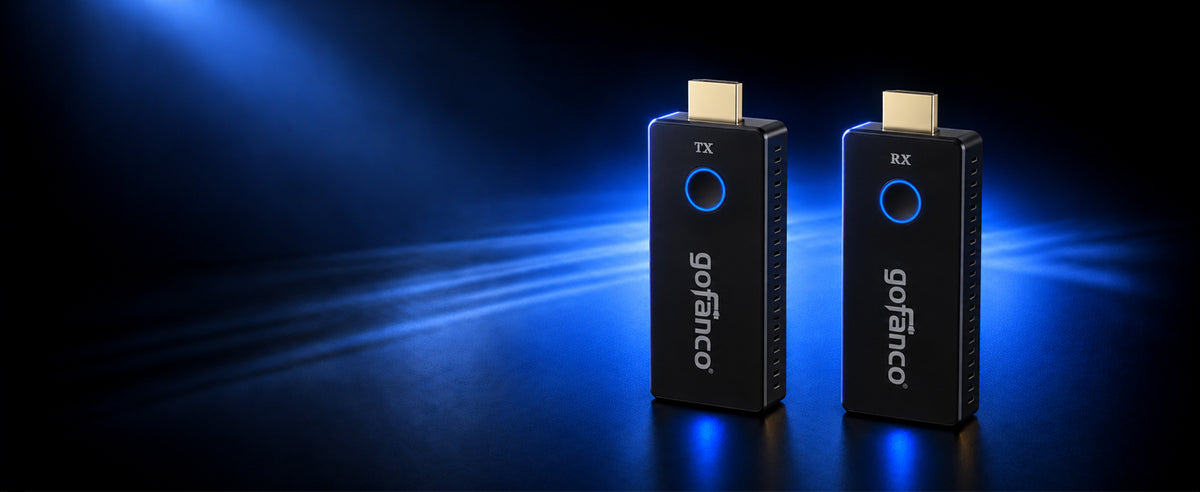

4K30Hz Wireless HDMI Dongle Extender
Wireless HDMI Transmitter and Receiver 4K 30Hz
Comparison Table
Wireless 4K HDMI Dongle Extender Kit - 98ft (30m)
Sale price$89.95
1x4 1080p HDMI Wireless KVM Extender with IR (TX & RX) - 150m (492ft)
Sale price$159.99
Specification
- HDMI/HDCP version: HDMI 1.4 / HDCP 2.2
- Wireless: IEEE 802.11a/b/g/n/ac, 5.8GHz
- Transmission Distance: Up to 30m (98.4 ft) line-of-sight
- WIFI Frequency: 5.150GHz ~ 5.825GHz
- WIFI Bandwidth: 433 Mbps (5Ghz)
- Security: WPA2-AES128 Advanced Encryption Standard
- Latency: About 100 ms for 60 fps video; slightly higher for 30 fps video due to lower frame rate
- Antennas: 1x 3dBi high-sensitive Antenna
- Video Input: 3840x2160 (2160p 30) / 1920x1080 (1080p 60/30/24，1080i 60/50) / 1280x720 (720p 60/30) / 720x480 (480p 60)
- Video Output: Up to 2160p 30Hz (3840x2160 30Hz)
- Audio format: Stereo audio (2CH PCM), 48KHz 16bits

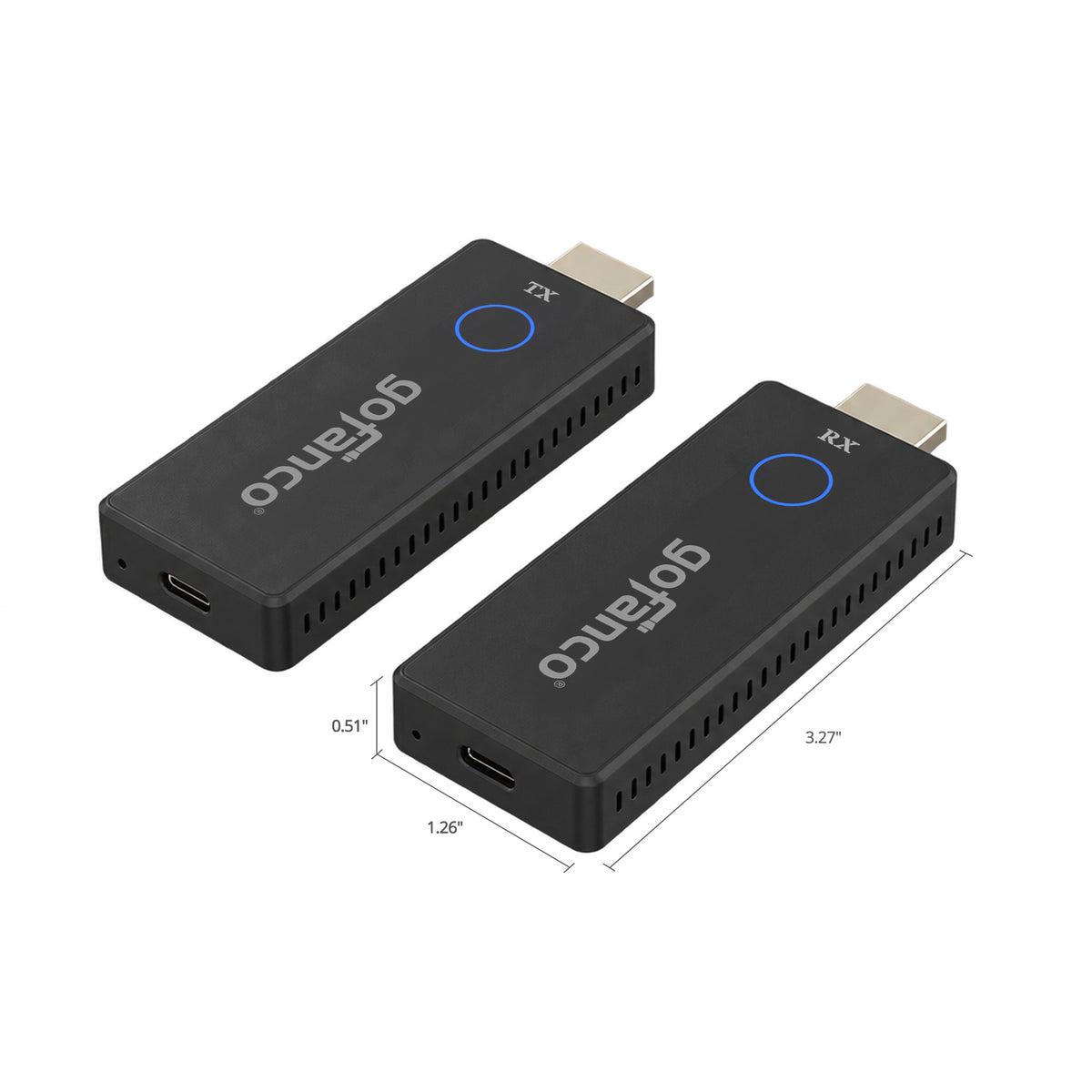

- Product Dimensions: TX/RX: 3.27” (L) x 0.51” (H) x 1.26” (W)
- Weight: TX/RX: 0.05 lbs
- Housing Material / Color: Plastic / Black color

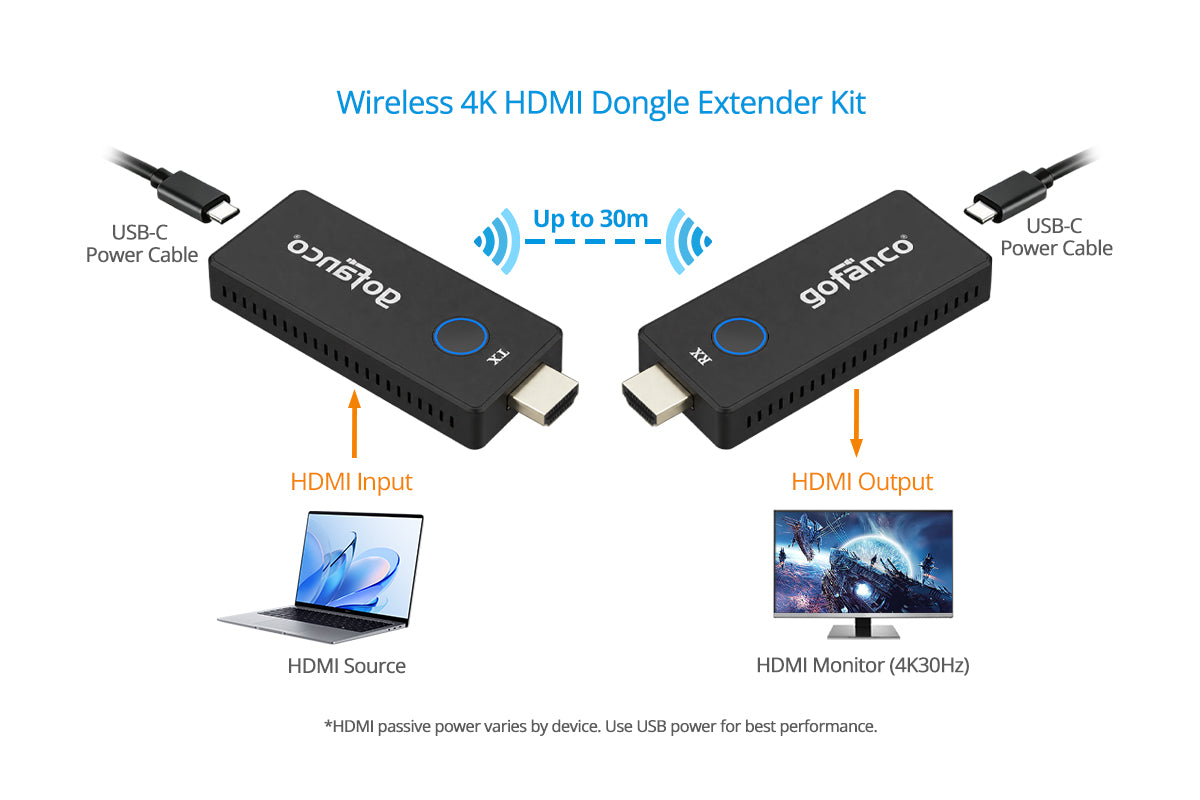

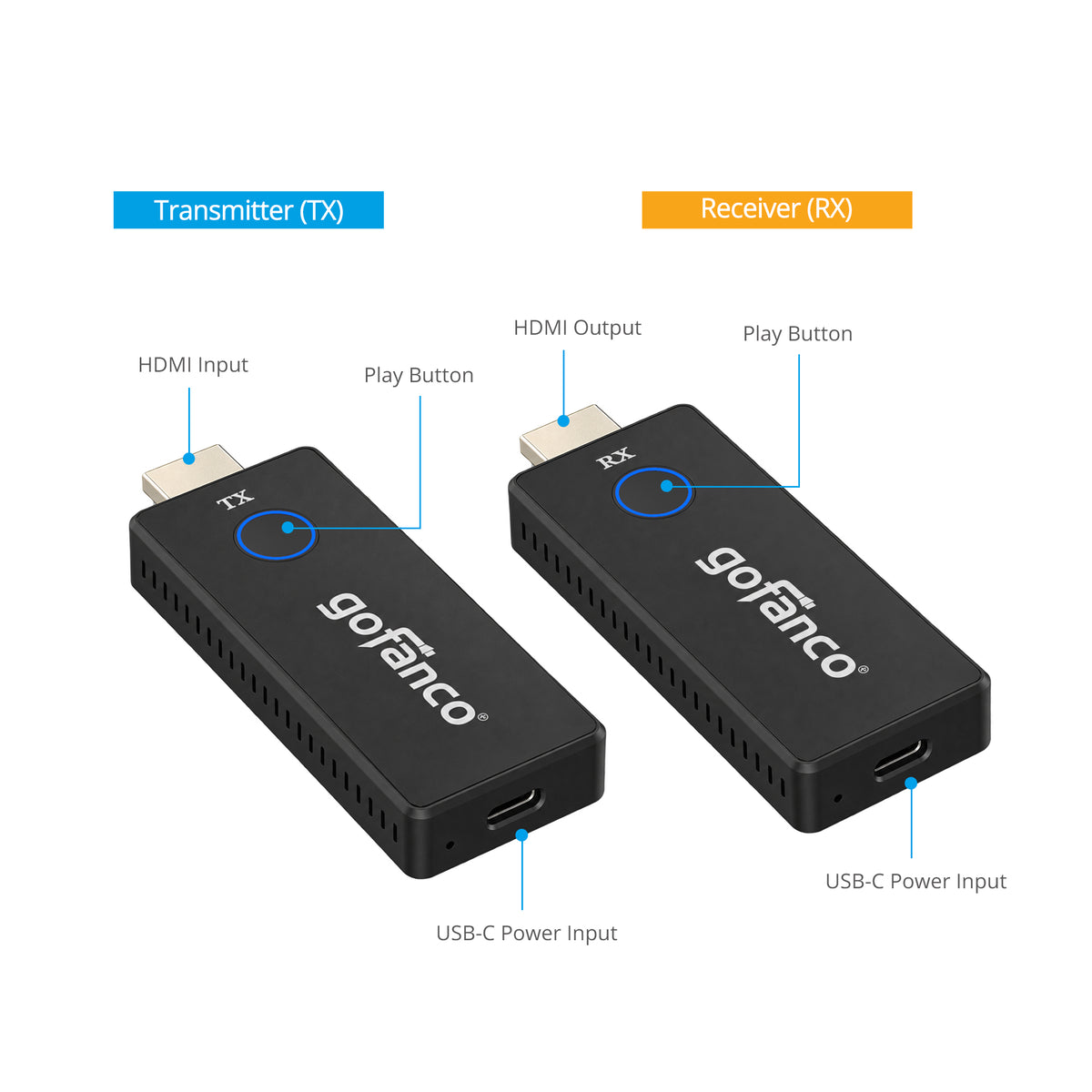

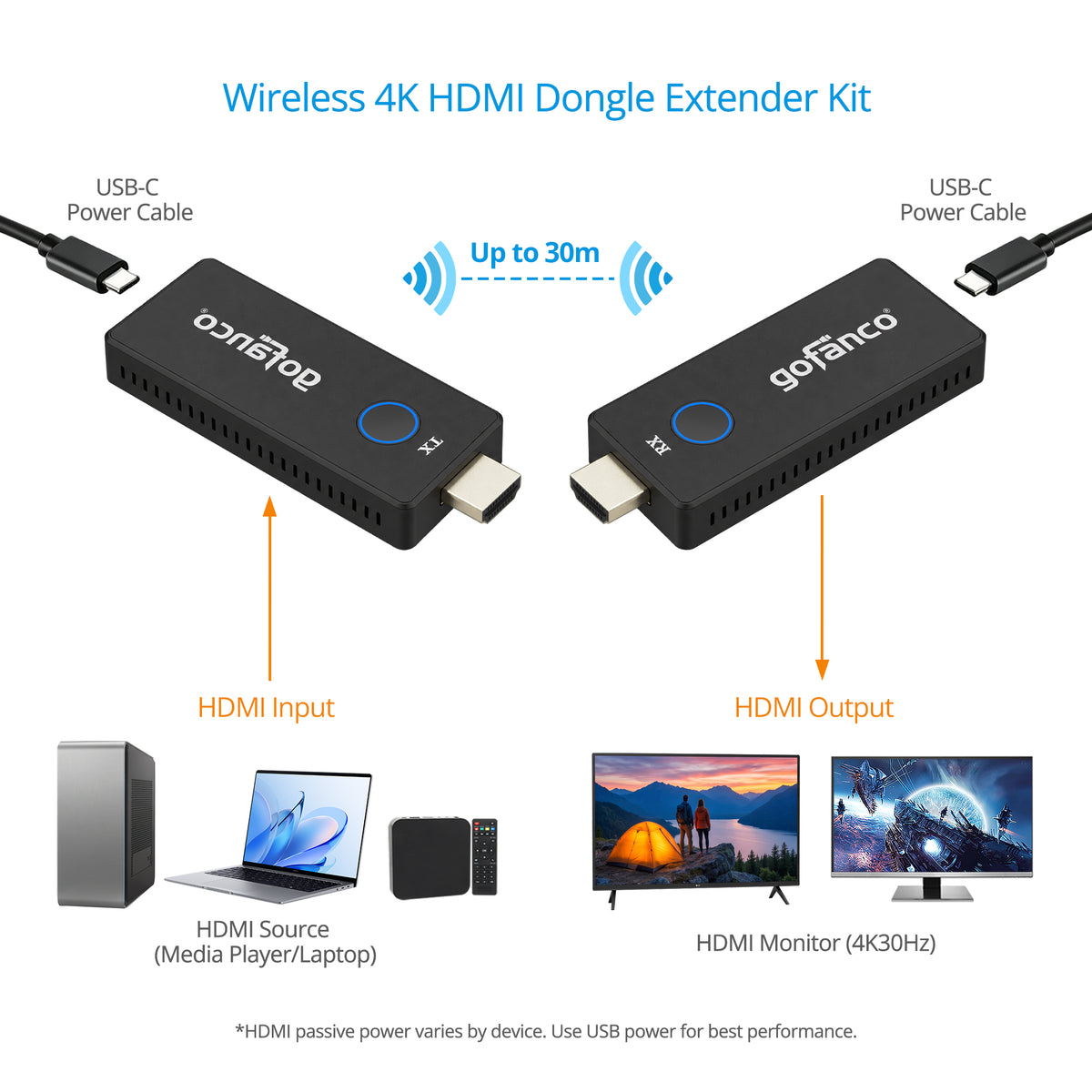

Connection
TX
- 1x 19-pin HDMI, Input
- 1x 24-pin USB-C for power input
- 1x Button
RX
- 1x 19-pin, HDMI, Output
- 1x 24-pin USB-C for power input
- 1x Button

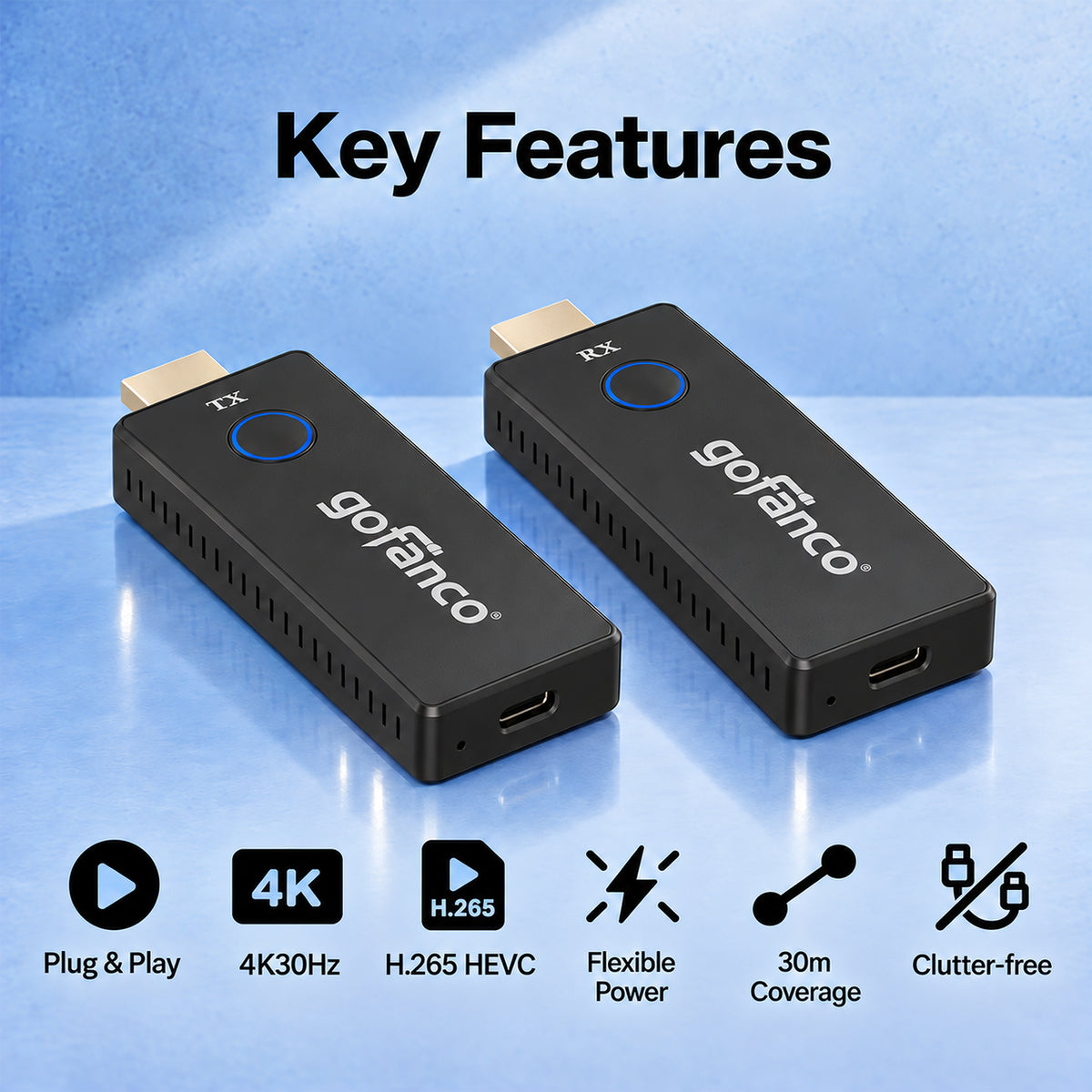

Features
- 4K30Hz Ultra HD – Supports up to 4K30Hz input and transmission with H.265 hardware decoding.
- Wireless & Cable-Free – Eliminate long HDMI cables for a cleaner, more professional setup.
- 30m / 98.4ft Range – Stable 5.8GHz wireless transmission with clear line-of-sight.
- Secure WPA2-AES128 – Advanced encryption helps protect wireless data and privacy.
- Dual Power Options – Supports HDMI passive power or USB-C power for flexible, stable operation.
- Plug & Play – No app, software, Wi-Fi, or network configuration required.
Standard
- UPC: 818354-023596
- Operation Temperature: 32 to 104 degrees F
- Storage Temperature: 14 to 140 degrees F
- Relative humidity: 10 to 80% RH (non-condensing)
- Regulatory approvals: FCC / CE / RoHS / FCC ID
- Limited One-Year Warranty and Lifetime Product Support
- Country of origin: China

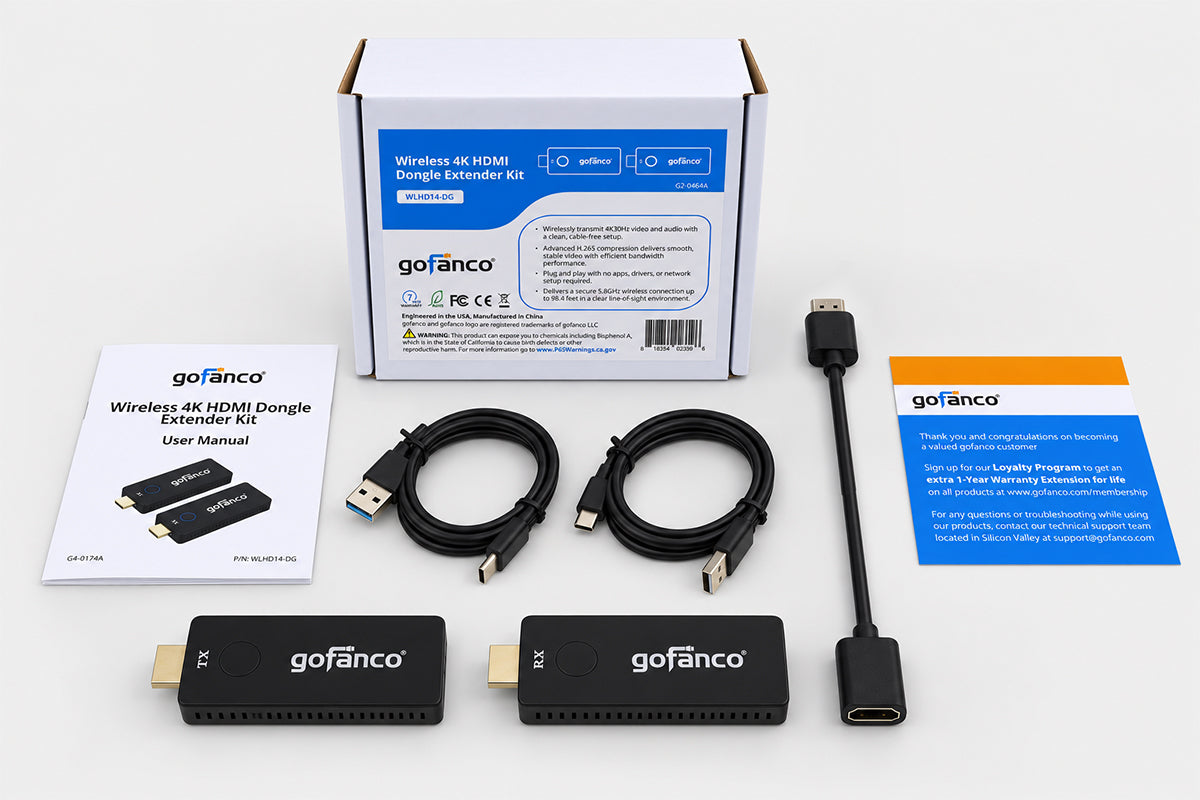

- 4K30Hz Wireless HDMI Dongle Extender (TX & RX)
- HDMI Extender cable x 1
- USB-C cable x 2
- User’s manual
