Switches: QuadView4K-Dual

4K 4x2 HDMI Multi-Viewer

Sale price $109.99

4 Inputs & 2 Outputs, 4K30Hz, Seamless Switching, Quadview & Quad/Dual/Single Modes, Mirrored/Matrix Outputs, Audio Extract

150 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K30Hz Resolution
Up to 5.1 Ch Audio

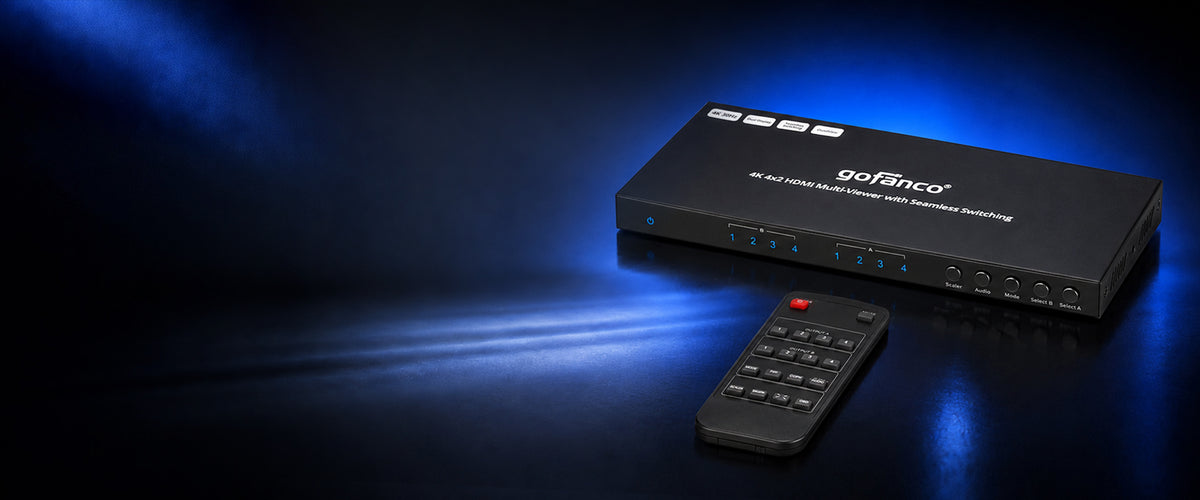

Button & IR Remote Control
4x2 Multiviewer
6 Multiview Mode

4K 4x2 HDMI Multi-Viewer

4 Inputs & 2 Outputs, 4K30Hz, Seamless Switching, Quadview & Quad/Dual/Single Modes, Mirrored/Matrix Outputs, Audio Extract

4x2 4K30Hz HDMI Multiviewer Matrix Switcher

Resolution

Supports Video Input Up to Ultra HD 4K30Hz

MultiViewer & Matrix

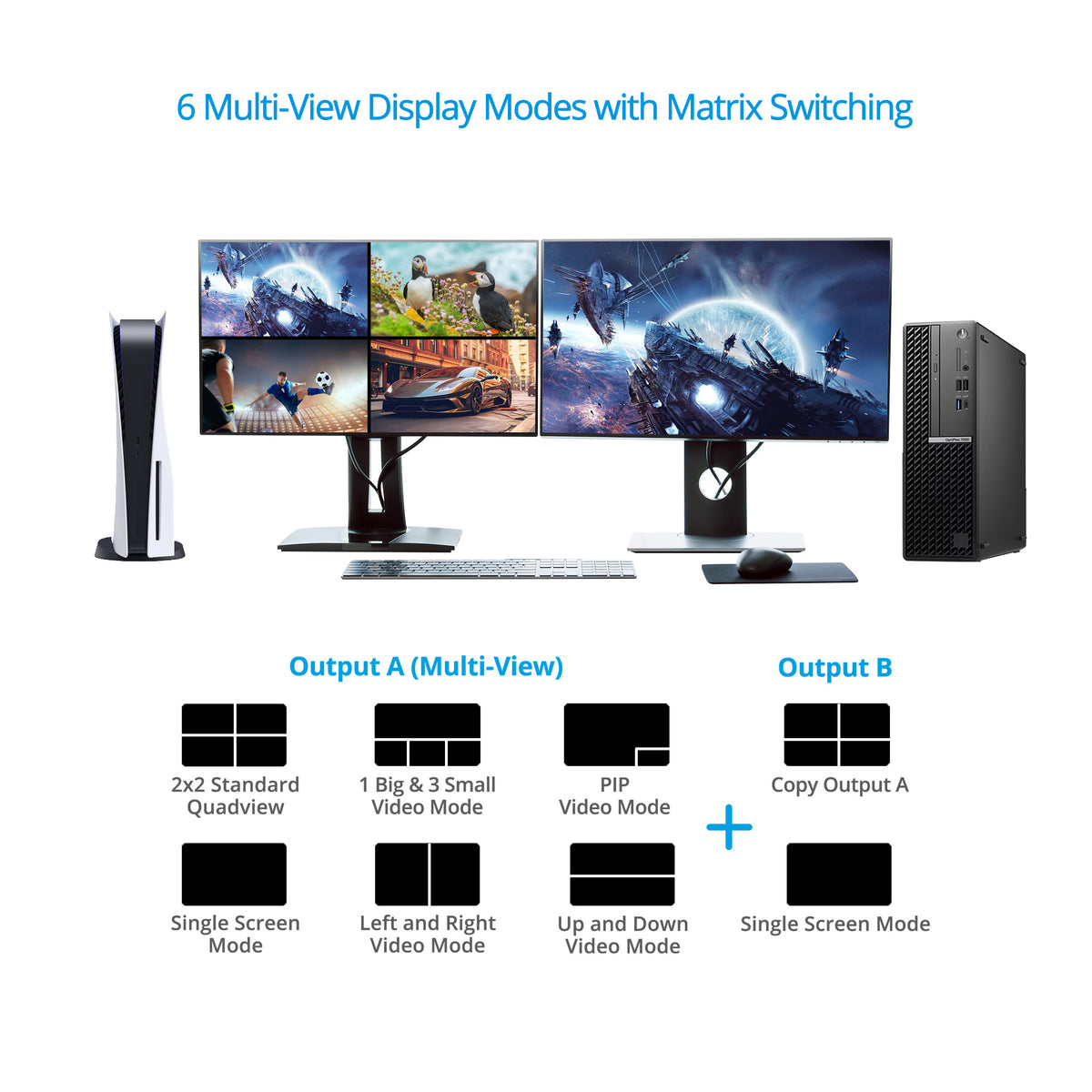

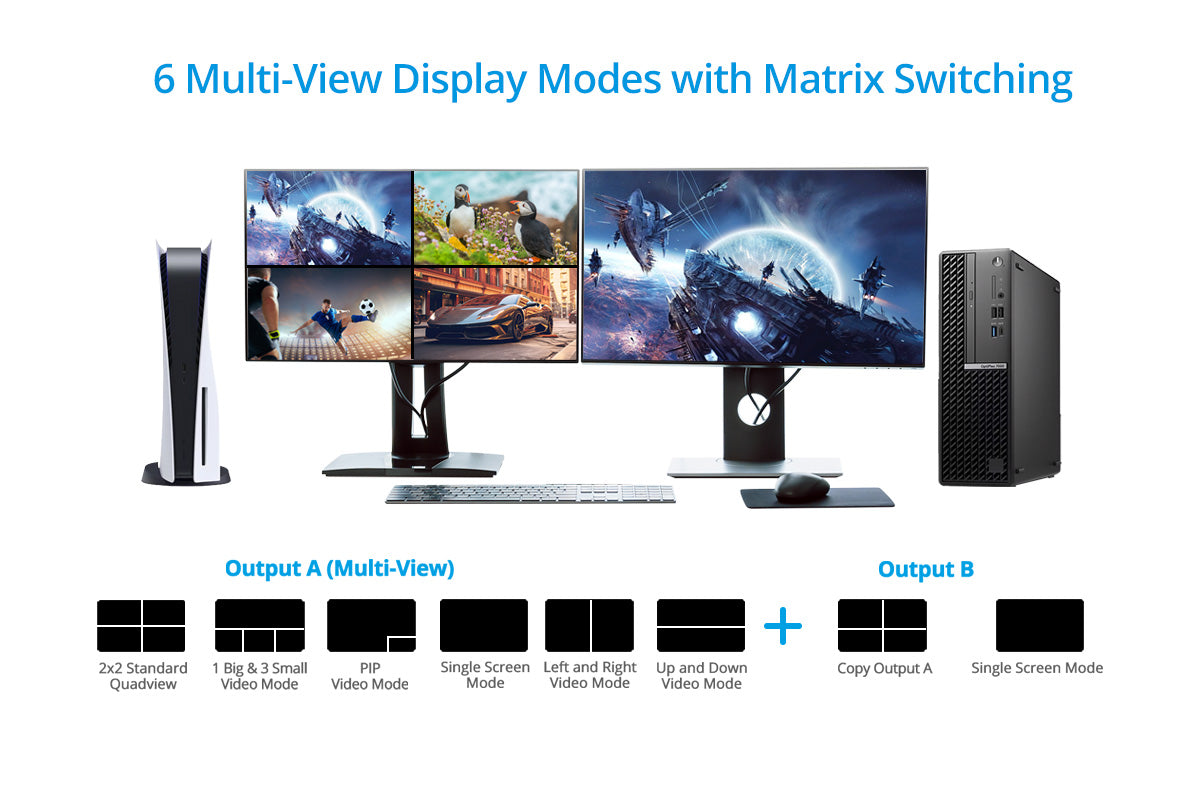

Features 6 Flexible Multi-View Display Modes

Multi-Source

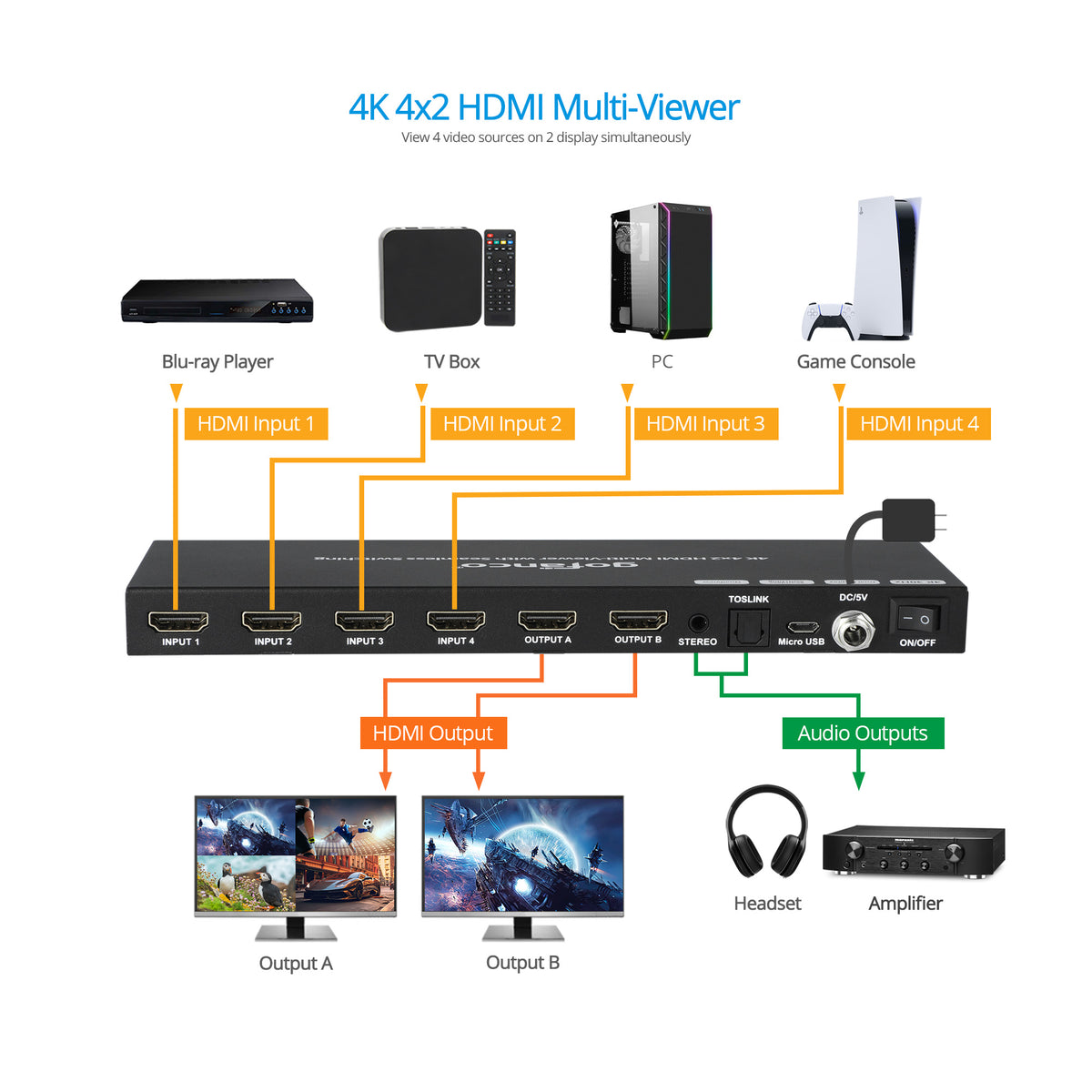

Routes Any 4 HDMI Sources to 2 Independent Screens

Audio

Supports PCM & 5.1ch Surround Audio Extraction

MultiViewer & Matrix

Simultaneously view up to four video sources on two large displays with flexible Multiview and Matrix switchingcapabilities

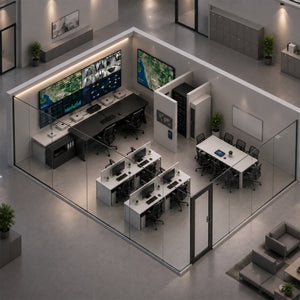

Multi-Source Management Center Monitoring

Enable management center personnel to view up to four video and data sources simultaneously on dual displays for faster monitoring, analysis, and operational decision-making, mirror content between Output A & B or Display any source in full screen

Advanced Features

Take command with the remote or front panel buttons, and enjoy a true plug-and-play experience, Surface-mountable design ensures long-lasting performance with enhanced RF/EMI shielding
Specification
  • Compliance: HDMI 1.4
  • Bandwidth: 10.2 Gbps
  • Resolution: Up to 4K30Hz
  • Video Frequency Range: 24 / 25 / 30 / 50 / 60Hz
  • Interlaced resolution: 480i, 576i, 1080i
  • Progressive resolution: 480, 576p, 720p, 1080p, 4K 24 / 30Hz

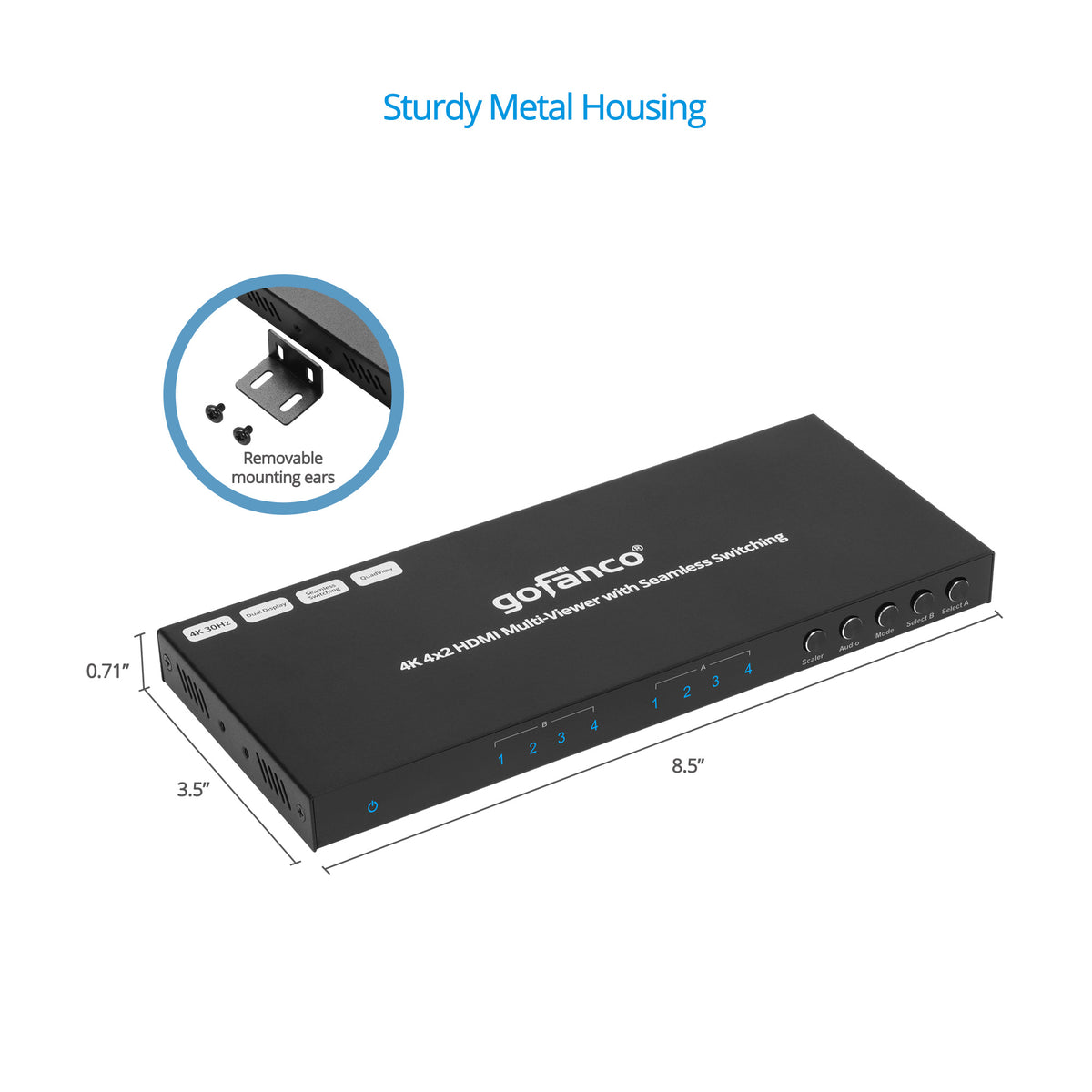

  • Dimension: 8.46″(W) x 0.72″(H) x 3.58″(D)
  • Weight: 0.90 lbs
  • Power Adapter: AC100 - 240V 50/60Hz, Output: 5V/1A
  • Housing Material / Color: Metal / Black

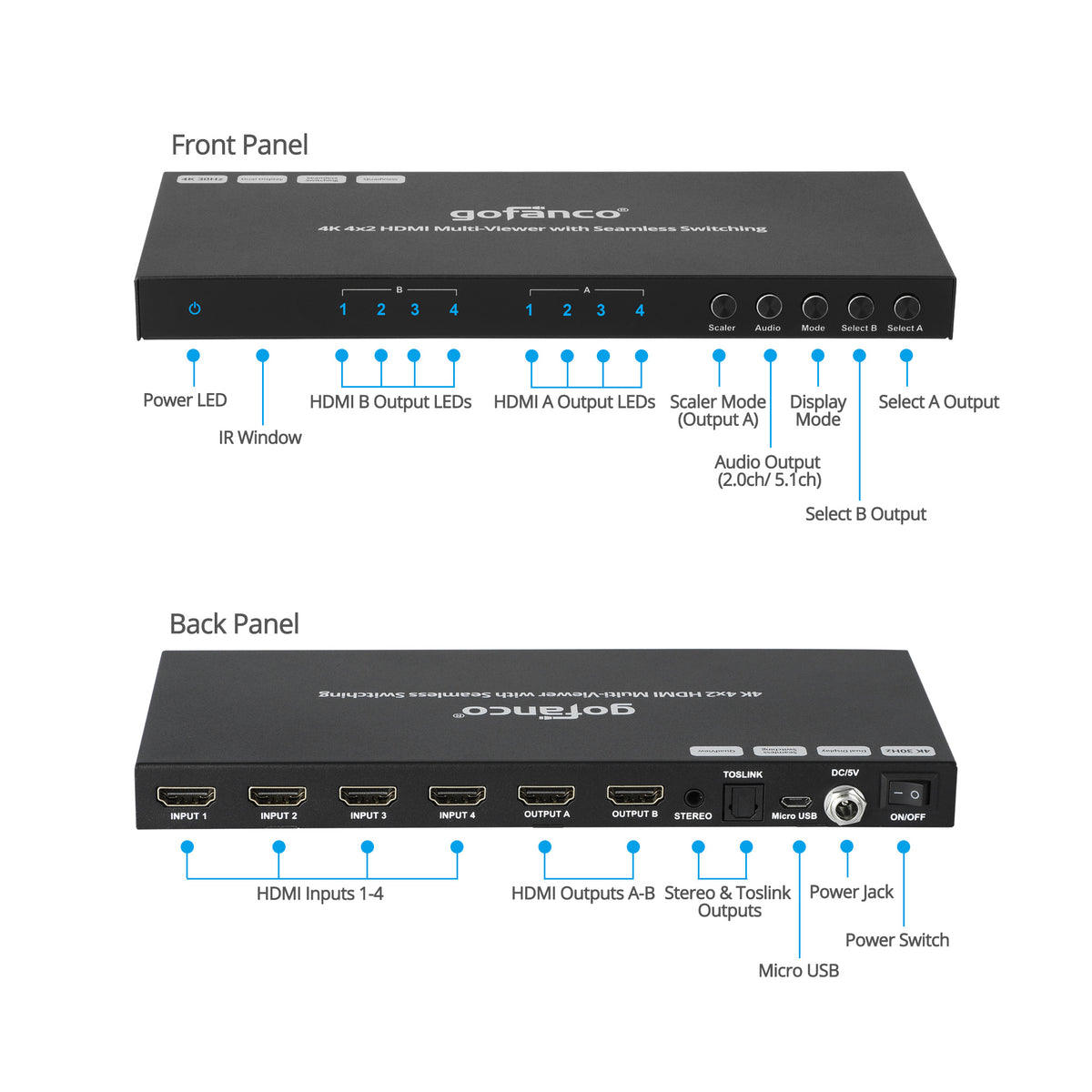

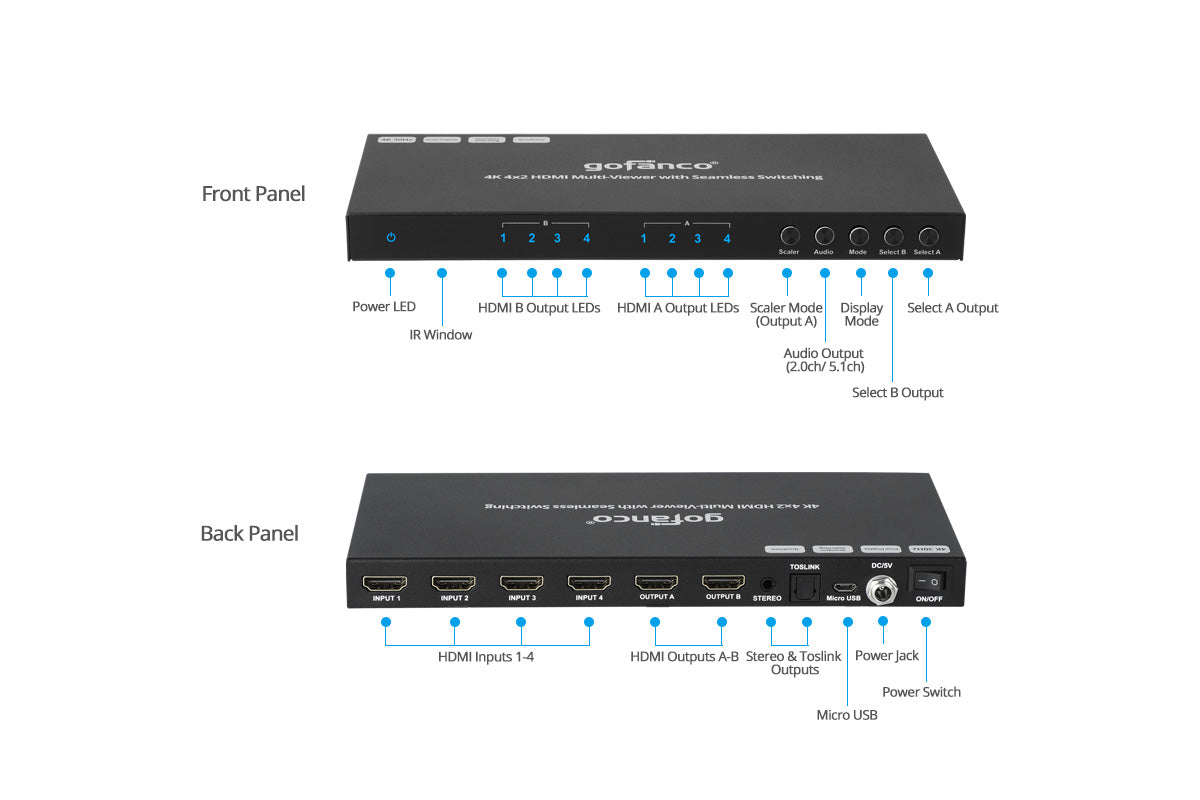

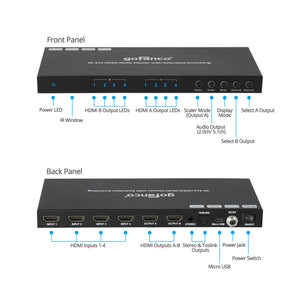

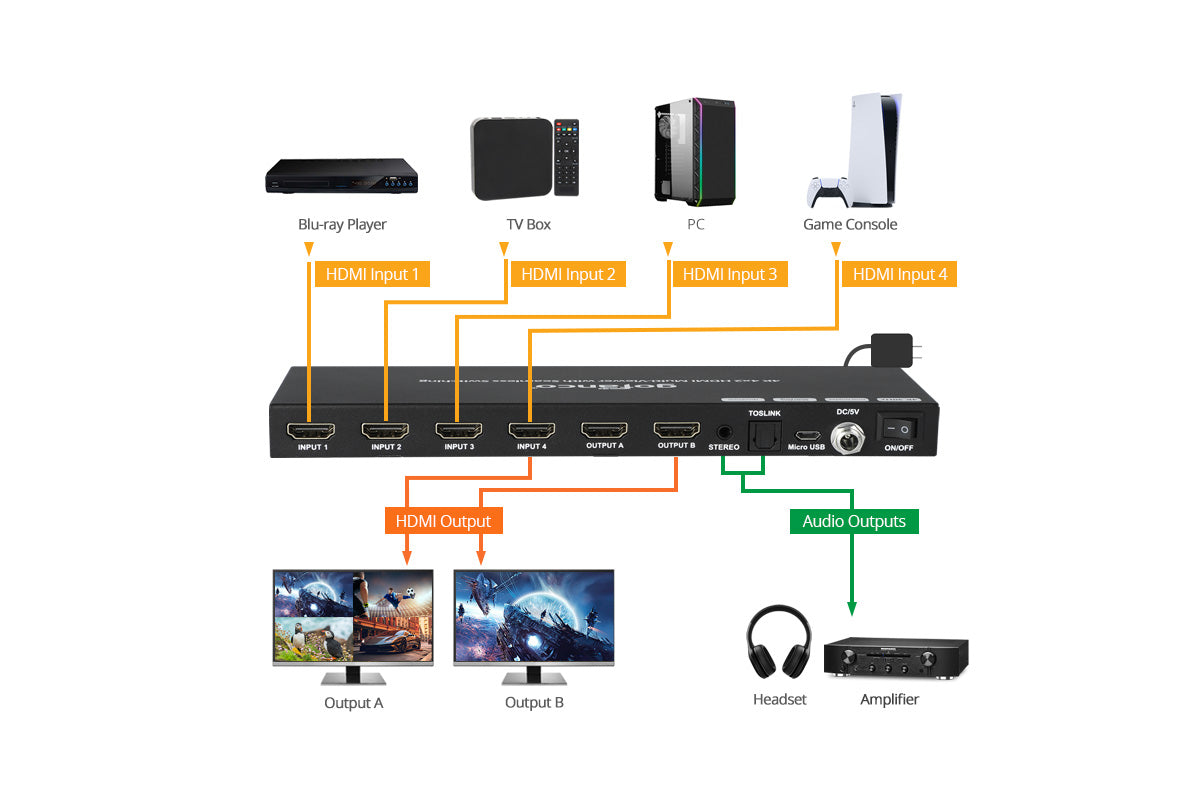

  • 4x 19-pin HDMI, Input
  • 2x 19-pin HDMI, Output
  • 1x S/PDIF, Audio Output
  • 1x 3.5mm jack, Audio output
  • 1x 5-pin Micro USB, FW updated
  • 1x Power ON/OFF Switch
  • 1x Power Jack
  • 5x Press button, Control

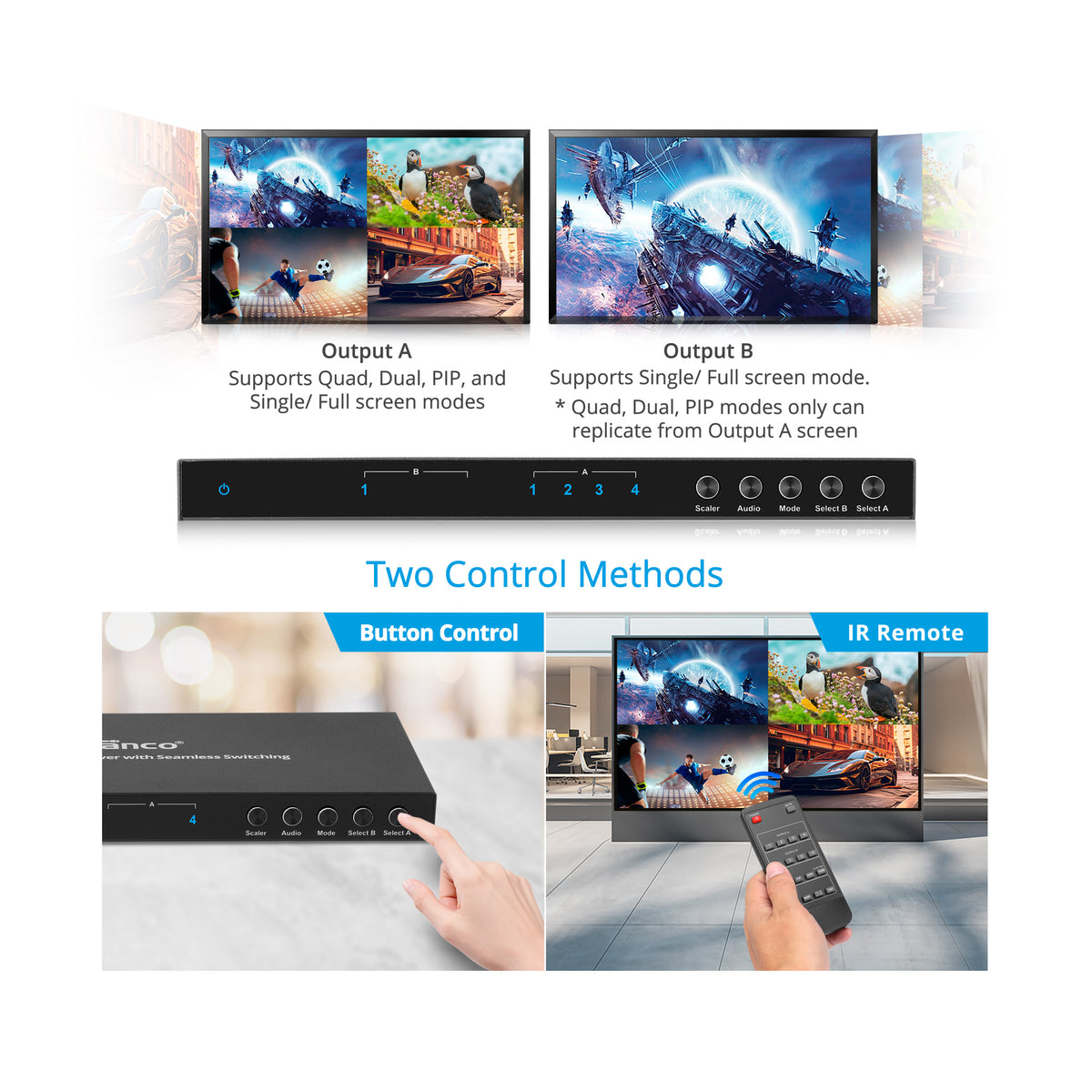

  • Output A: Supports Quad, Dual, PIP, and Single/Full screen modes
  • Output B: Can replicate Output A or display any of the 4 sources in Single/Full screen mode
  • Seamless switching: Output A (all modes); Output B (when mirrored with Output A)
  • Input resolutions: Supported 4K30Hz, 1080p, 720p. HDCP 1.4/1.3 compatible
  • Output resolutions: Output A (scales to 4K30Hz,1600p, or 1080p); Output B (passthrough from the source)

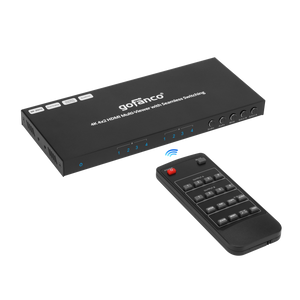

  • Control methods: Remote control and front panel button
  • Supports audio extraction (5.1ch S/PDIF & 2.0ch Stereo) following Output A
  • UPC:818354-023305
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 5 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
