3x3 Video Wall Controller-HDMI/DP/USB-C - 4K30Hz - 17 built-in splicing modes
Up to 4K30Hz, Inputs (USB-C, DP, HDMI), Ideal for digital signage, retail displays, control rooms, and commercial AV applications

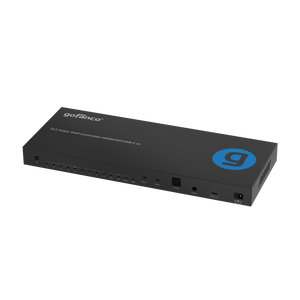

3x3 Video Wall Controller and Processor
3x3 Multiinput VideoWall Controller
Comparison Table
Specification
- Video transmission: Up to 394ft (120m) at 1080p
- Supported resolutions: 480i/480p 60Hz, 576i/576p 50Hz, 720p 50/60Hz, 1080i/1080p 50/60Hz
- HDMI 1.3, HDCP 1.4
- Audio format: LPCM 2ch 44.1KHz/48KHz
- Remote control switch mode: 1x1, 2x2, 1x2, 2x1, 1x3, 3x1, 2x3, 2x4, 4x2, 1x4, 4x1, 3x3, (Excluding 1x5, 5x1, 1x6, 6x1)
- Manual switch mode: 1x1, 2x2, 1x2, 2x1, 1x3, 3x1, 1x5, 5x1, 1x6, 6x1, 2x3, 3x2, 2x4, 4x2, 4x1, 3x3
- IR Signal: 20KHz - 60KHz

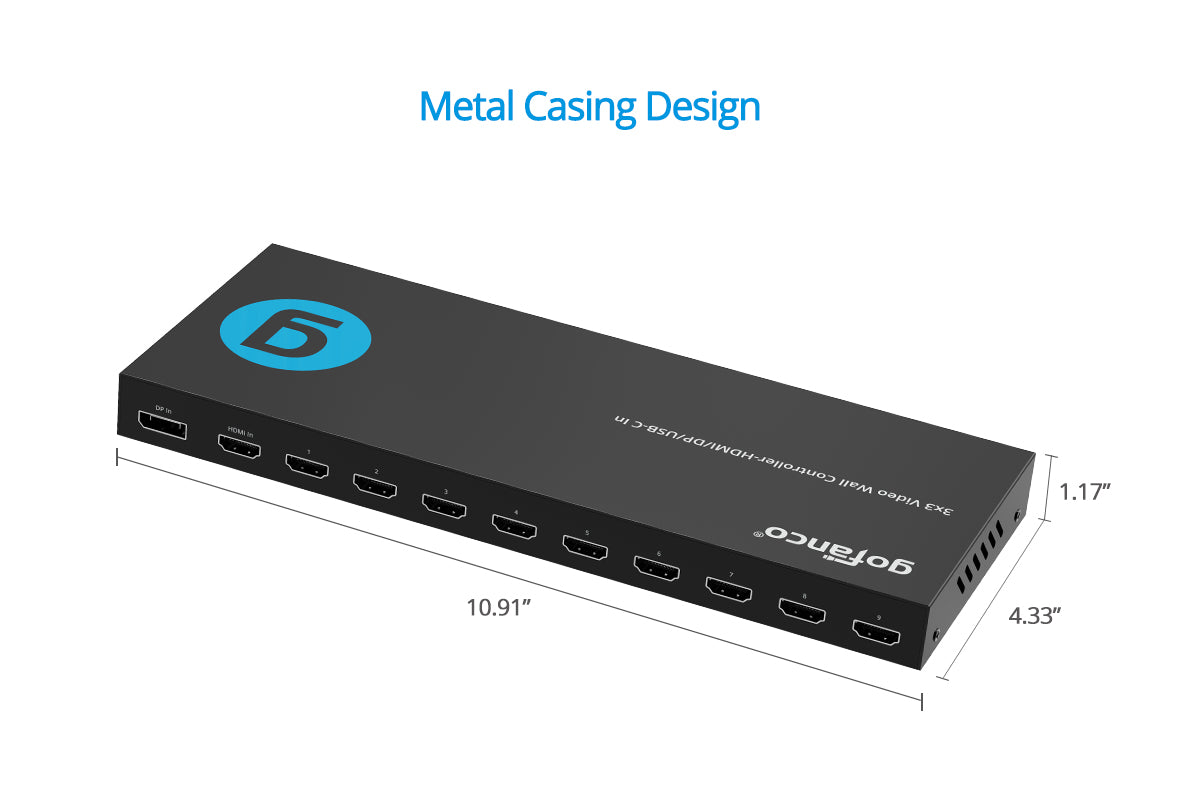

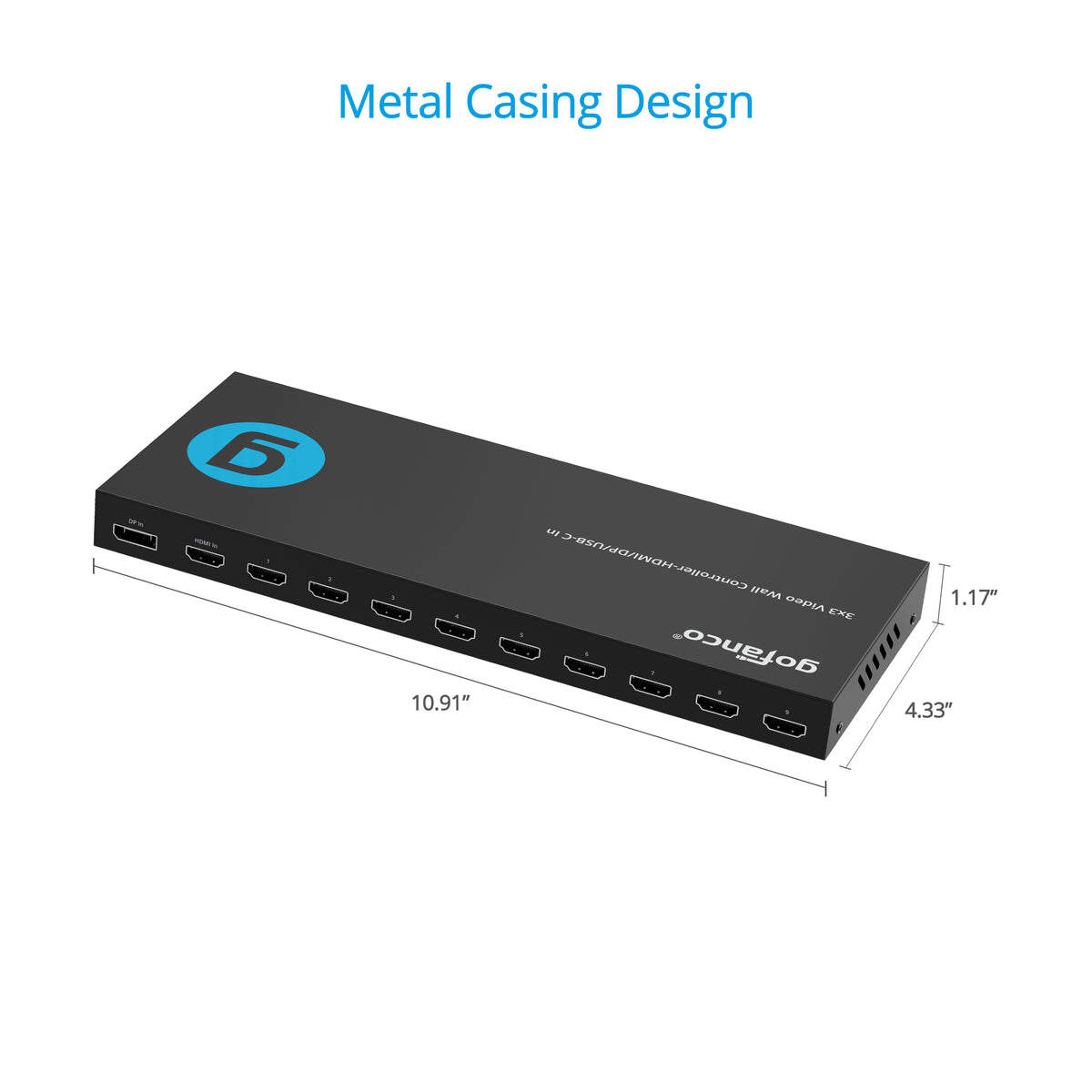

- Product Dimensions:10.91” (W) x 1.17” (H) x 4.33” (D)
- Weight:1.43 lbs
- Power Adapter: AC100 - 240V 50/60Hz, Output: 12V/1A
- Housing Material / Color: Metal / Black color

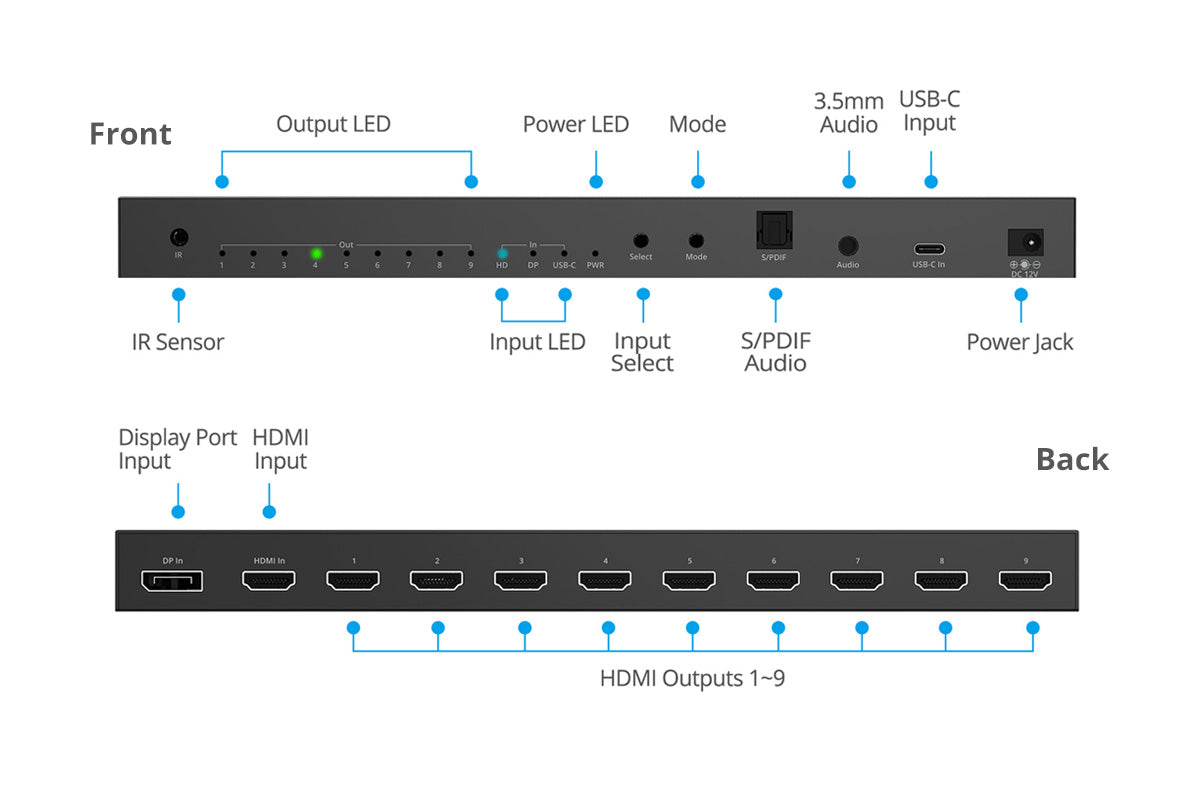

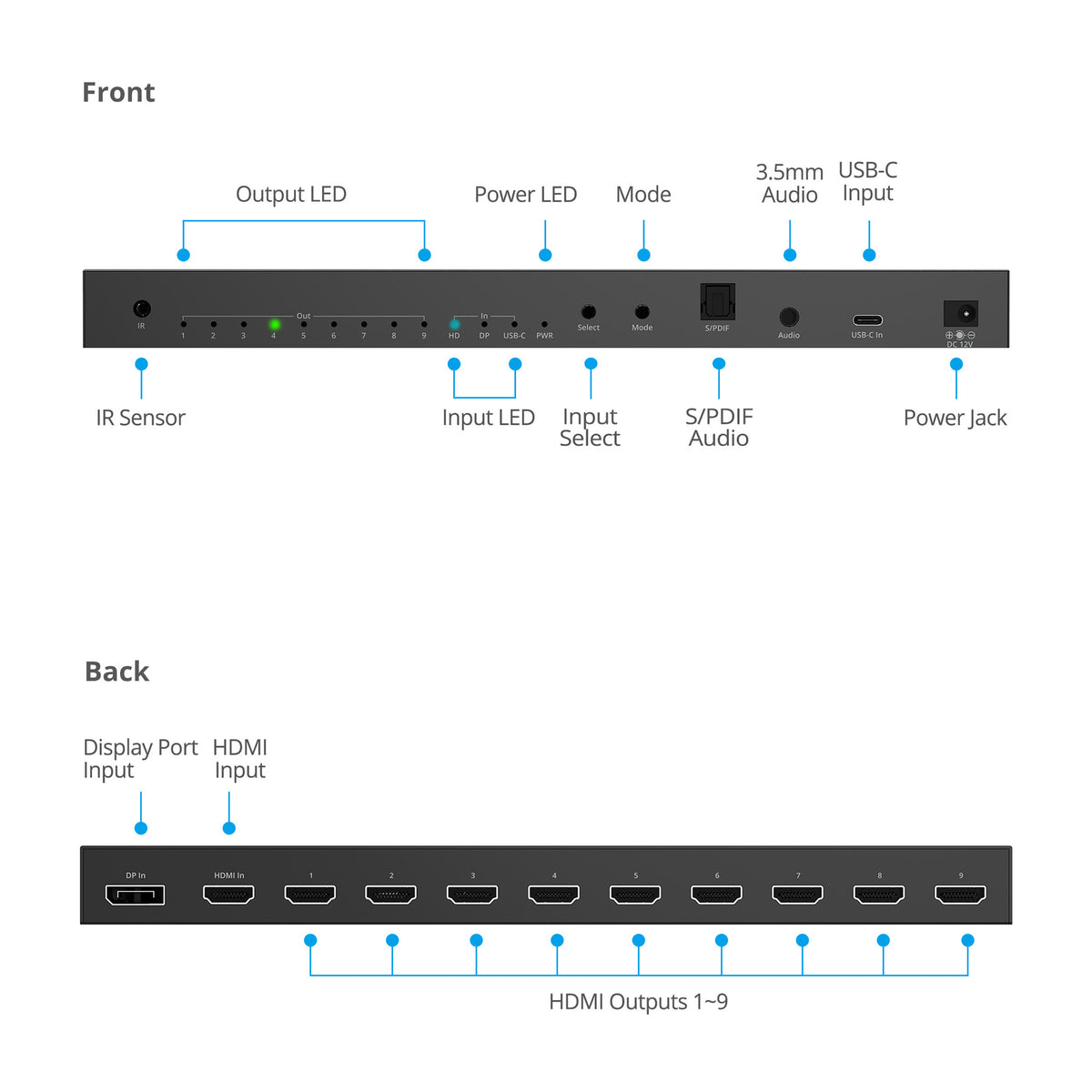

Connection
- 1x 20-pin, DisplayPort, Input
- 1x 19-pin, HDMI, Input
- 1x 24-pin, USB-C Input
- 9x 19-pin, HDMI Output
- 1x 3.5mm jack, Audio output
- 1x S/PDIF(Toslink), Audio output
- 1x Power Jack
- 1x Button, Mode switch
- 1x Button, Input selection
Features

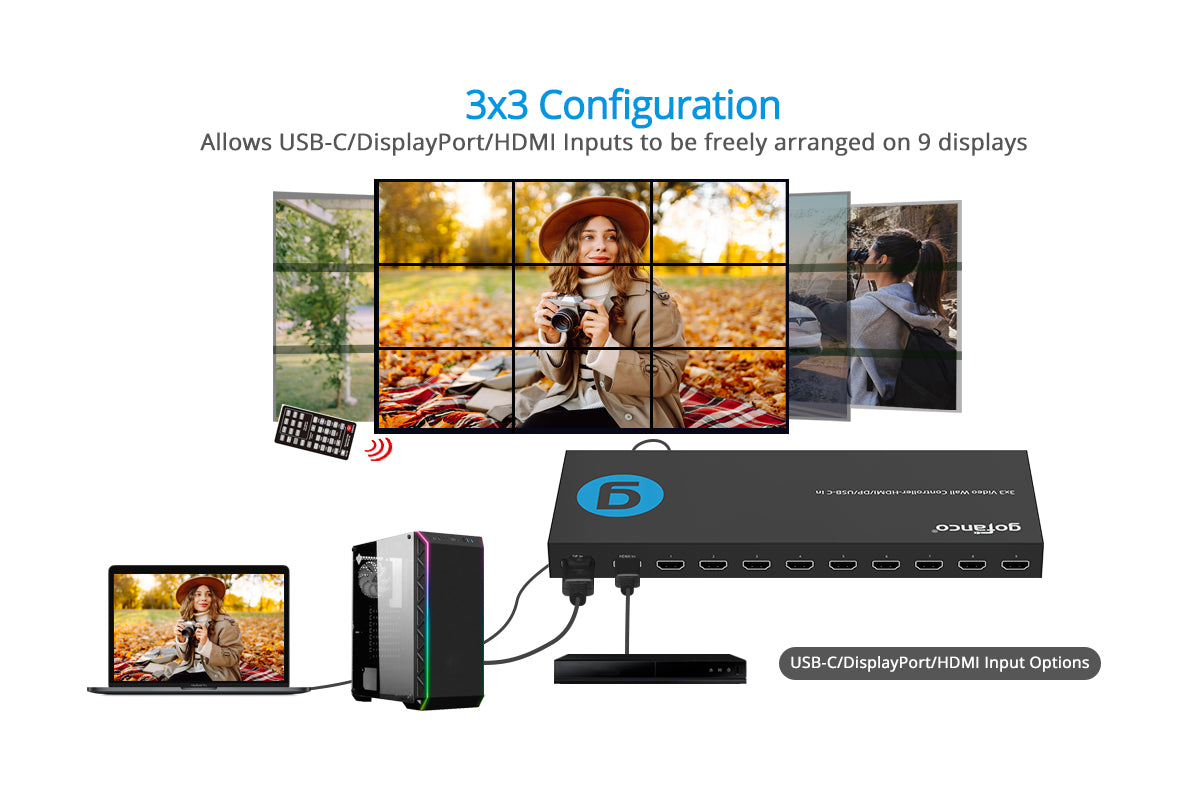

- Supports input signal: HDMI, DisplayPort or USB-C
- Supports input resolution: 1080p 60Hz, 4Kx2K 30Hz
- Supports output resolution: 1080p 60Hz, 4Kx2K 30Hz

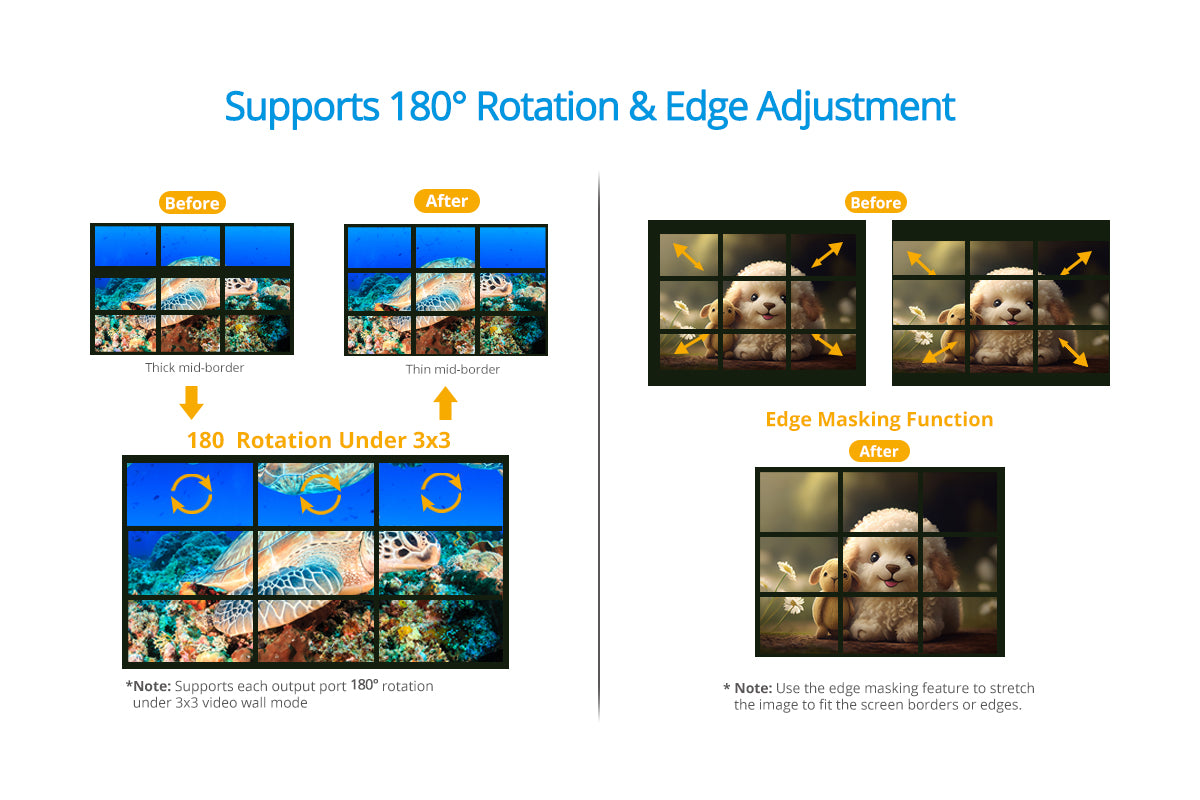

- Supports 180 degree image rotation
- Support screen flipping and proportional scaling

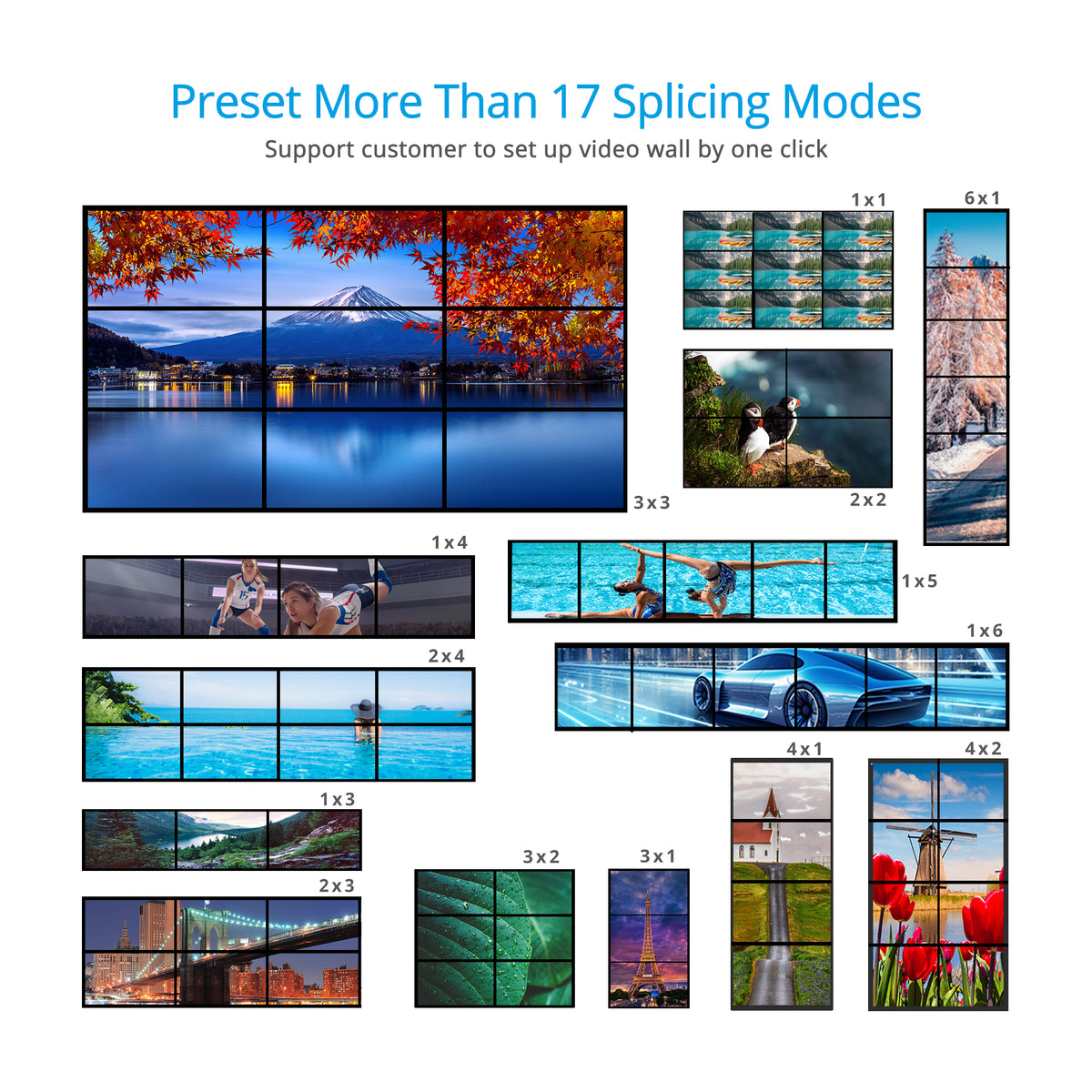

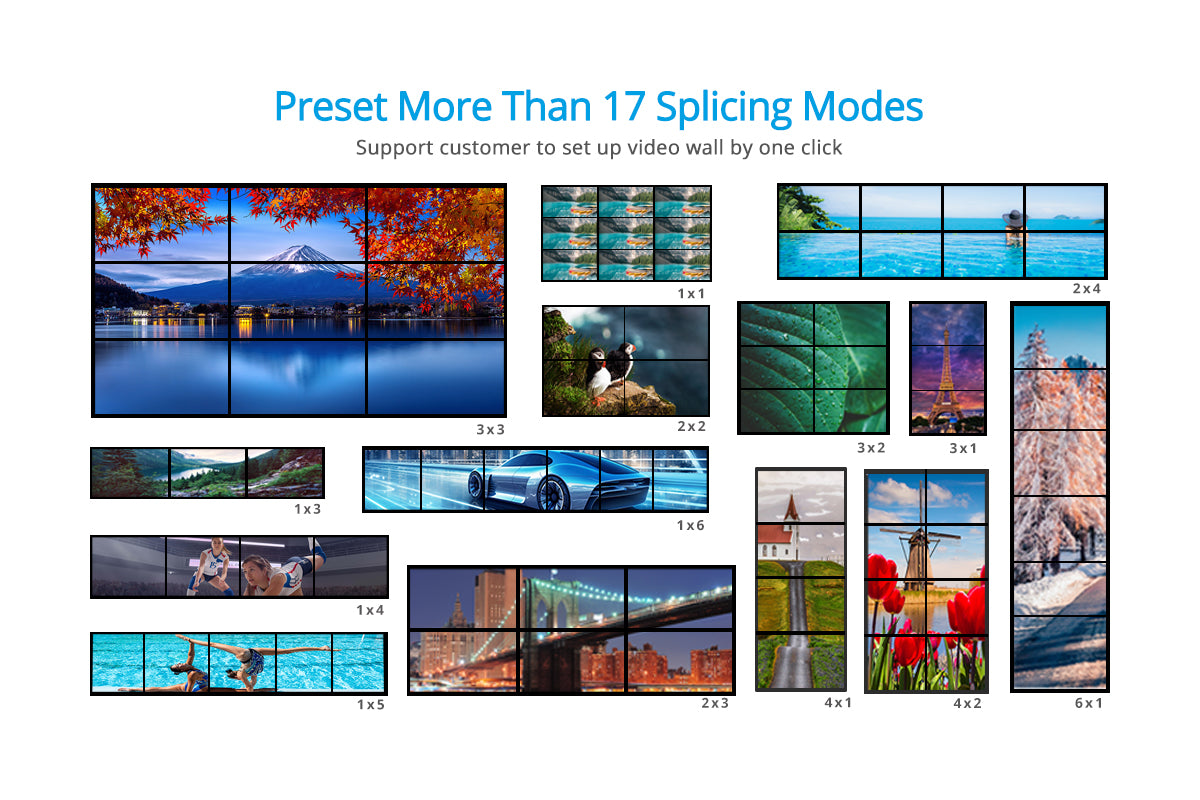

- Product includes a total of 17 splicing modes
- Metal casing design and overall shielding without signal inter ference
- Easy to install, plug and play, no drivers needed
- Supports S/PDIF and Analog audio extraction
Standard
- UPC: 818354-023510
- Operation Temperature: 32 to 104 degrees F
- Storage Temperature: -4 to 140 degrees F
- Relative humidity: 5 to 90% RH (non-condensing)
- Regulatory approvals: FCC / CE / RoHS
- Limited One-Year Warranty and Lifetime Product Support
- Country of origin: China

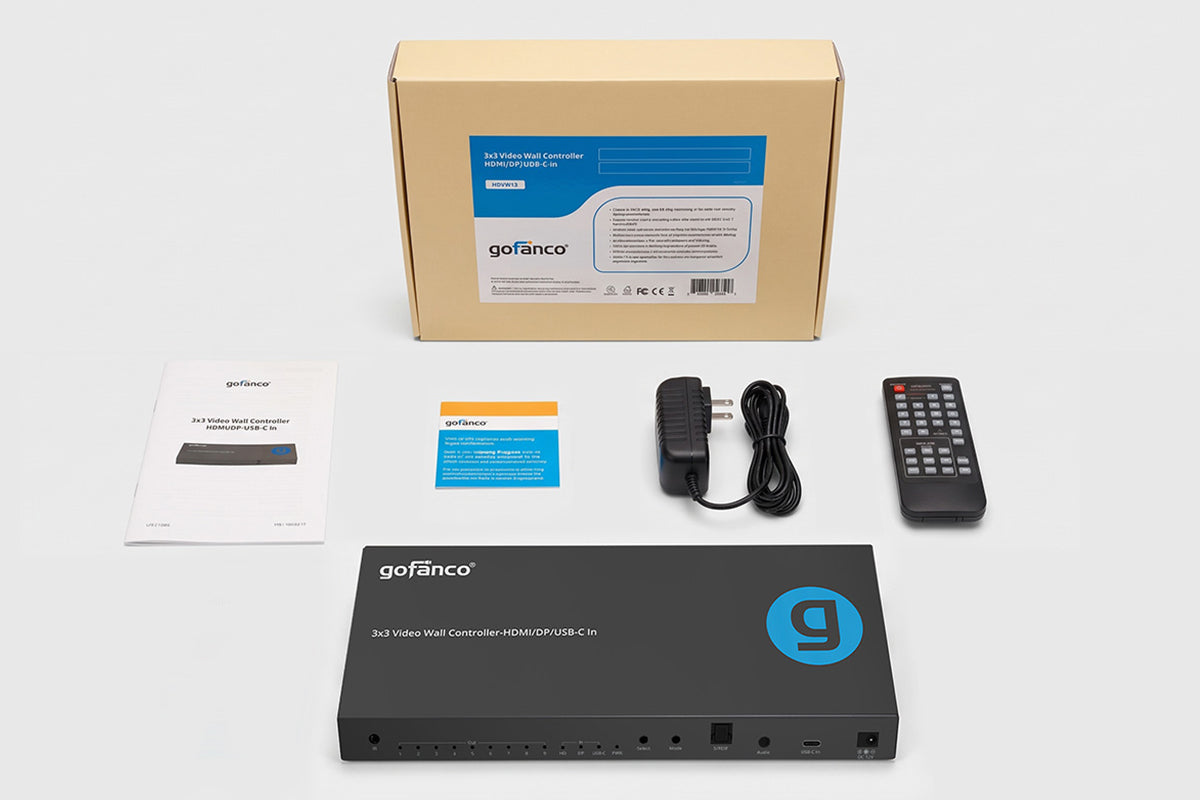

- 3x3 Video Wall Controller-HDMI/DP/USB-C In
- Power adapter (12V/1A)
- Remote control
- User Manual
Manual

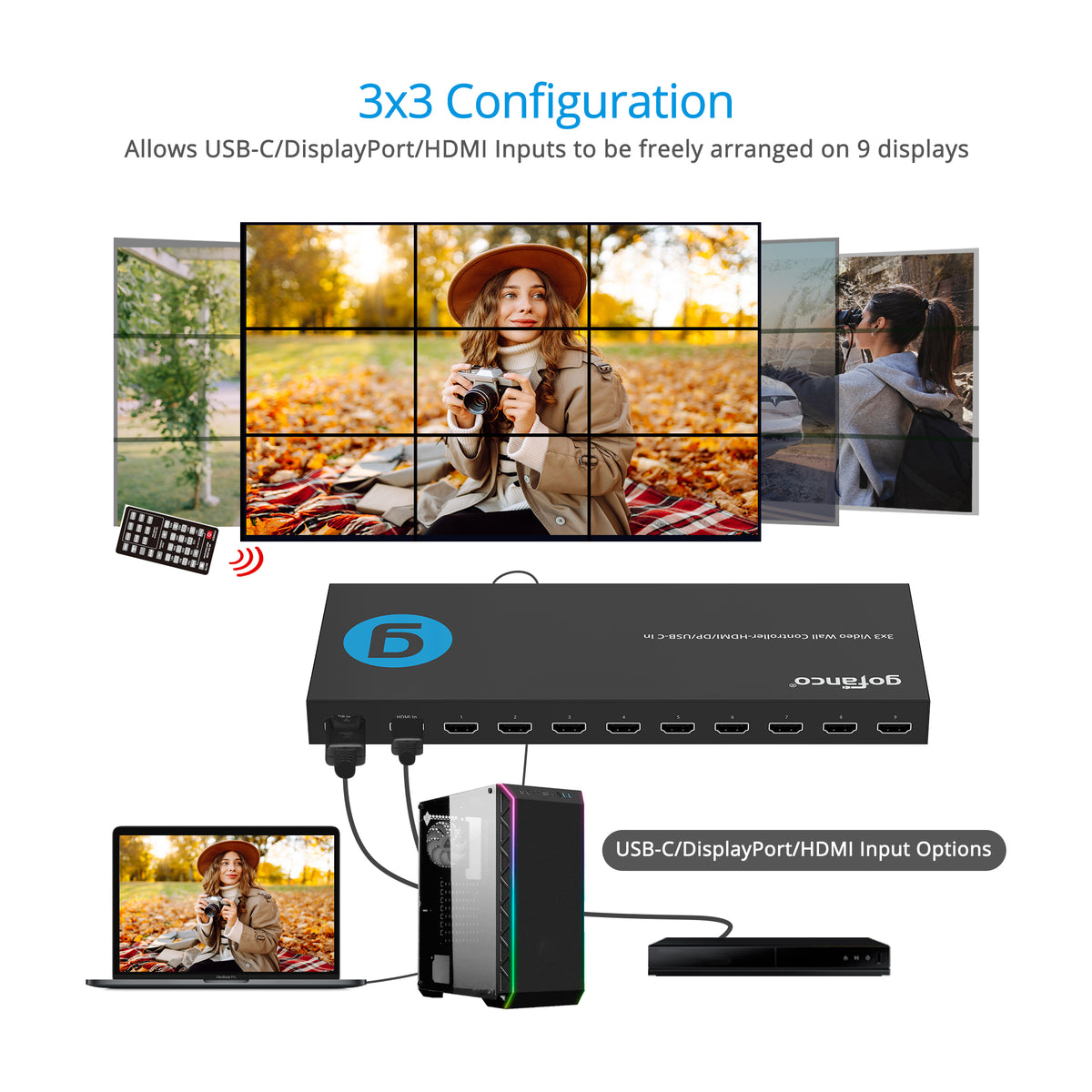

Does this controller support 4K input for a 9-screen setup?
Yes. It supports up to 4K30Hz input via HDMI / Dis playPort or USB-C. The signal is then scaled and distribued across nine 1080p displays
My screens are mounted upside down to reduce bezel thickness. Can the image be adjusted?

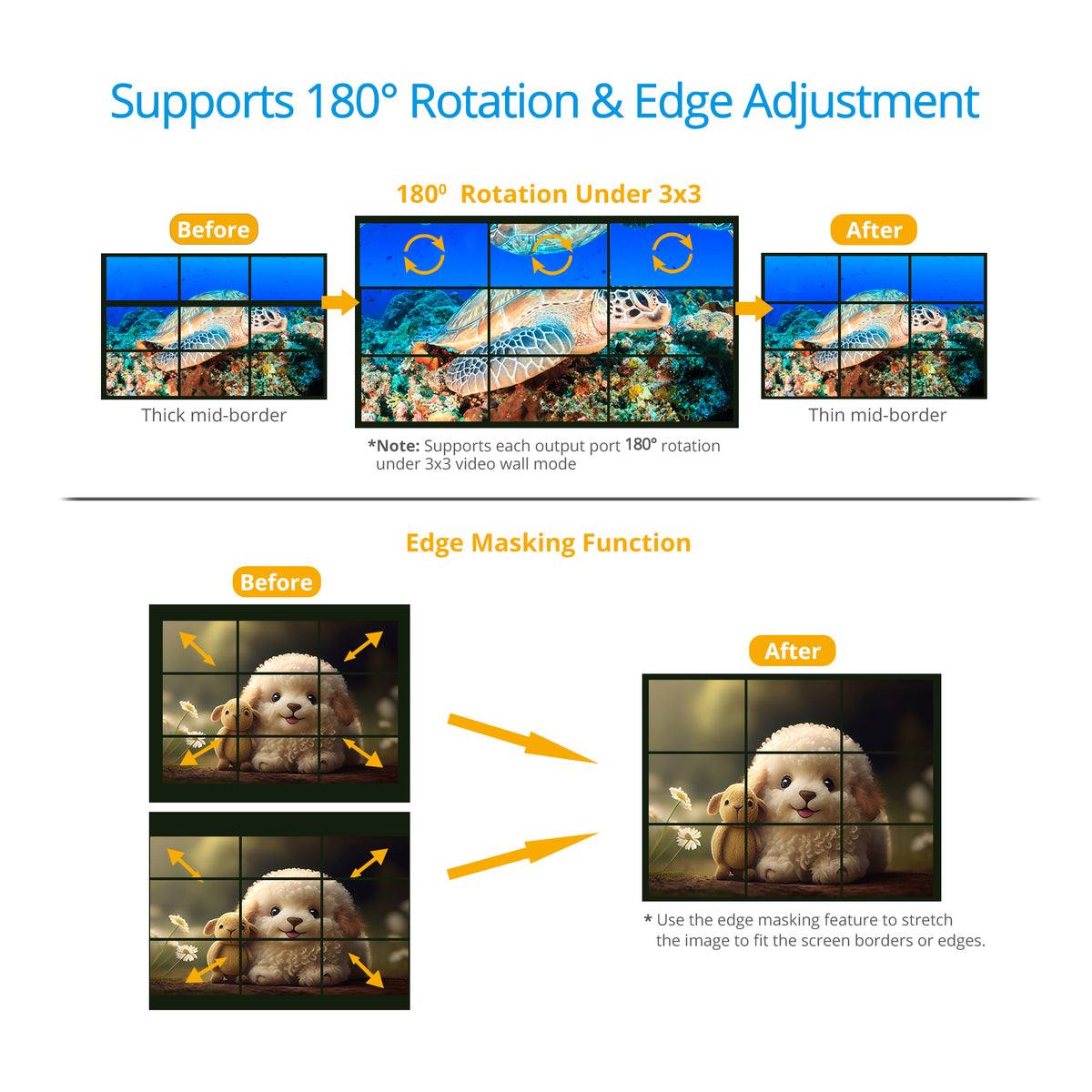

Yes. The unit features a 180° Image Rotation function, specifically designed for bottom-to-bottom monitor mounting in video wall configurations.
Can I extract audio to an external sound system?
Yes. It includes dedicated Toslink (S/PDIF) and 3.5mm Stereo outputs to bypass display speakers and connect directly to amplifiers or mixers.
Is there any software or driver Installation required?
No. This is a Plug-and-Play hardware-based solution.

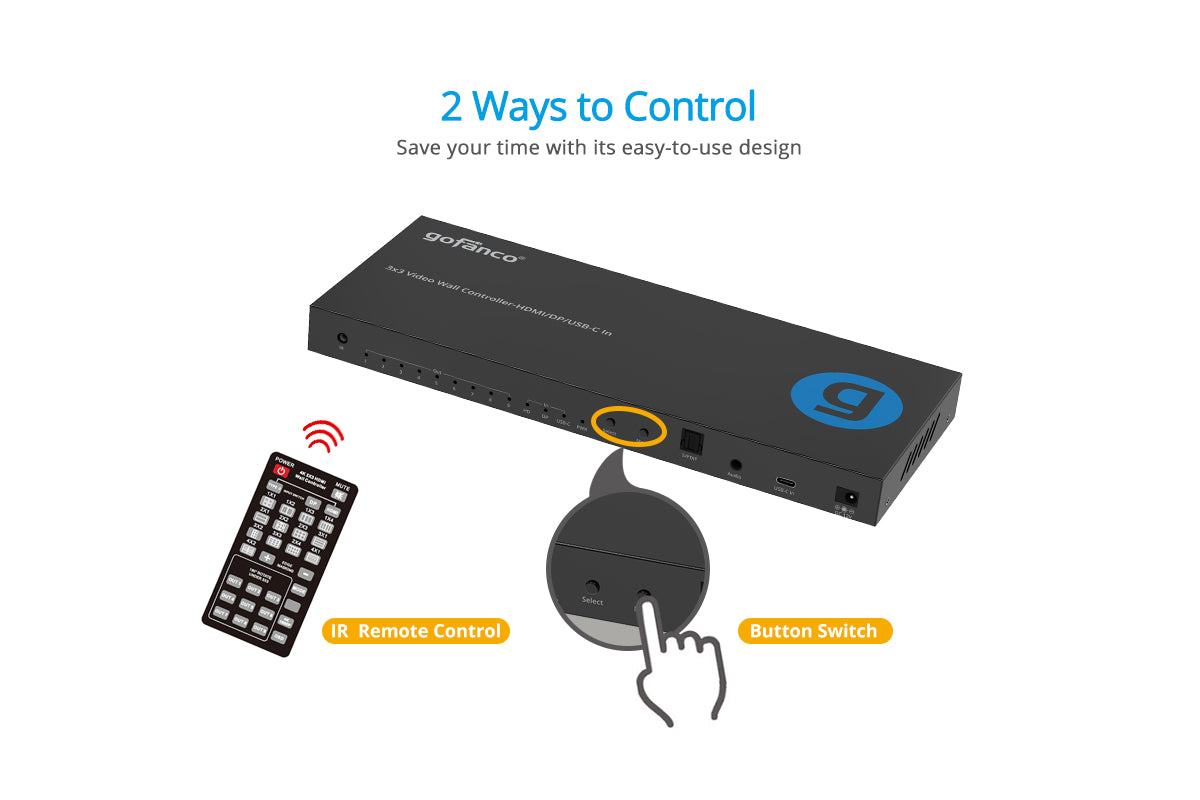

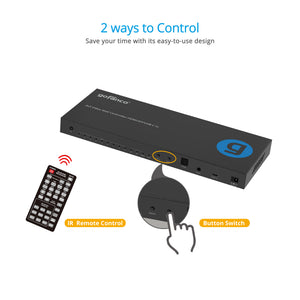

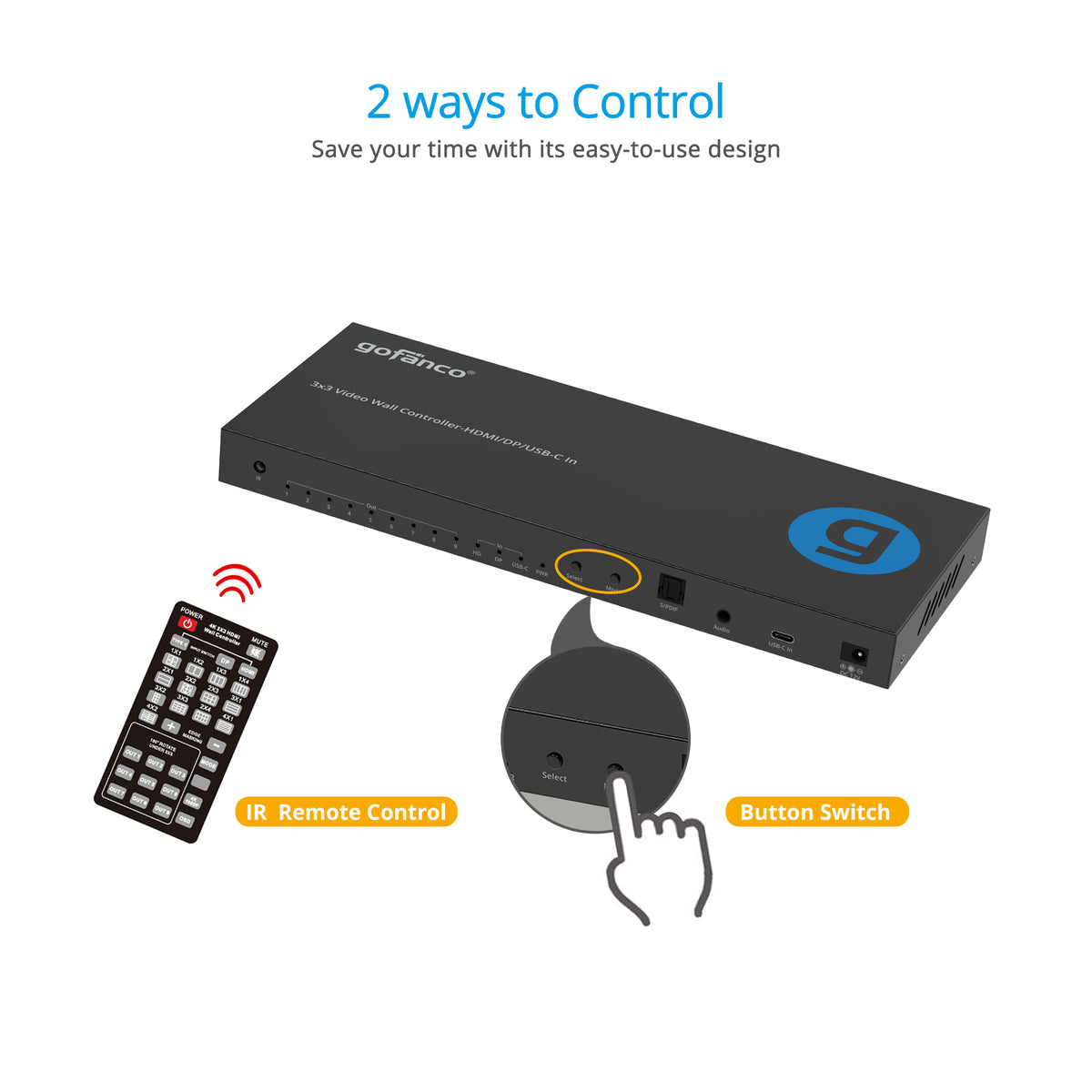

No drivers or PC software are needed; all settings are managed via the front panel or IR remote.
What splicing modes are available besides 3x3
The device supports 17 splicing modes, including common layouts like 2x2, 1x3, 1x9, and 3x3, providing flexibility for different digital signage orientations
