2-Port HDMI Extender over CAT5e/6 w/ Loopout - 50m

Sale price $109.99

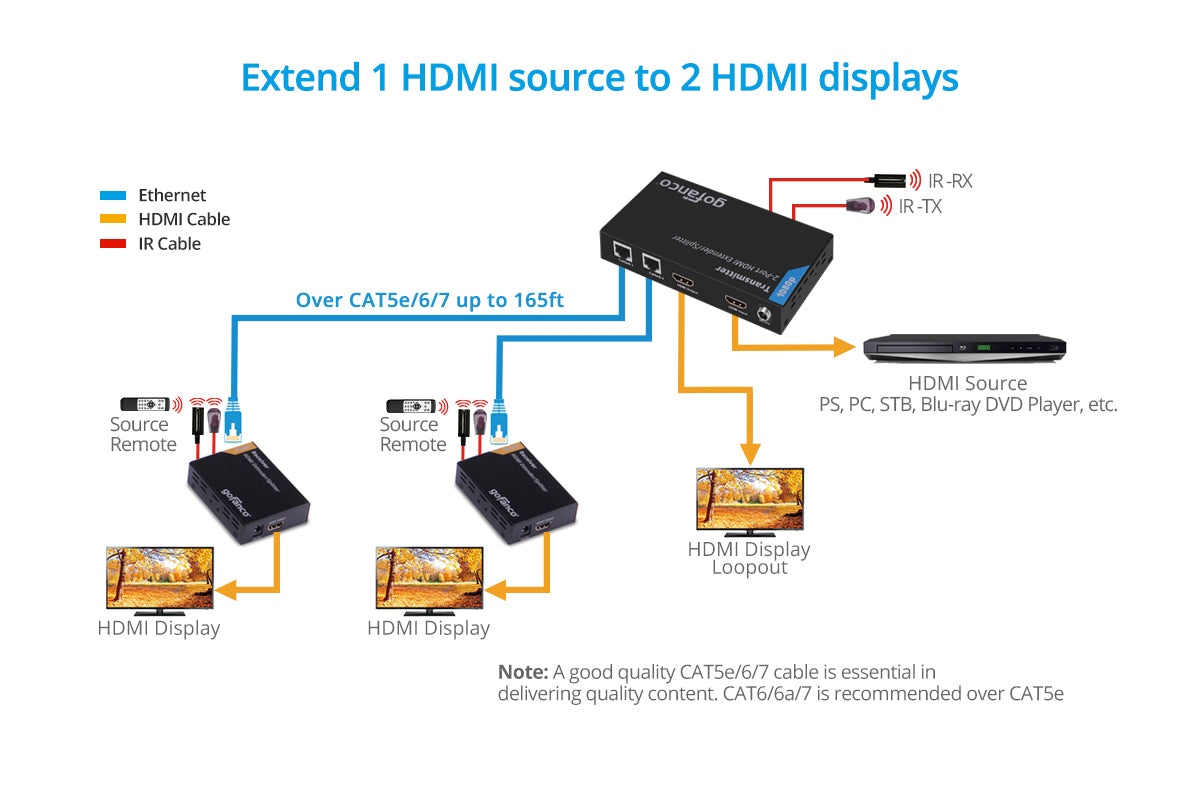

Extend and distribute 1 HDMI source to 2 HDMI displays over CAT5e/6/7 simultaneously. Supports up to 50m (165ft) at 1080p 60Hz and includes local HDMI output.

Out of stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
Full HD 1x2 Extender
Distance up to 50m
Daisy-chain up to 4 layers
EDID Management
IR Bi-directional

2-Port HDMI Extender/Splitter

Extend and distribute 1 HDMI source to 2 HDMI displays over CAT5e/6/7 simultaneously

2-Port 1080p HDMI Extender Splitter with Daisy-Chain

Resolution

Supports Clear Full HD 1080p Video at 60Hz

Extended

Extends HDMI Signals Up to 165 Feet Away

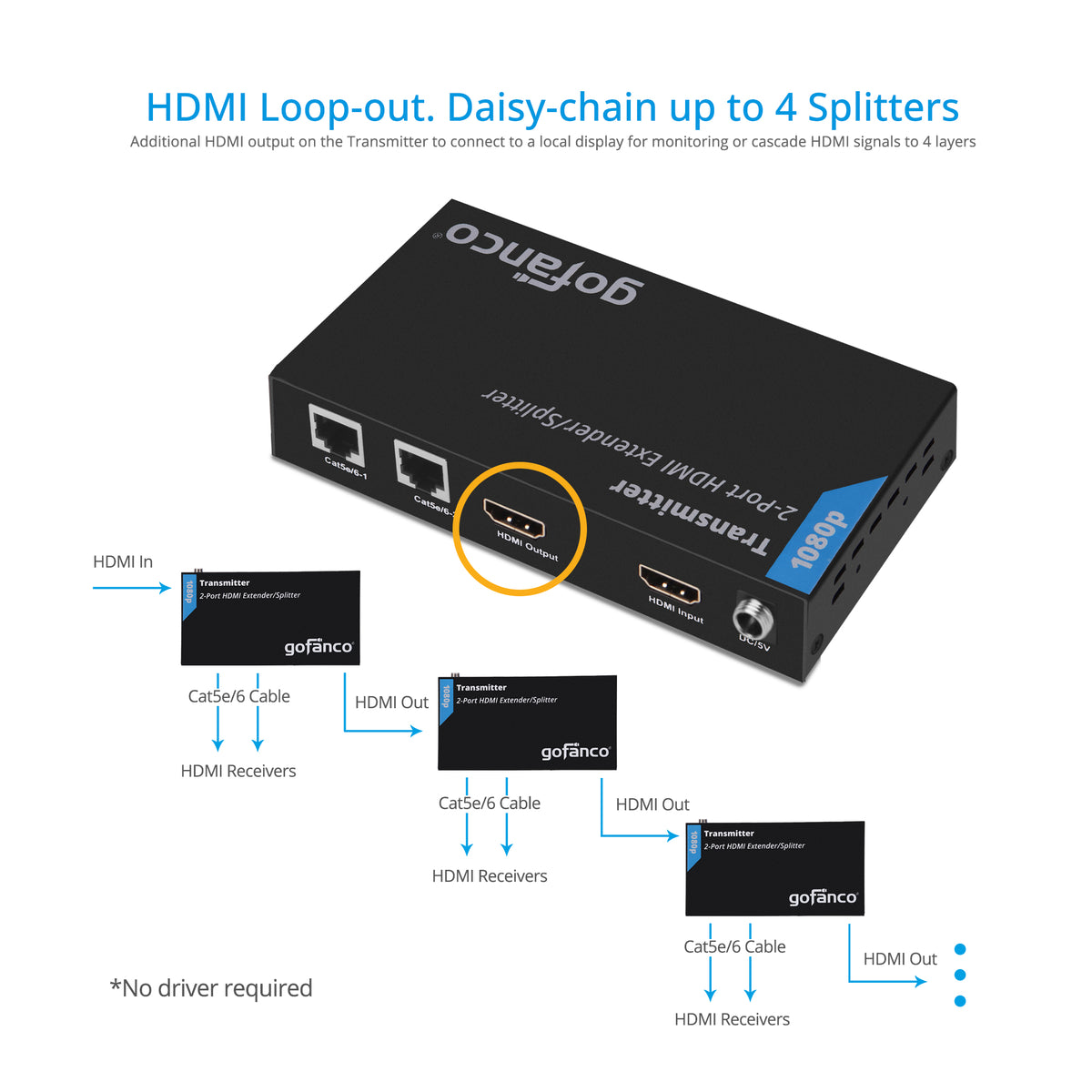

Cascade

Supports Up to 4-Layer Cascaded Extensions

IR

Full IR Remote Control without Distance Limit

Extender/ Splitter

Extend and split one HDMI source to two displays & one HDMI outputs simultaneously with near zero latency

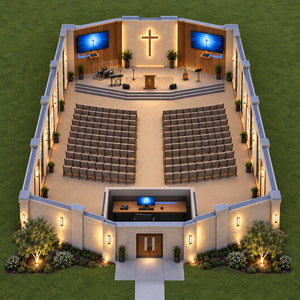

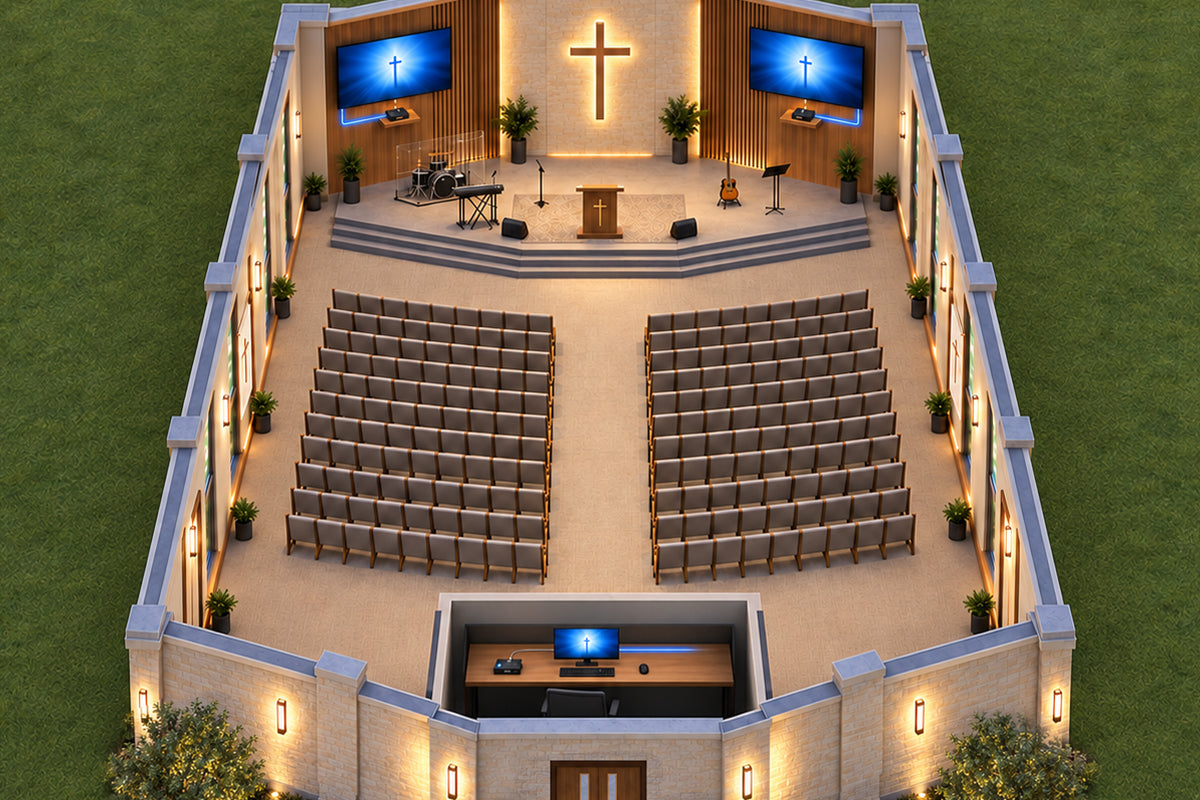

Dual-Display Worship Presentation

Extend one HDMI source to two synchronized displays, delivering clear worship visuals to the congregation from a central control station

Advanced Features

Cascade up to 4 layer / Bi-directional IR/ EDID Management/ Mountable
Specification
  • Video resolutions: 480p / 720p / 1080i / 1080p, 1920x1200
  • HDCP 1.4 compliant
  • HDMI Audio: 5.1-ch / 7.1-ch, Dolby True-HD, DTS-HD Master Audio
  • Product Dimensions: 5.87″(W) x 1.10″(H) x 3.11″(D)
  • Weight: 2.16 lbs
  • Power Adapter: AC100 - 240V 50/60Hz, Output: 5V/2A(TX) / 5V/1A(RX)
  • Housing Material / Color: Metal / Black color

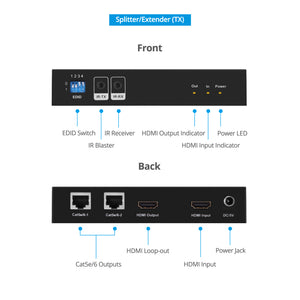

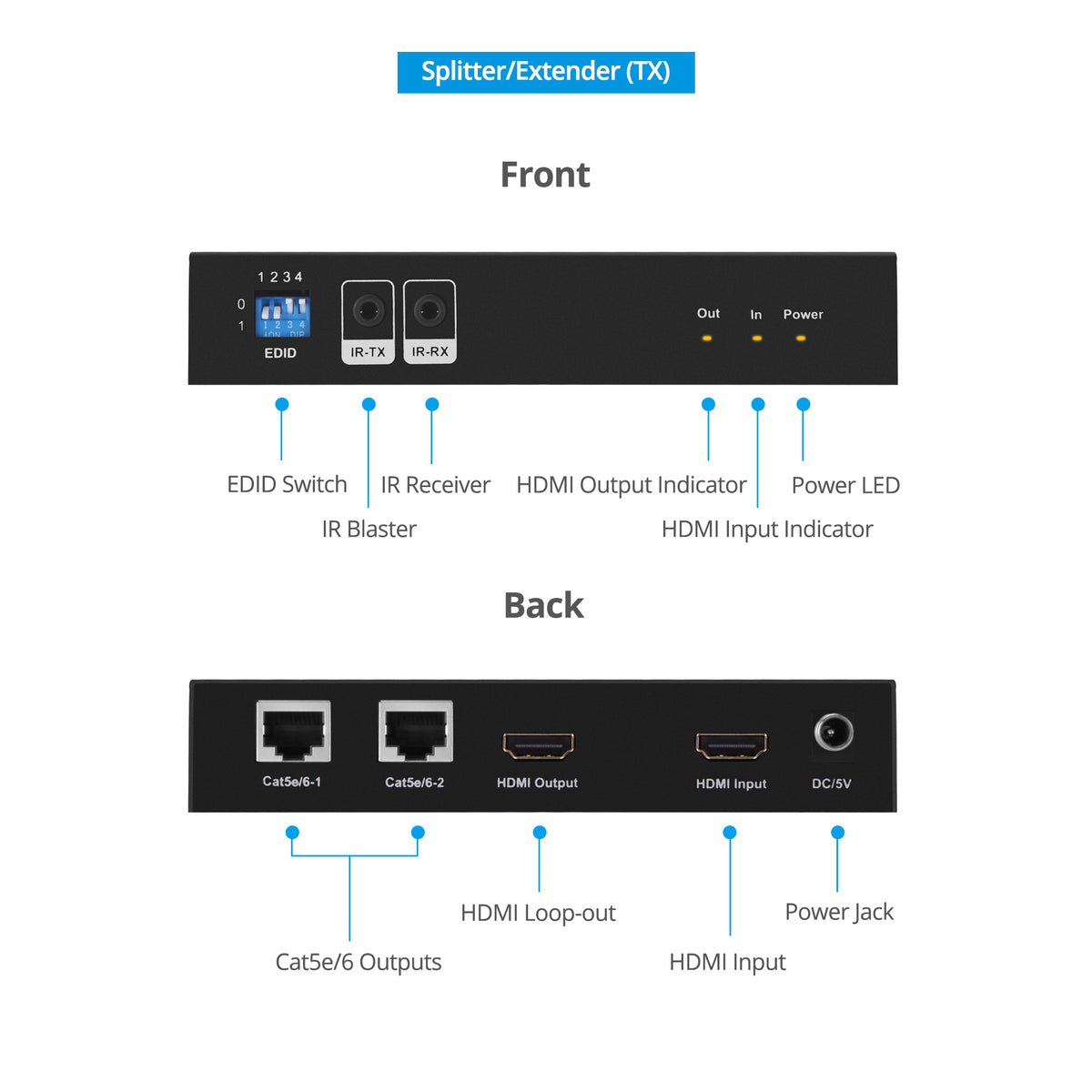

TX

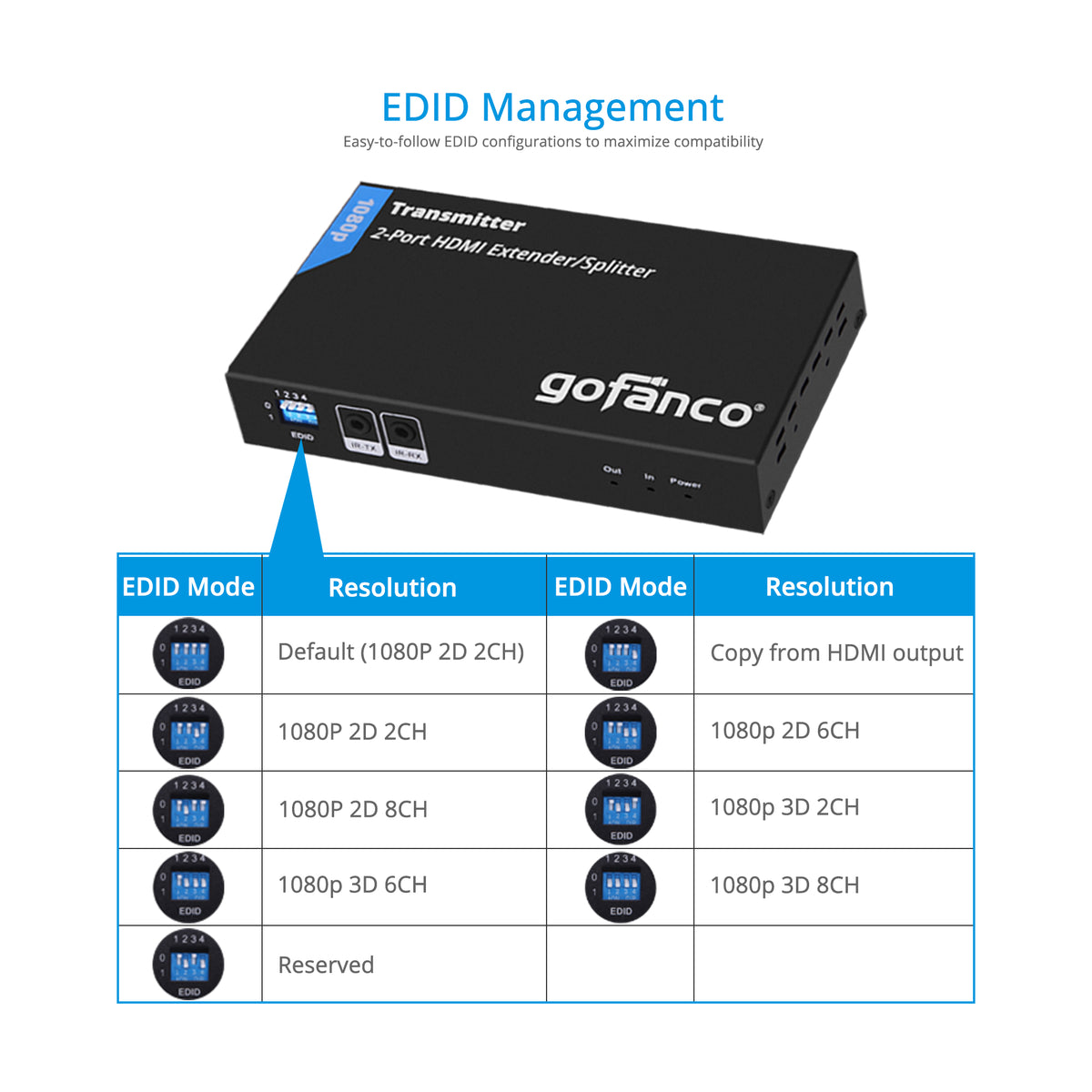

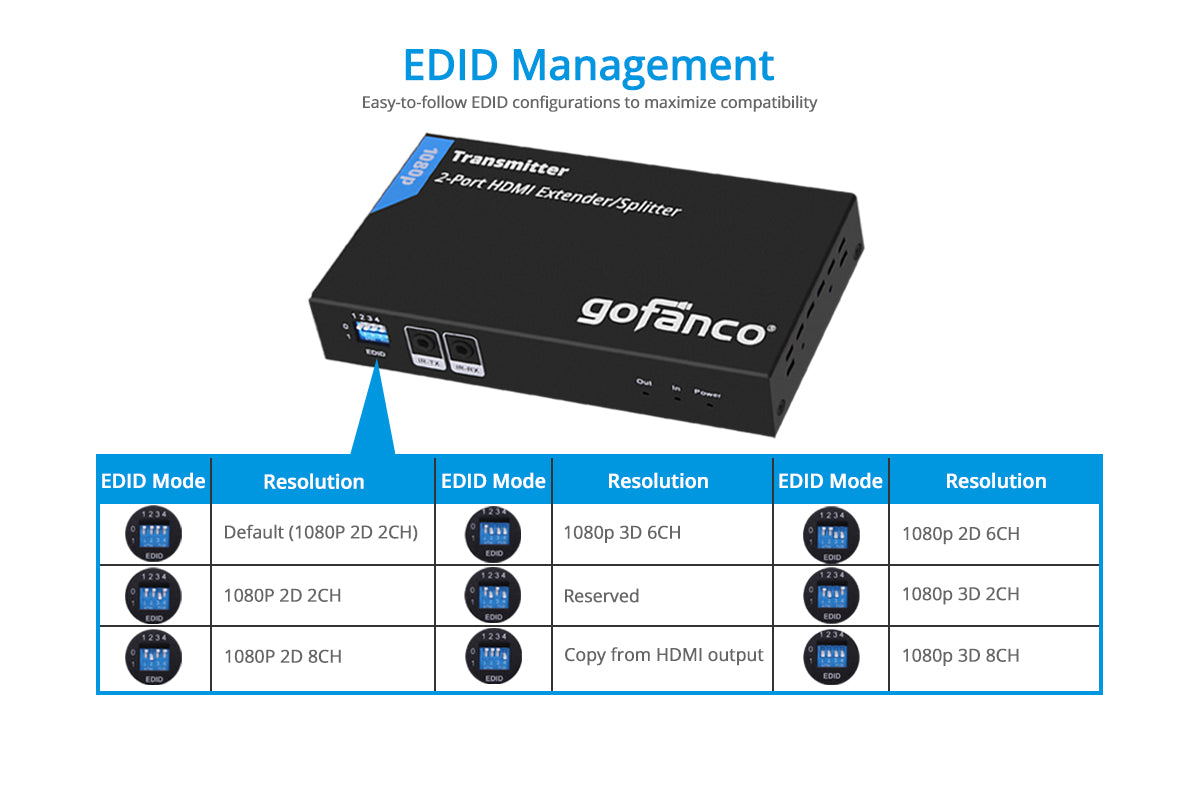

  • 1x 4-pin DIP Switch, EDID
  • 2x 3.5mm jack, IR In/Out
  • 2x 8-pin RJ45, Output
  • 2x 19-pin HDMI, Input/Output
  • 1x Power jack

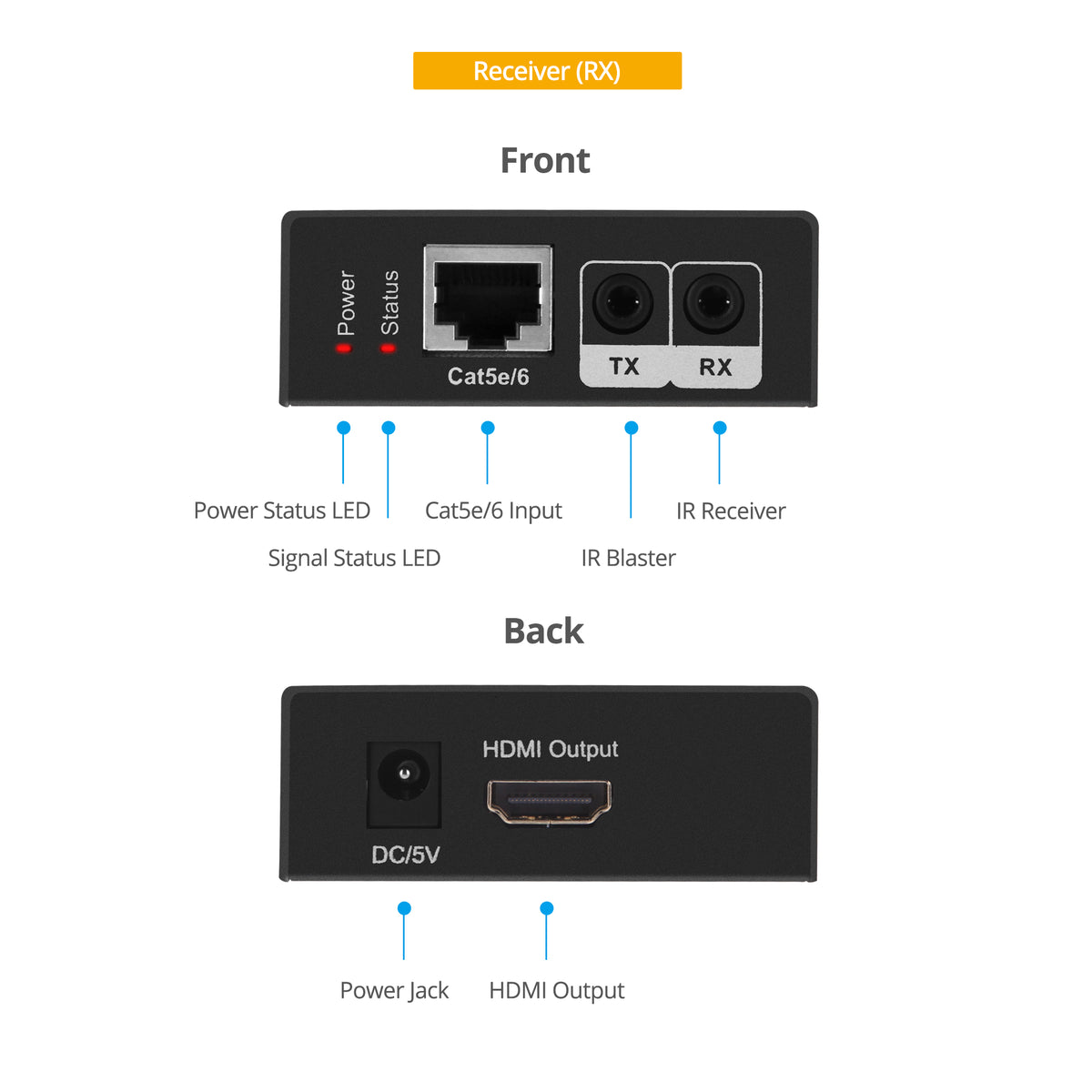

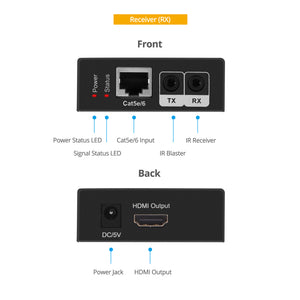

RX

  • 1x 19-pin HDMI, Output
  • 2x 3.5mm jack, IR In/Out
  • 1x 8-pin RJ45, Input
  • 1x Power jack
  • Distributes an HDMI signal over 2 identical Cat5e/6 outputs simultaneously
  • Includes one pass-through HDMI to use for connecting to more splitters or an HDTV
  • Transmit an HDMI signal up to 50m away over a single Cat5e/6 cable link

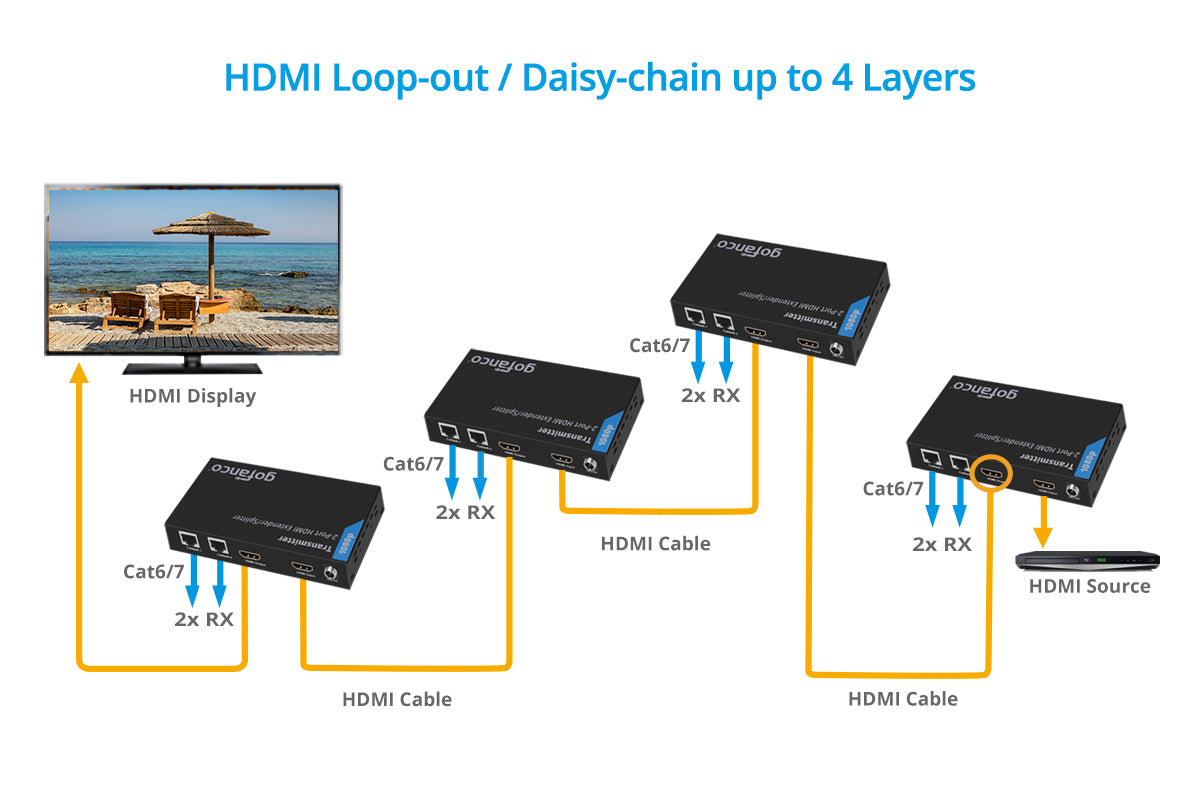

  • Up to 4 splitters can be daisy-chained, driving a total of 9 displays

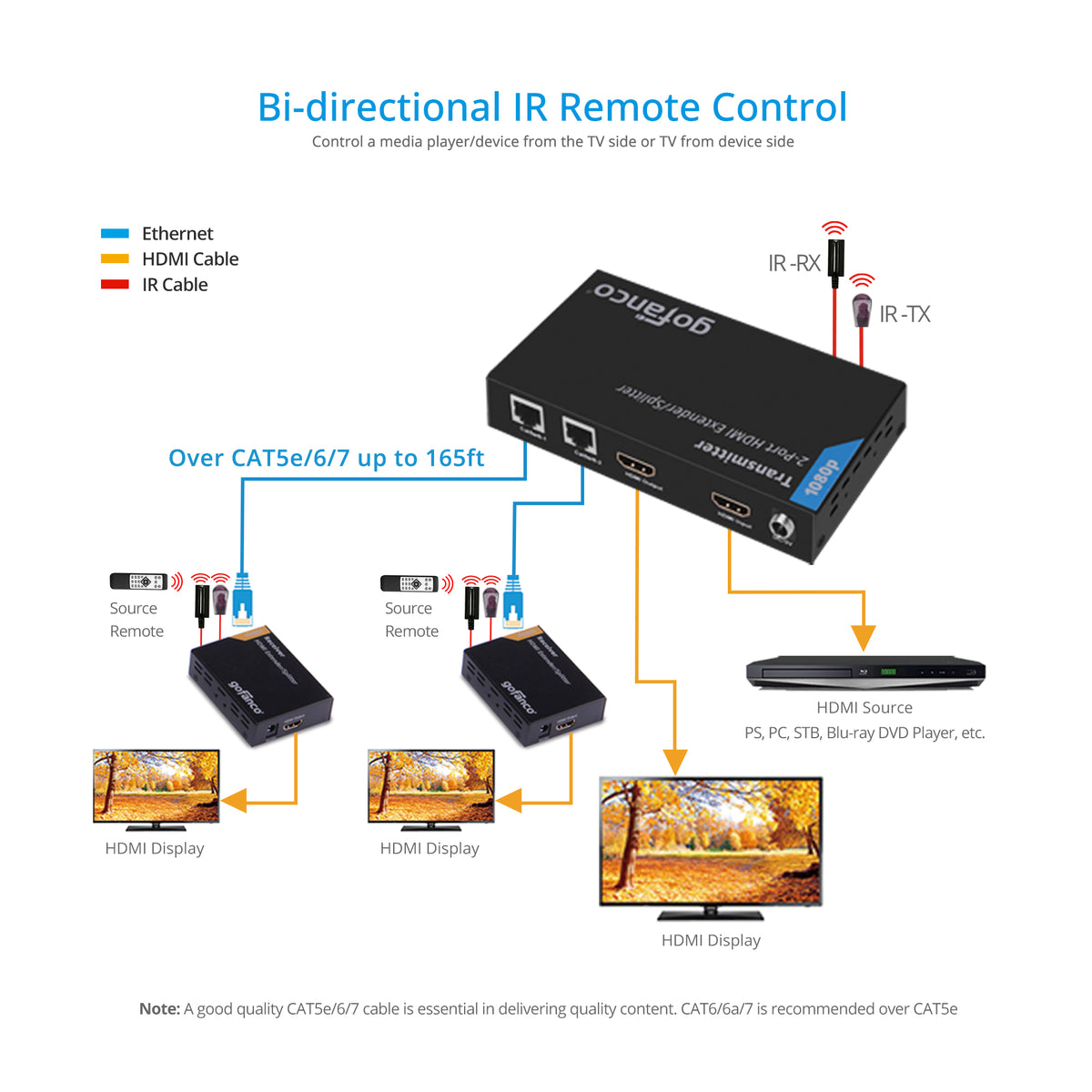

  • Transmits the IR control signal along with the HDMI audio and visual signal via a wide-band bi-directional IR extension (38 - 56 KHz)
  • Easy configuration via the EDID DIP switch
  • Full HD support (1080p), max VESA resolution of 1920x1200
  • 3D video support
  • UPC:818354-020380
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 158 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
