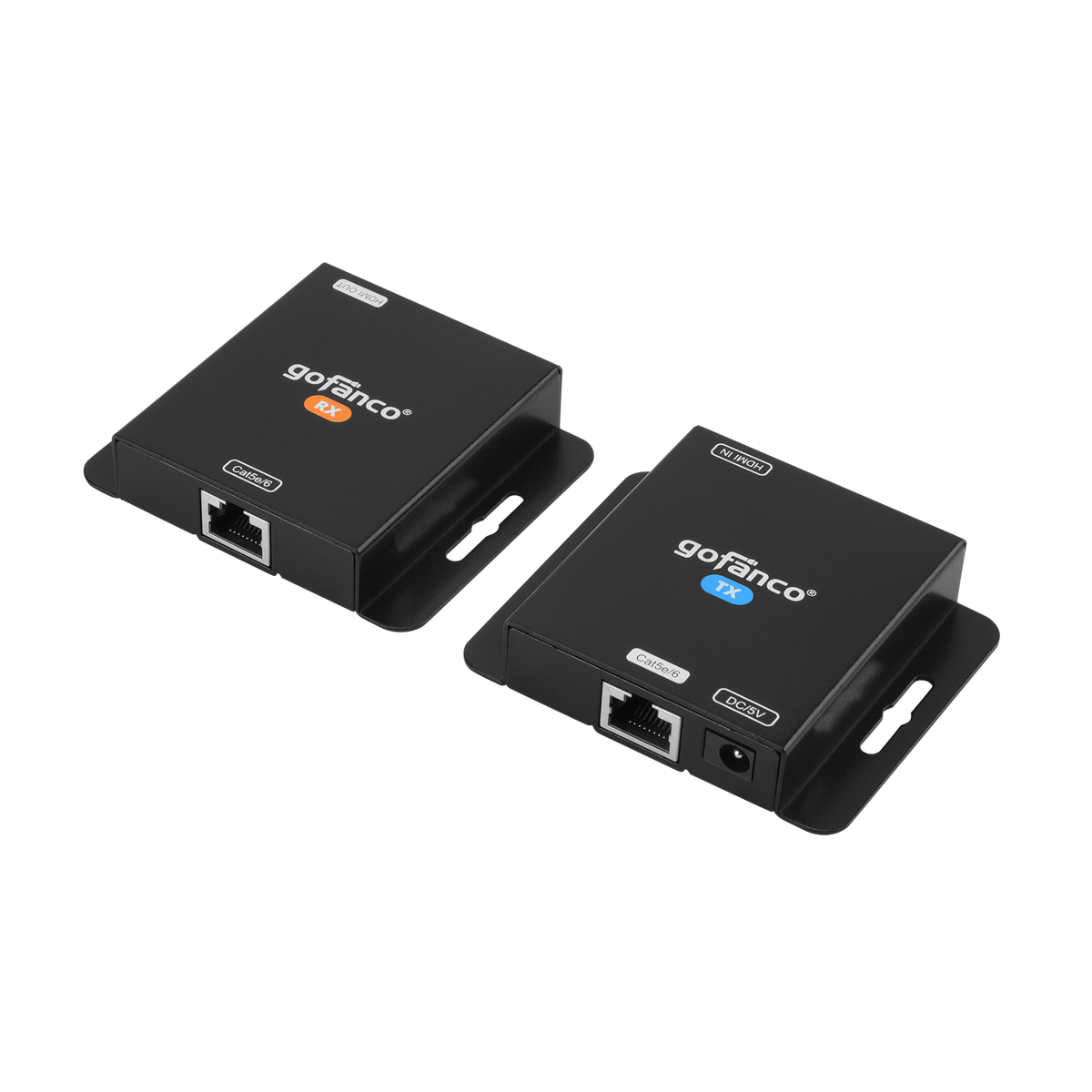

HDMI Extender over CAT5e/6 1080p – 60m

Sale price $35.99

Up to 197ft (60m), 1080p 60Hz, 1080i, 720p, 3D, HDCP 1.4, Power-Over-Cable (PoC), LPCM 2.0 Audio, Surface Mountable (v3.0)

141 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
Cost Effective Extender
Distance up to 70m
Power over Cable
LPCM 2.0 48KHz Audio
Mountable Metal Enclosure

HDMI Extender over Cat5e/6 1080p

Extends HDMI video/audio signals over a cost effective CAT5e/6 cable up to 197ft

Cost-Effective 1080p HDMI Extender over Single CAT

Economic

Value-Driven Solution for Budget AV Setup

Resolution

Full HD 1080p Resolution at 60Hz Refresh

Extended

Reliable HDMI Extension Up to 197 Feet

PoC

One-Side Power Adapter Powers Both TX and RX

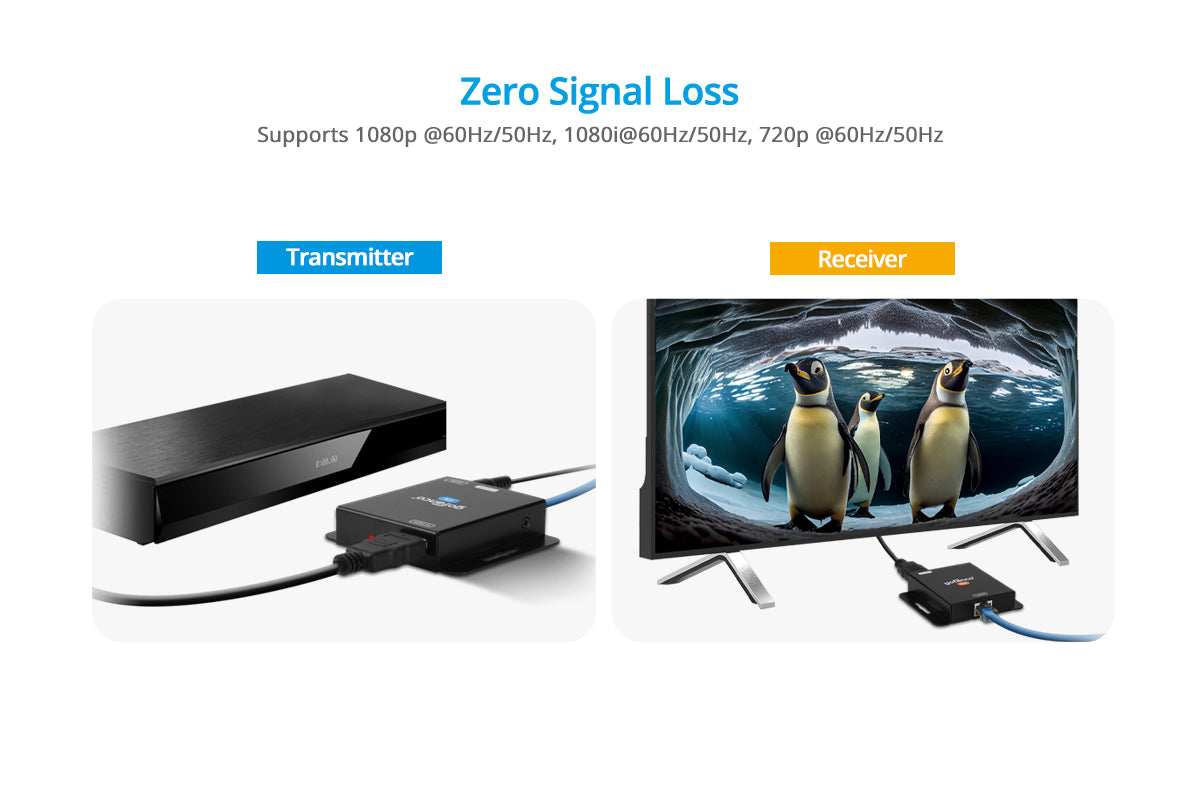

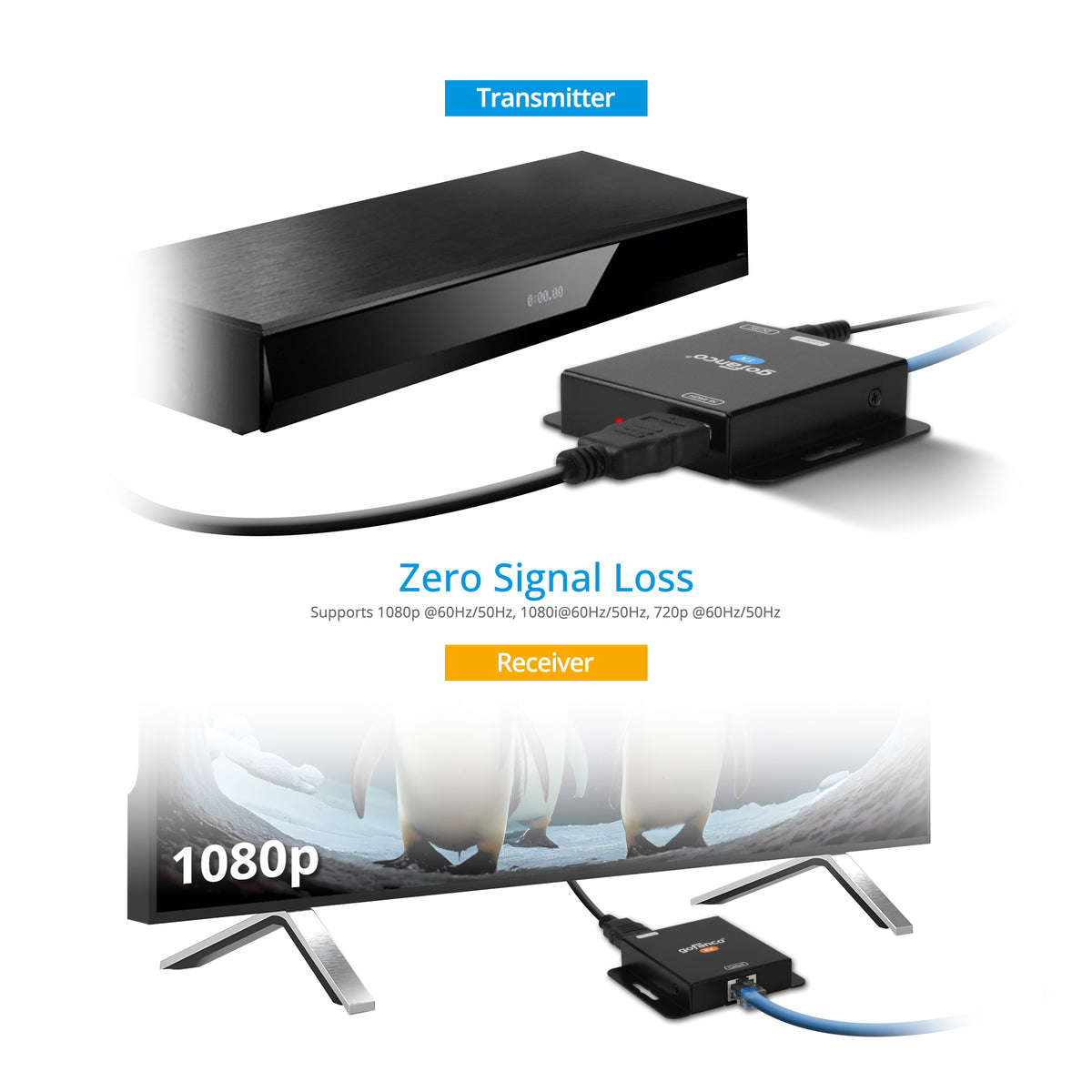

Zero Signal Loss

Extends HDMI signals to synchronous output display is as fluent as direct connection

Extended Home Theater Entertainment

Extend HDMI audio and video from a media source to a remote TV for an immersive big-screen entertainment experience in any room

Advanced Features

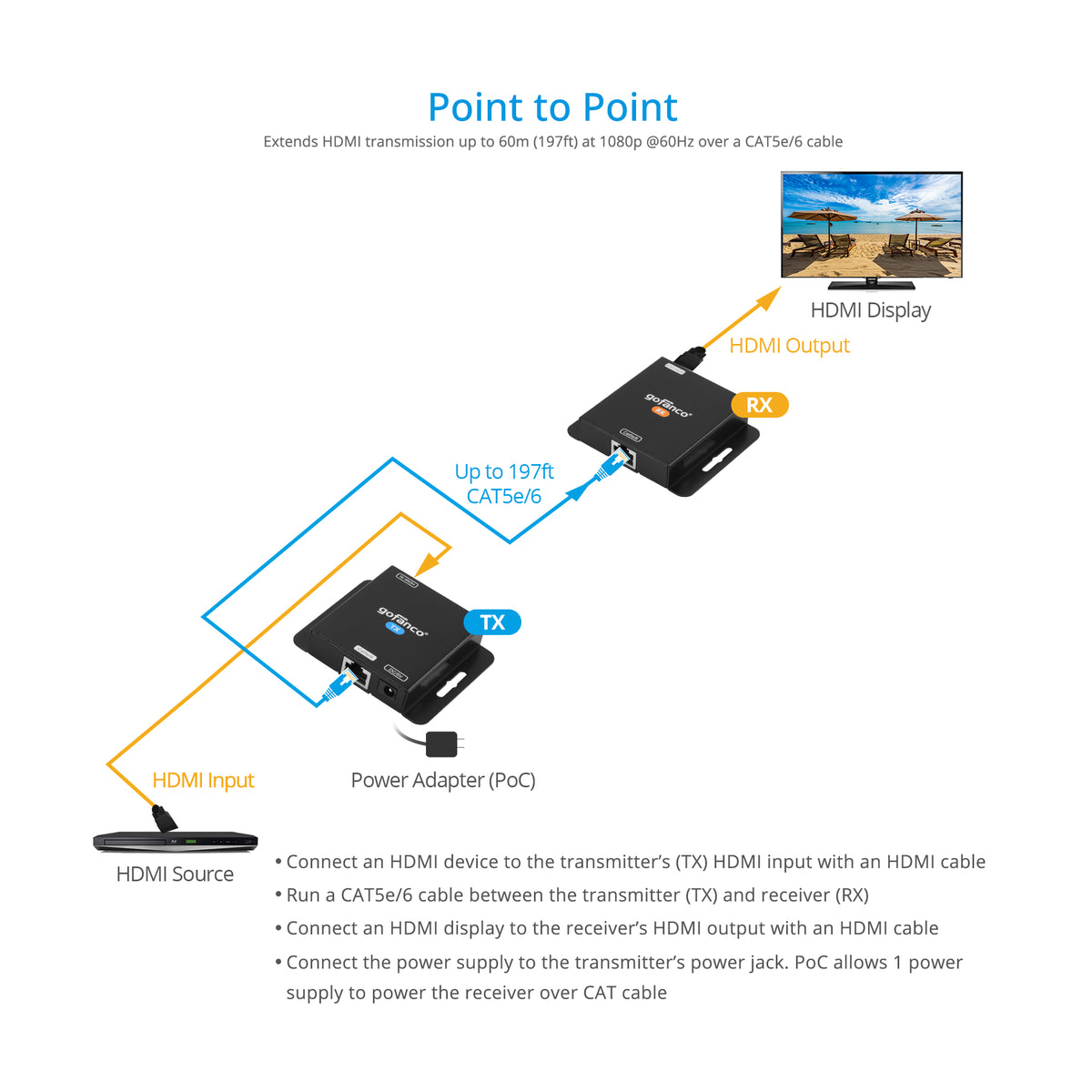

Point to Point/ Mountable. PoC, No driver required; Surface mountable metal housing provides durability and minimizes EMI noise interference
Specification
  • Video resolutions: 720p / 1080i / 1080p
  • HDCP 1.4 compliant
  • HDMI Audio: LPCM 2.0 48Khz

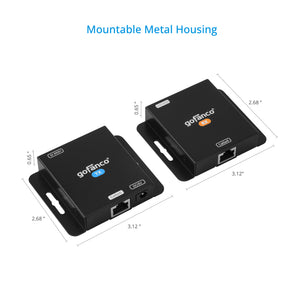

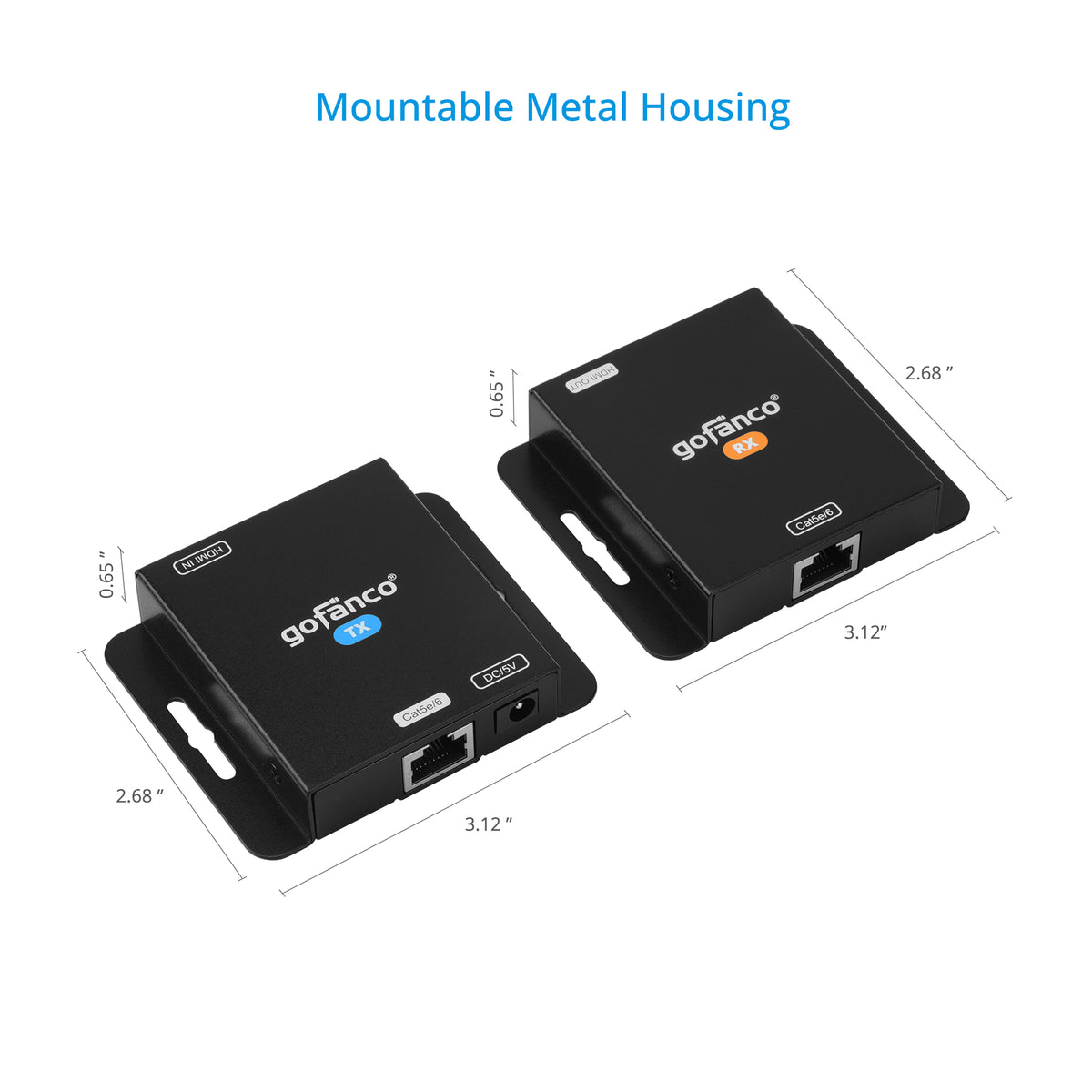

  • Product Dimensions:TX/RX 3.12″(W) x 0.65″(H) x 2.68″(D)
  • Weight:TX/RX 0.26 lbs
  • Power Adapter: AC100 - 240V 50/60Hz, Output: 5V/1A
  • Housing Material / Color: Metal / Black color

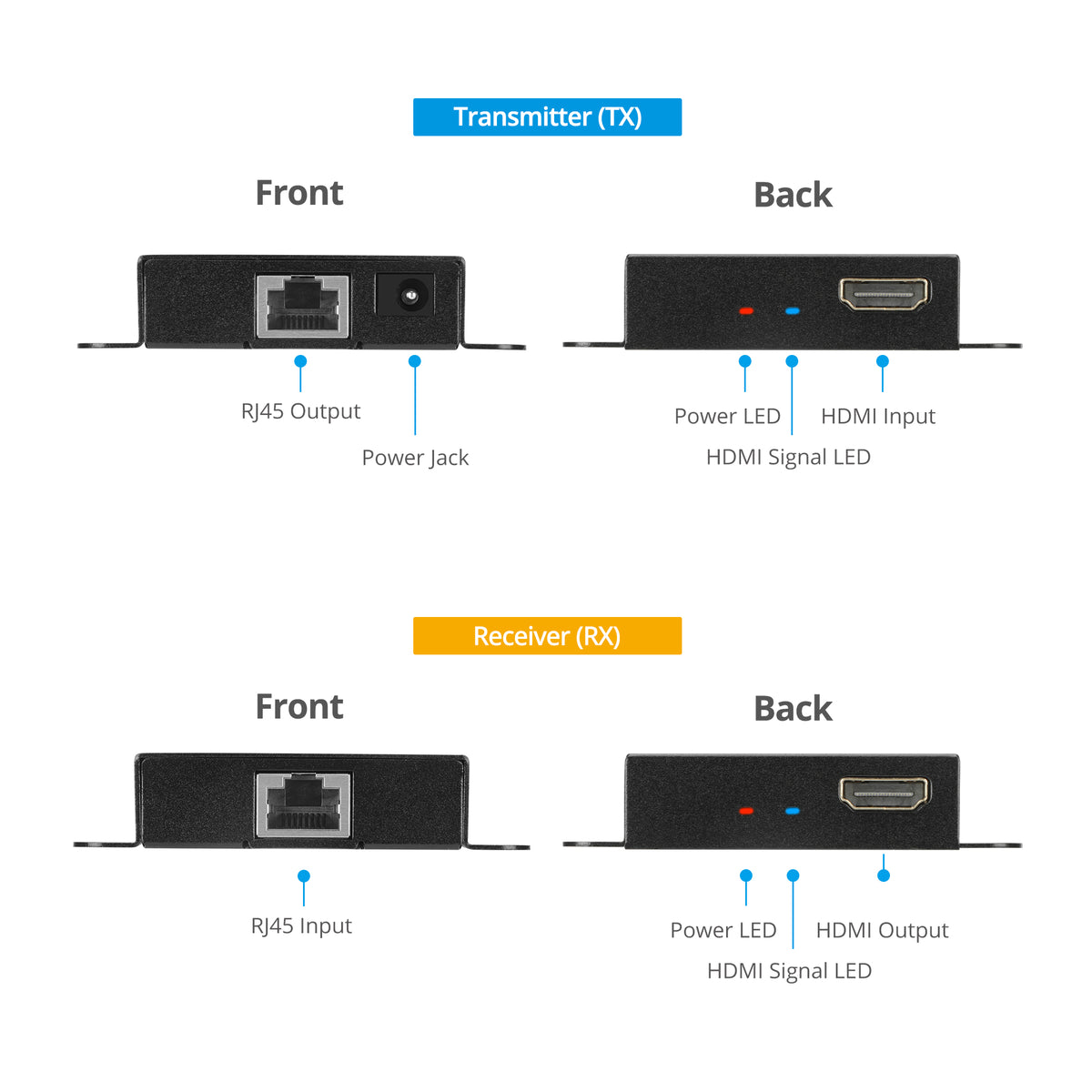

TX

  • 1x 19-Pin, HDMI, Input
  • 1x 8-pin RJ45, Output
  • 1x Power Jack

RX

  • 1x 19-pin HDMI, Output
  • 1x 8-pin RJ45, Input

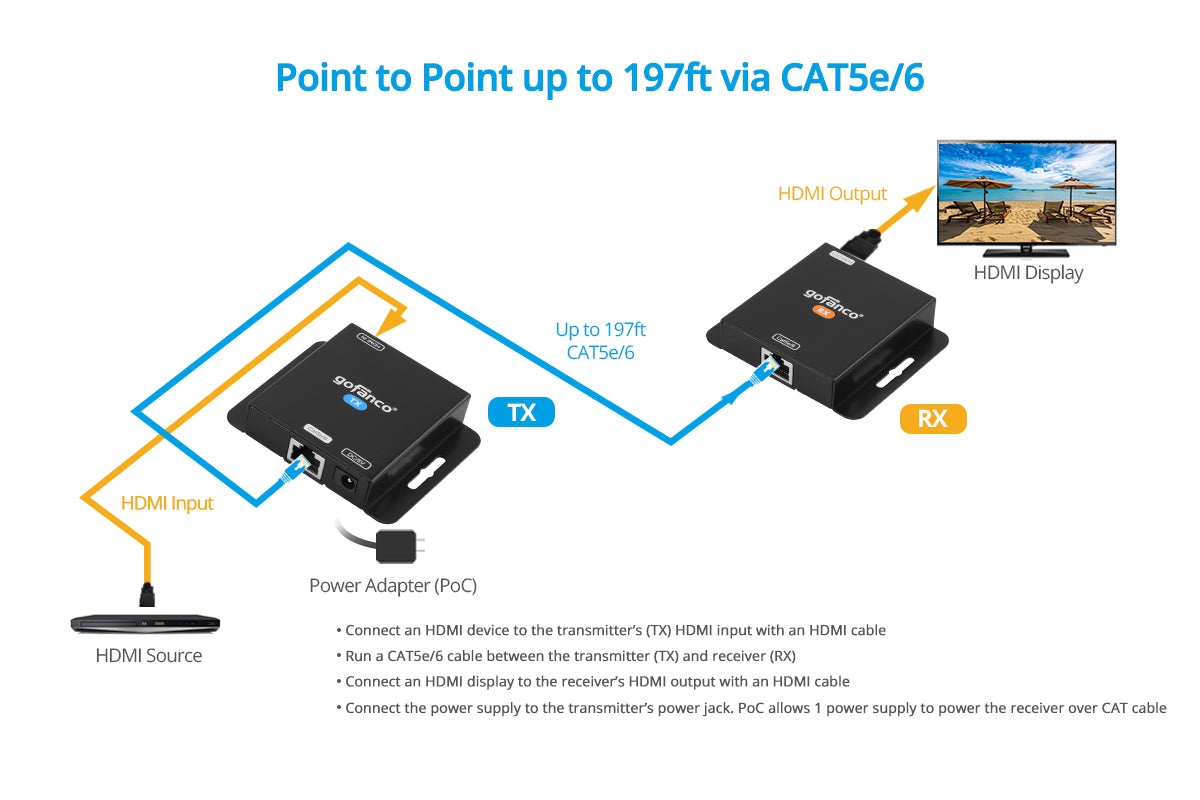

  • Extend HDMI transmission up to 60m (197ft) at 1080p60Hz over a Cat5e/6 cable with zero signal loss
  • Supports 3D and HDCP 1.4 compliant
  • Power-over-Cable (PoC) allows 1 power supply connected to the transmitter (TX) to power the receiver (RX) over a CAT cable
  • Supports 2ch PCM audio
  • Surface mountable metal housing
  • UPC: 818354-020373
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 5 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
