Extenders: HDExt4K120v2

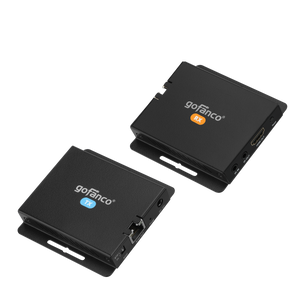

HDMI CAT6A/7 Extender 4K120 – 40m

Name: HDMI CAT6A/7 Extender 4K120 – 40m
Brand: Gofanco
SKU: HDExt4K120v2
Price: 145.99 USD
Availability: InStock

$145.99

Up to 130ft, 4K120Hz YUV 4:4:4, 32Gbps, HDR, HDCP 2.3/2.2/1.4, DSC 1.2a, Dual IR, EDID, Atmos, Near Zero Latency (v2.0)

72 in stock

1 Year Warranty

30 Days Return

Fast delivery in 48 Hours

4K120Hz Resolution

EDID Management

Distance up to 40m

IR Bi-directional

Mountable Metal Enclosure

HDMI Cat Extender 4K120

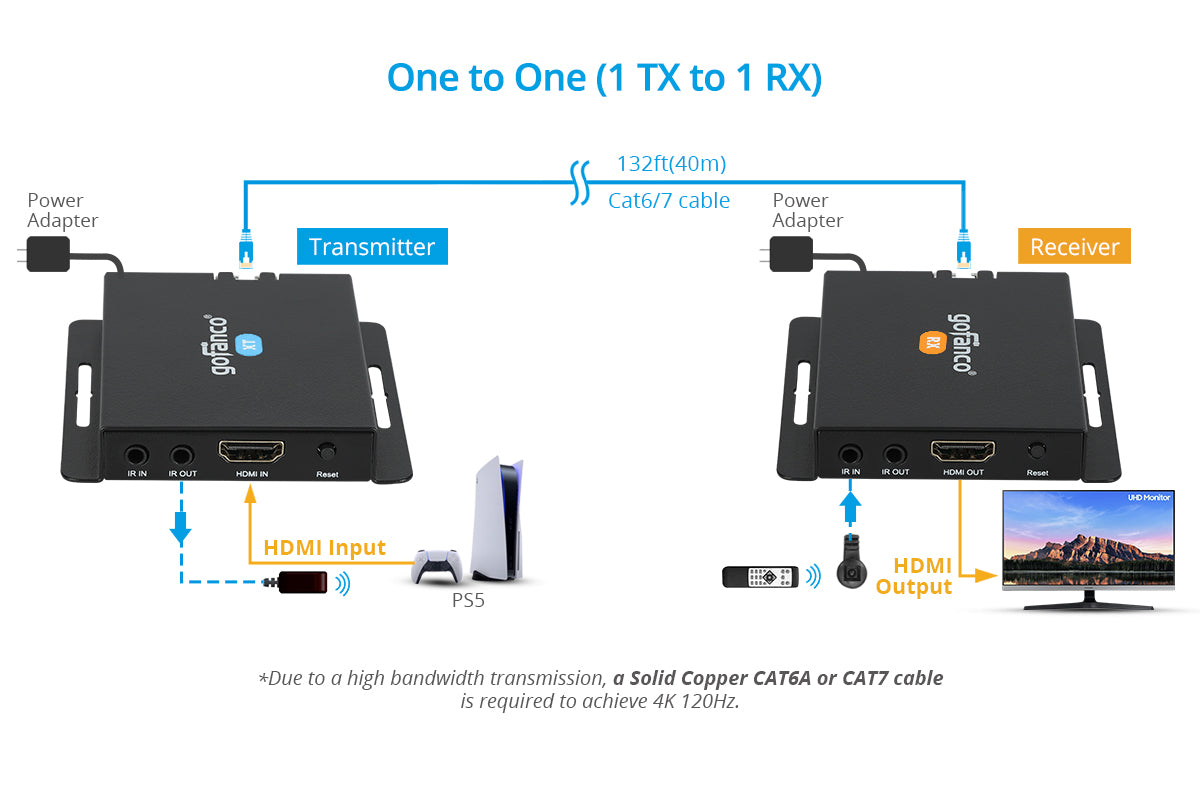

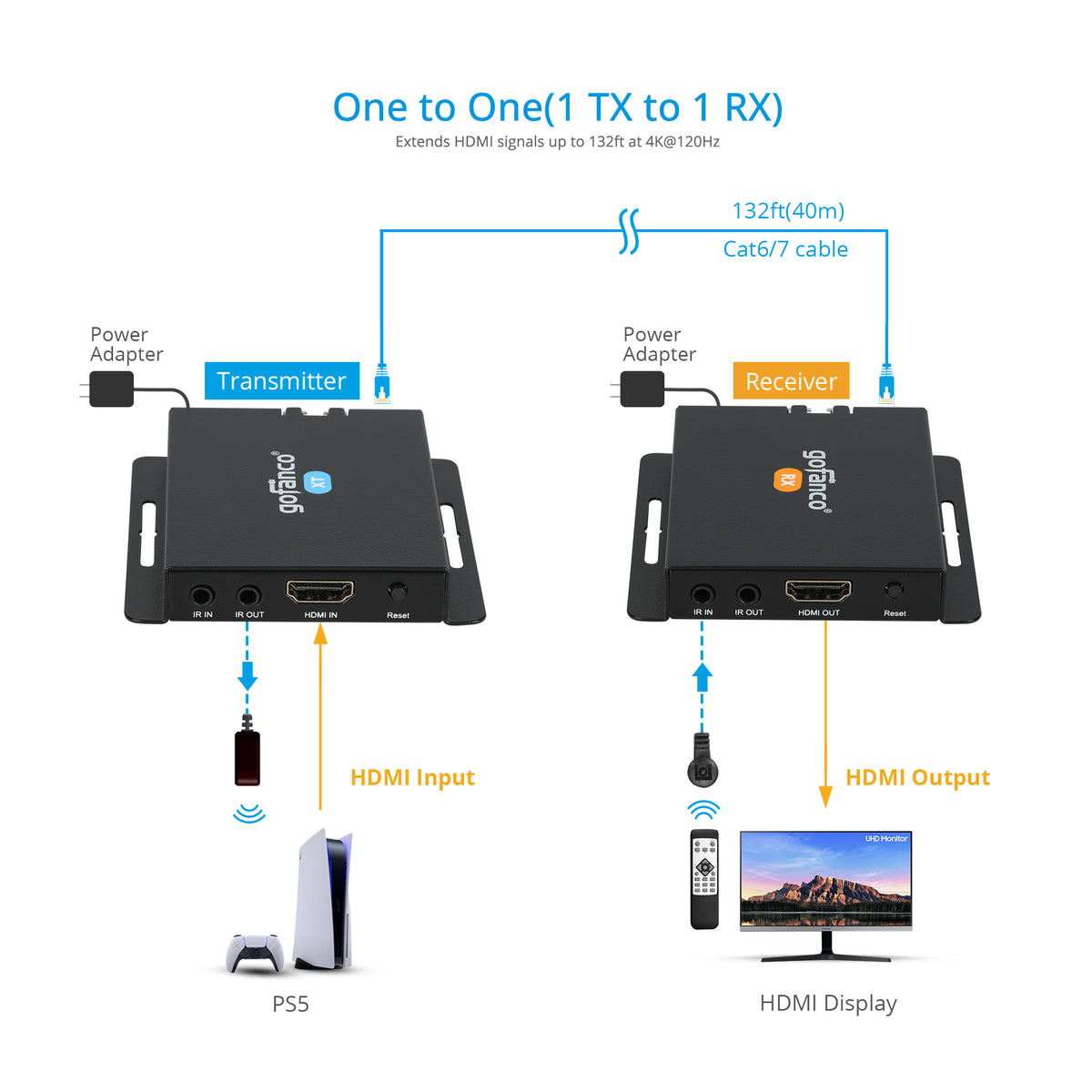

Extends HDMI audio/video signals over one cost effective Cat6A/7 cable at near zero latency

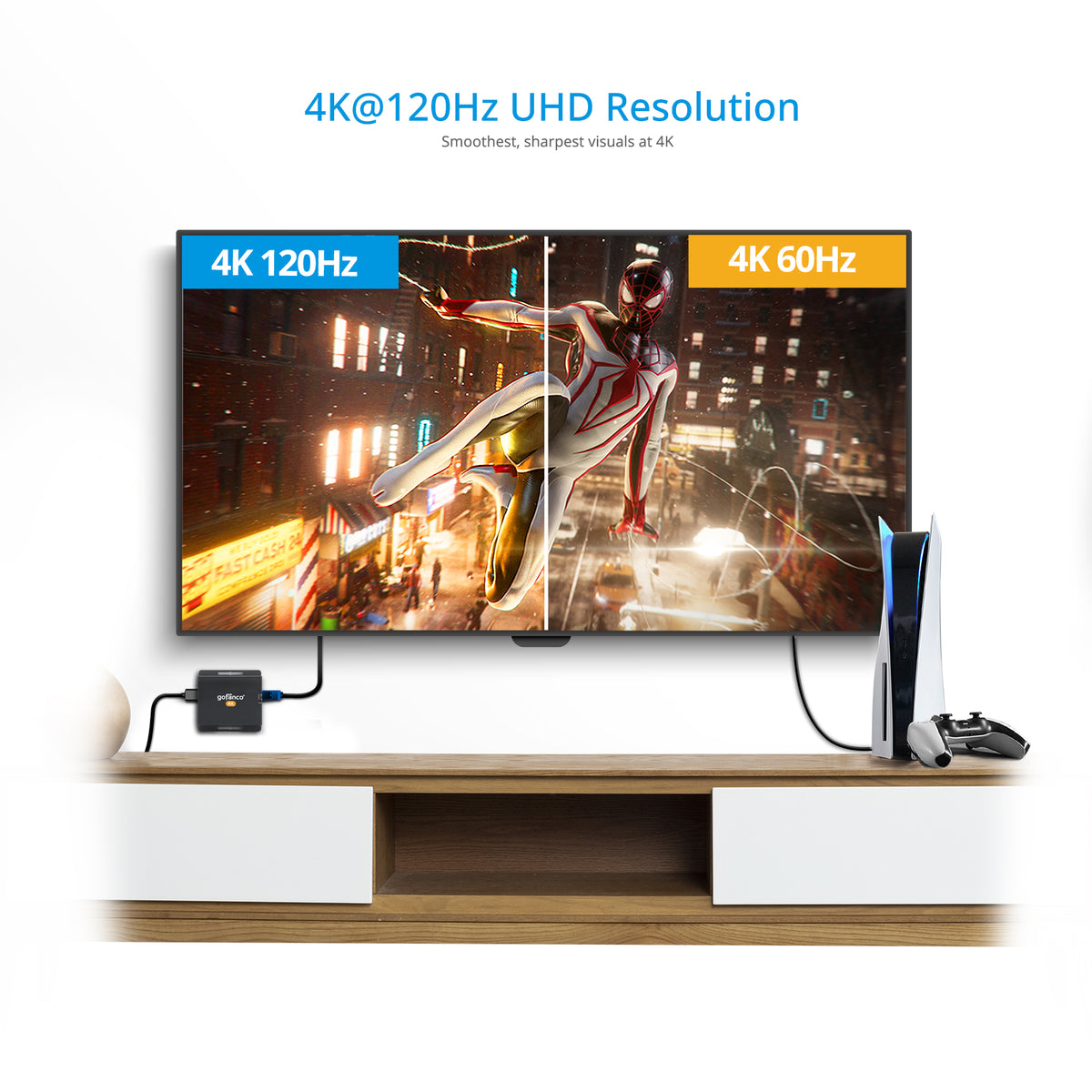

Ultra High Speed 4K120Hz HDMI Extender for Gaming

4K120Hz

Supports Next-Gen 4K120Hz & 8K Gaming Feeds

Extended

High-Bandwidth Uncompressed Stream to 132ft

Audio

Passes 7.1ch Surround, DTS-X & Dolby Atmos

STD/TV

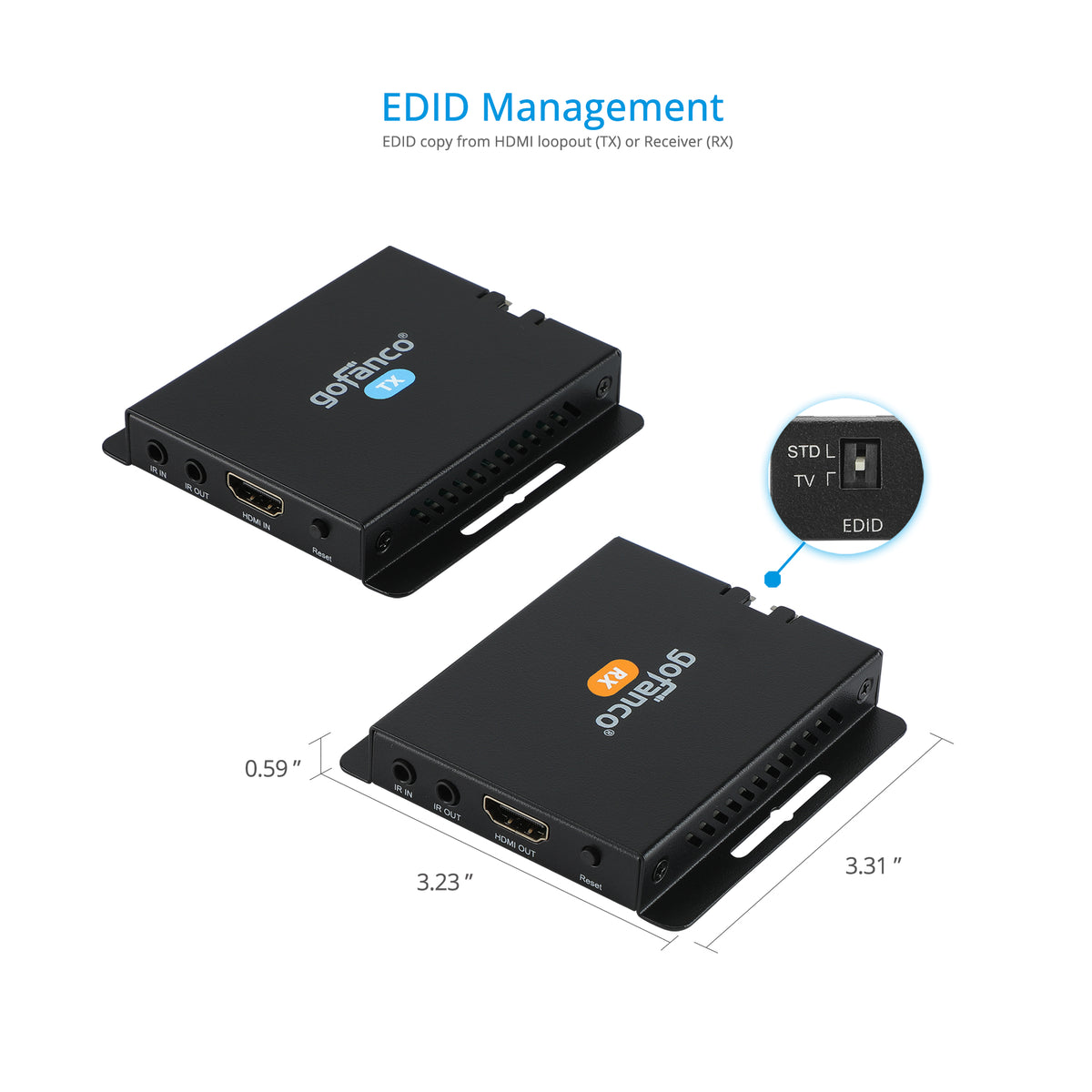

Flexible EDID Copy Switch for Compatibility

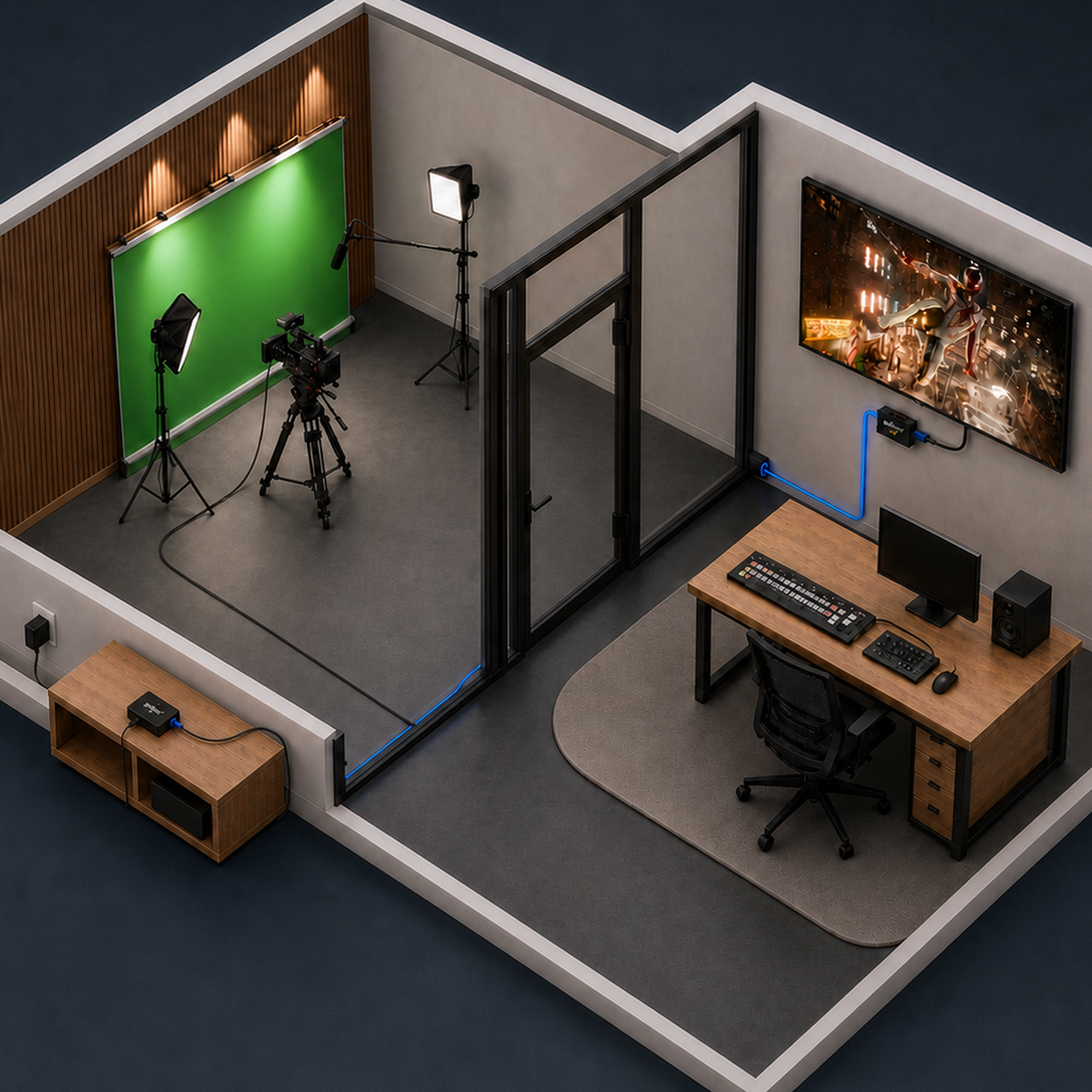

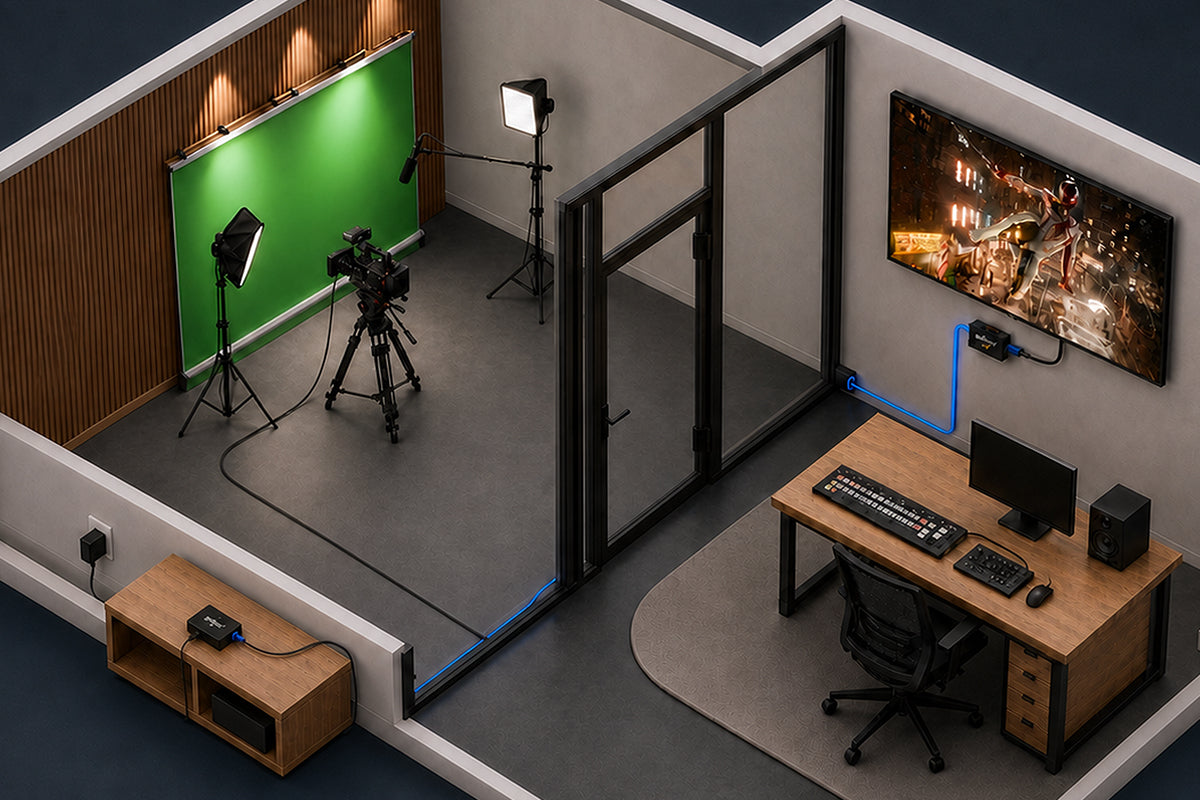

High-Refresh-Rate Production Monitoring

Extend high-resolution, high-refresh-rate HDMI video to a remote display for smooth, real-time monitoring in professional production environments

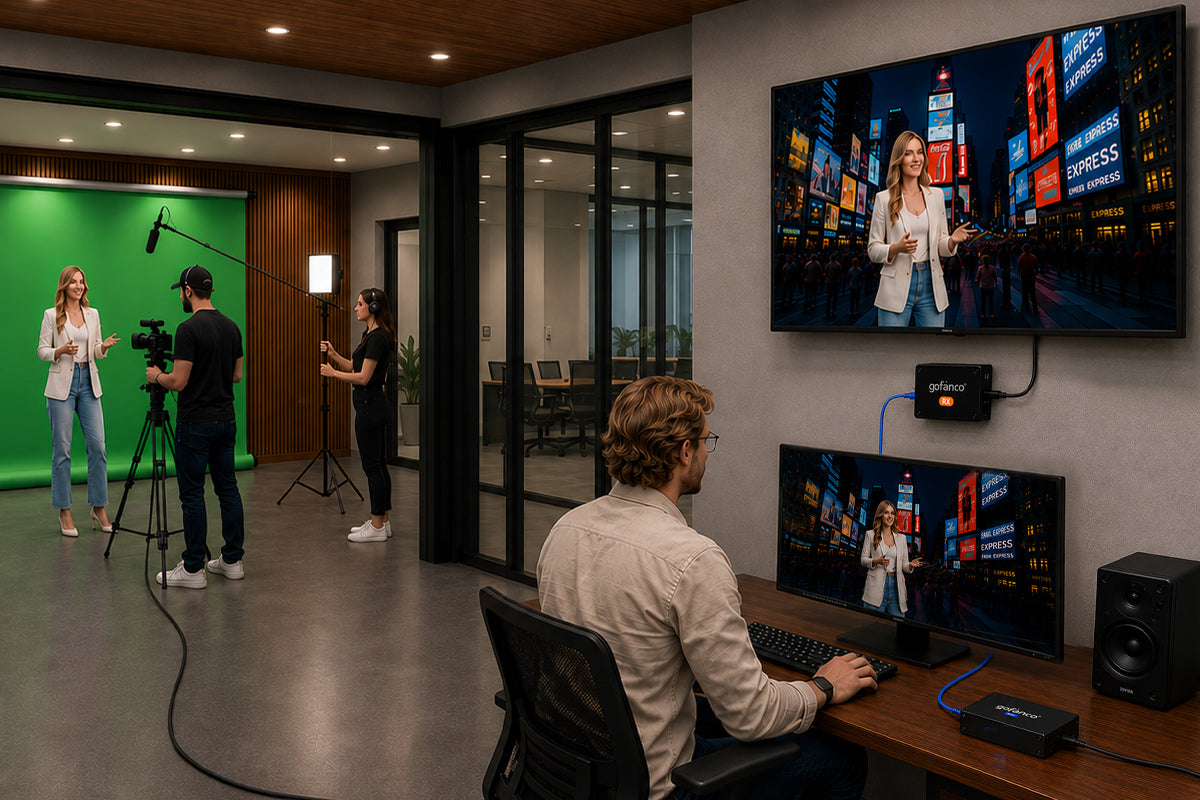

4K 120Hz Creator and Live Streaming Production

Extend 4K 120Hz video to a remote display, enabling creators and livestream hosts to monitor sharp, smooth, high-quality content during production and promotion.

Advanced Features

Up to 130ft 4K120Hz / Bi-directional IR/ EDID Management/ Mountable

Specification

HDCP 2.3/2.2/1.4
DSC 1.2a
Bandwidth: 32Gbps
Supports 4K120Hz (4:4:4 8-bit)
Distance: Up to 40m
IR Frequency Range: 20 - 60KHz
Dimension: TX/RX: 3.27″(W) x 3.23″(H) x 0.57″(D)
Weight: TX/RX: 0.27 lbs
Power Adapter: AC100 - 240V 50/60Hz, Output: 12V/1A(TX/RX)
Housing Material / Color: Metal / Black color

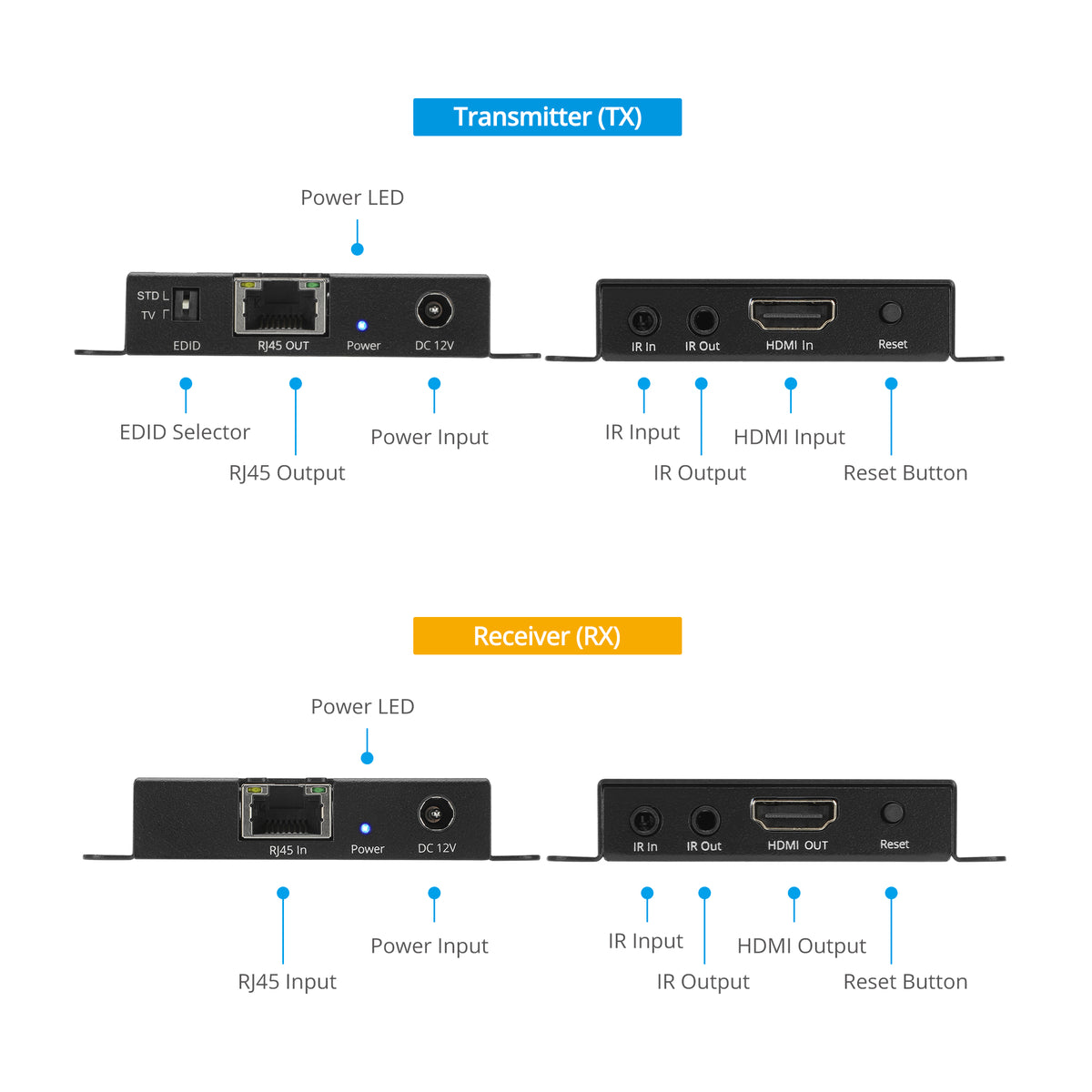

Connection

TX

1x DIP Switch, EDID
2x 3.5mm jack, IR In/Out
1x 8-pin RJ45, Output
1x 19-pin HDMI, Input
1x Power jack
1x Reset button

RX

1x 19-pin HDMI, Output
2x 3.5mm jack, IR In/Out
1x 8-pin RJ45, Input
1x Power jack
1x Reset button

Features

Supports up to 4K120Hz YUV 4:4:4. HDR, HDCP 2.3/2.2/1.4 compliant
Supports Digital Stream Conversion (DSC) and compatible with DSC 1.2

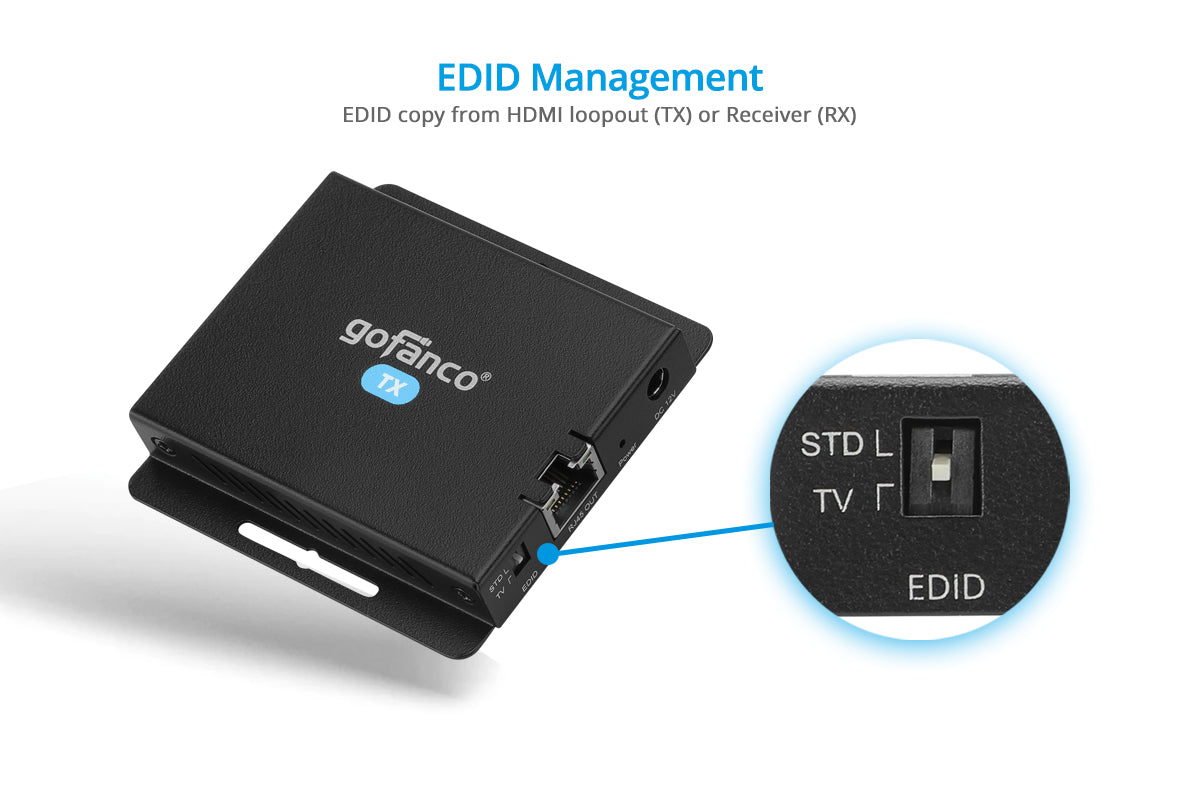

EDID switch: Built-in EDID or EDID bypass
Audio: Uncompressed LPCM and compressed DTS and Dolby Digital audio (including DTS-HD Master and Dolby TrueHD)
Compact surface mountable metal enclosure, Dual IR extension and low latency

Standard

UPC:818354-023206
Operation Temperature: 32 to 122 degrees F
Storage Temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
Regulatory approvals: FCC / CE / RoHS
Limited One-Year Warranty and Lifetime Product Support
Country of origin: China
