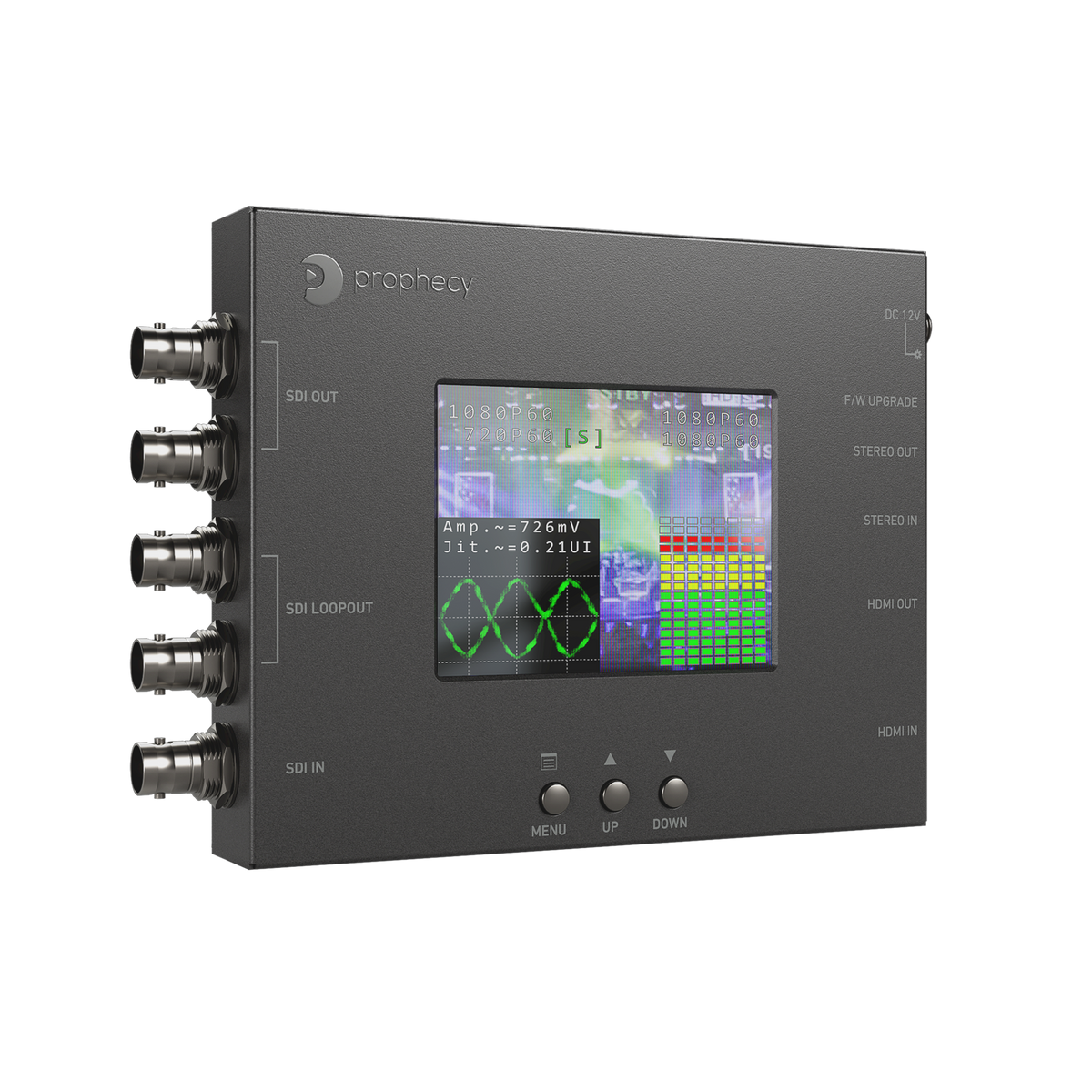

HDMI and 3G-SDI Cross and Scaler Converter with 3.5 LCD monitor, and audio embedder/de-embedder
Cables & Converters: PRO-ScalerHDSDI

HDMI and 3G-SDI Cross and Scaler Converter with 3.5 LCD monitor, and audio embedder/de-embedder

Sale price $339.88

HDMI & SDI Cross Conversion, OSD Control, Eye Diagram, Pattern Generator, 1080p 60Hz, TAA Compliant

26 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
1080p Resolution
SDI/HDMI Tester
Multiple Inputs
SDI Loopout
Audio Extraction

HDMI & SDI Converter and Eye Pattern Generator

Resolution

Supports Ultra HD 1080p 60Hz Resolution

Eye Pattern

Supports eye diagram scanning for input signal integrity

Loopout

Equipped with an SDI loopouts, Stereo audio extraction & embedded

LCD

Build-in 3.5” LCD panel to monitor and control through OSD
Specification
  • SDI standard: 3G/HD/SD-SDI
  • 3G: 1080p 50/59.94/60Hz
  • HD: 720p 50/5994/60Hz, 1080i 50/59.94//60Hz, 1080p 24/30Hz
  • SD: NTSC 59.94, PAL 50Hz
  • Input video bandwidth: 2.970 Gbps
  • Output maximum pixel rate: 165MHz
  • Audio support: PCM (48KHz on up to 8 channel)
  • Firmware update: Feasible via USB Port
  • ESD protection: 15KV [Air-gap discharge] / 8KV [Contact discharge]
  • Product Dimensions: 5.90″ (W) x 0.90″ (H) x 2.70″ (D)
  • Weight: 0.48 lbs
  • Power Adapter: input 100 - 240V / Output: 12V/2A
  • Housing Material / Color: Metal / Black color
  • 4x SDI, Output
  • 1x SDI, Input
  • 1x 19-pin, HDMI, Input
  • 1x 19-pin, HDMI, Output
  • 1x 3.5mm jack, Audio Input
  • 1x 3.5mm jack, Audio Output
  • 1x 5-pin Micro USB, F/W update
  • 1x Power jack
  • 3x Push button, OSD selection
  • 1x 3.5" LCD Monitor
  • Multiple VESA standards support for output video resolutions
  • Deinterlacing supported
  • Bulit-in test patterns
  • HDMI and SDI cross conversion
  • OSD control interface
  • Push button control
  • Supports eye diagram scanning
  • Supports audio level bars
  • Supports cable length indicator
  • Support output test patterns
  • Supports audio embedding and extraction via stereo
  • Supports noise reduction and video enhancement features
  • Video H/V mirror supported
  • Active video area adjustment supported
  • USB firmware upgradable for expanded compatibility
  • UPC:818354-022827
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: Taiwan
