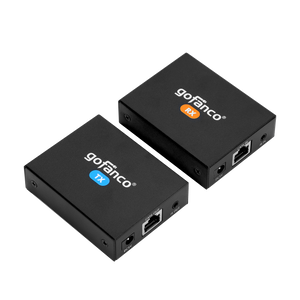

Extenders: HD20Ext-BSC

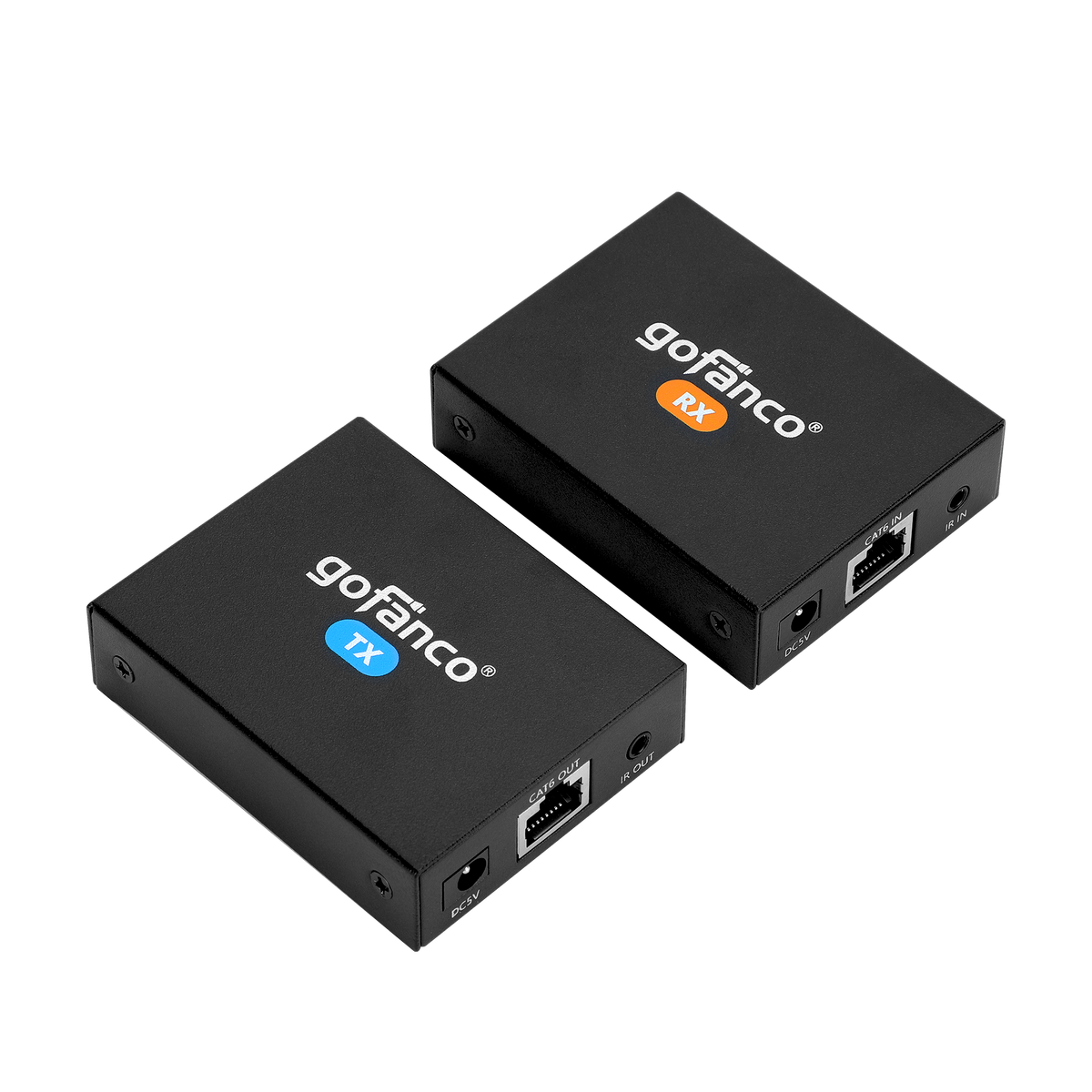

HDMI 2.0 CAT Extender Basic - 164ft

Sale price $69.99 Regular price $89.99

164ft 4K, 230ft 1080p, 4K60Hz YUV 4:4:4, HDR, 18Gbps, HDCP 2.2, Loopout, IR Passthrough, 5.1ch Audio, Auto Downscale, Near Zero Latency

86 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K60Hz Resolution
Distance up to 70m
HDMI Loopout
IR Remote Control
Auto Downscaling

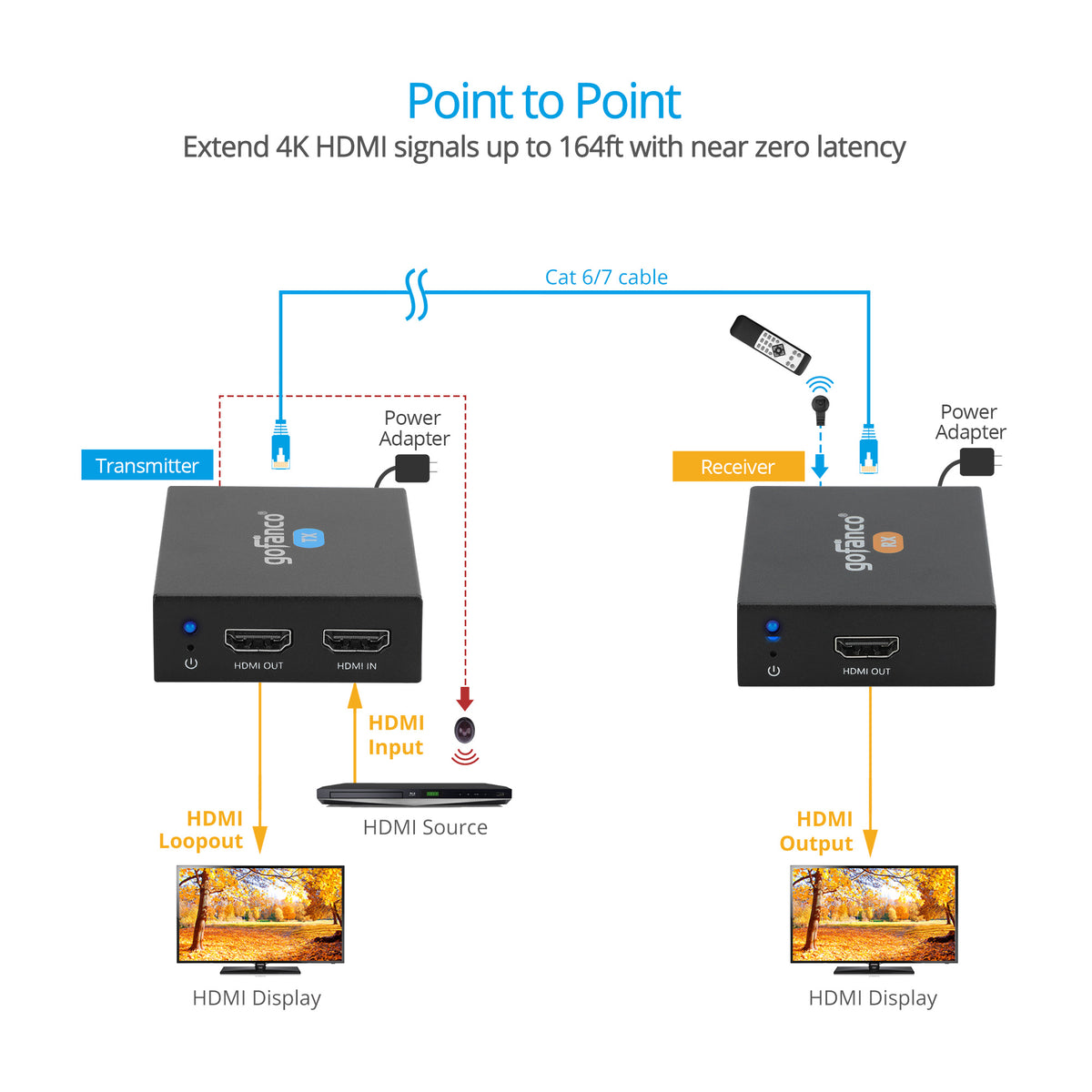

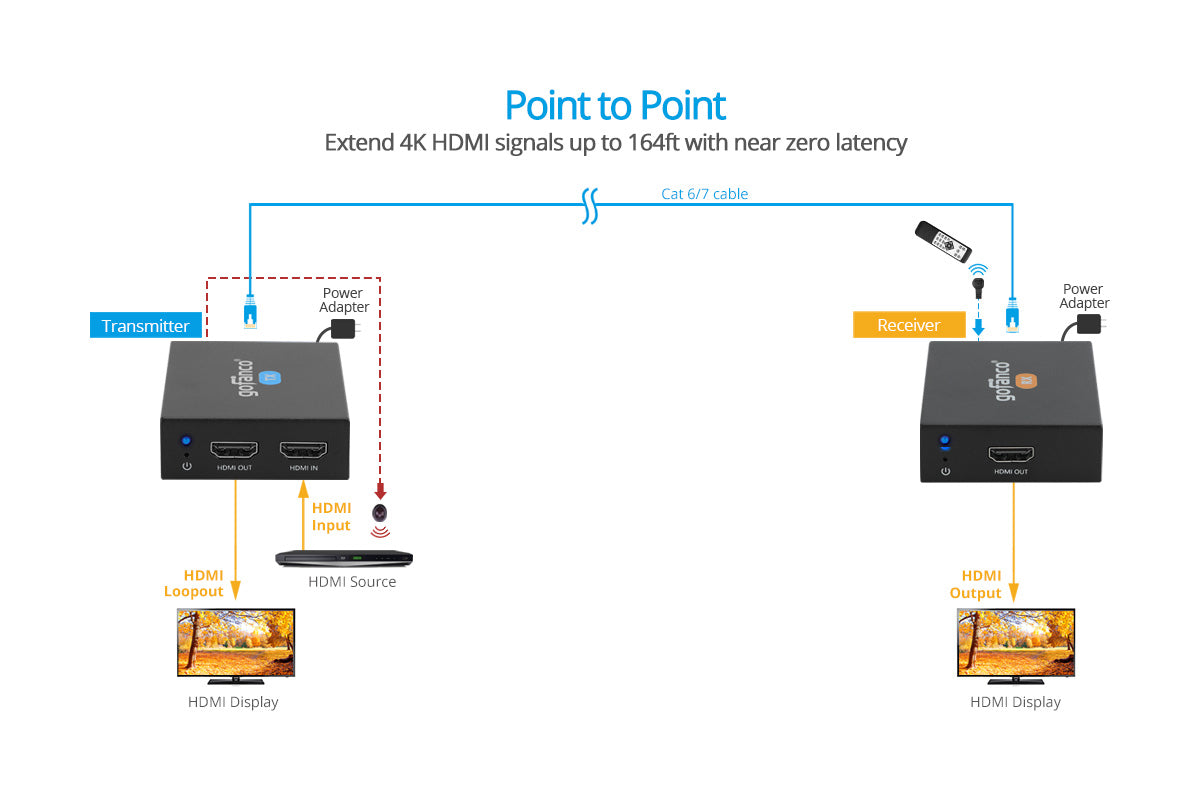

4K HDMI Extender Over Cat6/7

Extends HDMI audio/video signals over one cost effective CAT6/7 cable at near zero latency

Cost-Effective 4K60Hz HDMI Extender

Resolution

Ultra HD Resolution Support Up to 4K60Hz

Distance

Extends 4K60Hz signal up to 164ft

Downscaling

Simultaneous 4K & 1080p outputs via downscale

IR

Transmits IR Signals Back to Media Sources

The Ultimate Game-Day Gathering

Arrange seating around a large central display to create a shared viewing zone for friends, while HD20Ext-BSC extends the live game feed from the media source for an immersive, social game-day experience

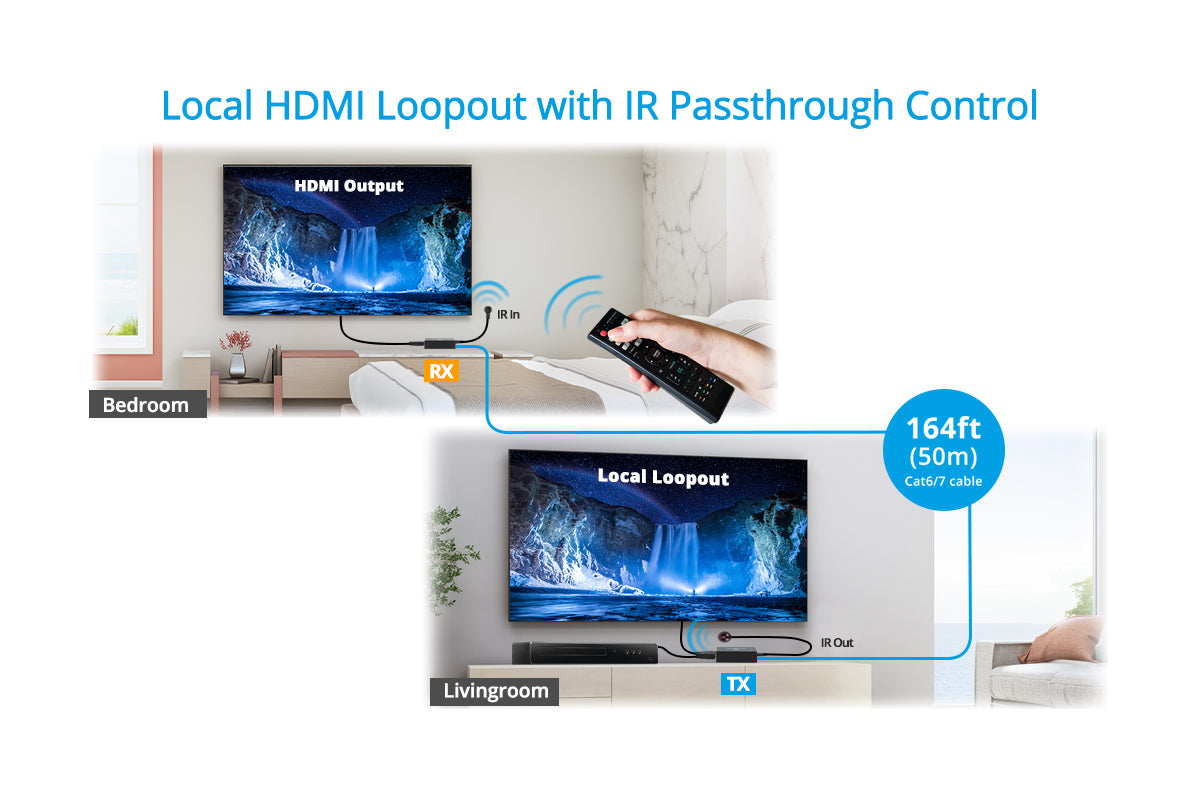

One Source. Two place. More Ways to Watch

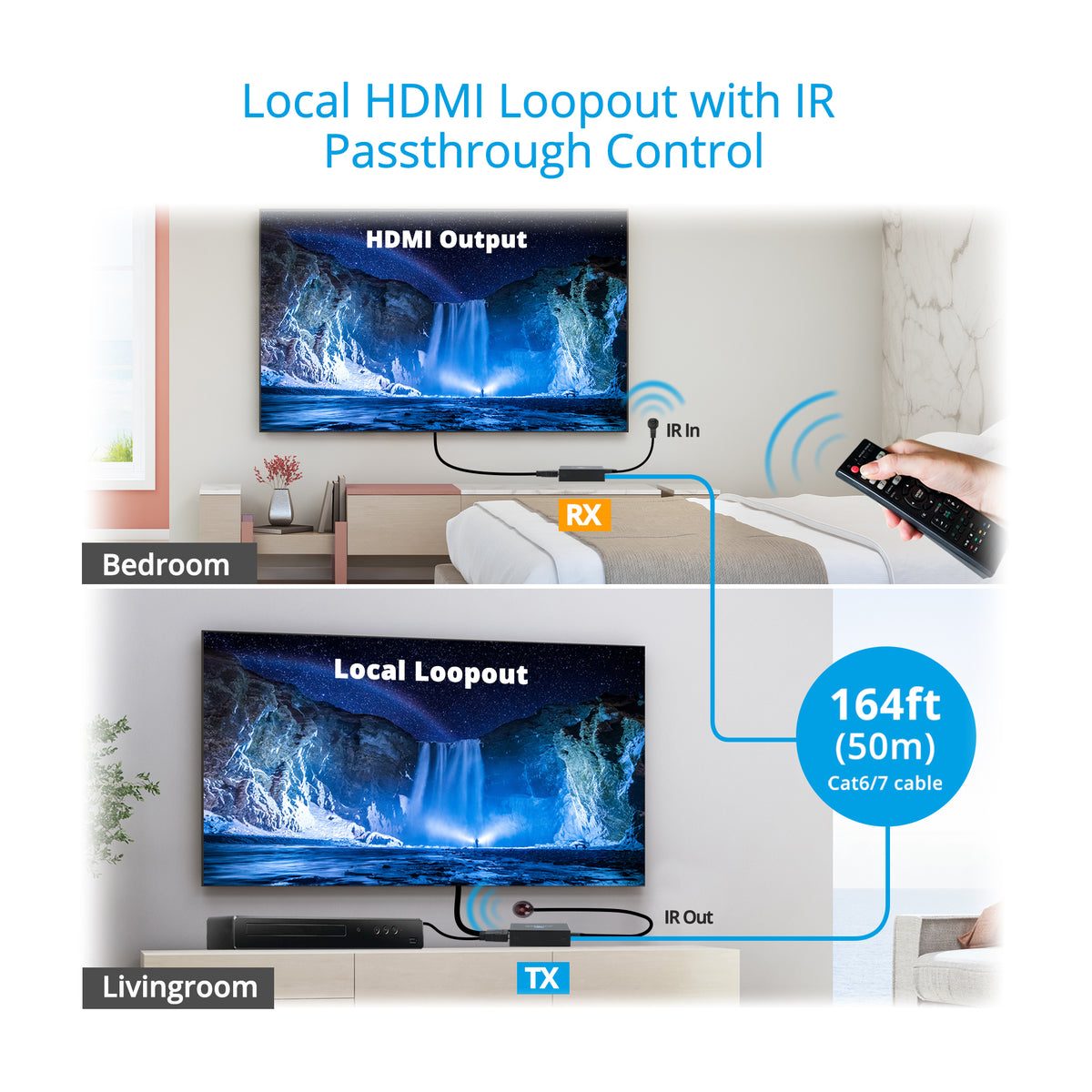

Using the loop-out port, you can watch content on a monitor in the room while extending the same HDMI signal source to your living room TV, allowing you to enjoy entertainment as you please

Advanced Features

Supports 4K60Hz 18Gbps, HDR 10, HDCP 2.2, EDID/IR passthrough and auto downcasling
Specification
  • Compliant: HDMI 2.0 / HDCP 2.2 /1.4
  • Bandwidth: 18Gbps
  • Resolution: Up to 4K60Hz
  • IR Remote control: Supports 20-60KHz wide frequency remote control
  • Audio spec: LPCM / DTS-HD / DTS-Audio/ Dilby Digital 5.1 CH / Dolby Atmos
  • Power adapter: 5V/0.5A
  • Product dimensions: TX/RX: 2.95″(W) x 0.83″(H) x 2.36″(D)
  • Product weight: TX/RX: 0.29 lbs
  • Housing Material / Color: Metal / Black color

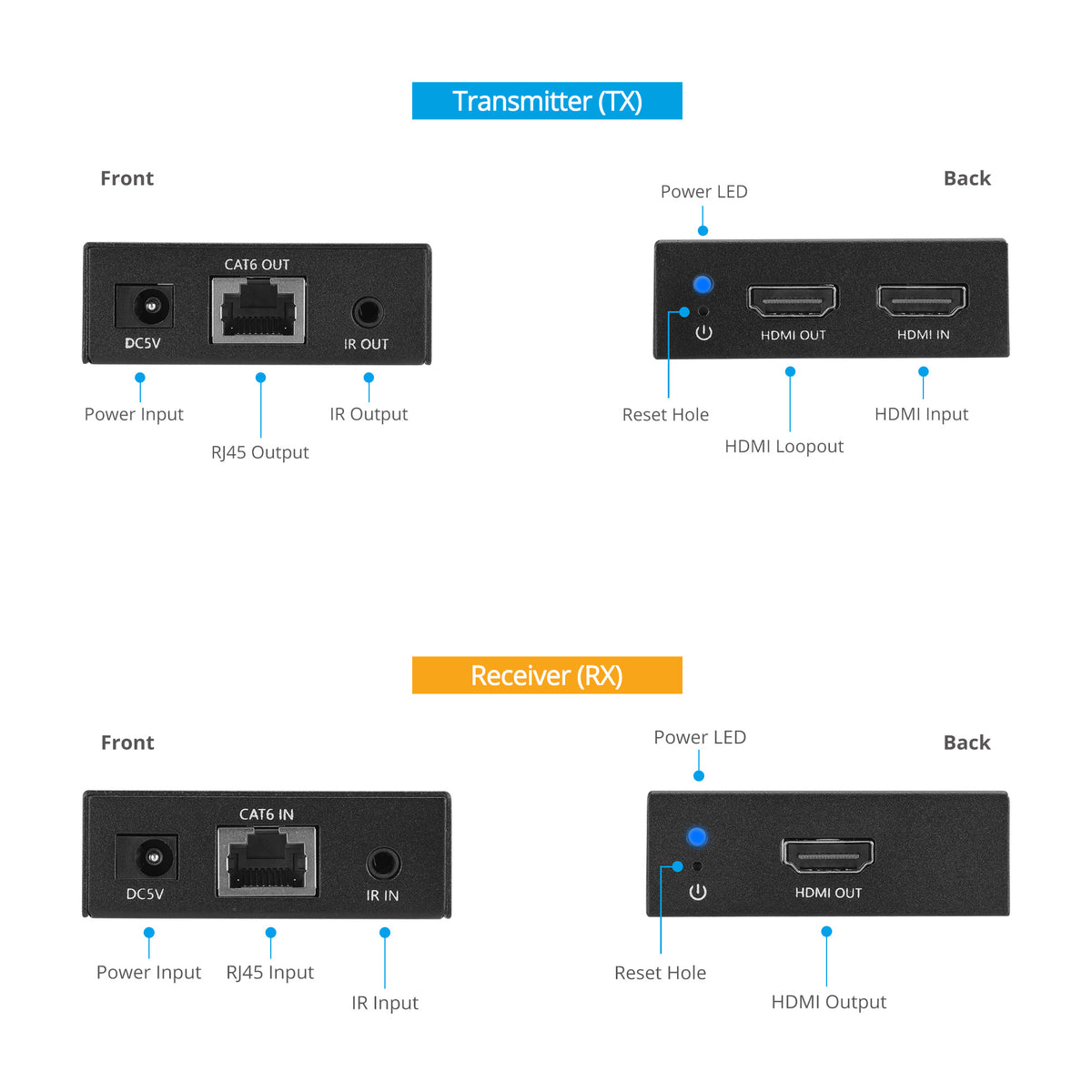

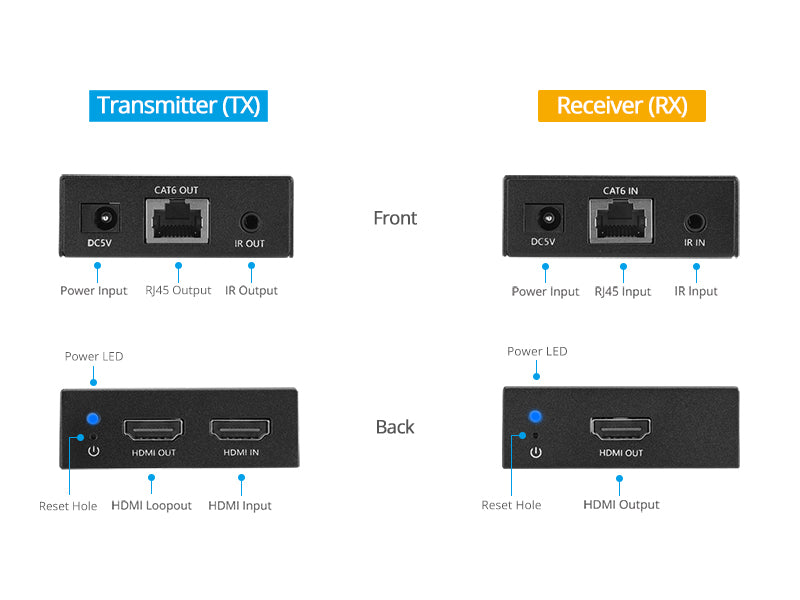

TX

  • 1x 19-pin HDMI, Input
  • 1x 19-pin HDMI, Output
  • 1x 8-pin RJ45, Output
  • 1x 3.5mm jack, IR Out
  • 1x Power jack

RX

  • 1x 8-pin, RJ45 Input
  • 1x19-pin HDMI, Output
  • 1x 3.5mm jack, IR In
  • 1x Power jack
  • Extends HDMI transmissions up to 50m (164ft) for 4K and 70m (230ft) for 1080p
  • Supports UHD 4K60Hz YUV 4:4:4, HDR

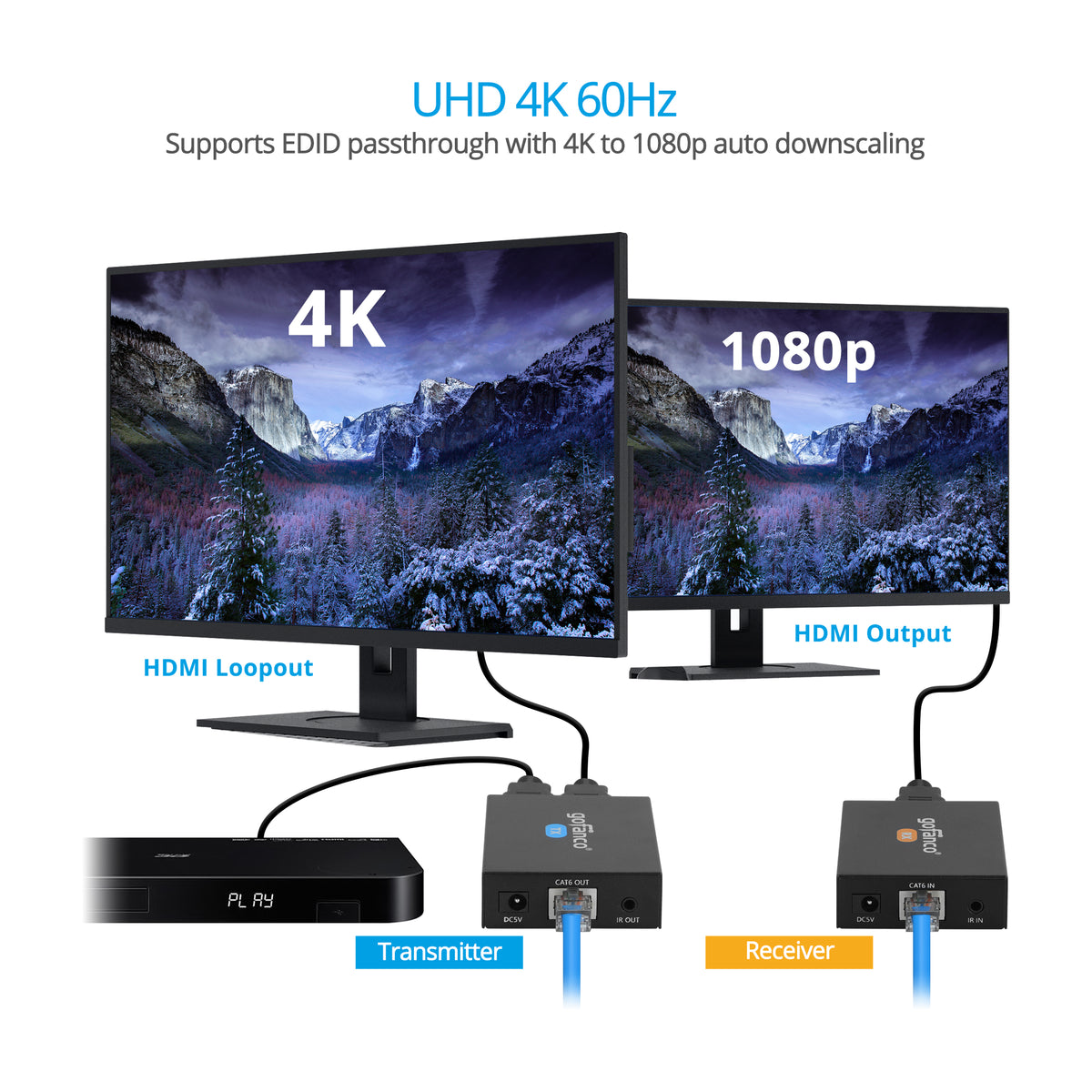

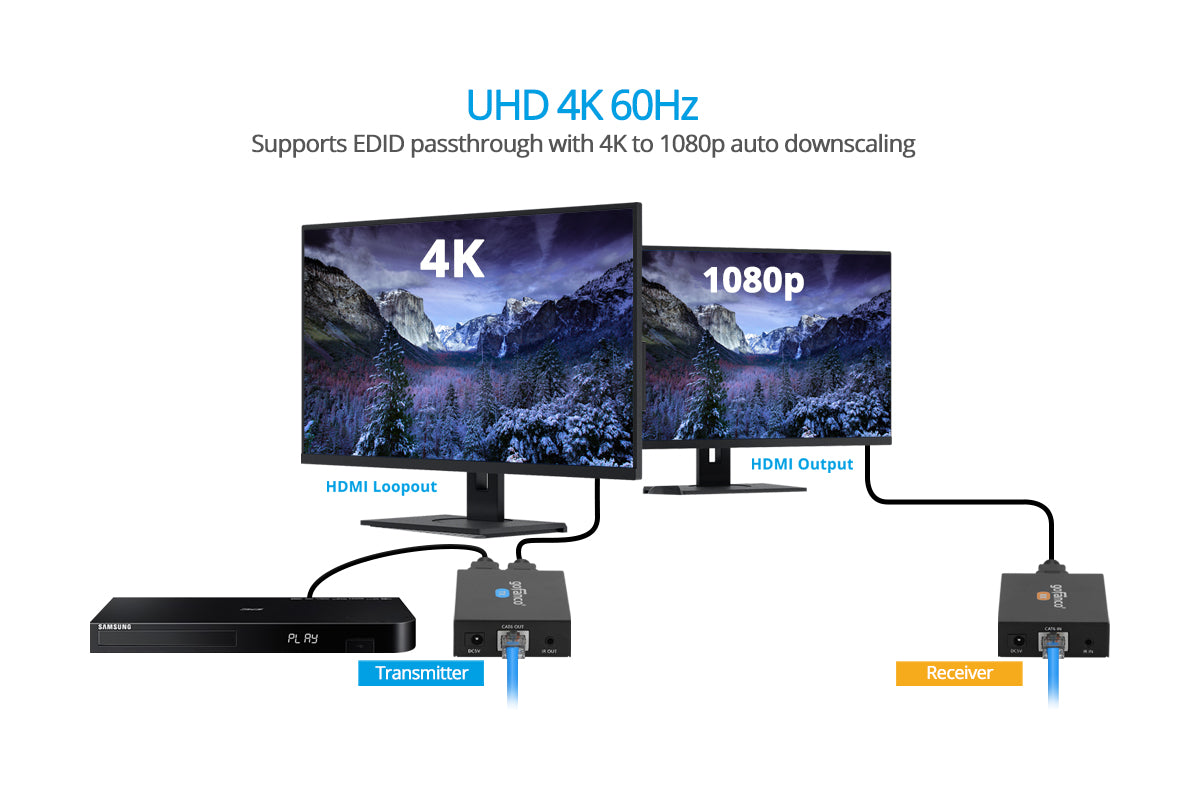

  • Supports EDID pass-through and 4K to 1080p auto scaling
  • HDMI loop-out equipped on the TX, IR pass-through
  • Near zero latency
  • Lightning/Surge/ESD protection
  • UPC: 818354-023176
  • Operation Temperature: 23 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 5 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
