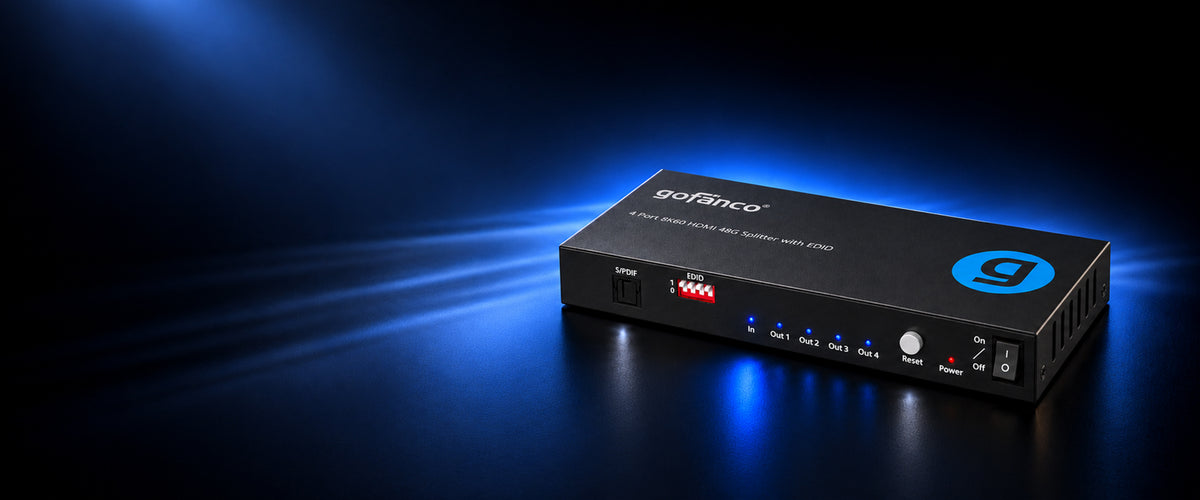

4 Port 8K60 HDMI 48G Splitter with EDID
Splitters: SPHD21-8K4P

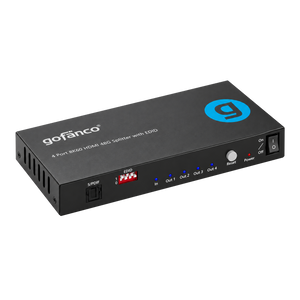

4 Port 8K60 HDMI 48G Splitter with EDID

Sale price $69.95

Allow to share four HDMI displays or projectors with an HDMI enabled Audio/Video source device with support for Ultra HD 8K resolution

Out of stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours

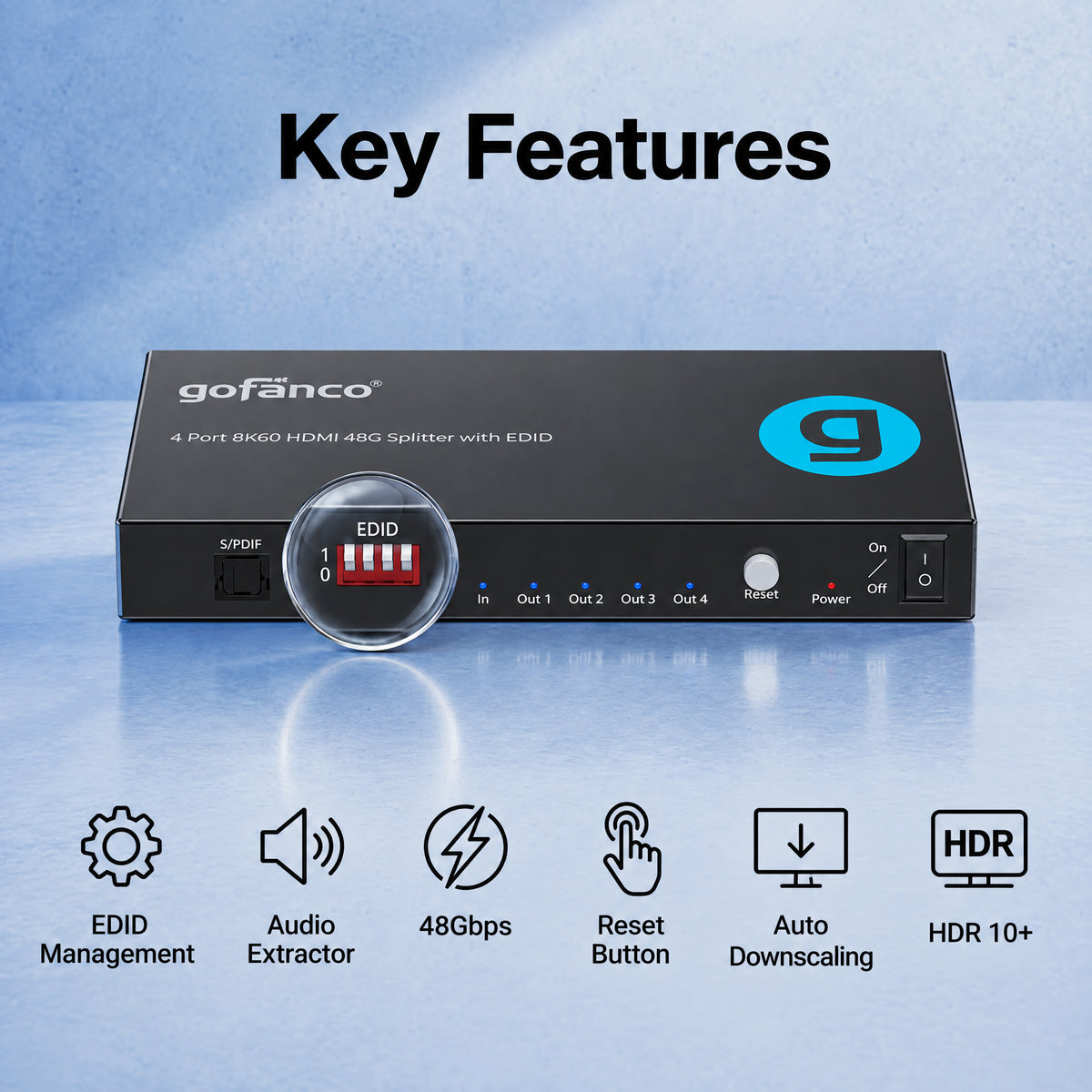

8K60Hz Resolution
1 to 4 Splitter
EDID Management
S/PDIF Audio Output
Auto Downscaling

4-Port 8K60Hz HDMI Splitter with EDID and Audio

Resolution

Supports Ultra HD 8K60Hz Resolution

Distributes

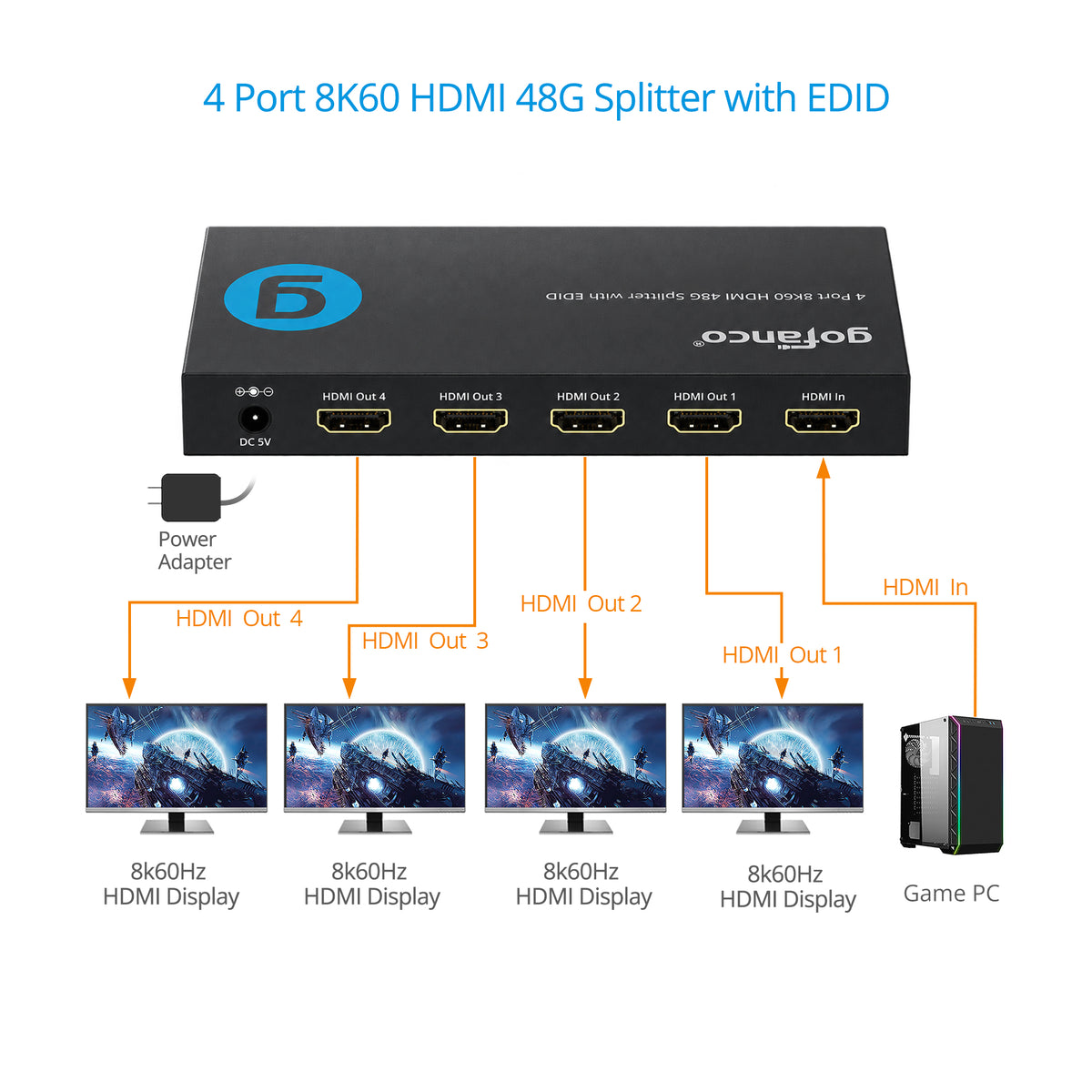

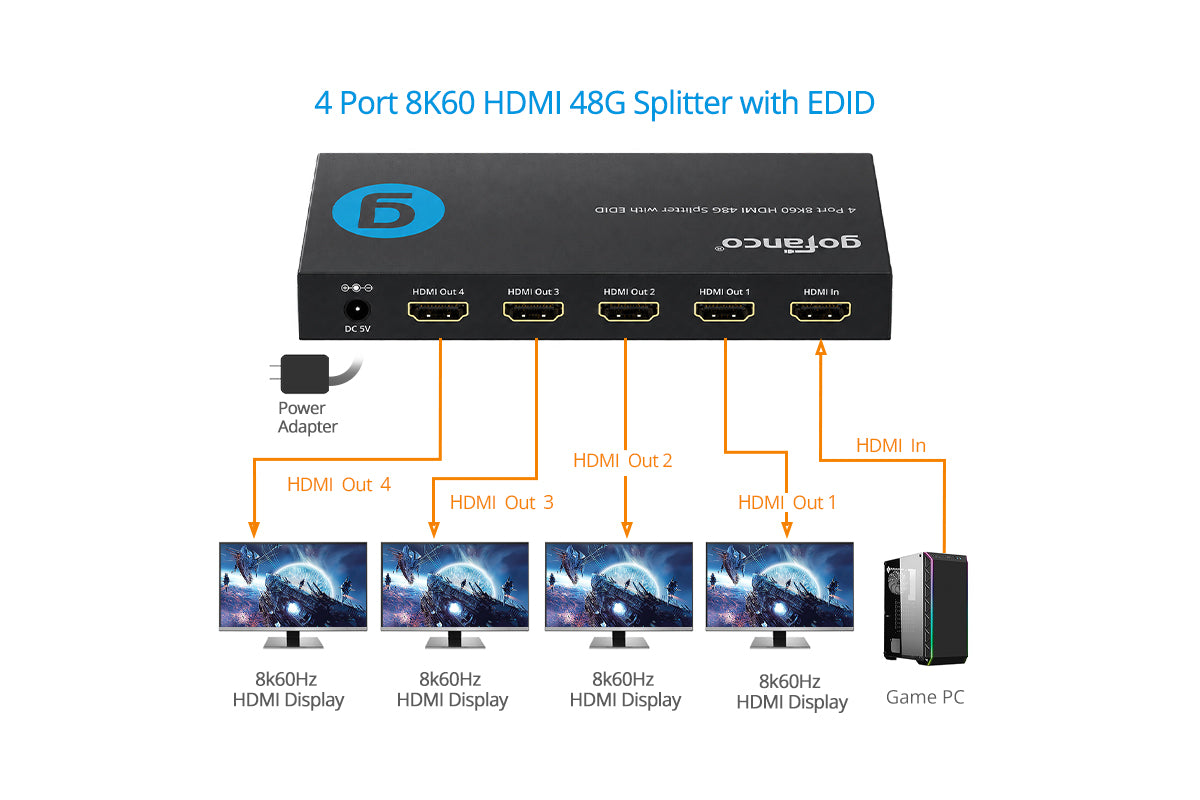

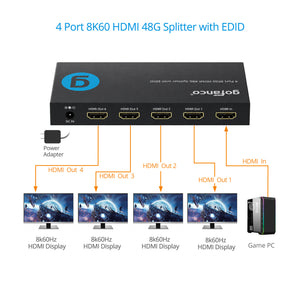

Distributes HDMI from one source to four HDMI displays simultaneously

EDID

Adjustable EDID settings

Audio

Supports 7.1/5.1/2.1-ch audio and digital audio format from HDMI
Specification
  • Standard: HDMI: 2.1/2.0 /1.4, HDCP:2.3/2.2/1.4
  • Video resolution: Up to 8K60Hz (4:2:0, HDR), 4K 144Hz /120Hz (4:4:4, RGB, HDR)
  • Bandwidth: Up to 48Gbps
  • Audio spec: HDMI: LPCM 7.1 / DTS / Dolby-Audio ; S/PDIF: Stereo audio

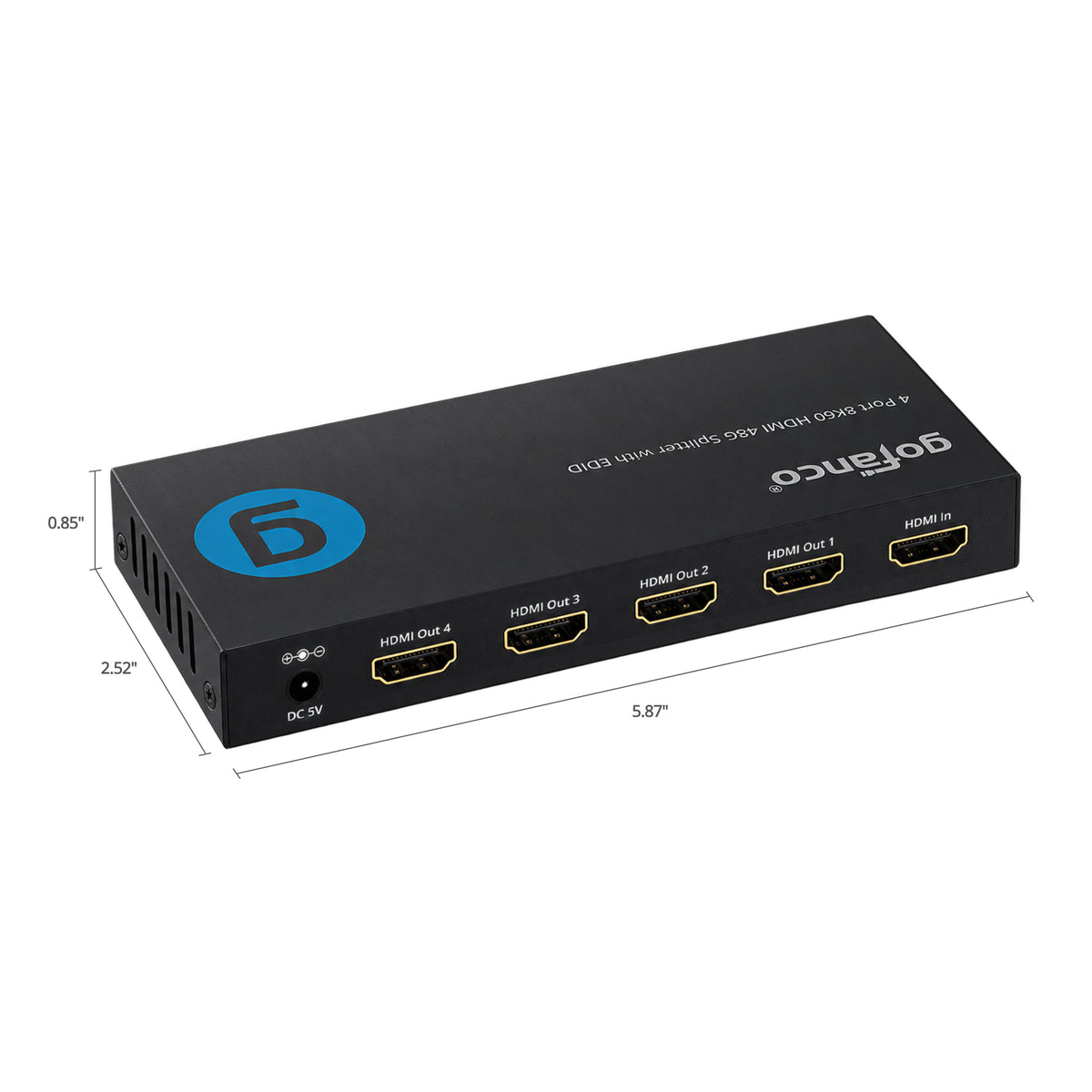

  • Product Dimensions: 5.87” (L) x 0.85” (H) x 2.52” (W)
  • Weight: 0.62 lbs
  • Power Adapter: input 100 - 240V / Output: 5V/1A
  • Housing Material / Color: Metal / Black color

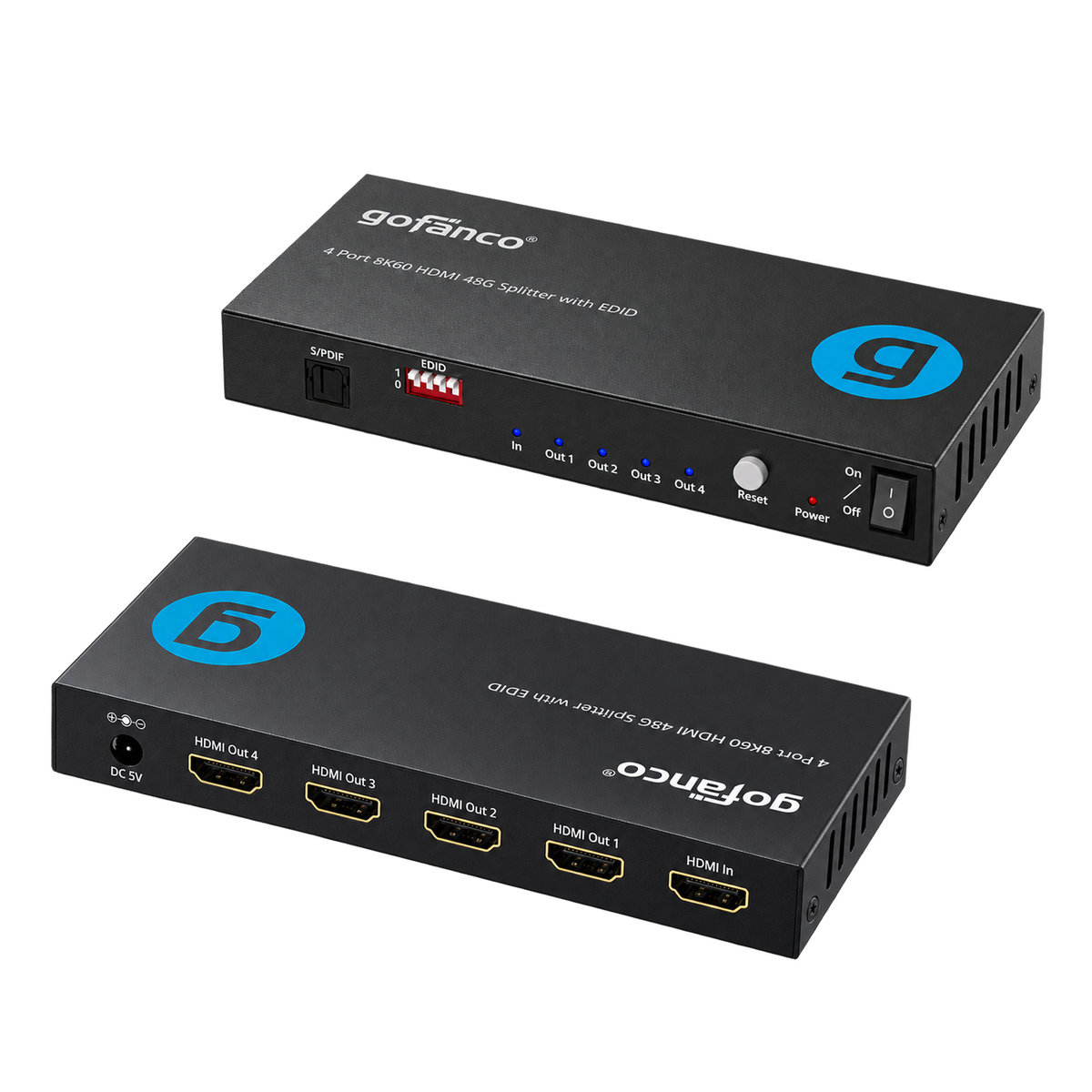

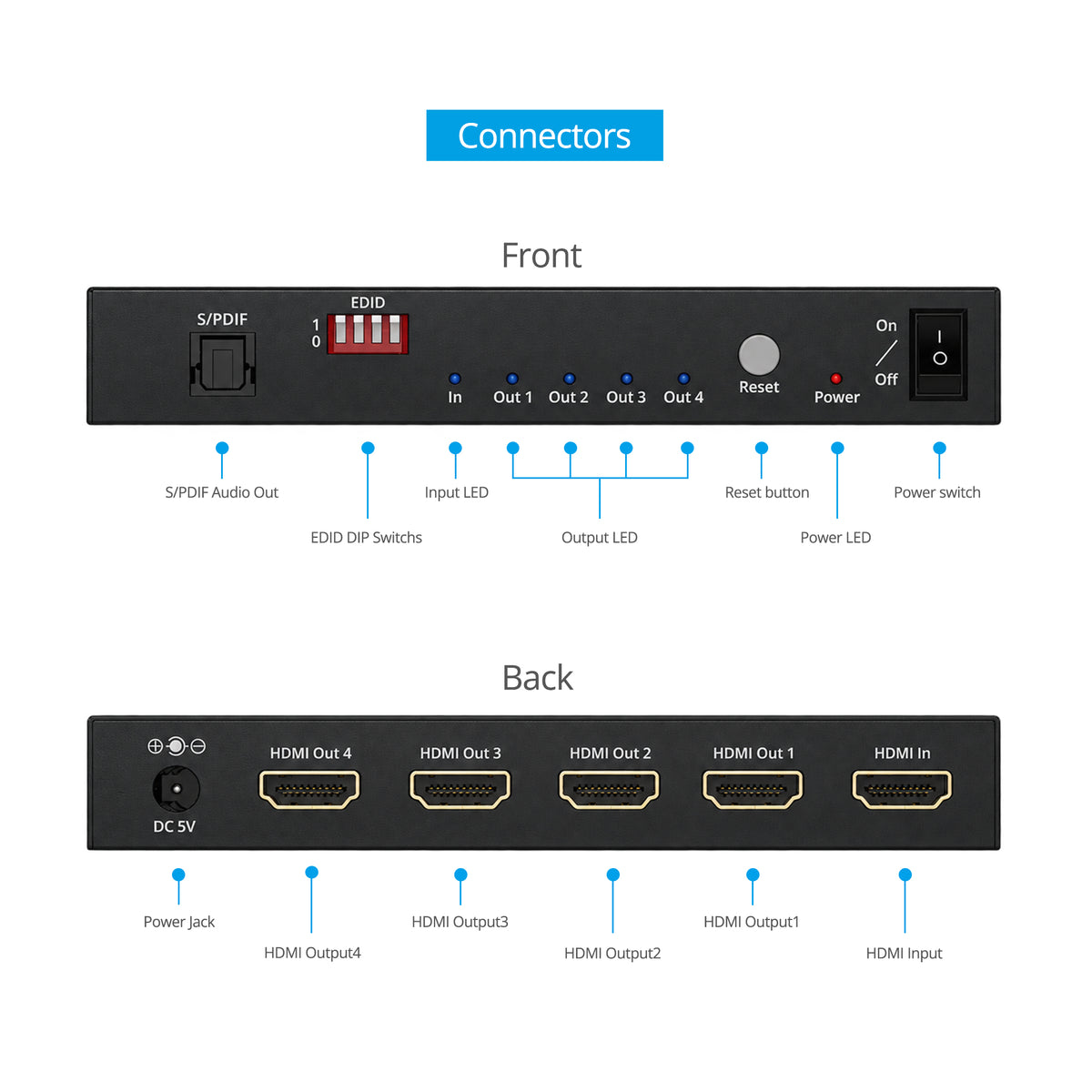

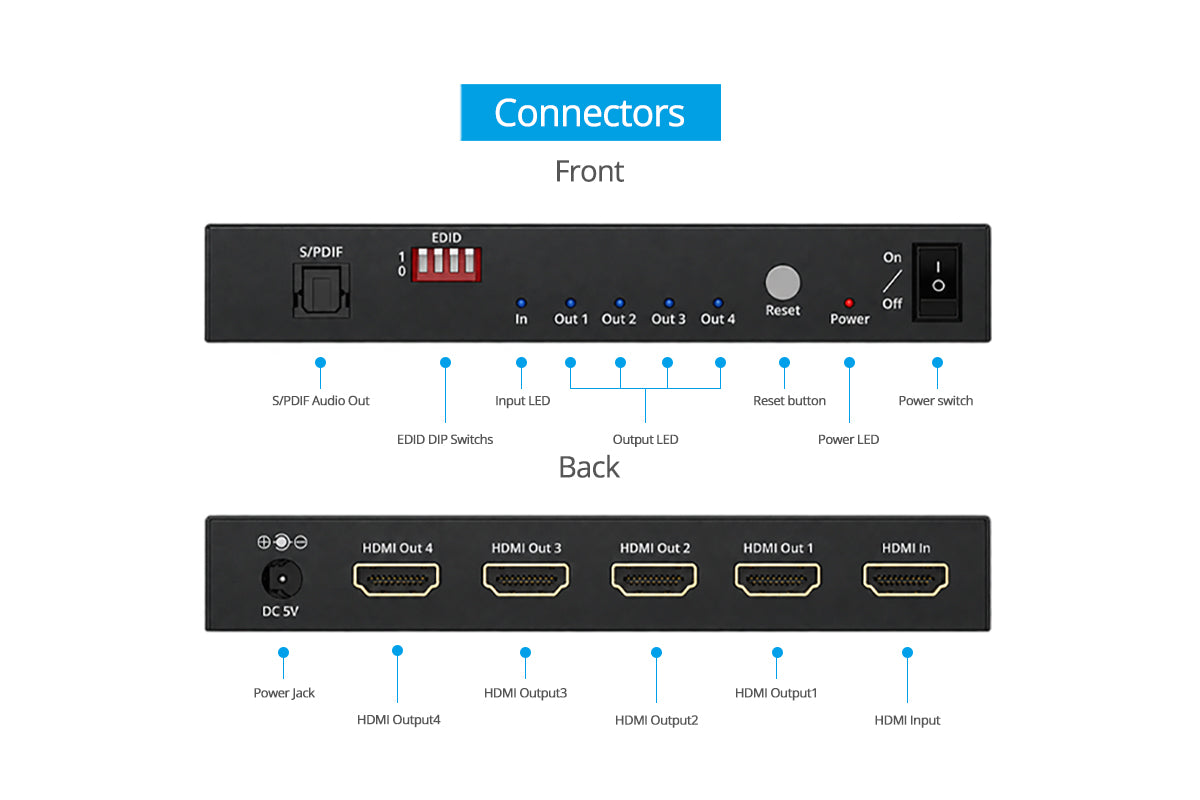

  • 1x 19-pin HDMI, Input
  • 4x 19-pin, HDMI, Output
  • 1x 4-pin DIP, EDID switch
  • 1x Reset button
  • 1x Power switch
  • 1x Power jack
  • 1x S/PDIF (Toslink), Audio output
  • Supports resolutions up to 8K60Hz and 4K120Hz, compliant with HDMI 2.1 standards.
  • Four Display Output: Splittes a single HDMI source into four HDMI displays at the same time
  • HDMI Audio: Supports advanced audio formats, including DTS:X, Dolby TrueHD, and DTS-HD Master Audio; S/PDIF output support stereo audio
  • Supports HDR (HDR10/Dolby Vision) and 48Gbps signal speed
  • Supports down scaler, compatible with displaying at different resolutions simultaneously

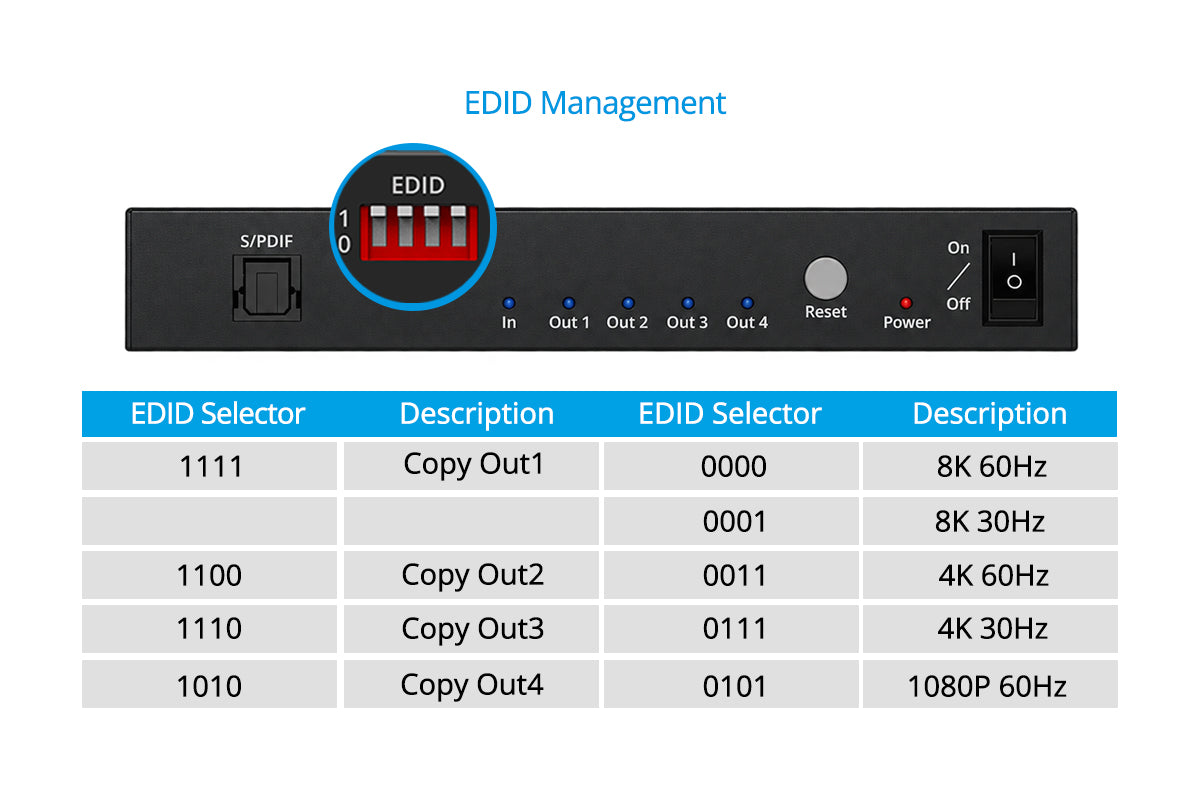

  • Smart EDID Management: Features built-in EDID management to ensure maximum compatibility and stability across different display resolutions
  • Metal casing design and overall shielding without signal interference
  • Plug and Play, no drivers or software installation required; ready to use right out of the box
  • UPC:818354-023565
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -20 to 158 degrees F
  • Relative humidity: 5 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
