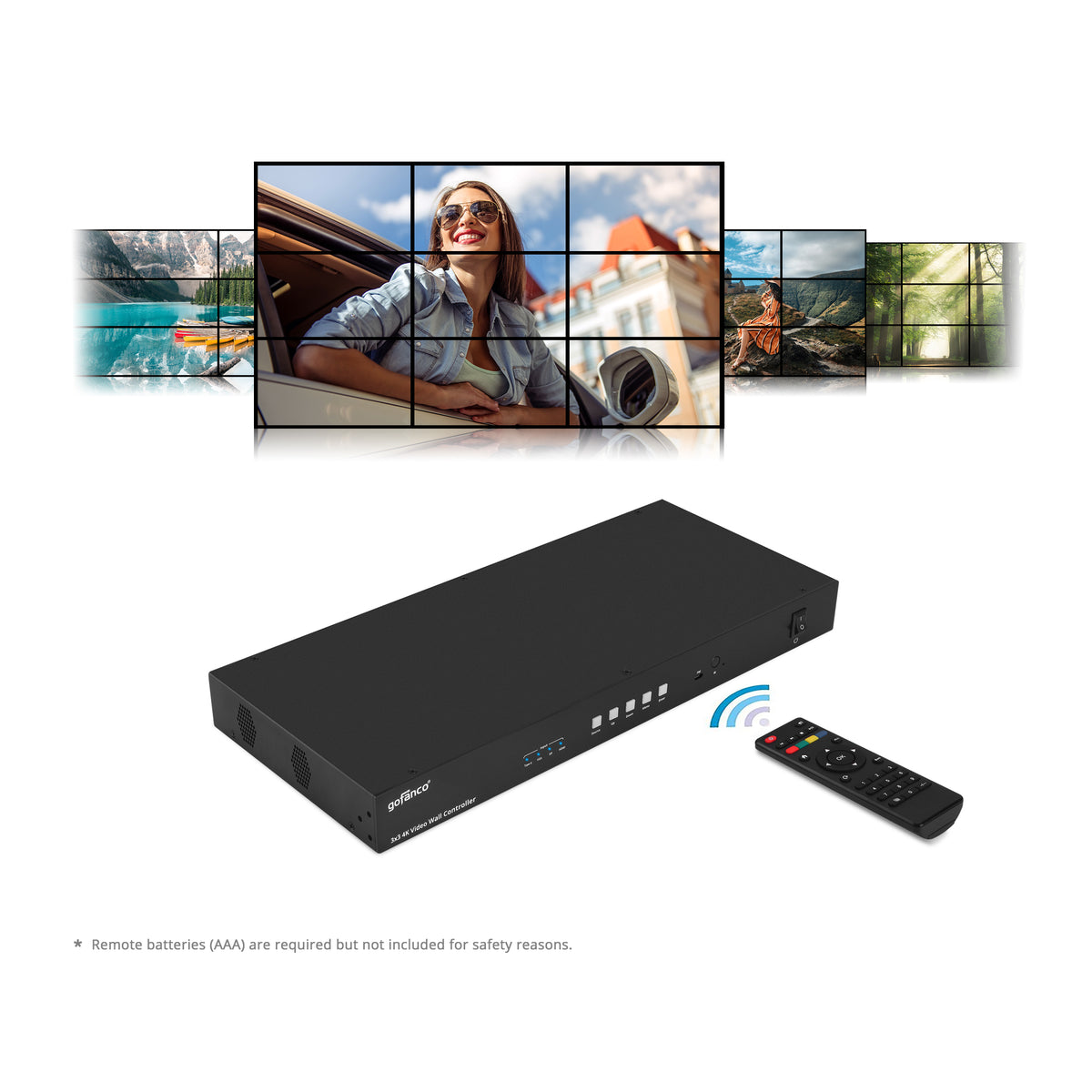

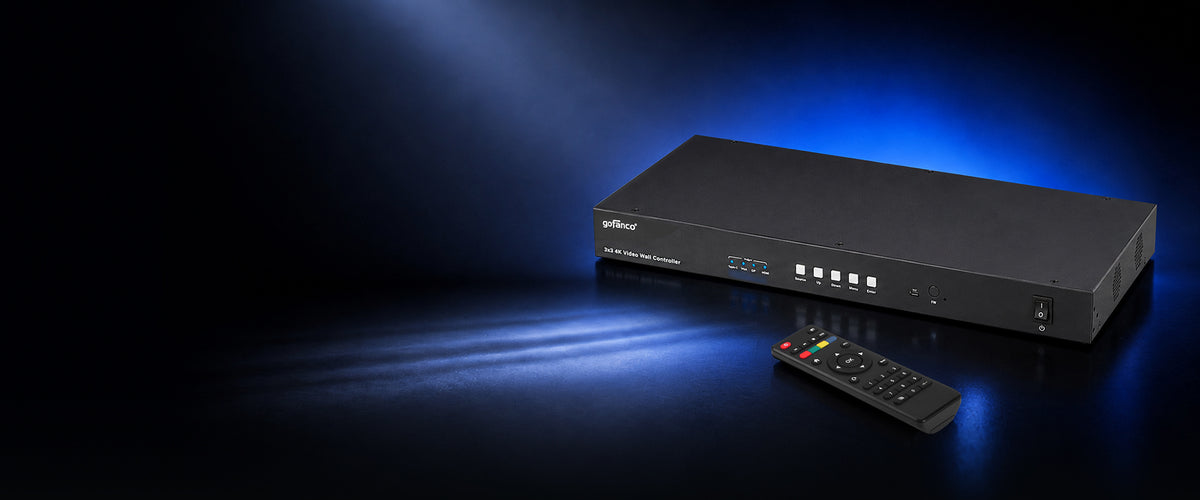

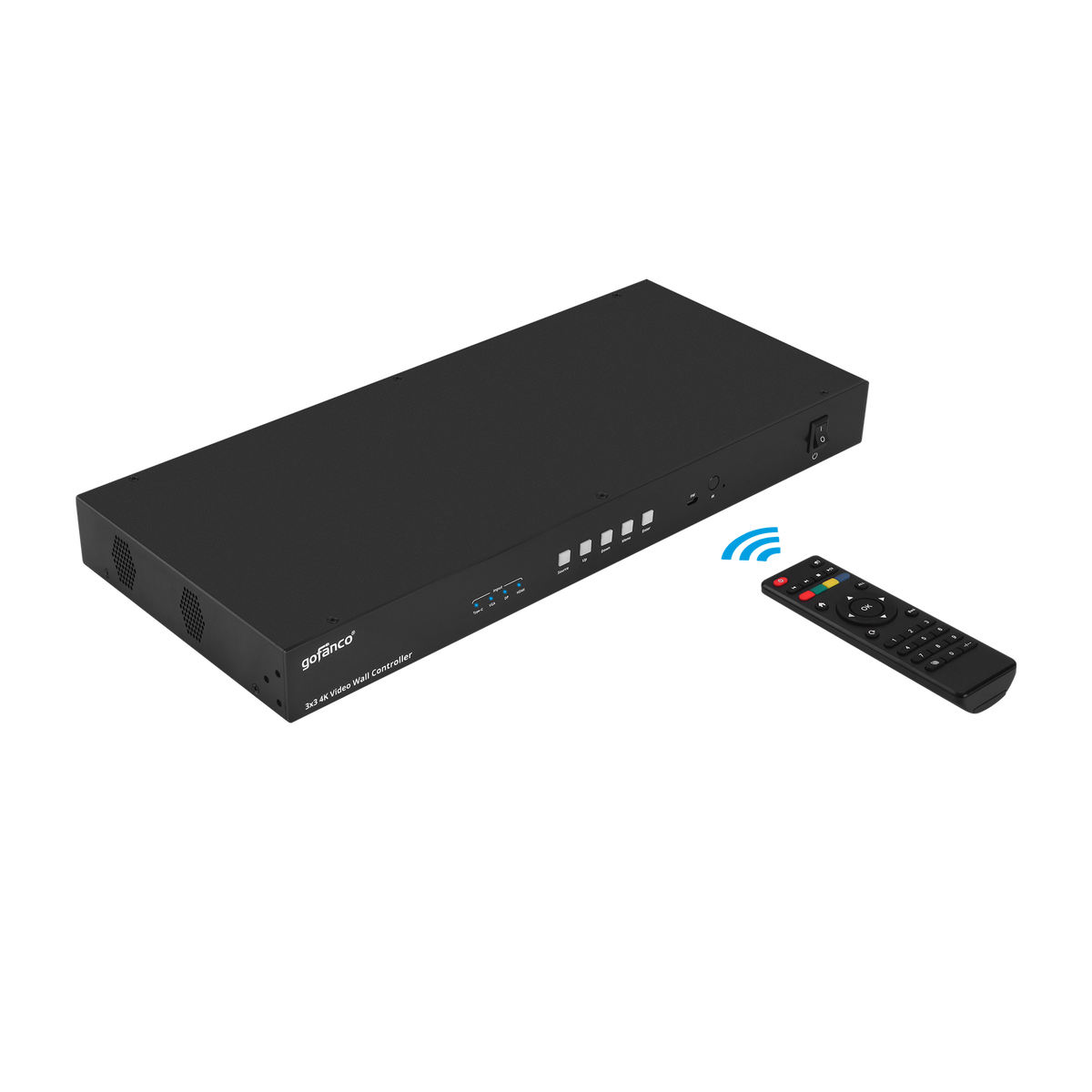

3x3 Video Wall Controller 4K30

Sale price $439.88

Up to 4K30Hz, Inputs (USB-C, VGA, DP, HDMI) - 180º Rotate, Edge Correction, 1U, Audio Extractor - 25 Display Modes, Cascade up to 10x10

Hurry, only 7 items left in stock!
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
9 Screen Processing
4K30Hz Resolution
Rotation & Edge Correction
supports-25-modes
Various Control

3x3 Video Wall Controller 4K30

Up to 4K 30Hz, Inputs (USB-C, VGA, DP, HDMI) - 180º Rotate, Edge Correction, 1U, Audio Extractor - 25 Display Modes, Cascade up to 10x10

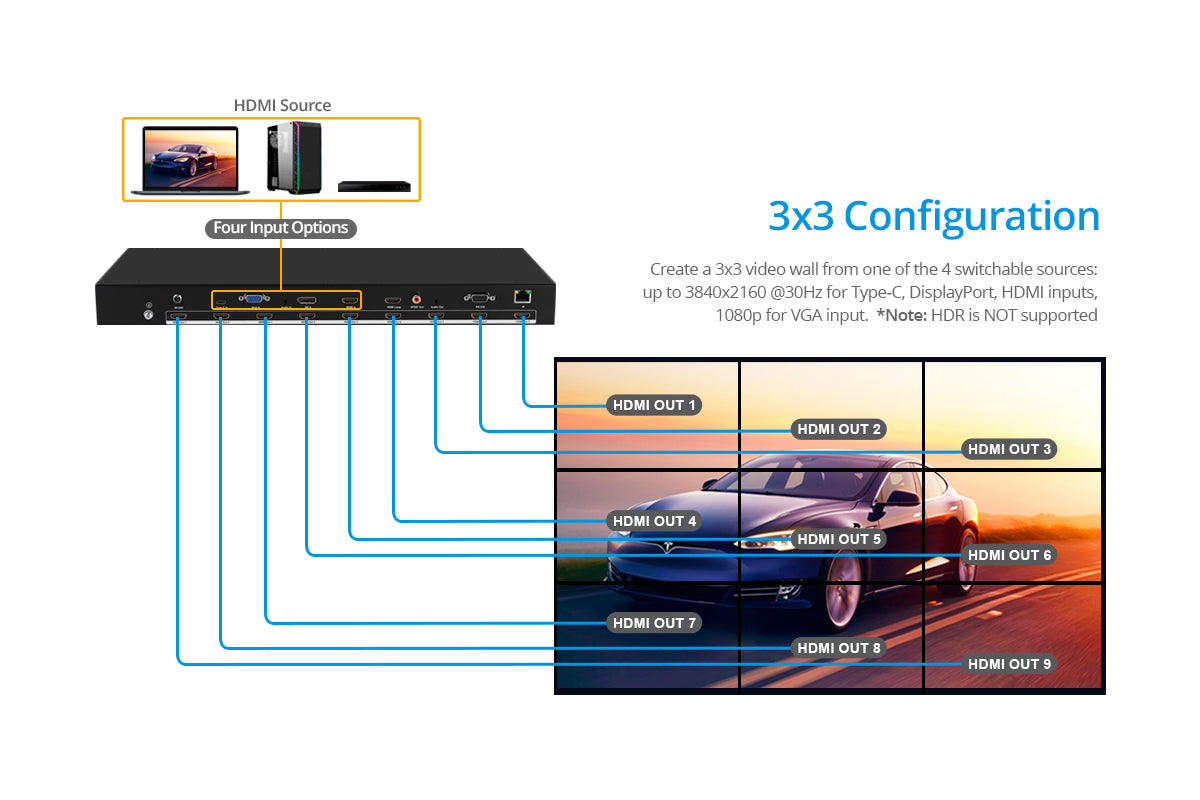

4K30Hz 3x3 Video Wall Controller with Cascading

Resolution

Supports 4K30Hz Input for Ultra HD Display

Video Wall

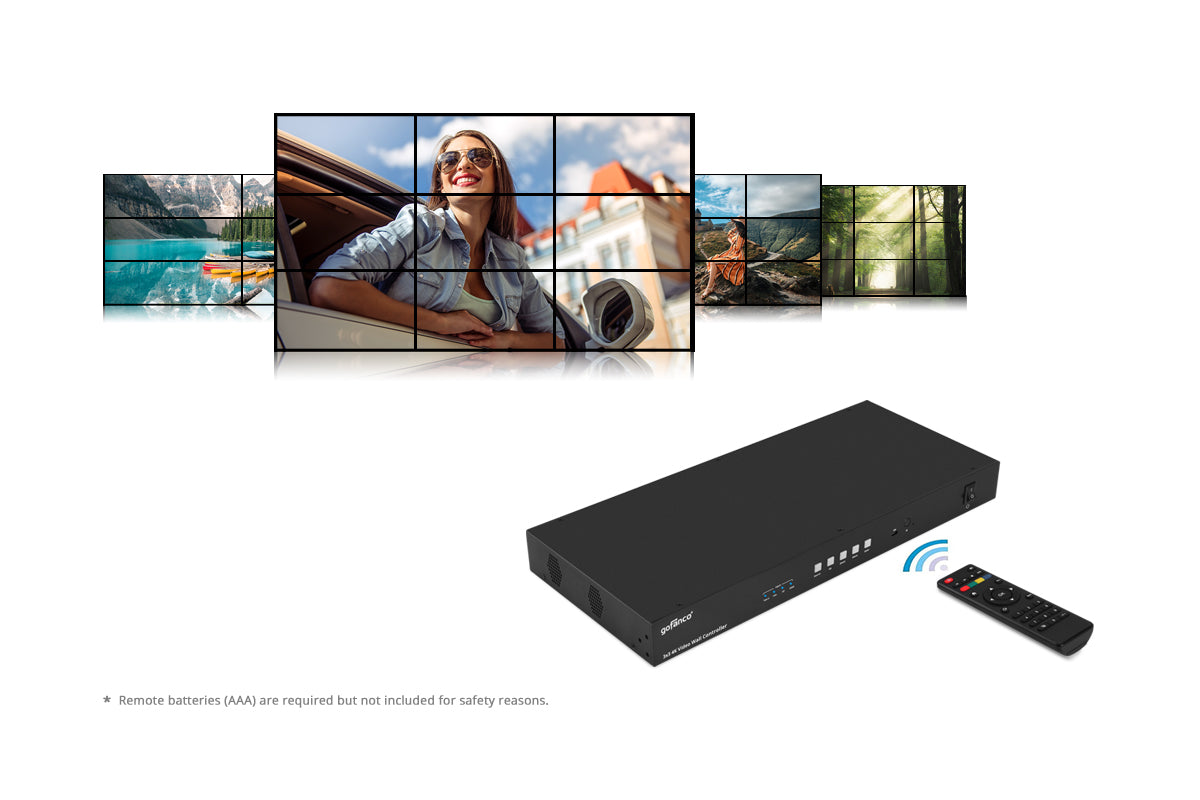

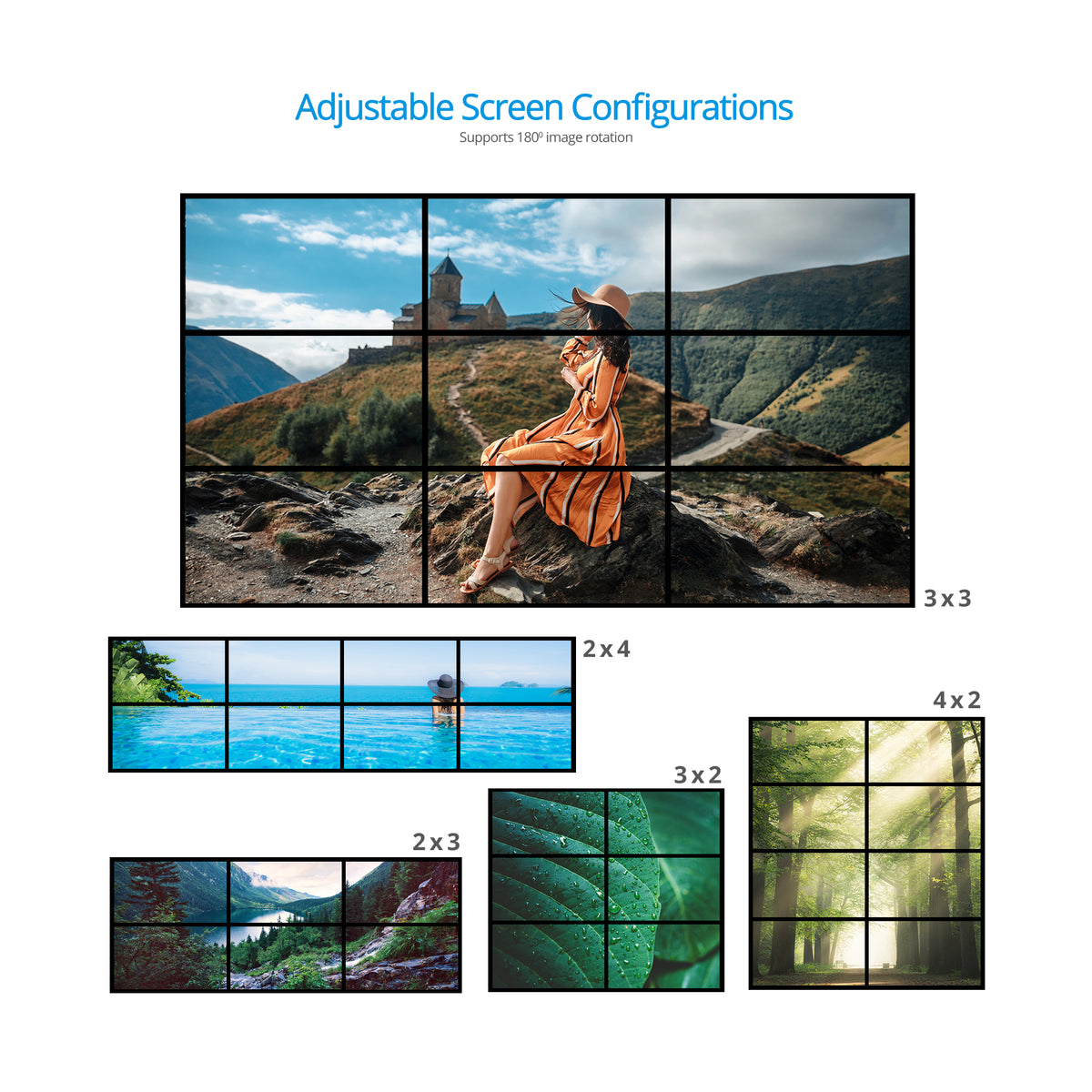

Supports 25 Versatile Video Wall Layout Modes

Controlled

4 Convenient Remote & Software Control Options

Cascade

Cascades Up to 10x10 Massive Display Walls

Video Wall Solution

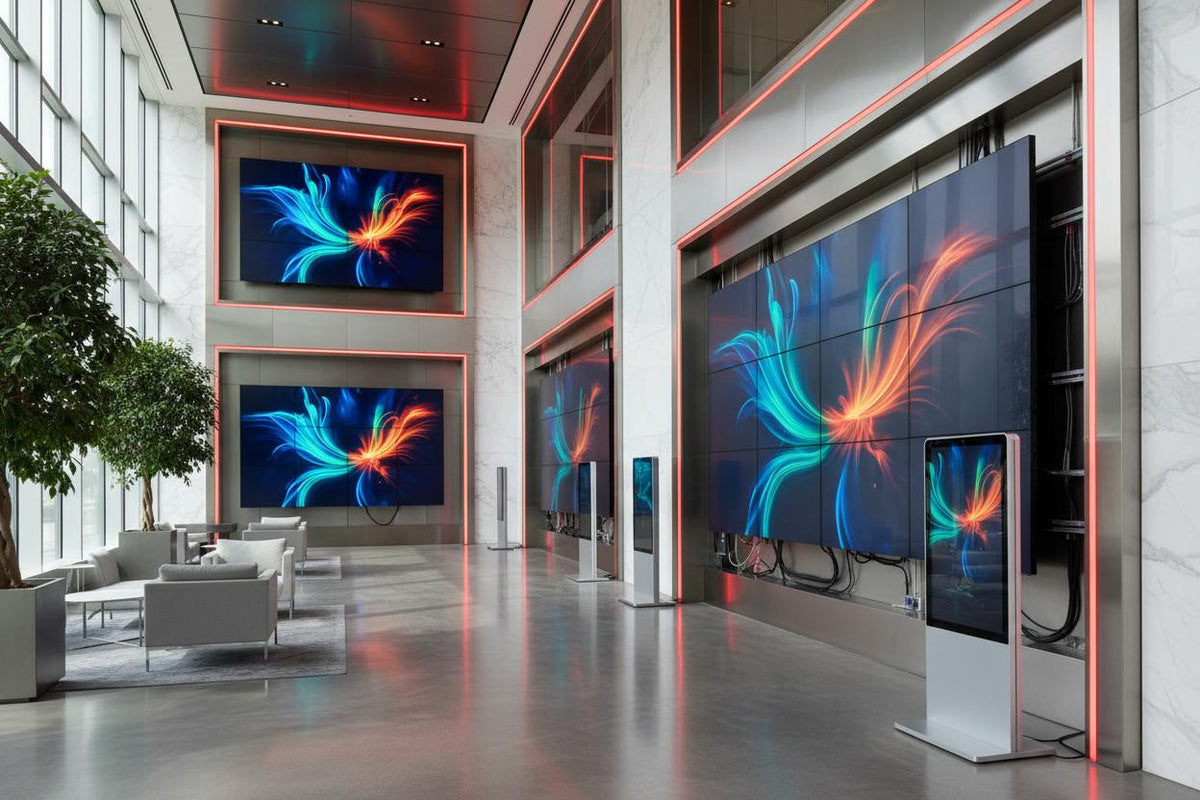

It is ideal for digital signage solutions and can enhance marketing, decoration or information content in bars, restaurants, clubs, stadiums, shopping malls, digital signage advertising, retail stores, exhibitions and many other places!

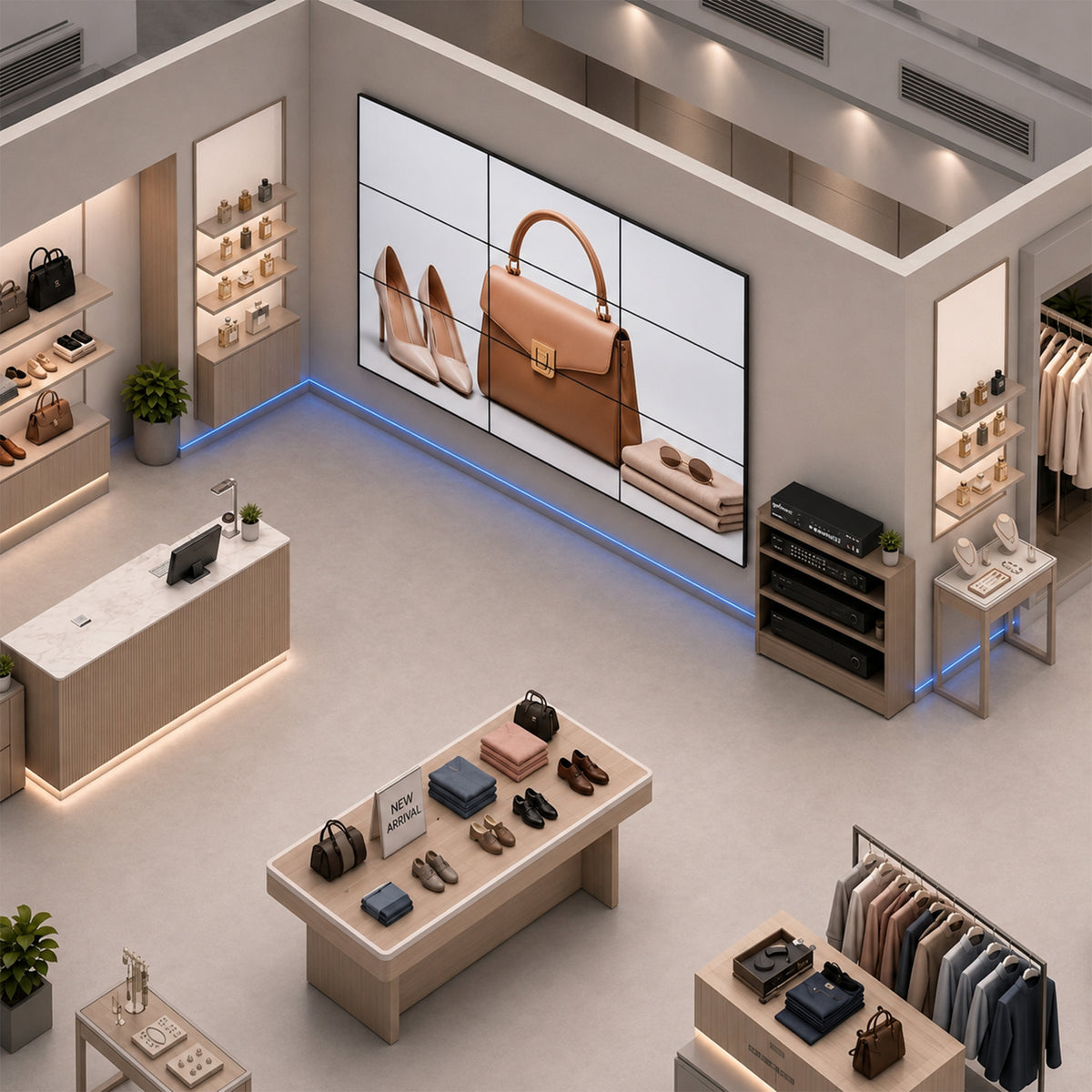

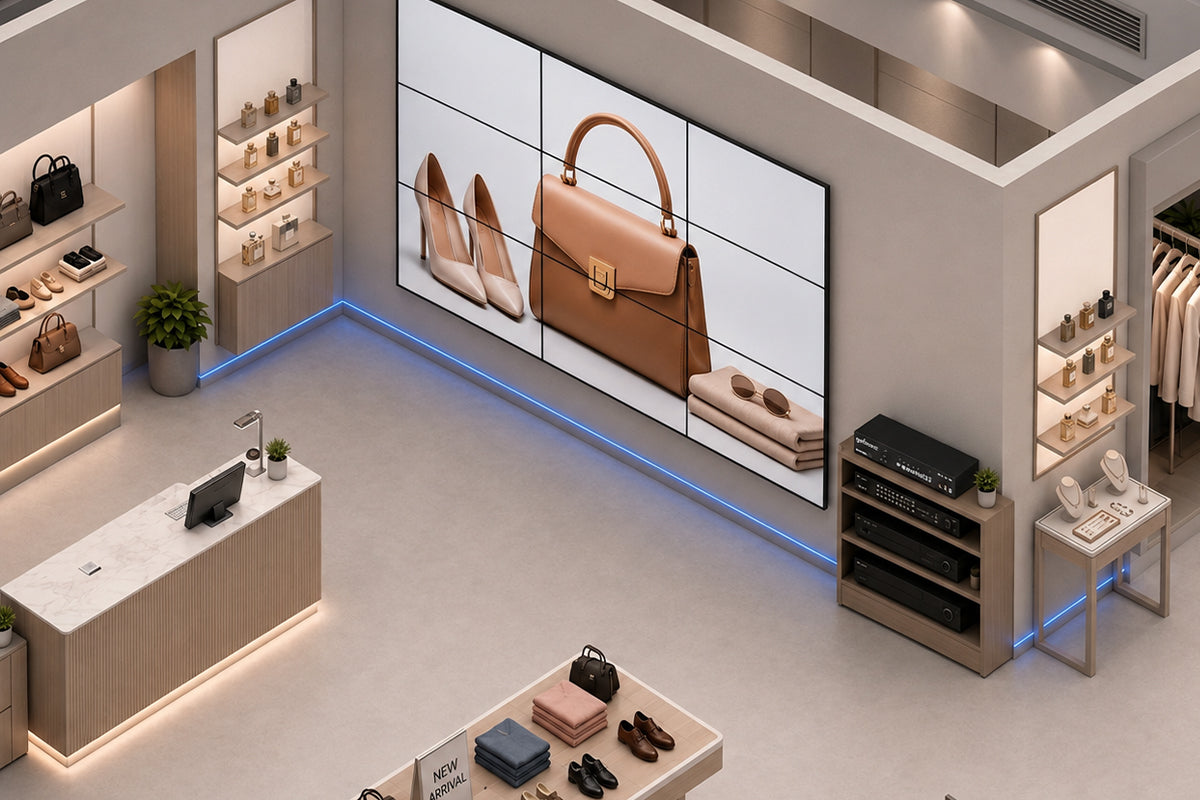

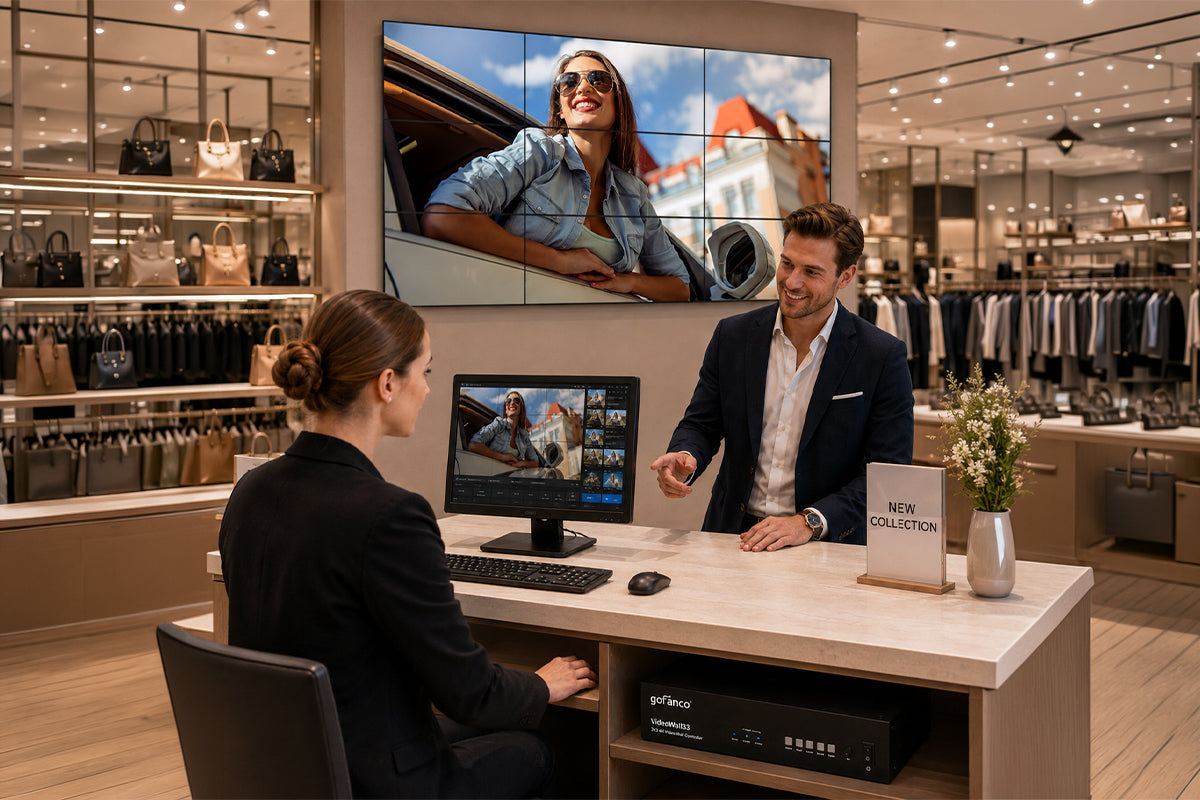

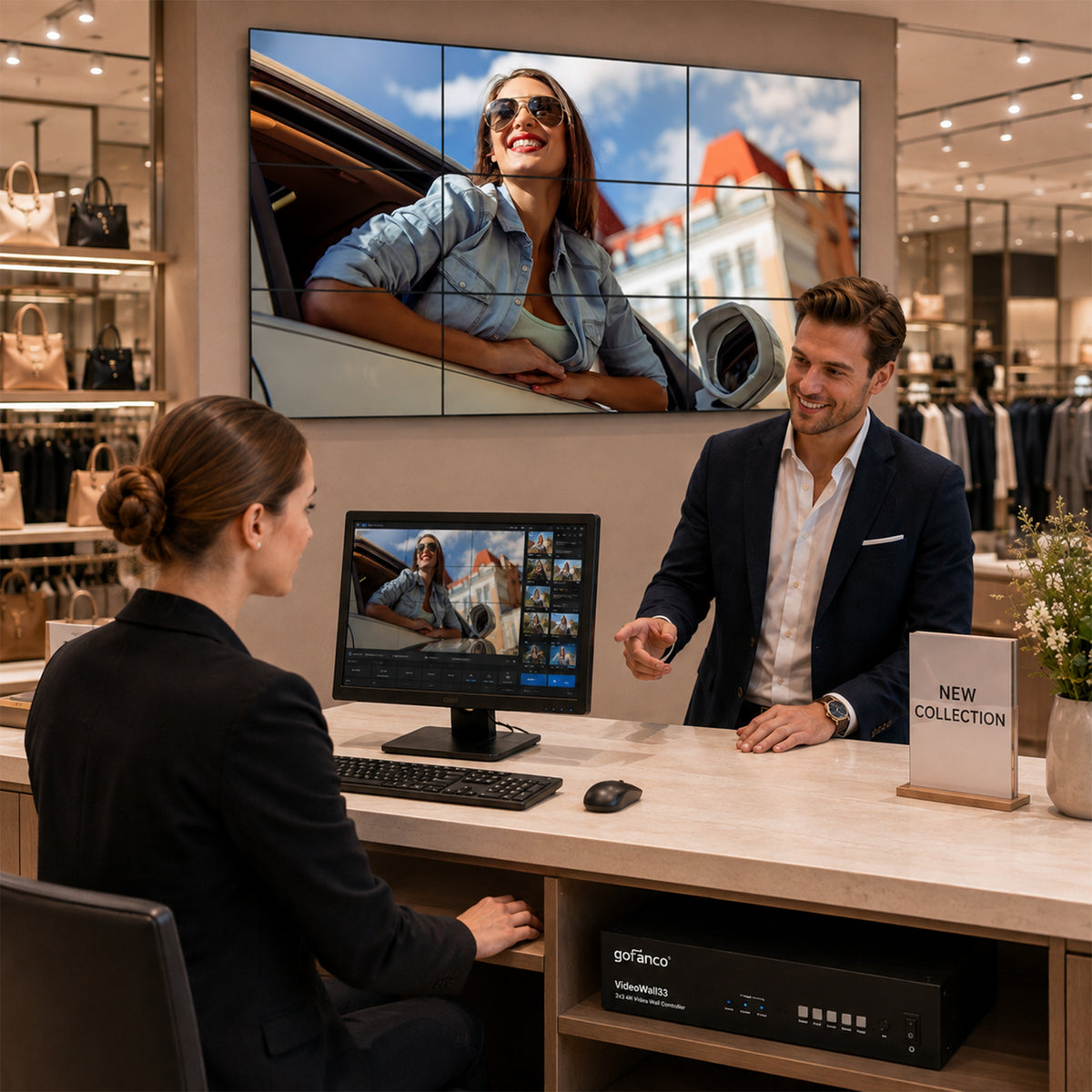

3×3 Retail Showroom Video Wall

Create an engaging 3×3 video wall to showcase brand campaigns and product content, helping retail showrooms attract attention and enhance the in-store customer experience

Advanced Features

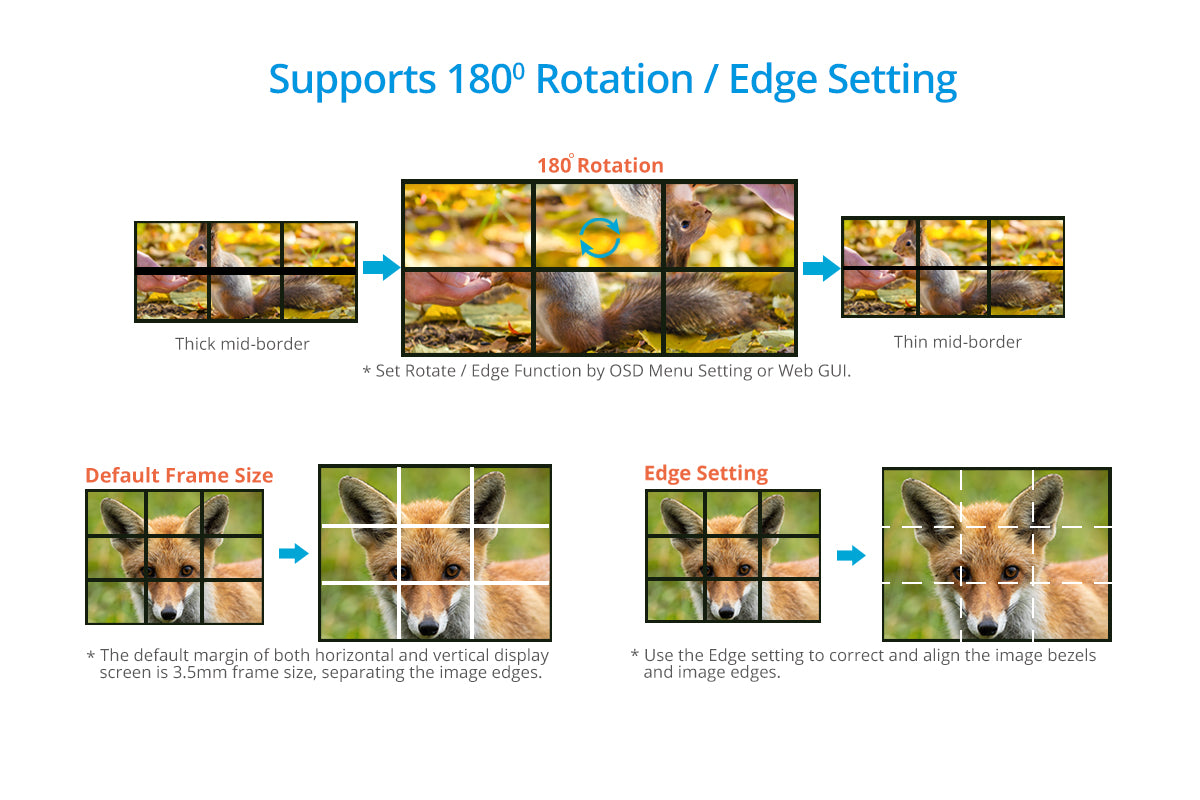

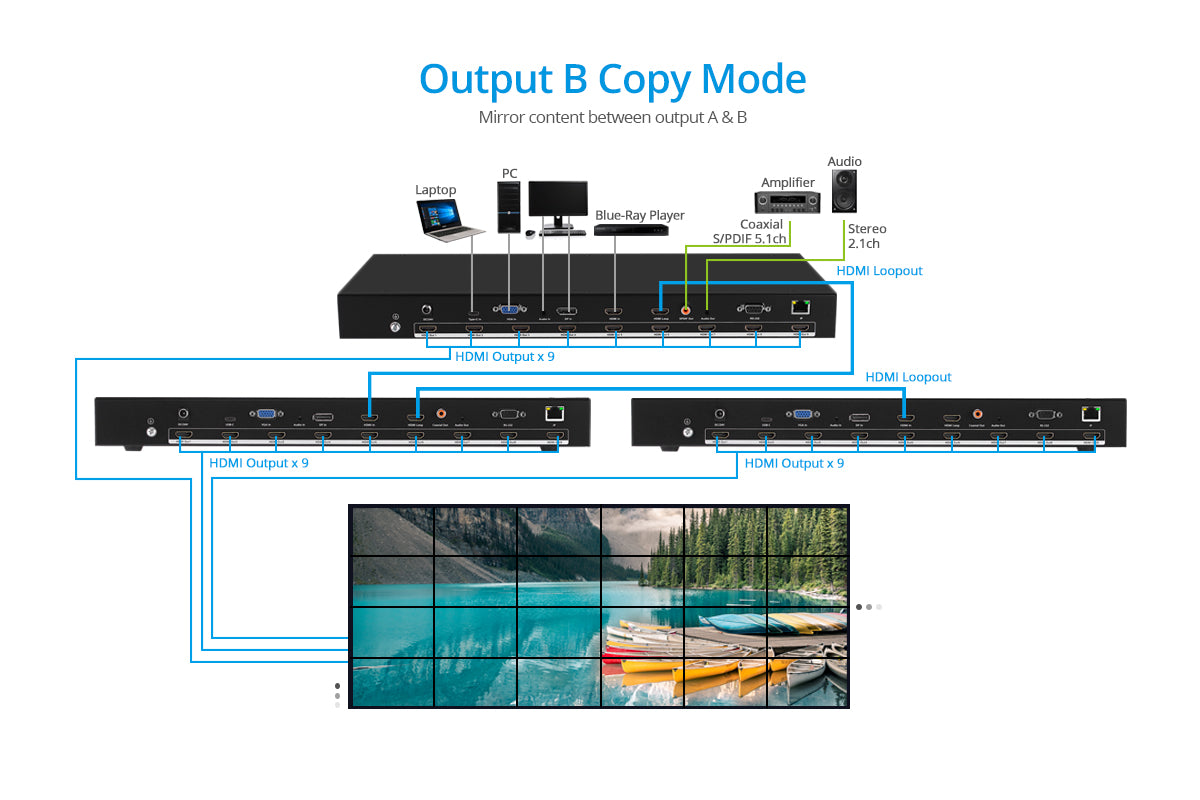

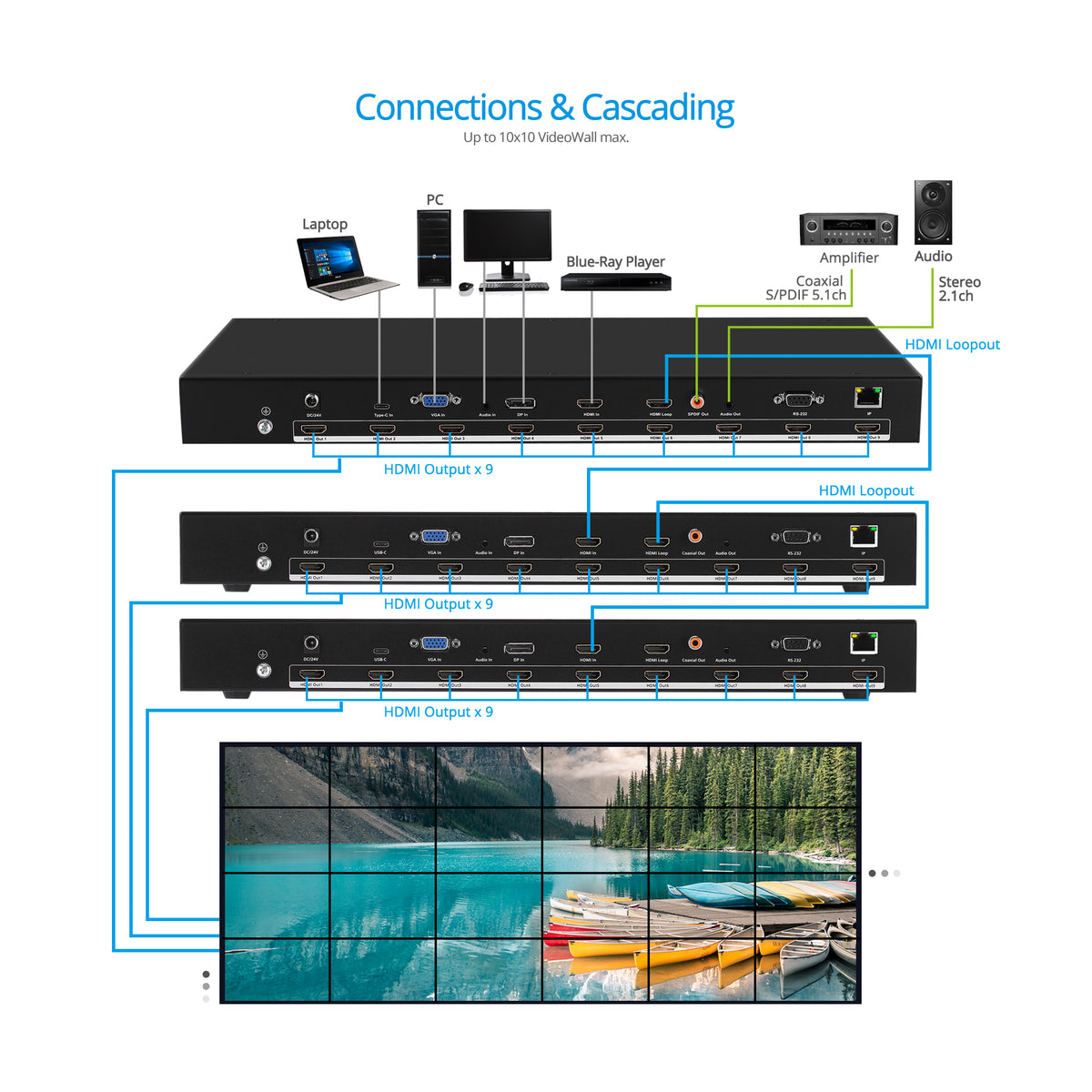

Connections up to 10x10 Videowall max, through HDMI Loopout connection, a 10x10 video wall can be realized /180 degree image rotation and edge correction / Audio Input/output / EDID management / Web GUI
Specification
  • Compliant: HDMI 1.4 / HDCP 2.2/1.4
  • Bandwidth: 10.2Gbps
  • Video format: Ultra HDTV 4K30Hz / FHDTV 1080p
  • Audio format: LPCM 16bit, 24bit, 44.1KHz / 48KHz

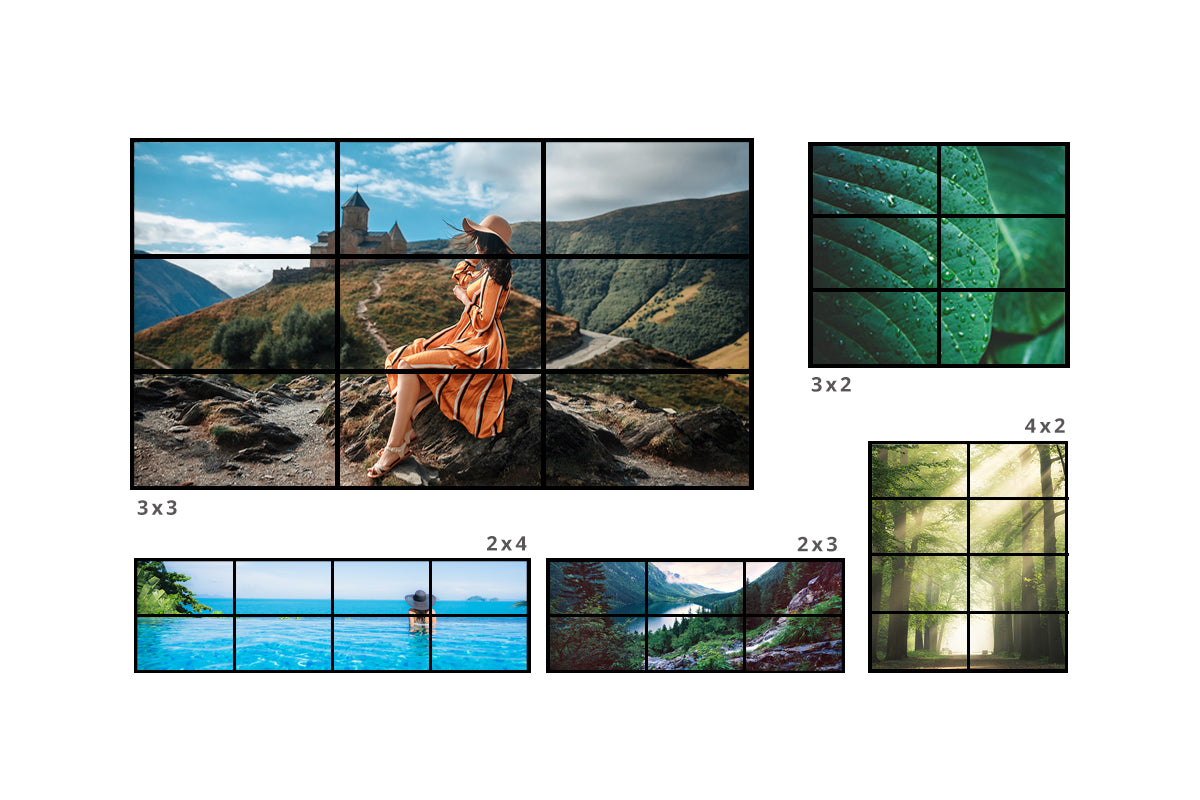

  • Video Wall modes: 1x1, 1x3, 1x4, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2, 4x3-1, 4x3-2, 3x4-1, 3x4-2, 4x4-1, 4x4-2
  • Cascade Video Wall modes: 4x3 / 4x4 / 5x6 / 6x6 etc up to 10x10

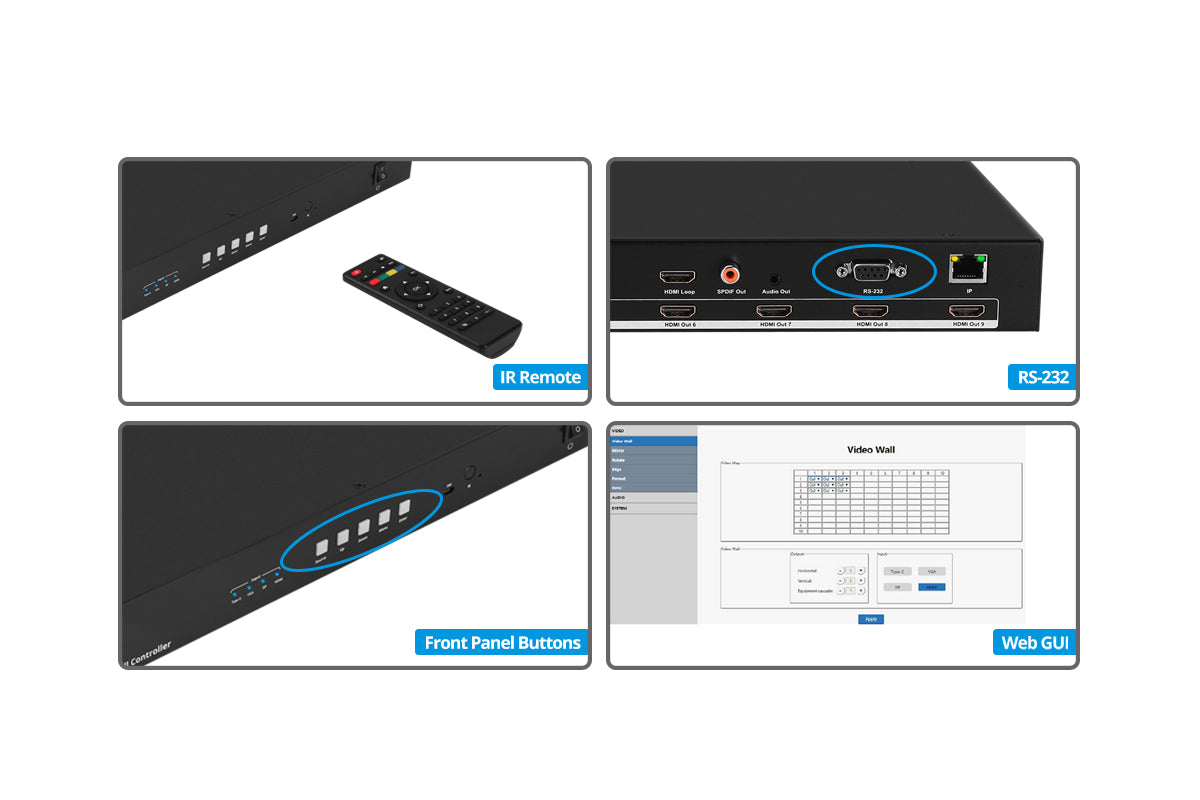

  • Control: Front panel buttons, Web GUI, Remote control, RS-232 Control
  • Dimension: 17.24″ (W) x1.73″ (H) x 10.79″(D)
  • Weight: 8.16 lbs
  • Power Adapter: AC100 - 240V 50/60Hz, Output: 24V/2A
  • Housing Material / Color: Metal / Black

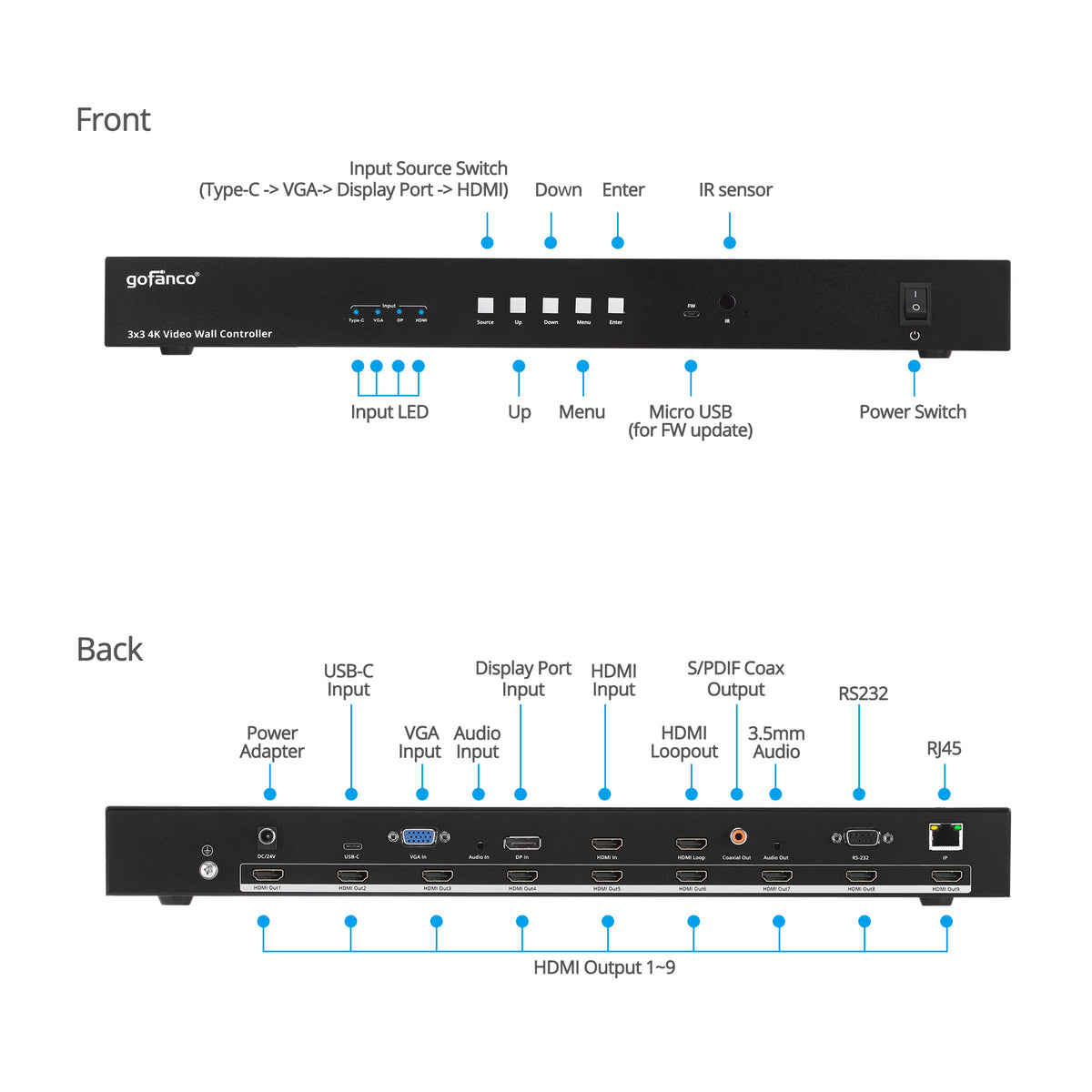

  • 9x 19-pin HDMI Output
  • 1x 24-pin USB-C, Input
  • 1x 15-pin D-Sub VGA, Input
  • 1x 3.5mm jack, Audio input
  • 1x 20-pin DisplayPort, Input
  • 1x 19-pin HDMI, Input
  • 1x 19-pin HDMI, Loopout
  • 1x Coaxial, Audio Output
  • 1x 3.5mm jack, Audio output
  • 1x 9-pin RS-232, Control
  • 1x 8-pin RJ45, Ethernet control
  • 1x 5-pin Micro USB, FW update
  • 5x Press button, Control Selection
  • 1x Power Switch
  • 1x Power Jack
  • 3x3 HDMI 4K Video Wall controller/processor, with cascading 10x10

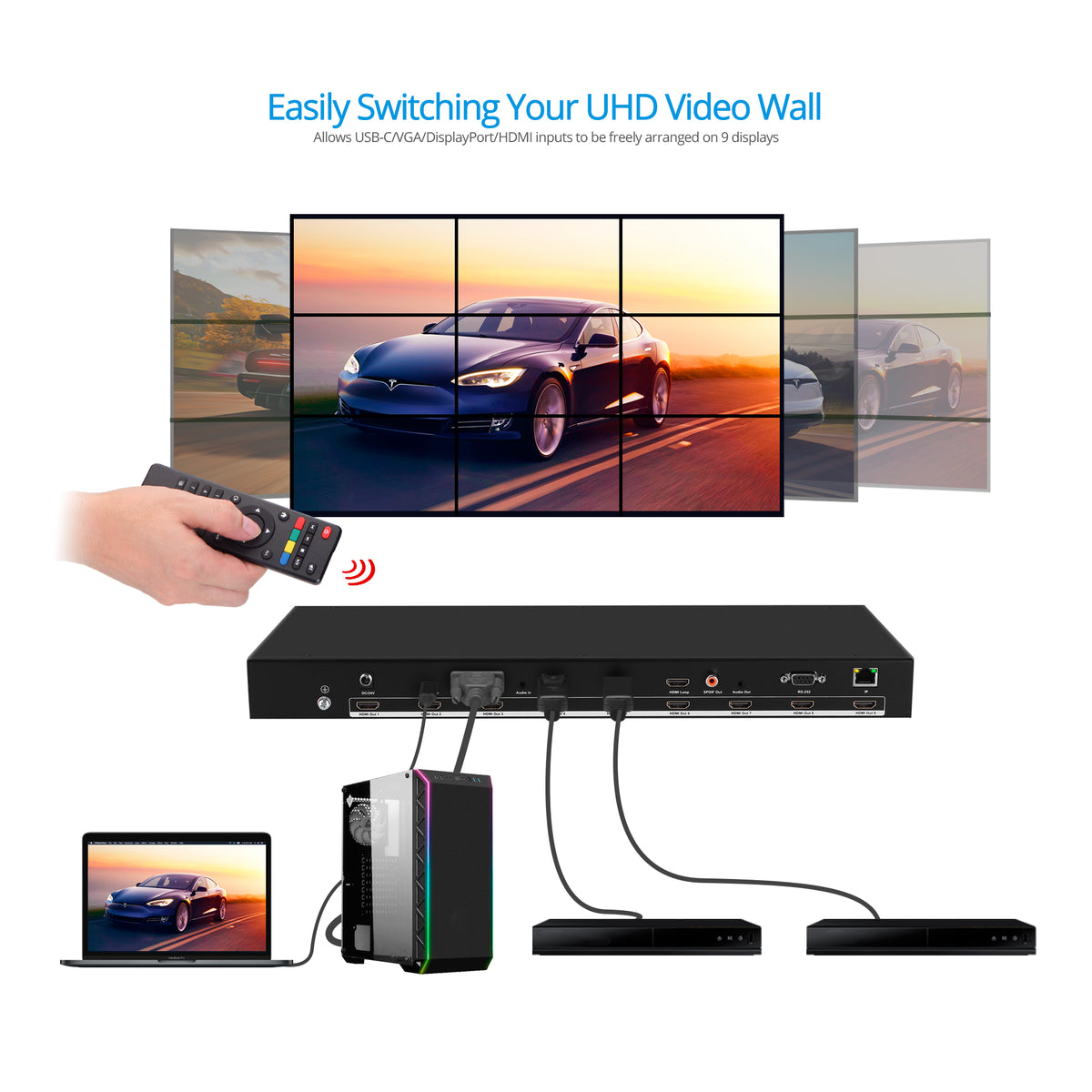

  • Switchable between 4 inputs: USB Type-C, VGA, DisplayPort, and HDMI

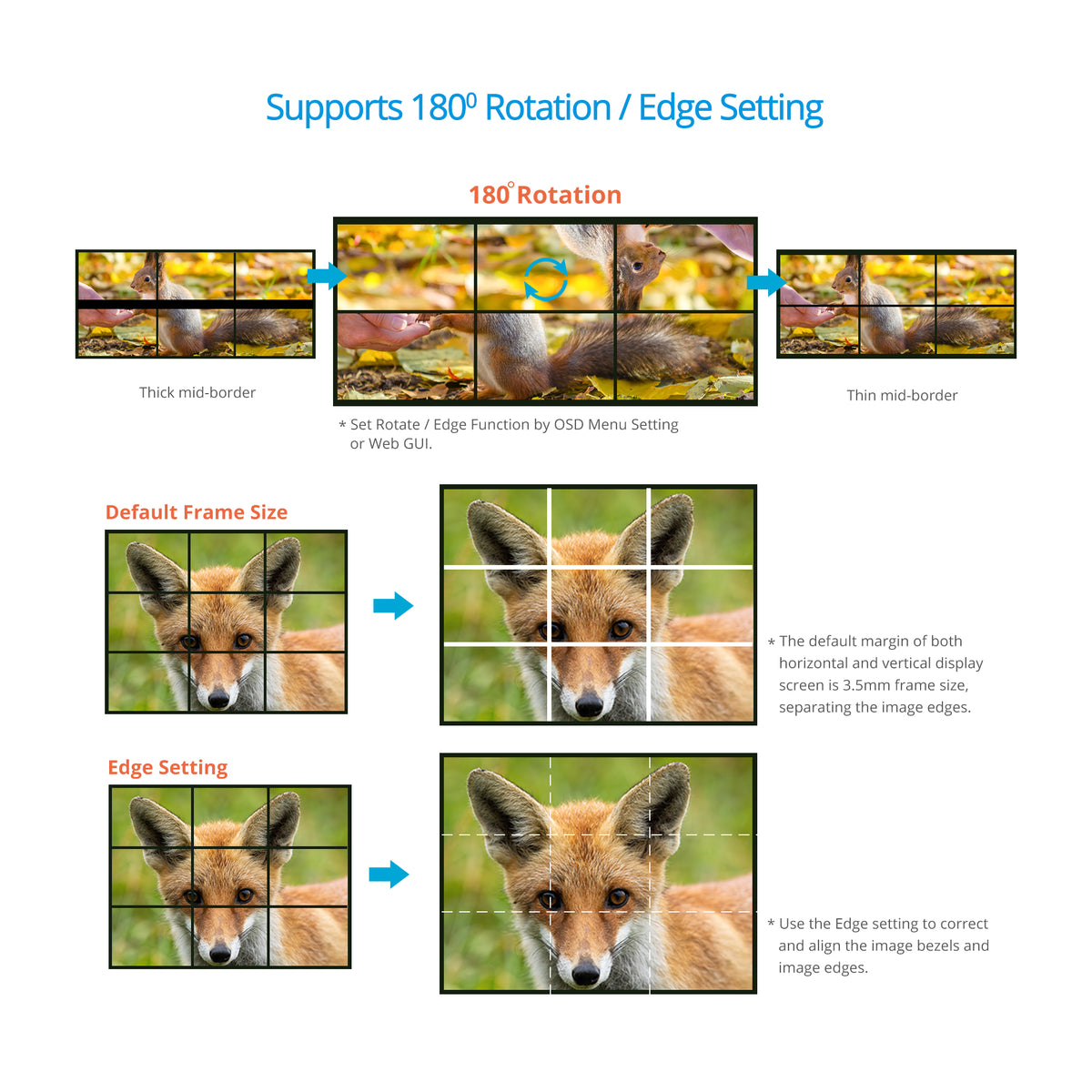

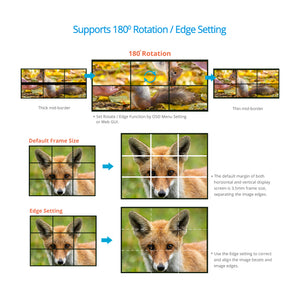

  • Supports 180 degree image rotation
  • Input resolutions: Up to 4K30Hz YUV 4:4:4 for all inputs
  • Output resolutions: Up to 4K30Hz
  • Controls: Front panel buttons, IR remote, RS-232 commands and LAN
  • Supports S/PDIF and Analog audio extraction
  • UPC:818354-022353
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 5 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
