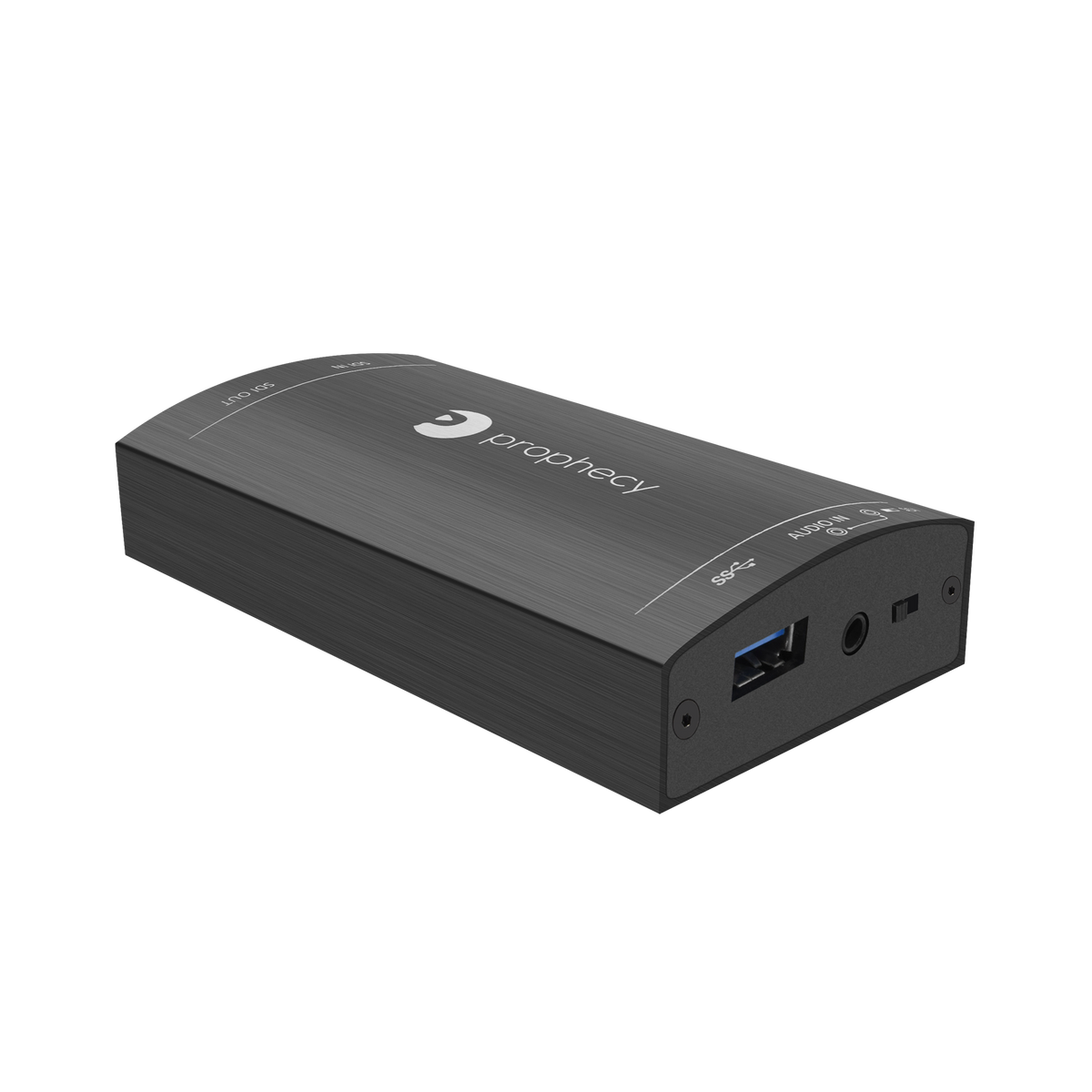

USB Capture SDI Device
USB & Power: PRO-CaptureSDI

USB Capture SDI Device

Sale price $167.88

Provides a professional way to capture SDI video signals in Full HD (1080p60) through your system’s USB 3.0 port.

76 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
1080p Resolution
USB 5Gbps Capture
SDI Loopout
Audio Extraction
USB Powered

USB 3.0 SDI Capture Adapter with Audio out

Capture

Recording 1080p 60Hz video by USB 3.0

Loopout

For a 3G/HD/SD-SDI monitor/display connection

Steraming

Broadcast Live Stream from SDI Camera

Audio

Audio input from embedded SDI or analog stereo audio
Specification
  • SDI standards: SD-SDI, HD-SDI & 3G-SDI
  • Input Video bandwidth: 2.970 Gbps, 2.970/1.001 Gbps
  • Output Video bandwidth: Up to 350Mbps (USB 3.0)
  • Video support: Up to 1080p 60Hz
  • Audio format: 2 CH 16bit PCM
  • Recording mode: Software compression
  • Recording video format: YUV2 (USB 3.0), MJPG (USB 2.0/3.0)
  • Firmware update: Feasible via USB port
  • Product Dimensions: 4.0″ (W) x 0.80″ (H) x 2.30″ (D)
  • Weight: 0.28 lbs
  • Housing Material / Color: Metal / Black color
  • 1x 9-pin, USB-A, Output
  • 2x SDI, Input/Output
  • 1x 3.5mm jack, Line in
  • 1x Slide switch, Audio selection
  • SDI video and audio streams over USB 3.0
  • Supports UVC1.0
  • Supports SDI loop through
  • Supports stereo line in
  • Auto-detection on video format to ensure plug-play operations
  • Recording Video Format: H.264 (Software Compression)
  • Compatible with most 3 party software such as OBS Studio and AMCap
  • Supports USB 3.0 (MJPG/YUY2) and USB 2.0 (MJPG)
  • Low latency
  • UPC:818354-020250
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: Taiwan
