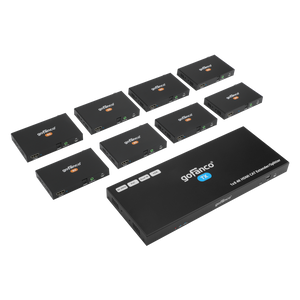

Splitters: HD20Ext-8P

1x8 HDMI 2.0 CAT Extender/Splitter (1x Transmitter & 8x Receivers) - 60m (197ft) for 4K60Hz - 1080p up to 90m (295ft)

Sale price $450.88

Up to 197ft (60m) at 4K 60Hz 4:4:4 / 295ft (90m) at 1080p 60Hz, HDR HDCP 2.2, Dual IR, PoC, EDID, Loopout, 5.1-ch Digital Audio, Toslink/Analog Audio Extraction

16 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K60Hz 1x8 Extender
Distance up to 90m
HDMI Loopout
IR Bi-directional
Audio Extraction

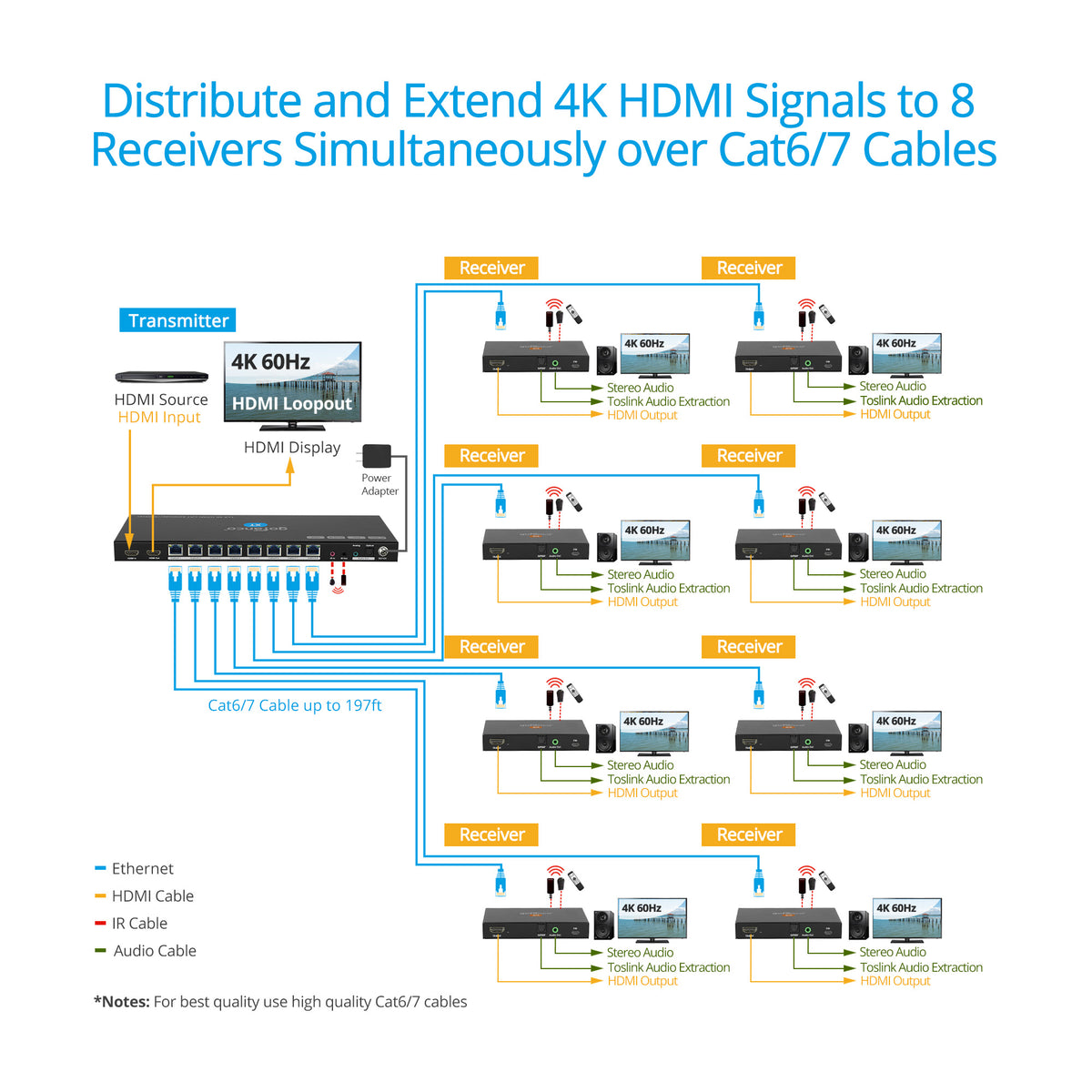

1x8 HDMI Extender/Splitter over Cat6/7

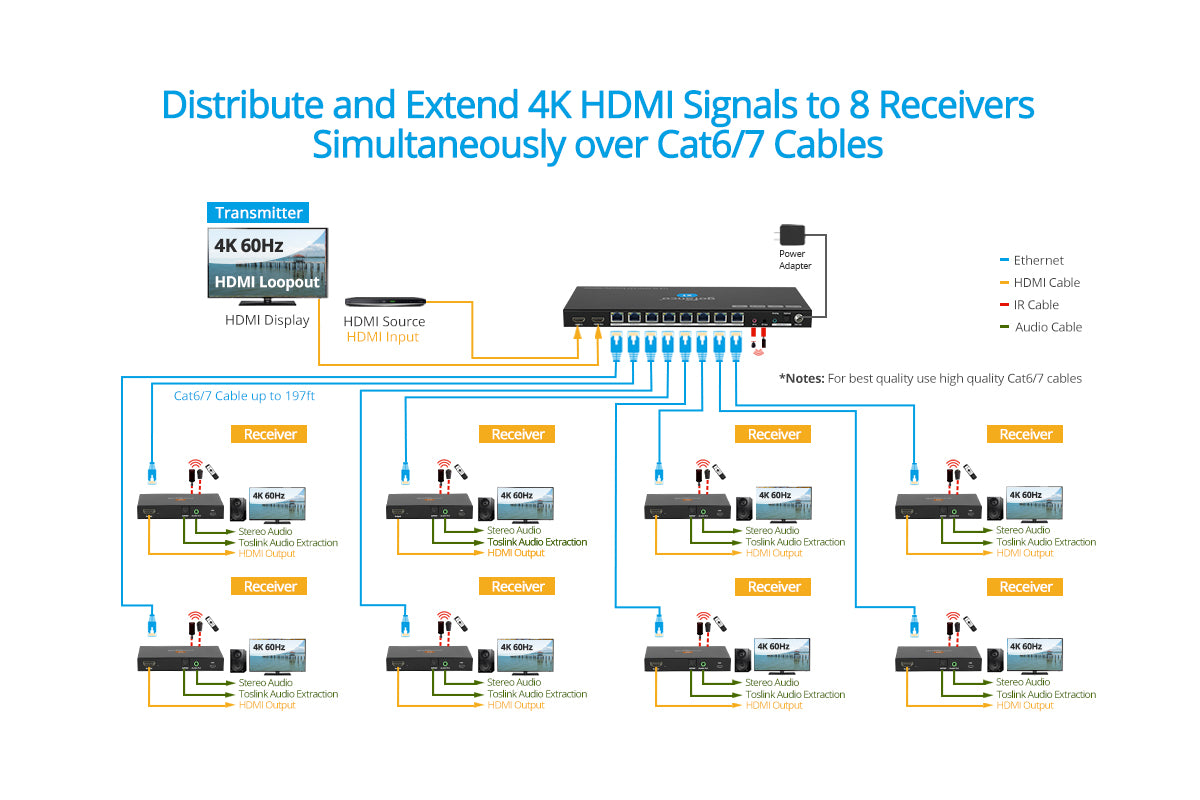

Extend and split one HDMI source to eight CAT6/7 & one HDMI outputs simultaneously at near zero latency

8-Port 4K60Hz HDMI Extender/Splitter with Audio Extraction

Resolution

Ultra HD Resolution Support Up to 4K60Hz

Distance

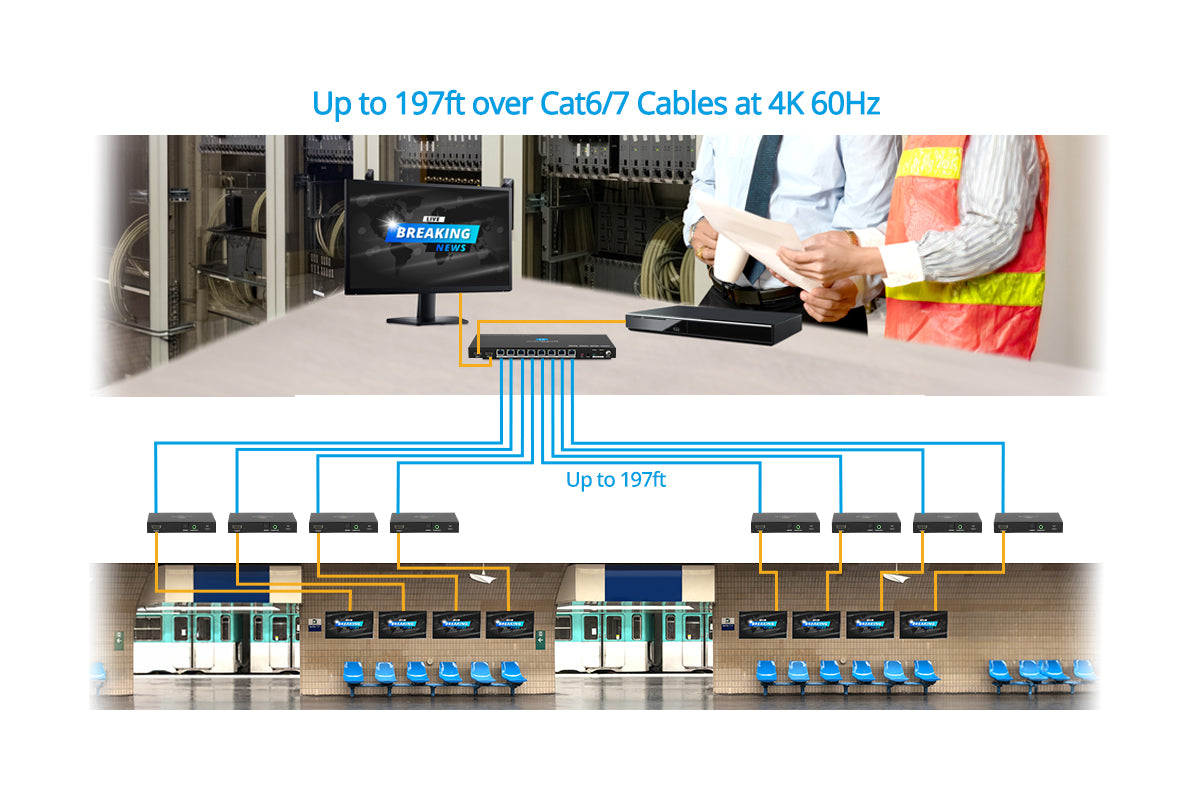

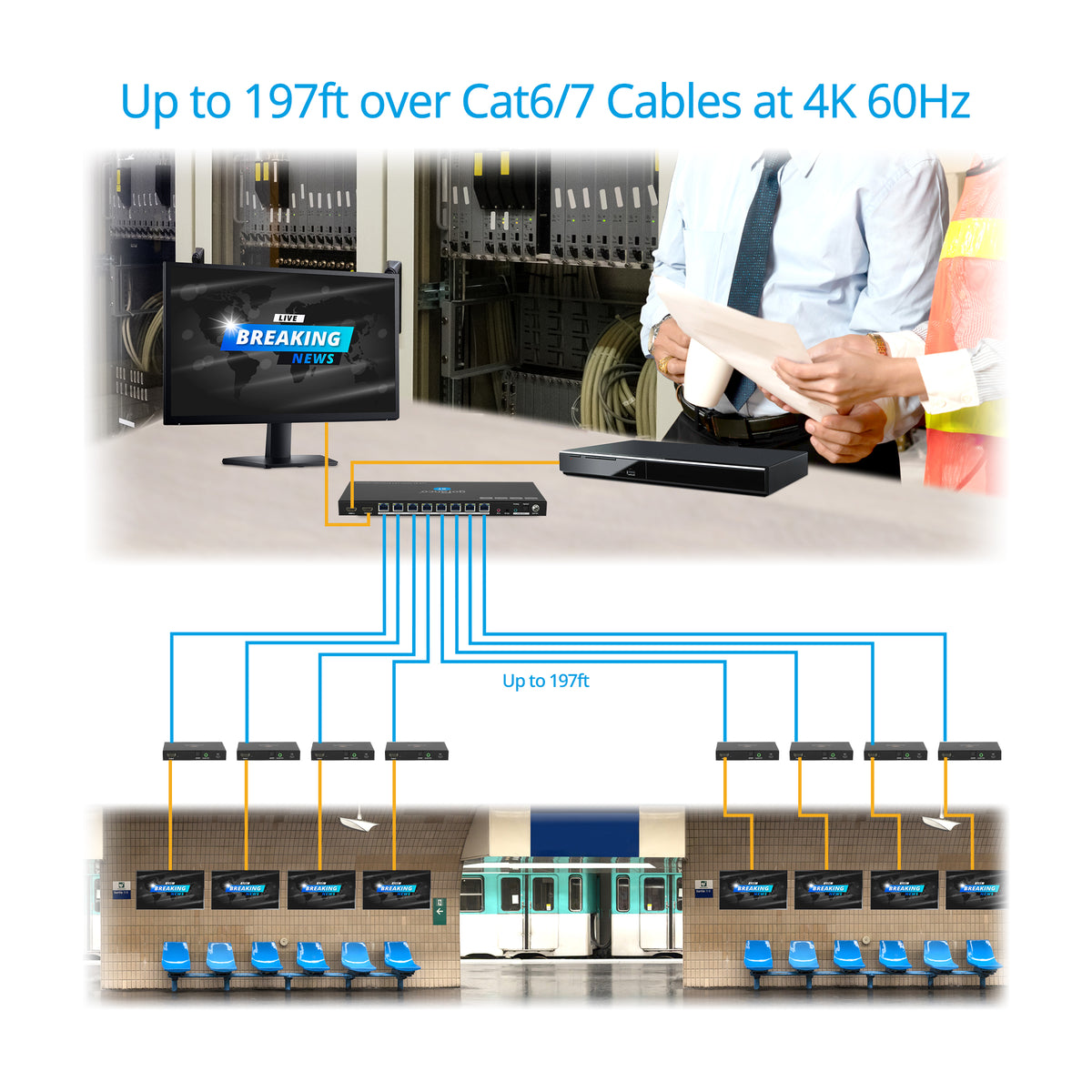

Extends 4K60Hz signal up to 197ft

PoC

Single Power Adapter Powers Both TX & RX Units

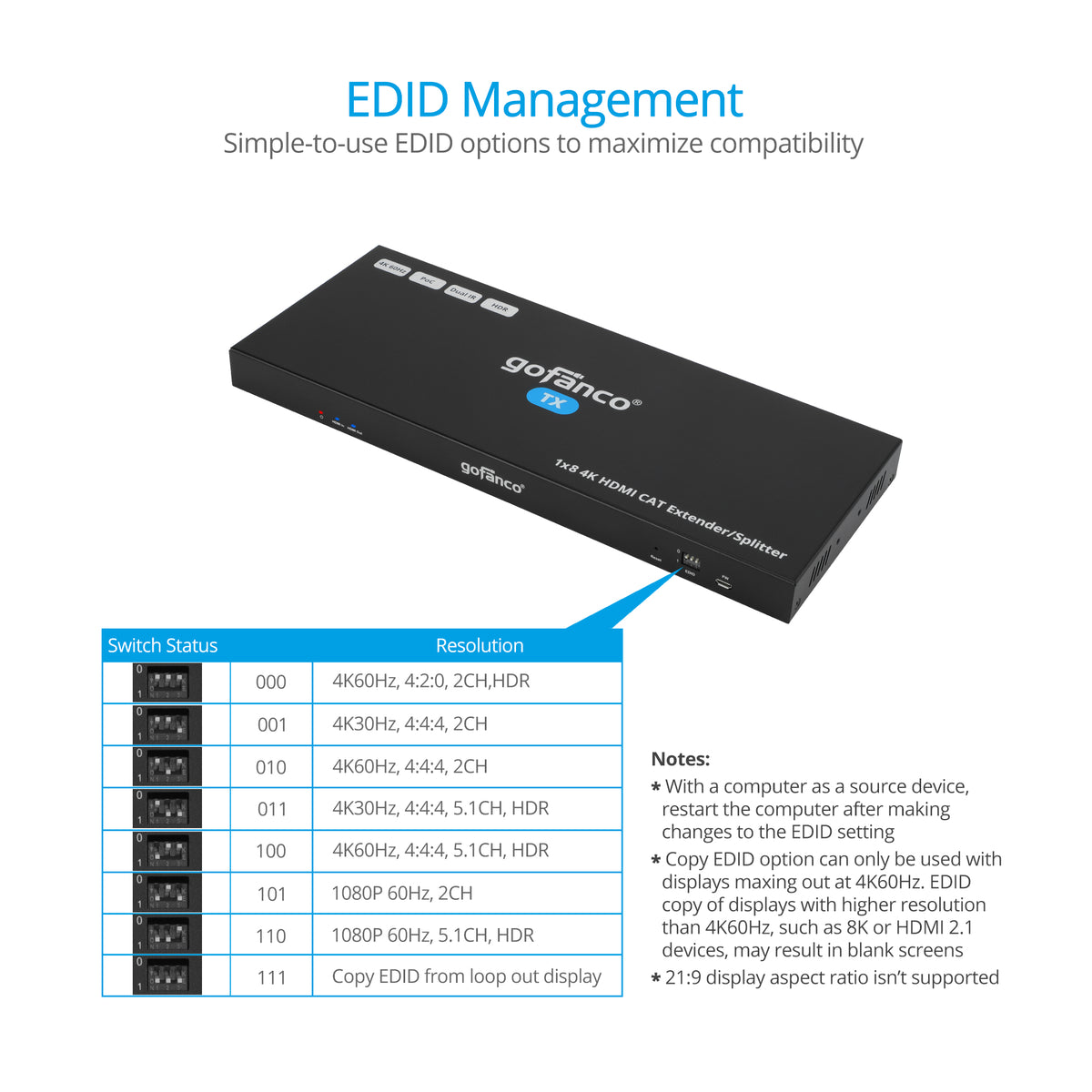

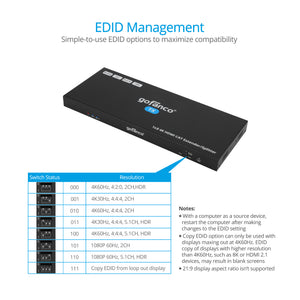

EDID

Simple to use EDID options to maximize compatibility

Eight-Display Mall Promotion Distribution

Install the transmitter in a central AV room and extend one HDMI promotional source to up to eight displays positioned along key shopping routes, helping seasonal campaigns reach shoppers at entrances, atriums, escalators, and retail corridors

Live Basketball Broadcast Stream

From the courtside production booth, operators can monitor live game action and distribute the broadcast feed to up to eight arena displays, keeping fans informed with real-time plays, scores, and replays

Advanced Features

PoC one power for eight receivers / Audio Extractor / EDID management / Mountable

Specification
  • Compliant: HDMI 2.0 / HDCP 1.4
  • Bandwidth: 18Gbps
  • Resolution: 480p, 576p, 720p, 1080p, 4K30Hz, 4K60Hz
  • IR Remote control: Supports 20-60KHz wide frequency remote control
  • Audio spec: Up to 5.1 ch HD audio
  • Power adapter: TX: 12V/3A / RX: 5V/2A

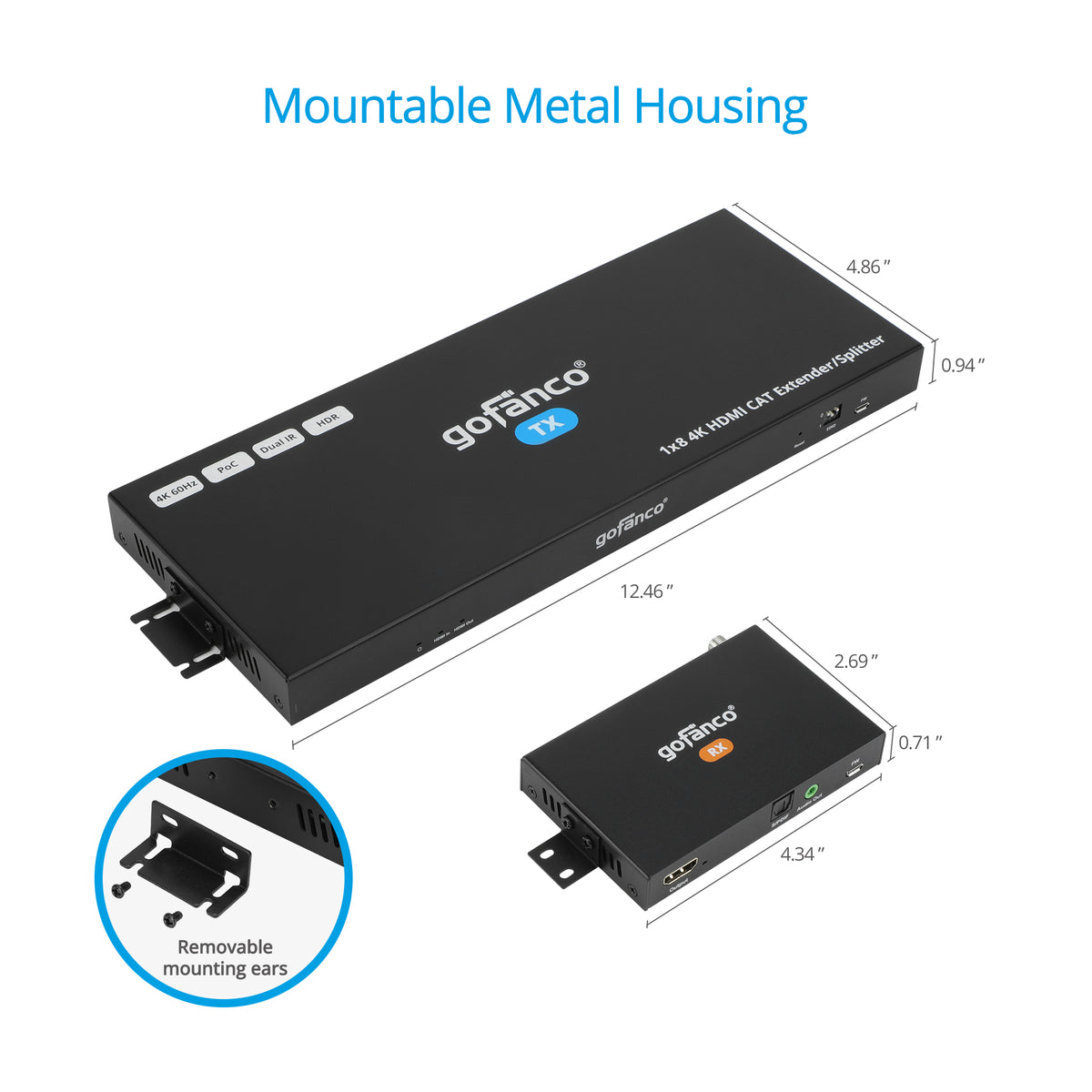

  • Product dimensions: TX: 12.46″(W) x 0.94″(H) x 4.86″(D) / RX: 4.34″(W) x 0.71″(H) x 2.69″(D)
  • Product weight: TX: 2.091lbs / RX: 0.89lbs
  • Housing Material / Color: Metal / Black color

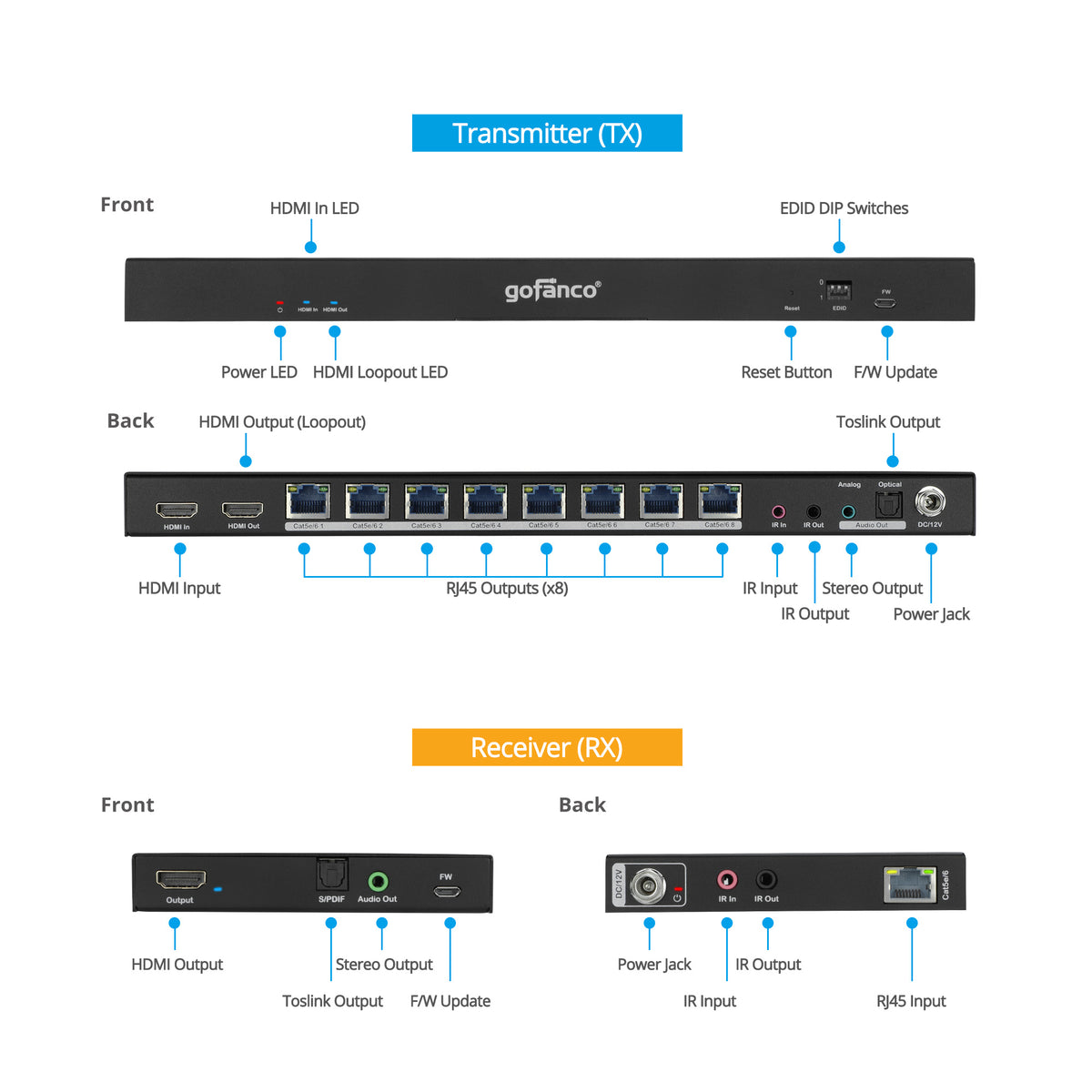

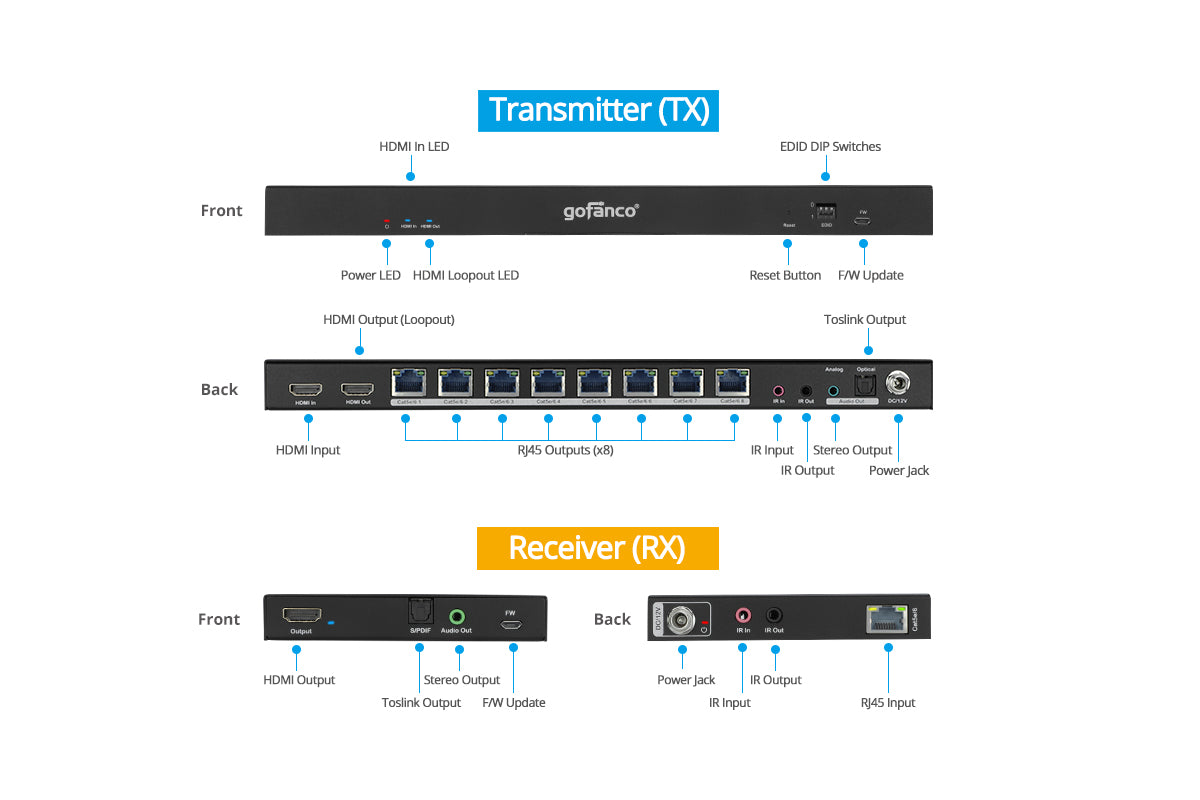

TX

  • 1x 3-pin DIP, EDID switch
  • 1x 5-pin Micro USB, FW updated
  • 1x 19-pin HDMI, Input
  • 1x 19-pin HDMI, Output
  • 8x 8-pin RJ45, Output
  • 2x 3.5mm jack, IR In/Out
  • 1x 3.5mm jack, Audio output
  • 1x S/PDIF (Toslink), Audio output
  • 1x Power jack
  • 1x Reset button

RX

  • 1x 8-pin, RJ45 Input
  • 1x19-pin HDMI, Output
  • 2x 3.5mm jack, IR In/Out
  • 1x 3.5mm jack, Audio output
  • 1x S/PDIF (Toslink), Audio output
  • 1x Power jack
  • 1x 5-pin Micro USB, FW updated
  • Extends HDMI transmission up to 60m (197ft) at 4K 60Hz, 90m (295ft) at 1080p
  • Supports up to 4K60Hz YUV 4:4:4, HDR, HLG

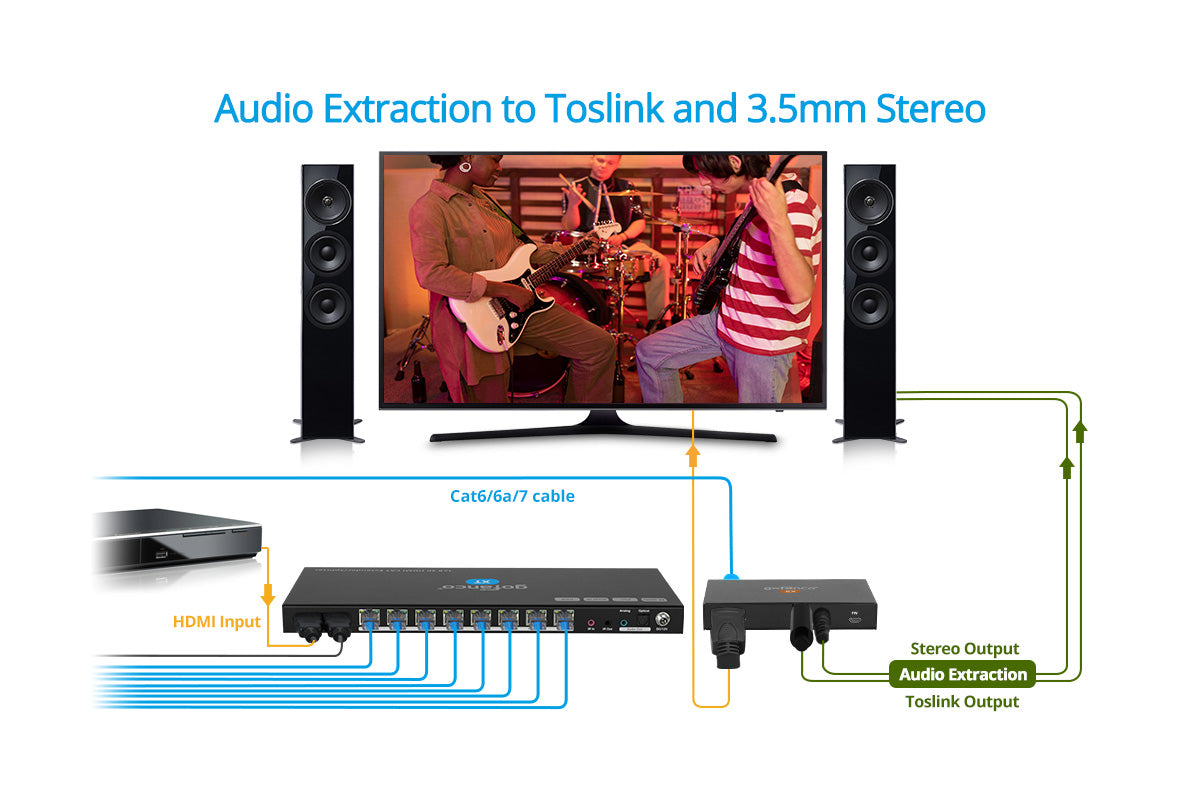

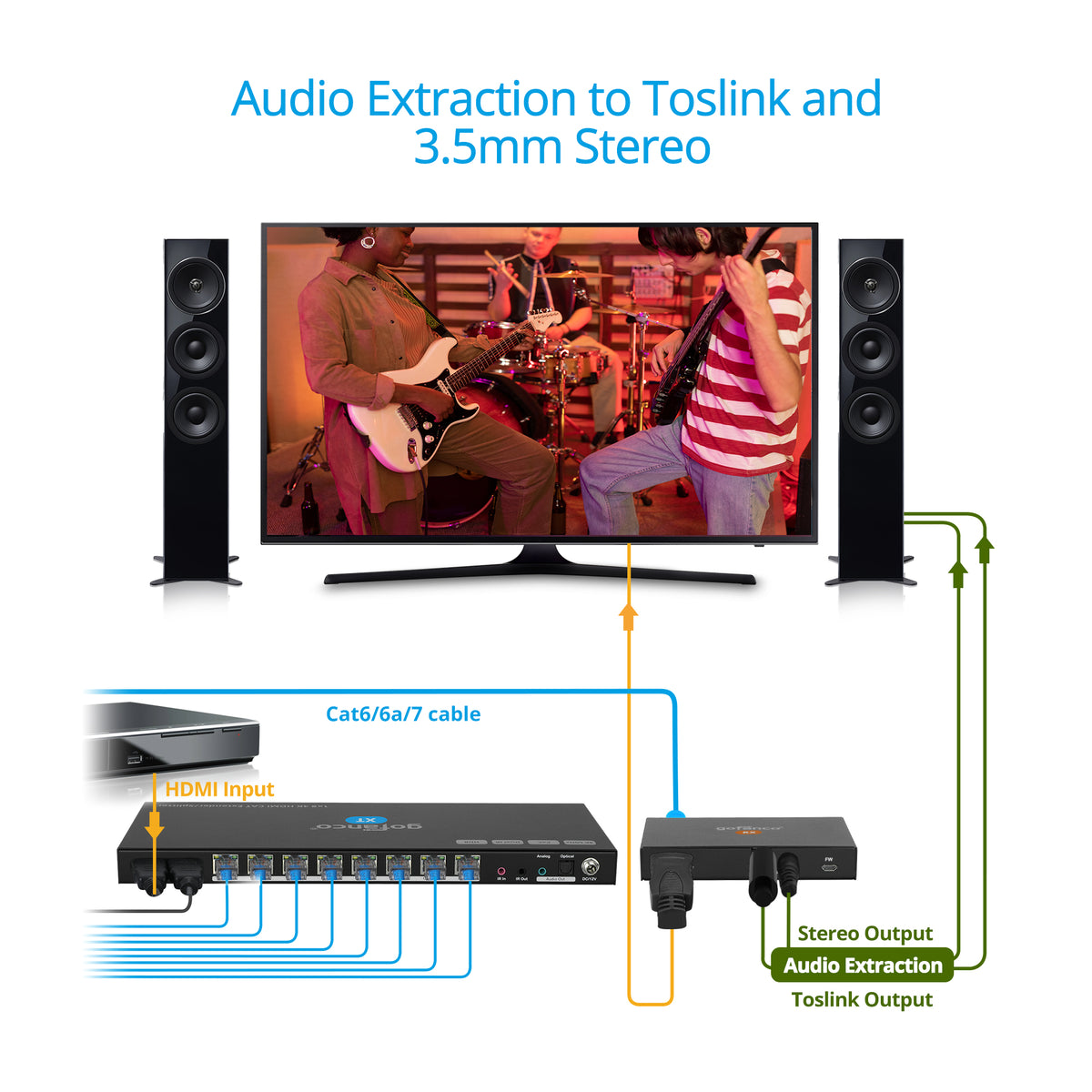

  • Supports up to 5.1ch digital audio & audio extraction to Toslink and Stereo
  • 4K to 1080p auto downscale to support mixed 4K and 1080p displays simultaneously
  • EDID management, bi-directional IR, and firmware upgradable

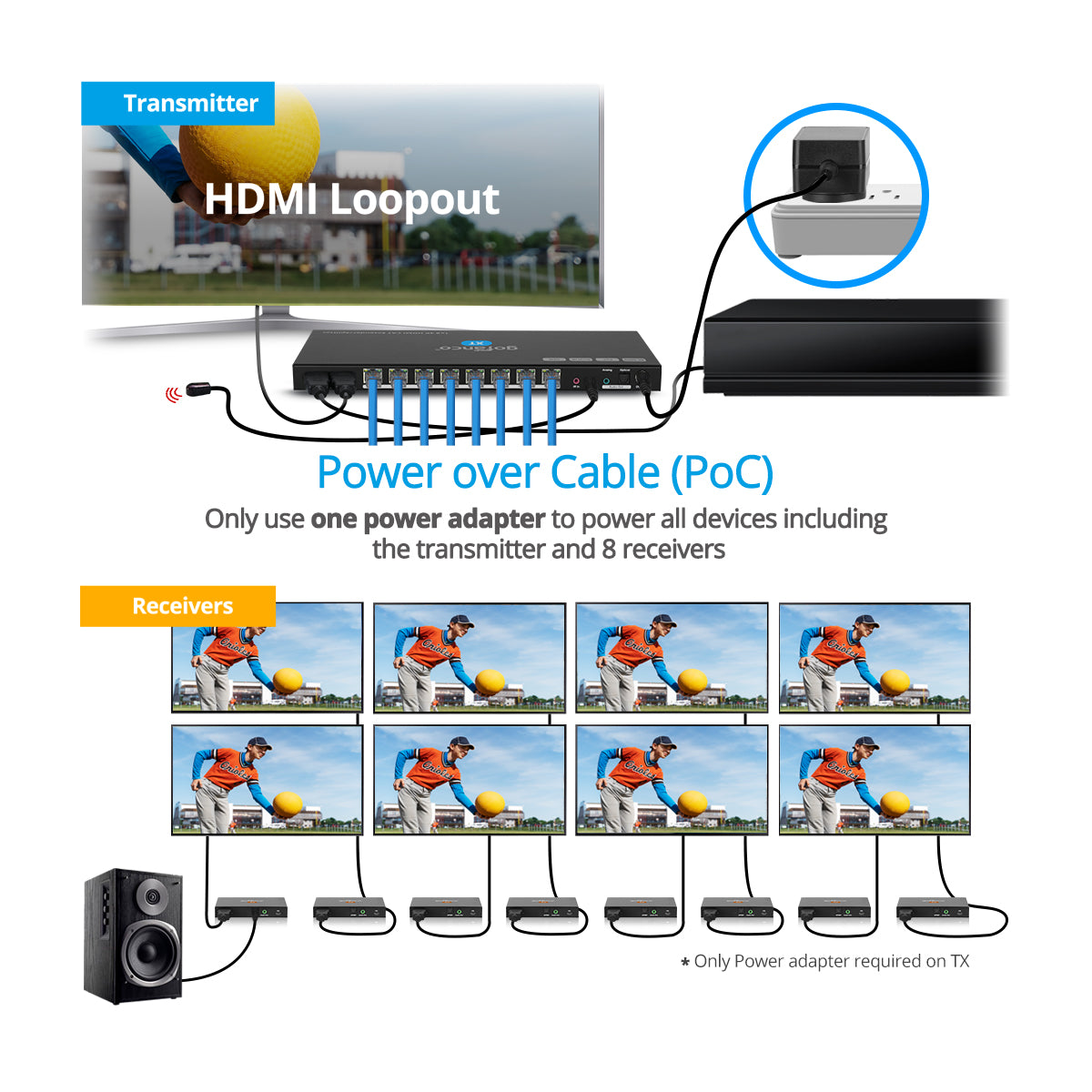

  • PoC (Power-over-Cable) allows the TX’s power supply to power all RXs
  • Equipped with factory reset button
  • UPC: 818354-022971
  • Operation Temperature: 23 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 5 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
