Splitters: HD14Ext-2P

1x2 HDMI 1.4 CAT Extender/Splitter – 70m

Sale price $109.99

Up to 4K30Hz/131ft (40m), 1080p/230ft (70m), HDCP 1.4, Dual IR, HDMI Loopout, PoC, RS232 Control, Surge/Lightning/ESD Protection

92 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K30Hz Resolution
Distance up to 70m
Power over Cable
EDID Management
Audio Compatibility

1x2 HDMI 1.4 CAT Extender /Splitter – 70m

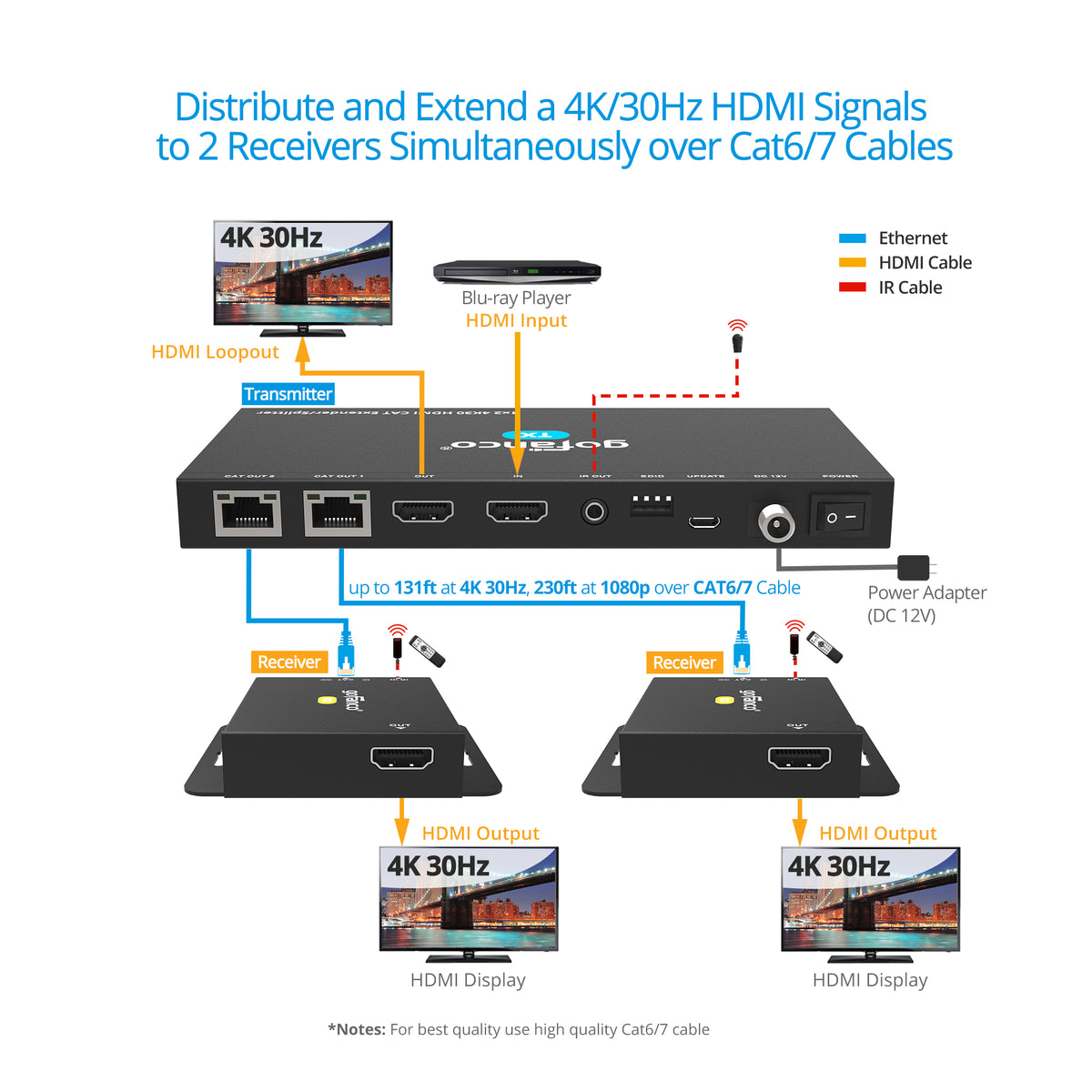

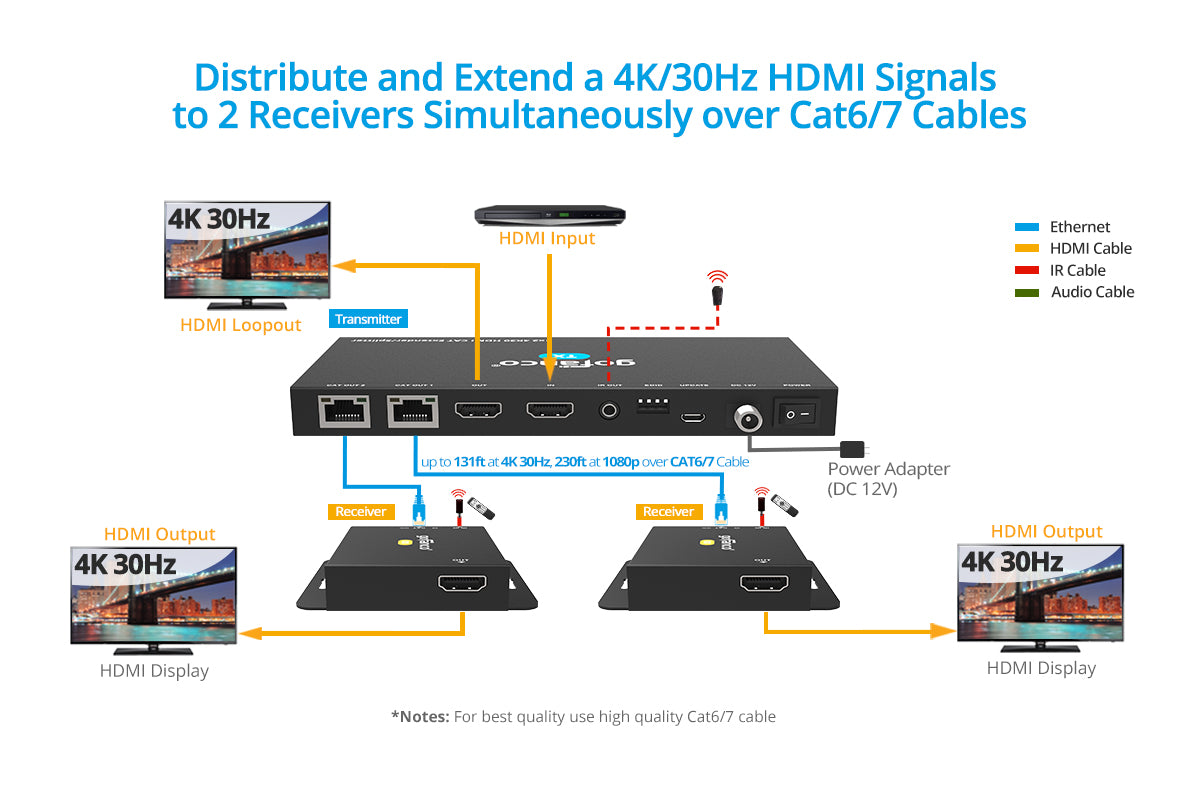

Extend and split one HDMI source to two Cat6/7 &
one HDMI outputs simultaneously at near zero latency

2-Port 4K30Hz HDMI Extender Splitter with PoC

Resolution

Ultra HD Resolution Support Up to 4K30Hz

Extended

Transmits 4K30 to 131ft & 1080p Up to 230ft

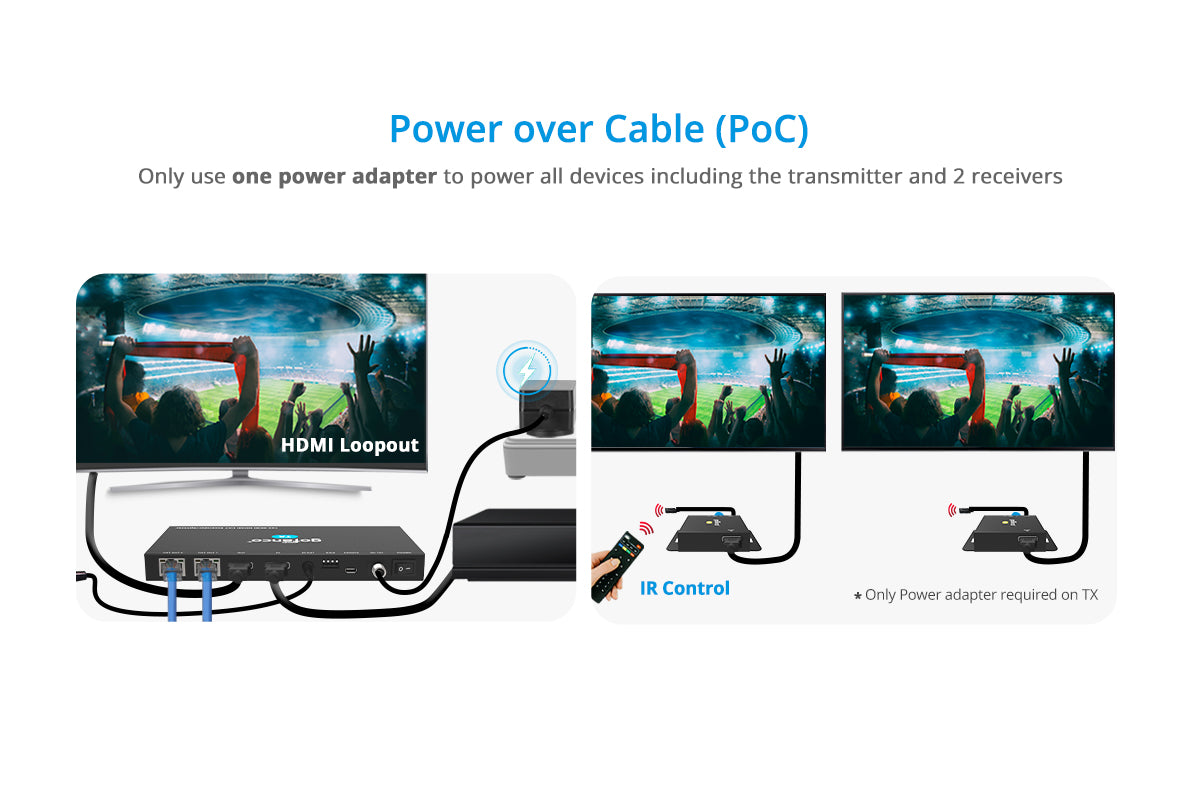

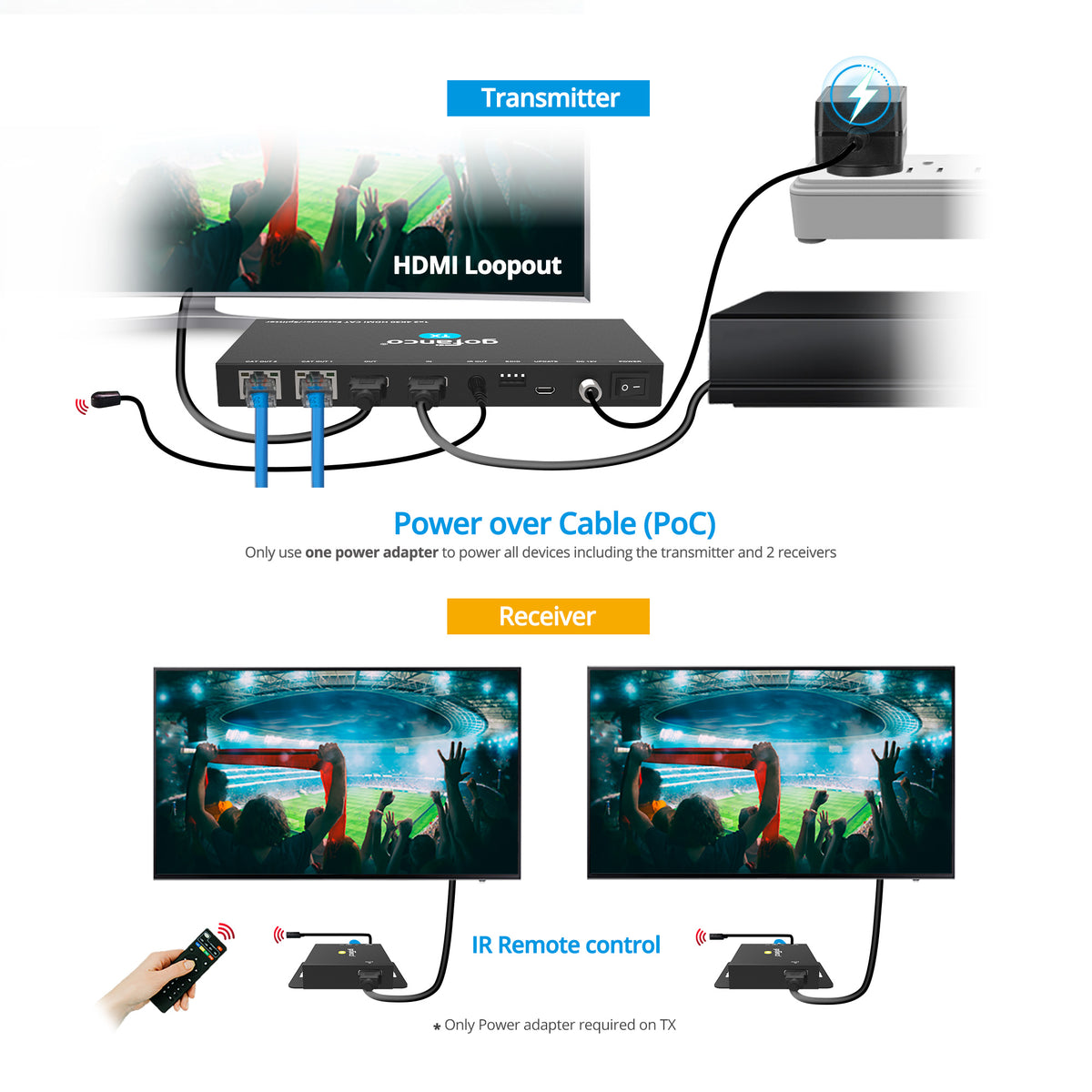

PoC

PoC Technology Powers All RXs from One TX

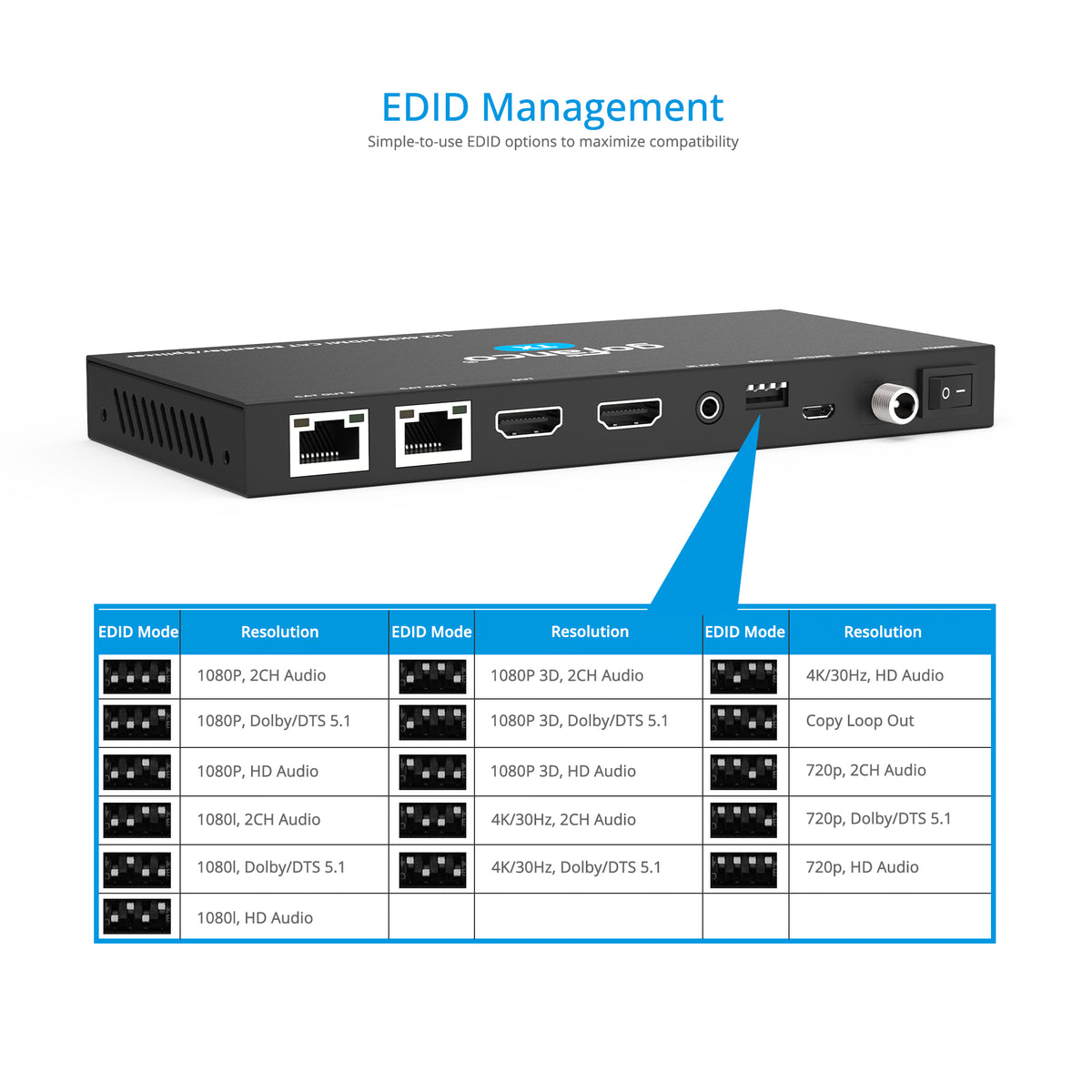

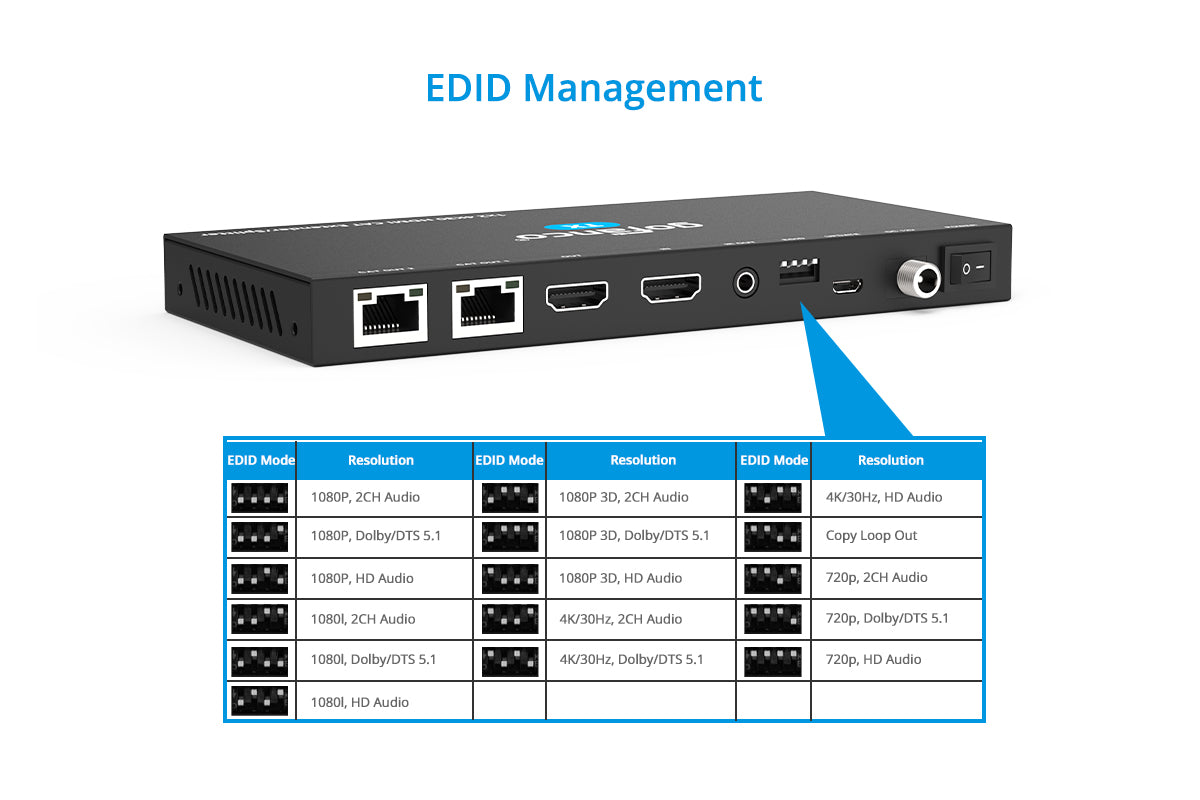

EDID

Smart EDID Management for Max Compatibility

Extender/ Splitter

Engineered for seamless integration with audio-visual ecosystems.
Ideal for home theaters, conference rooms, or digital signage setups

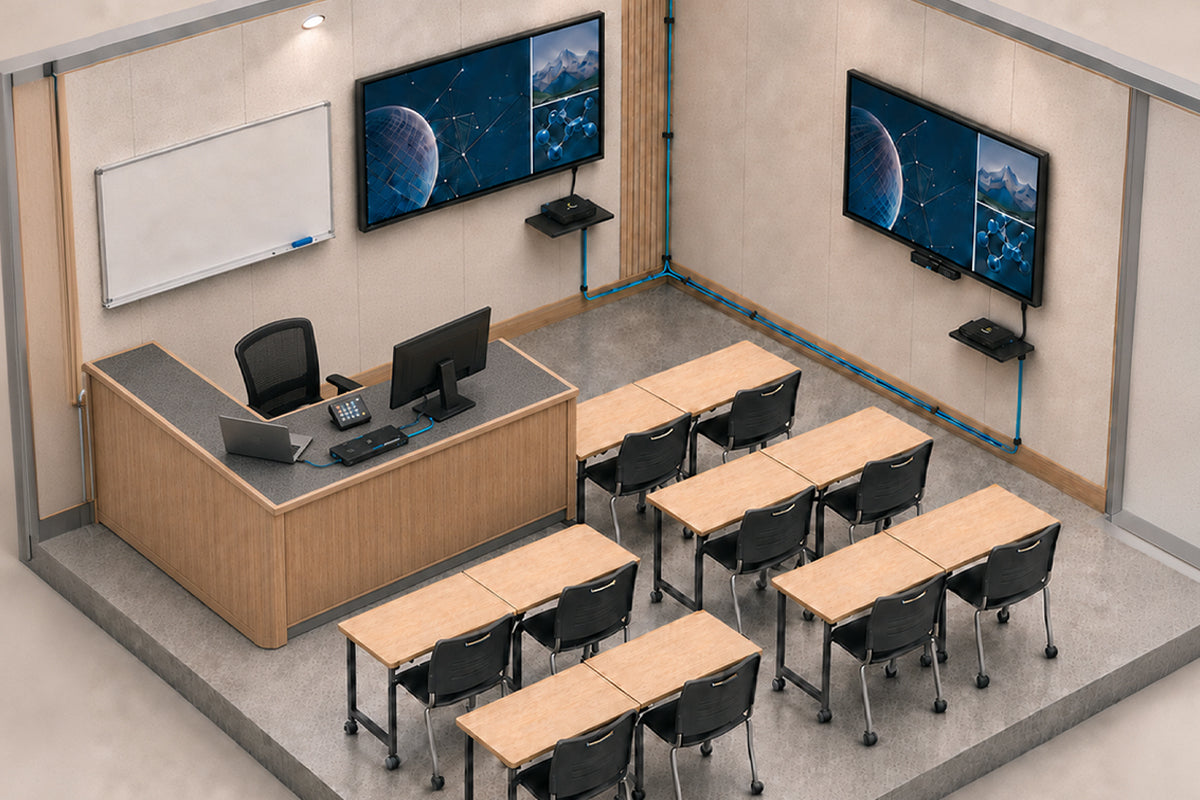

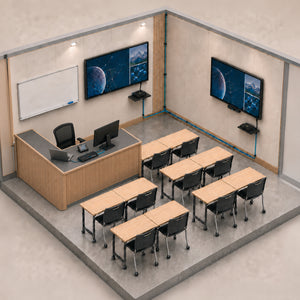

Dual-Display Classroom Presentation

Extend one HDMI source to two displays for clear, synchronized content sharing in classrooms, training rooms, and meeting spaces

Advanced Features

Extend 2 displays and local display, PoC, EDID management, Digital audio, IR remote control, Mountable
Specification
  • Video resolutions: Up to 4K30Hz
  • Bandwidth: 10.2Gbps
  • HDCP 1.4 compliant
  • Distance: 131ft (40m) at 4K/30Hz, 1080p at 230ft (70m)
  • HDMI Audio: PCM/LPCM/DTS-HD/DTS/Dolby Digital
  • One-way IR
  • Power adapter: 12V/1A

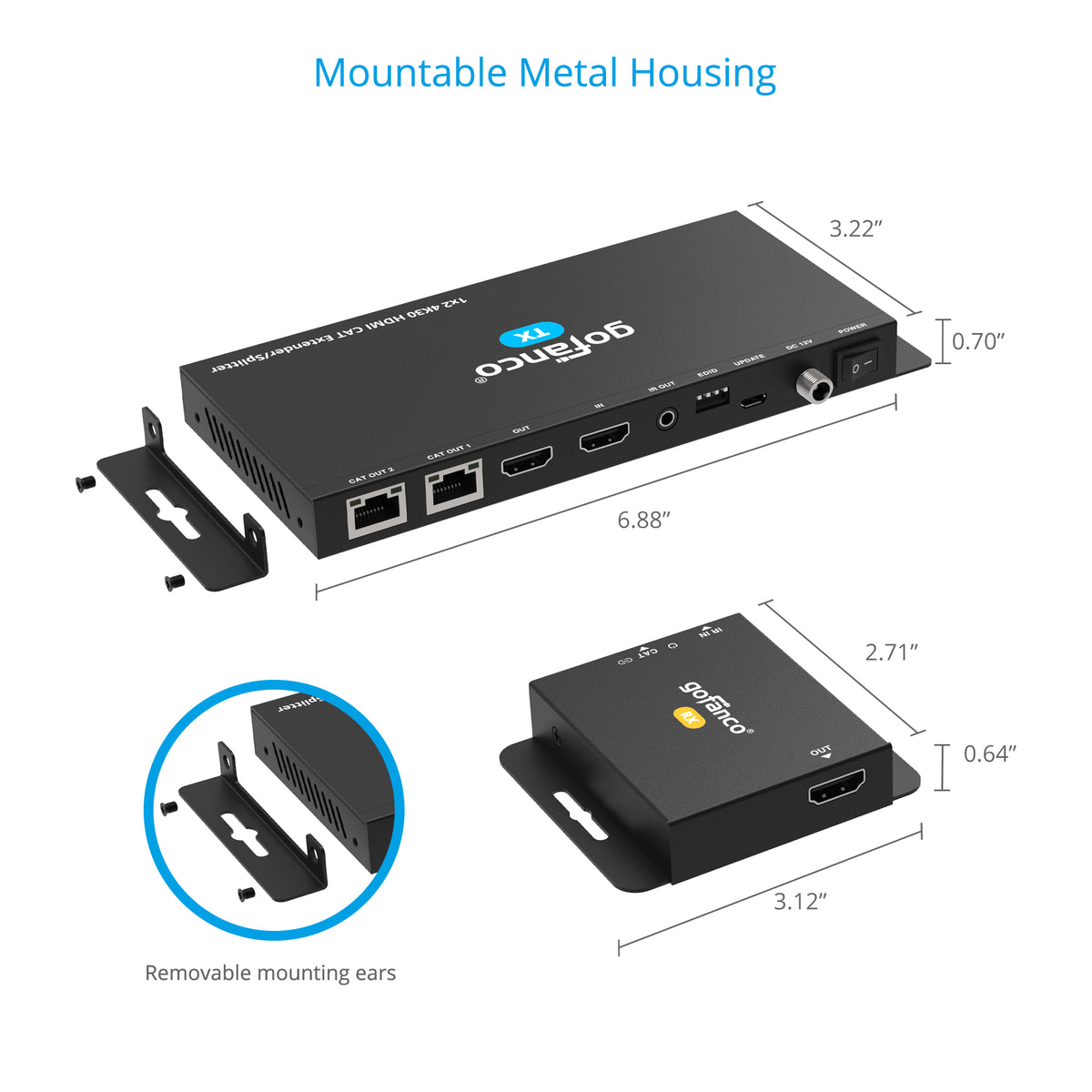

  • Product Dimensions: TX: 6.89″(W) x 0.71″(H) x 3.23″(D)/ RX: 3.13″(W) x 0.65″(H) x 2.72″(D)
  • Weight: TX: 0.80lbs / RX: 0.28lbs(2pcs)
  • Housing Material / Color: Metal / Black color

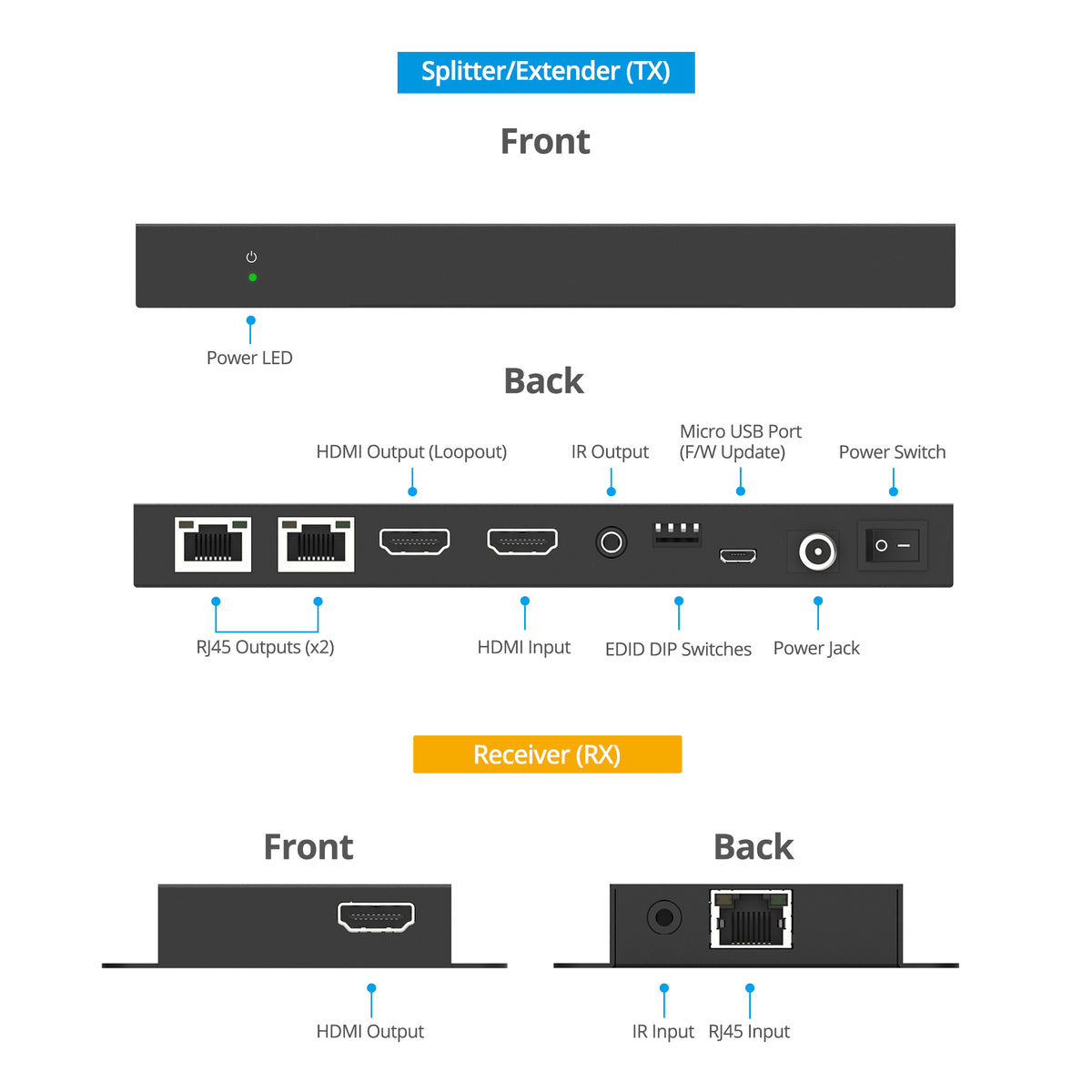

TX

  • 2x 19-pin, HDMI, Input/Output
  • 2x 8-pin, RJ45, Output
  • 1x 3.5mm IR, Output
  • 1x Power Jack
  • 1x 4-pin DIP Switch for EDID
  • 1x 5-pin Micro USB, FW update
  • 1x DC jack
  • 1x Power Switch

RX

  • 1x 19-pin HDMI, Output
  • 1x 8-pin, RJ45 Input
  • 1x 3.5mm IR, Iutput
  • Extend and split one HDMI source to two Cat6/7 & one HDMI outputs simultaneously at near zero latency
  • Extends up to 131ft (40m) at 4K/30Hz, and 1080p at 230ft (70m) over Cat6/7
  • Supports PCM/LPCM/DTS-HD/DTS/Dolby Digital HDMI audio
  • HDMI loopout for a local display, One-Way IR Control, PoC
  • Supports Surge/Lightning/ESD Protection
  • No driver required; Surface-mountable metal housing.
  • UPC: 818354-023121
  • Operation Temperature: 23 to 95 degrees F
  • Storage Temperature: 14 to 140 degrees F
  • Relative humidity: 10 to 80% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
