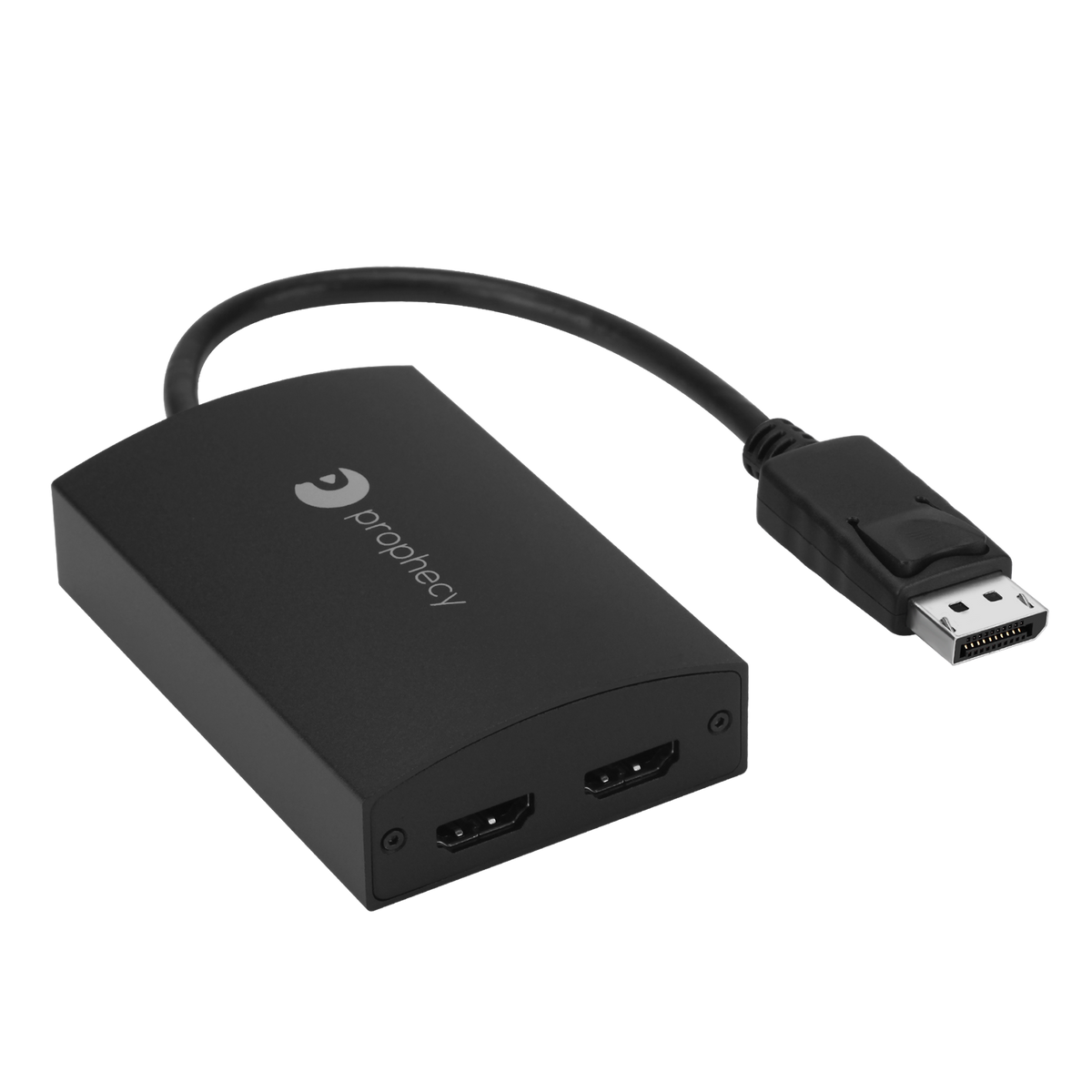

1x2 DisplayPort to HDMI MST Hub
Other: PRO-MSTDP2HD

1x2 DisplayPort to HDMI MST Hub

Sale price $52.99

DP to Dual HDMI MST Hub, Extended Display Mode, 4K @30Hz, for Windows PCs, Not Mac OS Compatible, TAA Compliant

157 in stock
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
MST Hub
Dual HDMI
4K30Hz Resolution
USB Powered

DisplayPort to Dual HDMI MST Hub

Resolution

Supports up to 4K @ 30Hz for clear, high-quality video output.

MST Function

Connect 2 displays to your system via a single DP 1.2 output

Display Modes

Supports Mirror, Extended, and Video Wall modes for versatile multi-display setups

Plug & Play

No driver installation required. Powered by USB connection
Specification
  • Input: DisplayPort 1.2 or later
  • Output: 2 × HDMI
  • Max Resolution: 4K @ 30Hz
  • Video bandwidth: 21.6Gbps
  • HDCP Compliance: 1.3
  • Audio support: LPCM, AC3, DTS
  • Compatibility: Windows 10 / 8.1 / 8 / 7
  • Power: USB-powered
  • 1x 20-pin, DisplayPort, Input
  • 1x Micro-USB for power
  • 2x 19-Pin HDMI, Output
  • Dual HDMI Display Support – Connect two HDMI displays through a single DisplayPort 1.2 output with Mirror, Extended, or Expand modes.
  • 4K @ 30Hz Resolution – Supports up to 4K @ 30Hz with a DisplayPort 1.2 or later source for full MST functionality.
  • AMD Eyefinity Compatible – Supports multi-screen SLS gaming and digital signage applications.
  • Plug & Play for Windows – No driver installation required. Mac systems support mirroring only and do not support MST.
  • Premium Taiwan Design – Built with high-quality components, a durable metal enclosure, and ESD protection. FCC, CE, and RoHS compliant.
  • UPC: 818354-021943
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: Taiwan
