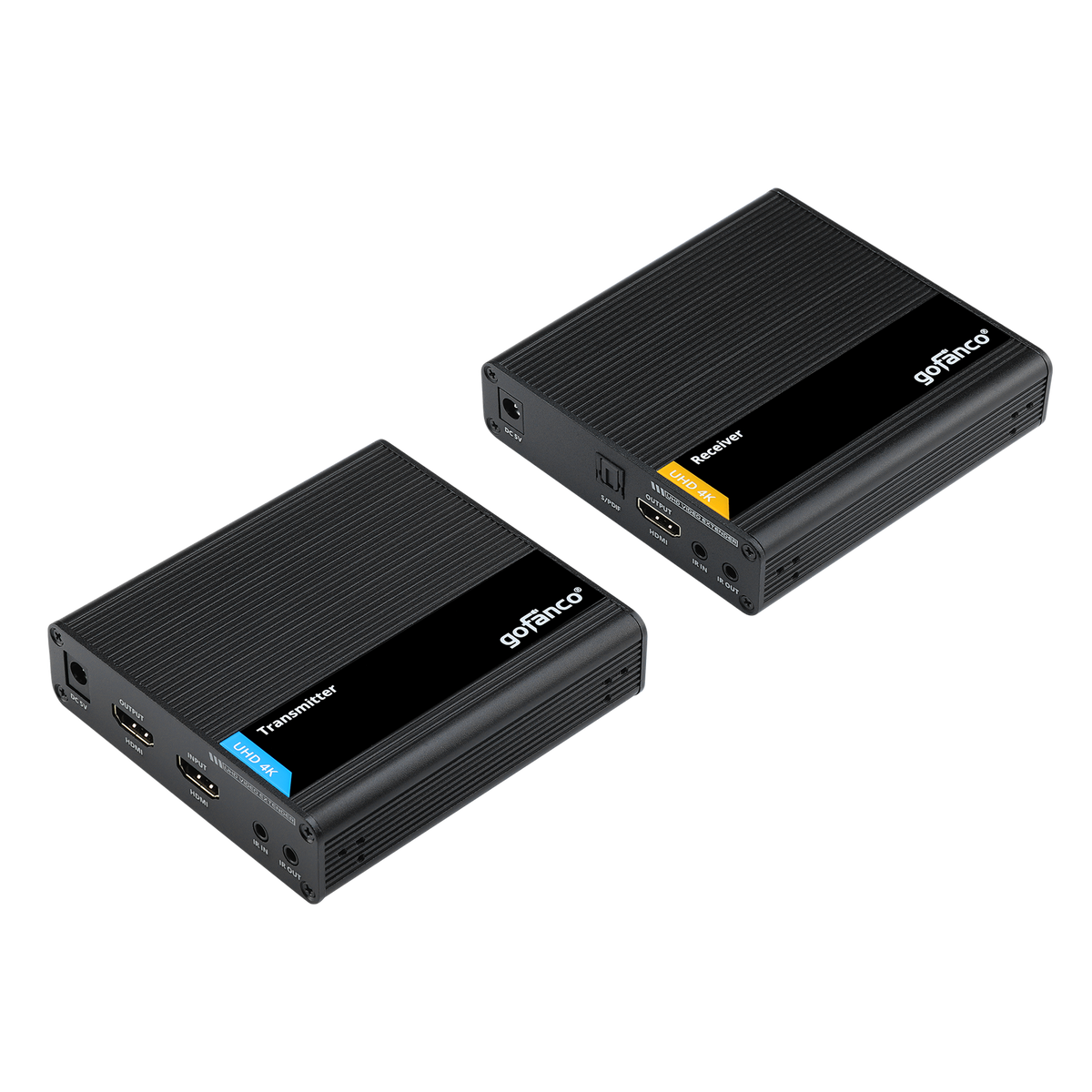

18G HDMI 2.0 CAT Extender with Audio - 70m
Extenders: HD20Ext-Aud

18G HDMI 2.0 CAT Extender with Audio - 70m

Sale price $109.88

Loopout on TX, Up to 230ft (70m) at 4K60Hz YUV 4:4:4, HDR, 18Gbps, HDCP 2.2, Dual IR, Toslink Audio, Near Zero Latency

Hurry, only 4 items left in stock!
1 Year Warranty
30 Days Return
Fast delivery in 48 Hours
4K60Hz Resolution
Distance up to 70m
HDMI Loopout
IR Bi-directional
ARC Audio

4K60Hz HDMI Extender with Audio Extraction

Resolution

Ultra HD Resolution Support Up to 4K60Hz

Distance

Extends 4K60Hz signal up to 230ft

Extractor

Extracts audio from either HDMI source or ARC

IR

Bi-Directional IR Control for Source Devices
Specification
  • Compliant: HDMI 2.0 / HDCP 2.2 /1.4
  • Bandwidth: 18Gbps
  • Resolution: Up to 4K60Hz
  • IR Remote control: Supports 20-60KHz wide frequency remote control
  • Audio spec: Up to Dolby Digital 5.1Ch
  • Power adapter: 5V/2A
  • Product dimensions: TX/RX: 4.2" (W) x 1.0" (H) x 3.9 "(D)
  • Product weight: TX/RX: 0.46 lbs
  • Housing Material / Color: Metal / Black color

TX

  • 1x 19-pin HDMI, Input
  • 1x 19-pin HDMI, Output
  • 1x 8-pin RJ45, Output
  • 2x 3.5mm jack, IR In/Out
  • 1x Power jack
  • 1x Reset button

RX

  • 1x 8-pin, RJ45 Input
  • 1x19-pin HDMI, Output
  • 2x 3.5mm jack, IR In/Out
  • 1x Slide switch, Audio selection
  • 1x S/PDIF (Toslink), Audio output
  • 1x Power jack
  • Extends HDMI transmissions up to 70m (230ft) at 4K and 1080p
  • Supports UHD 4K60Hz YUV 4:4:4, HDR
  • HDMI loop-out equipped on the TX, bi-directional IR
  • Supports 5.1ch digital audio and audio extraction to Toslink
  • Near zero latency
  • Lightning/Surge/ESD protection
  • UPC:818354-022612
  • Operation Temperature: 23 to 104 degrees F
  • Storage Temperature: -4 to 140 degrees F
  • Relative humidity: 5 to 90% RH (non-condensing)
  • Regulatory approvals: FCC / CE / RoHS
  • Limited One-Year Warranty and Lifetime Product Support
  • Country of origin: China
